Zanussi ZHI 600 User manual

INTEGRATED
COOKER HOOD
ZHI 600
INSTRUCTION BOOKLET

2
Thank you for buying a Zanussi product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further
information on Zanussi Products, please contact our Customer Care Department. For general enquiries concerning
your Zanussi appliance or for further information, visit our website at http:\\www.zanussi.co.uk
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire Tel: [phone](*)
SL1 1DZ Fax: [phone]
* calls to this number may be recorded for training purposes.
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Extraction mode
Recirculation
Maintenance and Cleaning
External Cleaning
Synthetic Paper Grease Filter
To Replace the Synthetic Paper Grease Filter
Charcoal Filter (Optional Extra)
To Remove the Charcoal Filter
Changing the Light Bulb
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Installation Instructions
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Ducting
Clearance Height
Unpacking
The fixing kit comprises
Fitting the Wall Brackets
Venting
To Fit the Ducting
Recirculation
Fitting the Cooker Hood to the Wall
Decor Panel
Fitting a Decor Panel to the Hood Visor
To Refit the Hood With Decor Panel Attached
Adjustment
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

3
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of
the meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a
qualified electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a cut-
out device which will operate if the cooker hood is
installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor
becomes overheated. If the cut-out device is
activated, switch off the fan motor and allow the
cooker hood to cool. The cut-out device will reset
itself when the fan motor has cooled significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a
fuel burning appliance such as a central heating boiler
then its flue must be of the room sealed or balanced
flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which
is being used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal filters are not replaced as
recommended.
• Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or more
serious malfunction. Refer to your local Zanussi
Service Force Centre. Always insist on genuine spare
parts.

4
YOUR APPLIANCE
OPERATING INSTRUCTIONS
This cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
To obtain the best performance it is advisable
to switch on the hood a few minutes before
you start cooking and leave it running for
approximately 15 minutes after finishing.
Cooker Hood Controls
S. Automatic Microswitch
The microswitch overrides the controls, and
switches off the hood when the visor is closed.
When the visor is opened the hood will resume
the function of previoussetting.
M. Fan Speed Control
Position 0 - Off
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
L. Light ON/OFF control
To Operate
Open the visor and select the required functions.
60

5
Extraction
The contaminated air enters the hood passing through
the grease filter and out through the ducting into the
atmosphere.
Recirculation
A charcoal filter enables the cooker hood to recirculate
the air back into the kitchen.
When the extraction mode is selected the
charcoal filter is not required.
Never do flambécooking under this cooker
hood.
Take extra care when frying and never leave
frying pans unattended during use, as over-
heated fats and oils can catch fire.
Do not leave naked flames under the cooker
hood.
Ensure the visor is open when using the hob,
even if the fan on the hood is not switched on.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.
Recirculation Mode
Extraction Mode

6
MAINTENANCE AND CLEANING
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, as a
build up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm
soapy water using a mild detergent.
Always wear protective gloves when cleaning
the hood.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Synthetic Paper Grease Filter
The filter has saturation indicators, which are small
squares made from a series of dots. When the
white paper inside the squares becomes saturated
with grease the coloured dots start to run and
spread across the paper, indicating that the filter
has reached saturation point and must be
replaced.
To replace the synthetic paper grease
filter
1. Open the visor.
2. Press inwardly on the two slide catches and lower
the grille to the stop position. Raise the front edge
of the grille through a 45°angle until it detaches
itself from the guides.
3. Carefully ease out the metal wire retaining clips.
4. Clean the metal grille and clips before replacing
the grease filter.
Handle the wire clips with care and
keep away from children as they have
sharp points.

7
The synthetic paper grease filter cannot be
cleaned.
It must not be washed.
Charcoal Filter (for use in recirculation
mode)
The charcoal filter cannot be cleaned, it should be
replaced approximately every three months or more often
if the hood is used for more than three hours per day.
To Remove the Charcoal Filter
1. Remove the thumb screw through the center of
the charcoal filter, from the motor support.
2. The charcoal filter can now be removed.
This appliance can be a fire hazard if the
grease and charcoal filters are not replaced as
recommended.
Changing the Light Bulb
The bulb should be replaced with a 220-240 volt 40 watt
clear cylindrical shape bulb with a small (E14) screw
thread.
Replacement charcoal filters, grease filters and light
bulbs can be obtained from your local Service Force
Centre.

8
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during
operation
If after all these checks, the problem persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to
provide proof of purchase for any
in-guarantee service calls.
Solution
•Check the hood is connected to the electricity supply.
•Check that the fan speed control is set to 1, 2 or 3.
•The fan speed is set high enough for the task.
•The grease filter is clean.
•The kitchen is adequately vented to allow the entry
of fresh air.
•If set up for recirculation, check that the charcoal
filter is still effective.
•If set up for extraction, check that the ducting and
outlets are not blocked.
•The safety cut-out device has been tripped.
•Turn off the hob and then wait for the device to reset.
In-guarantee customers should ensure
that the above checks have been made as
the engineer will make a charge if the fault
is not a mechanical or electrical
breakdown.
If you require an engineer or wish to purchase spare
parts contact your local Service Force Centre by
telephoning:
08705 929929
Your telephone call will be routed to your local
Service Force Centre. For further details please see the
accompanying customer care book.
For general assistance with your appliance or for
information on Zanussi products please contact our
Customer Care Department.
Customer Care Department,
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone]*
* calls to this number may be recorded for training
purposes.

9
PEACE OF MIND FOR TWENTY FOUR MONTHS
STANDARD GUARANTEE CONDITIONS
We, Zanussi Ltd., undertake that if within twenty four months of the date of the purchase this Zanussi built-in
appliance or any part there of is proved to be defective by reason only of faulty workmanship or materials, the
company will, at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on
condition that:
•The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
•The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
•The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
•All service work under this guarantee must be undertaken by Zanussi Service Force Centre.
•Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or removable
parts of glass or plastic.
•Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
•Appliances found to be in use within a commercial environment, plus those which are the subject of rental
agreements.
•Products of Zanussi manufacture which are not marked by Zanussi Ltd.
This guarantee is in addition to your statutory and legal rights.
ZANUSSI EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualifications:
•The guarantee starts from the date you first purchased your product.
•The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
•This guarantee relates to you and cannot be transferred to another user.
•Your new home is within the European Community (EC) or European Free Trade Area.
•The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able to
look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

10
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT: 35 cm
WIDTH: 60 cm
DEPTH: 27-36 cm
DEPTH WITH VISOR OPEN: 54-63 cm
WEIGHT GROSS: 13,0 kg
NET: 11,0 kg
ELECTRICAL SUPPLY: Voltage (50Hz) 220-240 V
POWER CONSUMPTION: 190 W
FAN MOTOR: 110 W
LAMP: 2 x 40 W 80 W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7 KW (max)
GAS HOB: 10 KW (max)
SLOT-IN GAS COOKER 13.5 KW (max)
SLOT-IN ELECTRIC COOKER 12.4 KW (max)
CHARCOAL FILTERS: Supplied
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modifications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
WARNING: DOUBLE INSULATED DO NOT
EARTH
Electrical Requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your own
safety this should be undertaken by a qualified
electrician e.g. your local Electricity Board, or a
contractor who is on the roll of the National
Inspection Council for Electrical Installation
Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate inside the cooker
hood.
This appliance is fitted with a 2 core mains
cable and must be permanently connected to
the electricity supply via a double-pole switch
having 3mm minimum contact gap on each
pole. A Switched Fuse Connection Unit to
BS1363 Part 4, fitted with a 3 Amp fuse, is a
recommended mains supply connection
accessory to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS 800: 1988 and
EEC Directive No. 78 308 regarding
suppression of radio and television
interference.

11
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is
installed it is easily accessible to an
engineer in the event of a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of
this cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be fitted for electric cables,
water pipes or gas.
If it is necessary to fix the hood to a hollow
construction plaster or partition board
structure then it should be sufficiently
reinforced to be quite rigid in the area of the
cooker hood mounting brackets, and the
appropriate rawl plugs used for this type of
fixing (not supplied).
Ducting
The ducting must be fire retardant 100mm (4ins)
in diameter and the length should be no
more than:
3 metres with one 90°bend
2 metres with two 90°bends
Bends of more than 90°will reduce the
efficiency of the hood and reduce the airflow.
Clearance Height
The cooker hood is designed to be fitted over
a cooking appliance at the clearance heights
stated, providing the maximum output of the
appliance beneath does not exceed the
maximums quoted in the Technical Specifications.
If the output of the appliance below the cooker
hood exceeds the maximum outputs quoted,
please refer to the cooker manufacturer’s
installation instructions.

12
A: Built-in Electric Hob: 650mm clearance
B: Built-in Gas hob: 700mm clearance
C: Slot-in Electric Cooker: 685mm clearance
D: Slot-in Gas Cooker: 787mm clearance
Hob
Clearance Height
A clearance height of 650mm (25 1/2 ”) is required when
installed above a built-in electric hob, or 700mm (27 1/2
”) when installed above a built-in gas hob.
A clearance height of 685mm (27”) is required when
installed above a slot-in electric cooker, or 787mm (30
1/2 ”) when installed above a slot-in gas cooker.
When installed between adjoining wall
cabinets, the wall cabinets must not overhang
the hob and the distance between the
underside of the cabinet and the worktop must
be 450mm. If the height of the wall cabinet is
less than 450mm, a gap of 50mm must be
maintained either side of the hob.
This cooker hood must not be installed above
a cooking appliance with a high level grill.
Unpacking
The fittings supplied to install this cooker
hood can be found with the instruction book
inside the packaging.
The fixing kit comprises:
2 - Wall fixing brackets
6 - Decor panel fixing screws
4 - Security fixing screws
Fitting the Wall Brackets
1. Use the paper template provided to mark the hole
positions on the wall for the bracket fixing screws
(not supplied).
2. Check the hole distances are correct with a tape
measure as stated on the template.
3. At this stage it is important to allow 15mm
(1/2”) clear space above the cooker hood to
enable it to be hooked onto the brackets and for
subsequent removal for decorating or servicing.

13
Venting
The hood is more effective when used in the
extraction setting (ducted to the outside).
Venting kits may be purchased through
your retailer or DIY store, and must be
ducted to an outside vent of 100mm (4”)
minimum.
The ducting used must be manufactured from
fire retardant material.
When the hood is ducted externally the
charcoal filter must be removed.
To Fit the Ducting
1. Open the grille by pressing inwardly on the
actuator bolts at each side of the grille, while
pulling the grille panel downwards. The grille
panel will slide into the intermediate position.
Raise the lower edge of the grille forward through
45°angle until the grille becomes detached from
the slide mechanism.
2. Align the flat sides on the spigot with the recesses
in the top of the casing. Insert and snap fix the
spigot into the casing.
3. Connect the ducting to the spigot and make an
air tight seal.
4. Remove the charcoal filter.
Recirculation
The charcoal filter (optional extra) must be fitted for
recirculation.

14
Fitting the Cooker Hood to the Wall
1. Fit the brackets with the round ends facing
downwards using the plastic rawl plugs and
screws provided.
2. Once the brackets are secured, lift the hood
squarely to the wall slightly higher than the
brackets. Lower the cooker hood until it is located
onto the two brackets.
Ensure that the cooker hood is correctly
located before letting go.
3. By loosening the screws in the extension arm
the hood can be aligned with the front of the
adjoining wall cabinets.
4. The hood should be secured on each side to the
adjoining wall cabinets using the 4 x 15mm (1/2
ins) security screws provided.
5. Adjust the lower spacer panel at the rear of the
hood to close the gap to the wall.
Decor Panel
The dimensions of the door panel should be
59.6cm (23 1/2 ins) wide by 35cm (13 3/4 ins) in
height.
Fitting a Decor Panel to the Hood
Visor
1. Remove the complete visor assembly by pulling
open into the operating position, simultaneously
press down on the release catch located behind
the visor on the left hand side of the casing.
2. Using the paper template provided, mark the
screw hole positions on the reverse side of the
decor panel. Ensure that the paper template is
aligned with the top edge of the decor panel.

15
Failure to align the top edge of the decor panel
with the template will prevent the visor from
opening when installed.
3. Before drilling, use a tape measure to check the
distances of the screw holes (as given on the
template). The template may have altered due
to dampness after manufacture.
4. Use the 6 x 15mm (1/2 ins) round headed screws
provided to attach the decor panel to the hood
visor.
To Refit the Hood with Decor Panel
Attached
1. Insert the upper visor guides into the upper track
in the front of the casing.
2. Hinge down the bottom edge of the visor and
insert the lower guides into the track in the bottom
of the casing.
3. Push the visor in until an audible click is heard.
4. The visor can now be opened and closed in its
normal function.

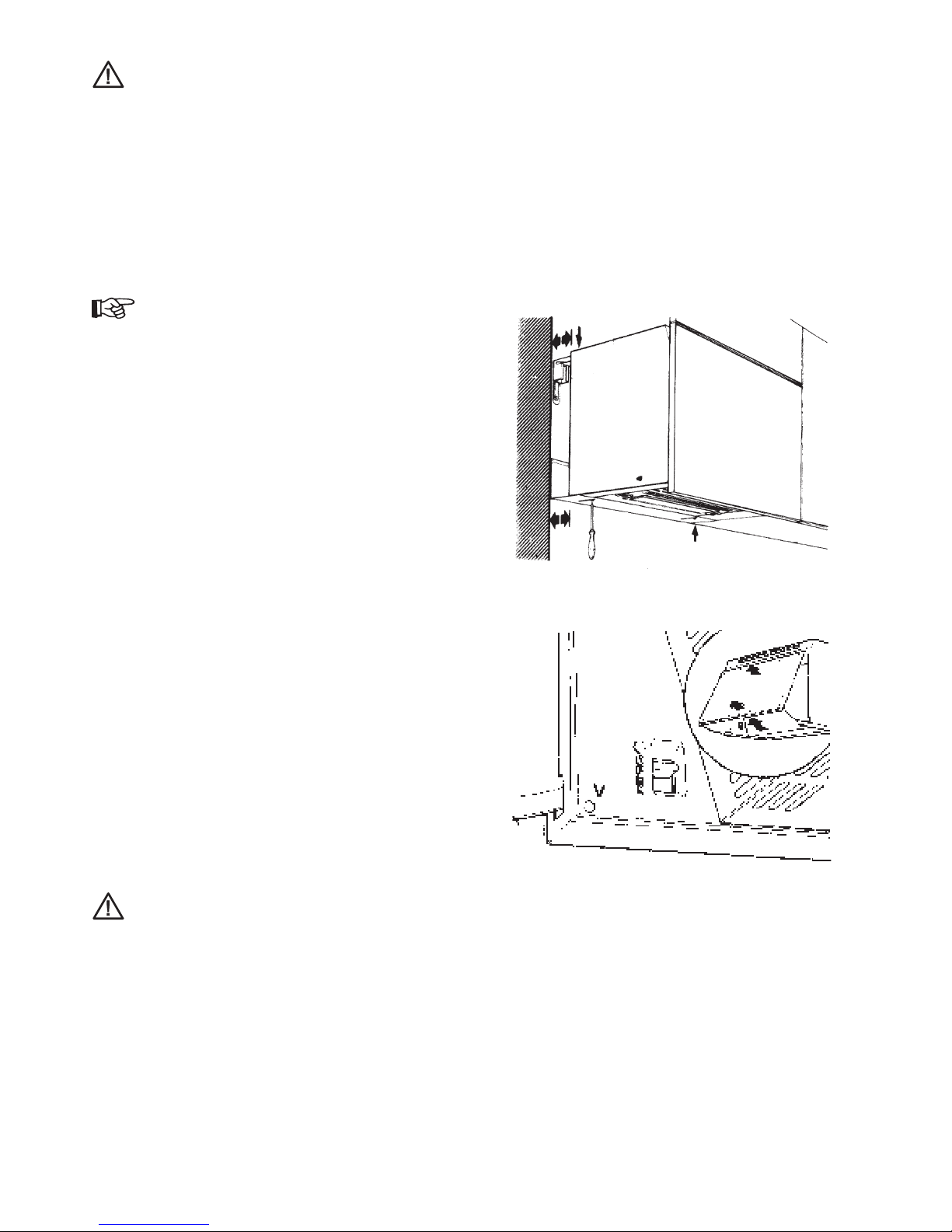

Adjustment
If a heavy door is fitted or if the visor will not
stay closed it may be necessary to make an
adjustment to the closing mechanism of the
visor.
Insert a small flat bladed screw driver through
the hole (the friction assembly) on either side
of the casing indicated by the letter “V”and
turn clockwise to apply pressure on the guide.
Both friction assemblies should be adjusted
by the same amount to ensure the visor opens
smoothly.
Care should be taken when removing the visor
with the decor panel for cleaning or servicing,
as the visor is now extremely heavy and
should it be dropped, it could damage the
appliance beneath and adjoining work
surfaces.

16
In the event of your appliance requiring service, or if you wish
to purchase spare parts please contact your local Service
Force Centre by telephoning:
08705 929929
Your telephone call will be automatically routed to the Service
Force centre covering your post code area.
For the address of your local Service Force Centre and further
information about Service Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure you read the
details under the heading Something not working.
When you contact the Service Force Centre you will need to
give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number (found on the rating plate)
5. The purchase date
Please note that a valid purchase receipt or guarantee
documentation is required for in-guarantee service calls.
For Customer Service in Ireland please contact us at the
address below:
Zanussi
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0)1 4090751
Email: [email protected]
Customer Care
Department
For general enquiries concerning your Zanussi appliance or for
further information on Zanussi products please contact our
Customer Care Department by letter or telephone at the
address below or visit our website at www.zanussi.co.uk
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] (
*
)
*
calls to this number may be recorded for training purposes
Service and Spare Parts

436002545 01 - 041222 © Electrolux plc 2002
