INSTRUCTION BOOKLET
ZANUSSI
WASHER-DRYER
WS 1094 H

CONTENTS
Warnings .
Installation .
Unpacking
Positioning
Water inlet
Water drainage .
Levelling .
Positioning F
Electrical connections. :
Getting to know your machine .
Control panel
Detergent dispenser AoriBarnielite.
Washing and drying hints
Wash care symbols :
Programmes for cotton and linen .
Programmes for synthetics, delicate fabrics dad sel:
Use of detergent and additives
Using your machine .
Washing 4 kg of white cotton .
Autodrying 2 kg of white cotton
Drying 4 kg of cotton.
Maintenance and cleaning
Descaling, after each wash, external cleaning
Cleaning the detergent dispenser.
The dangers of freezing .
Cleaning the filter .
Servicing .
Guarantee conditions
TECHNICAL SPECIFICATIONS
page
-page
-page
.page
.page
. page
-page
. page
.page
. page
. page
. page
- page
- page
. page
. page
. page
.page
-page
-page
.page
. page
. page
. page
-page
-page
. page
. page
OnN NWOT TPH HR HOO
i ea ak ei sek a Ve ol SY co Si a.
OAOOAOnN ODO OODOAHWAN-0O OC
DIMENSIONS Height with back panel 89.5 cm (35.2")
Height without back panel 85 cm (33.5")
Width 45 cm (17.7")
Depth 60 cm (23.6")
POWER SUPPLY VOLTAGE 220-230V / 50Hz
TOTAL POWER ABSORBED 2300W (13A)
WATER PRESSURE Minimum 7 psi (6 N/cm?)
Maximum 116 psi (80 N/cm?)
MAXIMUM RECOMMENDED LOAD Cotton, linen 10 Ib (4.5 kg)
FOR WASHING Synthetics, delicate fabrics 4.5 Ib (2 kg)
Wool 2.2 Ib (1 kg)
MAXIMUM RECOMMENDED LOAD Cotton, linen 4.5 Ib (2 kg)
FOR DRYING Synthetics 3 Ib (1.5 kg)
SPIN SPEED Maximum/minimum 1000/650 rpm

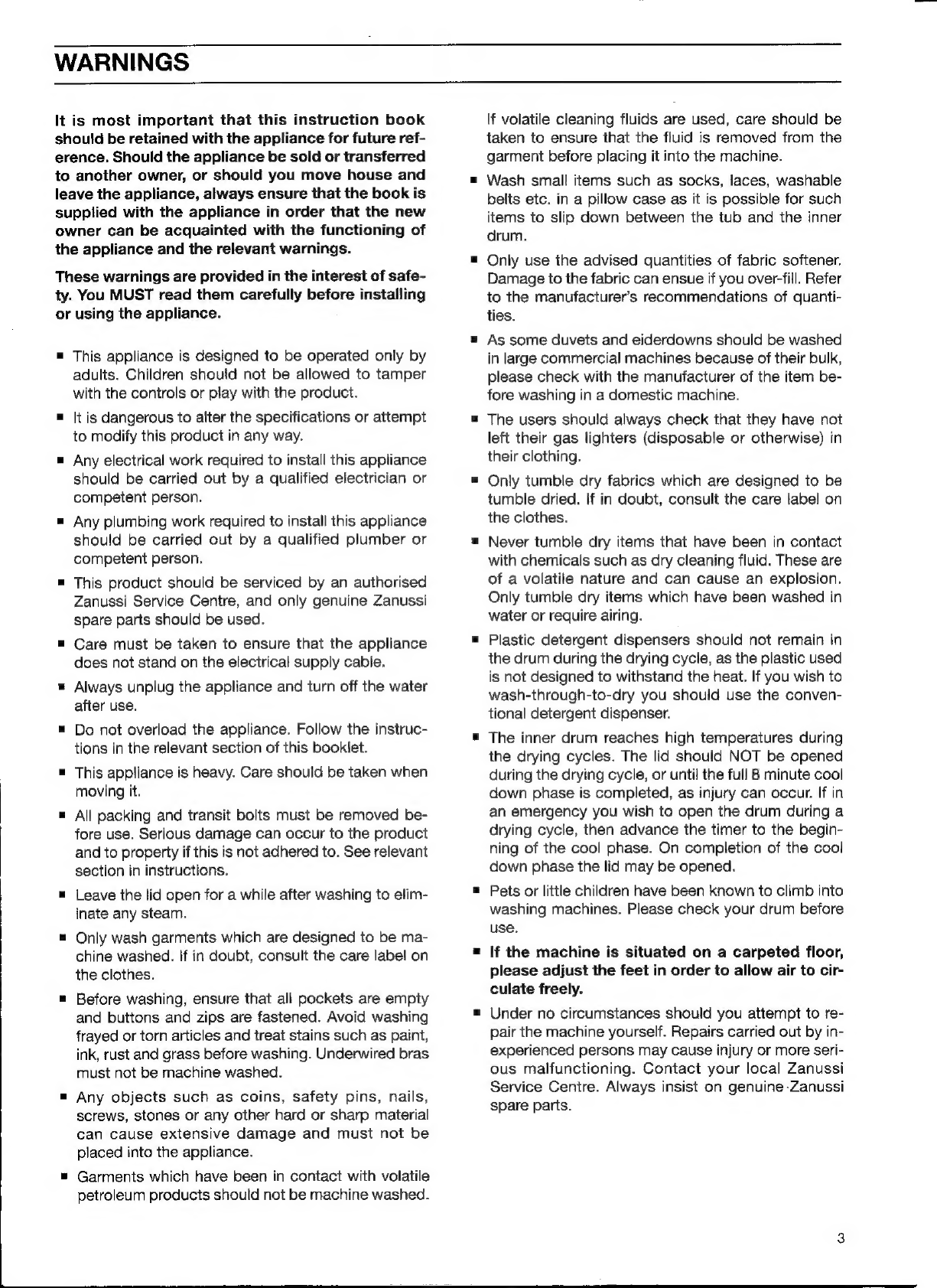

WARNINGS
It is most important that this instruction book
should be retained with the appliance for future ref-
erence. Should the appliance be sold or transferred
to another owner, or should you move house and
leave the appliance, always ensure that the book is
supplied with the appliance in order that the new
owner can be acquainted with the functioning of
the appliance and the relevant warnings.
These warnings are provided in the interest of safe-
ty. You MUST read them carefully before installing
or using the appliance.
= This appliance is designed to be operated only by
adults. Children should not be allowed to tamper
with the controls or play with the product.
= |t is dangerous to alter the specifications or attempt
to modify this product in any way.
= Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
This product should be serviced by an authorised
Zanussi Service Centre, and only genuine Zanussi
spare parts should be used.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Always unplug the appliance and turn off the water
after use.
Do not overload the appliance. Follow the instruc-
tions in the relevant section of this booklet.
This appliance is heavy. Care should be taken when
moving it.
All packing and transit bolts must be removed be-
fore use. Serious damage can occur to the product
and to property if this is not adhered to. See relevant
section in instructions.
Leave the tid open for a while after washing to elim-
inate any steam.
Only wash garments which are designed to be ma-
chine washed. If in doubt, consult the care label on
the clothes.
Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust and grass before washing. Underwired bras
must not be machine washed.
= Any objects such as coins, safety pins, nails,
screws, stones or any other hard or sharp material
can cause extensive damage and must not be
placed into the appliance.
Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing it into the machine.
Wash small items such as socks, laces, washable
belts etc. in a pillow case as it is possible for such
items to slip down between the tub and the inner
drum.
Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill. Refer
to the manufacturer’s recommendations of quanti-
ties.
As some duvets and eiderdowns should be washed
in large commercial machines because of their bulk,
please check with the manufacturer of the item be-
fore washing in a domestic machine.
The users should always check that they have not
left their gas lighters (disposable or otherwise) in
their clothing.
Only tumble dry fabrics which are designed to be
tumble dried. If in doubt, consult the care label on
the clothes.
Never tumble dry items that have been in contact
with chemicals such as dry cleaning fluid. These are
of a volatile nature and can cause an explosion,
Only tumble dry items which have been washed in
water or require airing.
Plastic detergent dispensers should not remain in
the drum during the drying cycle, as the plastic used
is not designed to withstand the heat. If you wish to
wash-through-to-dry you should use the conven-
tional detergent dispenser.
The inner drum reaches high temperatures during
the drying cycles. The lid should NOT be opened
during the drying cycle, or until the full 8 minute cool
down phase is completed, as injury can occur. If in
an emergency you wish to open the drum during a
drying cycle, then advance the timer to the begin-
ning of the cool phase. On completion of the cool
down phase the lid may be opened.
Pets or little children have been known to climb into
washing machines. Please check your drum before
use.
If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to cir-
culate freely.
Under no circumstances should you attempt to re-
pair the machine yourself. Repairs carried out by in-
experienced persons may cause injury or more seri-
ous malfunctioning. Contact your local Zanussi
Service Centre. Always insist on genuine -Zanussi
spare parts.
wo

INSTALLATION
Unpacking
Before installing the machine up, the packing must be
removed as follows.
You are advised to keep al
case the machine is to be
tthe packaging for re-use in
transported again.
Lay the machine carefully
on its back making sure
that the hoses, mains lead
and plug are not squashed.
Unscrew and remove the
two bolts.
Remove the inner block
by pulling out the red ring.
Set the machine upright,
then using a spanner re-
move the two nuts at the
back of the machine.
Remove the two plastic
spacers by pulling out the
red rings.
Plug the holes with the
black plastic plugs sup-
plied with the instruction
booklet.
Open the lid and take the
polystyrene block away.
Positioning
Your new Zanussi washing machine has been designed
to be permanently plumbed in to your home’s water
supply and drainage system. However, if this is not
possible, it may be connected to a suitable existing
tap, with the drain hose discharging into a sink.
The appliance has one inlet hose, with female 4" BSP
thread connector. If this connection is not compatible
with the plumbing of the existing installation, a variety
of connectors are available from good hardware stores
and plumbers merchants to suit most domestic plumbing.
Any alterations to your existing plumbing must be
carried out by a competent person, or qualified plumber.
Water inlet
Before connecting the
hose be sure to fit the mesh
filter supplied as per dia-
gram.
Installation should comply with local water authority
and building regulations’ requirements.
If you cannot make the water connection direct from
the rising mains, you may be able to operate the appli-
ance from your cold water storage system.
There should be a minimum distance of 5.02m (16 Vet)
between the appliance’s inlet and the bottom of the
tank.

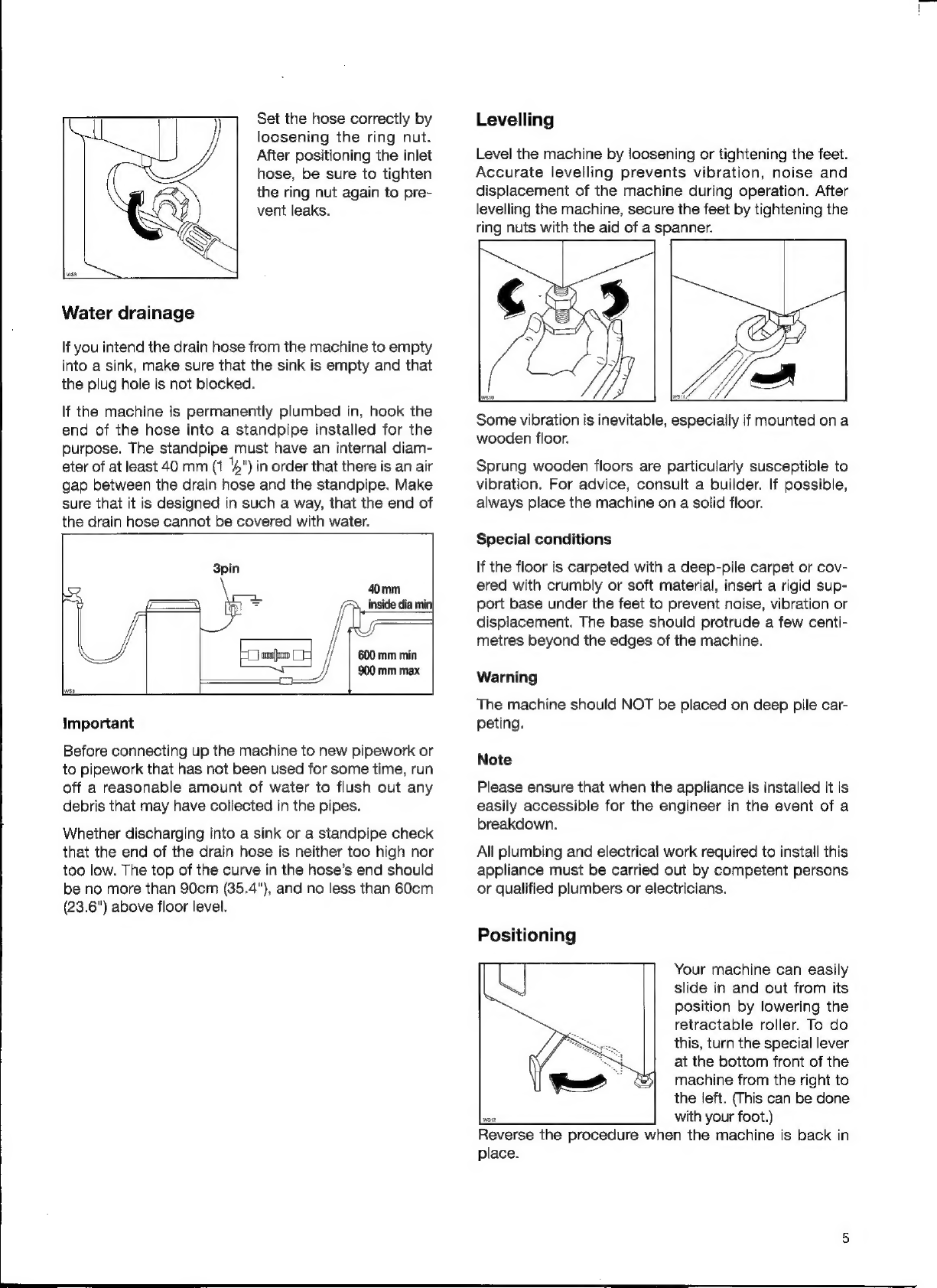

Set the hose correctly by
loosening the ring nut.
After positioning the inlet
hose, be sure to tighten
the ring nut again to pre-
vent leaks.
Water drainage
If you intend the drain hose from the machine to empty
into a sink, make sure that the sink is empty and that
the plug hole is not blocked.
If the machine is permanently plumbed in, hook the
end of the hose into a standpipe installed for the
purpose. The standpipe must have an internal diam-
eter of at least 40 mm (1 1%") in order that there is an air
gap between the drain hose and the standpipe. Make
sure that it is designed in such a way, that the end of
the drain hose cannot be covered with water.
Important
Before connecting up the machine to new pipework or
to pipework that has not been used for some time, run
off a reasonable amount of water to flush out any
debris that may have collected in the pipes.
Whether discharging into a sink or a standpipe check
that the end of the drain hose is neither too high nor
too low. The top of the curve in the hose’s end should
be no more than 90cm (35.4"), and no less than 60cm
(23.6") above floor level.
Levelling
Level the machine by loosening or tightening the feet.
Accurate levelling prevents vibration, noise and
displacement of the machine during operation. After
levelling the machine, secure the feet by tightening the
ring nuts with the aid of a spanner.
Some vibration is inevitable, especially if mounted on a
wooden floor.
Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible,
always place the machine on a solid floor.
Special conditions
If the floor is carpeted with a deep-pile carpet or cov-
ered with crumbly or soft material, insert a rigid sup-
port base under the feet to prevent noise, vibration or
displacement. The base should protrude a few centi-
metres beyond the edges of the machine.
Warning
The machine should NOT be placed on deep pile car-
peting.
Note
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.
All plumbing and electrical work required to install this
appliance must be carried out by competent persons
or qualified plumbers or electricians.
Positioning
Your machine can easily
slide in and out from its
position by lowering the
retractable roller. To do
this, turn the special lever
at the bottom front of the
machine from the right to
the left. (This can be done
owe with your foot.)
Reverse the procedure when the machine is back in
place.

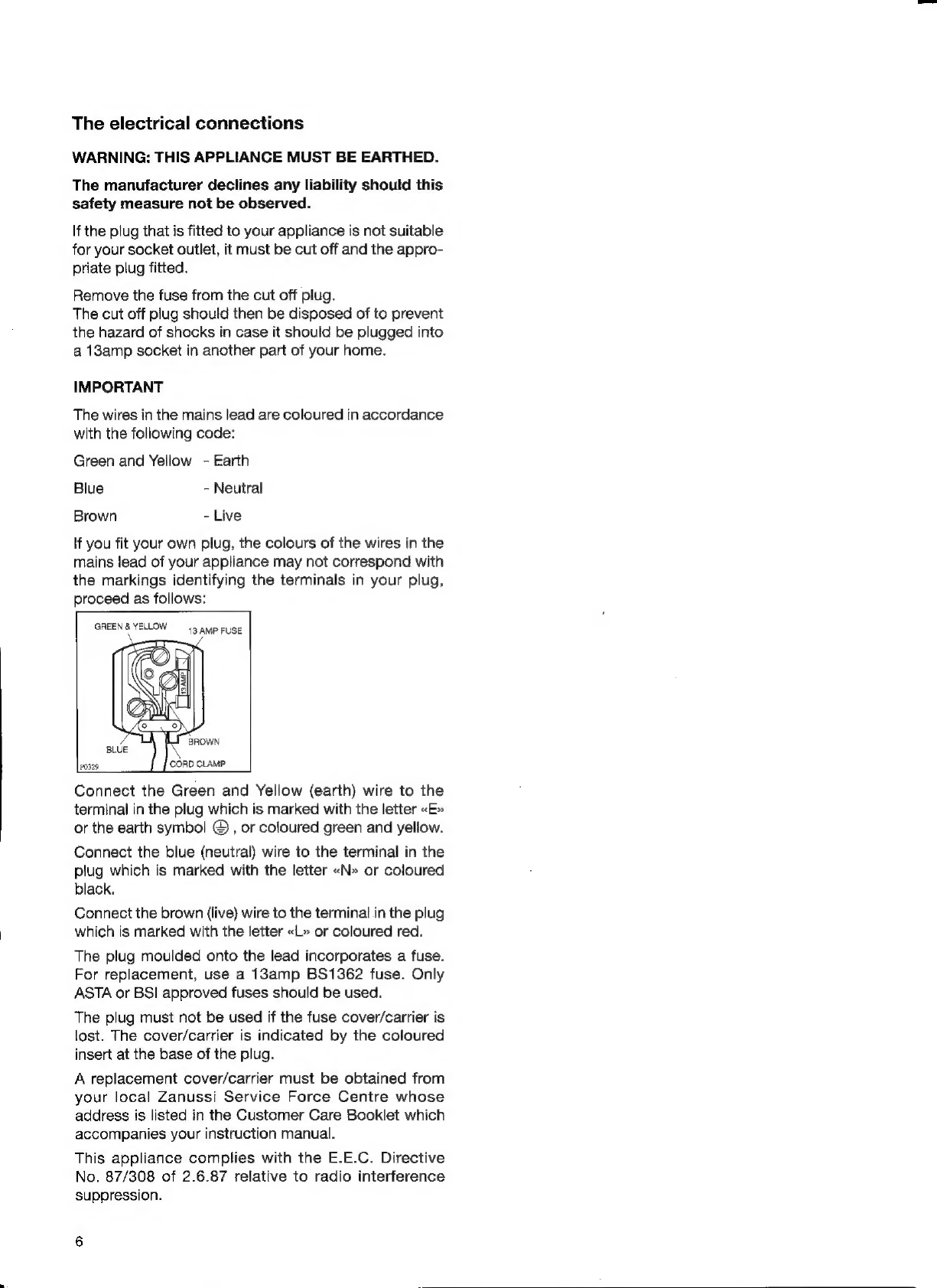

The electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable
for your socket outlet, it must be cut off and the appro-
priate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent
the hazard of shocks in case it should be plugged into
a 138amp socket in another part of your home.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug,
proceed as follows:
GREEN & YELLOW
\
13 AMP FUSE
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter «E»
or the earth symbol © , or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the plug
which is marked with the letter «L» or coloured red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Zanussi Service Force Centre whose
address is listed in the Customer Care Booklet which
accompanies your instruction manual.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.

GETTING TO KNOW YOUR MACHINE
Control! panel
12 345 6
1 ON/OFF button ©
Press it to start a programme.
Press it again to stop a programme or to switch off the
machine.
In an emergency or before setting / changing a
programme already in progress, the machine must be
switched off by pressing this button.
2 MAINS-ON light
This light comes on when the ON/OFF button is
pressed and the machine is working.
3 SPIN REDUCTION button 22°
Press this button if you wish to reduce the spin speed
from 1000 to 650 rpm with cotton-linen programmes.
4 INTENSIVE RINSES button
Press this button if you wish to increase the quantity of
rinse water with cotton-linen programmes.
5 AUTODRYING button WY
Press this button if you wish to dry a small load of
laundry automatically at the end of the wash cycle
(max. 2 kg for cottons and max. 1.5 kg for synthetics).
6 Temperature selector dial °C
Lightly press this dial to make it pop out then select the
required washing temperature, visible in the semi-
circular window below the dial (from cold € to 90°C).
7 8 9
7 Programme selector dial )
Lightly press this dial to make it pop out then select the
required washing programme by turning it clockwise.
8 Drying time selector dial sy
Lightly press this dial to make it pop out then select the
required drying time, visible in the semi-circular
window below the dial, up to 120 minutes.
9 Programme chart
Detergent dispenser compartments
Lift the lid to gain access to the detergent dispenser
compartments located to the right of the drum.
—=3 LU Prewash compartment
LLU) Wash compartment
&® Softener compartment

Washing and drying hints
Do NOT overload the machine. Weigh the laundry the
first few times you use the appliance.
The average weights of the most common items are
listed below as a guide:
1000g = ikg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man’s shirt 200-300 g
Apron 150-200 g
= Load the laundry loosely alternating large items with
small ones.
= Sort the laundry according to the type of fabric,
colour-fastness and how dirty it is.
Avoid washing unhemmed or torn items as they
may unravel.
Before washing, empty all pockets of small objects
which may have been left inside (coins, keys, screws
etc), as these could damage the drain pump.
When washing curtains, remove the hooks.
Close poppers and zips and fasten loose buttons.
It is essential to wash new coloured items sepa-
rately when washing for the first time.
When washing fabrics requiring different wash
temperatures together, always select the lowest
temperature.
White items should not be washed with coloured
items.
Very small items (handkerchiefs, ribbons, socks etc)
should be washed in a washing bag or a pillow case.
Use a good quality detergent suitable for automatic
washing machines.
Use the correct quantities of detergent.
For wool, use gentle detergent only in small quanti-
ties.
Bleach is very corrosive; it should be used with care
and kept out of reach of children.
Some stains such as fruit, wine, grass, rust etc are
difficult to remove and should be treated before
washing with specific products, which can be found
in most household shops. In some cases it may help
to soak the stain before washing with a special pre-
soak product or biological detergent.
Only wool marked “Pure New Wool - washable, pre-
shrunk” can be washed in the machine using the
wool programme; other types of wool should be
washed by hand or dry cleaned.
When drying always load well spun laundry. The
higher the spin speed the lower is electric energy
consumption during drying and the shorter is the
drying time.
Do not leave the damp laundry load in a heap too
long before drying.
Avoid drying dark clothes with light coloured fluffy
items such as towels as these can attract the fluff.
If you overdry the laundry, besides wasting energy,
any subsequent ironing may become more difficult
because the fabric could be heavily crumpled.
Remove the laundry when the appliance has fin-
ished drying.
To avoid static charge when drying is completed,
use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for
tumble dryers.
For drying, follow the indications given on the man-
ufacturers’ labels.
&) Drying at high temperature
GQ Drying at reduced temperature
| exe Do not tumble dry
Once you have finished using the machine, you are
advised to unplug it and turn off the water tap.

Wash care symbols fabrics and detergents and because people are tend-
ing to use fewer programmes and mix fabrics in one
The familiar wash code symbols which are found on load.
the
care
labels
in
most
clothes
are
disappearing
and
a
The
change
brings
the
codes
into
line
with
the
labelling
new set is introduced. The change is due to changes in used in the rest of Europe.
Old Symbol New Symbol Wash Action Fabric
1 Normal (Maximum) White Cotton or Linen without
Special Finishes
2 Normal (Maximum) Cotton, Linen or Viscose without
Special Finishes
Colourfast at 60°C
3 No longer used. White Nylon, Polyester/Cotton mixtures now included in
co"
4 Reduced (Medium) Nylon, Polyester/Cotton, Viscose with
Special Finishes:
Cotton/Acrylic Mix.
5 Normal (Maximum) Cotton, Linen or Viscose
ver ley
Colourfast at 40°C but not 60°C
Reduced (Medium) Acrylic, Acetate, Triacetate, Wool
mixes, Polyester/wool blends
E>
Much Reduced (Minimum) Wool, wool mixes. Silks
[al ~
No longer used. Silk now included in
ie
printed acetate included in
No longer used
ie
The new wash symbols appear on the side of Washing Powder packets.
oO

Programmes for cotton and linen
Maximum load: — washing 10 Ib (4.5 kg)
washing + drying 4.5 Ib (2 kg)
drying 4.5 lb (2 kg
WASHING
Temperature Programme
Degree Detergent selector dial selector dial Cycle
Programmes of soil compartments position position description
Soaking Heavy = Soak at 40°
a Ka fo) Stop with water in drum
Se 40 A To drain, select _
programme T (Drain)
Whites Normal = Wash at 60°-90°
Se ZS fe} O% Rinses
SSG 60°-90° B fe
SSS
Coloureds Normal Sa Wash at 40°-60°
— 40°-60°« Cc Rinses
SSS & ") Spin
SSeS ay
Rinses > Rinses with additive
~~ eS if required
= SSF & D Spin
Spin F Drain and spin
(*)
60°-90°C
means
that
any
temperature
between
60°
and
90°C
may
be
selected.
The
same
applies
to
40°-60°C.
DRYING
Cupboard Iron Programme
Fabric Quantity dry (q dy AA selector dial Cycle
type ib (kg) mins. mins. position description
Cotton and linen 4.5 (2) 65 60 G Drying can be selected as
(following long spin a separate programme, or
at
1000
rpm)
2.2
(1)
45
40
you
can
wash
and
dry
by
depressing the button wy
1 (0.5) 35 30 and setting a drying time
at the beginning of the
wash programme. Please
remember that the drying
capacity is half the wash-
ing capacity.
Do NOT use ball di-
spensers on Wash’n Dry
programmes.
10

Programmes for synthetics, delicate fabrics and wool
Maximum load: washing 4.5 Ib (2 kg)
washing + drying 3 Ib (1.5 kg}
drying 3 Ib (1.5 kg
WASHING
Temperature Programme
Degree of Detergent selector dial selector dial
Programmes _ soil compartments position position Cycle description
Soaking Heavy Soak at 40°
40° H Stop with water in drum
To drain, select programme
T (Drain)
Synthetics Normal Wash at 40°-60°
40°-60°:- J i
(*) Rinses
Short spin
Synthetics Normal Wash at 30°-40°
30° -40° K Rinses
Short spin
Rinses Rinses
L Short spin
Wool
Normal
Wool
programme
at
30°
or
° ° 40°
o 30 40 N Rinses
Short spin
Delicates Normal Cold wash or at 40°
° ;
*-40 (*) P Rinses
Short spin
Rinses Rinses with additive, if
Q required
Short spin
Softener Rinse with additive, if
rinse R required
Short spin
Short S Short spin
spin
Drain T Drain
(*)
40°-60°C
means
that
any
temperature
between
40°
and
60°C
may
be
selected.
The
same
applies
to
€
-40°C.
DRYING
Cupboard Programme
Fabric Quantity selector dial Cycle
type Ib (kg) position description
Synthetics
(following
3
(1.5)
M
Drying
can
be
selected
as
a
short spin at 850 rpm) separate programme, or you
2 (1) can wash and dry by de-
pressing the button WY and
1 (0.5) setting a drying time at the
beginning of the wash pro-
gramme. Automatic drying
can take place only on pro-
grammes J-K-L. Please re-
member that the drying ca-
pacity is haif the washing ca-
pacity.
Do NOT use ball dispens-
ers on Wash’n Dry pro-
grammes.

Use of detergent and additives
Choosing the right detergent
Always use a low lather powder or liquid. This is impor-
tant as too much lather prevents the articles from
being properly cleansed and may damage the machine.
Use of powder detergent (such as Ariel Automatic)
The washing powder should be placed in the appro-
priate compartments in the detergent dispenser before
starting the programme.
Compact powder detergents (such as Ariel Ultra)
The compact powder should be placed in the wash
compartment of the dispenser. The unique recircu-
lating system ensures that the powder is dissolved.
Liquid detergents (such as Ariel Liquid)
A liquid detergent can be used in the wash compart-
ment of the dispenser. Start the machine immediately
upon placing the liquid in the dispenser.
Specialist detergents (such as Dreft Automatic)
Specialist detergents are now available for washing
coloured and woollen garments. These detergents do
not contain bleach and should not be used for white
cotton. Follow the manufacturer’s instructions.
Important
As the Jetsystem is flexible and adjusts water intake
according to wash load size it is not possible to give
you exact recommendations as to the amount of deter-
gent that should be used for any one wash.
Therefore we recommend that you use one ‘4 to '% less
than the detergent manufacturer recommends on the
packet or bottle, making the appropriate allowances
for soft or hard water, and light or heavy soilage of
clothes. If you have judged the amount correctly you
should expect to see a soft sudsy liquid during the
wash. It is not necessary to have a head of lather on
the water.
Note
When using concentrated or liquid detergents and a
prewash or soak programme, remember that deter-
gent will have to be placed into the machine for the
main wash, after the pre-wash or soak has finished.
Use of liquid additives
Any liquid additives for softening or dressing the laundry
must be poured into the appropriate compartment of
the detergent dispenser before starting the programme.
The compartment with the symbol is for softeners
and dressing agents; never exceed the MAX level.
When using super concentrated fabric conditioners
such as Lenor Ultra, please follow the manufacturer’s
instructions carefully.
Washing net curtains
To avoid an excessive and damaging amount of lather,
it is advisable 4 1. large curtains singularly and
take extra care wnen measuring the detergent.
Should an excess of lather accidentally occur, switch
off the machine, advance the programme to a short
spin sequence which is preceded by a drain cycle, to
remove the lather and then start the wash again.

USING YOUR MACHINE
WASHING 4 KG OF WHITE COTTON
Suppose you have 4 kg of normally dirty laundry to
wash. It is white cotton and is suitable for high temper-
ature washing.
1 Load the laundry
Lift the lid, position the
drum as shown in the fig-
ure and open it with both
your hands by pressing
the button A: the two
flapdoors will then disen-
gage.
Load the laundry into the
drum, one garment at a
time, shaking them out as
much as possible. Close
the drum doors.
Measure out the amount
of detergent required and
pour into the main wash
compartment.
f you wish to carry out the soak programme, pour the
amount of detergent required into the “prewash”
compartment LJ.
3 Add the fabric softener if required
Pour the fabric softener, if
required, into the com-
partment marked @& .
Do not exceed the MAX
level and then close the
lid gently.
4 Select the required programme
Turn the programme se-
lector dial ((j)) to the re-
quired position.
Turn the temperature se-
lector dial (°C) to the tem-
perature recommended
in the programme chart,
according to the type of
fabric and its colour-fast-
ness.
6 Depress the button(s) required
If you wish to reduce the spin speed op crease the
quantity of rinse water, depress the 220 or
buttons respectively.
7 Start the machine
Before starting up the ma-
chine check that:
® the appliance is plugged
in
= the water supply tap is
turned on
™ the drain hose is correct-
ly and securely posi-
tioned
= the lid is closed.
Depress the ON/OFF (D) button, the mains-on light
will illuminate and the machine will start operating.
8 At the end of the programme
The machine stops automatically.
The lid is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again, the mains-on light goes out.
Release the button(s) depressed.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.

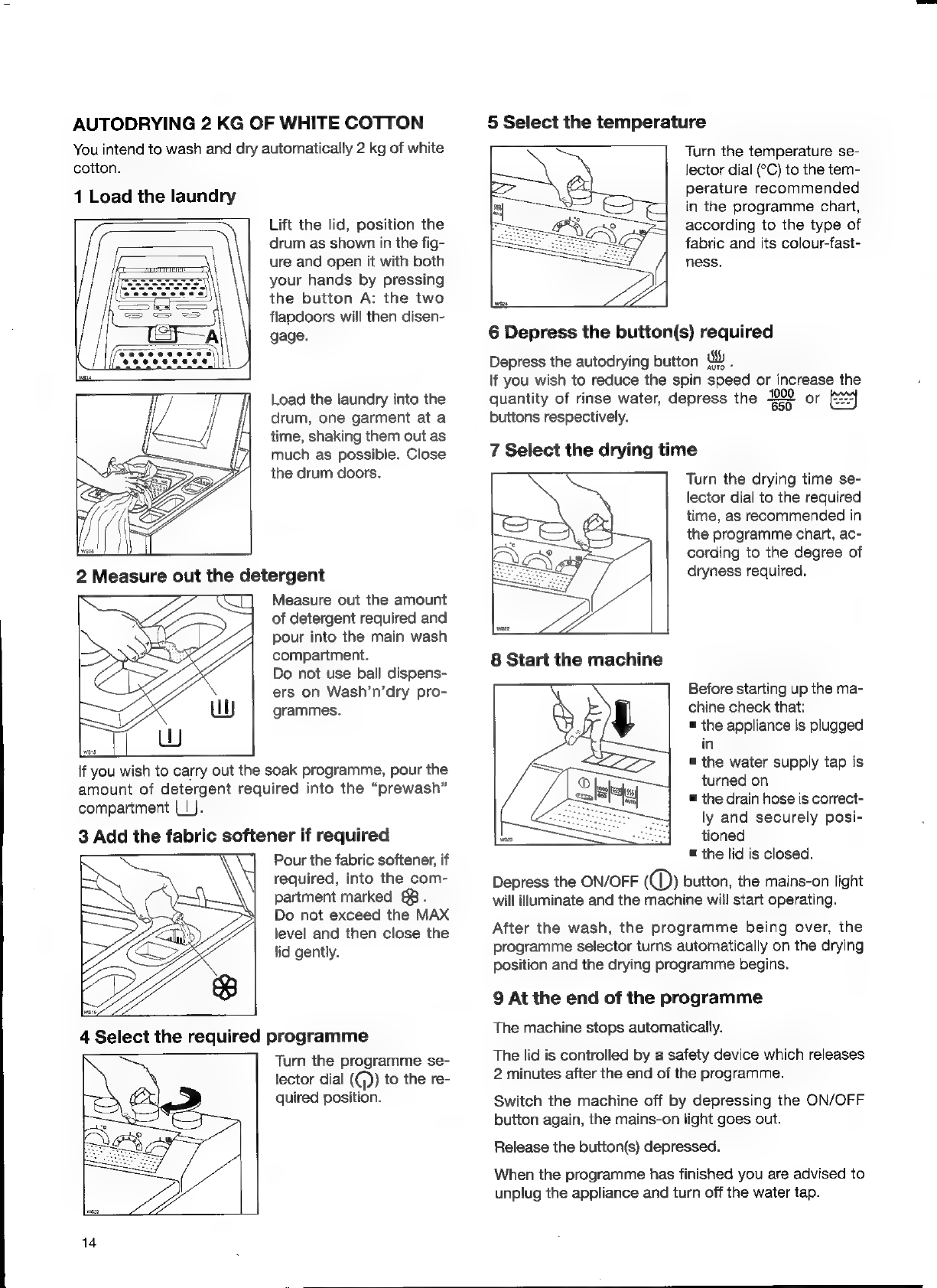

AUTODRYING 2 KG OF WHITE COTTON
You intend to wash and dry automatically 2 kg of white
cotton.
1 Load the laundry
Lift the lid, position the
drum as shown in the fig-
ure and open it with both
your hands by pressing
the button A: the two
flaodoors will then disen-
gage.
Load the laundry into the
drum, one garment at a
time, shaking them out as
much as possible. Close
the drum doors.
2 Measure out the detergent
Measure out the amount
of detergent required and
pour into the main wash
compartment.
Do not use ball dispens-
ers on Wash’n’dry pro-
grammes.
If you wish to carry out the soak programme, pour the
amount of detergent required into the “prewash”
compartment (lJ.
3 Add the fabric softener if required
Pour the fabric softener, if
required, into the com-
partment marked @.
Do not exceed the MAX
level and then close the
lid gently.
Turn the programme se-
lector dial ((})) to the re-
quired position.
5 Select the temperature
Turn the temperature se-
lector dial (°C) to the tem-
perature recommended
in the programme chart,
according to the type of
fabric and its colour-fast-
ness.
6 Depress the button(s) required
Depress the autodrying button wy :
lf you wish to reduce the spin speed or increase the
; ‘ 4000
quantity of rinse water, depress the 2E or
buttons respectively.
7 Select the drying time
Turn the drying time se-
lector dial to the required
time, as recommended in
the programme chart, ac-
cording to the degree of
dryness required.
Before starting up the ma-
chine check that:
= the appliance is plugged
in
= the water supply tap is
turned on
™ the drain hose is correct-
ly and securely posi-
tioned
™ the lid is closed.
Depress the ON/OFF (D) button, the mains-on light
will illuminate and the machine will start operating.
After the wash, the programme being over, the
programme selector turns automatically on the drying
position and the drying programme begins.
9 At the end of the programme
The machine stops automatically.
The lid is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again, the mains-on light goes out.
Release the button(s) depressed.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.

DRYING 4 KG OF COTTON
You have for example just machine-washed and spun
at 1000 rpm 4 kg of laundry.
They are cotton fabrics of medium weight which you
want to iron as soon as they are dry.
Switch off the machine.
Then remove the laundry from the appliance and divide
the items to obtain two loads of approx. 2 kg each.
1 Load the laundry
Load the items one at a
time, close the drum and
then the lid.
Turn the drying time se-
lector dial to the required
time, as recommended in
the programme chart, ac-
cording to the degree of
dryness required.
3 Start the machine
Depress the ON/OFF but-
ton, the mains-on light
will illuminate and the
machine will start operat-
ing.
4 At the end of the programme
The machine stops automatically.
Switch the machine off by depressing the ON/OFF
button (]).
The lid is controlled by a safety device which releases
2 minutes after the end of the programme.
Remove the laundry and place the second haif-load to
be dried in the drum.
Start the machine by depressing the ON/OFF button 0)
again.
15

MAINTENANCE AND CLEANING
Before any maintenance or cleaning is carried out you
must DISCONNECT the appliance from the electricity
supply.
Descaling
The water we normally use contains lime. It is a good
idea to periodically use a water softening powder in
the machine. Do this separately from any laundry
washing, and according to the softening powder manu-
facturer’s instructions. This will help to prevent the
formation of lime deposits.
After each wash
Leave the lid open for a while. This helps to prevent
mould and stagnant smells forming inside the appli-
ance. Keeping the lid open after a wash will also help
to preserve the door seal.
External cleaning
Clean the exterior cabinet of the appliance with soap
and water only, and then dry thoroughly.
Cleaning the detergent dispenser
From time to time the detergent dispenser should be
cleaned.
Use a small brush to
clean the compartments,
ensuring that all washing
powder residue is re-
moved from the upper
and lower part.
To facilitate cleaning, the
upper part of the fabric
softener compartment
can be removed.
Once you have finished cleaning, run the rinse
programme for a few minutes without any clothes in
the drum.
The dangers of freezing
If the machine is exposed to temperatures below 0°C,
certain precautions should be taken.
Turn off the water tap.
Select a wash programme and run for a few seconds.
Unscrew the inlet hose.
Unhook the drain hose from the rear support and
position the end in a bowl. Run the draining pro-
gramme for a few seconds.
When you intend to start the machine up again,
make sure that the room temperature is above 0°C.

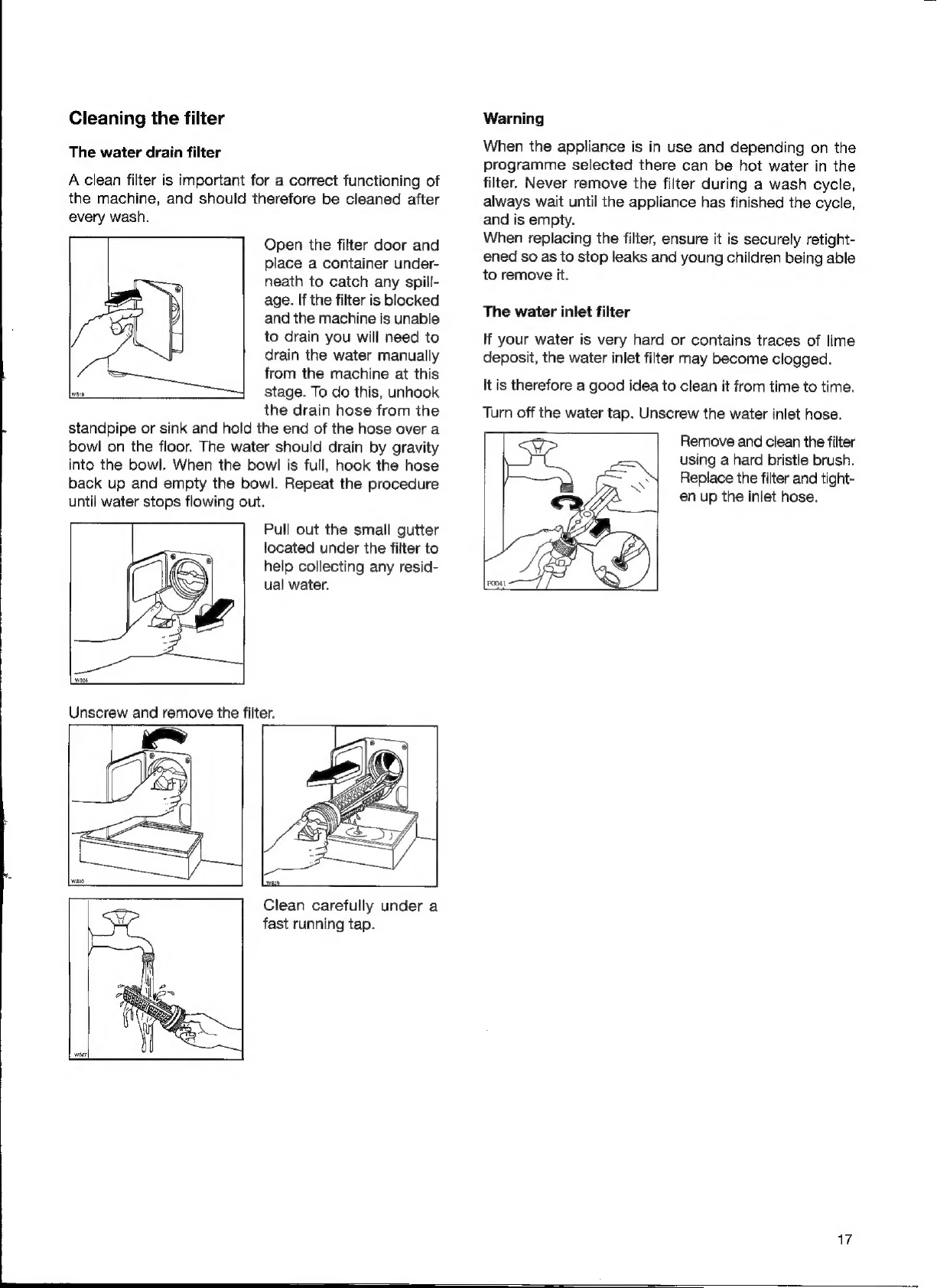

Cleaning the filter
The water drain filter
A clean filter is important for a correct functioning of
the machine, and should therefore be cleaned after
every wash.
Open the filter door and
place a container under-
neath to catch any spill-
age. If the filter is blocked
and the machine is unable
to drain you will need to
drain the water manually
from the machine at this
stage. To do this, unhook
the drain hose from the
standpipe or sink and hold the end of the hose over a
bowl on the floor. The water should drain by gravity
into the bowl. When the bowl is full, hook the hose
back up and empty the bowl. Repeat the procedure
until water stops flowing out.
Pull out the small gutter
located under the filter to
help collecting any resid-
ual water.
filter.
Warning
When the appliance is in use and depending on the
programme selected there can be hot water in the
filter. Never remove the filter during a wash cycle,
always wait until the appliance has finished the cycle,
and is empty.
When replacing the filter, ensure it is securely retight-
ened so as to stop leaks and young children being able
to remove it.
The water inlet filter
If your water is very hard or contains traces of lime
deposit, the water inlet filter may become clogged.
It is therefore a good idea to clean it from time to time.
Turn off the water tap. Unscrew the water inlet hose.
Remove and clean the filter
using a hard bristle brush.
Replace the filter and tight-
en up the inlet hose.

SERVICING
Before contacting your local Zanussi
Service Centre, please make the following
checks:
The machine does not start up
" The ON/OFF button has not been depressed
= The lid is not closed properly
= No water is entering the machine (see: the machine
does not fill)
The machine does not fill
= The water tap is not turned on
= The water supply has been disconnected
= The inlet hose is kinked
= The water pressure is too low
= The water inlet filter is clogged
The machine empties as it fills
= The end of the drain hose is too low
= The end of the drain hose is submerged in water
® Drain pipe has no vent-hole
The machine does not drain or spin
= The drain filter is clogged
= The drain hose is kinked
= The drainage system pipes are blocked
= The drain hose extension is incorrect
The machine leaks or overflows
™ Too much detergent
= Unsuitable detergent
= The inlet hose is loose
= The detergent dispenser is clogged
= The drainage system pipes are blocked
The machine vibrates or is noisy
= The internal packing has not been removed
= The machine is not level
® The machine is in contact with the wall or furniture
= The washing load is badly distributed
= The machine is overloaded
18
The lid does not open
= The safety device has locked it
The machine does not dry
= The drying time has not been selected
= The water tap is not turned on
= The drain filter is clogged
= The machine is overloaded
= The selected drying time is not adequate
= The Dry button has not been depressed.
If, after the above checks, there is still a fault, call your
local Zanussi Service Centre, whose address can be
found in the accompanying Customer Care Booklet,
and can also be found in your local telephone directory
under «Z». Please make sure you give the model and
serial number of the appliance.
This information can be
found on the rating plate
(see picture) or on the
guarantee card.
Original spare parts can be purchased from Zanussi
Service Centres.
In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
Please note that proof of purchase is required for
any in-guarantee service calls.
Service details - adhesive label
When you return your guarantee card to Zanussi Ltd.,
you will receive a “Appliance Guarantee And Mainte-
nance Record” together with an adhesive label
containing the telephone number of your local Zanussi
Service Centre. The label can be adhered to the
machine or adjacent furniture.
