Zap ACC514 User manual

Quick Start Guide - qACC514, qACC516 Copyright 2022 System Q Ltd
1
Electric Bolts
Zap is a registered trademark of System Q Ltd
ACC514, ACC516 - Quick Start Guide
Electric Bolts
The ACC514 has an adjustable delay and status relay output which
can be connected to a buzzer or light to produce a visible or audible
alert when the door is opened.
The ACC516 has an adjustable delay of up to 6 seconds, a relay
output to alert when the door is opened and LED indicator to show
the bolt status.
User Information
· There are no user serviceable parts, opening or attempting to
repair the product will void the warranty.
· Do not install or use the device if the wires connected are
damaged or have been subjected to water ingress
· Handle the equipment carefully, holding force can be reduced by damaging the bolt body or detector plate.
· The electric bolt lock should be fixed tightly on the door frame and the detector plate on the door leaf.
· Shut off all power to the access control system before wiring this device.
· Maintain a clean and safe environment at all times.
Definition
NO (Normally Open) - This is a contact which remains open (as default) until activated, during the "active" state
the contact provides a closed circuit and starts conducting.
NC (Normally Closed) - Is the opposite of a NO contact. The contact will remain closed (as default) until
activated, during the "active" state the circuit breaks and stops current flow.
Connections
ACC514
ACC516
Red = +12V DC
Yellow = NO
Red = +12V DC
Yellow = NC
Black = GND
White = COM
Black = GND
White = COM
Purple = NC
Setup Example
Electric bolts are an efficient method of adding secure access control to a
door.
An electric bolt will protrude out as long as there is power being supplied
and then detector plate is present.
For a "Fail Safe" setup, when the button is activated, power supply
then releases power from the lock, and if power is lost then the lock
also releases.
You would connect the control device and power to the bolt via an access
control panel, relay or exit button so that the power can be cut when
triggered. When powered up again the bolt protrude again locking the
door in place.

Quick Start Guide - qACC514, qACC516 Copyright 2022 System Q Ltd
2This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery and recycling please return to your local designated
WEE/CG0783SS collection point as defined by your local council.
All specifications are approximate. System Q Ltd reserves the right to change product specificationsor features without notice. Whilst every effort is
made to ensure that these instructionsare complete andaccurate, System Q Ltd cannot be held responsible for any losses,no matter how they arise,
from errors or omissionsin these instructions,or the performance or non-performance of the equipment refered to.
Electric Bolts
Zap is a registered trademark of System Q Ltd

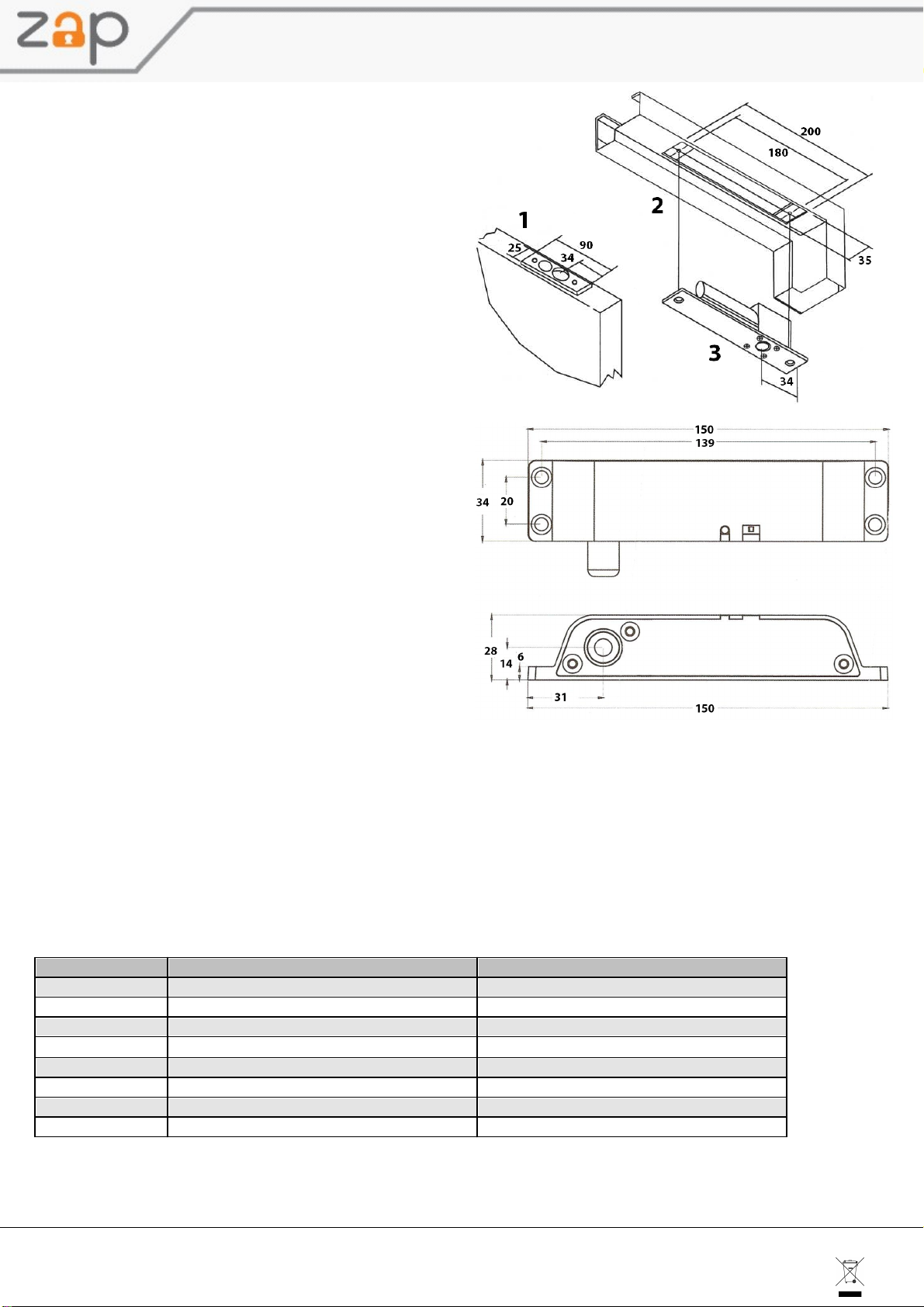

Mounting
ACC514
1. Cut a rebate in the door for the detector plate, and
cut the hole for the electric bolt using the template
provided.
2. Ensure a channel or hole is made for the cables and
ensure they are protected by using a protection guard
or conduit if exposed.
3. Then fix the bolt to the door frame and the plate to
the door using the screws provided.
ACC516
Mark the mounting holes for both the electronic bolt
and detector plate to the door frame and door.
Then fix the bolt to the door frame and the plate to the
door using the screws provided.
Ensure the cables for the lock are protected by using a
protection guard or conduit.
Troubleshooting
If the door release is not activating the lock then there is likely a shorted wire, open circuit or some other failed
device in the circuit.
To identify where the fault is, each wired connection in the circuit needs to be tested;working from the door
release progressthrough, including the power supply and the lock.
If the fault is with the door release then check the connection wires for continuity and for trapped wires. Check
for water ingresson the wired connections. Check the polarity in the power connections and ensure the
connections are connected to the proper terminals.
ACC514
ACC516
Design
Mortice Mount
Surface Mount
Delay
Adjustable: 0 / 3 / 6s
Adjustable: 0 / 3 / 6s
Relay Output
NO / COM / NC
NC / COM
Voltage
12V DC / 80mA (Holding)
12V DC / 170mA (Holding)
Peak Current
1A (<1s)
1A (<1s)
Led Colour
N/A
Powered: Red / Locked: Green
Construction
Metal
Metal
Dimensions
(H) 200 x (W) 34 x (D) 41mm (Bolt)
(H) 150 x (W) 34 x (D) 28mm
