Zehnder Group ComfoAir 550 Luxe User manual

ComfoAir 550 Luxe
Manual

II
All rights reserved.
This manual has been compiled with the utmost care. The publisher cannot be held liable for any damage caused as a
result of missing or incorrect information in this manual.

Table of Contents
1 INTRODUCTION ............................................................................................................................................. 1
1.1 Preface ................................................................................................................................................. 1
1.2 CE marking .......................................................................................................................................... 1
1.3 Guarantee and liability........................................................................................................................ 1
1.3.1 Guarantee conditions............................................................................................................... 1
1.3.2 Liability...................................................................................................................................... 1
1.4 Safety .................................................................................................................................................. 2
1.4.1 Safety regulations..................................................................................................................... 2
1.4.2 Safety provisions and measures.............................................................................................. 2
1.4.3 Pictograms used....................................................................................................................... 2
2 FOR THE USER............................................................................................................................................... 3
2.1 Glossary ............................................................................................................................................... 3
2.1.1 Balanced ventilation................................................................................................................. 3
2.1.2 Heat recovery............................................................................................................................ 3
2.1.3 Bypass for free cooling ............................................................................................................ 3
2.1.4 Frost protection ........................................................................................................................ 3
2.1.5 Chimney sweep programme.................................................................................................... 3
2.1.6 0-10 V input............................................................................................................................... 3
2.1.7 Pre-heater (optional)................................................................................................................. 4
2.1.8 Afterheater (optional)................................................................................................................ 4
2.1.9 Geothermal heat exchanger (optional) .................................................................................... 4
2.1.10 Enthalpy (optional).................................................................................................................... 4
2.1.11 Luxury versions extra options.................................................................................................. 4
2.2 Available operating devices ............................................................................................................... 4
2.2.1 3-position switch ...................................................................................................................... 4
2.2.2 CO2sensor ................................................................................................................................ 5
2.2.3 Bathroom switch ...................................................................................................................... 5
2.2.4 CC Luxe panel .......................................................................................................................... 5
2.2.5 CC Ease panel .......................................................................................................................... 5

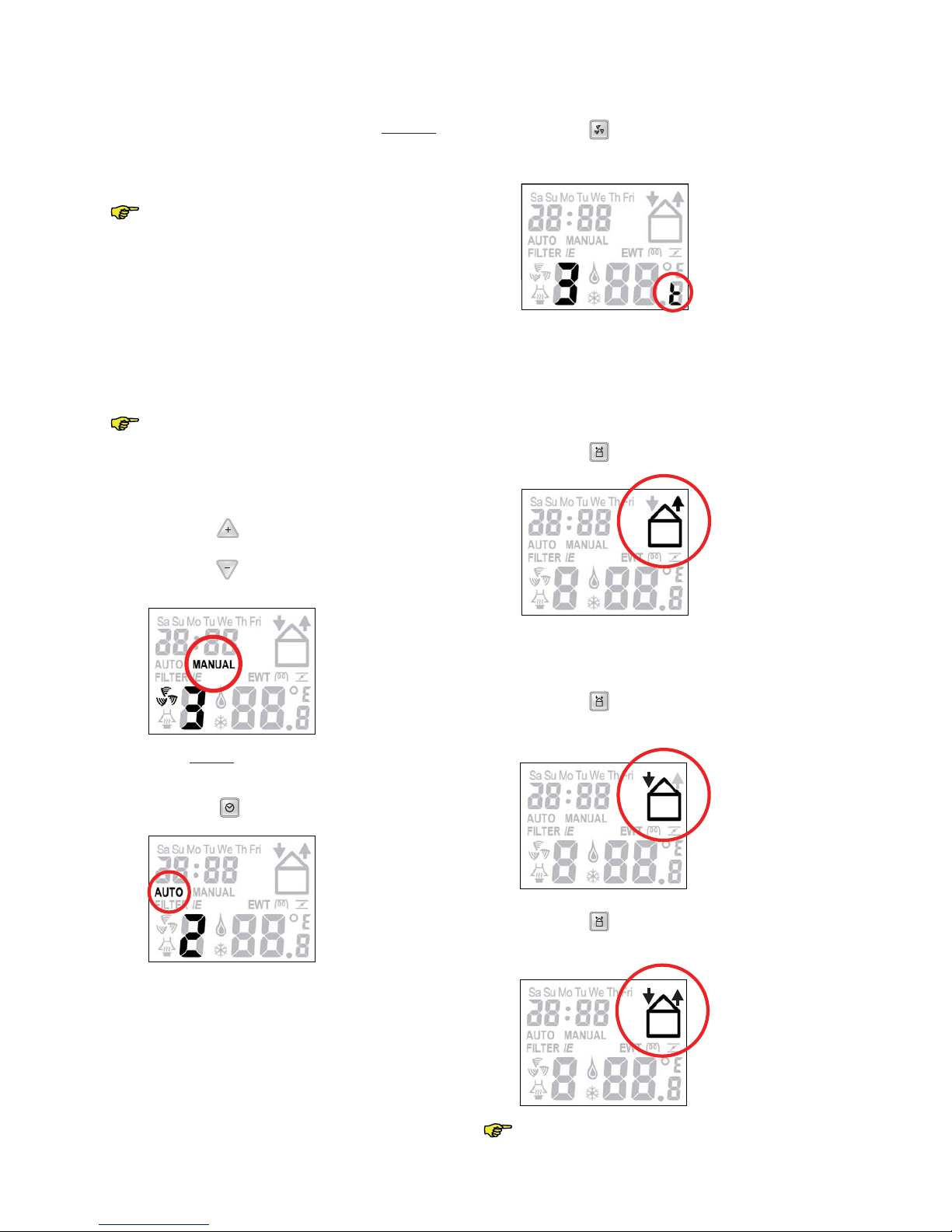

2.3 Operating the CC Ease panel............................................................................................................. 7
2.3.1 Setting the date and time......................................................................................................... 7
2.3.2 Reading and setting the comfort temperature........................................................................ 7
2.3.3 Reading and setting the ventilation volume............................................................................ 7
2.3.4 Switching Boost on .................................................................................................................. 8
2.3.5 Switching the supply and exhaust fan on/off.......................................................................... 8
2.3.6 Ventilation programme settings ............................................................................................... 9
2.3.7 Setting extra programmes ....................................................................................................... 9
2.4 Maintenance by the user.................................................................................................................. 13
2.4.1 Cleaning or replacing the filters............................................................................................. 13
2.4.2 Cleaning the valves (in your dwelling) ...................................................................................13
Contents III

2.5 Malfunctions...................................................................................................................................... 14
2.5.1 Malfunction alerts on digital operating devices.................................................................... 14
2.5.2 3-position switch with malfunction indicator ........................................................................ 14
2.5.3 What to do in the event of a malfunction .............................................................................. 14
2.6 End of useful life................................................................................................................................ 14
3. FOR THE INSTALLER ................................................................................................................................... 15

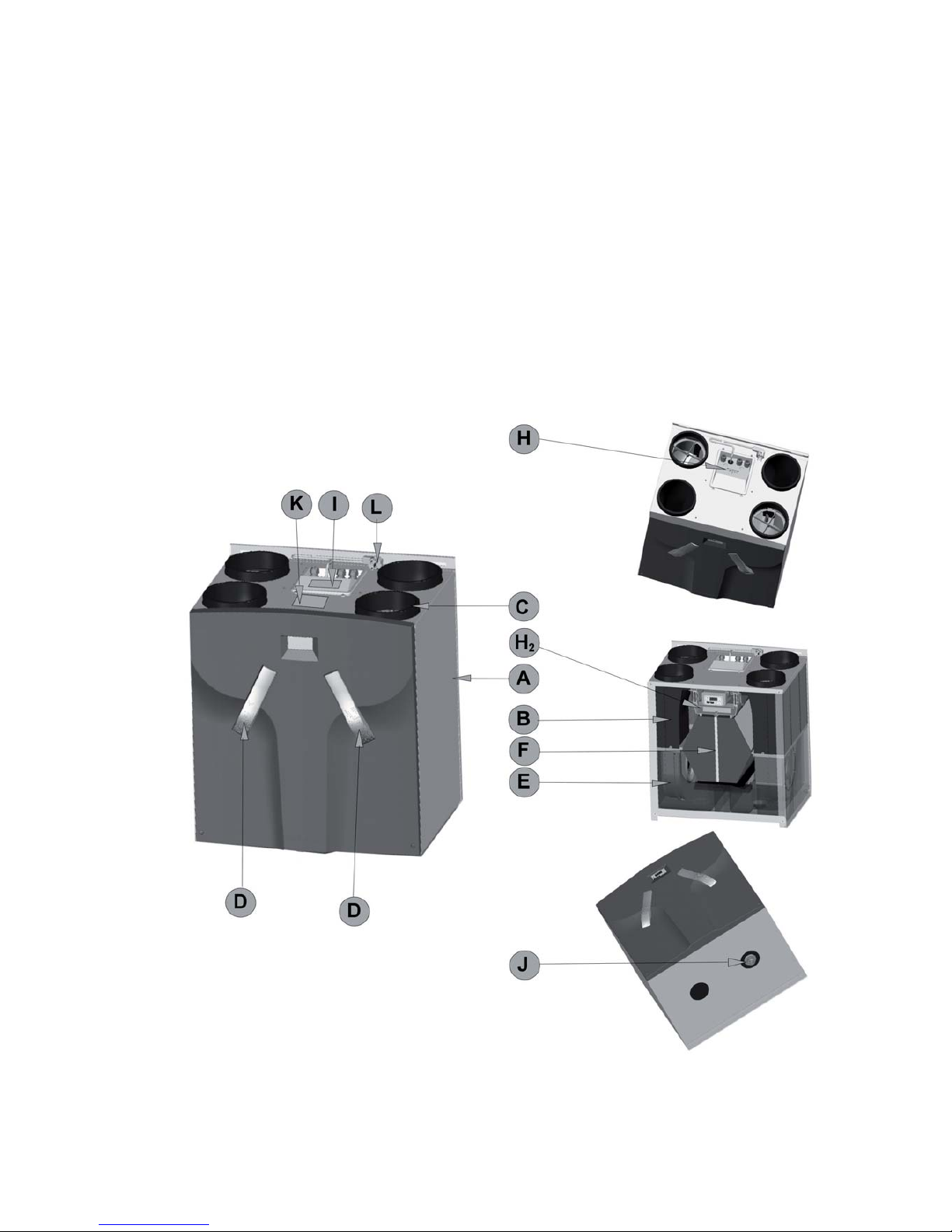

3.1 ComfoAir............................................................................................................................................ 15
3.2 Technical specifications ................................................................................................................... 16
3.3 Dimension sketch ............................................................................................................................. 17
3.4 Installation conditions ...................................................................................................................... 18
3.5 Installation of the ComfoAir ............................................................................................................. 18
3.5.1 Transport and unpacking ....................................................................................................... 18
3.5.2 Checking the delivery............................................................................................................. 18
3.6 Wall mounting.................................................................................................................................... 18
3.6.1 Connection of the air ducts.................................................................................................... 19
3.6.2 Connection of the condensation drain .................................................................................. 19
3.7 Commissioning the ComfoAir.......................................................................................................... 20
3.7.2 CC Ease panel ........................................................................................................................ 20
3.8 Programming air specifications ...................................................................................................... 26
3.9 Maintenance by the installer............................................................................................................ 27
3.9.1 Inspecting the heat exchanger and fans ............................................................................... 27
3.9.2 Cleaning the filter if a pre-heater is fitted.............................................................................. 28
3.10 Malfunctions...................................................................................................................................... 28
3.10.1 Malfunction alerts on the digital operating device ...............................................................28
3.10.2 Trouble shooting..................................................................................................................... 29
3.10.3 Malfunctions (or problems) without alarms........................................................................... 33
3.11 Service parts...................................................................................................................................... 34
3.12 Wiring diagram: ComfoAir luxe – LEFT-HAND version .................................................................. 35
3.13 Wiring diagram: ComfoAir luxe – RIGHT-HAND version................................................................ 36
3.14 ComfoAir 550 Luxe installation measuring report ........................................................................ 37
IV Contents

1
Introduction - 1 - EN
1 Introduction
This chapter provides general information on the ComfoAir.
1.1 Preface
In addition to this general chapter, this manual con-
sists of:
• A part for the user;
• A part for the installer.
Carefully read this manual
before use.
- User Chapters 1 and 2,
- Fitter Chapters 1 and 3.
This manual provides all the information required for
safe and optimal installation, operation and mainte-
nance of the ComfoAir. It is also intended as a refer-
ence for servicing, so that this can be carried out
in a responsible manner. The device is subject to
continuous development and improvement. There
is therefore a possibility that the ComfoAir differs
slightly from the descriptions given.
NOTE
This manual has been compiled with
the utmost care. However, no rights can be
derived from it. In addition, we at all times
reserve the right to change the contents of this
manual, without prior notice.
1.2 CE marking
The device's name is ComfoAir 550 Luxe. In the fol-
lowing it will be referred to as ComfoAir.
The ComfoAir is a balanced ventilation system with
heat recovery for healthy, balanced and energy-
efficient ventilation in your dwelling. The ComfoAir
identification plate is shown below.
Voltage Hertz
Current
Power
Capacitor
Phase
Articlecode
Type
Serial number
Protecion
class
Insolation
class
1.3 Guarantee and liability
1.3.1 Guarantee conditions
The ComfoAir is covered by a manufacturer’s war-
ranty for a period of 24 months after fitting up to
a maximum of 30 months after the date of manu-
facture. Warranty claims may only be submitted for
material faults and/or construction faults arising
during the warranty period. In the case of a war-
ranty claim, the ComfoAir must not be dismantled
without written permission from the manufacturer.
Spare parts are only covered by guarantee, if they
were supplied by the manufacturer and have been
installed by an approved installer.
The warranty becomes invalid if:
• The guarantee period has elapsed;
• The device is used without filters;
• Parts are used that have not been supplied by
the manufacturer;
• Non-authorised changes or modifications have
been made to the unit.
1.3.2 Liability
The ComfoAir has been designed and produced for
application in balanced ventilation systems. Any
other application is seen as inappropriate use and
can result in damage to the ComfoAir or personal
injury, for which the manufacturer cannot be held
liable.
The manufacturer is not liable for damage
caused by:
• Non-compliance with the safety, operating and
maintenance instructions in this manual;
• The use of components not supplied or recom-
mended by the manufacturer;
• Responsibility for the use of such components
lies entirely with the installer;
• Normal wear and tear.

1
EN - 2 - Introduction
1.4 Safety
1.4.1 Safety regulations
Always comply with safety regulations in this man-
ual. If the safety regulations, warnings, comments
and instructions are not complied with, this can
lead to personal injury or damage to the ComfoAir.
• The electrical installation of the ComfoAir may
only be performed by a qualified electrician in
accordance with Part P of the Building Regula-
tions;
• Installation of the ComfoAir must be carried out
in accordance with the general and locally ap-
plicable construction, safety and installation
instructions of the local council, electricity and
water boards or other agencies such as the GIW
(Dutch Home Warranty Institute);
• Observe the safety regulations, warnings, com-
ments and instructions as prescribed in this
manual at all times;
• Store this manual in the vicinity of the ComfoAir
for its entire working life;
• Instructions with regard to cleaning or replacing
the filters of the intake and exhaust valves must
be carefully observed;
• The specifications stated in this document may
not be changed;
• Modifications may not be made to the Com-
foAir;
• The ComfoAir is not suitable for connection to
the three-phase mains;
1.4.2 Safety provisions and measures
• The ComfoAir cannot be opened without using
tools;
• It should not be possible to touch the fans,
therefore ducting must be connected to the
ComfoAir at a minimum duct length of 900mm.
1.4.3 Pictograms used
The following pictograms are used in this manual:
Point of attention.
Risk of:
- damage to the device;
- personal injury to the user, or;
- performance of the device is compro-
mised if instructions are not observed
carefully.

2
For the user - 3 - EN
2. For the user
This chapter describes how to operate the ComfoAir.
2
2.1 Glossary
The ComfoAir features:
• Balanced ventilation;
• Heat recovery;
• Bypass for free cooling;
• Frost protection;
• Chimney sweep programme;
• 0 - 10V input;
• Pre-heater (optional);
• Afterheater (optional);
• Geothermal heat exchanger (optional);
• Enthalpy (optional).
A concise explanation of these concepts/features is
given in the paragraphs below.
2.1.1 Balanced ventilation
The ComfoAir is a balanced ventilation system.
Balanced ventilation means that pollutants from
the kitchen, the bathroom, the toilet(s) and possi-
bly the storage room are extracted, while the same
amount of fresh air is blown into the living room and
bedrooms. Gaps under the doors ensure a good
through-flow in the dwelling. The air circulation is
in balance.
Ensure that these gaps are never obstructed
by draught excluders or deep-pile carpet, for
example. Otherwise the system will not func-
tion optimally.
A balanced ventilation system consists of:
• ComfoAir (A);
• Duct system for the supply of outdoor air (B)
and the exhaust of indoor air (C);
• Supply valves in the living room and bedrooms
(D);
• Exhaust valves in the kitchen, bathroom, the
toilet and (if present) the storage room (E).
B
A
C
E
D
F
D
D
D
E
E
2.1.2 Heat recovery
Besides ensuring a healthy balance between incom-
ing and outgoing air, the ComfoAir also provides the
benefits of heat recovery. Heat recovery means that
heat from the extracted air is transferred to the fresh,
and usually colder, air from outside the building.
2.1.3 Bypass for free cooling
The bypass is often used during hot days in the
summer season. By allowing colder outside air in
at night, the indoor temperature of the dwelling can
be kept low during hot days. The bypass works au-
tomatically. All you have to do is set the required
comfort temperature.
2.1.4 Frost protection
The ComfoAir is also fitted with a frost protection
device. This is an automatic protective system that
temporarily reduces (or even briefly stops) the sup-
ply of outdoor air to the ComfoAir if there is a risk
of freezing in the ComfoAir. This can occur in the
event of moderate to sharp frost during the winter
months.
2.1.5 Chimney sweep programme
The ComfoAir is fitted with an Chimney sweep pro-
gramme. The chimney sweep programme is used in
houses that have a fireplace, as there is a risk of air
being sucked back from the chimney. The chimney
sweep programme works automatically but requires
activation by the installer. While the Chimney sweep
programme is activated the supply and exhaust fan
can not be turned off manually.
2.1.6 0-10V input
The ComfoAir is fitted with four 0 to 10V inputs. This
allows various different types of control system or
sensor to be connected. Examples of the options
include:
• CO2sensor; flow regulation using carbon diox-
ide levels;
• Moisture sensor; flow regulation using moisture
levels.
2.1.7 Pre-heater (optional)
Fitting the optional pre-heater in the ComfoAir gives
the added bonus that balanced ventilation remains
intact for longer. In that case, the supply of cold out-
side air no longer needs to be reduced (so soon).
The pre-heater is (de)activated automatically.
2.1.8 Afterheater (optional)
It is possible to fit the ventilation system with a af-
terheater. The afterheater ensures that the supply
air is heated further before it enters any living areas.
The advantage of an afterheater is that the sup-
ply air can be instantly released into the house at
the set comfort temperature. That offers additional
comfort.
The afterheater works automatically: simply set the
required comfort temperature.
The afterheater is part of the ducting of the
ventilation system, and does not form part of
the ComfoAir.

2
EN - 4 - For the user
2.1.9 Geothermal heat exchanger (optional)
It is possible to fit the ventilation system with a geo-
thermal heat exchanger. The geothermal heat ex-
changer ensures that outside air is supplied to the
dwelling at a constant temperature of about 8 °C.
Therefore, in the event of subzero temperatures, the
outside air can be heated up by means of the geo-
thermal heat exchanger, prior to releasing it into the
house via the ComfoAir. Alternatively, in the event
of hot summer conditions, the outside air can be
cooled down by means of the geothermal heat ex-
changer, prior to releasing it into the house via the
ComfoAir. The geothermal heat exchanger is auto-
mated.
The geothermal heat exchanger is part of the
ducting of the ventilation system, and does
not form part of the ComfoAir.
2.1.10Enthalpy (optional)
The ComfoAir can be optionally fitted with an en-
thalpy exchanger. An enthalpy exchanger is less
sensitive to freezing. An enthalpy system means the
ComfoAir uses the afterheater less, and no longer
reduces the air supply from outside, though it does
stop it in extreme cold.
2.1.11 Luxury version extra options
Besides the options stated earlier, the ComfoAir
Luxe also offers the following options:
• Connection for remote (fixed-line) malfunction
alerts;
• Connection for remote (fixed-line) deactivation
of the fans;
• Connection for filter alert for external filters.
2.2 Available operating devices
The ComfoAir can be fitted with the following
operating elements:
• 3-position switch;
• Wireless 3-position switch;
• 3-position switch with malfunction indicators;
• Bathroom switch to temporarily select the
highest ventilation position;
• CO2sensor;
• CC Luxe panel;
• CC Ease panel.
A concise explanation of these operating elements
is given in the paragraphs below.
2.2.1 3-position switch
A 3-position switch can be used to set the venti-
lation positions of the ComfoAir. One or multiple
3-position switches can be fitted in the house (e.g.
in the kitchen). The following types of switches can
be used:
• Type 1 JStandard 3-position switch;
• Type 2 J3-position switch with LED
for malfunction and filter alerts;
• Type 3 JWireless 3-position switch with:
LED for malfunction and filter indication.
If multiple position switches are available in
the house, the ComfoAir will switch to the
highest ventilation setting unless overruled by
an automated software programme.
Setting the ventilation using
3-position switch(es)
A 3-position switch can be used to set 3 different
ventilation positions.
• Position 1 JLow.
- Use for low ventilation levels.
• Position 2 Normal.
- Use if you require normal ven-
tilation.
• Position 3 High.
- Use this position during cook-
ing, showering and when addi-
tional ventilation is needed.
3
2
1
The CC Ease panel or CC Luxe panel can be
used to select an additional ventilation posi-
tion (the absent setting).
2.2.2 CO2sensor
The ComfoAir can also be operated using a CO2
sensor. A CO2sensor can be used either as a 3-po-
sition switch or to determine manually the ventila-
tion required by measuring CO2levels in the room
concerned.
2.2.3 Bathroom switch
A bathroom switch can be used to temporarily set
the ComfoAir in the highest ventilation level. This
switch is mostly fitted in the bathroom to extract any
excess moisture after showering, as soon as pos-
sible. The bathroom switches vary widely in model
and are therefore not illustrated here. If required, the
bathroom switch can be turned on and off using a
time delay entered via an digital operating device.
Delay timer
This ensures that the ComfoAir does not switch on
at the highest setting when activated, but first waits
for the delay timer to run its course.
If the bathroom switch is deactivated during
the delay timer period, then the ComfoAir
will remain at its current ventilation setting
and not switch to the highest setting.
The delay timer does not work with all types
of bathroom switches (e.g. pulse switches).
2

2
For the user - 5 - EN
Overrun timer
This ensures that the ComfoAir does not switch
back to the default (or preprogrammed) setting
when deactivated, but first waits for the overrun
timer to run its course. Once the programmed over-
run timer is complete, the ComfoAir returns to the
default (or preprogrammed) ventilation setting.
If the bathroom switch is turned off within
the programmed overrun timer period, then
the overrun function will be terminated.
Light switch
The functions of the bathroom switch can also be
integrated into a light switch.
2.2.4 CC Luxe panel
The ComfoAir can be operated by means of a CC
Luxe panel, which can be ordered separately. The
CC (Comfort Control) Luxe panel is an digital oper-
ating device which can be mounted on the wall in
the living room and from there communicates with
the ComfoAir. The CC Luxe panel is operated via a
touch screen.
2.2.5 CC Ease panel
The ComfoAir can be operated by means of a CC
Ease panel, which can be ordered separately. The
CC (Comfort Control) Ease panel is an digital oper-
ating device which can be mounted on the wall in
the living room and from there communicates with
the ComfoAir.
2

2
EN - 6 - For the user
The following overview summarizes the information that will be displayed.
The CC Ease panel has a number of buttons to operate the ComfoAir and to enter the settings. These buttons are
illustrated below.
This button allows you to switch to the highest ventilation setting.
- Press once Boost setting ON.
- Press twice Boost setting OFF.
This button allows you to switch between supply/exhaust.
- Press once SUPPLY OFF (and DISCHARGE ON).
- Press twice EXHAUST OFF (and SUPPLY ON).
- Press 3 times SUPPLY and EXHAUST both ON.
With this button you can read or set the comfort temperature.
- Press and hold for less than 2 second READ.
- Press and hold for more than 2 second SET.
This button allows you to programme two settings.
- Press for less than 2 second Set ventilation programme. (AUTO/MANUAL).
- Press and hold for more than 2 second Set day and time.
This button allows you to programme different settings:
- In P menu programme settings.
- Main screen Enter ventilation setting (A, 1, 2, 3).
2
Day and time
Actual ventilation setting
Automatic or manual
ventilation
Signal to replace internal (I)
orexternal (E) filter
Supply air and/or exhaust
air OPEN or CLOSED
Geothermal heat exchanger,
afterheater and/or bypass
activated
Actual temperature,
selection or setting

2
For the user - 7 - EN
2
2.3 Operating the CC Ease panel
The CC Ease panel is used for the following:
• Reading and setting the day and time;
• Reading and setting the comfort temperature;
• Reading and setting the ventilation volume;
• Activating the Boost setting;
• Switching the supply and exhaust fan on/off;
• Setting a personal ventilation programme;
• Setting additional ventilation programmes/ op-
tions in the P menus.
A concise explanation of the above listing is given
in the paragraphs below.
2.3.1 Setting the date and time
1. Press " " longer than 2 seconds.
2. Wait until the day, e.g. “Sa”, starts blinking.
3. Select the correct day using " " or " ".
4. Press and briefly hold " ".
5. Wait until the hour, e.g. “ ”, starts flashing.
6. Select the correct hour using " " or
" ".
7. Press and briefly hold " " again.
8. Wait until the minutes, e.g. " ", flash.
9. Select the correct minutes using " " or
" ".
10 Press and briefly hold" " again to return.
2.3.2 Reading and setting the comfort
temperature
The comfort temperature can be read, but also set
to the desired temperature. After entering the set-
ting, the ComfoAir will automatically work to the
temperature set.
Reading the comfort temperature
1. Press " " briefly.
2. Wait until the comfort temperature appears.
3. Press " " again to return.
Setting the comfort temperature
1. Press " " longer than 2 seconds.
2. Wait until the comfort temperature, e.g.
“ ”, flashes.
3. Select the desired comfort temperature using
" " or " ".
4 Press and briefly hold " " to confirm.
2.3.3 Reading and setting the ventilation
volume
Reading the ventilation volume
The current ventilation volume, e.g. “2 ”, will always
be displayed on the CC Ease panel. Normally the
ComfoAir will regulate the required ventilation vol-
ume automatically. During automatic ventilation
mode “AUTO” will be displayed on the CC Ease
panel.
In addition to showing the programmed ventilation
setting, the CC Ease panel also displays whether
a temporary control system (such as a CO2sensor
or a bathroom switch) is overriding the ventilation
setting.
In the event a required ventilation setting is being
overridden by a time delay function (such as the
bathroom switch overrun timer). a ‘t’ is displayed in
the bottom right-hand corner of the CC Ease panel.
In the event a required ventilation setting is being
overridden by a signal from a sensor (such as a CO2
sensor), an ‘A’ is displayed in the bottom right-hand
corner of the CC Ease panel.

2
EN - 8 - For the user
Setting the ventilation volume
The ventilation volume can also be set manually by
increasing or decreasing it. A total of 4 ventilation
volumes/levels can be set. They are:
• Position A Absent.
- Use when absent.
At setting A, the house is ventilated using
the minimum prescribed ventilation
volume.
• Position 1 Low.
- Use for low ventilation levels.
• Position 2 Normal.
- Use if you require normal
ventilation.
• Position 3 High setting.
- Use this position during cook-
ing, showering and when addi-
tional ventilation is needed.
The ComfoAir will switch to the highest
ventilation position set in the house, unless
overruled by an automated software pro-
gramme.
The ventilation volume can be set as follows:
1. Press " " to increase the ventilation
volume.
2. Press " " to decrease the ventilation
volume.
During manual ventilation, the CC Ease panel will
not display “AUTO”, but “MANUAL”.
3. Press " " to return to automatic ventilation.
2.3.4 Switching Boost on
1. Press “ ”.
2. Wait until ‘3t’ appears.
Once the programmed time delay is complete, the
ComfoAir automatically switches back to the previ-
ous ventilation setting.
2.3.5 Switching the supply and exhaust fan
on/off
1. Press " " once to switch off the supply fan.
This mode can be used when the windows are open
during the summer. In that case, fresh air is not sup-
plied via the supply fan, but through the open win-
dows.
2. Press " " twice to switch the exhaust fan
off (and to switch the supply fan on).
3. Press “ ” three times to switch the supply
and exhaust fans on again.
Bear in mind that switching off the supply or
exhaust fan will temporarily immobilize your
balanced ventilation system.
2

2
For the user - 9 - EN
2.3.6 Ventilation programme settings
The ComfoAir has a factory default ventilation set-
ting (setting 2).
If wanted, you can change the standard ventilation
programme to suit your individual situation. For
example a weekday and weekend programm. The
ventilation volume can be changed/set as follows:
1. Press and hold
" " and " ".
2. Wait until the ventilation programme appears.
3. Programme the desired day or series of days.
4. Select the desired option using " " or
" ".
You can choose from:
– Weekend: “SaSu”;
– Working week: “MoTuWeThFri”;
– Week: “SaSuMoTuWeThFri”;
– Separate days: “Sa”, “Su”, “Mo”, “Tu”, “We”,
“Th” and “Fri”.
5. Press " ".
6. Wait until the ventilation setting is flashing in the
bottom right-hand corner.
7. Select the desired ventilation setting using
" " or " ".
8. Press " " .
9. Programme the start time of the desired
ventilation level.
– Select the required time in hours using " "
or " ".
– Press " " again.
– Wait until the minutes appear on the screen.
– Select the desired time in minutes using
" " or " ".
– Press " " again.
– Wait until the ventilation setting flashes.
– Select the desired ventilation level using
" " or " "
– Press " " to confirm.
10. Programme the next ventilation programme is
required.
– Repeat steps 1 to 9 to set the next ventilation
programme.
2.3.7 Setting extra programmes
Using some P menus in the CC Ease panel, you
can:
• Read the status of various ventilation;
• Switch the time delay function on or off for
various ventilation programmes;
• Programme a time delay for various ventilation
settings.
The user can only access P menus: P1, P2
and P9 additional programme settings. The
remaining P menus (P3 to P8) are for use by
the installer only.
Accessing the P menus
1 Press " " and " " simultaneously.
2. Wait until the "P menu" appears on the display.
3. Select the desired P sub-menu using " " or
" ", e.g., P menu “ ".
4. Press " " to confirm the P menu.
5. Select the desired P sub-menu using " " or
" ", e.g., P sub-menu " ".
6 Press " " to confirm the P sub-menu.
2

2
EN - 10 - For the user
Entering settings in P menus
7. Select a new value for the programme using
" " or " ".
8. Press " " to confirm.
9. Repeat steps 3 to 8, to set multiple ventilation
programmes in succession.
The minimum and maximum values for the
available ventilation programmes are preset
in the software.
Returning to the main menu
10. Press " " twice.
2

2
For the user - 11 - EN
Menu P1 Status of programmes
Ventilation programmes
Sub-
menu Description Activated
P10 Is menu 20 currently active? Yes (1) / No (0)
P11 Is menu 21 currently active? Yes (1) / No (0)
P12 Is menu 22 currently active? Yes (1) / No (0)
P13 Is menu 23 currently active? Yes (1) / No (0)
P14 Is menu 24 currently active? Yes (1) / No (0)
P15 Is menu 25 currently active? Yes (1) / No (0)
P16 Is menu 26 currently active? Yes (1) / No (0)
P19 Is menu 29 currently active? Yes (1) / No (0)
Menu P2 Setting time delays
Time delay values
Sub-menu Description Mini-
mum
Maxi-
mum
Default
P20
(Optional)
N/a 0 Min. 180 Min. 30 Min.
P21
(Optional)
Note:
Only applies to systems
fitted with a corded switch
and a second switch in the
bathroom.
- Low voltage input
Delay timer for the bathroom switch
(to switch to high position).
• ’x’ minutes after operating the
bathroom switch, the ComfoAir
switches to the HIGH POSITION.
0 Min. 15 Min. 0 Min.
P22
(Optional)
Note:
Only applies to systems
fitted with a corded switch
and a second switch in the
bathroom.
- Low voltage input
Overrun timer for the bathroom
switch (to switch to normal posi-
tion).
• ’x’ minutes after operating the
bathroom switch, the ComfoAir
switches to the NORMAL SETTING.
0 Min. 120 Min. 30 Min.
P23
(Optional)
Note:
Only applies to systems
fitted with a hardwired
switch.
Overrun timer for ventilation position
3.
• If ventilation setting 3 (high) is
switched on briefly (< 3sec), the
ComfoAir remains at ventilation
position 3 in accordance with the
time set in this menu.
If the position switch or RF remote
control is operated during this lag-
ging time, the ComfoAir will instantly
revert to the ventilation position as
set.
0 Min. 120 Min. 0 Min.
P24 Filter warning
• Here the user can indicate when
the “FILTER DIRTY” alert must ap-
pear.
10 weeks 26 weeks 16
weeks
2

2
EN - 12 - For the user
Time delay values
Sub-menu Description Mini-
mum
Maxi-
mum
Default
P25
Note:
Only applies to systems
fitted with an RF switch.
Overrun timer for ventilation setting
3 (using " ").
• After pressing " " BRIEFLY (<
2 sec.), the ComfoAir will switch
to the HIGH SETTING and auto-
matically switch back to the set
level after ‘x’ minutes.
1 Min. 20 Min. 10 Min.
P26
Note:
Only applies to systems
fitted with an RF switch.
Overrun timer for ventilation setting
3 (using " ").
• After pressing AND HOLDING "
" (> 2 sec.), the ComfoAir will
switch to the HIGH SETTING and
automatically switch back to the
set level after ‘x’ minutes.
1 Min. 120 Min. 30 Min.
P27
Note:
Only applies to systems
fitted with a CC Ease panel.
Time for the Boost setting.
• After pressing “ ” continu-
ously (>2 sec.), the ComfoAir runs
at the high setting for ‘x’ minutes
and then automatically returns to
the programmed setting.
0 Min. 120 Min. 30 Min.
P29 (Optional) N/a 1% 99% 10%
Menu P9 Status of programmes (from menu P5)
Ventilation programmes
Sub-menu Description Activated
P90 Open fire programme active? Yes (1) / No (0)
P91 Bypass Open (=Yes) / Closed (=No)? Yes (1) / No (0)
P92 Geothermal heat exchanger valve
Open (=Yes) / closed (=No)
Yes (1) / No (0)
P93 Afterheater active? Yes (1) / No (0)
P94 0 – 10 V programme active? Yes (1) / No (0)
P95 Frost protection active? Yes (1) / No (0)
P96 N/a Yes (1) / No (0)
P97 Enthalpy programme active? Yes (1) / No (0)
2

2
For the user - 13 - EN
2.4 Maintenance by the user
As a user of the ComfoAir, you must carry out the
following maintenance:
• Cleaning or replacing the filters;
• Cleaning the valves (in the dwelling).
A concise explanation of these maintenance
activities is given in the paragraphs below.
Failure to carry out (periodic) maintenance
on the ComfoAir ultimately compromises the
performance of the ventilation system.
2.4.1 Cleaning or replacing the filters
If so indicated on the digital operating device, you
must clean or replace the filters.
• “ FILTER I” The internal filters must be
cleaned or replaced.
• “ FILTER E” The external filters must be
cleaned or replaced.
The CC Ease panel will display one of the above
filter warnings.
The internal filters are included in the stand-
ard configuration of the ComfoAir. The exter-
nal filters (optional) form part of the ducting
of the ventilation system yet do not form part
of the ComfoAir.
To replace ...
If the filters need replacing, follow this procedure:
• Press “ “ (CC Ease panel) for at least 4
seconds until the filter warning disappears.
• Disconnect the power from the ComfoAir.
• Remove handles (A) from the ComfoAir.
• Remove the old filters (B) from the ComfoAir.
• Insert the new filter in the ComfoAir.
• Remount the handles on the ComfoAir
• Reconnect the power to the ComfoAir.
AA
B
To clean...
Vacuum the filters (B) with a vacuum cleaner instead
of replacing them with new filters.
When using the ComfoAir for the first time,
it is recommended to clean the filters (and
valves) first. During the construction phase
the ventilation system could have become
dirty with building dust.
Replace the filters (at least) once a year.
2.4.2 Cleaning the valves (in your dwelling)
The ventilation system may be fitted with the fol-
lowing valves:
Exhaust valve (STB) Exhaust valve (STC)
Exhaust valve (STV) Exhaust valve (STK)
Supply valve (STH)
You must clean the valves (at least) twice a year:
• Remove the valve from the wall or ceiling;
• Clean the valve in soapy warm water;
• Rinse the valve thoroughly and wipe dry;
• Place the valve back WITH EXACTLY THE
SAME SETTING (and IN THE SAME HOLE);
• Repeat this procedure for the other valves.
2

2
EN - 14 - For the user
About the valve settings...
The installer will have set all the valves to ensure
the optimum performance of the ventilation system.
Therefore, do not change the setting of the valves.
After cleaning, make sure that all valves are
placed back with the same setting (and in
exactly the same ventilation hole in the wall
or ceiling) AT ALL TIMES. Otherwise, system
performance will be compromised.
The ventilation air is supplied and discharged by
means of valves. Gaps under doors in the dwell-
ing ensure that the air flows in the right direction.
In order to ensure that the ventilation volumes are
maintained in the rooms, the following must be ob-
served:
• Do not seal the gaps;
• Do not change the settings of the valves;
• Do not replace the valves with one another.
2.5 Malfunctions
Malfunctions in the ComfoAir are reported as fol-
lows:
• The malfunction alert appears on the CC Ease
panel;
• The malfunction alert appears on the CC Luxe
panel;
• The malfunction indicator on the 3-position
switch lights up.
A concise explanation of these maintenance activi-
ties is given in the paragraphs below.
2.5.1 Malfunction alerts on the digital
operating device
In the event of a malfunction, the corresponding
malfunction code will be displayed on the digital
operating device. The the digital operating device
will always show an 'A' or an 'E', with a number as
a suffix. Please refer to the malfunction overview
to find out the meaning of the relevant malfunction
alert.
2.5.2 3-position switch with malfunction
indicators
The 3-position switches that are fitted with a mal-
function indicator show when a malfunction has
occurred. Depending on the type of the 3-posi-
tion switch, this is done in one of the following two
ways:
• 3-position switch with malfunction indicators.
In the event of a malfunction (or in the event of
a filter dirty alert) the indicator lights up.
• Wireless 3-position switch with malfunction in-
dicator.
The malfunction indicators will light up once
this 3-position switch is used. One indicator will
light up green to indicate communication has
been established. Subsequently, in the event of
a malfunction (and in the event of a filter dirty
alert) both indicators will flash red 3 times. Af-
ter that, both indicators will light up green once
more.
The malfunction indicator on the 3-position
switch will not light up in the event of mal-
functions alone, it will also light up in the
event of filter cleaning warnings.
2.5.3 What to do in the event of a malfunction
In the event of a malfunction, contact the installer.
Note down the malfunction code that appears on
the digital operating device. Make a note of your
ComfoAir type. This is given on the identification
plate on the top of the ComfoAir.
The system should not be disconnected from the
power supply, unless the ComfoAir must be taken
out of service due to a serious malfunction, or for
filter cleaning/replacement or any other compelling
reasons.
If the ComfoAir is disconnected from the
power supply, mechanical ventilation of the
dwelling will cease. This can lead to a build-
up of moisture and results in problems with
mould. Long-term deactivation of the Com-
foAir must therefore be prevented..
2.6 End of useful life
Consult with your supplier about what you should
do with the ComfoAir at the end of its useful life.
If the ComfoAir cannot be returned to the supplier,
avoid disposing of it with the domestic waste, and
ask your local council about the options for recy-
cling the components or processing the materials
in an environmentally friendly manner.
Furthermore, do not dispose of batteries from the
wireless switches with the normal waste, but bring
them to the specially designated disposal loca-
tions.

3
For the installer - 15 - EN
3 For the Installer
This chapter describes how to fit the ComfoAir.
3.1 ComfoAir
The standard ComfoAir configuration consists of:
• External casing (A) of coated sheeting;
• Interior (B) of high-quality, expanded polypropylene (E)PP;
• 4 connections (C) for the air ducts;
• 2 G4 filters (D) for air purification;
• 2 energy-efficient DC motors (E) with high-efficient fan;
• HE (High Efficient) heat exchanger (with optional moisture exchanger) (F);
• Electronics compartment (H) for connecting external switches and controllers;
• Removable PCB unit (H2);
• Identification plate (I) detailing information on the ComfoAir (not visible);
• Condensation drain connector (J);
• Sticker (K) detailing air connections;
• 3-core, 230V connection (L).

EN - 16 - For the installer
3.2 Technical specifications
ComfoAir 550 Luxe (nL setting)
Position Ventilation capacity Value
LOW SETTING 150 m3/h at 23 Pa 27 W
MEDIUM SETTING 250 m3/h at 77 Pa 68 W
HIGH SETTING 450 m3/h at 323 Pa 313 W
M
AXIMUM 550 m3/h at 240 Pa 365 W
Position Ventilation capacity Value
L
OW SETTING 150 m3/h at 23 Pa 0.23 A
MEDIUM SETTING 250 m3/h at 77 Pa 0.55 A
HIGH SETTING 450 m3/h at 323 Pa 2.21 A
MAXIMUM 550 m3/h at 240 Pa 2.56 A
Electricity
Power supply 230/50 V/Hz
Cos.phi 0,48 - 0,62
Supply fan noise level (at 0 m)
Position Ventilation capacity Value
L
OW SETTING 150 m3/h at 23 Pa 50 dB(A)
M
EDIUM SETTING 250 m3/h at 77 Pa 63 dB(A)
H
IGH SETTING 450 m3/h at 323 Pa 78 dB(A)
MAXIMUM 550 m3/h at 240 Pa 79 dB(A)
Exhaust fan noise level (at 0 m)
Position Ventilation capacity Value
L
OW SETTING 150 m3/h at 23 Pa 39 dB(A)
M
EDIUM SETTING 250 m3/h at 77 Pa 49 dB(A)
H
IGH SETTING 450 m3/h at 323 Pa 63 dB(A)
M
AXIMUM 550 m3/h at 240 Pa 64 dB(A)
General Specifications
HE Exchanger Material Polystyrene
Interior Material (E)PP / PA / PA
Thermal Yield 95%
Mass 47 kg
