GM8802C-E Compact Transmitter
GM8802C-0E110102 - 1 -
1 General Description
1.1 General Description
GM8802C-E weighing transmitter is a small instrument
which is widely used in weight-transmitted industry field.
1.2 Functions and Features
Small dimension to operate easier.
Suitable for all resistance strain sensors.
Calibration and parameters through outer digital
operational panel GM8891C Indicator (or PC).
Multilevel digital filter.
Automatic zero tracking.
Automatic zeroing when power up.
Analog output: 4-20mA / 0-20mA / 0-10V / 0-5V / 1-5V

GM8802C-E Compact Transmitter
-2- GM8802C-0E110102
1.3 Front Panel

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 3 -
GM8802C-E Front Panel Figure
1—— Input Interface of Power Supply
2 —— Input Interface of Weighing Sensor
3—— Output interface of Analog
4——Communication Interface of Parameter Setting
POWER：Indicator Light of Power Supply
OUT: Indicator Light of Analog output
COM: Indicator Light of Communicating with digital
operation panel GM8891C (or PC)
OFL: Indicator Light of Overflow

GM8802C-E Compact Transmitter
-4- GM8802C-0E110102
1.4 Technical Specifications
General Specifications:
Power supply: DC24V ± 5%
Working temperatures：-10～40℃
Humidity: 90%R.H without dew
Power: about 3w
Dimensions：92×90×45（mm）
Analog Part:
Load cell exciting voltage ：DC5V 280mA（MAX）
Input resistance：10MΩ
Zero point adjustment range；0.2～8mV
Input sensitivity：0.5uV/d

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 5 -
Input range: 0.02～10.5mV
A/D conversion: Sigma – Delta
A/D conversion speed: 200times/second
Non-linear：0.01% F.S
Gain drifting: 10PPM/℃
D/A resolution ratio: 16 Bits
Analog output: 4-20mA / 0-20mA / 0-10V / 0-5V / 1-5V
(optional)

GM8802C-E Compact Transmitter
-6- GM8802C-0E110102
2 Installation
2.1 Connection of Load Cell

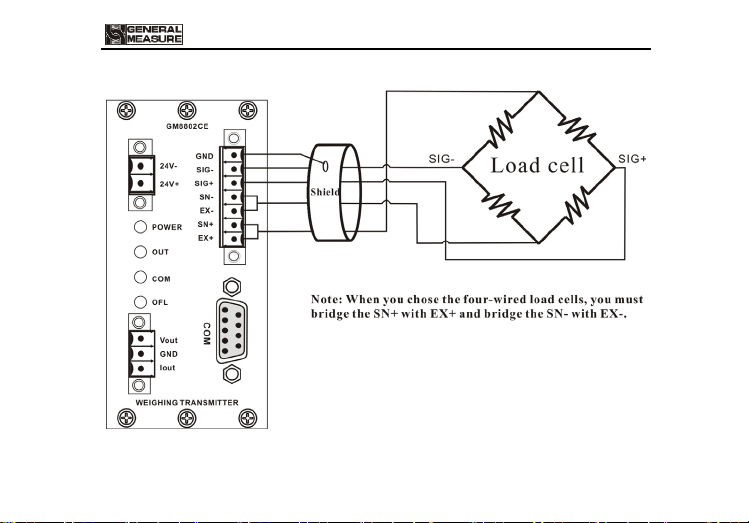

Please refer to the picture in 2.1 to connect load
cells to the GM8802C-E transmitter. When you chose
the four-wired load cells, you must bridge the SN+ with
EX+ and bridge the SN- with EX-.
Because the input signal of the sensor is a analog
signal, it is more sensitive to electronic noise, so this
signal transmission should adopt the shielding cable ,
and should separate its from other cables to lay , should
not tie up it together . The signal cable should be far
away from exchanging the power.

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 7 -
The signal definition of each port of the load cell
connector as follows:
Port EX+ SN+ EX- SN- SIG+ SIG- GND
Definition
Excitation
+
Sense
+
Excitation
-
Sense
-
Signal
+
Signal
-
Shield

GM8802C-E Compact Transmitter
-8- GM8802C-0E110102

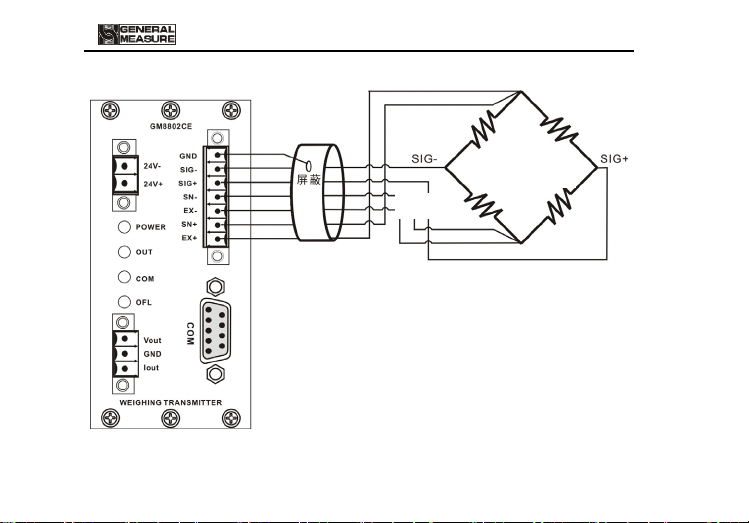

2.1.1 6 wires Connection
Load cell
Shield

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 9 -
2.1.2 4 wires Connection

GM8802C-E Compact Transmitter
-10- GM8802C-0E110102
2.2 Connection of Power Supply
GM8802C-E transmitter uses 24V direct-current
power and the connection as follows:
24-: Negative pole
24
+: Positive pole

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 11 -
2.3 Connection of Analog Output

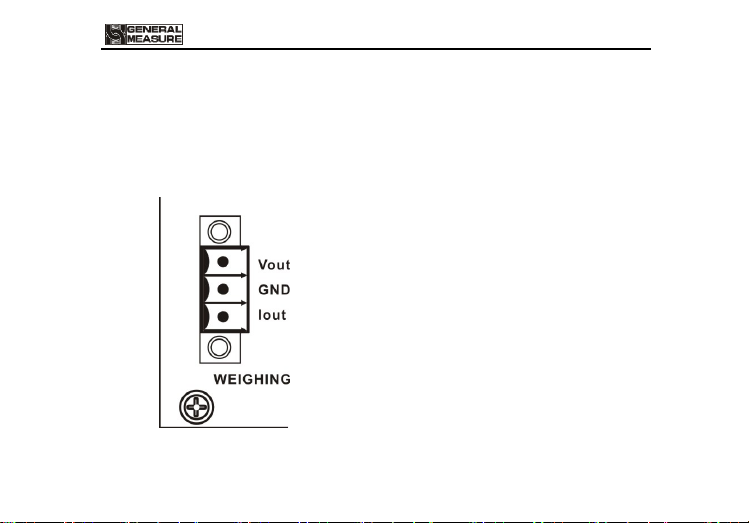

GM8802C-E transmitter can change the current
weight value into analog output, the output interfaces
are : Vout，Iout and GND as follows:
Here:
Vout：Analog output positive
GND:Common ground
Iout：Analog output negative

GM8802C-E Compact Transmitter
-12- GM8802C-0E110102
2.4 Connecting with GM8891C Indicator
Without screen and keyboard, GM8802C-E need
connect with the digital operational panel GM8891C in
calibration by communication interface to set
parameters and digital display (COM indicator light will
flash for success connection and communication).
GM8891C indicator will display the parameters,
weighing value and working status of GM8802C-E
transmitter, and also can operate GM8802C-E by
keyboard , such as calibration and parameters setting
on GM8802C-E. If fail to be connected with GM8802C-E
transmitter, GM8891C indicator can’t power up.

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 13 -
2.4.1 The Front Panel Description of GM8891C
GM8891C Front Panel Figure
The main display：6bits，displaying the weight data/analog
output and relevant data.
Status indicator lights：

GM8802C-E Compact Transmitter
-14- GM8802C-0E110102
ZERO：Zero point, lights up when the weight on the
weighing platform or hopper is 0±1/4d.
STAB：Stable，lights up when the weighing value is
within stability criterion range.
DATA: lights up when it display mA (or V) output.
Keyboard：
:Zeroing and exit from the current function status.
: Choose the parameter items.
: Choose the functions of parameter setting.
: Confirm when setting parameters or calibration.

GM8802C-E Compact Transmitter
GM8802C-0E110102 - 15 -
2.4.2 Rear Panel Description of GM8891C
GM8891C Rear Panel Figure
1、Communication interface
2、GND connection
