ZENEC ZE-DVBT60HD User manual

USER MANUAL
ENGLISH/ GERMAN
USER MANUAL
BEDIENUNGSANLEITUNG
ZE-DVBT60HD
2-CH ANTENNA
DIVERSITY HD DVB-T TUNER

2
ABOUT THIS INSTRUCTION MANUAL
The instruction manual contains important information and warnings about the
operation of this unit. Please store it inside your vehicle to have access to it any time.
The contents of this document are provided "as is", as required by applicable law. No
warranties of any kind, either expressed or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy, reliability or contents of this document. ZENEC reserves
the right to revise this document or withdraw it at any time without prior notice.
CONTENTS
SAFETY INSTRUCTIONS ..................................................................................... 3
CONNECTIONS/INSTALLATION .......................................................................... 4
PLACING AND CONNECTING ANTENNAS......................................................... 7
INITIAL INSTALLATION ........................................................................................ 8
OSD MENU ............................................................................................................ 9
DVB-T TV............................................................................................................. 10
DVB-T RADIO...................................................................................................... 12
SYSTEM SETTINGS............................................................................................ 14
MUSIC.................................................................................................................. 16
PHOTO................................................................................................................. 18
MOVIE.................................................................................................................. 20
RECORD FUNCTION .......................................................................................... 22
REMOTE CONTROL ........................................................................................... 23
ACCESSORIES ................................................................................................... 25
TROUBLESHOOTING......................................................................................... 26
SPECIFICATIONS................................................................................................ 28
WARRANTY......................................................................................................... 58

3
ZE-DVBT60HD
SAFETY INSTRUCTIONS
1. Read these instructions entirely.
2. Keep these instructions. Whoever uses the unit should have access to this manual.
3. Heed all warnings. Follow all instructions.
4. This unit is designed to be used in a vehicle with +12/24 V DC battery and negative ground.
5. Do not operate the unit in any other way than described in this manual. Failure to follow the
instructions within this manual may void your warranty.
6. Do not disassemble or alter the unit in any way, because it will void your warranty. Do not attempt to
repair or to service the unit yourself, but contact an authorized ZENEC dealer instead.
7. Use only original accessories which are designed and manufactured for the unit, otherwise you
will risk damage. Install the unit according to the mounting manual by using the supplied mounting
accessories. The forces of acceleration for accidents are sometimes huge. Incorrectly mounted
units are a big risk for the driver and the car passengers, during an accident.
8. Protect the unit from water and other liquids, which can enter the casing. A short circuit or even fire
could be the result.
9. To prevent a short circuit, never insert or stick any metallic objects (such as coins or metal tools) into
the unit.
10. Before you replace a defective fuse, try to find the cause for the short circuit. Please pay attention
to the cables of the power supply! If the short circuit doesn't result from a failure of the power supply
or wiring, you can replace the defective fuse with a new one (same values). If the short-circuit is still
existing, please contact an authorized ZENEC dealer.
11. When connecting to any other device, read its user's guide for detailed safety instructions. Do not
connect incompatible products.
12. Be careful not to drain the car battery while using the unit when the car engine is turned off. Because
the unit uses a considerable amount of energy and the battery will be charged only while the engine
is running, it might happen that the battery will discharge to a point where it's not longer possible to
start the engine.
13. According to the law in different European countries, driving with monitors which are showing
movies in the viewing range of the driver is not allowed, because the driver might be distracted from
the traffic. Please respect the traffic regulations of your country, or you might face penalties in case
of an accident or even loose your insurance coverage. Please pay attention to the volume inside
your vehicle, because you are obliged to notice exterior sounds like police sirens etc.
14. Don't expose the unit to hard impacts. A mechanical or electrical malfunction of the unit could be the
result.
15. Should any problems or questions occur during installation, please consult your ZENEC dealer/
importer.

4
CONNECTIONS/INSTALLATION
TV Out
Antenna
FRONT
REAR
   
TV Out
Antenna
FRONT
REAR
    
Power supply (Power/IR Port)
Front side (PIN) view
Front
Rear
97531
10 86
42
    
    

5
ZE-DVBT60HD
CONNECTIONS/INSTALLATION
CONNECTIONS/INSTALLATION
Power supply:
 Ground/GND (black)
Connect to the chassis or metallic body of the car.
 Signal reverse gear (orange)
Use only when connecting a rear view camera. Connect to a reverse gear
activated +12 V signal.
 +12/24 V (yellow)
Connect to a permanent +12/24 V power supply.
 No function (green)
 ACC (red)
Connect to a switched by the ignition +12/24 V power supply.
 IR LED power (green)
 +12 V/1 A output (blue)
 IR data (brown)
 IR power (yellow)
 IR ground (black)
Front and rear side:
 Antenna inputs
 HDMI output
 A/V output (TV Out)
 Connection to compatible headunit
 A/V 1 input and video outputs
 Power supply and external IR receiver
 A/V 2 input (3.5 mm jack plug)
 Status LEDs
 Reset button
 USB port
 CAM slot

6
NOTE:
■If you want to connect a rear view camera, please use the A/V 2 input.
■The video signal of the connected rear view camera is only available via
the A/V output (TV out).
CONNECTIONS/INSTALLATION
CONNECTIONS/INSTALLATION
Connect to a compatible ZENEC headunit
TV Out
Antenna
FRONT
REAR
+12V
ACC
GND
TV Out
Antenna
FRONT
REAR
+12V
ACC
GND
Headunit
Connect to other devices
Headunit
External
IR
Receiver

7
ZE-DVBT60HD
PLACING AND CONNECTING ANTENNAS
NOTE:
■Reception quality is largely dependent on proper positioning of the 5 V phantom
powered antennas. Please keep that in mind, during the installation.
■Do not place them under any metal obstacle (car roof) or metal coated screen
(i.e. fullscreen heating or insulation).
■Bear in mind that you have to place the two antennas as far as possible from
each other to achieve a good reception.
■See optimal locations below. If you do not place them directly at the windows
,reception will be most likely seriously impaired.
x
x
■Lay the cables for the antennas first. Clean the surface where the antennas will
be mounted. Make sure it is dry and free of any greasy substances. Strip the
protective sheet from the adhesive backside and push the antennas firmly into
their final position.
■Reception differs a lot regionally.
You may encounter distortions in some densely populated areas or in cities with
skyscrapers.

8

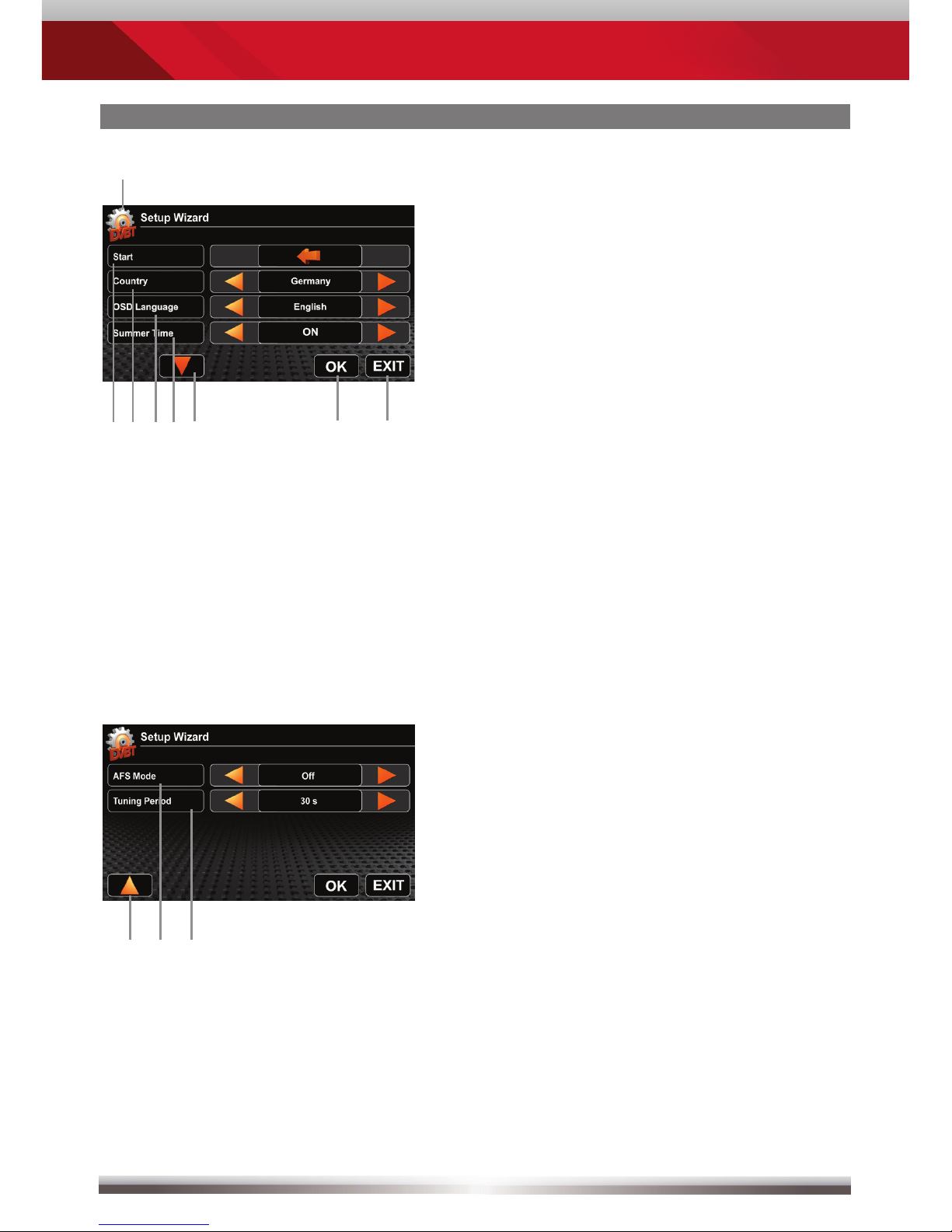

INITIAL INSTALLATION
After the initial operation and choosing
the DVB-T TV or Radio mode, the
Setup Wizard will help you to make the
most important adjustments, before the
automatic library lookup starts.
 Previous page
 AFS Mode
 Tuning Period
  

 
 Start Automatic Channel Library
Lookup
 Country
 OSD Language
 Summer Time
 Next page
 Start Automatic Channel Library
Lookup
 Leave Setup Wizard
 Leave DVB-T mode

9
ZE-DVBT60HD
ZEZE
-
-
DVBT60HD
DVBT60HD
DVBT60HD
OSD MENU
Channel List
Channel Management
Auto Search
Audio Selection
Channel Information
Aspect Ratio
Subtitle
Teletext
AFS Setting
Common Interface
Country/Language
Display Settings
Monitor Port Settings
HDMI Settings
Antenna Power Output
Version/Upgrade
Playing Mode
Repeat Mode
Aspect Ratio
Equalizer
Surround
Audio Selection
Subtitle
Playing Mode
Repeat Mode
Slideshow Time
Slideshow Effect
Playing Mode
Repeat Mode
Equalizer
Surround
DVB-T TV
DVB-T Radio
System Setting
Music
Movie
Main Menu
Channel List
Channel Management
Auto Search
Audio Selection
Channel Information
AFS Setting
Common Interface

10
DVB-T TV
 Choose DVB-T TV

Touch the screen to open the
menu bar.
 Next TV channel
 Previous TV channel
 Open channel list
 Start recording
 Exit DVB-T TV mode
 Open DVB-T TV menu
     
Touch the icon to open the
DVB-T menu.
 Leave DVB-T mode
 Exit DVB-T TV menu
 Next page



11
ZE-DVBT60HD
NOTE
NOTE
Name Function Choice
Channel List Display current channel list Station selection
Access to EPG EPG options
Channel
Management Edit channel list Delete, Move, Skip
Auto Search Search for available
channels automatically Yes, No
Audio Selection
Audio channel Left, Right, Stereo
Audio language Language according to
availability
Channel
Information
Display various channel
information Not available
Aspect Ratio Aspect ratio Full Screen, OFF
Subtitle Subtitle Off, Language according to
availability
Teletext Enter the Teletext mode 100, +100, +1, -1
AFS
Settings
AFS mode Off, Manual, Auto
Tuning period 30 sec, 1 min, 2 min,
5 min, 10 min
Common
Interface
Depends on the used
common interface
Depends on the used
common interface
NOTE:
■AFS Settings
In case a carrier gets “lost” during driving the receiver is capable to search
alternative frequencies for an identical carrier.
By setting the MFN (multi-Frequency-network) detection period you can
adjust the time span between loss and search.
For example, if you frequently drive through the same tunnel you ideally set
your detection period slightly longer in order to avoid unnecessary searching.

12
DVB-T RADIO
 Choose DVB-T Radio

 Previous page
 Next page
 Open channel list
 Start recording
 Exit DVB-T Radio mode
 Open DVB-T Radio menu
     
 Leave DVB-T mode
 Exit menu
 Next page



13
ZE-DVBT60HD
NOTE
NOTE
Name Function Choice
Channel List
Display current channel list Station selection
Access to EPG EPG options
Channel
Management Edit channel list Delete, Move, Skip
Auto Search Search for available
channels automatically Yes, No
Audio Selection
Audio channel Left, Right, Stereo
Audio language Language according to
availability
Channel
Information
Display various channel
information Not available
AFS
Settings
AFS mode Off, Manual, Auto
Tuning period 30 sec, 1 min, 2 min,
5 min, 10 min
Common
Interface
Depends on the used
common interface
Depends on the used
common interface
NOTE:
■Common Interface
The available menu items could be different depending on the used Common
Interface.

14
SYSTEM SETTINGS
 Choose System setting

 Leave DVB-T mode
 Exit menu


15
ZE-DVBT60HD
NOTE
NOTE
Name Function Choice
Country/
Language
Country
Australia, Belgium, Czech, Denmark,
Estonia, Finland, Germany, Greece,
France, Hungary, Ireland, Israel,
Italy, Latvia, Netherlands, Norway,
Poland, Portugal, Russia, Spain,
Sweden, Turkey, UK
OSD Language
Czech, Danish, Dutch, English,
Estonian, Finnish, French, German,
Greek, Hungarian, Italian, Polish,
Portuguese, Russian, Spanish,
Swedish, Hebrew, Estonia, Latvia,
Lithuanian, Turkish
Summer Time On, Off
Display
Setting
Output Resolution 720p NTSC, 1080i PAL, 1080i NTSC,
1080p, PAL, 1080p NTSC, 720p PAL
Hue 0 to 100
Saturation 0 to 100
Contrast 0 to 100
Brightness 0 to 100
Monitor Port
Setting Video Output RGB, CVBS, S-VIDEO
HDMI
Setting
Color Space YCbCr 4:2:2, YCbCr 4:4:4, RGB
Color Depth 8 Bits, 10 Bits, 12 Bits
Antenna Power
Output (+5 V)
Antenna Power
Output (+5 V) On, Off, Auto
Version/Upgrade
Model Number Not available
H/W Version Not available
Software Version Not available
Reset Default Confi rm
S/W Upgrade Confi rm

16
MUSIC
 Choose Music playback

 Previous page
 Next page
 Play/Pause
 Open Music playback menu
 Delete folder/file
 Exit Music playback mode
     

Touch the icon to open the
Music playback menu.
 Leave DVB-T mode
 Exit menu
 Save changed settings and leave
Music playback menu
 Leave Music playback menu
without saving the changed
settings
 

17
ZE-DVBT60HD
NOTE
NOTE
Name Function Choice
Playing
Mode
Choose between different
playback modes Off, Shuffl e
Repeat
Mode
Choose between different
repeat modes
Repeat Directory, Repeat
Off, Repeat Track
Equalizer Choose between different
equalizer modes
Standard, Classic, Rock,
Jazz, Pop, Dance, Techno,
Soft, Live
Surround Choose between different
surround modes
Off, Concert, Church,
Passive, Live, Wide,
Arena, Hall

18
 Choose Photo playback

 Previous page
 Next page
 Play/Pause
 Open Photo playback menu
 Delete folder/file
 Exit Photo playback mode
     

Touch the icon to open the
Photo playback menu.
 Leave DVB-T mode
 Exit menu
 Save changed settings and leave
Photo playback menu
 Leave Photo playback menu
without saving the changed
settings
 

19
ZE-DVBT60HD
NOTE
NOTE
Name Function Choice
Playing Mode Choose between different
playback modes Off, Shuffl e
Repeat Mode Choose between different
repeat modes
Repeat Directory, Repeat
Off, Repeat Picture (One)
Slideshow Time
Choose between different
lengths of time to display a
picture of the slideshow
3 sec, 6 sec, 9 sec,
12 sec, 15 sec
Slideshow Effect Choose between different
effects for the slideshow
Off, Wipe Up, Wipe Down,
Wipe Left, Wipe Right, Wipe
Left Up, Wipe Right Up, Wipe
Left Down, Wipe Right Down,
Split Vertical In, Split
Horizontal In, Split Vertical
Out, Split Horizontal Out,
Window Vertical, Window
Horizontal, Box In, Random

20

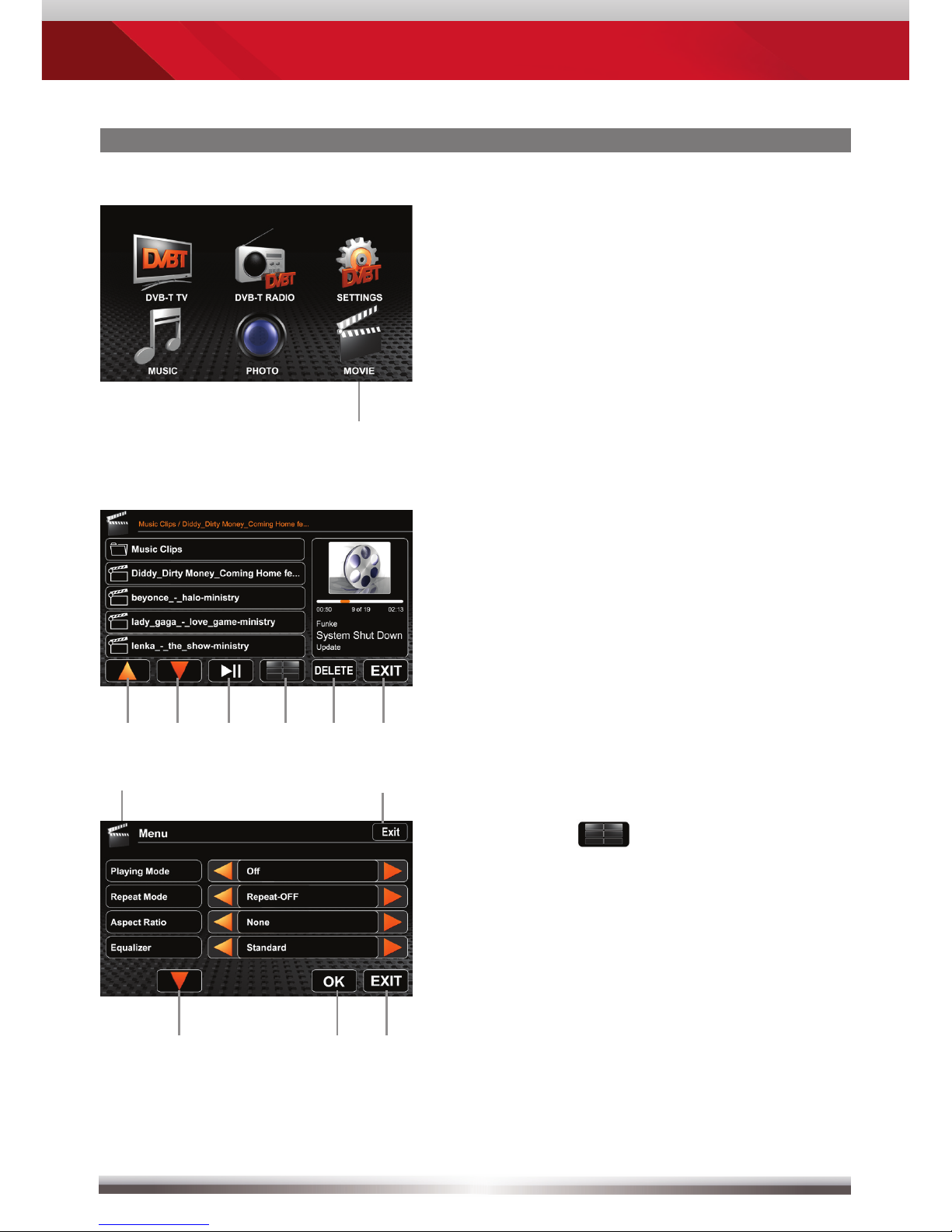

 Choose Video playback

 Previous page
 Next page
 Play/Pause
 Open Video playback menu
 Delete folder/file
 Exit Video playback mode
     

Touch the icon to open the
Video playback menu.
 Leave DVB-T mode
 Exit menu
 Next page
 Save changed settings and leave
Video playback menu
 Leave Video playback menu
without saving the changed
settings
 
MOVIE
