EL PRIMERO

You are looking at the most famous movement
in watchmaking history, a movement familiar to
every aficionado and currently the most accurate
mass-produced movement in the world. Its secret
lies in the frequency of its balance. While most
oscillate at a rhythm of 8 vibrations per second,
the El Primero calibre performs 10 vibrations in the
same time. Its development gave rise to numerous
major inventions, and its power reserve had to be
optimised to compensate for the increased energy
consumption caused by this higher oscillating
rate. All Zenith watches are equipped with a Zenith
Manufacture movement. There are few brands
in the world that can pride themselves on having
an approach as rigorous as ours. From the very
moment you invest in a Zenith watch, you can be
absolutely certain that you are in possession of a
watch that has been produced from start to finish
at the Le Locle Manufacture. This fundamental
requirement imposed a need for calibres that led to
the creation of more than 600 different movements.
EL PRIMERO
MOVEMENT
11

THE PRODUCTION OF AN
EL PRIMERO MOVEMENT REQUIRES:
MONTHS
OF WORK
EXPERT
CRAFTSMANSHIP
MULTIPLE SUCCESSIVE
OPERATIONS
MILLING OPERATIONS
OF THE DIAL SIDE
MILLING OPERATIONS
OF THE BRIDGE SIDE
VARIOUS METALS
IN THE CLASSIC VERSION
IMPRESSIVE
NUMBERS
12

MOVEMENT
CALIBRE: 13¼ ```
DIAMETER: 30 MM
THICKNESS: 6.5 MM
FREQUENCY: 36 000 VIBRATIONS/HOUR (5 HZ)
NUMBER OF COMPONENTS: 280 MINIMUM
NUMBER OF JEWELS: 31 MINIMUM
INDEX-ASSEMBLY WITH FINE ADJUSTMENT
POWER RESERVE: 50 HOURS MINIMUM, 60 HOURS MINIMUM
FOR THE EL PRIMERO 3600 VERSION
CENTRAL ROTOR ON BALL BEARING
BIDIRECTIONAL AUTOMATIC WINDING
QUICK DATE CORRECTION
CHRONOGRAPH FUNCTION (EXCLUDING SYNOPSIS MODELS)
SYNCHRONISATION OF THE CHRONOGRAPH CONTROLS
VIA A COLUMN WHEEL
STOP SECOND ON THE EL PRIMERO 3600 VERSION
CHARACTERISTICS
13

Your watch is fitted with an automatic winding
mechanical movement. The movement is wound
via the crown or the effect of the oscillating
weight. When the watch is worn, the motion of the
wrist activates the oscillating weight to wind the
movement. In order for the automatic winding to
work properly, the watch must be worn for at least
12 hours per day, for several days.
WINDING
THE WATCH

WHEN YOUR WATCH HAS STOPPED
Not wearing the watch enough causes it to stop.
Hold the watch in your hand and turn the crown at
least 30 times clockwise. The barrel that contains
the mainspring has now been wound. If you do not
wear your watch during the night, turn the crown
a few times the following morning before you put
it on.
Note: for models equipped with a screw-down
crown, unscrew the crown before winding the
watch. Screw in the crown after the operation.
15

Tip: it is easier to set the time while holding the
watch rather than wearing it. We recommend
gentle, regular turns when rotating the crown.
Important for models with a date display:
- Always set the time in a clockwise direction to
avoid damaging the movement.
- Start by performing one complete rotation to
12 o'clock to check the part of the day for which
you are setting the time: if the date changes
when the hand passes 12 o'clock, your watch is
showing the morning time. If the date does not
change, your watch is showing the afternoon
time.
Important for models with a minute repeater:
To avoid damaging the movement, do not set the
time when the chime mechanism is engaged.
SETTING
THE TIME
16

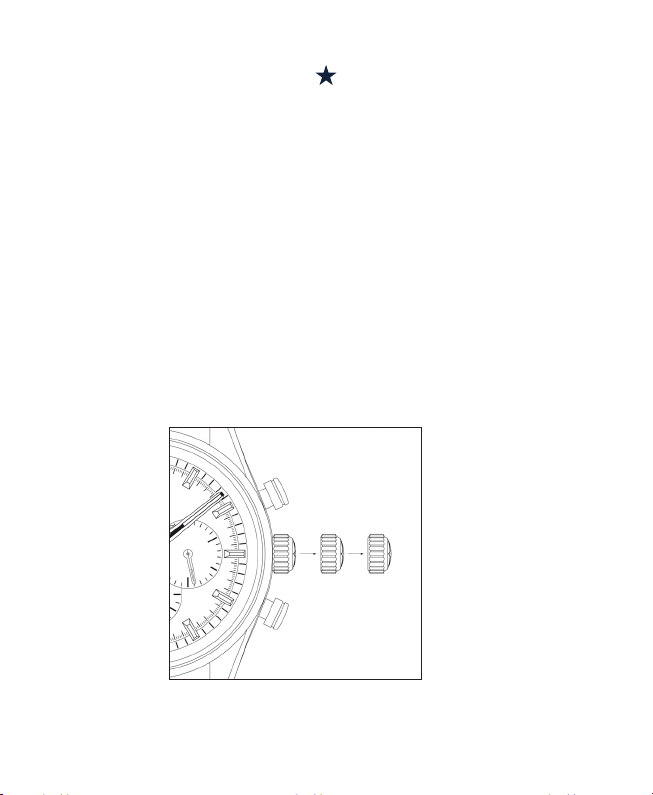

For the El Primero 3600 version:
Pull the crown out to position (2). Rotate the hands
clockwise to indicate the desired time. At the time
signal, push the crown back against the case.
(1) (2)
17
(1)
Pull the crown out to position (1). Rotate the hands
clockwise to indicate the desired time. At the time
signal, push the crown back against the case.

SETTING THE DATE
STANDARD DATE
OR LARGE DATE (2 DISCS)*
Important: before changing the date, pull the crown
out to position (1) and move the hands to between
2 o'clock and 6 o'clock by rotating them clockwise.
For models with an annual calendar, move the
hands to between 4 o'clock and 6 o'clock.
Pull the crown out to position (2). Rotate the crown
until the desired date appears.
* Depending on the model
18
(1) (2)

For the El Primero 3600 version:
Pull the crown out to position (1). Rotate the crown
until the desired date appears. Once the date has
been set, you can set the time. Push the crown back
against the case.
19
(1)

20
SETTING
THE TRIPLE CALENDAR
MONTH
For models that indicate the month, scroll through
the dates to the desired month and set the date.
The month changes at midnight on the 31st.
Push the crown back against the case.
(1) (2)
