Zezriderz BANDIT X User manual

USERS MANUAL - BANDIT X and BANDIT XX
Before Reading Manual
This manual contains important information to help you use your product more
safely.
For safe use, it is marked as 'Danger', 'Caution' and 'Warning' depending on the
degree of danger and the meaning is as below.
Danger: Indicates a hazardous situation that could be a cause of serious injury.
Warning： Indicates a potentially hazardous situation that could be a cause in
light
injury.
Caution： Indicates a potentially hazardous situation that could be a ca use in
serious
injury
Contents
01. Safety guidelines and restrictions
02. Precaution before driving

03. Name of each part
04. How to use the product
05. Display introduction
06. RGB lights introduction
07. How to use the charger correctly
08. Safety precautions for Lithium-ion battery
09. Safety guidelines before driving
10. Maintenance
11. Product specifications
12. Guarantee card

01. Safety guidelines and restrictions
1）Be careful of water!
This product and components are not waterproof.
Don't Let the water get into the product and components.
*Never use it, if the road is wet due to rain, snow or hailstone.
*lf you wash or spread water to electric devices, it can result in
malfunction or fire.
2) Beware of folding and spinning parts!
If parts of the body, as a finger or hair, get caught in the spinning or
folding parts of the product, this may lead to severe injuries. Please be careful
3）No acrobatics
Stunts such as jumping and dropping are prohibited as they can cause a great
impact on the product and can cause malfunction and accidents.
4) No companion boarding
This product is designed for one adult only, so children, infants,or two people
are prohibited from boarding.

5) Don’t tune by yourself
Do not open or turn the electric parts(battery, controller or motor system).
6) Comply with the related laws
Unlicensed,drunk driving and loading cargo on the scooter are
prohibited(more than bike or bicycle license is required) Please comply
with the Road Traffic Act and related laws and regulations according to the
place of use.
7) Beginners and juniors are encouraged to use at low speed
Beginners who are not accustomed to use the product,should avoid high speed mode
driving and recommend low speed driving.
In addition,please use it after practicing how to ride safely in a wide place.
8) Do not suddenly brake with front brake
If there is a risk of overturning, sudden deceleration should be done safely. Do
not apply any unusual behaviors or artificial forces, such as stopping with
your feet.
9) Do not accelerate downhill.

Slow down at downhill. When reducing the speed,use the brakes properly to reduce
the heat on the disk.
10) Do not drive on steep slopes
Acceptable gradeability is different for each product. Excessive hill
roads exceeding the specification may cause damage to the product(parts) due
to temperature cut, over current or low voltage cut, which may cause the
product to malfunction.
11) Safety warning when lifting the product.
If the product is Lifted by holding only the handle, there is a possibility
that the product may be damaged due to deformation of the folding part due to
load or movement of the product. When lifting the product,be sure to hold the
product’s body(footrest) with
one hand and hold the handle with the other hand so that you do not get hurt in
your back or knees.
12) Be sure to wear safety equipment.
For the safety of passengers, be sure to wear a full face helmet and other
protective gear(knee, elbow, hand, upper body) and do not wear shoes such as
slippers, high hills that interfere with driving.
02. Precaution before driving
1）Night driving should be avoided in any case, be sure to wear helmets and other
guards [knees, elbows, hands, upper body, etc.) and drive safely.
2）Select the mode that suits you and drive. In order to cope with the sudden
situation, exercise to slow down to hold the brake at all times.
3）When turning left / right, slow down to avoid the danger of overturning or
slipping., And then turn slowly and safely.
4）To go backward, it is safer if you get off the product after stopping before
moving again.
5）It is prohibited to use in slippery place, a crowded place, a steep slope,
roads with a risk of accidents,and uneven road.
6）When crossing a pedestrian crossing, get off the product for pedestrian safety.
7）Do not drive in a threat of any other means of transport, such as animals,
pedestrians, bicycles, motorcycles, cars, etc.
8）If you pass the speed bumps and obstacles, be sure to slowdown.

9）When decelerating or braking, do not stop with foot, but stop with using brake
appropriately.
10）Be careful that there is a risk of burns due to heat from motor and brake
[especially disk) after driving.
11）It is prohibited to drive with the way by holding the handle with one hand.
12）Do not ride or drive when the kick stand is down.
03.Name of each part
Caution !
Do not hold the handlebar only when lifting the product from box. Please be
careful that the fixing slide of the folding part may be damaged,and a safety
accident such as a part of the body may be caught. Therefore,when lifting the
product,it is necessary to raise the handle bar first ,and then slowly lift
the body (footrest) of the product with both hands and do not damage the
folding part.

04.How to use the product
1）Folding handle bars
①Turn the handle screw anti-clockwise
②Once loosen, pull the screw catch to loosen the mechanism.
away from each other
③Simultaneously fold the handle bar down
④Finish

2) Folding handlebars
①Loosen the safety screw ②Plate opening and folding buckle
③Pull up safety pin ④Once the main lever is released,ensure
that the capture is also released

⑤ Insert buckle
3）How to start
Step1.
Press the POWER button on the display for 3 seconds to turn on the display.
*The power of the display will turn off automatically after a few minutes of
inactivity. At this time,the LED lamp is also turned off, so turn it off with
the LED lamp button before you turn it on again.
Step2.
Stance for driving
After tilting the kickstand, find a stable position on the footrest and then hold
the handle grip comfortably. Be careful not to raise your foot on the rear
fender.
* Scooter are regularly with “zero start” when out of factory, users need to kick
ground to start
Ride.
Step3. Acceleration
Acceleration can be performed by using the throttle of the display while driving,
and the deceleration or stop can be performed by holding the brakes on the
handle.
Caution!
Before driving,be sure to check the folding part, the handle part and the part
where the main fixing part of the product is fastened well. And check the
position of the folding part fixing status.
Throttle malfunction caution
Regardless of whether the throttle is operated or not, the motor sensor may
continue to operate,causing malfunctions such as sudden acceleration. In this
case, holding the brake lever to cancel the operation. This phenomenon may
be caused by corrosion of the throttle,immersion of the

throttle,disconnection of the magnet, broken off levers,and broken spring. Do
not bounce the throttle lever strongly.
4) How to stop
Attention to using the brake gently first,don't brake suddenly.When you brake
gently,the ABS function starts. This will be very effective in reducing
speed. After the speed dropped, the brakes are finally applied to stop the
scooter.
Tip ：Check for safe braking
*For safe braking,check whether the brake lever and drum brake connection are
damaged before and after driving (wire damage,external breakage,etc). And
check brake wear and looseness of brake inner core(inner wire). In the case
of hydraulic brakes it is also necessary to check the oil leakage or
deficiency and always check that the braking force is sufficient.
*Due to various factors such as road surface condition and speed, the brake can’t
stop the scooter as expected. The electric ABS function is an auxiliary
function to further increase the braking force. The user should understand
the electric ABS and consider the braking time when riding.

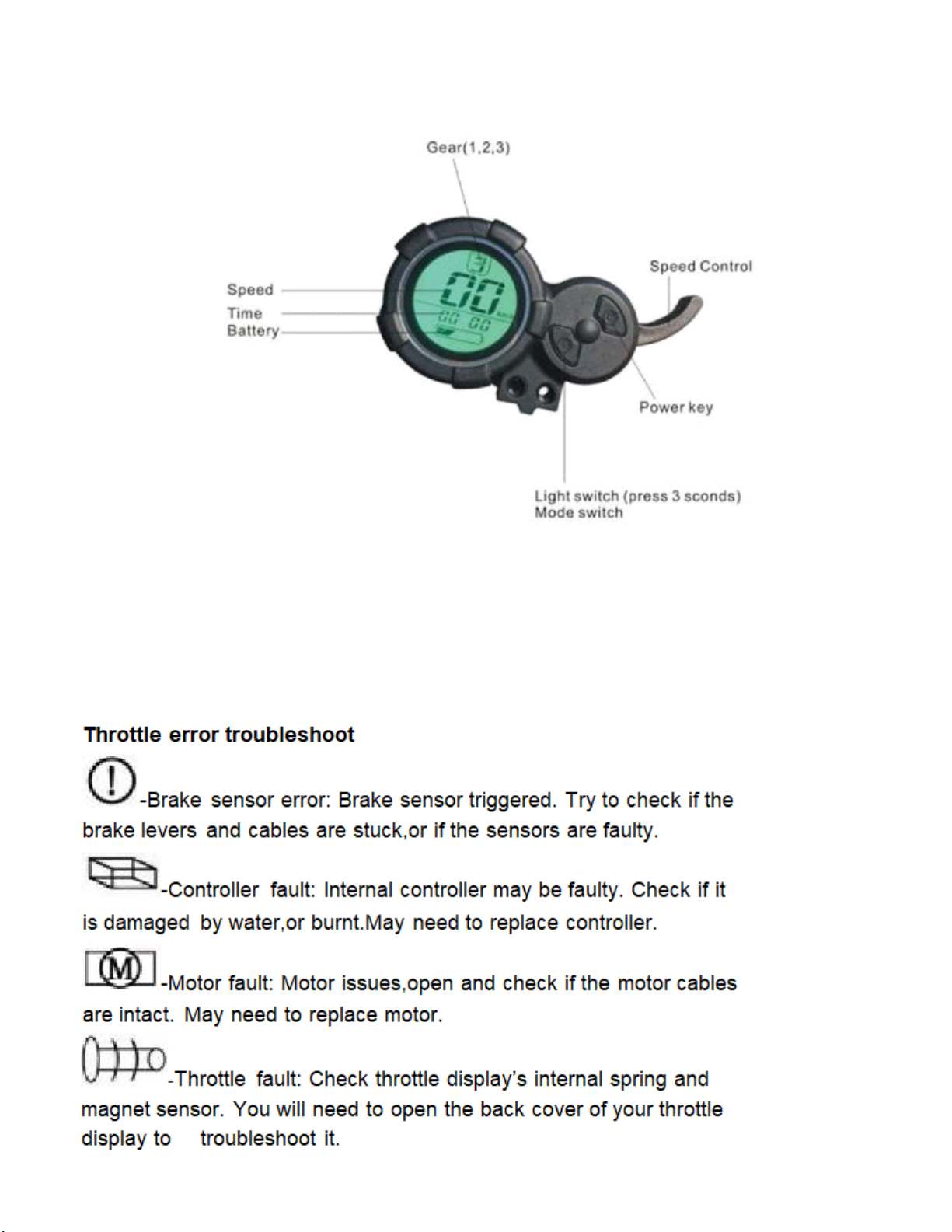

05. Display introduction
1）Turn on/off the scooter: Long press the power button(around 3 seconds).
2）Light on/off: Long press mode button(around 3 seconds).
3）Switch speed gear: Short press mode button to change speed gear(1,2,3).
4）Mode function: Short press the power button to change the mode:
TIME>TRIP>ODO>VOL.

TIME:ride time for a single ride
TRIP:mileage for a single ride
ODO:scooter’s total mileage
VOL:battery voltage

Caution !
When defects happen, please ask help from the dealer, don’t repair the scooter by
yourselves.
06.RGB lights introduction
RGB lights are assembled in the stem pole and side of the body deck.
Step1.
Scan the QR code and download the App
Step2.
Start App,search and connect the Bluetooth controller(make sure the Bluetooth on
your mobile phone is open).
Step3. Set light color via the App.
Notes:
1. Detailed operating instructions, enter the menu”Guide”.

2. LED Bluetooth controller is directly via mobile phone control remote distance
can
reach 20m without the need to set up, easy to connect open the software within 5
seconds you can automatically connect the controller.
3. Colorful gradient
4. All kinds of monochrome, double color gradient
5. All kinds of monochrome, double color, colorful flashing.
6. Colorful jump
7. Follow the rhythm of the music changes
07.How to use the charger correctly
1)Basic charging method
Step1. Open the charging port cap and connect it to the connector of the charger
and connect it to the household outlet.
Step2.Charging status indicator: (Red) Charging;(Green) Charging complete.
Step3.Be sure to close the charging port cap when driving or storing except when
charging.
Step 4.When connecting the connector to the charging port, metallic sparks due to
voltage difference may be splashed,but this is normal.
2)Basic charging method

Failure of the charger and abnormal conditions can cause electric shock and
fair.Learn the correct usage and prevent safety accidents in advance.
1.Manufacturers and sellers are not responsible for any problems arising from any
disassembly, modification, or mixing with other chargers.
2.The charger is forbidden to be used in places subject to high humidity, heat,
flammable materials, confined specs, or where there is no ventilation such as
in a car.
3.The charger is not waterproof. It is thoroughly controlled to prevent moisture
from entering the charger.
4.Children and pets should not be allowed to approach the charger when they come
into contact with them, as they may cause an electric shock.
5.If the charger lamp does not light, charger fall, strong external shock, long
time charge,or cable cover damage, discontinue use immediately contact the
service center.
6.Unplug the charger when you are away from home for long periods of time.
7.Use only a genuine charger.
8.Do not insert conductors into the charging port.
9.Do not touch the plug for about 10 seconds after unplugging the charger. There
is a risk of
electric shock from instantaneous discharge.
10.Do not remove the terminal during charging. Charging the internal circuit of
the charger will cause malfunction.
11.Do not operate the product during charging.
12.Charging terminals should be firmly contracted during charging and should not
be used if terminals are corroded or damaged.
13.When disconnecting the charger from the product, it is safe to hold the
terminal without holding the wire.
08.Safety precautions for Lithium-ion battery
1) Care Lithium batteries should be protected from direct exposure to children and
pets.
2) Performance
①Lithium battery is affected by external temperature. In winter, when the
temperature is low, the performance of the
battery is temporarily deteriorated and the mileage and power output
is reduced.

②Lithium battery has a characteristic that discharge performance is reduced by
more than 15% when charging /discharging 300 times or more. If usage time is
shortened due to long usage, it should be replaced with a genuine one through
the nearest point.
3) Charging
① Lithium battery should be used only with genuine battery and charger
supplied from the manufacturer. Any problems caused by use of battery not
made by the manufacturer, mixed use, or using the charger are not covered by
the Manufacturer.
②Charging the lithium battery with a non-genuine charger may cause
malfunction or fire.
③The lithium battery should be charged in a well-ventilated, dry place and around
the charger in a place where there is no inflammable material.
④Lithium battery should be charged at 0-45℃ and discharged within -10-60℃.
Charging or discharging at a temperature outside this range may cause
malfunction, fire or explosion.
⑤In case of moving from cold outside to warm indoor,please charge it after
1-2hours. This is to prevent condensation from occurring inside the product
due to temperature difference.
4)Storage
① Lithium batteries should be kept away from snow, rain and direct sunlight. Do
not store or charge them in a trunk or hot room. Select a dry place and store
at room temperature (10 ~ 20 °C).
② When storing for more than 3 months, charge the remaining battery level to 70 ~
80% (do not store full charge).
5) Trouble symptom, safety
①Lithium battery should be discontinued immediately if it is damaged or leakage
of battery, sour odor, appearance deformation, etc., and contact the place of
purchase to get technical support and service.
②If overheat, smoke or ignition is detected in a product with lithium battery,
immediately stop charging and use, move the product outdoors as soon as
possible, and then use a fire extinguisher to evolve. Do not spray water or
immerse the product in order to evolve, which is more dangerous.
③Lithium battery pack has very high energy density, so if you charge the battery
for a long time in case of short-circuit, leakage, bad battery, etc., there

is a possibility of ignition. Therefore, you should avoid charging for a long
time without a person, and charging must be done while the person is aware
that the risk of unexpected fire can be avoided.
6) Misuse
If the lithium battery is short-circuited or the polarity is changed, or if the
battery is impacted, malfunction or fire may occur. If you think that the
battery has been impacted, you should stop charging and using it and visit
the nearest point for inspection.
7) Water inflow
It should be controlled to prevent water inflow into the lithium battery. There is
a risk of fire or electric shock if the charger is connected while moisture
is present.
8) Caution Disconnect
The battery from the main unit and prohibit recharging, reinstalling, or using
other applications.
9) Disposal Disposal(When disposing of the lithium battery, the battery should be
separated from the product at the point of purchase or near the point so that
the charge and discharge terminals are not short-circuited. Dispose of it as
industrial waste when disposing of it.
Danger !
Battery disassembly prohibited : Battery disassembly,modification and repairment
are not covered under warranty.
09.Safety guidelines before driving
1) Required checking before use
Step1: Check throttle and handle
*Operate the accelerator throttle lever about 2 ~ 3 times to check whether it
returns to the home position.
*Be careful that excessive throttle Leaning and manipulation of the throttle can
cause malfunction due to internal parts damage.
*Check the fastening condition and clearance of the QR lever on the handle.
Step2:Check brake and cable
* The brake braking force is sufficient to check the operating condition. If the
braking force is significantly lowered, use it immediately after inspection
and action.
*Check that the brake pad is not worn, that the cable is not loose, that the cable
is not damaged.
*If there is an unusual feeling or noise during operation, check for breakage,
wear and deformation of the inner wire of the brake cable.
*Check that the bolts and nuts of the brake fixing parts are not loose.

Step3:Check tire pressure and uniaxial condition
*Check the front and rear tires for wear and punctures and check the proper air
pressure(45 to 50 psi) for the tire. When the shortage of air is shortened, the
possibility of puncture increases, so check always.
*It is necessary to judge the replacement time by observing the appearance of the
tire such as tire damage,uneven wear.
Step4:Tightening check such as folding part and handle part
Make sure that the bolts and nuts of all parts of the product are tight and free
from loosening. Check the fastening condition and clearance of the folding
and fixing parts of the handle.
Danger !
In this case,stop driving immediately.
If you encounter any of the following situations while driving, stop driving
immediately and
contact your nearest branch or service center for proper measures. If you provide
pictures and
videos to get accurate diagnosis, professional counseling is available.
*Unusual heating of the motor
*Brake braking status error
*Error messages on the instrument cluster
*When the throttle is returned to its original position
*Abnormal noise if generated
*Product smoke,ignition ,sour odor
*When rain or wet with water or in a small situation
*When other driving is judged to be unreasonable.
10. Maintenance
1)Maintenance and self-maintenance
Electric products can be damaged by various factors. The life span of each part
varies depending on driving habits and driving environment. Parts that exceed
the service Life may cause accidents. Let's manage various parts and prevent
safety accidents in advance.
Step1:Check the replacement timing of consumable parts
①The components and suspension, tires, tubes, wheels, bearings, headset
bearings, discs,brake pads, cables and folding parts, various brackets and
other consumable parts require periodic inspection and always check.
Step2:External damage inspection by driving environment.

①Replace parts that may be damaged by external driving environment, such as
deformation of parts, cracks due to compression, and signs of exceeding fine
gold or life expectancy.
②If the product is exposed to strong sunlight for a long time, discoloration may
occur.
③In case of heavy driving such as normal jumps, slight impacts such as turning,
collision, etc., when driving frequently or for a long time in a poor road
condition or driving for thousands of kilometers or more, fatigue breakdown
phenomena.Please check and replace the parts replacement schedule for each
product for safety.
④Fatigue breakdown and maintenance parts may differ from the example conditions
depending on the driving environment and the operating conditions. Also check
parts other than the replacement cycle(maintenance parts) at all times to
check for any signs of abnormality.
Important notice
①Please note that after running, there is a risk of burns due to the heat on the
motor and brake (especially disk rotor) side.
②Be careful that the bolts of the motor,rim and motor shaft due to the ABS
function may be loosened.
2) Brake adjustment method
As you continue to use the brakes,the brake pads become worn out and the gap
between the pad and the brake disc becomes wider.When the braking power
drops, please ask the dealer to change the brake pad or adjust the brake
device for you.

11.Product specifications
Specification
