Zio Ciro Subito Cotto Mini Operating instructions

User and Maintenance Manual

33
User and Maintenance ManualSubito Cotto Mini
Portable refractory oven with gas burner
Subito Cotto MINI

4 54 5
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
DECLARATION OF COMPLIANCE
MANUFACTURER DATA
AUTHORIZED ASSISTANCE
INTRODUCTION
ORGANIZATION OF THE MANUAL
Conventions
Warning Graphic Conventions
Pictographs
WARRANTY
GENERAL SAFETY STANDARDS
Disclaimer
Safety Standards
RESIDUAL RISKS
GENERAL DESCRIPTION AND TECHNICAL INFORMATION
Flame adjustment knob
Components
Burner
Dimensions and weight
HANDLING
Preamble
Transport
Manual handling
PLACEMENT
Precautions
Choice of the area of use
Conguration
First ignition
Use
Exceptional maintenance
Table of Contents
6
7
7
8
8
10
10
11
12
14
14
15
16
18
18
18
18
18
20
20
20
20
22
22
22
23
23
24
26

6 76 7
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
DECLARATION OF COMPLIANCE
NOTE
VERIFY THE PRESENCE OF THE DECLARATION OF CONFORMITY BEFORE USING THIS PRODUCT
IN ANY WAY.
NOTE
IF THE PRODUCT WAS SOLD BY A THIRD PARTY, ALL DOCUMENTATION MUST BE SUBMITTED
WITH IT.
Upon purchase, the oven described in this documentation is accompanied by a declaration of conformity,written in compliance
with the laws in force in the European Union.
MANUFACTURER DATA
AUTHORIZED ASSISTANCE
Exceptional maintenance and technical assistance for the oven can only be carried out by TEK REF S.r.l. or by specialized
personnel of the same.
Company name
TEK REF S.R.L.
Company headquarters
Zona Industriale Località Feurredda, sn - 09088 Simaxis (OR)
VAT registration number
01088030950
Telephone
[phone]
Fax
[phone]
Email
[email protected]
Website
www.zio-ciro.com
Product link
https://www.zio-ciro.com/en/prodotti/portable-ovens/subito-cotto-mini-portable-residential-gas-pizza-oven/

8 98 9
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
INTRODUCTION
Firstly, we thank you for choosing our product. To ensure correct use of the oven, please read this manual carefully.
ORGANIZATION OF THE MANUAL
This manual contains instructions for the handling, positioning, use, and maintenance of Subito Cotto MINI gas ovens.
The manual consists of several sections, each of which deals with a series of topics divided into chapters and paragraphs.
The general index lists all topics covered in the entire manual.
Page numbering is progressive and the page number is shown on each page. This manual is intended for personnel in charge
of handling, use and maintenance of the gas oven for the duration of its technical life after production and possible resale.
Before performing any operation on a unit, the user must have read the entire manual and carefully covered the section related
to the operation(s) to be carried out.
This manual contains proprietary information and may not be even partially supplied to third parties for any use or in any form,
without the prior written consent of the manufacturer.
TEK REF S.r.l. declares that the information contained in this manual is congruent with the technical and safety specications of
the oven to which the manual refers.
A certied copy of this manual is stored in the technical dossier kept at the user company.
NOTE
UPON RECEIVING THE PRODUCT, READ THE INSTRUCTION MANUAL CAREFULLY
BEFORE PERFORMING ANY OPERATIONS.
The manufacturer does not recognize any documentation that has not been produced, released or distributed by the
manufacturer itself or an authorized representative.
This manual, like all technical dossiers, will be held with care by the manufacturer for the duration of the period prescribed by
law.
During said period, a copy of the documentation accompanying the product at the time of sale may be requested.
During this period, the entire technical dossier remains exclusively available to the supervisory authorities, who may request a
copy.
After this period, it will be the obligation and at the discretion of those who manage the product to make sure that both the
product and its documentation comply with the laws in force so as to use it in accordance within the provisions of current
legislation.

10 1110 11
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
DANGER
DANGER SIGNS INDICATE PROCEDURES WHOSE TOTAL OR PARTIAL NON-COMPLIANCE COULD
LEAD TO SERIOUS INJURY TO THE USER OR OTHER PERSONS IN THE VICINITY OR SERIOUS
DAMAGE TO THE PRODUCT.
WARNING
WARNING SIGNS INDICATE PROCEDURES WHOSE TOTAL OR PARTIAL NON-COMPLIANCE COULD
LEAD TO DAMAGE TO THE PRODUCT, ITS COMPONENTS, OR EXPOSE THE USER TO DANGER.
Conventions
In order to obtain a more immediate understanding of topics from the manual, the following graphic and typographic
symbologies and conventions have been adopted.
Warning graphic conventions
NOTE
THE NOTES CONTAIN IMPORTANT INFORMATION THAT IS HIGHLIGHTED OUTSIDE THE TEXT
TO WHICH IT REFERS. WARNING!
PICTOGRAMS THAT CONTAIN A SAFETY FUNCTION MUST NOT BE REMOVED,
COVERED OR DAMAGED.
Pictographs
The following pictographs are contained in or on the oven:
MUST-READ for the user
and maintenance manual.
BURN RISK indicates a component
of the oven that can be hot.

12 1312 13
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
WARRANTY
The conditions of warranty, listed in full in the purchase contract, are valid only if the oven is operated under the conditions of
intended use.
Any repair or modication made to the gas oven by the user or an unauthorized party, except for the ordinary or exceptional
maintenance operations described in the MAINTENANCE section and carried out with the procedures indicated, will void the
warranty.
The warranty does not extend to damages caused by inexperience or negligence in the use of the gas oven, or by poor or
omitted maintenance.
The products we sell are covered by warranty under the following conditions:
1) The warranty is valid for a period of 12 months or 24 months depending on the type of buyer (legal or private).
2) The Manufacturer assumes the obligation to replace, at its discretion, malfunctioning or incorrectly manufactured parts only after careful
verication of said parts.
3) The cost of transport and/or shipment is always charged to the buyer in the case of incorrect use of the warranty terms.
4) During the warranty period, any replaced products become the property of the manufacturer.
5)
This warranty can only benet the original purchaser who has complied with the proper maintenance instructions contained in the
manual. Our warranty liability expires when the original owner transfers ownership of the product or any changes have been made to
the product.
6) The warranty does not include damage resulting from excessive stress; such as the use of the product after the detection of an anomaly,
use under unsuitable operating methods or the failure to comply with the instructions for use and maintenance.
7) The manufacturer assumes no responsibility for any difculties that may arise in the case of resale or use abroad due to the provisions in
force in the country where the product was sold.
8) The defective product or component must be delivered to the manufacturer for replacement; otherwise the replaced part will be charged
to the buyer.
Notice: if it is deemed necessary to make use of the warranty, please indicate the following information:
A. Type
B. Date of purchase (presentation of the purchase document)
C. Detailed description of the problem
NOTE
FAILURE TO COMPLY WITH THE METHODS OF USE OR PROPER MAINTENANCE OF THE OVEN
DESCRIBED IN THIS DOCUMENTATION WILL CAUSE THE WARRANTY CONDITIONS TO BE VOID.

14 1514 15
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
Warning
Even though the assembly of the oven is performed by specialized technicians from the manufacturer, the documentation must
still be read before any subsequent use.
Verify that you have received all the documentation related to the product.
If part of the documentation is missing or illegible, consult the manufacturer before carrying out any further operations.
This chapter describes the general safety rules to be observed when using the oven.The safety regulations and procedures in this
manual should be followed in addition to general safety rules and any workplace safety regulations which must be respected.
GENERAL SAFETY STANDARDS
Non-compliance with the rules of use and modalities of intervention contained in this manual shall also result in the cancellation
of the terms of warranty.
If you wish to perform an operation not provided herein or one that follows a procedure that differs from those indicated in the
documentation, consult the manufacturer in order to verify its feasibility before proceeding.
This manual must be kept by the nal user who is responsible for the location and use of the gas oven.
In case of deterioration or loss, the Customer may request a new and compliant copy. We recommend keeping the manual
somewhere where it cannot be damaged or lost.
NOTE
TEK REF S.R.L. IS NOT LIABLE FOR ANY ACCIDENTS OR DAMAGES RESULTING FROM THE
IMPROPER USE OF THE OVEN DUE TO NOT HAVING PREVIOUSLY READ THIS DOCUMENT.
Safety Standards
Anything that is not considered feasible - including the partial or total non-compliance with the procedures described in the
documentation - may not only lead to errors but also accidents involving serious damage to the oven’s surroundings and
putting nearby persons at risk.
NOTE
THE EXECUTION OF OPERATIONS WHICH ARE NOT DEFINED AS “FEASIBLE” OR THE NON-
COMPLIANCE WITH THE RULES AND PROCEDURES DESCRIBED IN THIS MANUAL ABSOLVE TEK
REF S.R.L. FROM LIABILITY FOR ANY DAMAGE CAUSED BY THESE ACTIONS AND DECLARE THE
TERMS OF WARRANTY TO BE VOID.

16 1716 17
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
RESIDUAL RISKS
During handling, positioning and operation,
protective clothing is always necessary:
• PPE gloves
• PPE accident prevention shoes
• The oven must not be connected to a chimney.
• The oven is not a stable installation that can have a connection with any type of system inside or outside the environments
in which it is used.
• Do not move the oven when it is hot.
• Protect the oven from rain when it is not being used.
• Protect the electrical components from splashes of water and excess humidity.
• The oven must always be dry when preparing for use.
• Do not extinguish the oven’s ame with water.
• Use a glove with additional protection so as to avoid any burns when touching the door.
WARNING
THE OVEN CAN ONLY BE USED AFTER IT HAS BEEN POSITIONED CORRECTLY.
WARNING
THE GAS OVEN AND ITS INTEGRITY MUST BE INSPECTED PERIODICALLY. THE MAINTENANCE
PARAGRAPHS USED FOR CARRYING OUT SAID INSPECTION SHOULD THUS BE READ AND
RESPECTED.
• Pay attention to where the hot door is positioned at all times. Do not rest it on surfaces that cannot withstand high
temperatures (plastic, wood, etc.) and keep it away from children or other people who could be unaware of how hot the
door may be.
• Always turn off the gas when the oven is not being used.
• Do not tamper with, disassemble or modify the Subito Cotto MINI.
• Do not intervene in any way with the burner.
• DO NOT use the oven in basements or under any buildings.
• Do not use in any environments without ventilation.
If the oven temperature exceeds 550-600 °C (1022-1122 °F), proceed with an emergency shutdown to avoid irreparable
damage. The emergency shutdown is indicated in the USE section.
If there is an anomalous GAS leakage from some components of the oven, close the gas supply valve.The instruction
on how to close the valve is shown in the USE section.
The hot areas of the oven which require special care and attention are:
• the metal arch
• the metal door
• the smoke outlet duct

18 1918 19
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini

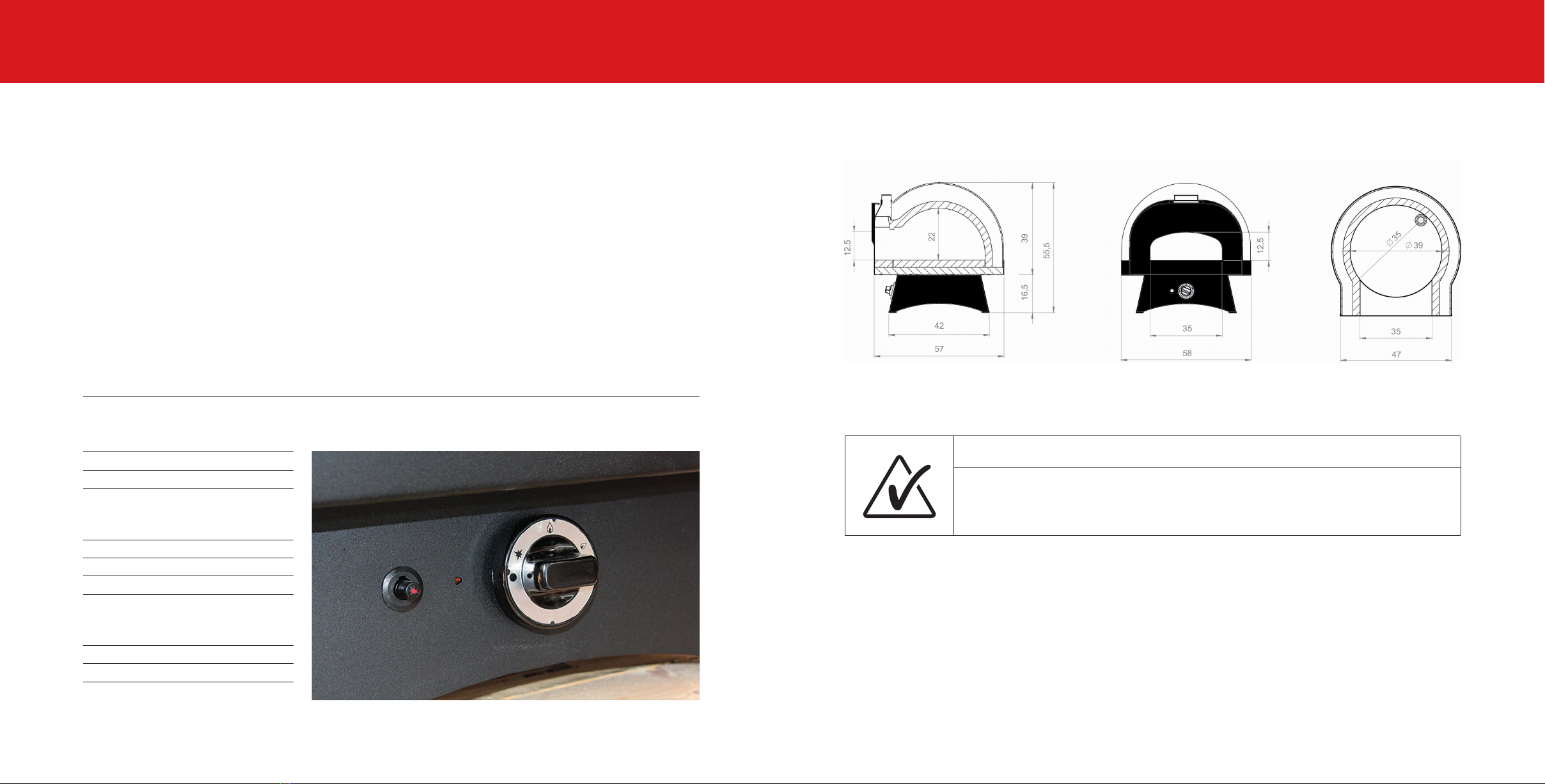

GENERAL DESCRIPTION AND TECHNICAL INFORMATION
The Subito Cotto MINI is a real refractory gas oven, fully portable and independent, weighing less than 45 kg. It has an internal
diameter of 40 cm and can reach a temperature of 450 °C (852 °F) in just 30 min. The MINI is ideal for baking pizza with a
diameter of 33 or 34 cm and can be placed both indoors or outdoors, in a garden, or on a balcony or terrace.
Thanks to the refractory dome, the oven traps the heat inside for a long time even when the ame is off and can cook many other
types of food such as meat, sh, bread, vegetables or desserts.
The oven is equipped with a gas burner produced in Italy, compatible with traditional gas; Propane/LPG and Methane.
The Subito Cotto MINI is completely handcrafted in Italy at a single factory, with high quality materials and accessories - 100%
Made in Italy.
Flame adjustment knob
The knob has three positions: the stop position (gas off), the ignition position (pilot ame) and the variable use position (from a low ame to a high ame).
Components
Oven base: 39 cm in diameter
Gas consumption: 0.4 kg/h
Preheat for: 20 minutes
Burner
Thermal Potential > MIN 2KW - MAX 6KW
Gas pressure > From 2.5 to 50 mbar
Gas line > ½ inch
Burner Weight > 1.7 Kg
Dimensions and weight
Oven: 40 cm
Weight (kg) 45
Standard color: White/black
NOTE
THE TECHNICAL INFORMATION SHOWN HERE ARE ILLUSTRATIVE. TEK REF S.R.L. RESERVES THE
RIGHT TO MODIFY IT IN RELATION TO TECHNOLOGICAL PROGRESS, THE REPAIRABILITY OF THE
RAW MATERIALS, AND COMMUNICATE SUCH MODIFICATIONS TO THE MARKET.
Cross Section Frontal View Base

20 2120 21
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini

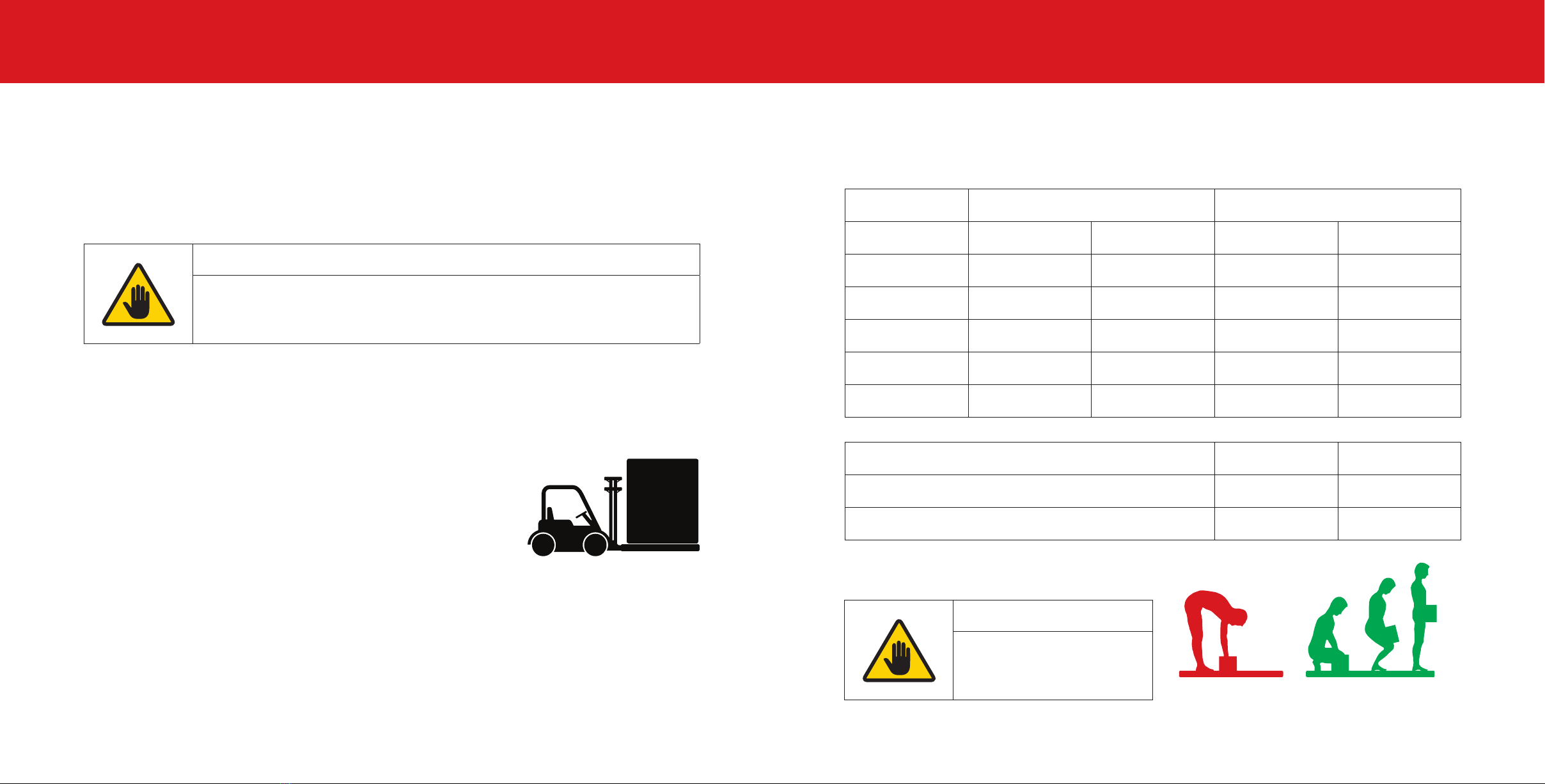

Transport
The oven is packed and transported under proper conditions, usually by the manufacturer, but if this is not the case, the oven
must be rmly secured so as not to pose any danger during loading, unloading and transport.
When loading and unloading, use suitable lifting equipment or carry out the operation
with at least two people (see manual handling).
During movement, loading and unloading maneuvers, make sure that the operating
area is free and that there are no people, animals or objects that could be hit and
damaged by the pallet or the truck.
Pallets must be rmly secured at all times when being moved. They must be rmly xed
to the transport vehicle and then unhooked before being moved via mechanical support.
Manual Handling
Verify the integrity of the oven and its parts upon receipt. If you nd any damage, missing parts, deformation or evidence of a
collision during transport, inform the manufacturer before proceeding with the following operations.
The oven’s weight allows for manual handling as long as two people are involved. Even if the handling is not being
carried out in a work environment,it is advisable to comply with the requirements of Legislative Decree no.81/08 regarding the
maximum liftable weight at the workplace.The following table contains precise indications:
WARNING
DO NOT FLIP OR TURN THE PACKAGED PRODUCT OVER ON ITS SIDE.
HANDLING
Preamble
Upon receiving the product, check the integrity of each individual element and its components. If any damage, defect,
deformation or evidence of impact during transport is found,notify the retailer before proceeding with the following operations.
The oven should be delivered on wooden pallets protected by an impact-resistant box on all sides.
WARNING
PAY PARTICULAR ATTENTION
TO YOUR POSTURE DURING
MANUAL HANDLING. (SEE FIGURE)
Indicative values for maximum manual lifting (in kg) for frequent or occasional maintenance.
Men Women
Age Occasional Frequent Occasional Frequent
16 - 18 19 14 12 9
18 - 20 23 17 14 10
20 - 35 25 19 15 11
35 - 50 21 16 13 10
over 50 16 12 10 7
Pregnant women
First 6 months of pregnancy 10 5
7 months into pregnancy or more 0 0
Weight lifted by each person = Product weight/number of operators
YESNO

22 2322 23
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
Precautions
NEVER move the oven when it is hot.
All products are manufactured and veried by TEK REF S.r.l. before being shipped and delivered to the customer.
When used correctly, the oven is designed, manufactured and tested to meet all specic standards (see declaration of
compliance).
Choosing an area for use
The Subito Cotto MINI oven can be used both indoors and outdoors. For internal use, the room must be properly ventilated. For
outside use, choose an area that is not windy. The Subito Cotto MINI is made of materials resistant to atmospheric agents, but
during periods of non-use, it is recommended you cover it up.
• Place the oven on a horizontal surface sturdy enough to support its weight
• Place the oven somewhere far away from any combustible material.
• Ambient temperature: from -20 °C (68 °F) to +50 °C (122 °F);
• Humidity: ≤ 90% without condensation;
• Atmospheric pressure: 86 kPa ~ 106 kPa
• Keep the oven away from external heat sources, open ames and atmospheric agents.
WARNING
IMPROPER PLACEMENT AND/OR MAINTENANCE OF THE OVEN WILL INVALIDATE THE TERMS
OF WARRANTY.
PLACEMENT
Conguration
The Subito Cotto MINI is congured for standard for use with LPG gas. It can be
congured for methane gas on request and before purchase. A low pressure
regulator must be used to connect the Subito Cotto MINI to the LPG cylinder.This
regulator must have the following indicators:
• Flow rate: 7 kg / h
• LOW Pressure: 30 mbar
Connect the gas tube by screwing on the nut with the left threading into the
appropriate coupling under the oven.Use a suitable seal and tubing that complies
with regulations.
First Ignition
• Please take utmost care when igniting the oven for the rst time - the ame
should be kept very low, not exceeding 100/120 °C (212/248 °F).
• The duration of each ignition should be increased day after day, so as to
obtain a gradual increase in temperature, for a period of ve or six days
or until the water contained in the oven is totally evaporated and until the
oven reaches 420/450 °C (788/842 °F).
The rst few ignitions remove the moisture from the oven that was accumulated during production and transport. Switch the
Subito Cotto MINI on for the rst time for at least three hours, this pre-heating phase is very important.
WATER LEAKAGE ON FIRST IGNITION IS COMMON AND DOES NOT INDICATE A DEFECTIVE PRODUCT
Note: Due to thermal expansion,small cracks may appear in the dome or hearth during polymerizations.This is normal and also
does not indicate a defective product.
WARNING
QUICK IGNITION WITH A RAPID INCREASE IN TEMPERATURE CAN LEAD TO SEVERE DAMAGE TO
THE COOKTOP, RAISING WEDGES IN THE BASE AND/OR BREAKAGE OR DISPLACEMENT OF THIS
BASE.

24 2524 25
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
WARNING
NEVER USE ANYTYPE OF LIQUID FUEL,EXPLOSIVE MIXTURES OR CHEMICALPRODUCTS BASED ON
OIL, ALCOHOL OR GASOLINE TO IGNITE OR STOKE THE FLAME. KEEP ALL FLAMMABLE/EXPLOSIVE
LIQUIDS WELL AWAY FROM THE OVEN WHEN IN USE.
NOTE
THE TEMPERATURE DURING USE VARIES FROM 200 - 450 °C (392 - 842 °F) ACCORDING TO
THE TYPE OF FOOD YOU WILL BE COOKING.
Turn on the Subito Cooked MINI via the piezoelectric, keeping the gas regulation knob pressed in. The pilot ame will light up.
Wait a few seconds with the pilot ame on. Now release the adjustment knob and turn it to the desired ame intensity.
To bring the Subito Cotto MINI to the desired cooking temperature more quickly, you can use the oven door to increase air
intake. Warning: the door will quickly become very hot and you will need to use a protective glove or mitt to avoid burning
yourself.
Do not leave the oven switched on for longer than two hours with the door closed. The temperature increase too much for any
type of cooking and the oven could get damaged.
Once the desired temperature has been reached, the oven can be used without the door.
In case of an emergency, immediately close the gas cylinder, remove the door if it is inserted, remove any food that’s inside the
oven and any ammable objects from the vicinity. Ventilate the premises thoroughly.
Use
The oven must only be used by qualied personnel.
• Do not place any ammable objects inside the oven.
• Do not ignite the oven with a lighter, matches or pieces of paper.
• Never use wood and/or coal
• Never clean the oven with an air compressor, this could irreparably plug up the burner nozzles
• Do not plug up the smoke outlet
• Do not place any objects on the oven during use
• Do not leave the pizza shovel in the oven
• Do not clean the oven with aggressive and/or chemical products
• Do not get the oven wet when it is hot
Ordinary maintenance and cleaning
The product has been designed and built to endure for many years after purchase.
Ordinary maintenance operations must be carried out by personnel who have read this document.
• Periodically ensure that the inside and outside of the oven and its chimney are clean
• Check for refractory fractures or concrete detachments (dome and/or base)
• Check for possible internal movement of the refractory (dome and/or base)
• Check for any gas leaks coming from the burner or regulator pipes with a suitable spray detector (DO NOT USE A FLAME
TO CHECK FOR LEAKS)
• Any operation on the oven must be performed at or around room temperature.
• Abrasive products, scourers, steel wool, acids and rough cloth are not recommended for cleaning.
• Never use water to clean the base.
• Clean the inside of the cooking chamber when it is switched off and cooled down using a soft, damp cloth.
• Always remove any cooking residue before reigniting the oven.

26 2726 27
Subito Cotto Mini User and Maintenance ManualUser and Maintenance Manual Subito Cotto Mini
Exceptional Maintenance
Extraordinary maintenance is required in cases of breakage, unpredictable accidents or inappropriate use of the gas oven.
These situations, which may come about from time to time, are completely unpredictable and therefore it is impossible to
describe the appropriate intervention procedures.
If exceptional maintenance is required, consult TEK REF S.r.l.
technical service for appropriate instructions on the situation.
Exceptional interventions must be carried out by specialized personnel.
Inappropriate maintenance performed by unskilled personnel can also invalidate the terms of warranty for the product.
Disposal
The product cannot be disposed of like normal waste. If disposal is required, contact a specialized company, or in any case,
comply with local regulations regarding the disposal of special waste.
NOTE
THE MANUFACTURER IS NOT IN ANY WAY RESPONSIBLE FOR DAMAGE CAUSED BY THE OVEN
RESULTING FROM USES AND METHODS OTHER THAN THOSE SPECIFIED IN THIS MANUAL OR IF
THE OVEN HAS BEEN MODIFIED IN ANY WAY BEFORE USE. THE MANUFACTURER IS NOT IN ANY
WAY RESPONSIBLE FOR ANY DAMAGE TO PERSONS OR OBJECTS ARISING FROM THE USE OF THE
PRODUCT’S PARTS AFTER ITS DISMANTLING.

2828
Subito Cotto Mini User and Maintenance Manual
TEK REF SRL
Z.I. Loc. Feurredda
09088 Simaxis (OR) - ITALY
VAT IT 01088030950
T+39 0783 406 005
F+39 0783 406 135
[e-mail]
zio-ciro.com
