Ⅱ.PRODUCT INTRODUCTION
Ⅲ.PARAMETERS OF INDOOR UNIT
Product introduction
This set of products is a color wired multi household intercom visual doorbell. The system consists
of outdoor unit and indoor unit. The indoor unit is powered by network cable to realize door bell call,
monitoring intercom, remote unlocking and network cable connection.
The display screen adopts LCD, the image is clear and transparent, and the color is gorgeous without
distortion. The camera adopts CMOS HD camera. The outdoor unit can swipe ID card to open the door.
In case of insufficient outdoor light, it will automatically start infrared night vision lighting.
One key is correspondingly connected to an indoor unit. The outdoor host needs 12-15v separate power
supply, and the indoor unit displays.
The panel needs 12-15v power supply (it is recommended to use super class V or super class VI network
cable for connection, 2 cores and 1 core) and the maximum service distance is 150m.
1
2
4
68
7
3
5
MULTI-USER DIRECT PRESS
VISUAL INTERCOM DOORBELL
Installation instruction manual

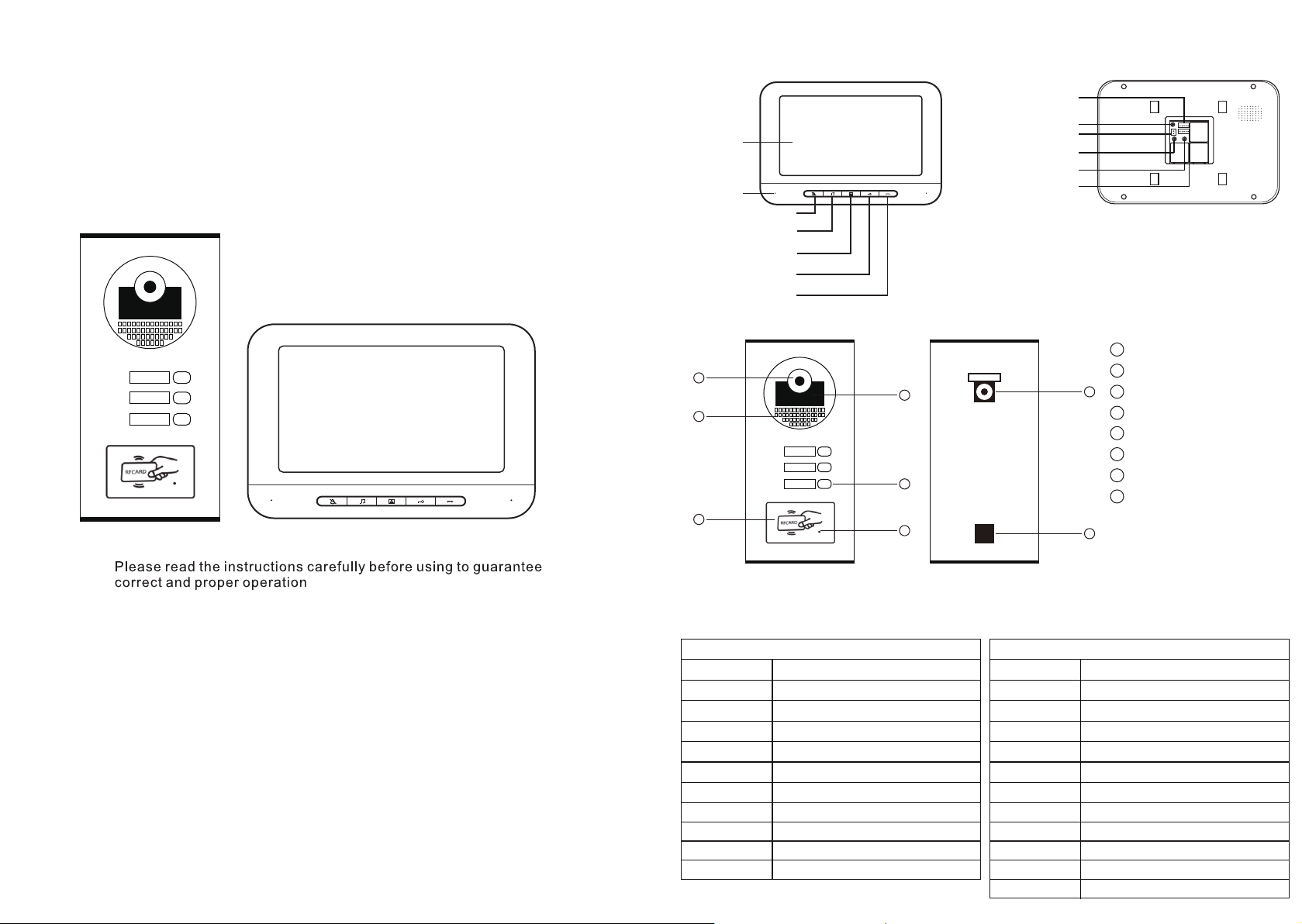

Ⅰ.PRODUCT DESCRIPTION
1
Electronic lock signal interface
2
3
4
5
6
7
8
Camera
Infrared night light
Speaker
Calling button
Card swiping area
Microphone
Lens direction adjustment area
Screen
Resolving power
Texture of material
Power
Current voltage
Working temperature
Monitoring time
Intercom time
Call ringtone
Installation mode
Signal interface
7-inch TFT LCD
800*480
ABS engineering plastics
Standby: ≤ 1W working: ≤ 10W
12-15V 1.2A
-20℃~60℃
90 seconds
90 seconds
25 songs
Wall hanging
5P x 2.54
Mute
Adjust the volume of music
& replace the ring tone
Monitor
Unlock
Talk
Color LCD
Microphone
Indoor unit
Camera
Texture of material
Card type
Night vision distance
Power Supply
power
Camera angle
Degree of protection
Unlock signal
Working temperature
Installation mode
Signal interface
CMOS HD camera
aluminium alloy
Number of ID cards: 500
0.2-1m
Special power adapter power supply DC15V
Standby: ≤ 0W working: ≤ 2W
82°
IP54
Voltage signal
-20℃~60℃
Embedded installation
5P x 2.54
Outdoor unit
Connects with an outdoor unit
D
Adjust brightness
Adjust color
C 15V power interface
Connects with next indoor unit
Intercom volume adjustment

3. Ringtone volume adjustment
In the standby mode of the indoor unit, press the button “ ” first to turn on the screen.
Press the button “ ” the bell rings to enter ring setting,It has three levels ,large,medium
and small.press for two seconds each time to increase or decrease the volume progressively.
1.When any visitor presses the call button on the outdoor unit, the indoor unit screen
will display the outdoor image in real time and the bell will ring.
2.The indoor user may press the button “ ” to talk with the visitor.
Note：press the “ ”for the first time to open the call, the second time press“ ”will
close the call, and the screen will automatically turn
off after 30 seconds of not answering
3.In the intercom mode, the indoor user may press the button “ ” to open the door.
4.In the intercom mode, the indoor user may press the button “ ” to finish talking or
talking will finish automatically in 90 seconds.
5.If it is required to resume talking after hang-up, press the button “ ” first and then
press the button “ ” to talk with the visitor.
6.In the standby mode of the indoor unit, press the button “ ” first and then press the
button “ ” to unlock the door; the screen will be off automatically in 90 seconds or it
can be powered off by pressing the button “ ” once.
1.Mute setting
In the standby mode of the indoor unit, press the button “ ” first to turn on the screen,
and then press the button “ ” to turn off the bell and intercom, making no effects on
image display.If it is required to turn on the bell and intercom, press the button “ ” again
in the monitor “ ” mode.
2.Change ringtone
In the standby mode of the indoor unit, press the button “ ” first to turn on the screen,
and then press the button “ ” to activate the ringtone and enter “change ringtone”
settings. The system is equipped with 25 ringtones of various lengths. The button “ ” is
pressed once to change one ringtone. After a suitable ringtone is selected, stop pressing
the button. The last ringtone will be the ringtone when the system is called by anyone.
Disturbance-free mode will be activated after the mute function is enabled.
IV.FUNCTION DESCRIPTION OF INDOOR UNIT
V.ID CARD INSTRUCTIONS

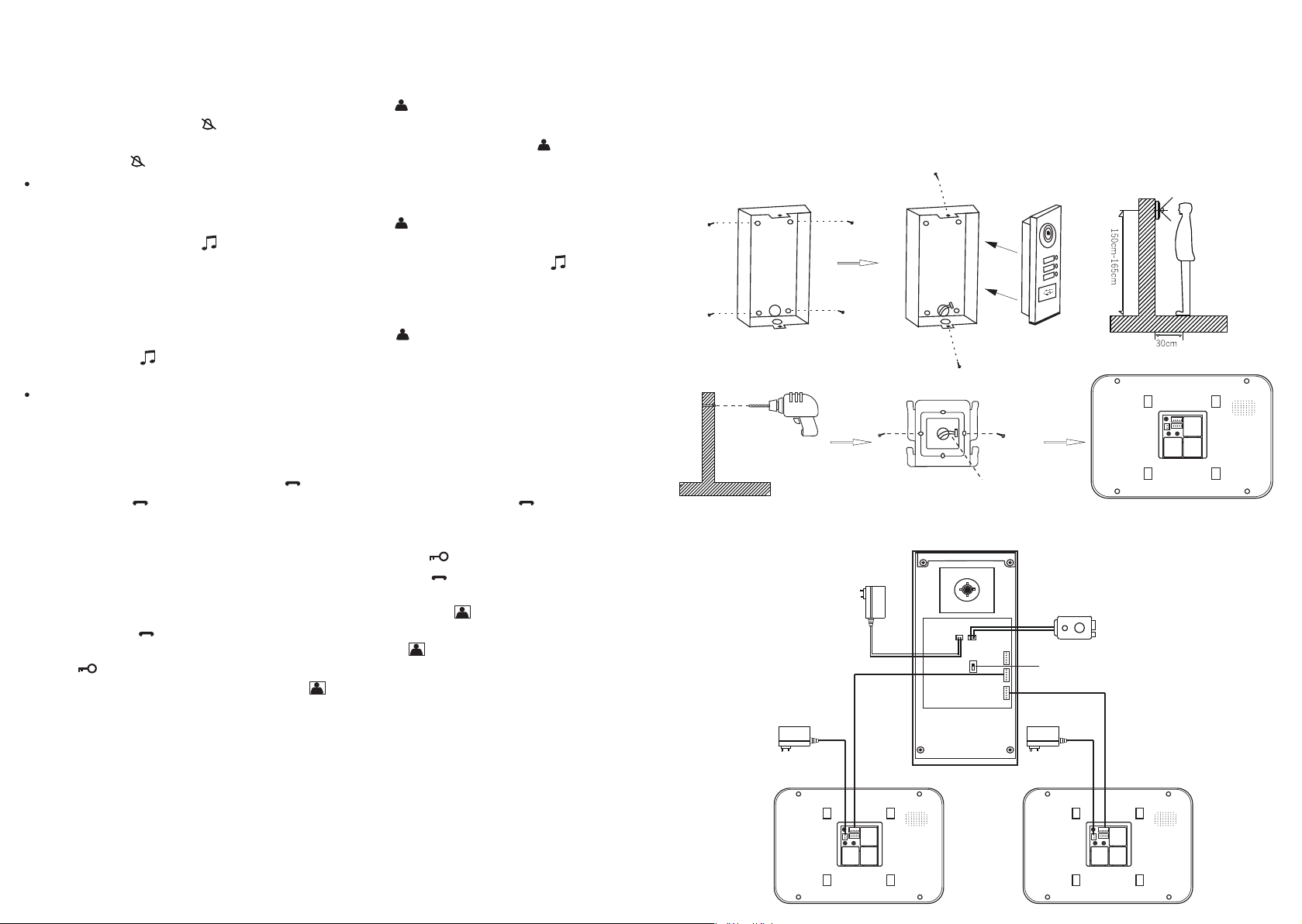

Ⅵ.PRODUCT INSTALLATION
a.Indoor unit ringtone setting
b.Instructions for doorbell operation
After power-off, all ringtone settings will be restored to factory settings.
Screw
Screw
Screw
Screw
Buried wall bottom cover
Bore diameter: a bout 1.5cm
E lectric drill
Indoor unit hanging board
Screw
5-core wire
Indoor unit
ⅥI.PRODUCT DIAGRAM
DC 15V Power
DC 15V Power DC 15V Power
Outdoor unit
Electricity control lock
1.Making a management card: management switch key up, the outdoor unit is powered on
("Di" rings), the first system defaults to adding the card ("Di" rings), and the second system
defaults to deleting the card ("Di" rings), then then power off,management switch key down
restoration, and the management card is made.
2. Add user card: when the outdoor unit is in power on standby mode, brush the add card
("Di" rings), then brush the user card ("Di" rings), and increase continuously. for each
additional card
("Di " rings), after brushing the user card, finally brush the add card to exit ("DiDi" rings twice),
and the user card addition is completed.
3. Delete a single user card: when the outdoor unit is in the power on standby mode, brush to
delete the card ("Di" rings once), then brush to delete the user card (place the card swiping
area for 2 seconds, "Di" rings once ,and then "Di" rings once 2 seconds later), delete
continuously, brush each card("Di" rings once), and finally brush to delete the card after
swiping the card to be deleted ("Didi" rings twice), Delete user card completed.
4. Delete all user cards: when the outdoor unit is in the power on standby mode, brush to delete
the card ("Di" rings), then brush to add the card ("Di" rings), and then brush to delete the card again
to exit ("Di" rings once, and "DiDiDiDiDiDiDi" rings seven after 2 seconds). All user cards are deleted.
5. Invalid card swiping: "DiDiDi" rings three continuously.
Toggle switch
(Learn how to operate management card)
+15V
GND
L+L-
5 core
5 core
