Zline RWV-UD-24 User manual

WINE COOLER AND
BEVERAGE CENTER
www.zlinekitchen.com
Installation Manual

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams
is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to
providing you an elevated experience in the heart of your home. With an endless selection of
features and finishes, our inspiration is your reality.

WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury
designs and professional features into everyone’s homes. Because we continually strive to improve
our products, we may change specifications and designs without prior notice.

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 1
BEFORE INSTALLATION 8
PRODUCT SPECIFICATIONS 9
INSTALLATION INSTRUCTIONS 13
OPERATING YOUR APPLIANCE 17
CARE AND MAINTENANCE 19
TROUBLESHOOTING 21
WARRANTY 23

1
General Safety
IMPORTANT SAFETY INSTRUCTIONS
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or death.
WARNING
• Before beginning installation, please read and follow these important instructions for
the safety of your home and the people living in it. Always read and obey all safety
measures.
• It is recommended that installation and service be performed by a qualified installer.
The appliance should not be adjusted or repaired by anyone except properly
qualified service personnel.
• IMPORTANT: The installer should leave these instructions with the consumer who
should retain for local inspectors’ use and for future reference.
• The manufacturer will not be responsible for any damage to property or to persons
caused by incorrect installation, improper use of the appliance, or failure to heed the
warnings listed, and the warranty will be voided.
• The manufacturer reserves the right to make changes to its products when considered
necessary and useful, without affecting the essential safety and operating
characteristics.
• This appliance has been designed for non-commercial, domestic use only.
• Please observe all local, state, and national codes and ordinances. Please ensure the
appliance is properly grounded. The plug should always be accessible.
• Use this appliance only as described in this manual. Other uses not recommended
may cause fire, electric shock, or personal injury.
• This appliance is not intended for use by children unless they are adequately
supervised by a responsible person to ensure that they can use the appliance safely.
• Young children should be supervised to ensure that they never play with the
appliance.
• To protect against the risk of electric shock, never immerse the unit, cord, or plug in
water or spray with any cleaning product or other liquid.
• Unplug the appliance from the electrical outlet when not in use, when moving from
one location to another, and before cleaning.

2
IMPORTANT SAFETY INSTRUCTIONS
• To disconnect the appliance from power, grip the plug and pull it from the electrical
outlet. Never pull by the cord.
• Never operate the unit in the presence of explosive and/or flammable liquids or
fumes; doing so may create a fire hazard or explosion.
• Never install the unit or any of its parts near an open-flame, cooking, microwave, or
any other heating appliance.
• Never operate the unit with a damaged electrical cord or plug, if the product
malfunctions beyond simple troubleshooting measures, or if it is dropped or
damaged in any manner.
• The use of attachments not recommended by the manufacturer may be hazardous to
your safety.
• Never operate the unit if the door or cooling system is removed or damaged.
• A loose fit between the electrical wall outlet and plug may cause overheating and/
or a distortion of the plug. Contact a qualified electrician to replace loose or worn
electrical outlets.
• This appliance is CFC- and HFC-free and contains small quantities of isobutane
(R600a), an environmentally friendly coolant.
• You must ensure that the sealed cooling system is undamaged when installing the
appliance. If damaged, keep the product away from potential fire sources that may
cause it to catch fire and ventilate the room where the product is placed.
• Never use an appliance with a damaged cooling system. If system is damaged upon
arrival, contact ZLINE at 1-614-777-5004
• Ensure that the ventilation openings to and from a built-in wine cooler or beverage
center are never blocked or covered.
• No liability will be accepted for any damage caused by misuse of the appliance,
or as a result of repairs carried out by unqualified people. In this case, neither the
warranty nor any other liability claims will apply.
General Safety

3
IMPORTANT SAFETY INSTRUCTIONS
Never operate any other electrical appliance inside this unit.
WARNING
• Never attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified
electrician, technician, or service provider.
• Ensure all access panels are appropriately installed before operating.
• It’s recommended to use two or more people to move and install the unit due to its
weight.
• Never clean the unit or its parts with flammable liquids. These fumes can create a fire
hazard or explosion.
• Never connect or disconnect the electric plug with wet hands.
• It’s recommended that a dedicated electrical circuit suitable for a NEMA 5-15 outlet
serving only your appliance be used; please ensure the outlet is easily accessible.
To reduce the risk of fire, electric shock or personal injury, unplug or
disconnect the appliance from the power supply before servicing.
WARNING
General Safety

4
SAVE THESE INSTRUCTIONS
This manual contains important information regarding the proper installation, use, and
maintenance of your beverage center and wine cooler. Following this manual will
ensure that your product will work at its peak performance and efficiency.
If you are experiencing problems, check the Troubleshooting Guide at the back of this
manual (pages 21-22). It lists causes of minor operating problems that you may solve
yourself.
DISPOSAL OF REFRIGERATION APPLIANCES
Dispose of your appliance packaging properly. Refrigeration equipment must be
properly disposed of in an environmentally-friendly manner. This applies to any old
appliances and to your new unit once it reaches the end of its service life.
Please ensure that old or worn appliances are rendered unusable before
disposal by removing the plug, cutting the power cable, and removing
or destroying any snap fastenings or bolts. This will prevent children from
locking themselves in the appliance (risk of suffocation) and endangering
their lives in any other way.
WARNING
• The cooling system, particularly the heat exchange located at the back/bottom of
the unit, must not be damaged during installation or when using the appliance.
• This product is not to be handled as normal household waste — it should be taken to
a recycling collection point for electrical and electronic goods.
• By correctly disposing of this product you are contributing to the protection of the
environment. Improper disposal endangers health and the environment.
• Further information about the proper recycling of the product may be obtained from
your local government agency or waste collection department.
BEFORE USING YOUR APPLIANCE
• Remove all exterior and interior packing materials.
• Before connecting the appliance to the electrical source, let it sit upright for
approximately 2 hours. This will reduce the possibility of malfunctions in the cooling
system caused by handling during shipping.
IMPORTANT SAFETY INSTRUCTIONS
General Safety

5
IMPORTANT SAFETY INSTRUCTIONS
• Prior to use, clean the interior surface with warm water using a soft cloth.
• The door on this appliance is designed so it may be opened from either the left or the
right side. The unit is delivered with the door opening on the left side and swinging
out to the right. Should you wish to open the door from the right, see installation
instructions on page 15.
INSTALLATION OF YOUR APPLIANCE
Do not store or install the appliance outdoors.
WARNING
• Wine coolers and beverage centers are designed for either built-in or free-standing
installation.
• Place your unit on a floor that is strong enough to support it when it is fully loaded.
Please note the units weigh roughly 136 to 144 pounds when empty, so adjust
accordingly.
• To level your appliance, adjust the 4 legs by twisting clockwise or counter-clockwise
as needed until level.
• Install the appliance indoors and away from direct sunlight and sources of heat
(stove, heater, radiator, etc.). Sunlight may affect the acrylic coating, and heat
sources may increase electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly.
• Never install the unit in damp or overly humid areas.
• Any questions concerning power and/or electrical connection should be directed
toward a qualified electrician, technician, or service provider.
• The air vent located at the bottom front of the appliance must never be covered or
blocked in any way.
• The unit must be appropriately installed to all electrical connections in accordance
with state and local government codes.
• Please note that the cooler may experience decreased cooling efficiency if air flow is
restricted due to a fully loaded cabinet.
• Install the wine cooler or beverage center in a well-ventilated area where the
ambient temperature is above 50° F and below 90° F.
General Safety

6
IMPORTANT SAFETY INSTRUCTIONS
ATTENTION
• Never overload the unit’s cabinet.
• Do not open the door unless necessary.
• Never cover shelves with aluminum foil or any other material that may prevent air
circulation.
• It’s recommended to unplug the appliance if it sits empty for long periods. After
cleaning, leave the door ajar to allow air to circulate to avoid condensation, mold,
or odors from forming.
General Safety

7
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL CONNECTION
Improper use of the grounded plug can increase the risk of electrical
shock. If the power cord is damaged, have it replaced by a qualified
electrician or authorized service provider.
WARNING
• This appliance must be properly grounded for your safety. The power cord provided
with this unit is equipped with a NEMA 5-15 plug that mates with standard NEMA
5-15 wall outlets to minimize the possibility of electrical shock.
• Never cut or remove the third-ground prong from the supplied power cord.
• Have a qualified electrician check the wall outlet and electrical circuit to ensure
the appliance is properly grounded. When a standard two-prong wall outlet is
encountered, it is your responsibility and obligation to have it replaced with a
properly grounded NEMA 5-15 wall outlet.
• To prevent injury, the electrical cord should be secured behind the appliance and not
left exposed or dangling.
• The appliance should always be plugged into its own dedicated NEMA 5-15 electrical
outlet. This provides the best performance while preventing overloading wiring circuits
that could cause a fire hazard from overheating.
• Have an electrician or qualified professional immediately repair or replace all power
cords that have become frayed or otherwise damaged. Never use a cord that shows
cracks or abrasion damage. When moving the appliance, be careful not to damage
the power cord.
• Never use your appliance with an extension cord unless this cord has been checked
and tested by a qualified technician or service person. The extension cord must be
a UL/CUL Listed, 3-wire grounding extension cord that has a grounding plug and
outlet and an electrical rating of 120 volts and at least 10 amps.
WARNING: We do not recommend using an extension cord. If one is
used on this appliance, it may void warranty.
WARNING
Electrical Connection

8

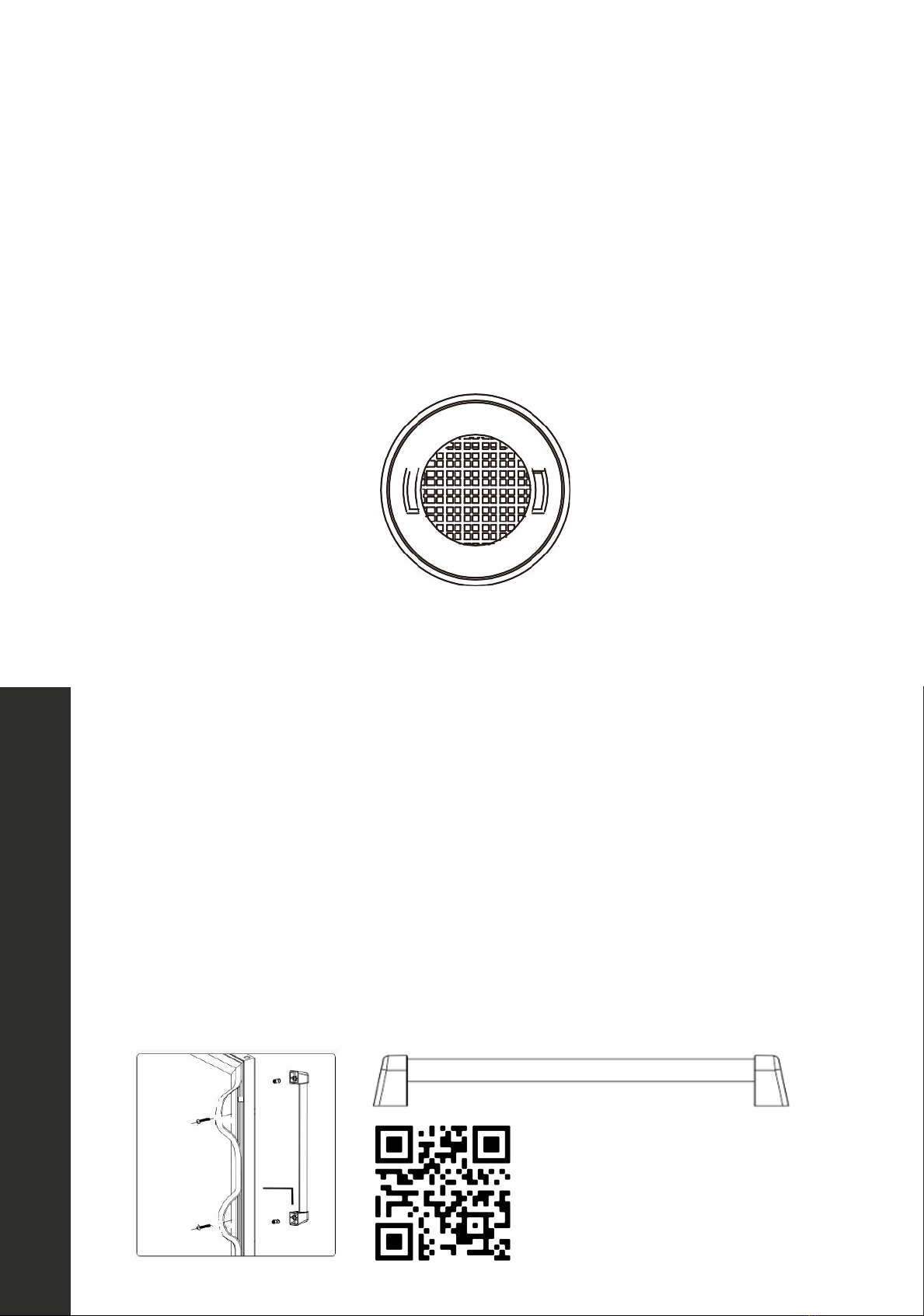

PROVIDED MATERIALS
PART PART
Reversible door upper hinge bracket (1)
Reversible door lower hinge bracket (1)
Door handle (1)
Door handle screws (4)
Allen/hex key
MATERIALS NEEDED
PART PART
Phillips-head screwdriver
BEFORE INSTALLATION
Parts

9

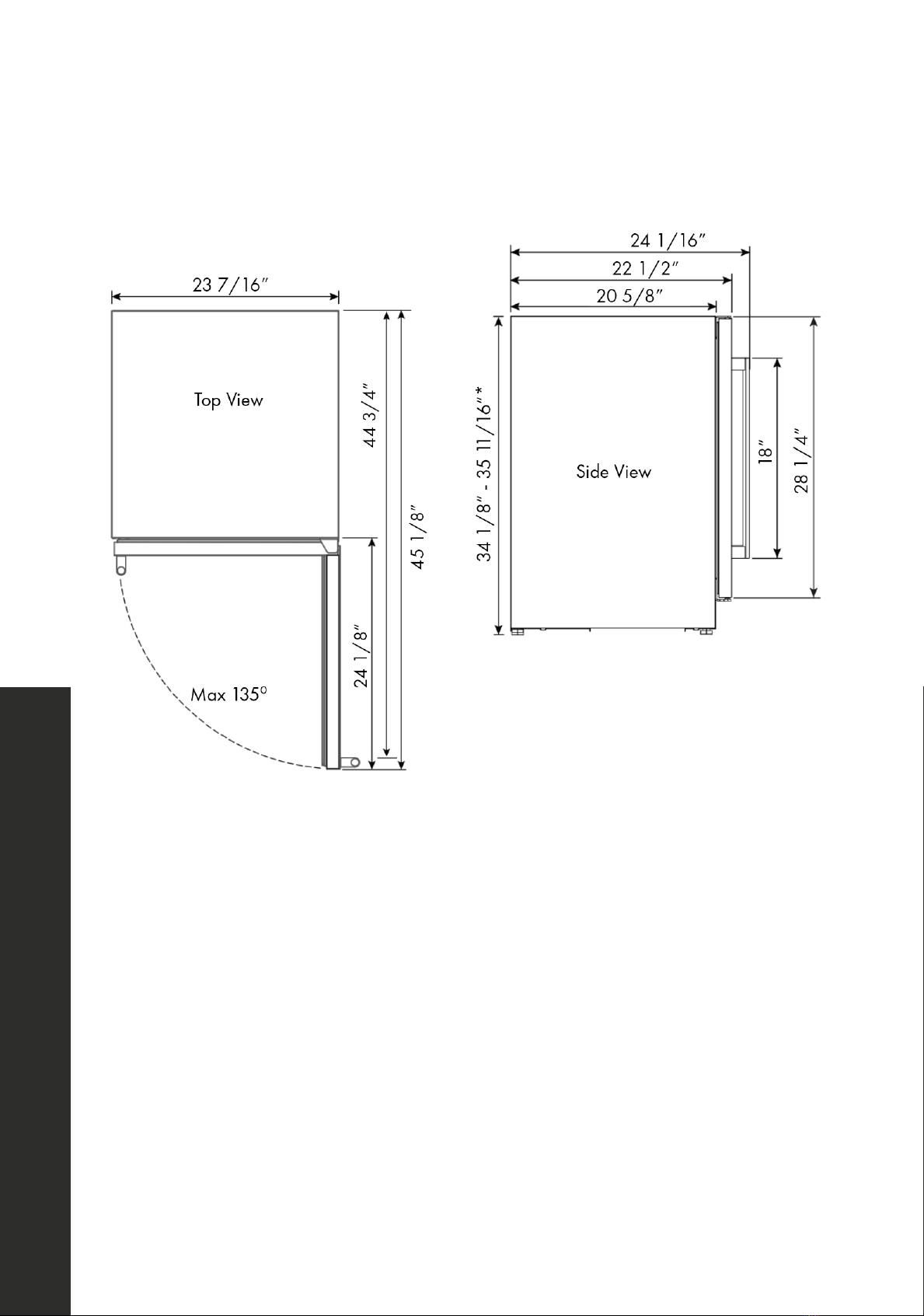

PRODUCT SUMMARY
This appliance requires a standard 120VAC/60HZ electrical ground outlet.
SPECIFICATION BEVERAGE CENTER
MODEL RBV-US-24
VOLTAGE/FREQUENCY 120VAC/60HZ
AMPERAGE 1.2A
COLOR Black Cabinet with Stainless Steel Door
STORAGE CAPACITY* 154 cans (12oz)
REFRIGERANT R600a
TEMPERATURE RANGE 34°F - 50°F
WEIGHT 136 lbs
DIMENSIONS** 34 1/8” H x 20 5/8” D** x 23 7/16” W (min)
35 11/16” H x 20 5/8” D** x 23 7/16” W (max)
* Storage capacity is based on standard 12 oz. beverage cans. Shelves can be adjusted
to fit bottles of wine or other beverages; capacity will vary.
** Depth excludes door.
INTERNAL STORAGE
BEFORE INSTALLATION
Product Specifications

10
BEFORE INSTALLATION
PRODUCT SUMMARY
This appliance requires a standard 120VAC/60HZ electrical ground outlet.
SPECIFICATION DUAL ZONE WINE COOLER
MODEL RWV-UD-24
VOLTAGE/FREQUENCY 120VAC/60HZ
AMPERAGE 2.0A
COLOR Black Cabinet with Stainless Steel Door
STORAGE CAPACITY* 44 Bottles (750ml)
REFRIGERANT R600a
TEMPERATURE RANGE Upper zone: 39°F - 50°F
Lower zone: 50°F - 68°F
WEIGHT 144 lbs
DIMENSIONS (HxWxD) 34 1/8” H x 20 5/8” D** x 23 7/16” W (min)
35 11/16” H x 20 5/8” D** x 23 7/16” W (max)
*Storage capacity is based on standard 750 ml Bordeaux-style wine bottles with a
3 3/8” diameter.
** Depth excludes door.
INTERNAL STORAGE
Product Specifications

11
BEFORE INSTALLATION
PARTS IDENTIFICATION
Beverage Center (RBV-US-24)
Dual Zone Wine Cooler (RWVUD24 )
Product Specifications

12
INSTALLATION
DIMENSIONS
Beverage Center and Dual Zone Wine Cooler
*Unit height varies depending on adjustable legs.
Clearance Requirements

13
INSTALLATION
INSTALLATION CLEARANCE REQUIREMENTS
When installing the beverage center or wine cooler under a counter, follow the
recommended spacing dimensions:
• For proper clearance of the electrical plug, allow at least 1” of clearance behind the
appliance.
• Installation next to a wall will require a minimum 2-1/4” door clearance to
accommodate the handle.
• The cabinet should allow at least 24” for width and 34-1/4” for height to
accommodate the or beverage center or wine cooler.
• The power cable is located on the bottom back right (left when facing the unit) and is
72” to accommodate multiple outlet locations.
• Once ready to install, adjust the back two feet to the desired height. Slide into place
and adjust the front two feet to ensure the unit is level.
• Installation should allow the unit to be pulled forward for servicing.
Clearance Requirements

14
INSTALLATION
CARBON FILTER
A built-in carbon filter protects your beverages by acting as a natural barrier against
harmful odors. The filter should be replaced every 3-6 months depending on the unit’s
exposure level to odor. If the unit is placed in a kitchen, regular replacement every three
months is ideal. To replace the filter, search for BWC-003 on www.zlineparts.com, ZLINE’s
official parts distribution partner.
You can easily remove the carbon filter by turning counterclockwise to unlock from rear
panel.
INSTALLING THE HANDLE
1. Pull back slightly on the door gasket as shown in the diagram to gain access to the
screw hole that secures the handle to the panel. Insert the handle screw through the hole.
2. Assemble the handle with the two side brackets as shown in the diagram. Line up the
handle side bracket with the top handle screw that was inserted. Be sure to note bracket
direction.
3. Tighten the screw part way using the provided Allen/hex wrench. Repeat for the lower
handle bracket/screw. Once both screws are started, go back and tighten the screws to
be snug. Do not over tighten.
4. Replace the door gasket.
Scan to follow along with a video.
Installing the Handle

15
INSTALLATION
REVERSING THE DOOR SWING OF YOUR APPLIANCE
If you want to reverse the opening direction of the door, please follow the instructions below.
Note: This task should require at least two people.
1. Using a Phillips-head screwdriver, take out the 2 screws from the
lower door axis (1), remove the door (2), and the axis plate (1) from
the door.
2. Take out the 3 hinge screws from the top right hinge (3) and remove it.
3. Unscrew 2 screws and remove the door magnet (4) and unscrew 1
screw and remove the door stopper (5). Then, reverse the process and
install the door magnet and door stopper at the top of the door frame.
4. Using your fingers or a thin object, remove the 3 black decorative tabs
(6) from the top left of the cabinet. Install the black decorative tabs to
the top right of the cabinet and install the new upper hinge bracket (7)
from the hardware package included with this installation manual at
the top left of the cabinet with the 3 screws removed in step 2.
5. Install the lower door axis (8) and install the door once correctly
aligned.
• The door opens to a maximum of 135° with a door stop on the bottom hinge preventing the
door from opening further.
Reversing the Door

16
INSTALLATION
REMOVING THE SHELVES
1. Open the door completely.
2. Remove all of the contents loaded on the shelf, if applicable.
3. Pull the shelf toward yourself until it is fully extended outward.
4. The shelf has plastic tabs on both sides indicated in the diagram below. While facing
the unit, press the plastic tab on the right side down while pulling up on the left tab.
5. Evenly pull out the shelf from the track until it is completely removed from the inner
compartment.
• To prevent damaging the door or door gasket, make sure the door is open at least
90° when pulling shelves out of the rail compartment.
Note: These installation instructions are for wooden shelves that come with the dual
zone wine cooler. ZLINE beverage centers are equipped with glass shelves. To adjust or
remove, open the door completely and simply slide the shelves in and out of the pre-
installed metal brackets on the beverage center.
Removing the Shelves
