Instruction Manual
Read Directions Before Operating
Follow Directions at all Times
5148 - X-40 Hot Vent Tent Heater with Push Button Ignition
800-589-2849 www.zodi.com
Model # 5148
FOR YOUR SAFETY
If you smell gas:
1. Do not attempt to light the appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
FOR YOUR SAFETY
Do not store or use gasoline or other liquids with flammable
vapors in the vicinity of this or any other appliance.
DANGER CARBON MONOXIDE HAZARD
Operating this item in an enclosed space can kill you.
Never use this appliance indoors or in an enclosed space
such as a camper, tent, car or home.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor and can kill you. Use only outdoors in well
ventilated area clear of any fuel powered products.
RETAIN THESE INSTRUCTIONS FOR
FUTURE REFERENCE
CAUTION - READ THIS BEFORE OPERATING HEATER
WARNING: Follow all instructions and all
warnings to avoid fire, serious injury or death.
FOR OUTDOOR USE ONLY. Do not operate
propane fueled product indoors, in confined
areas, near flammable materials, liquids or
vapors, near any gas powered products or
near exhaust, fumes, fire or smoke.
DANGER - CARBON MONOXIDE HAZARD.
Operating this item in an enclosed space
can kill you. Never use heater indoors or in
an enclosed space such as camper, boat,
tent, RV, car or home. This appliance can
produce carbon monoxide which has no odor
and can kill you. Use only outdoors in well
ventilated area. Do not operate heater near
any gas powered products including vehicles,
generators, gas engines, RVs or near other
propane fueled products or any product that
produces fumes exhaust or smoke. Exhaust
or fumes from any gas powered product can
kill you.
DANGER - This system consumes air. Do NOT
obstruct the flow of combustion or ventilation
of air.
Propane cylinder must be in a vertical position
and safely positioned and anchored to firm
flat ground when heating. Do not connect to
remote gas supply.
This heater gets very hot but no flame is
visible. Keep combustible materials at least 15
ft (5 M) from heater.
Heater and output air hose gets hot during
use. Allow system to cool completely before
handling, repositioning, storing or transport.
FOR YOUR SAFETY, if you smell gas, DO NOT
attempt to light heater and extinguish any
open flame. Disconnect X-40 from fuel source.
Always attach and detach regulator to propane
tank outdoors away from flames, other ignition
sources & only when heater is cool.
FOR YOUR SAFETY do not store or use
gasoline or other flammable liquids or
flammable vapors in the vicinity of this or any
other appliance.
ALWAYS KEEP HEATER OUTSIDE WHEN
HEATING. KEEP BLOWER AND AIR HOSE
CLEAR FROM VEHICLE, GENERATOR, GAS
POWERED PRODUCT, CAMP FIRE, SMOKE,
VAPOR, EXHAUST OR FUMES.
Air must be flowing from output air hose
before igniting propane burner. Air must
always be flowing from output air hose when
propane heater is on.
If air flow stops or suddenly decreases,
turn propane burner off until proper air flow
resumes.
Do not use system indoors. Operating this
item in an enclosed space can kill you. Never
use this appliance indoors or in an enclosed
space such as a camper, tent, car, boat or
home. This appliance can produce carbon
monoxide which has no odor and can kill you.
Use only outdoors in well ventilated area at
least 15 ft (5M) clear from flammable materials,
and completely clear of flammable liquids or
vapors when igniting & operating.
Air hoses must be completely and tightly
secured to collars on X-40 Vent.
Inspect the X-40 internal heating tubes and
flanged ends before each use.
Do not place any items on or near heater. Keep
children and pets clear when operating. Do not
leave system unattended when operating. Allow
heater to cool before handling, transporting and
storing.
This system uses a high performance heater.
When heater is turned all the way up, you may
notice hot spots on heater housing or flames
near top of system. If flames exit exhaust holes
at top of heater, turn down propane valve.
Housing color may darken with use but will
usually return after system has cooled. Note:
Discoloration is not covered by warranty.
Do not obstruct or restrict the flow of air for
combustion.
NEVER OPERATE HEATER WHILE SLEEPING.
Adjust propane valve to adjust heat output. If
too hot, turn down gas valve. If not hot enough,
turn propane valve up or recycle air by placing
both air hoses inside tent. Changes take about 1
minute. DO NOT PLACE X-40 HEATER IN TENT.
For best performance, shield system from wind
and use full propane tanks stored at room
temperature. High altitude, cold or low propane
will result in decreased performance. For best
performance, keep air hoses as straight as
possible. In cold areas, recycle air by placing
free end of both air hoses inside tent. Keep
heater outside in well ventilated area.
Turn off gas valve on propane tank and
disconnect regulator from propane tank
between uses. Remove propane cylinder
from system before and during transport and
storage. Do not store propane indoors.
The fan and air hoses are limited life items
and will require replacement with extended
use. Fans and air hoses are not covered under
warranty. For best performance, always use fully
charged 12 Volt batteries and full propane tanks.
Replacement fans and air hoses can be found
at your nearest camping retailer or at www.zodi.
com.
Improper use can result in injury or death. Zodi
Outback Gear is not responsible for improper
use.
Zodi Hot Tap X-40 Vent Tent Heater
Max Rating: <40,000 btu/hr
Gas Type: Propane
Model: 5148
Patent Pending
Parts: www.zodi.com
Zodi
PO Box 4687
Park City, UT 84060
Assembled and Made in USA
Designed in Park City, UT USA
ZODI X-40 SHOWER
Enjoy hot showers anywhere
with the Zodi Outfitter Series
Portable HOT Shower!
ZODI I HUT
Enjoy privacy anywhere with
this self supporting hut.
Almost 4 feet wide per side!
ZODI HOT TAP HP
Portable hot shower are easy
wth the Zodi Hot Tap HP. Easy
to use & great for all seasons!
ZODI SHOWER POLE
Enjoy hands free showering.
Adjustable height. Works with
all Zodi showers and Huts.
Other Zodi products for all your outdoor adventures!!
pat. pend

DIRECTIONS - FOLLOW THESE DIRECTIONS AT ALL TIMES.
Read, understand and follow the instructions printed in this instruction manual, printed on the product, and on propane tank
before operating this product. Failure to comply with all instructions can result in serious bodily injury, death and/or prop-
erty loss. CARBON MONOXIDE HAZARD - Operating this item in an enclosed space can kill you. Never use this appliance
indoors or in an enclosed space such as a camper, tent, car, boat or home. Zodi assumes no responsibility for improper use.
These directions may refer to options not included on your model. Keep children and pets away from product when operating.
Operate outdoors in well ventilated areas clear of any exhaust or fumes.
DO NOT OPERATE INDOORS. FOR OUTDOOR USE ONLY!
Air must be flowing through air tubes before igniting and whenever heater is on.
This package contains:
• X-40 Hot Vent
•12 volt fan with battery clips
• high temp flexible air hoses (2)
• multi-purpose storage bag
• instruction manual
• warranty card

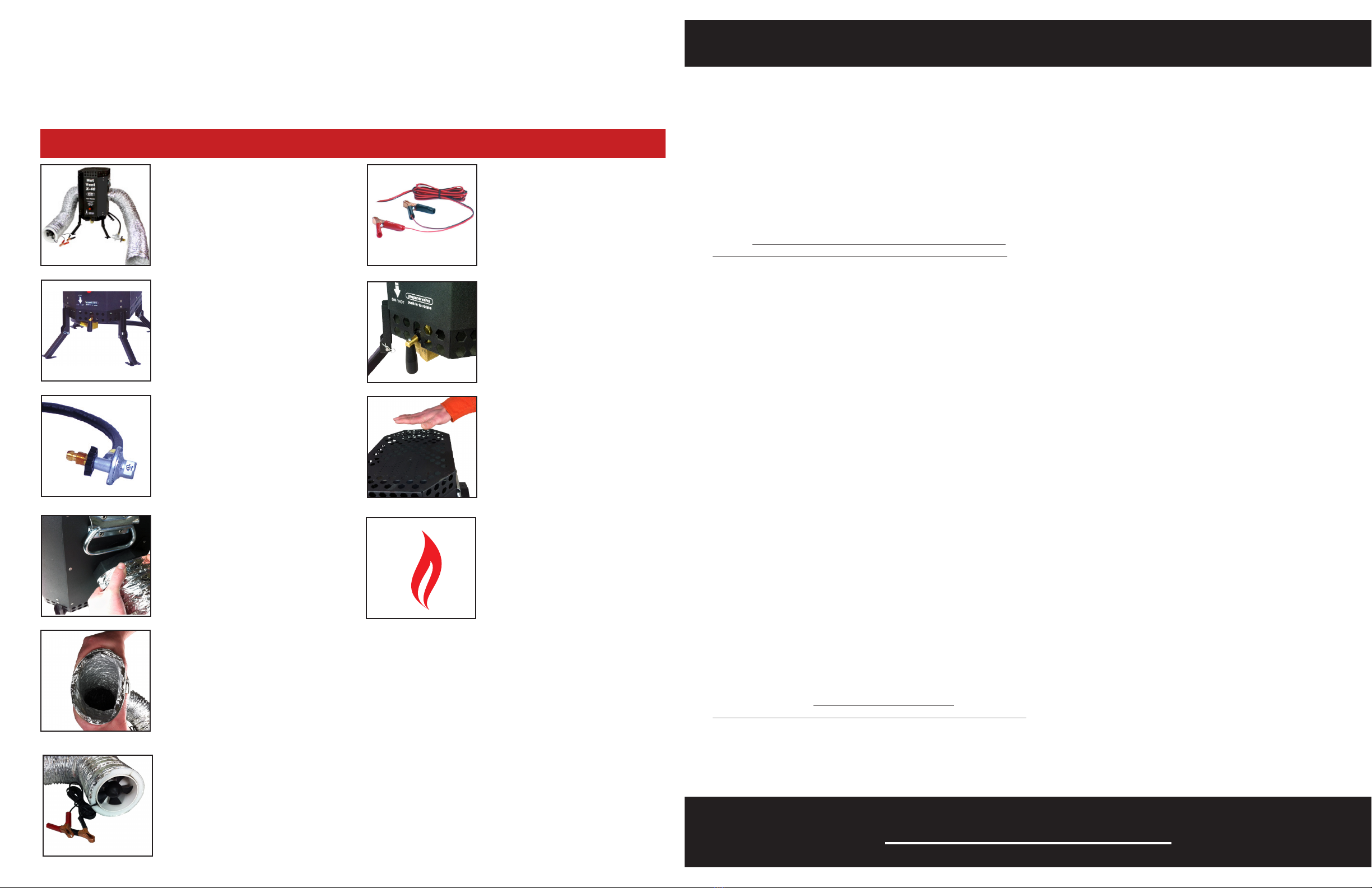

STEP 1
Select flat ground, outdoors in well-
ventilated area 15 ft (5 M) clear of vehicles,
exhaust & flammable materials. Extend all
4 support legs by depressing button in leg/
bracket and rotate legs downward until
secure and locked.
STEP 2
Leave propane valve in off position. Check
that propane valve on X-40 Vent is in
“OFF” position. Securely connect propane
regulator to propane tank. Before using
system, check for leaks (see next page).
Securely position propane tank in an
upright position a safe distance away from
heater.
STEP 3
Attach both air hoses to collars on each
side of X-40 Vent by compressing each
air hose end to form an oval shape.
Slide air hose completely over X-40
Vent Collar. Extend air hose so each air
hose is about 3 to 4 ft. X-40 Vent should
remain at least 3 ft from tent.
STEP 4
Place free end of air hose inside tent. For
best performance wrap X-40 Vent air hose
with a small towel where air hose enters
tent. Towel will protect zipper & keep cold
air from entering tent. Position air hose
away from heat sensitive items & fabrics.
Keep air hose as straight as possible.
STEP 6
When ready to turn on heater, connect
battery clips to battery. Red to positive
(+) and Black to negative (-) terminal
on 12-Volt power source. Air will be
flowing from output air hose.
AIR MUST ALWAYS BE FLOWING FROM FREE
END OF OUTPUT AIR HOSE WHEN HEATER IS ON!
STEP 7
AIR MUST BE FLOWING BEFORE
PROCEEDING. Turn gas on propane
tank to ON/Open position. On front of
the X-40 Vent, push in propane valve
and turn DOWNWARD to the ON
position while pushing in and holding
the ignition button for 5 seconds.
STEP 8
System should ignite instantly. Once
system is ignited, release ignition
button. Check for ignition by feeling
for heat rising from the top of the X-40
Vent. If system fails to ignite, shut off
propane valve and wait one minute.
Repeat Step 7.
SHUT DOWN
Turn propane valve on front of X-40 Vent “OFF” then turn “OFF”
propane tank gas valve. Allow fan to continue blowing air for 2
minutes before turning “OFF” fan. Turn fan off by removing clips
from 12 V power source. Allow X-40 Vent to cool completely.
Remove regulator from propane tank before handling, storing or
transport.
NOTES: INSULATE TENT - The X-40 Vent is designed to heat
your tent when outside air temperature is between 30° to 60°.
Below 30° propane loses performance and the total area of
the tent walls may disperse hot air away faster than the X-40
Vent can supply hot air. In cold areas, add an extra layer of
insulation to your tent, such as securing a blanket or a plastic
tarp on the outside of tent. Also, cover any screens in the tent
roof with towels, etc. Keep heater outside of tent and tarp. Do
not put tarp above heater.
STEP 9
If the push button fails to ignite
replace AA battery or insert match
or lighter flame in manual ignition
hole on the back side of heater then
slowly OPEN gas valve.
Tips for Best Performance
If you experience a challenge with your Zodi X-40 Vent Heater
PLEASE DO NOT return product to the store.
PLEASE Call 800-589-2849 or e-mail [email protected]
CAUTION
STEP 5
Place input air hose with fan away from
all vehicle exhaust and fumes. Elevate fan
and output air hose off ground. Also, air
hose end with fan can be placed inside
tent to recirculate air. Do not obstruct the
flow of air near bottom or top of heater.
Keep clear of rotating fan when fan is on!
WARNING - SYSTEM GETS HOT DURING USE: Allow system to cool
before handling. Do not place any items on or near heater. Keep children
& pets clear of heater when operating. Operate only outdoors in well
ventilated areas clear of any flammable vapors & material and any exhaust
or fumes. For best performance, shield system from wind and use full
propane tanks stored at room temperature.
DO NOT USE SYSTEM INDOORS: The X-40 Vent, like all propane devic-
es, generate deadly, odorless, carbon monoxide fumes when operating.
The X-40 Vent is designed for outdoor use only. Do NOT operate the X-40
Vent inside boats, RVs, tents, homes or other confined areas. Use only
outdoors in well ventilated areas away from flammable materials, vapors,
fumes or exhaust. Only the end(s) of the flexible air hose(s) should enter
the tent. Do not operate unattended. X-40 Vent is designed for
temporary heating only. Do not sleep with X-40 Vent operating.
BEFORE EACH USE: Prior to each use, completely inspect your X-40
Vent internal heating tubes and heating tube flanged ends for damage. Do
not use your X-40 Vent if the heating tubes are damaged.
CONNECTING PROPANE: This product uses propane gas. Propane gas
can explode, burn and is a fire hazard. Propane gas is heavier than air and
can accumulate in low areas. Never store propane indoors or near any
heat source, near any open flames, near any pilot light, in direct sun light,
near any ignition source or where temperatures exceed 120°F. Dispose
of empty gas cylinders in a safe and responsible manner. Always attach
& detach gas cylinder outdoors away from flames, other ignition sources
& only when heater is cool to touch. If propane cylinder has a protective
cap, remove protective cap. Check that propane cylinder and fittings are
clean and free of dirt and debris. Turn off propane gas valve, connect
X-40 gas regulator to the propane tank until connection is tight. Do NOT
overtighten. Check for leaks at connection of regulator to tank with soapy
water (see below).
TESTING FOR GAS LEAKS: To ensure safety, test for propane leaks
before using X-40 Vent. Neveruseflameto check for leaks. With propane
valve turned completely off and propane connected to X-40 Vent,
apply soapy water (1 part liquid detergentto3partswater) around area
where the gas valve connects to the propane. Bubblesnear propane
connectionindicateleaks. If bubblesarepresent,ensure the propane
connectionisnotcrossthreaded. Check thatpropane cylinderconnection
istight.Repeat process (testforleaks)untilnoleaksarepresent.Ifleaks
persist, donotuseproduct, but contactZodi.
WINDY CONDITIONS: The X-40 Vent is designed to be operated in calm
conditions with wind less than 5 mph. In windy conditions the burner
flame will be extinguished. If flame is extinguished, immediately turn
propane burner off. X-40 is NOT intended to be operated during sleeping
periods.
INPUT TUBE UP-WIND: Always keep the input air hose and fan away
from vehicle exhaust, generators and other sources of carbon monoxide
or any fueled exhaust. Only the ends of the air hoses should enter tent.
Heater must always be securely positioned outdoors when heating.
ADJUST OUTPUT AIR TEMPERATURE: Adjust air temperature with gas
control knob located on front of X-40 Vent near bottom of panel. If air is
too hot, reduce gas flow using propane valve. If air is not hot enough,
increase gas flow using propane valve on front of X-40 Vent or recycle air.
RECYCLE AIR: To recycle air, place both input and output air hose
ends inside tent (KEEP X-40 HOT VENT OUTSIDE). Keep output
air hose away from heat sensitive items and fabrics. Keep clear of
fan when fan is on. BTU output varies and may reach up to 40,000
BTU dependent upon altitude, atmospheric conditions, outside
temperature, and propane level and temperature. Cold and empty
propane tanks decrease performance. Also, fully charged batteries
and different 12 Volt power sources may result in higher flows of air,
causing lower output air temperatures. For best performance, use a
full propane tank stored at room temperature. High altitude can result
in lower output air temperatures. Do not use in wind.
FLEXIBLE AIR HOSES: The air hoses are flexible for storage and
convenience. For best performance minimize bends in air hoses
when heating by keeping air hoses as straight as possible. If longer
air hoses are needed, always use Zodi supplied air hoses. Heating
performance will drop with longer air hoses. The output air hose and
X-40 Vent get very hot when in use and may cause damage to certain
materials. For best performance, wrap the output air hose with a
small towel or sock where air hose enters tent. The towel will protect
the zipper and will also keep cold air from entering the tent around
air hose. USE CAUTION WHEN REPOSITIONING AIR HOSES OR
HEATER. Keep heater and air hoses clear of temperature sensitive
materials including tent floors, sleeping bags or clothing. Zodi is
not responsible for damage. Air hoses must be completely attached
to metal sleeves on X-40 Vent whenever heater is operating. After
prolonged use, the air hose ends may harden and may need trimming
before next use. Do NOT use plastic or third party air hoses. Flexible
air hoses should be replaced with each season. See www.zodi.com
for replacement air hoses. Attach flexible air hoses to heater and turn
ON fan by connecting to 12 Volt power source. You should NOT be
able to feel any air blowing from sealed heating area, only from the
end of the air tube (air will be cold because heater is OFF.) If fan does
not operate, confirm battery clips are connect to battery properly (red
to (+) and black to (-) or try new 12 Volt power source.
REMOVING PROPANE FROM UNIT: Only attach or detach gas
cylinder outdoors, away from flames and ignition sources, after
the heater has cooled completely. To remove propane from your
shower, untwist propane regulator on X-40 from valve on propane
tank until fully removed. Replace protective cap on propane tank.
Store propane outdoors. Read manufacturer’s directions on propane
cylinder for other warnings.
CLEANING RECOMMENDATIONS: Clean outside of housing and
flexible air hoses using a soft damp c h and only when completely
cool. Never submerge heater in water. Check tubes before each use.
STORAGE: Disconnect propane cylinder from heater before and
during transport or storage. For added protection, wrap heater in
towel before storing in storage bag. Store heater in storage bag
to prevent dust and insects from clogging burner during storage.
Damaged and torn storage bags and fans are not covered by
warranty. Always store propane outdoors - see propane warnings.
Warranty Disclaimer: Due to the harsh conditions product may be
exposed to, there is no warranty on electronic components including
electronic ignition and fan. Never modify, alter or use with any part or
device not approved by Zodi.
