SUBMERSIBLE SUMP
PUMPS
MODELS #1073-0001, 1075-0001
Serial Number Purchase Date
Zoeller®is a registered trademark
of Zoeller Co. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
SW1139 B
Español p. 9

2
© 2017. All rights reserved.
PACKAGE CONTENTS
SAFETY INFORMATION
DESCRIPTION QUANTITY
Pump 1
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard UL778.
CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
DANGER
• FIRE/EXPLOSION HAZARD.
Pump only clear water. Do not pump flammable or explosive fluids such as gasoline, fuel oil,
kerosene, etc. Do not use in a flammable and/or explosive atmosphere. Failure to follow these
warnings could result in death or serious injury and/or property damage.
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool and marine areas.
• RISK OF ELECTRIC SHOCK.
Always disconnect power source before attempting to install, service, or maintain the pump.
Never handle a pump with wet hands or when standing on wet or damp surface or in water. Fatal
electrical shock could occur.
• RISK OF ELECTRIC SHOCK.
Keep pump out of reach of children.

3
© 2017. All rights reserved.
WARNING
• ELECTRICAL SHOCK ALERT.
Before installing this product, have the electrical circuit checked by an electrician to ensure proper
grounding. All electrical installations must conform to the National Electric Code and all local
codes.
• ELECTRICAL SHOCK ALERT.
Connect this product to a properly-grounded 115 volt circuit equipped with a Ground Fault Circuit
Interrupter (GFCI) device. Make sure the electrical supply circuit is equipped with fuses or circuit
breakers with a minimum capacity of 15 amps.
• ELECTRICAL SHOCK ALERT.
Never use an extension cord.
• ELECTRICAL SHOCK ALERT.
These pumps are supplied with a 3-prong grounded plug to help protect you against the possibility
of electrical shock. DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND PIN.
• ELECTRICAL SHOCK ALERT.
Do not remove or replace the power cord.
• ELECTRICAL SHOCK ALERT.
Protect electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord.
• CHEMICAL ALERT.
This product contains chemicals known to the state of California to cause cancer and birth defects
or other reproductive harm.
• PERSONAL INJURY ALERT.
This pump contains oil, which becomes hot when operating. Allow 2-1/2 hours after disconnecting
before attempting any service.
CAUTION
• PERSONAL INJURY OR PRODUCT DAMAGE MAY RESULT.
This pump operates on 115 volts. Make certain that the power source conforms to the
requirements of your equipment.
• PRODUCT DAMAGE MAY RESULT.
The continuous operating water temperature for this pump must not exceed 104°F (40°C).
• PRODUCT DAMAGE MAY RESULT.
This pump is designed to pump water only. It has not been evaluated for pumping chemicals or
corrosive materials.
• PRODUCT DAMAGE MAY RESULT.
Inspect the pump regularly for damage and perform routine maintenance as needed. Remove any
debris that may build up around the on/off operation of the float.
• PROPERTY DAMAGE MAY RESULT.
This product requires a 3/16-in vent hole to be drilled in the discharge pipe, level with the top of
the pump. The vent hole should be checked periodically for clogs. It is normal for water to come
out of this vent hole during pump operation.
• PROPERTY OR PRODUCT DAMAGE MAY RESULT.
This pump is not designed for pumping effluent or sewage.
• PRODUCT DAMAGE MAY RESULT.
This pump is not designed for continuous operation.

4
© 2017. All rights reserved.
PREPARATION
Estimated Installation Time: 15 minutes
Materials required for assembly: Sump basin, inlet piping, discharge piping (PVC, poly pipe or
galvanized steel), check valve, and 2-step PVC glue system (primer and sealer).
GENERAL PUMP INFORMATION
This pump is designed to be installed in a sump basin for removing clear drain water and will usually
pass small particles suspended in water. Heavy mud, sand, or pea gravel can clog the pump, which
can usually be cleaned out by back-ushing with a garden hose through the pump discharge.
A check valve must be installed in the discharge pipe to keep water from draining back into the sump
basin when it is not operating. The sump basin must be at least 18-in deep and 10-in diameter.
NOTES: Before installing pump:
• Have the electrical circuit checked by an electrician to ensure it is on a dedicated circuit with
proper grounding.
• Connect pump to a grounded circuit equipped with a ground fault circuit interruptor (GFCI) device.
• BE CERTAIN the pump power source is disconnected before installing or servicing this unit.
• Be sure the sump basin and piping are clear of sand, dirt, and scale. Debris will clog pump and
void warranty.
• Failure to protect pump and piping from freezing could cause severe damage and will void the
warranty.
• Do not run pump dry.
SPECIFICATIONS
MODEL HP AMPS PERFORMANCE IN GALLONS PER MINUTE
0 FT. 5 FT. 10 FT. 15 FT.
1073-0001 1/3 5.5 42 38 30 12
1075-0001 1/2 5.6 60 50 40 30

5
© 2017. All rights reserved.
INSTALLATION INSTRUCTIONS

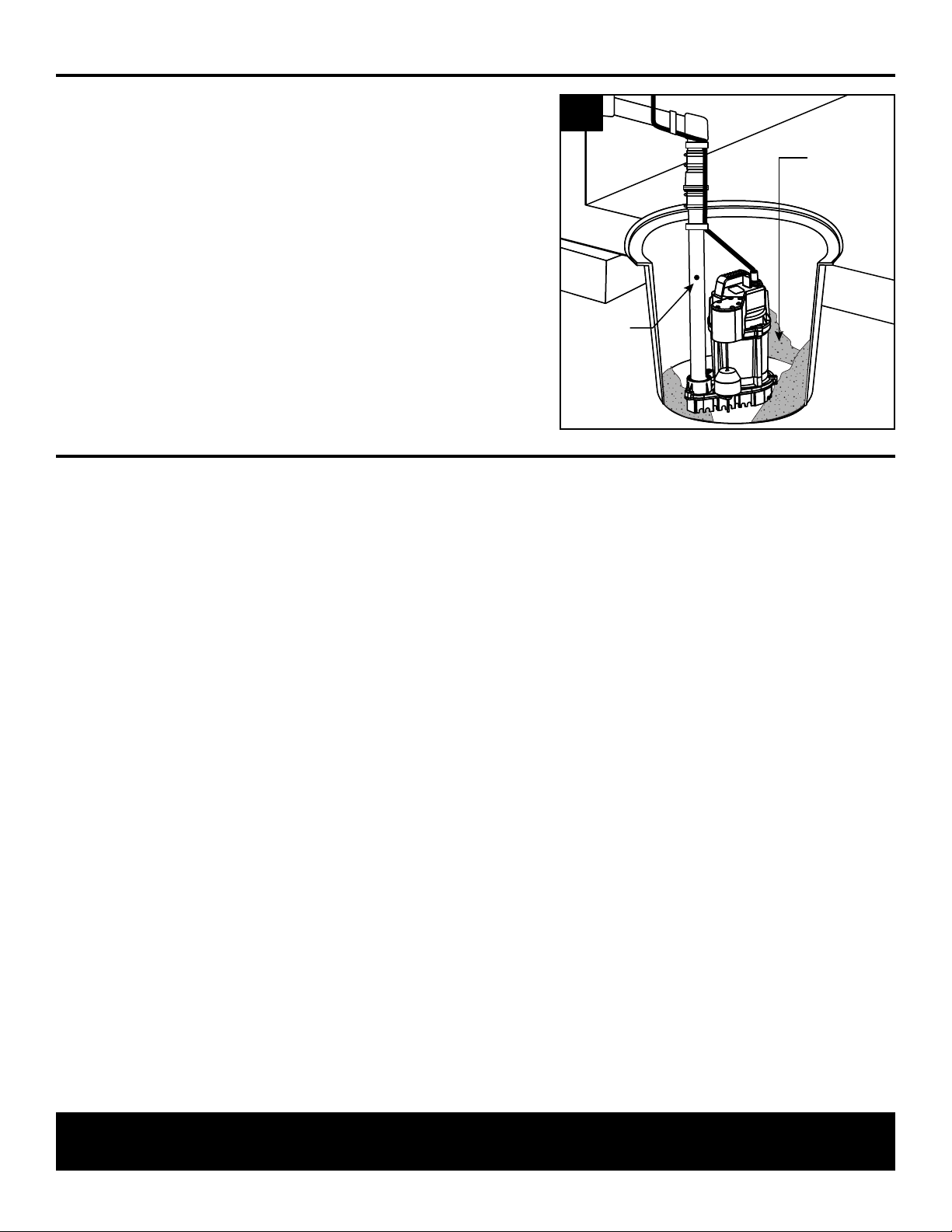

1. Make sure the sump basin is cleared of any
debris or sediment, and place the sump pump
on a hard surface inside the basin.
A
IL2016
1
2. Connect the discharge pipe, ttings, and check
valve (not provided) to pump discharge. The
discharge pipe should be the same size as the
discharge of pump (1-1/2-in) or larger.
NOTE: Make sure there is enough room in the
basin for the oat to move freely. If the oat is
restricted, the pump will not operate.
3. Drill a 3/16-in vent hole in the discharge pipe,
level with the top of pump. It is normal for
water to spray from this hole when the pump is
operating.
3/16-in
Vent hole
3
Discharge pipe
and ttings
Check
valve
2

6
© 2017. All rights reserved.
4. Make sure your hands are dry and you are
not standing in water. Connect the pump to a
properly-grounded, GFCI electrical outlet.
WARNING: Do not use an extension cord.
NOTE: Tape the electrical cord to the discharge
pipe to prevent it from interfering with the
motion of the float.
5. Test the operation of the pump by pouring water
into the sump basin.
6. Install a sump basin cover to complete the
installation.
A
A
Sump basin
cover
6
115 V
GFCI Outlet
5
115 V
GFCI outlet
4
INSTALLATION INSTRUCTIONS

7
© 2017. All rights reserved.
CARE AND MAINTENANCE
WARNING: Always disconnect pump from power
source before handling.
At least every three months:
Remove any debris that may build up in the
sump basin to prevent it from interfering with the
operation of the float switch.
Clean out the vent hole that was drilled in the
discharge pipe during installation.
Test system for operation.
Clean
vent hole
Remove
debris
1
WARRANTY
This product is warranted for two years from the date of purchase or thirty (30) months from the date of
manufacture, whichever occurs rst. Subject to the conditions hereinafter set forth, the manufacturer will repair
or replace to the original consumer any portion of the product which proves defective due to defective materials
or workmanship. To obtain warranty service, contact the dealer from whom the product was purchased. The
manufacturer retains the sole right and option to determine whether to repair or replace defective equipment,
parts, or components. Damage due to conditions beyond the control of the manufacturer is not covered by this
warranty.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly install,
operate, or maintain the unit in accordance with printed instructions provided; (b) to failures resulting from
abuse, accident, or negligence, or use of inappropriate chemicals or additives in the water; (c) to normal
maintenance services and the parts used in connection with such service; (d) to units which are not installed
in accordance with normal applicable local codes, ordinances, and good trade practices; and (e) if the unit is
used for purposes other than for what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty must be
returned to the manufacturer at Kendallville, Indiana or such other place as the manufacturer may designate,
freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND MAY
NOT BE EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL BE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH IMPLIED WARRANTIES ARE
DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER ANY CIRCUMSTANCES, BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO
DAMAGE TO, OR LOSS OF, OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE,
OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY
OF THE MANUFACTURER SHALL NOT EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH
LIABILITY IS BASED.
This warranty gives you specic legal rights, and you may have other rights which vary from state to
state. Some states do not allow limitations on duration of implied warranties or exclusion of incidental or
consequential damages, so the above limitations may not apply to you.
FOR YOUR WARRANTY PROTECTION, THE WARRANTY REGISTRATION MUST BE COMPLETED AND
RETURNED TO THE WARRANTY INFORMATION CENTER WITHIN TEN DAYS OF INSTALLATION.
In those instances where damages are incurred as a result of an alleged pump failure, the
Homeowner must retain possession of the pump for investigation purposes.

8
© 2017. All rights reserved.
Printed in Taiwan
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Pump will not
start or run.
1. Circuit breaker is off or fuse is blown or
loose.
1. Reset circuit breaker or replace
fuse. If problem continues, contact
a professional electrician or
plumber.
2. Water in sump basin is not high enough
to cause the switch to turn on.
2. Water will turn on when it reaches
the proper level for the pump.
3. Pump is not plugged in or is connected
to a wall switch that has been turned
off.
3. Plug pump securely into GFCI
outlet that cannot be turned off by
a wall switch.
4. Float cannot move freely. 4. Remove any obstructions around
float.
Pump runs, but
does not deliver
water.
1. Make sure check valve is not installed
backwards.
1. Arrow on valve should point away
from pump.
2. Shut-off valve (if used) may be closed. 2. Open shut-off valve.
3. Impeller or pump inlet is clogged. 3. Remove pump from basin and
clean impeller or pump inlet.
4. Pump is air-locked. 4. Clean out vent hole in discharge
pipe.
5. Vertical pumping distance is too high. 5. Reduce the vertical distance to
correspond with the performance
chart in the instructions.
Pump runs
continuously.
1. Float is stuck in the ‘on’ position. 1. Make sure the float can move
freely.
2. Float switch is defective. 2. Replace float switch.
Pump runs, but
delivers little
water.
1. Pump is air-locked. 1. Clean out vent hole in discharge
pipe.
2. Vertical pumping distance is too high. 2. Reduce the vertical distance to
correspond with the performance
chart in the instructions.
3. Impeller or pump inlet is clogged. 3. Remove pump from basin and
clean impeller or pump inlet.
Fuse blows or
circuit breaker
trips when pump
starts.
1. Impeller or pump inlet is clogged. 1. Remove pump from basin and
clean impeller or pump inlet.
2. Fuse size or circuit breaker may be too
small.
2. Electrical circuit capacity must be
15 amps or higher.
RISK OF ELECTRIC SHOCK.
Always disconnect power source before attempting to install, service, or maintain the pump. Never
handle a pump with wet hands or when standing on wet or damp surface or in water. Fatal electrical
shock could occur.
DANGER
