Zoeller 1104-0082 User manual

1
DRAIN PUMP
MODEL # 1104-0082
Español p. 19
025178 B
Pump and check valve
preassembled in basin
Zoeller®is a registered trademark
of Zoeller Co. All Rights Reserved.
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE

2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• NOTE: Pumps with the “UL” mark and pumps with the “US” mark are tested to UL Standard
UL778. CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
• ELECTRICAL SHOCK HAZARD.
Always disconnect power source before performing any work on or near the motor or its connected load.
If the power disconnect point is out-of-sight, lock it in the open position and tag it to prevent unexpected
application of power. Failure to do so could result in fatal electrical shock.
• ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water as fatal electrical shock could occur.
Disconnect main power before handling unit for ANY REASON!
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
DANGER
WARNING
• ELECTRICAL SHOCK ALERT.
To reduce the risk of electric shock, install only a circuit protected by a ground-fault circuit-interrupter (GFCI).
Make certain that the ground fault receptacle is within the reach of the pump’s power supply cord. DO NOT
USE AN EXTENSION CORD.
• ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the Occupational
Safety and Health Act (OSHA).
• ELECTRICAL SHOCK ALERT.
Do not kink power cable and never allow the cable to come in contact with oil, grease, hot surfaces, chemicals
or sharp objects. Replace damaged or worn wiring cord immediately.
• ELECTRICAL SHOCK ALERT.
As a safety measure, each electrical outlet should be checked for ground using an Underwriters Laboratory
Listed circuit analyzer which will indicate if the power, neutral and ground wires are correctly connected to your
outlet. If they are not, contact a licensed electrician.
• ELECTRICAL SHOCK ALERT.
These pumps are supplied with a 3-prong grounded plug to help protect you against the possibility of electrical
shock. DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND PIN.
• ELECTRICAL SHOCK ALERT.
Make sure the pump electrical supply circuit is equipped with fuses or circuit breakers of proper capacity. A
separate branch circuit is recommended, sized according to the National Electrical Code for the current shown
on the pump nameplate.
• CHEMICAL ALERT.
Prop65 Warning for California residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

3
CAUTION
• PRODUCT DAMAGE MAY RESULT
Make certain the power source conforms to the requirements of your equipment.
• PRODUCT DAMAGE MAY RESULT
Maximum continuous operating water temperature for standard model pumps must not exceed 110°F
(43°C).
• PRODUCT DAMAGE MAY RESULT
Do not use an automatic plumbing vent device such as a “Pro-Vent.” Some states require this product to be
installed by a licensed plumber.
Part Description Quantity
A
Pre-Assembled Pump System
(Includes B through H) 1
B Basin 1
C Pump 1
D Check Valve 1
E Basin Lid 1
F Cord Seal 1
GInlet Cap and Seal 1
HFoam Gasket 1
PACKAGE CONTENTS
A
E
F
D
C
B
G
H

4
Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Installation Time: 2 hours
Tools Required for Assembly (not included): tape measure, pipe tape, hacksaw, flathead
screwdriver, 2-step PVC glue system (primer and sealer).
Parts Required For Standard Assembly (not included): 2 in. slip by NPT coupling, 1-1/2 in. slip by
NPT coupling, drain pipe, compression fitting for 1-1/4 in. drain pipe, PVC pipe and fittings as required
to complete installation, additional check valve as required by codes.
1. Wet bar sink pump
GENERAL PUMP USES
2. Laundry tray pump
Laundry
Tray Sink Washer
Vent Pipe
Inlet
Pipe
Discharge
Pipe
2
This pump system can be used in the following installations:
Discharge Pipe
Vent Pipe
Inlet Pipe
1
PREPARATION

5
Inlet
Pipe
Water
Softener
Vent Pipe
Discharge
Pipe
3

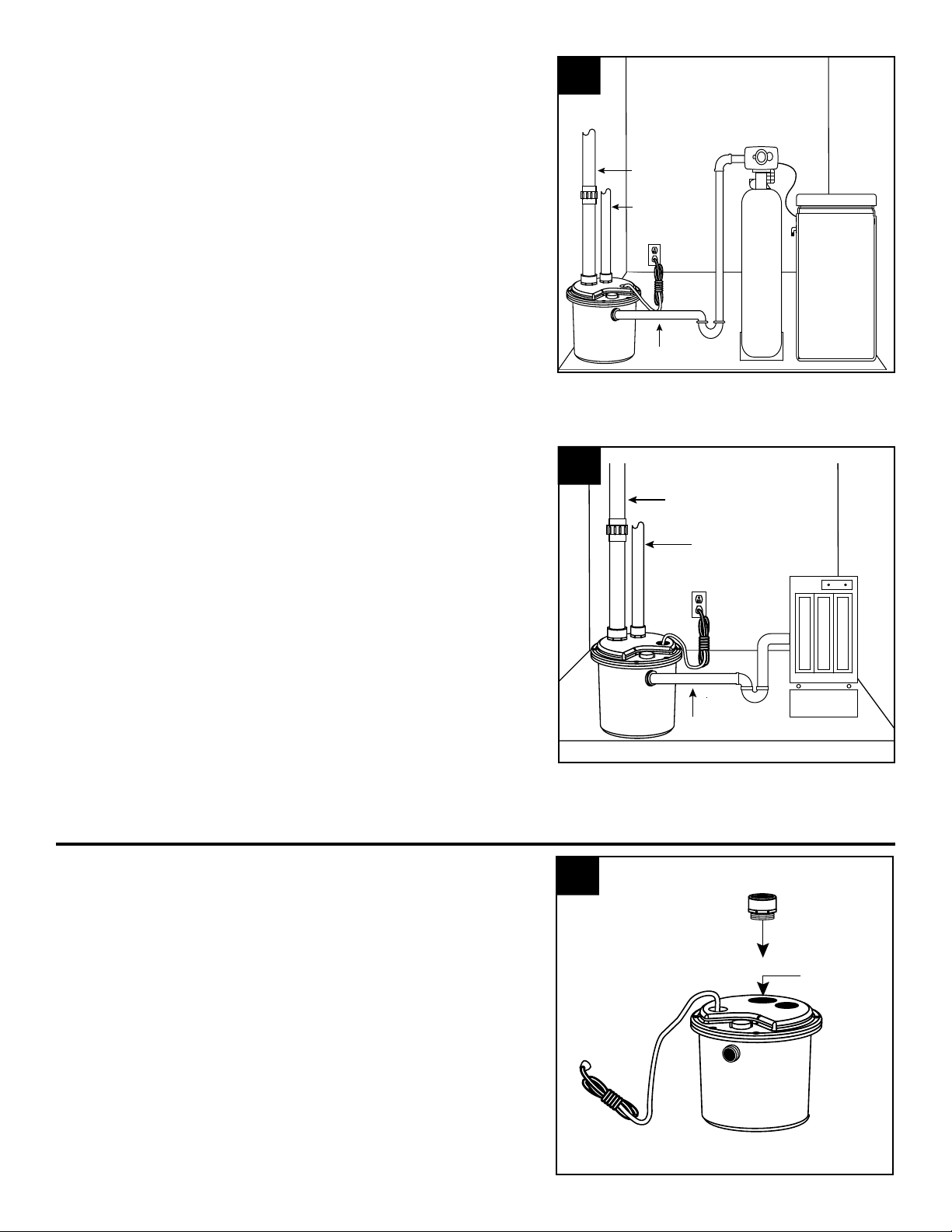

3. Softener discharge pump
Inlet
Pipe
Vent Pipe
Discharge
Pipe
4
4. Dehumidifier pump
INSTALLATION INSTRUCTIONS
Vent
Opening
1. Thread 2 in. coupling (not included) into the vent
opening on the top of the pre-assembled pump
system.
1

6
Discharge
Opening
2. Thread 1-1/2 in. coupling (not included) into the
discharge opening at the top of the pre-assembled
pump system.
2
3
4
3. Attach rigid 2 in. vent pipe (not included) to the vent pipe
coupling according to local, regional, and state codes.
4. Attach rigid 1-1/2 in. discharge pipe (not included)
to the discharge pipe coupling according to local,
regional, and state codes. Plumb into existing drain
pipe per local, regional, and state codes. Use check
valve (not included) as required by codes.

7
5
5. Thread compression tting (not included) onto 1-1/4
in. drain pipe (not included). Insert drain pipe into the
inlet opening on the side of the pre-assembled pump
system and tighten tting.
INSTALLATION INSTRUCTIONS FOR SMALL SPACES
1. For areas where space does not allow for standard
installation, pre-assembled pump system can be
installed directly under a sink using an internal trap
(not included).
NOTE: Check local and state codes before using the
internal trap option. 4 in. min.
Internal trap
1
4 in. min.
Plus
4-1/2 in.
Tailpipe
2. Place the pre-assembled pump system beneath the
sink and measure the distance between the sink inlet
and the basin lid. Minimum distance is 4 in. Add 4-1/2
in. to this dimension to determine total pipe length
needed.
2

8
4. Unscrew 8 bolts from top of pre-assembled pump
system and remove cord seal (F) and basin lid (E). 4
5
5. Remove black inlet cap and o-ring (G) from basin lid (E)
and screw it onto the inlet opening on the side of the
basin (B).
Side Inlet
Opening
B
3. Cut a tailpipe (not included) to the total pipe length in
step 2.
X
(4 in. min.)
4-1/2 in.
Tailpipe
Length
3
E
F
E
G
G

9
6

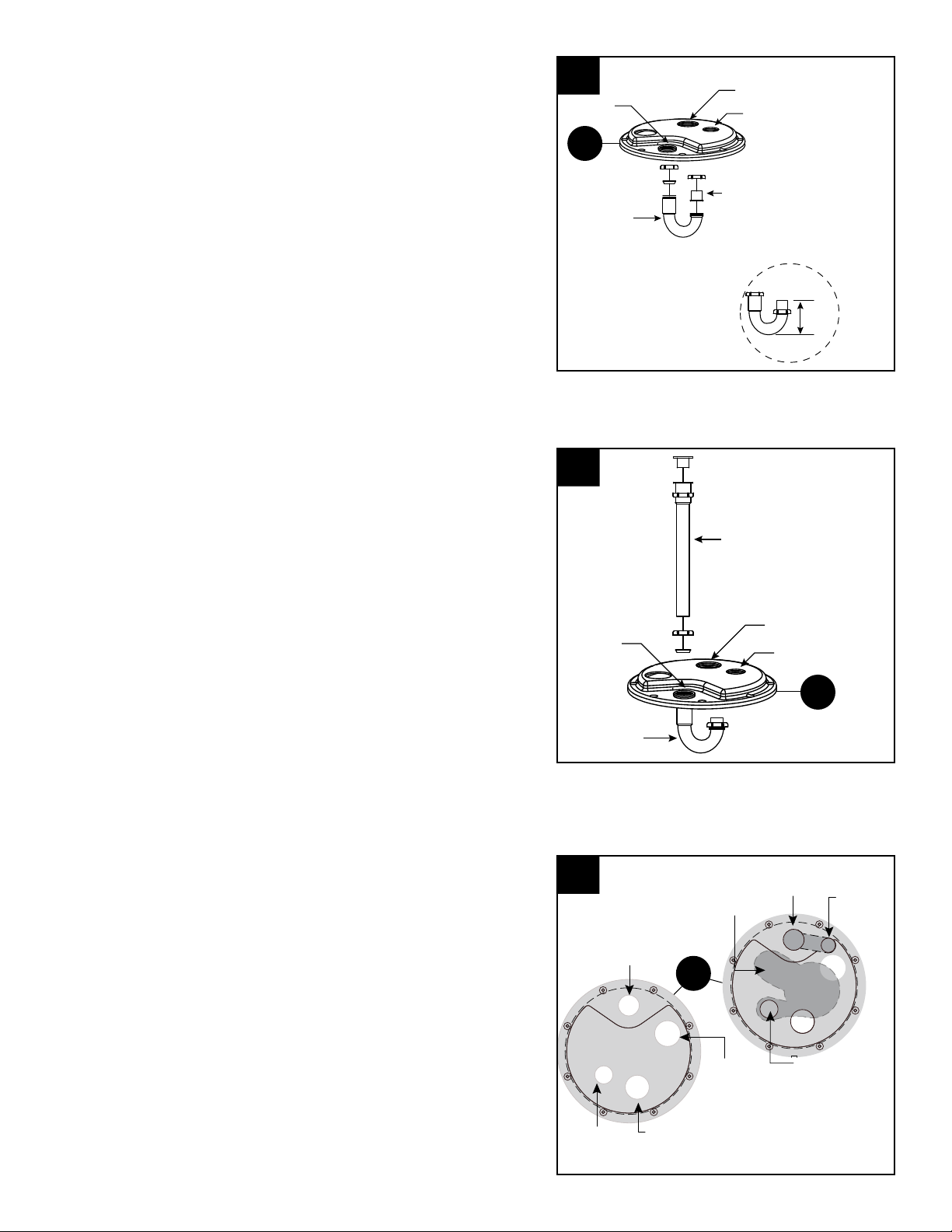

6. Attach trap components to the underside of the basin
lid (E). Make sure the trap height is at least 4 inches to
ensure a proper water seal.
Trap Detail
Inlet
4 in.
Min.
Trap
Vent
Discharge
Flanged
Tailpipe
E
8
8. Rotate the trap assembly so the trap inlet is closest to
the pump oat and the trap discharge is against the
wall of the basin (B).
Trap
Inlet Internal
Trap
Discharge
(Inside
Basin)
Pre-Assembled
Pump System
Top View
Inlet Opening
in Lid
Cord
Opening
in Lid
Vent Opening
in Lid
Discharge
Opening
in Lid
Pump
Discharge
Pump
Float
7. Thread 1-1/4 in. compression tting (not included) onto
the tailpipe from step 3. Insert the tailpipe into the inlet
opening on the basin lid (E).
7
Inlet
Trap
Tailpipe
Vent
Discharge
E
B

10
9. Apply pipe tape (not included) to all threaded
connections, and a 2-step PVC glue system (not
included) to non-threaded connections.
9
Trap
Assembly
10. Place the basin lid (E)/trap assembly from step 7 on
top of the basin (B), making sure the foam gasket (H) is
rmly in place. Screw in the 8 bolts removed in step 3.
10
Cord
Seal
Opening
11. Pull excess power cord through the cord seal (F)
opening and reinstall the cord seal (F). Make sure the
o-ring is seated in the seal before reinstallation.
11
E
B
F
H

11
12. Thread 2 in. coupling (not included) into the vent
opening on the top of the basin (B). 12
B
14
14. Attach rigid 2 in. vent pipe (not included) to the vent
pipe coupling according to local, regional, and state
codes.
13. Thread 1-1/2 in. coupling (not included) into the
discharge opening at the top of the basin (B). 13
B

12
15
16
15. Attach rigid 1-1/2 in. discharge pipe (not included)
to the discharge pipe coupling according to local,
regional, and state codes. Plumb into existing
drain pipe per local, regional, and state codes. Use
additional check valve (not included) as required by
codes.
16. Connect inlet pipe (not included) to appliance
according to local, regional, and state codes.
Discharge Pipe
Vent Pipe
Inlet
Pipe

13
TESTING
1
2
3
1. Connect remaining discharge pipe into main waste
line to sewer or septic tank. Connect inlet piping as
required for the installation and connect vent pipe
according to local, regional, and state codes. Use
additional check valve (not included) as required by
codes.
2. Connect pump power supply cord to a receptacle
protected by a ground fault circuit interrupter (GFCI).
3. Fill the basin (B) with water to check operation. The
pump will start when the water level has reached the
switch “on” level.
Discharge Pipe
Vent Pipe
Inlet
Pipe
Main
Waste Line
GFCI Protected
Receptacle
On Level
B

14
TROUBLESHOOTING
Problem Possible Cause Corrective Action
Pump will not
start or run.
1. Blown fuse or tripped circuit breaker. 1. If blown, determine cause and then
either replace with properly sized fuse
or reset breaker.
2. Low line voltage. 2. Contact an electrician.
3. Overload is open. 3. Allow motor to cool, and overload to
reset.
4. Motor is defective. 4. Replace pump.
5. Switch is defective. 5. Replace switch.
6. Wiring is incorrect. 6. Plug pump into a working 115V
receptacle.
7. Switch is obstructed. 7. Remove obstruction to ensure free
motion of switch.
8. Impeller is obstructed. 8. Remove screen and volute. Clean
impeller or replace impeller.
Motor overheats
and trips
overload or
blows fuses.
1. Incorrect voltage. 1. Make sure pump is connected to 115V
electrical service.
2. Impeller is obstructed. 2. Remove screen and volute. Clean
impeller or replace impeller.
3. Motor is defective. 3. Replace pump.
Pump starts and
stops too often.
1. Check valve is missing. 1. Install check valve.
2. Switch is defective. 2. Replace switch.
3. Check valve not functioning properly
or leaking.
3. Be sure check valve is installed and
operating properly. Replace check
valve if necessary.
4. Float is too tight on float rod. 4. Clean debris build-up off float rod.
5. Overload is open. 5. Allow motor to cool and overload to
reset.
Pump will not
shut off.
1. Switch is defective. 1. Replace switch.
2. Switch is obstructed. 2. Remove obstruction to ensure free
motion of switch.
3. Discharge pipe is clogged. 3. Remove clog in discharge piping.
4. Water inflow exceeds pump capacity. 4. Recheck sizing calculations to
determine proper pump size.
Pump operates
but delivers little
or no water.
1. Low line voltage. 1. Contact an electrician.
2. Inlet screen clogged. 2. Remove debris.
3. Broken impeller or debris in impeller
cavity.
3. Remove screen and volute. Clean
impeller or replace impeller.
4. Water inflow exceeds pump capacity. 4. Recheck sizing calculations to
determine proper pump size.
5. Check valve is stuck, closed, or
installed backward.
5. Be sure check valve is installed and
operating properly. Replace check
valve if necessary.
6. Vent hole is clogged. 6. Clean vent hole.

15
MOTOR DATA CHART
HP Phase Volts Code Letter Max Amps
Locked Rotor
Amps
1/3 1115 A3.1 9.5
PERFORMANCE
Item
Number HP Ft. of Head Flow (GPM) Shut Off
Head (Ft.)
Discharge
Size
1104-0082 1/3
043
18 1-1/2 in.
538
10 30
15 14
SPECIFICATIONS
Problem Possible Cause Corrective Action
Capacity or flow
drops after a
period of use.
1. Clogged inlet or discharge pipe. 1. Clean all piping.
2. Check valve clogged or defective. 2. Be sure check valve is installed and
operating properly. Replace check
valve if necessary.
3. Abrasive material or chemicals
damaged impeller or pump housing.
3. Remove base and inspect.
TROUBLESHOOTING

16
CARE AND MAINTENANCE
WARNING: Always disconnect pump from power
supply before handling.
Inspect and test system for proper operation at least every
three months.
1. Remove any build-up of debris from the switch or float,
and check to be sure it moves freely.
Debris on
Float
1
Debris
in Basin
2
2. Remove any debris from the basin that could interfere
with the operation of the switch.

17
WARRANTY
This product is warranted for one (1) year from the date of purchase or two (2) years from the date of
manufacture, whichever occurs first. Subject to the conditions hereinafter set forth, the manufacturer
will repair or replace to the original consumer, any portion of the product which proves defective due
to defective materials or workmanship. To obtain warranty service, contact the dealer from whom the
product was purchased. The manufacturer retains the sole right and option to determine whether to
repair or replace defective equipment, parts or components. Damage due to conditions beyond the
control of the manufacturer is not covered by this warranty. For warranty questions or service, call
1-866-994-4148.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly
install, operate or maintain the unit in accordance with printed instructions provided; (b) to failures
resulting from abuse, accident or negligence; (c) to normal maintenance services and the parts used in
connection with such service; (d) to units which are not installed in accordance with normal applicable
local codes, ordinances and good trade practices; and (e) if the unit is used for purposes other than for
what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty
must be returned to the manufacturer at such place as the manufacturer may designate, freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
AND MAY NOT BE EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL
BE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH
IMPLIED WARRANTIES ARE DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL
NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO, DAMAGE TO, OR LOSS OF, OTHER
PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE , OR OTHER INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY OF THE
MANUFACTURER SHALL NOT EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH
LIABILITY IS BASED.
This warranty gives you specific legal rights, and you may have other rights which vary from state to
state. Some states do not allow limitations on duration of implied warranties or exclusion of incidental or
consequential damages, so the above limitations may not apply to you.
In those instances where damages are incurred as a result of an alleged pump failure, the
Homeowner must retain possession of the pump for investigation purposes.

18
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-584-8089,
8 a.m. - 8 p.m., EST, Monday - Friday.
E
F
D
C
B
PART DESCRIPTION PART NO.
B Basin 013017
C Pump 152289A
D Check Valve 019768
E Basin Lid 013018
F Cord Seal 006018
