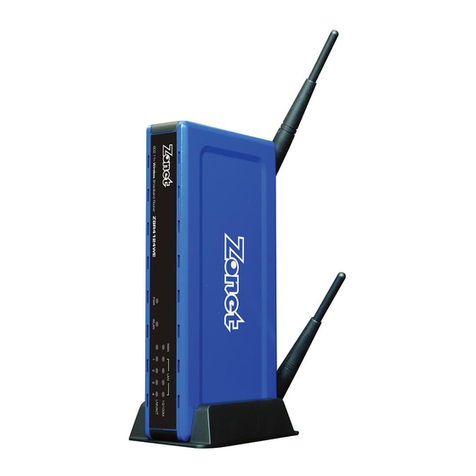

Zonet ZSR4124WE Operation manual

ZSR4124WE
PRODUCT DATA
The Zonet ZSR4124WE - 802.11n Wireless Broadband Router delivers
an incredible speed to your home and home office without running wires. It
complies with the IEEE 802.11n [draft 2.0] standard, making it backward
compatible with 802.11b/g networks. Advanced 128-bit WEP encryption is
supported to provide secure access for your data. Once you’re connected, you
can stay in touch with your email, access to the internet and send large files
across the network at greater distances than ever before!
Features:
High-speed Wireless-N Networking
Foryourcomputer
MIMO Smart Antenna Technology
Compatible with 802.11b/g devices
Advanced wireless encryption:
WEP, WPA, WPA2
Supports Windows 2000, XP,Vista
802.11n Wireless Broadband Router

Package content:
• One ZSR4124WE
• One Installation CD
• One Quick Install. Guide
Related Products:
ZEW1542 11n Wireless Cardbus
ZEW1642 11n Wireless PCI Aapter
ZEW2542 11n Wireless USB Adapter
Contact Us:
1.888.883.8880
[email protected]
www.zonetusa.com
Zonet USA Corporation
19929 Harrison Ave. Walnut, CA 91789
Tel: [phone] Fax: [phone]
Specification
Standards IEEE802.11n [Draft 2.0], IEEE802.11g, IEEE802.11b
Port LAN: 1 x 10/100M Auto MDI/MDIX RJ45 port
WAN: 4 x 10/100M Auto MDI/MDIX RJ45 ports
Frequency Band 2.412~2.4835GHz
Data Transfer Rates
802.11n: up to 300 Mbps
802.11g: 54/48/36/24/12/9/6Mbps
802.11b: 11/5.5/2/1Mbps
Channel
11 Channels (USA, Canada)
13 Channels (Europe)
14 Channels (Japan)
Extend Frequency DSSS
Modulation DBPK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/64-QAM)
Transmit output power
11n: 16
±1
dBm
54Mbps : 16
±1
dBm
11Mbps : 18
±1
dBm
RF Power 20dBm
Antenna Gain 3dBi*2
Antenna type Fixed Omni-directional Antenna
Network Media 10Base-T: UTP category 3 or above cable.
100Base-TX:UTP category 5
Media Access Protocol WMM
Temperature Operating: 10°C~40°C;
Storage: -20°C~70°C ;
Humidity Operating: 10%~90% non-condensing
Storage: 10%~90% non-condensing
Power Output DC 12V/1.25A
*Maximum wireless signal rate derived from IEEE 802.11b/g/n specifications. Actual data throughput will
vary from volume of network traffic, building materials and construction, and network overhead,
lower actual data throughput rate.
802.11n Wireless Broadband Router
ZSR4124WE
Zonet is a registered trademark. Other Brands and product names are trademarks oftheir respective holders. Information provided in this document pertains to
Zonet products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.www.zonetusa.com.
Copyright © Zonet. All Rights Reserved.
