Zoostorm 3305-1111 User manual

1
User Manual
Product no: 3305-1111

2
CE Information and Copyright
The symbol means that the unit complies with European safety and electrical interference
directives.
The content of this user manual is subject to be changed without notice and we will not be
responsible for any mistakes found in this manual. All the brand and product names are
trademarks.
Safety Precautions
1. Don’t use the TV box near water.
2. Clean the TV Box with a dry cloth only.
3. Don’t block any of the ventilation openings.
4. Install according to the manufacturer’s instructions.
5. Don’t install the TV box near any heat sources such as radiators, stoves, or other apparatus
(including amplifiers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, and the point
where they exit from the apparatus.
7. Only use attachments/ accessories specified by the manufacturer.
8. Unplug this apparatus during lightning storms or unused for long periods of time.
9. Refer all servicing to qualified Zoostorm service personnel.
Accessories
AC adapter
Remote control (Batteries not included)
TV box
HDMI cable
USB receiver

3
Index
FCC INFORMATION AND COPYRIGHT………………………………………………...……………... 2
SAFETY PRECAUTIONS………………………………………………………………………..……….. 2
ACCESSORIES………………………………………………………………………………..………….. . 2
INDEX………………………………………………………………………….………………….……….... 3
CHAPTER 1 BASICS……………………………………………………………………………………….1
PARTS AND CONTROL……………………………………………………………………………………...4
REMOTE CONTROL…………………………………………………………………………………………5
POWER SUPPLY…………………………………………………………………………………………….7
CONNECTIONS……………………………………………………………………………………………...7
TRANSFERRING CONTENTS………………………………………………………………………………..7
HOME SCREEN…………………………………………………………………………………………...... 8
MAIN MENU……………………………………………………………………………………………. ….. 9
BUTTONS…………………………………………………………………………………………………... 9
ONSCREEN KEYBOARD……………………………………………………………………………………10
CHAPTER 2 GETTING STARTED……………………………………………………………………….10
WEB BROWSER……………………………………………………………………………………………10
WATCHING VIDEOS………………………………………………………………………………………..11
PLAYING MUSIC…………………………………………………………………………………………...12
VIEWING PHOTOS………………………………………………………………………………………… 14
FILE EXPLORER……………………………………………………………………………………………15
MANAGING THIRD PARTY APPLICATIONS.. ....................................................................................... 16
CHAPTER 3 SETTINGS………………………………………………………………………………......17
WIRELESS &NETWORKS………………………………………………………………………………….17
SOUND…………………………………………………………………………………………………….17
DISPLAY………………………………………………………………………………………………...…17
STORAGE…………………………………………………………………………………………………..17
APPS…………………………………………………………………………………………………….... 17
ACCOUNTS &SYNC………………………………………………………………………………………..17
LOCATION SERVICE………………………………………………………………………………………..17
SECURITY…………………………………………………………………………………………….. .. ...17
LANGUAGE &INPUT…………………………………………………………………………………….... 18
BACKUP &RESET……………………………………………………………………………………….... 18
DATE&TIME…………………………………………………………………………………………….... 18
ACCESSIBILITY………………………………………………………………………………………….....18
DEVELOPER OPTIONS…………………………………………………………………………………….18
ABOUT DEVICE………………………………………………………………………………………….... 18
CHAPTER 4 TROUBLESHOOTING …………………………………………………………………….18
CHAPTER 5 APPENDIX…………………………………………………………………………………..19
UPGRADING FIRMWARE……………………………………………………………………………...…... 19
MAINTENANCE……………………………………………………………………………………………. 19
PRODUCT SPECIFICATIONS……………………………………………………………………………….19
DISPOSAL AND RECYCLING INFORMATION ………………………………………………………………20
ZOOSTORM WARRANTY…………………………………………………………………………………..20

4
Zoostorm Play is an Android based smart TV box. It supports HDTV, network connectivity and third
party software. A variety of Apps is now available from the Google Play Store.

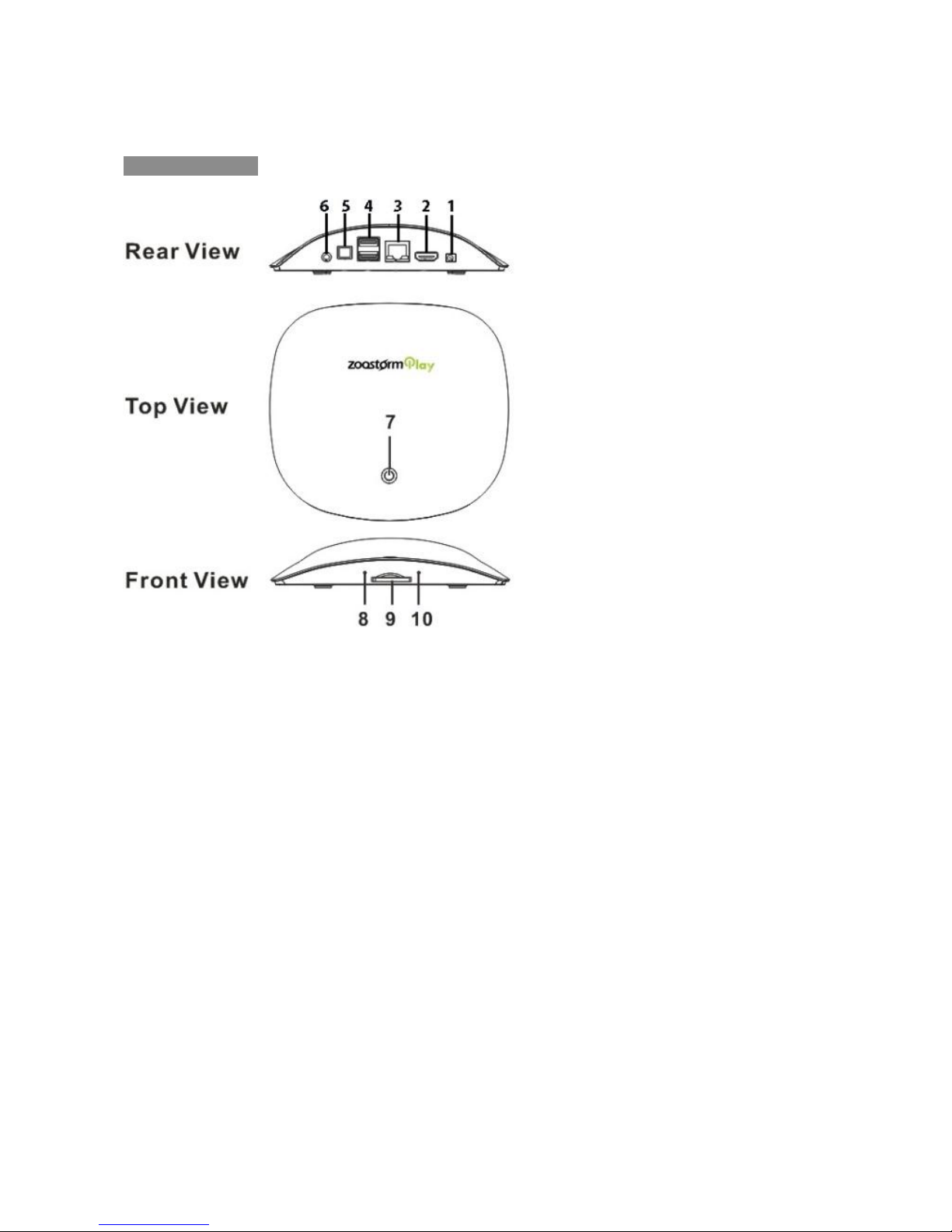

Parts and Control
1. DC in jack –for connecting power cable to power adapter.
2. HDMI port –to connect HDTV via HDMI cable.
3. LAN port –to connect Ethernet network via RJ45 cable.
4. USB port –for connecting with external USB device.
5. Optical port –to connect optical device via optical cable.
6. AV jack –to connect TV/ monitor via AV cable, *this cable is not supplied with your unit.
7. Standby button –Press to go to standby or to Power on.
9．Memory card slot –supports SD card/ SDHC.
10. Status indicator –blue light for Power on, red light for standby mode.

5

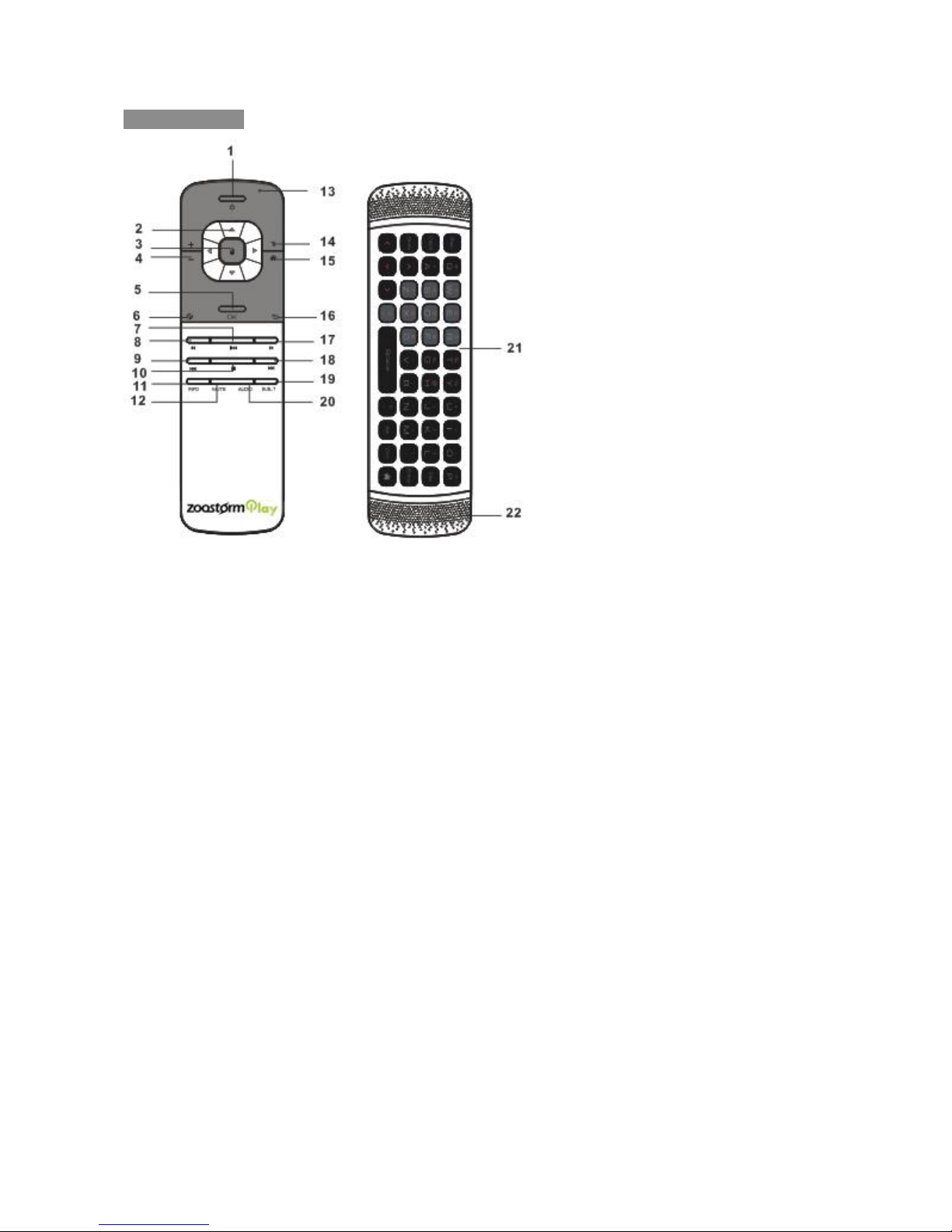

Remote Control
1．Standby button –press to go to standby/ Power on
2．Directional buttons –press to move the cursor left/ right/ up/ down
3. Wireless mouse key –press to confirm the selection of mouse
4. Volume button –press to increase or decrease the volume.
5. OK button –press to confirm the selection
6. Web browser button –press to launch the web browser.
7. Play/ Pause button –press to play or pause the playback
8. & 17. Skip button –press to fast rewind/ fast forward
9. & 18. Page up/ Page down button –press to go to previous/next song/ video
10. Stop button –press to stop the playback
11. Info button –press to display the media file information.
12. Mute button –press to mute the TV box.
13. LED indicator –When the button on the unit is pressed, the LED indicator will blink in blue.
14. Menu button –press to display the option menu
15. Home button –press to return to home screen
16. Return button –press to return the previous screen

6
19. Subtitle button –press to change subtitle
20. Audio button –press to select Audio mode
21. Wireless Keyboard –press on the text field to use the keyboard
22. Battery door
Using the remote control
Insert the supplied USB receiver into the USB port in the Zoostorm Play TV Box.
This can be found inside the remote control by opening the battery door.
When you use the remote control for the first time, press the Home button and Web
browser button to enable the function of the remote control.
To use the remote control, point the remote control on the display screen and press the
buttons.
Move the remote control and the mouse cursor moves too, press mouse key to confirm the
selection of mouse.
When the unit is not operated for 30 seconds, then the wireless mouse will go to standby
mode. Press any button on the unit to wake it up again.
When the button on the remote control is pressed, the LED indicator will blink in blue.
The recommended effective distance for the remote control operation is approx. 0 - 5
meters maximum.
Batteries replacement
When the batteries become weak, the operating distance is greatly reduced and you will need to
replace them.
1. Open the battery door at the bottom of the unit.
2. Take out the two “AAA” size batteries.
3. Insert two new “AAA” size batteries in the correct orientation.
Note: you can also use the Zoostorm Play with a wireless mouse and keyboard (not included) for
faster operation and better control.

7
Power supply
Using the AC adapter
The supplied 5V/2A adapter operates on AC 100-240V, 50/60HZ.
Connect the AC adapter to DC-in jack, and then plug the AC adapter into AC outlet.
*While the AC adapter is connected and the unit is on standby, power will still be consumed.
Connections
Connecting to HDTV using HDMI cable (Recommended)
1. Use the HDMI cable to connect the TV box to the HDTV.
2. Use the AC adapter to connect a suitable wall outlet.
3. Turn on your HDTV and then power on the TV box.
Connecting to a TV using AV cable *AV cable is not supplied with your unit.
1. Use the AV cable to connect the unit to TV/Monitor.
2. Use the AC adapter to connect a suitable wall outlet.
3. Turn on your TV and then power on the TV box.
Connecting to the internet
Wi-Fi connection:
If the unit detects Wi-Fi signal, location is in Settings > Wireless and networks > Wi-Fi to set
(See page 17).
LAN connection:
Connect RJ45 cable, in Settings > Wireless and networks > More > Ethernet to set (See page
17).
Transferring Contents
From USB Device
The TV box supports USB Mass Storage Device function.
To view contents (video, audio, photo etc.) on the TV box, insert the USB device.
Upon successful connection to TV box, go to [File Explorer], click to open.
From memory card
This unit supports SD card up to 32 GB
To insert a Memory card
Insert the card correctly with its label facing down until it clicks into the place. You may damage the
card and the TV box if SD card is not inserted correctly.

8
To remove the SD card, push the card again until it clicks.
When a SD card is inserted in or ejected from the TV box, it may take few seconds for the TV
box to update the content.
Please avoid inserting or ejecting SD card when other operations are running as this may cause
the TV Box to stop responding.
Do not remove the card if the content inside the card is being played. This will halt the operation of
the TV box and cause the TV box to restart.

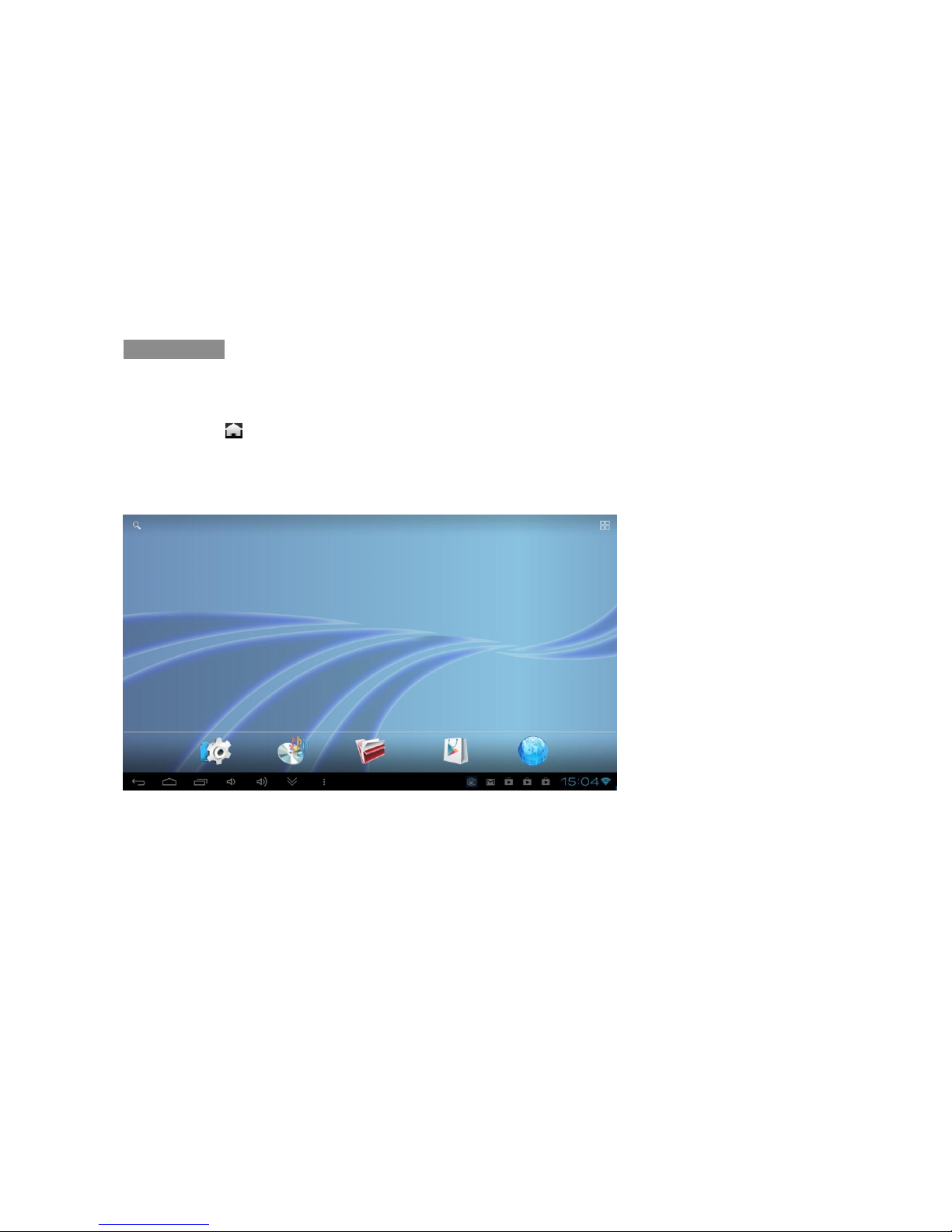

Home screen
When the TV box is turned on, it will enter into the Home screen.
Press anytime to return to the Home screen.
Use the Directional buttons on the remote control to press any icon to get started.
Press Apps to show the Main menu.
Customizing Home screen
Adding icons on home screen
You can add shortcuts or widgets to home screen.
Press App Drawer Widgets to workplace, press the desired options to add to home screen.
Removing icons on home screen
Long press on the icon and drag it into the bin. Use the directional buttons to press the desired
options to remove from the home screen.
Setting wallpaper for home screen
Press Settings > Displays > Wallpaper, press the desired picture as wallpaper.

9
Main menu
All application icons are in the App draw.
On home screen, press the four boxes at the top right to open the App draw.
Press an icon on the screen to open the desired application.
Press to return to home screen.
Go to Settings > Apps > Click on App to Uninstall.
Buttons
Use the Directional buttons and press OK/ Enter button to select an item.
Select an icon to open an application.
Press the Return button (Exit or ESC button) on the Remote control to return to previous
screen.
Press button anytime to return to Home screen.
Scrolling
Use the Directional-up/ down button to scroll file list.
On webpage, use the directional buttons to scroll around the page be careful so as not to
click the link.

10
Onscreen keyboard
Use the onscreen keyboard to enter text, such as web addresses.
Press on the text field to bring up the keyboard.
Uppercase key
Backspace key
Numeric/ punctuation/ symbol key
Web browser
View a webpage
From Home screen or Main menu, press Browser icon to open web browser.
On address bar, type the web address and click the enter key on screen.
Press the link on the webpage to open a new webpage.
Use the Directional buttons to scroll around the webpage.
To return to the previous page, press the Exit or ESC button.
Notice: Browser start page always defaults to Google home page.
Add bookmark
Press to add the current visited webpage as bookmark.
Bookmarks List
Press to show bookmarks list, press a bookmark to open the webpage. Touch and hold the
bookmark to display the option menu for bookmark.
History List
You can view your history list. To remove history list, press the settings button at the top right of
the browser > Settings > Privacy and Security > then select Clear history.
Settings
Press or to use more functions, including Privacy & security, Accessibility and so on.
Refresh/Stop
Press to refresh on the current page, press Xto stop loading the current page.
Forward
Press ←/→ go to previous/ next webpage screen.
