Zoox Altima Series User manual

User Manual
300S,500S,800S
1200P,2500P,3500P

Thank you for purchasing the ZOOX Altima DC Protein Skimmer.
This manual supports Altima DC Protein Skimmer 300S, 500S, 800S, 1200P, 2500P, 3500P.
Please read this instruction manual carefully and understand the usage and structure before use.
After reading, keep it in a place where you can read it again at any time.
The precautions are for the safe and correct use of the product and to prevent harm or damage to
the user or other people.
Attachment are the warning levels with different situations.
Please read carefully to have the best performance and safety.
Safety Guide
That is mean it has the possibility of serious injury
to people or death immediately
That is mean it may cause the serious injury to people or death if
keep running in this situation
Attention
Warning
Danger
That is mean it may cause property damge or even damage to people
Classification of Warning
Meaning of Marks
FORBID FORCE UNPLUG THE POWER
WARNING
HANDLING OF POWER PLUG, POWER CORD & SOCKET
FORBID
The power supply is AC 100V, and
the outlet with a rating of 15A or
more need to be used alone.
Use of an AC outlet other than 100V or using an
outlet with other equipment at the same time may
cause a fire or electric shock.
If you need an extension cord, use the one with the
correct rating. Using cords with amperage and
wattage that are lower than the rating of the
quipment may result in overheating.
Do not forcibly bend, pull, twist,
slap,or place heavy objects on,
pinch,or modify the power cord
or power adapter. The power cord
may be damaged, resulting in fire
or electric shock.
Do not connect or disconnect the
power with wet hands. It may cause
an electric shock.
FORBID
Insert the power adapter securely
to the bottom
Failure to do so may cause fire due
to electric shock or overheating.
Always have a drip loop on the
power cord. Do not allow water
droplets to travel through the cord
and come in contact with the outlet
since it may cause a fire or electric
shock.
DRIP LOOP

It may cause electic shock.
When pulling out the power adapter
from the outlet, hold the power
adapter first, then pull it out.
If pulling out the cord while holding it, that
may damage the cord and cause a fire or
Unplug the power adapter when putting
your hands in the aquarium or
performing maintenance
SAFETY GUIDE
WARNING
HANDLING OF POWER PLUG, POWER CORD & SOCKET
Dust on power adapter needed to
be cleaned regularly.
Accumulated dust may cause fire
due to moisture. Please wipe off
with a dry cloth.
ATTENTION
INSTALLATION
Do not install in places with the high
temperatures (e.g near a fire, near a
heater, under the scorching sun) or
exposed directly under the sunlight.
It can only be used indoors below
35 °C.
Do not install in places where the
power cord or ballast may get wet.
It may cause electric shock and
leakage.
WARNIN G
Be careful when carrying or installing
this product in order to prevent
damage from product.
Do not use or placed at outdoors. It
may cause overheat, explosion, etc.
Do not install this product near to
children, since there is an danger
to children.
WARNING
AT T ENTIO N
WHILE OPERATION
In case of abnormality (burnt smell, etc)
immediately unplug the power and
stop using it. It may cause overheat
or fire. Please contact the retailer that
you purchased or our company.
Do not modify or process this produuct
by yourself. It may cause damage or
injury to people.
Do not operate when the pump can
not circulate water or the body is
not filled with water. It may cause
damage or fire.
Do not use for any purpose other
than recommendation. It may cause an
unexpected accident or danger.

1
DC24V PUMP
Attention
Model Maximum Power Consumption
※
※Does not include controller power consumption.
Rated voltage / frequency Air inflow (L / h)
300S 15W(±5％） 100-240V 50/60Hz 100-400
500S 25W(±5％） 100-240V 50/60Hz 100-600
Maximum water capacity
300L
500L
Flow rate (L / h)
200-600
Water Temperature：Below 35℃
200-1000
Body size (cm)
W21×D16×H45.5
W24×D19×H47.5
●Specification
●Before use

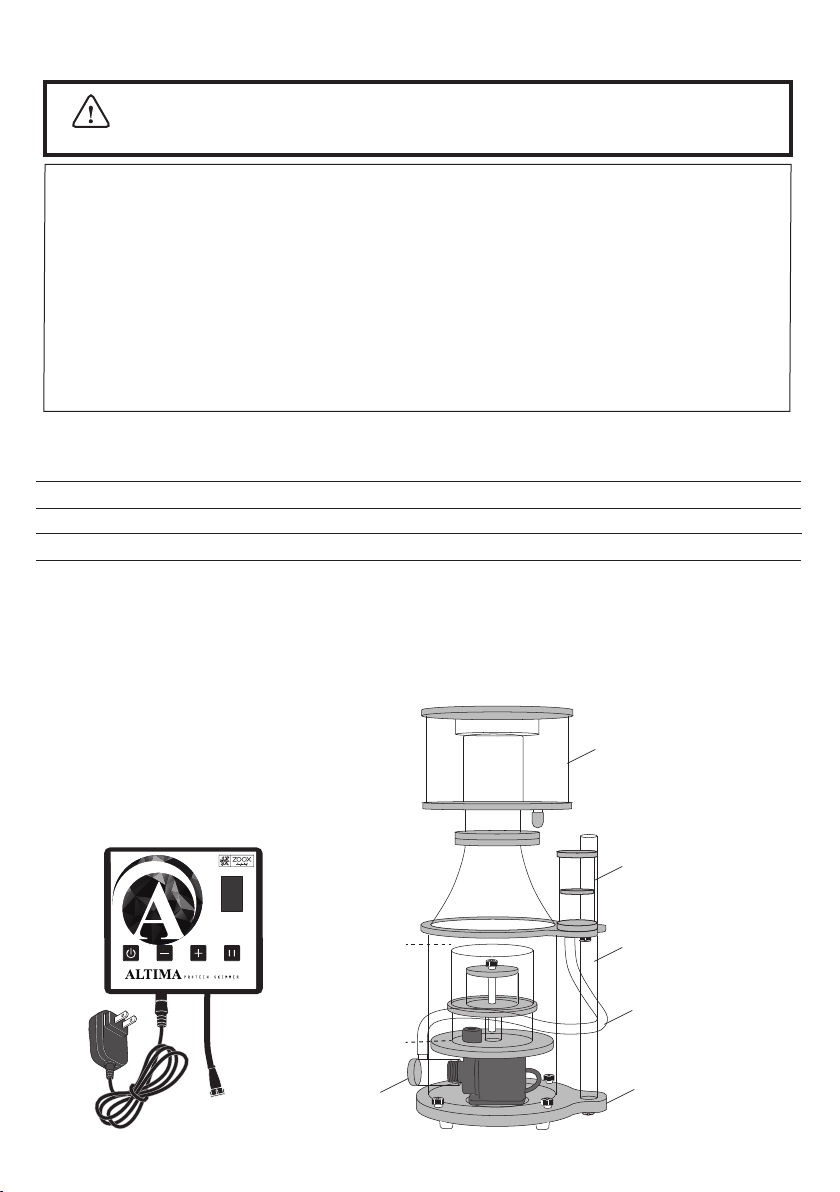

●Package Contents / Part Names (300S,500S,800S)
Remove the main unit and all attached parts from the box and check if there is
any damage during transportation.
In particular, make sure that the cord is not damaged. If any damage is found, do not use it
and contact your dealer.
・Be careful not to let the pump run idle due to a drop in water level.
・ Be careful that do not let the sand and foreign matter be sucked into the main unit.
This can cause serious damage to the product. In this case,the warranty is not covered.
・Do not use with corrosive or abrasive liquids.
・ When holding the pump, do not lift the pump by the cord.
・Please clean it regularly to prevent lime, algae, calcium and moss from adhering.
・Make sure that the adapter is not connected to the outlet before connecting the
adapter to the controller.
・Do not use any adapter except for the original one.
Please read it carefully and use the pump according to the following precautions.
・We do not compensate for living bodies by stopping the pump or some other
reasons,please be carefully.
･This product is an internal protein skimmer.
｛
800S 25W(±5％） 100-240V 50/60Hz 100-600500L 200-1000 W24×D19×H47.5
●Protein skimmer body
●Controller
●Instruction Manual
Pump
Water Intake Parts
Bubble
Plate
Controller
Collection Cup
Easy
Control
pipe
Silencer
Air Tube
Bottom Plate

2
Model Power Consumption
※
※Does not include controller power consumption.
Air intake(L / h)
1200P 15W(±5％） 100-400
2500P 25W(±5％） 100-600
Aquarium capacity
300L
500L
Flow rate (L / h)
200-600
Water Temperature：Below 35℃
200-1000
Dimension (cm)
W21×D16×H45.5
W24×D19×H47.5
●Specification

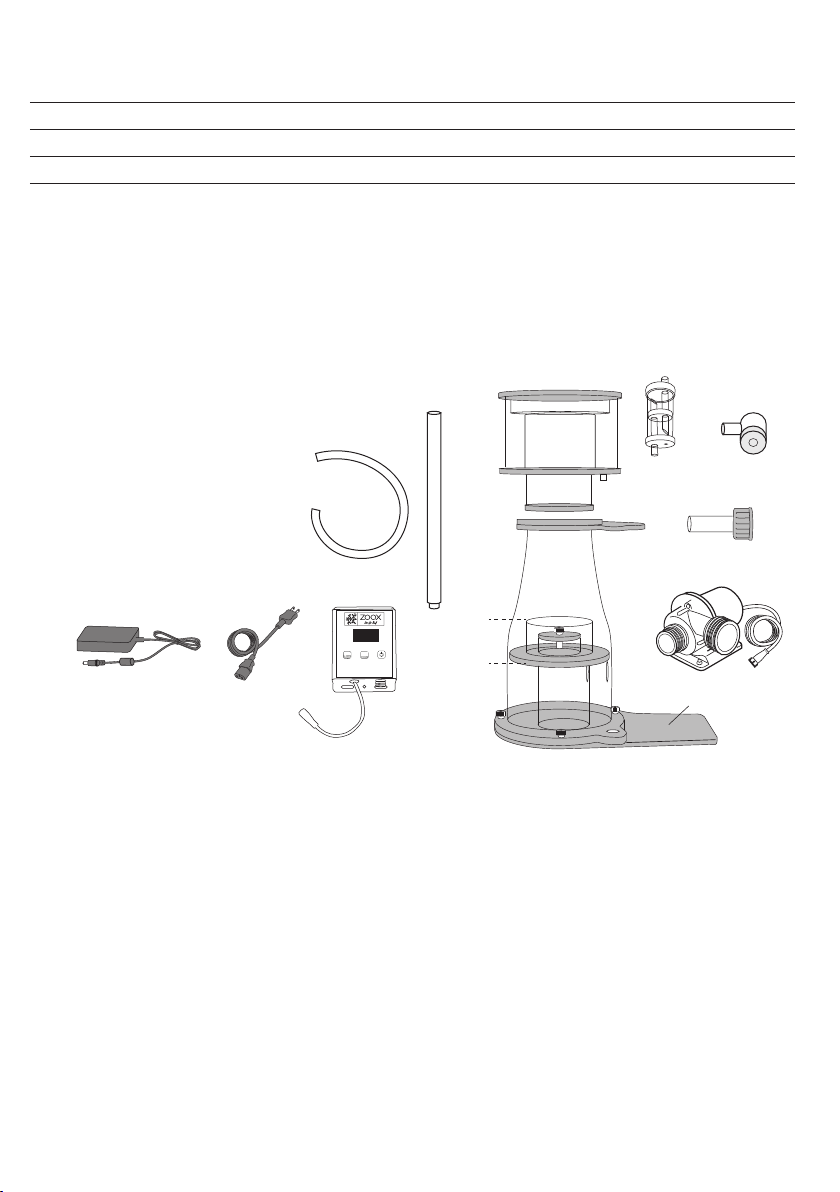

●Package Contents / Part Names(1200P,2500P,3500P)
Remove the main unit and all attached parts from the box and check if there is
any damage during transportation.
In particular, make sure that the cord is not damaged. If any damage is found, do not
use it and contact your dealer.
3500P 25W(±5％） 100-600500L 200-1000 W24×D19×H47.5
Ideal for SPS dominated
300L
500L
500L
●Protein skimmer body
●Controller
●Instruction Manual
Ultimat Aquariu Pump
Pump Base
｛
Water Intake
Bubble
Plate
Controller
Easy
Control
pipe
Silencer
Air Tube
Skimmer Base
Pump
Power cord
Collection Cup
Pump outlet
Adapter

3
●Filtration Tank
●Installation Method
Screw
The sump in which the protein skimmer is installed should have a structure
that allows the breeding water to pass through a physical filter
(such as a wool mat),please make sure it can pass through the inside of
the protein skimmer without any trash.
Large garbage (such as live rock fragments and coral sand) may cause
clog and lead to pump failure.
Also, for those rearing with the Berlin System (protein skimmers only), similarly,
physically treat with wool or set up a sedimentation tank in the filtration tank.
【Good Example】 【Good Example】 【Bad Example】
Overflow Pipe
Skimmer
Wool mat/
Cotton Filter
Overflow Pipe
Skimmer
Settling Tank
In the market available glass tank,
Physical filter (Wool mat) and filtration tank
without sedimentation tank
Overflow Pipe
SKimmer
1. Remove the four screws on the bottom and remove the bottom plate.
2. Slide the pump into the pump mount and attach it.
Please be careful.When using protein skimmers, it is not possible to use
mucosal protective agents or other products that increase the viscosity
of water.
Be very careful not to let the pump run idle due to a drop in water level.
Please clean the body and the pump completely before using.
Introduction

4
The sump in which the protein skimmer is installed should have a structure
that allows the breeding water to pass through a physical filter
(such as a wool mat),please make sure it can pass through the inside of
the protein skimmer without any trash.
Large garbage (such as live rock fragments and coral sand) may cause
clog and lead to pump failure.
Also, for those rearing with the Berlin System (protein skimmers only), similarly,
physically treat with wool or set up a sedimentation tank in the filtration tank.

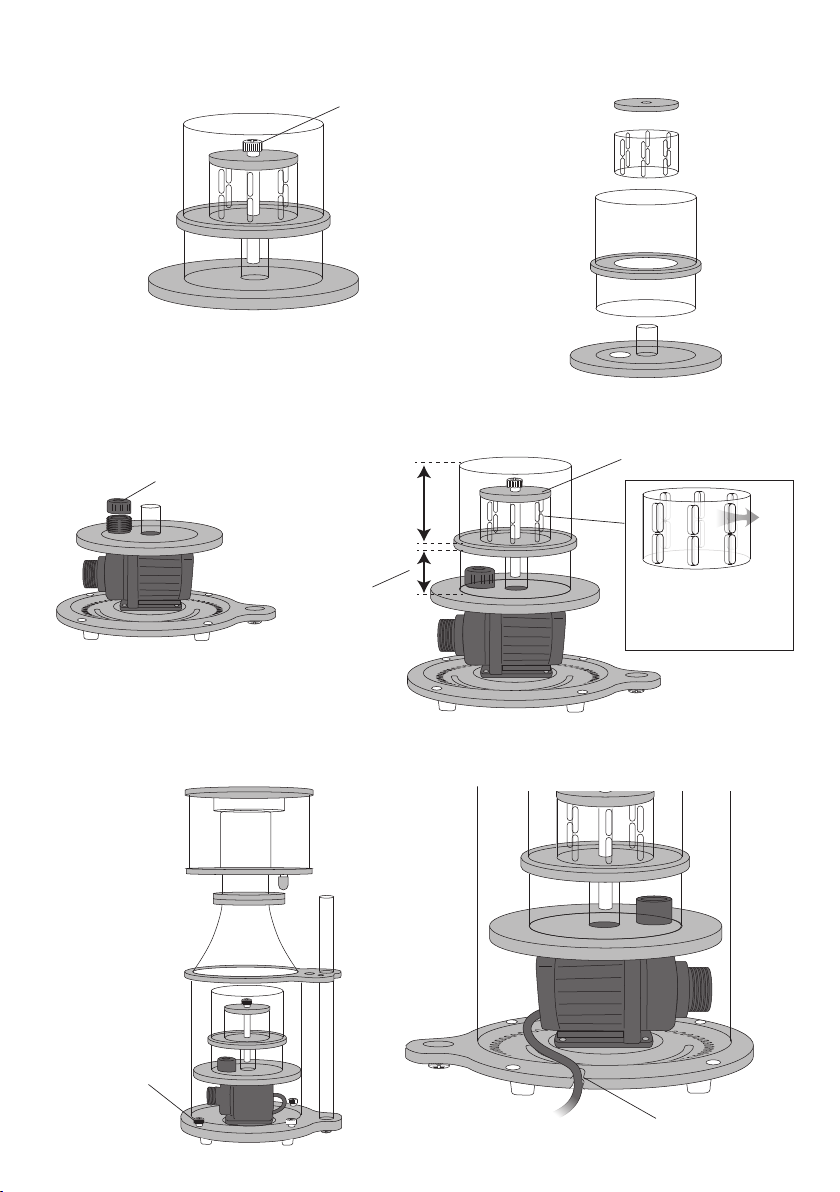

3. Remove the screw at the center of the bubble plate and divide it into four parts
(A, B, C, D).
4. Place the parts D on top of the pump, and fix it with the fixing screw.
After that, stack parts C, B and A and fix them with screws.
5.
Screw
Screw Part A
Part B
Part A
Part B
Part C
Part C
The shorter one in
the bottom
Direction of flow
from left to right
Part D
Fixing Screw
Cutout
Put the main unit on the bottom plate and fix it with 4 screws.
At that time, insert the pump cord into the cutout in the bottom plate.

5
6. Attach the silencer to the body by
using screws.
Attach the air tube below the silencer.
7. Attach the pump suction port part to the pump suction port,
and attach the air tube. (Like the picture on the right)
At that time, please be careful to avoid bending the air tube
towards the pump water inlet parts.
※If the water inlet part does not fit easily, please adjust
by using pump mount screw.
In order to prevent water leakage, remove the collection
cup, push it in firmly, and then rotate it.
8. Install this machine in the filtration tank, please see
“Filtration Part” on the page 2.
Adjust the water level within the recommended
water level mark.
9. In order to avoid running idle, fill the inside of the pump with water
Air Tube
The side with screw
holes is below
Pass the tube
through the hole
Attach with screws
Pump suction
port parts
Recommended water level width:
22cm-25cm
About the water level in the sump
Use this product within the recommended water level range.
If the water level is higher than the recommended water level width,
it may cause overflow.
Also, when the water level is lower, bubbles will not rise to the
collection cup.
Turn
Sideways

6
Align the protrusions then insert Tighten the connection cover

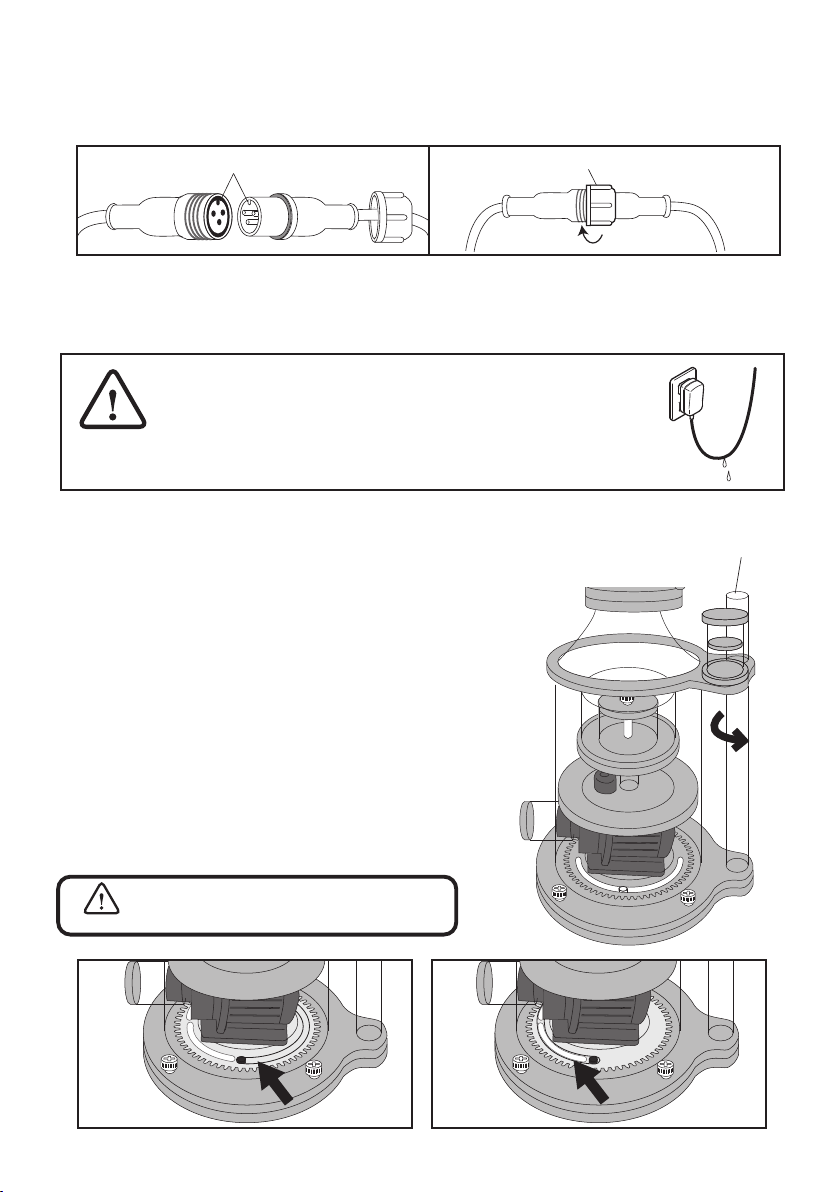

●Controller Connection
●Adjust usage in skimmer
There are two ways to adjust the water level and
foam volume in the skimmer.
You can make the adjustment by using both method.
① Control Pipe
It is a variable valve that can adjust the amount of
drainage from 0 to 100%.
(If it is set to 0%, water will overflow from the air outlet, so it can not be
actually set to 0%.)
Turn the pipe so that the water level inside the skimmer
stabilizes at the ideal water level. (See next page)
0％ 100％
Turn clockwise to increase drainage and turn
counterclockwise to increase water level.
Do not turn it too much as it may cause
damage,
Attention
Be sure to have a "drip loop" between the outlet and the
controller.
"Drip loop" is mean that the part of the cord is below the location
of the outlet, as it can prevent water from running down the
cord and coming into connect with the outlet.
Attention
1. Please connect the joint part of the pump and the controller with the following
connection method.
2. Check that the main unit is under the water, so that the inside of the main unit
is filled with water before connecting the plug to the outlet.
※Please be careful that not to let the pump run idle, since it may cause damage to the pump.
Control Pipe

7
Ultimat Aquariu Pump
Ultimat Aquariu Pump
Ultimat Aquariu Pump
DC24V PUMP
② Flow Control Controller for 300S,500S,800S,2500P,3500P
The flow rate of the pump can be adjusted from 1 to 9 using the controller.
＋Button
Increase pump power and increase flow rate.
－Button
Reduce pump power and reduce flow rate.
Power Button
Turn the power ON / OFF.
Feed Button
Press once to stop pump for 30 minutes.
※After the set time has elapsed, it will automatically start running at its original power.
Flow Control Controller for 1200P
Be sure to have a "drip loop" between the outlet and the
controller.
"Drip loop" is mean that the part
of the cord is below the
location of the outlet, as it can
prevent water from running down the
cord and coming into connect with the outlet.
Attention
Increase pump power and increase flow rate.
Reduce pump power and reduce flow rate.
Power Button
Tap once for 30mins feed mode.
Tap twice to turn the power ON / OFF.

8
Use the above method to adjust the dark brown to black viscous contaminants in the cup.
If water colour is light yellow to brown and it is accumulated in the cup, lower the amount
of foam and the water level to see how it looks.
Adjustment Guide (Dirt Removal Condition)
Note that if the water level at the installation site drops due to
evaporation or some other reasons, not only will the skimmer's
capacity be reduced, but also the pump will draw in air and cause
damage.
Attention
It is recommended to use the pump at an output of 60 to 70% with good
pump operation efficiency. Constant operation at 100% accelerates pump
wear.
Attention
Foam
Water
Level
Ideal balance between water level and foam
※At the beginning of setting, after changing water,
or after adding additives, the balance between water
level and foam as shown in the figure may not be
maintained, but this is not a problem.
A large amount of foam may be generated immediately after the initial setting, after water change,
and immediately after maintenance. Please check regularly.
●Maintenance
Clean the collection cup once a week. Regular cleaning will remove more
contaminants (if more than one-third of the contaminants have accumulated).
At that time, use a soft cloth without using detergent, and clean it with warm water.
Clean the air tube once a week.
If the air tube gets clogged, the air flow will decrease and the capacity will drop
dramatically.
Once a month, check that calcium has not settled on the inside of the motor, impeller,
and water supply port, and if so, remove it with a cloth or brush.
For areas where brushes do not enter, dissolve calcium using acetic acid solution.
※Be sure to unplug the power from the outlet and the power is not turned on.
※Make sure you understand the structure of the pump before proceeding.
※Do not use detergents or hard sponges or brushes.
※Clean the power cord and outlet with a soft, dry cloth.
･
･
･

9
Guide for maintenance the pump of 1200P ,2500,3500P
Guide for maintenance venturi intake for all model.
・Please note that consumable parts such as impellers and motors cannot be replaced
even during the warranty period because the frequency of wear varies depending on
how you use them.
・
We cannot accept any guarantee of death of living organisms due to use of this product.
●Consumable Parts
●Altima Skimmer Warranty
The following parts are consumables. Please check and replace
them regularly.
O-ring, impeller, pump, air tube
Attention
A
BC
D
EF
G
Always to maintenance the air intake parts are not clogged by
dusts , salt crystal , lime , snails ....etc.
It will affect the balance between flow and air intake and
caused performance down.

If you have any troubles or problems, please contact us from our homepage, fill in your
name and problems and your E-mail, or contact the shop where you purchased.
●Frequent Q&A
●In case of trouble
E-mail：[email protected]
Contact US
・Water overflows into the collection cup.
Check that the water level of the filtration layer and the appropriate water level
of the skimmer are the same.
If any additives are used, make sure they do not affect the skimmer.
During the start-up of the aquarium, such symptoms may occur after adding
additives such as coral food. Adjust the control pipe to lower the water level, or
adjust the pump flow rate with the pump controller.
Also, mucosal protective agents cannot be used. Once the mucosal protective
agent is added, several water changes are required to be made.
・The foam pops out and does not reach the collection cup.
Check that the water level of the filtration layer and the appropriate water level
of the skimmer are the same.
In addition, this probelm may be seen during the beginning of the aquarium, after
changing water, and after adding additives. This is not a big problem, just place it
for a while.
・There is water leakage or air leakage from the O-ring.
Each O-ring (rubber packing) deteriorates due to various factors.
Please check and replace it regularly.
・Pump does not work.
The pump is a consumable item. It deteriorates with use. Replace it regularly.
Also, please be careful that low water level will make it run idle, and it may
cause serious damage to the pump even the pump have protection.
・Pump is running but no bubbles are generated.
While dust or salt being clogged from the air tube to the pump suction part, air
cannot be sucked in and no bubbles are generated. Please clean this area
・Bubbles in skimmer are too large.
Check the salt concentration in the aquarium. If the salt concentration is low,
the skimmer will not have a good performance.
・Easy control pipe does not rotate.
Adjust the screw or pump mount on the bottom of the easy control pipe.
Check if the gear valve clogged by dust ,sands or rocks .
ZOOX AQUARIUM LTD
http://www.zooxaquarium.com

ZOOX AQUARIUM LTD
Web Site: http://www.zooxaquarium.com
Email : [email protected]
Facebook : http://www.facebook.com/zooxjp
Instagram : http://www.instagram.com/zoox_aquarium
181116
