Zte MF65M User manual

1
MF65M
Quick Start Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057

2
Getting to Know Your Device
Appearance
The following gure is for your reference only.
1. LED Indicators
2. Power Key
3. WPS Key
4. Charging/micro-USB Jack
5. (U)SIM Card Slot
6. microSDHC Card Slot
NOTE:
The microSDHC™ logo is a trademark of
SD-3C, LLC.

3
Getting to Know Your Device
Indicators
When the device is powered on, the following icons
may be lighting. For a description of the icons, refer to
the following table.
Indicator Status Description
Network
Red solid
Error status. Not reg-
istered to the mobile
network, no (U)SIM card
inserted or no network
service available.
Green solid Registered to the mobile
network.
Green
blinking
Connected to the mobile
network and data is
being transferred.
Wi-Fi
Blue solid Wi-Fi is active.
Blue blinking WPS is active.
off Wi-Fi is off or your
device is in sleep mode.

4
Getting to Know Your Device
SMS
Blue solid You have unread
messages.
Blue blinking You have new
messages.
off No unread messages.
Battery
Red solid /
blinking
The battery is low.
Please charge the
battery.
Green blinking
The battery is being
charged or in standby
mode.
Green solid The battery level is
middle or high.
off
Your device is not being
charged, or the battery
is not inserted.

5
Getting to Know Your Device
Connection Scenarios
The device can access the Internet in two ways and
it allows multiple clients to surf on the Internet at the
same time. The following gures are for your reference
only.
• 3G Mode: A (U)SIM card can be used to access
the Internet.
•Internet Wi-Fi Mode: Your device can be connect-
ed to a WLAN device (such as a hotspot device or
wireless router) through Wi-Fi to access the Inter-
net. The WLAN device must be already connected
to the Internet.
NOTE: Your device and the WLAN device must be
in different subnets.

6
Getting to Know Your Device
Installing Your Device
1. Slide the back cover and remove it.
NOTE: Do not remove the cover rudely.
2. Install a (U)SIM card to the (U)SIM card slot.
WARNING!
Your device does not support the micro-SIM and
nano-SIM card or any other non-standard SIM cards. To
avoid damaging the device, do not use those cards or
any card holders.

7
Installing Your Device
3. Install the microSDHC card if necessary.

8
Installing Your Device
4. Install the battery.
5. Close the back cover.

9
Connecting to Your Device
Using Wi-Fi
1. Power on your device.
2. Make sure your computer or other client devices
have enabled Wi-Fi, and search for available
wireless networks.
NOTE:
Refer to your Wi-Fi-enabled client device manual for
further details on how to search for wireless networks.
If you use a computer, you need to set your computer
to obtain an IP address automatically.
3. Select the Wi-Fi name (SSID) of your device, and
click Connect.
4. Enter the Wi-Fi password if necessary, and click
OK.
NOTE:
Refer to the chapter Getting to Know the Wi-Fi SSID
and Password to get the default Wi-Fi SSID and
password.
5. Wait until the client device is connected to your
device successfully.

10
Connecting to Your Device
Using a USB Cable
1. Connect a computer to your device with a USB
cable.
2. Power on your device. The operating system
detects and identies new hardware, and automati-
cally installs the hardware.
NOTE:
If the system does not automatically launch instal-
lation, you can click the device installation icon in
My Computer to install the software.
3. Wait until the computer is connected to your device
successfully.
Getting to Know the Wi-Fi SSID and
Password
You can view the label on the device to get the default
Wi-Fi SSID and password.

11
Logging in to the Pocket WiFi Plus
Conguration Page
1. Make sure the connection between your device
and the client device is correct.
2. Launch the Internet browser and enter
http://192.168.1.1 or
http:// www.smartbrosettings.net in the address
bar.
NOTE: It is recommended that you use IE (7.0 or
later), Firefox (15.0 or later), Opera (10.0 or later), Safari
(4.0 or later), or Google Chrome (10.0 or later).
3. Enter the password to log in to the Pocket WiFi
Plus conguration page.
NOTE: The default password is smartbro.
Changing the Wi-Fi SSID or Pass-
word
1. Log in to the Pocket WiFi Plus conguration page.
2. Select Settings > Wi-Fi Settings > Basic Settings.
3. Change the Network Name (SSID) or the Pass
Phrase ( Password).
4. Click Apply.

12
Accessing the Internet
3G Mode
After a client device is successfully connected to your
device, you can access the Internet in Automatic or
Manual mode. The default mode is Automatic.
Mode Operation
Automatic
Your device is automatically connected
to the Internet, and you can surf on the
Internet through the client.
Manual
1. Log in to the Pocket WiFi Plus
conguration page.
2. Select Settings > Network Set-
tings > Dial-up Settings > WAN
Connection Mode > Manual, and
then click Apply.
3. Select Home, and click Connect or
Disconnect.
NOTE:
To modify the parameters of your device, log in to the
Pocket WiFi Plus conguration page.

13
Accessing the Internet
Internet Wi-Fi Mode
1. Log in to the Pocket WiFi Plus conguration page.
2. Select Settings > Internet Wi-Fi.
3. Set the Internet Wi-Fi Switch and Preferred
Network, and click Apply.
4. You need to set Internet Wi-Fi Switch to Enable
and Preferred Network to Wi-Fi.
5. Connect to the Wi-Fi hotspot.
The following two methods are for your reference.
u Select a Wi-Fi hotspot listed in the Wi-Fi Hotspot
area, enter a pass phrase in the Pass Phrase text
box and click Apply.

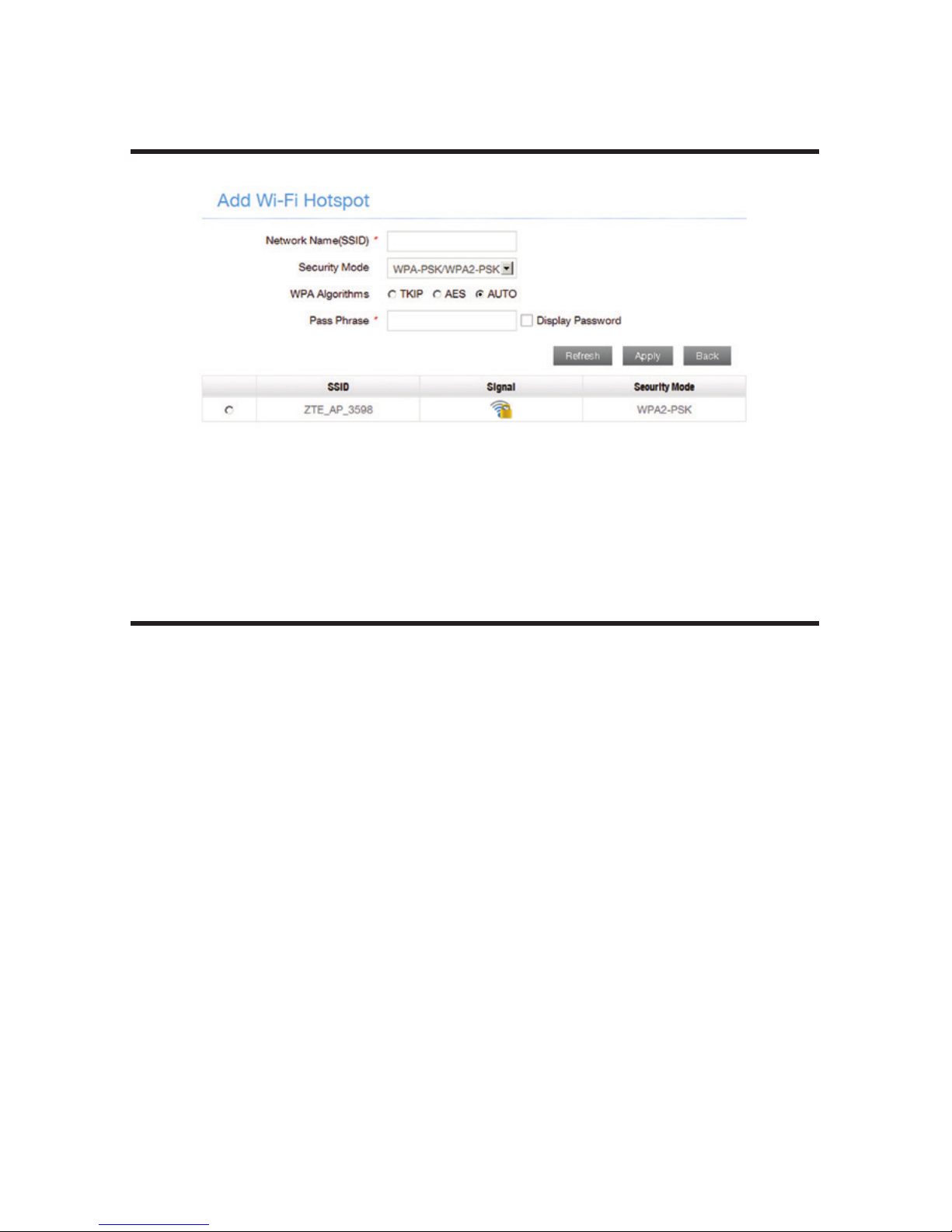

u Click Add, enter the Wi-Fi hotspot information in
the Add Wi-Fi Hotspot area, and click Apply.

14
Accessing the Internet
After the client device is connected to the Wi-Fi hotspot
successfully, you can access the Internet.
Conguring Your PC
The following procedure describes how to congure the
Internet Protocol in the Windows 7 operating system
for your Wi-Fi connection.
1. Right-click Network and select Properties.
2. Select Change adapter settings.
3. Right-click Wireless Network Connection and
select Properties.
4. Select Internet Protocol Version 4 (TCP/IPv4),
and click Properties.
5. Select Obtain an IP address automatically and
Obtain DNS server address automatically, and
click OK.

15
Warning and Notice
To the Owner
• If inadequately shielded, some electronic devices,
for example, the electronic system of vehicles, may
be affected by the electromagnetic interference
caused by the device. Consult the manufacturers
of such devices before using the device if neces-
sary.
• Operating the device may interfere with medical
instruments such as hearing aids and pacemakers.
Always keep the device more than 20 centimeters
away from such medical instruments when your
device is powered on. Power off the device if nec-
essary. Consult a physician or the manufacturers
of medical instruments before using the device if
necessary.
• Be aware of the usage limitation when using the
device at places such as oil warehouses or chemical
factories, where there are explosive gases or explo-
sive products being processed. Power off the device
if necessary.
• Do not use electronic transmission devices in air-
crafts, at petrol stations or in hospitals. Observe

16
Warning and Notice
and obey all warning signs, and power off the de-
vice in these conditions.
• Do not touch the inner antenna area unless neces-
sary. Otherwise the performance of the device may
be affected.
• Do not use the device in an enclosed environment
or where heat dissipation is poor. Prolonged work
in such space may cause excessive heat and raise
ambient temperature, which may lead to automatic
shutdown of the device for your safety. In the case
of such event, cool the device in a well-ventilated
place before turning on for normal use.
• Keep the device out of the reach of small children.
The device may cause an injury if used as a toy.
• When the device is operating, do not touch the me-
tallic parts. Failing to do so may cause burns.
To the Users
• Use original accessories or accessories that are
authorized. Using any unauthorized accessories
may affect the performance of the device and vio-
late the related national regulations about telecom
terminals.

17
Warning and Notice
• Avoid using the device near or inside metallic con-
structions or establishments that can emit electro-
magnetic waves, because signal reception may be
affected.
• The device is not waterproof. Keep the device dry
and store it in a shady and cool place.
• Do not use the device immediately after a sudden
temperature change, because dew may be gener-
ated inside and outside the device. Do not use it
until it becomes dry.
• Handle the device carefully. Do not drop, bend or
strike it. Otherwise the device may be damaged.
• Only qualied personnel can dismantle and repair
the device.
• An operating temperature between -10°C and +
45°C and humidity between 5% and 95% are
recommended.
Using Battery
Do not change the battery in your device by yourself.
The battery can only be changed by ZTE or ZTE
authorized service provider.

18
Limited Warranty
This warranty does not apply to defects or errors in the
product caused by:
i. Reasonable abrasion.
ii. End users’ failure to follow ZTE’s installation,
operation or maintenance instructions or pro-
cedures.
iii. End users’ mishandling, misuse, negligence,
or improper installation, disassembly, stor-
age, servicing or operation of the product.
iv. Modications or repairs not provided by ZTE
or a ZTE-certied individual.
v. Power failures, surges, re, ood, accidents,
and actions of third parties or other events
outside ZTE’s reasonable control.
vi. Usage of third-party products or usage in
conjunction with third-party products if such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal
usage intended for the product.
Warning and Notice

19
End users have no right to reject or return the product,
or receive a refund for the product from ZTE under the
above-mentioned situations.
This warranty is end users’ sole remedy and ZTE’s sole
liability for defective or nonconforming items, and is in
lieu of all other warranties, expressed, implied or statu-
tory, including but not limited to the implied warranties
of merchantability and tness for a particular purpose,
unless otherwise required under the mandatory provi-
sions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of prots or indirect,
special, incidental or consequential damages resulting
from or arising out of or in connection with using of this
product, no matter whether or not ZTE had been ad-
vised, knew or should have known of the possibility of
such damages, including, but not limited to lost prots,
interruption of business, cost of capital, cost of substi-
tute facilities or product, or any downtime cost.
Warning and Notice

20
LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, repro-
duced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopy-
ing and microlm, without the prior written permission
of ZTE Corporation.
The manual is published by ZTE Corporation. We re-
serve the right to make modications on print errors or
update specications without prior notice.
Version No.: R1.0
Edition Time: December 4, 2014
Manual No.:079584506977
