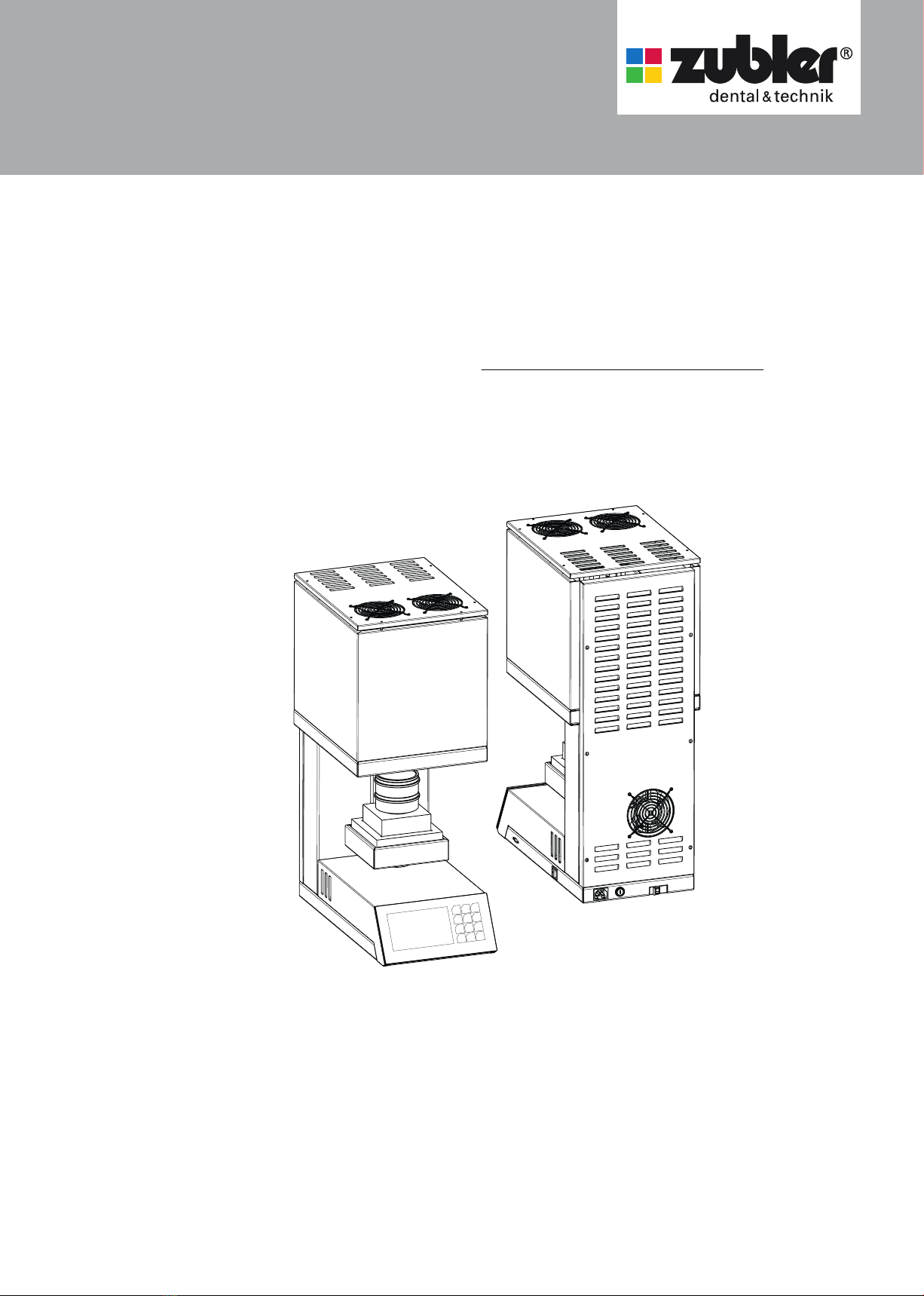

Zubler VARIO S 430 User manual

Madein Germany
VARIO S 430
EN09-2022

2

3
from page
0. Introduction 4
0.1 Declaration of conformity
0.2 General
0.3 Intended use
0.4 Safety instructions
1. Installation 6
1.1 Setting up the device
1.2 Initial installation
1.3 Display
2. Operation 8
2.1 Program selection
2.1.1 Preview
2.1.2 Start program
2.1.3 Parameter overview
2.1.4 Program abort
2.1.5 Functional error during program execution
2.1.6 Program ended
2.1.7 Explanation of terms
2.2 Edit folder / programs
2.3 Settings
2.3.1 Data transfer
2.3.2 Firmware update / Firmware version
2.3.3 Custom calibration
2.3.4 Last error message
 2.3.5 Mufeoperatinghours
2.3.6 Regeneration program
2.3.7 Basic settings
2.3.8 Initial oven setup
2.3.9 lift
2.3.10 Service menu
2.3.11 Factory reset
2.3.12 Upgrade oven
3. Data 26
3.1 Technical data
3.2 Scope of delivery
3.3 Spare parts
4. Status messages 28
5. Warranty 29
5.1 Cleaning the heating chamber
6. Guarantee 30
7. Disposal instructions 30
CONTENTS

4
MadeinGermany
we are pleased that you have decided
in favor of a Zubler furnace VARIO S430
and wish you pleasant work with it. The
constant further development of our
technology is based on the cooperation
with experienced dental technicians. The
focus is on the goal of building furnaces
ofthehighestquality,exibilityandsus-
tainability. Performance and economy are
basic requirements. To ensure trouble-
free work, you must read the operating
instructions carefully.
0.1 Declaration of conformity
We, Zubler Gerätebau GmbH
Buchbrunnenweg 26
89081 Ulm-Jungingen
www.zubler.de
declare that the product "VARIO S430" complies with the provisions of
the following EC directives:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS.
Iftheproductismodiedwithoutouragreement,thisdeclarationloses
its validity.
The correct processing of modern cera-
mic materials places increasing demands
on dental technicians. We have taken
this into account and combined the latest
technology and future-oriented proces-
ses in the VARIO ovens. The software
installed in the VARIO series allows you
tocarryoutindividualpressingandring
for all dental ceramics available on the
market. The use of the highest quality
materials increases the service life of
the furnace and offers you reproducible
results at the highest level. It is now our
desire that you use the VARIO furnaces to
produce top-quality dental ceramics for
years to come. Therefore we will inform
you about changes to the software or
additions to the processing options. We
are sure that you will have much success
with the ceramic furnace and congratula-
te you on the choice you have made.
0. Introduction
0.2 General
QThe VARIO series ovens are used
exclusively for the firing and pressing
of dental ceramics and is only
intended for these applications.
QThe user is liable for damage
resulting from other use.
QWhen working frequently with
temperatures above 1075°C, the
service life of the heating chamber is
reduced.
QThe manufacturer's warranty
provisions apply.
QIntended use also includes observing
all the information in these operating
instructions.
QRepairs may only be carried out by
authorized service centers.
QDo not operate the control panel with
wet or damp fingers.
QPlease unpack the oven with care
and transport with two people.
Always lift by the base, never by the
oven cavity or lift table.
QDo not operate the control panel with
hard and/or pointed objects.
QNever operate the furnace without
the firing insulation base or press
insulation base.
QDo not put your hands between the
oven table and the oven chamber
during operation. There is a risk of
crushing and burns.
QNever place items or hands under the
lift table when in use. The oven table
must not be obstructed during the
opening process.
QThe cooling slots must not be
covered, otherwise air circulation
may not be optimal and the device
may overheat.
QNo liquids or objects may get into the
device or into the ventilation slots, as
this could cause a short circuit.
QThe oven table has an electric drive
and must be operated with the
opening and closing button. Do
not open or close the oven table by
hand.
0.3 Intended use
Dear Sir or Madam,

5
QPosition the oven in the up-right
position. A clearance of 200-300
mm must be maintained above and
on all sides of the oven. Immediately
adjoining walls surrounding the
device must be made of non-
flammable material. The area should
be well ventilated.
QIn accordance with fire codes, install
an appropriate, recommended, multi-
purpose, dry foam fire extinguisher
near the oven and ensure your
employees are trained in its proper
use.
QNever wear loose or loose fitting
clothing when operating the oven.
Be careful when reaching for objects
around the oven. Flammable material
can ignite if it comes into contact
with a hot surface of the device and
cause serious burns to the user.
QDo not set up the furnace and
vacuum pump in the immediate
vicinity of heat sources (e.g.
preheating furnaces, sintering
furnaces).
QFurnace soldering reduces the
service life of the thermocouple and
heating muffle.
QMake sure the oven is professionally
installed according to our instructions
and the chosen electrical connection
is properly grounded.
QFor 230/240 V, use the grounded
mains cable H05VV-F3G1.0 with
a non-heating device socket and
Schuko plug.
QFor 100/120V use the grounded
mains cable SJT3xAWG14 with a
non-heating device socket.
QThe electrical service must be carried
out carefully and ensure that the
oven is connected to the existing
mains with sufficient voltage. Consult
a qualified electrician to ensure the
power rating is adequate and will not
overload an existing circuit.
QDo not use an extension cord with
the oven. Ask your electricity supplier
about the electrical connection
values that apply to your local
network.
QIn the event of undervoltage, the
temperature rise may be slower.
QHoses and fittings should be
checked periodically for proper fit,
wear and damage and replaced or
re-tightened as necessary.
QAll cables and hoses should be
located away from walkways and
passageways.
QDuring use, such as when opening
the heating chamber, high
temperatures may radiate outside the
oven chamber.
QDo not touch the surface parts, the
heating elements or the inner surface
of the oven. The hot surfaces can
cause serious burns.
QImmediately after the firing process,
do not leave the firing chamber
unattended, close it as soon as
possible.
QIf the furnace is left under vacuum for
a long time when it is switched off,
the lift plate O-ring may stick easily.
QOnly clean the device with a dry
or slightly damp cloth. Do not use
solvents! Always disconnect the
power plug from the outlet before
doing this work.
QWhen the heating chamber heats up,
the heating coil may oscillate.
QIn the event of defects or damage
that no longer ensures safe
operation, the device must be
secured against unintentional use.
QBefore performing any recommended
and authorized routine maintenance
or service, turn the oven off and
disconnect the power plug from the
outlet, to avoid risk of electric shock,
injury or death. Allow the oven to cool
to room temperature.
QDo not attempt to open, repair,
or replace any part of your oven
until you have read the manual
and the repair or replacement is
specifically recommended therein.
Any unauthorized attempt to repair,
replace or open any part of your
oven could pose a safety hazard
and void your warranty. All service
work, whether during or outside the
warranty period, may only be carried
out by our customer service.
QIn the event of service, only original
spare parts are to be used.
QUnauthorized modifications to the
hardware or software can cause
serious safety damage as well as
void your right to warranty.
QNever leave children or visitors
unattended near an operating oven.
Children should never be allowed to
stand on or climb up on a surface on
which a oven is placed. Objects that
could be of interest to children should
never be placed near the oven. There
is a serious risk of injury.
QKeep the original packaging
materials for your VARIO oven and
vacuum pump. Only use the original
packaging to transport these parts.
Improper transport will void the
warranty.
0.4 Safety instructions

6
MadeinGermany
5
4
3
2
1
1. Installation
1Main switch
2 USB port
3 Power cord connection
4 Main fuse
5Sicherungsautomat
1.1 Setting up the device
QPlace the oven on a stable and level
work station
QKeep the original box and packaging
material for warranty claims and
service
QHave the firing or pressing insulation
base ready for the further procedure.
QPower connection:
QThe ceramic oven requires
230V/50Hz or 115V/60Hz.
QDo not use extension cords
QConnect oven to a dedicated
electrical outlet.
QThe main switch should be in the "0"
position.
QConnect the oven to the power
supply using the supplied power
cord.
QSwitch on the furnace at the main
switch.
1.2 Initial installation
QAfter switching on for the first time,
instructions for the first steps are
shown on the display. After that, the
initial installation cycle runs auto-
matically. The oven is only ready for
operation after a complete set-up
(2. 5.10).
Remove any remaining packaging
Initial installation steps
QSetting the language
QBase and centering socket (incl.
centering ring) in the lift cage
QBrightness
QVolume
QCheck circuit breaker
QSet date and time
QSetting the unit (°C / °F)
QLoading programs via USB
QStart burn-in program

7
Made in Germany
Fenster Durchsicht Display
0
987
654
321
<250°C
VS430
Oven type / folder Main menu Furnace actual temperature Number pad
Select program
Edit program
Settings
Main menu
1.3 Display
The display of the VARIO furnaces is a
full-touch display including an additional
number block
The number block is only active when
numerical values can be entered.
The "UP" and "DOWN" arrows are active
when they can be used. In the top posi-
tion only the down arrow is active, in the
lower plate position only the up arrow is
active. In this way, the proper functioning
of the lift and the end positions can be
checked.

8
<250°C
<250°C
<250°C
><
VS430
2. Operation
Folders Preview Start
Main menu
Main menu
Select folder
Display, Status: Main menu
Display, Status: Select program / select a folder / program overview
Display, Status: Select program / folder overview
Programmwahl
Programm bearbeiten
Ofen vorwärmen
Stand-by
Einstellungen
*
Selection of the menu parameters
After the furnace is switched on, the main
menuwithveoptionsappearsonthe
display. Selecting an option takes you
directly to it.
2.1 Program Selection
QThe Folder Menu contains a list of
customizable Program Folder buttons.
This menu will be recognizable by the
prompt at the top of the page "Select
Folder". Each Program Folder button
contains the programs for the listed
specific porcelain, or process you
desire. Folder Buttons are dark grey,
while program buttons are light grey.
Example: All DC 9.2 Programs will
be in the DC 9.2 Folder. The red
Main menu button takes you back
to the main menu.
QOnce a folder has been opened, the
Program buttons in that folder are
displayed. This menu will be recogniz-
able by the prompt at the top of the
page in yellow "Select Program".
Press the desired program button.
The press the "Preview" button to
view/change parameters or press the
"Start" button to start the selected
program. The parameters can be
changed individually for this one
program sequence
(see also point 2.1.1).
Select Program
Edit program
Settings
Select program
Image 08.1
Image 08.3
Image 08.2
ZIRKON A
Manufacturer 1
ZIRKON A
Hans
ZIRKON B
Manufacturer 2
ZIRKON A
Sarah
ZIRKON C
Manufacturer 3
MONOLITIC
Hans
FULL ARCH FULL ARCH
Hans
*
ZIRKON A Sarah
ZIRKON A
<3 Units
ZIRKON A
Multilayer
ZIRKON A
4-6 Units
ZIRKON A
Monolitic
ZIRKON A
>7 Units
ZIRKON A
Speed

9
<250°C
ZIRKON A Sarah
<250°C
Enter
PreviewFolders Start
Start
Select program
Preview
500°C
OK
zurück
Preview
Select program
Abort
Display, Status: Select program / select a folder / program selected
Display,Status:Selectprogram/selectafolder/selectaprogram/Preview/naltemp.selected
Display,Status:Selectprogram/selectafolder/selectaprogram/Preview/naltempchangedandconrmed
Image 09.1
Image 09.3
Image 09.2
Delete
2.1.1 Preview - change program
QWhen changing program parameters
in the "Preview" mode, changes
are temporarily saved for the
next program run and return to
the previous parameters upon
completion. This is not saved
permanently in the program.
Parameters can only be changed
and saved permanently via Edit
program in the main menu.
QSelect the desired parameter to
change and enter the values using
the number field that is now active.
QWhen changing parameters the
green "Start" button changes to
"OK". Please confirm your input
by activating this field. The original
parameter is restored by pressing the
Abort function field.
QIf a value is entered that follows
the correction of subsequent
parameters, these are high-lighted in
yellow (image 09.3).
Rampen 5
Heat rate 4
5°C/min
Heat rate 1
10°C/min
Heat rate 3
8°C/min
Final temp.. 1
900°C
Final temp.. 3
820 °C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp.. 4
900°C
Heat rate 5
45°C/min
Final temp.. 5
450°C
Hold time 5
000 min
cool rate
10°C/min
opening temperature
300°C
Hold time 2
000 min
Hold time 4
000 min
ZIRKON A
<3 Units
ZIRKON A
Multilayer
ZIRKON A
4-6 Units
ZIRKON A
Monolitic
ZIRKON A
>7 Units
ZIRKON A
Speed
ZIRKON A
Monolitic
**
Rampen 5
Heat rate 4
5°C/min
Heat rate 1
50°C/min
Heat rate 3
8°C/min
Final temp. 1
900°C
Final temp. 3
1500°C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp. 4
900°C
Heat rate 5
45°C/min
Final temp. 5
450°C
Hold time 5
000 min
cool rate
10°C/min
opening temperature
300°C
Hold time 2
000 min
Hold time 4
000 min
ZIRKON A
Monolitic
50°C/min
Delete

10
<250°C
ZIRKON A
454 min
97 %
**
Enter
<250°C
2.1.2 Start program
QAs soon as a program is started
using the green Start button, the
program sequence is displayed once
as a graph and as a list of
parameters. The currently active
parameter is highlighted in a darker
shade of grey in the program slider,
while parameters that have already
been processed recede into the
background (image 10.2). In the
graph, the active parameter is also
highlighted in a darker shade of grey.
In this way, the program status can
be seen at a glance, even from a
greater distance from the device.
The parameter slider provides more
detailed information. As already
described, the active parameter
is highlighted in a darker shade of
grey. If a subsequent parameter is
controlled, the parameter bar scrolls
accordingly. Subsequent parameters
can be checked by dragging the
process bar to the appropriate
positions with a "swiping motion".
Display,Status:Arunningringprogram
Abort View parameters
Hold time 2
000 min
Final temp. 2
1100°C
Heat rate 2
3°C/min
Monolitic
Start
Select program
Display, Status: Select program / select a folder / select a program / Preview
Preview
Image 10.1
Image 10.2
Rampen 5
Heat rate 4
5°C/min
Heat rate 1
10°C/min
Heat rate 3
8°C/min
Final temp. 1
900°C
Final temp. 3
1500°C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp. 4
900°C
Heat rate 5
45°C/min
Final temp. 5
450°C
Hold time 5
000 min
cool rate
10°C/min
opening temperature
300°C
Hold time 2
000 min
Hold time 4
000 min
ZIRKON A
Monolitic

11
485°C
ZIRKON A
<250°C
ZIRKON A
Monolitic
2.1.4 Program abort
QIf you want to end a program
prematurely or cancel it, you can
do this by pressing the red Abort
function field. In this case, the
program abort must be confirmed
again by a security prompt (image
11.2).
OK
Abort
Display, Status: Select program / select a folder / select a program / Start / Edit program
Display,Status:Programabort,abortconrmation
YesNo
Should the program really
be aborted?
Abort
2.1.3 Parameter overview
QThe preview window can be called
up again during a program run using
the Parameter overview button. In this
way, all parameters can be checked
at a glance. Changes to parameters
can no longer be made here.
Edit program
Image 11.1
Image 11.2
Delete
Rampen 5
Heat rate 4
5°C/min
Heat rate 1
10°C/min
Heat rate 3
8°C/min
Final temp. 1
900°C
Final temp. 3
1500°C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp. 4
900°C
Heat rate 5
45°C/min
Final temp. 5
450°C
Hold time 5
000 min
cool rate
10°C/min
opening temperature
300°C
Hold time 2
000 min
Hold time 4
000 min
ZIRKON A
Monolitic

12
<250°C
ZIRKON A
weiter
300°C
ZIRKON A
Abbruch
< 3 Units
< 3 Units
ZIRKON A_< 3 Units_2022-05-03_14-19
2.1.5 Functional error during
program execution
QIn the event of a functional error, the
oven interrupts the work process and
displays a window with an error
message in plain text and an error
code.
QThis error message and the program
termination must be confirmed with
the green OK button.
QThe error message that was
displayed last can be called up
later under Settings, Last error
messages.
2.1.6 End program
QThe end of a program is indicated
by an acoustic signal and visually
by a text window. The name of the
completed program, the time and the
date at the end of the process are
given in the text window (image 12.2).
QA code is generated (image 12.3) for
documentation or quality assurance.
This consists of the serial number
of the furnace, the date YYMMDD -
time (24-hour system). The complete
program data can be called up under
Settings - Data transfer - Export
protocol files (image 12.2). The last
50 program sequences are saved
here. Older program sequences are
overwritten. The log data should
therefore be backed up at regular
intervals.
Display, Status: Error message during a running program
Display,Status:Accomplishedringprogram
OK
OK
V-01
Abort: Error heating circuit
Error
Program accomplished
Image 12.1
Image 12.3
Image 12.2
Run_Err: 0x00000100

13
Ramps The number of desired program sections can be set here. A Program section (ramp)
consists of: heating rate, end temperature, holding time. 2-6 such program sections can be
programmed. Here, 5 ramps to gradual heating up and 1 ramp for cooling down.
Heatingrate1-5 temperatureincreasein°C/min(°F/min)toreachthenaltemperatureintherespective
program section. Heating rate 1 is limited to a maximum of 50°C / min. Heating rates 2-5 up
100°C / min.
End temperature 1-5 the respective target temperature of the individual program sections. Adjustable Temperature
range: 250°C - 1650°C.
Holding time 1-5 Duration of the respective program section at the end temperature. Maximum holding time
that can be set for a single ramp: 300 minutes. Maximum holding times to be set across all
ramps: 420 minutes.
Cooling rate Cooling in °C / min (°F / min) to reach the opening temperature. Adjustable
Cooling range: 1 - 50°C /min
Opening temperature Indicates the temperature at which the oven opens. The one provided by the factory
The setting range is 250°C - 400°C. Upon request, the limitation of maximum opening
temperature to be set can be changed from 250°C - 1650°C. Please contact your service
partner or us at Zubler Gerätebau GmbH.
2.1.7 Explanation of terms

14
<250°C
MONOLITIC
< >
QIn the Edit program area, folders
or programs can be created, edited,
copied or deleted. A basic distinction
is made between two "levels". The
"folder level" and the "program level".
For visual orientation, the "folder
level" is kept in a darker shade of
grey, the "program level" in a lighter
shade of grey. These structures can
be freely named by the customer. So
the folder structure e.g. material or
technician - are created related.
QIf a folder function field is selected in
Edit program mode, this is optically
highlighted. The corresponding
function fields are now active in the
lower area of the display (image 15.1).
If a free folder function field was
selected, this can now be named
using the New function field. If a
folder function field that has already
been described is selected, the
field and its content can be copied,
moved, edited or even deleted.
Corresponding function fields are
activated as soon as the function is
available.
QIf a described folder function field
was selected, a green Programs
and a red Main menu function field
become active, among other things.
By pressing the Programs field, you
get to the program level, by pressing
the Main menu field, you get back
to the main menu.
2.2 Edit folder/program
Display, Status: Edit program / folder selected / Edit or New
Display, Status: Edit program / existing folder selected
Edit folder
OKAbort
ZIRKON A
Ceramay
ZIRKON A
Hans
ZIRKON B
Ceramay
ZIRKON A
Sarah
ZIRKON C
Ceramay
MONOLITIC
Hans
ZIRKON A
Ceramay
FULL ARCH
Various
MONOLITIC
Dr.Zahnstein
500°C
>
<
Main menu
Edit Folder
Delete
Edit
PasteCopyCut
New Programs
Dr. Zahnstein
Image 15.1
Image 15.2
Ctrl

15
<250°C
< >
1 New
The New function field is activated as
soon as an empty program or folder
function field has been selected. If
the New field is now pressed, the
oven opens two lines of text and
a keyboard field for entering the
desired name. Up to 12 characters
or letters can be used per line of text.
Letters can be represented in both
upper and lower case (image 16.1).
2 Cut
Using the cut function, you can
move individual programs or entire
folders, including their contents. To
do this, the desired program or folder
is selected first. This field (program
or folder function field) is now
highlighted for checking purposes.
Now the desired function field Cut
is selected. The oven now hides
all other function fields except for
Paste. The target storage location
must now be selected (in the case
of programs, this can also be in a
different folder). By clicking on the
Paste field, the program or the folder
and its contents are moved to the
desired position.
3 Copy
Here the folder/program is copied
to the clipboard. The folder remains
unchanged in the same position.
the procedure is the same as
described under point 2 "Cut".
4 Paste
The folder / program from the
clipboard is inserted at the activated
position. Only free program fields can
be activated.
Display, Status: Edit program / folder selected / Programs / existing program selected
Folders
Delete
Edit
PasteCopy
New
Cut
ZIRKON A
<3 Units
ZIRKON A
Multilayer
ZIRKON A
4-6 Units
ZIRKON A
Monolitic
ZIRKON A
>7 Units
ZIRKON A
Speed
DC 9.2 Sarah Edit program
Image 16.1

16
<250°C
<250°C
Display, Status: Edit program / folder selected / Programs / existing program selected / Delete
Delete
The program will be permanently deleted!
ZIRKON A <3 Units
Delete
Don't delete Delete
Display, Status: Edit program / select a folder / Programs / existing program selected / Edit
Edit program
SaveAbort
5 Delete
After pressing the Delete function
field, a security query appears, which
you must confirm with Delete or
Don´t delete.
6 Edit
The name can be changed for
existing programs or folders.
The number block is active. With
programs, additional parameters can
be changed and saved permanently.
If parameters are changed that
have a direct influence on the
following parameters (e.g. the
opening temperature when the
final temperature is lowered), these
parameters are adjusted accordingly
after the OK field has been clicked
and highlighted in yellow. These
values are accepted and saved with
Save, and the initial values are called
up again with Abort.
7 Next / Previous
With the forwards >and backwards
<keys you can switch to the
next page with further groups or
programs. The buttons are only
active if there is also another page.
Image 17.1
Image 17.2
Rampen 4
Heat rate 4
5°C/min
Heat rate 1
10°C/min
Heat rate 3
8°C/min
Final temp. 1
900°C
Final temp. 3
1500°C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp. 4
900°C
Heat rate 5
45°C/min
Final temp. 5
450°C
Hold time 5
000 min
cool rate
30°C/min
opening temperature
300°C
Hold time 2
000 min
Hold time 4
000 min
ZIRKON A
Speed

17
ZIRKON A
SPEED
<250°C
ZIRKON A
<250°C
ZIRKON A
Speed
<250°C
SPEED
Homogenisieren
ja/nein
Öffnungszeit
[min/s]
Anzahl der Rampen
1/2/3/4/5
Vakuum
ja/nein
Rampen 4
Heat rate 4
50°C/min
Heat rate 1
10°C/min
Heat rate 3
8°C/min
Final temp. 1
900°C
Final temp. 3
1500°C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp. 4
900°C
Heat rate 5
45°C/min
Final temp. 5
450°C
Hold time 5
000 min
cool rate
10°C/min
opening temperature
300°C
Hold time 2
000 min
Hold time 4
000 min
ZIRKON A
Monolitic
Display, Status: Edit program / select a folder / Programs / New (after the name is entered)
OKAbort
Create program
Display,Status:Editprogram/selectafolder/Programs/selectafreeprogrameld/New
Display, Status: Edit program / select a folder / Programs / New (after the name is entered)
Abort
OKAbort
Edit program
Create program
Save
8 Name programs / folders
If a new program or a new folder is
to be created, a name must first be
entered.
Two lines of text, each with a maxi-
mum of 12 characters or letters, are
available for this purpose (image 18.1).
When programs are created, the
second step is to select the program
type. To do this, as shown in the
diagram on the right, activate the
arrow in the program type. A list with
all available program types opens.
After the desired program type has
been selected, the oven offers the
parameters required for this type.
These parameters can now be
programmed at will. To do this, select
the respective parameter and enter
the desired value using the number
field that is now active. A green OK
field is now activated with which this
value can be confirmed. The initial
value is called up again by pressing
the red Abort field. If all parameters
are named accordingly, they can
finally be saved with the green Save
field.
Image 18.1
Image 18.3
Image 18.2
Ctrl
Heat rate 4
5°C/min
Heat rate 1
10°C/min
Heat rate 3
8°C/min
Final temp. 1
900°C
Final temp. 3
1500°C
Hold time 1
030 min
Hold time 3
120 min
Heat rate 2
3°C/min
Final temp. 2
1100°C
Final temp. 4
900°C
Hold time 2
000 min
Hold time 4
000 min
Rampen 4
Rampen 2
Rampen 3
Rampen 4
Rampen 5
Rampen 6

18
<250°C
<250°C
<250°C
2.3 Settings
Settings take you to the "Service level"
of the menu. Various basic settings can
be adjusted here, service programs can
be carried out and data can be transfer-
red (software, program and log data).
Pressing the red Main menueldtakes
you back to the Main Menu.
Main menu
Display, Status: Settings
Settings
Basic settings
Initial oven setup
Data transfer
Firmware update /
Firmware version
Customize calibration
Last error message
Regeneration program
Mue hours
Service menu
Factory settings reset
Upgrade oven
1 Import all folders
QIf there is already a corresponding
folder on the USB stick, this will
be recognized by the oven and the
Import all folders function field will
be activated (dark grey background)
(image 20.2).
QIf this field is now activated, the
furnace opens a list with all the
corresponding data. Select the
desired data record, the green
Import function field is activated.
The required data record is loaded by
pressing this button (image 20.3).
2.3.1 Data transfer
Included with your Zubler ceramic
furnaceaUSBdatastick(ashdrive)is
enclosed.
With the help of this USB stick you can
transfer program datas (from the oven to
USB or from USB to oven) or log datas
for quality assurance to save. When the
oven detects the USB stick, all active
functioneldsarehighlighted(image20.2).
When using a third-party data medium,
problems may arise during data trans-
fer. If the USB stick is not recognized, all
functioneldsremaininactive.
Pressing the red Settings control panel
takes you back to the settings area.
All folders and programs on the
furnace will be overwritten!
Display, Status: Settings / Data transfer / Import all folders / one folder selected
Display, Status: Settings / Data transfer
Import all folders
ImportAbort
Settings
Import all folders
Export all folders
Import one folder
Export one folder
VS430_01-001001-22_2022-02-22_13-12
VS430_01-001001-22_2022-03-15_08-45
VS430_01-001001-22_2022-04-12_10-23
VS430_01-001001-22_2022-04-27_09-15
VS430_01-001001-22_2022-05-02_11-25
VS430_01-001001-22_2022-05-06_14-26
Protocol les
Alle Protokolle löschen
Data transfer
Image 20.1
Image 20.3
Image 20.2
lift

19
<250°C
>
<
<250°C
<250°C
58%58%
2 Export all folders
QWhen the Export all folders
function field is activated, all folders
on the furnace are saved from the
furnace to the USB memory and can
be transferred to another furnace.
QThe furnace creates the file name as
model name of the furnace, serial
number of the furnace, date and time
(image 21.1).
3 Import one folder
Individual folders can be copied from the
USB memory.
QTo do this, select the desired folder
and the folder menu will open (image
21.2). Please choose a free folder
location here, this will be highlighted
and the green Import function field
will be activated. To complete the
process, please press this button.
4 Export one folder
QA single folder can be saved from the
furnace to the USB memory here.
QIf Export one folder is selected,
the oven opens the folder menu. As
soon as the folder to be backed up
is selected, the green function field
Export is activated. Please activate
this field to save the folder and its
contents.
QThe furnace (Image 21.3) creates
a folder file which it names with
the folder name to be saved, serial
number of the furnace, date and
time.
Display, Status: Settings / Data transfer / Export one folder / DC 9.2 Sarah is choosen
Display, Status: Settings / Data transfer / Import one folder
Display, Status: Settings / Data transfer / Export all folders
Import one folder
Export all folders
ImportAbort
Export one folder
SPEED_01-001001-22_2022-02-03_09-52
MONOLITIC_01-001001-22_2022-01-10_08-15
MONOLITIC_01-001001-22_2022-01-13_11-41
ZIRKON C_01-001001-22_2022-02-18_10-23
ZIRKON B_01-001001-22_2022-02-19_12-26
ZIRKON A_01-001001-22_2022-02-21_13-10
Export one folder
Abort
Do not turn o the oven!
Export
VS430_01-001001-22_2022-02-21_12-04
DC CONCEPT PRESS
Ceramay
DC 12.5
Hans
DC 12.5
Ceramay
DC 9.2
Sarah
DC 9.2
Ceramay
DC 9.2
Hans
DC CONCEPT ART
Ceramay
Oxidation
Various
ZIRKON
Monolitic
DC 12.5
Dr.Zahnstein
DC 12.5
Sarah
Image 21.1
Image 21.3
Image 21.2

20
<250°C
<250°C
<250°C
58%
58%
58%58%
Display,Status:Settings/Datatransfer/Protocolles
Display,Status:Settings/Datatransfer/Protocolles/Deleteallprotocols
Protocols are saved to USB and subse-
quent deleted from the oven memory
Protocol_01-001001-22_2022-02-21_12-04
Save
Save
OK
Protocol les
Abbruch
Protocol les
Abort
5 Export protocol files
For documentation and quality
assurance, the last 50 program runs
and results can be downloaded with
acsvle.
After 50 program sequences have
been saved, the furnace overwrites
the previous log data, starting with
the oldest, in subsequent work pro-
cesses.
Log data that is exported is deleted
from the oven memory in the process.
Here,too,thefurnacegeneratesale
name composed of the word proto-
col, serial number of the furnace, date
and time of the storage time (image
22.2).
Delete all protocol files
All protocol datas in the oven memo-
ry can be deleted here.
Display,Status:Settings/Datatransfer/Protocolles/Deleteallprotocols
Delete all protocols
Abort
All protocols will be deleted!
Attention
Accomplished programs
34
Last data backup
01.02.22
Delete all protocols
QAfter selecting Delete all protocols,
a warning window appears. This
process must then be confirmed
by pressing the green OK field or
revised with Abort (image 22.3).
Image 22.1
Image 22.3
Image 22.2
