Overview
Product Overview
ZYCOO network speakers are SIP enabled high-performance speaker products which can be used for SIP
paging, notification/tone broadcast and streaming media music playback.
The SC15 network ceiling speaker and SW15 network cabinet speaker are equipped with dual speaker drive
units, the high-efficient, full-range speaker drive units can provide uniquely advanced listening experience,
which makes the SC15 and SW15 suitable for high quality music, notification/tone broadcasting in the indoor
environment.
The SH30 network horn speaker is equipped with a midrange drive unit powered by 30W class D amplifier,
which makes it suitable for paging and notification/tone broadcasting to noisy large spaces and outdoor
environments.
Product Specifications
SC15 Specifications
Speaker Components:
5.25" woofer unit + 1" tweeter unit
Sensitivity
85dB/1m/1W
Max Sound Pressure Level
100dB
Amplifier
Built-in Class D Amplifier
Rated Power
8Ω 15W
Frequency Range
70Hz~20KHz
Coverage Pattern
90°H 90°V 30 m²
Acoustics
Mono

Network Speaker User Guide | ZYCOO Co., Ltd.
2
SW15 Specifications
Speaker Components:
5.25" woofer unit + 1.5" tweeter unit
Sensitivity:
85dB/1m/1W
Max Sound Pressure Level
100dB
Amplifier
Built-in Class D Amplifier
Rated Power
8Ω 15W
Frequency Range
70Hz~20KHz
Coverage Pattern
90°H 90°V 30 m²
Acoustics
Mono
SH30 Specifications
Speaker Components
2" midrange driver unit
Sensitivity
105dB/1m/1W
Max Sound Pressure Level
117dB
Amplifier
Built-in Class D Amplifier
Rated Power:
8Ω 30W
Frequency Range:
400Hz~8KHz
Coverage Pattern:
50°H 50°V 70m effective distance
Acoustics:
Mono
IP Rating
IP65

Network Speaker User Guide | ZYCOO Co., Ltd.
3
Basic Settings
Web Interface Login
By default, the network speaker’s IP assignment has been configured as DHCP. Please ensure there’s DHCP
server available in the LAN where the network speakers are installed. If there’s no DHCP server available or
DHCP fails, you’ll have to use the failover IP address 192.168.1.101 to access the web management interface.
Press and hold the RST button for 5 seconds (10 seconds for reset) and release, the speaker will announce its
IP address. Input the IP address in the browser address bar to open the web management interface of the
speaker. The login screen is shown as below image, here we take SC15 network ceiling speaker as an example.
Use the default login credentials to login to the web management interface.
Default username: admin
Default password: admin
For the safety of the network speakers, it is recommended to change the default password on first login, please
go to Settings -> Change Password page to change the password.

Network Speaker User Guide | ZYCOO Co., Ltd.
4
Device Info
After login, you’ll first see the Device Info screen.

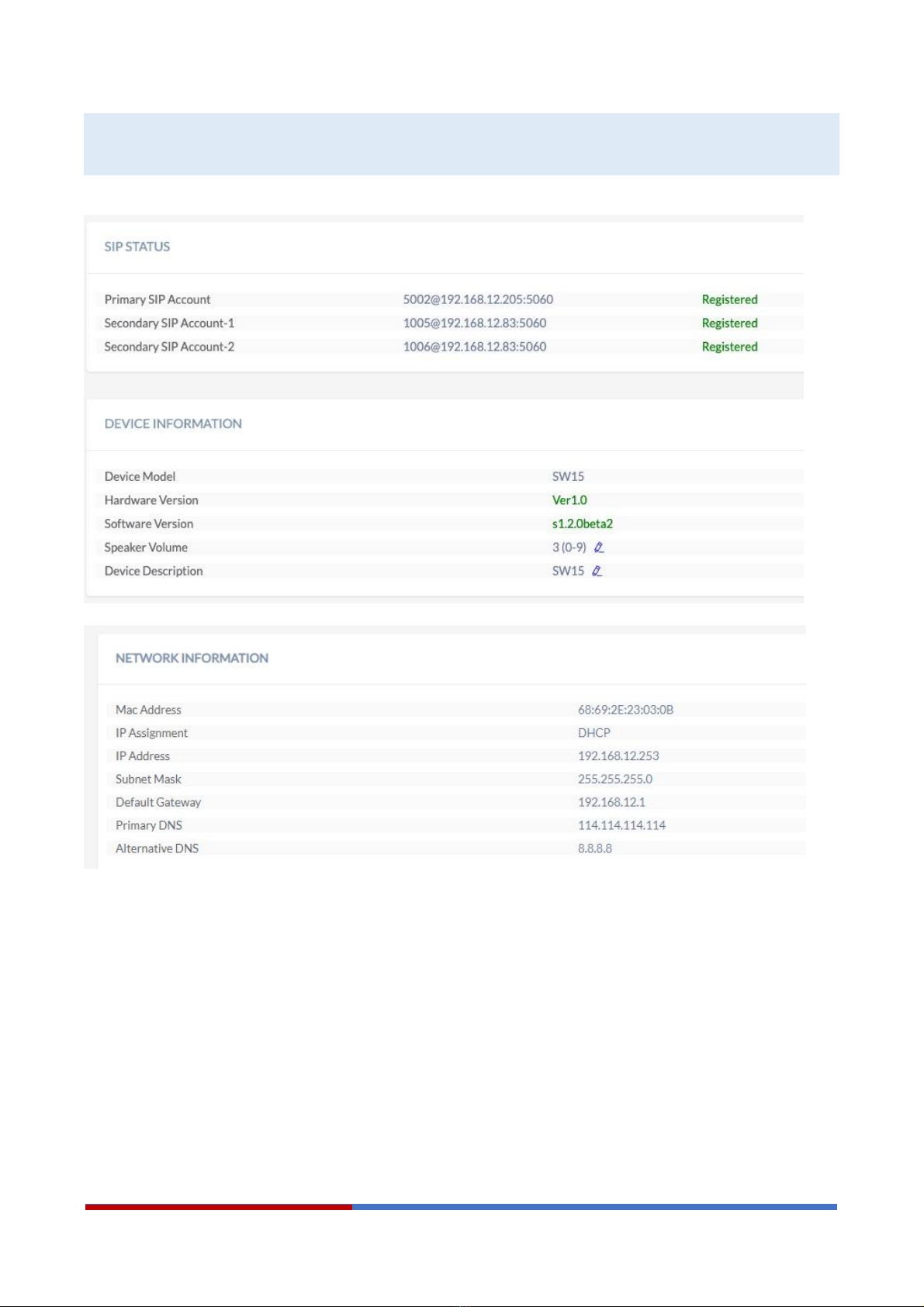

SIP STATUS
SIP Account: The SIP number configured on this device.
SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address.
Register Status: The SIP number registration status.
DEVICE INFORMATION
Device Model: The speaker model, SC15, SW15 or SH30.
Hardware Version: Speaker hardware version.
Software Version: Speaker software version, can be upgraded.
Speaker Volume: The current volume level of the speaker device.

Network Speaker User Guide | ZYCOO Co., Ltd.
5
Device Description: The device description will be used to display as the tab name of the web browser.
This is useful when configuring multiple speaker devices using the same web browser. Click on the
button to edit.
After modification, the tab name will change.
NETWORK INFORMATION
Mac Address: Shows the speaker Mac address.
IP Assignment: Shows the network mode of the speaker, either STATIC or DHCP.
IP Address: Shows the current IP address of the speaker.
Subnet Mask: Shows the current subnet mask of the speaker.
Default Gateway: Shows the current default gateway of the speaker.
Primary DNS: Shows the current primary DNS of the speaker.
Alternative DNS: Shows the current alternative DNS of the speaker.
SIP Account
There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of
different SIP accounts to proceed various tasks. If the current device needs to cooperate with the ZYCOO IP
Audio Center, please turn on the ‘ZYCOO IP Audio Center’ option.
Please go to SIP Settings -> Primary SIP Account / Secondary SIP Account-1 / Secondary SIP Account-2
Primary SIP Account

Network Speaker User Guide | ZYCOO Co., Ltd.
6
Secondary SIP 1 Account

Network Speaker User Guide | ZYCOO Co., Ltd.
7

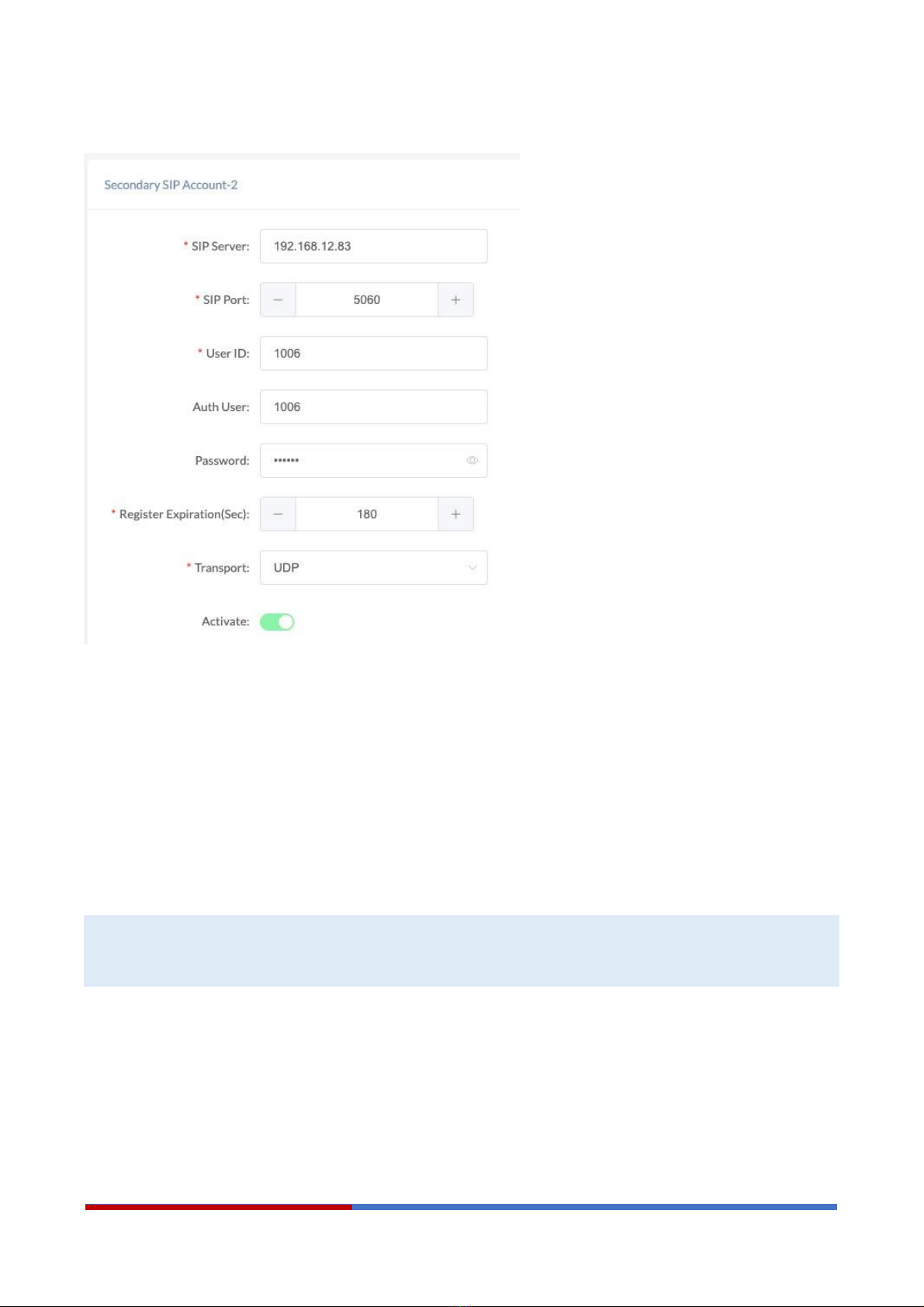

Secondary SIP 2 Account

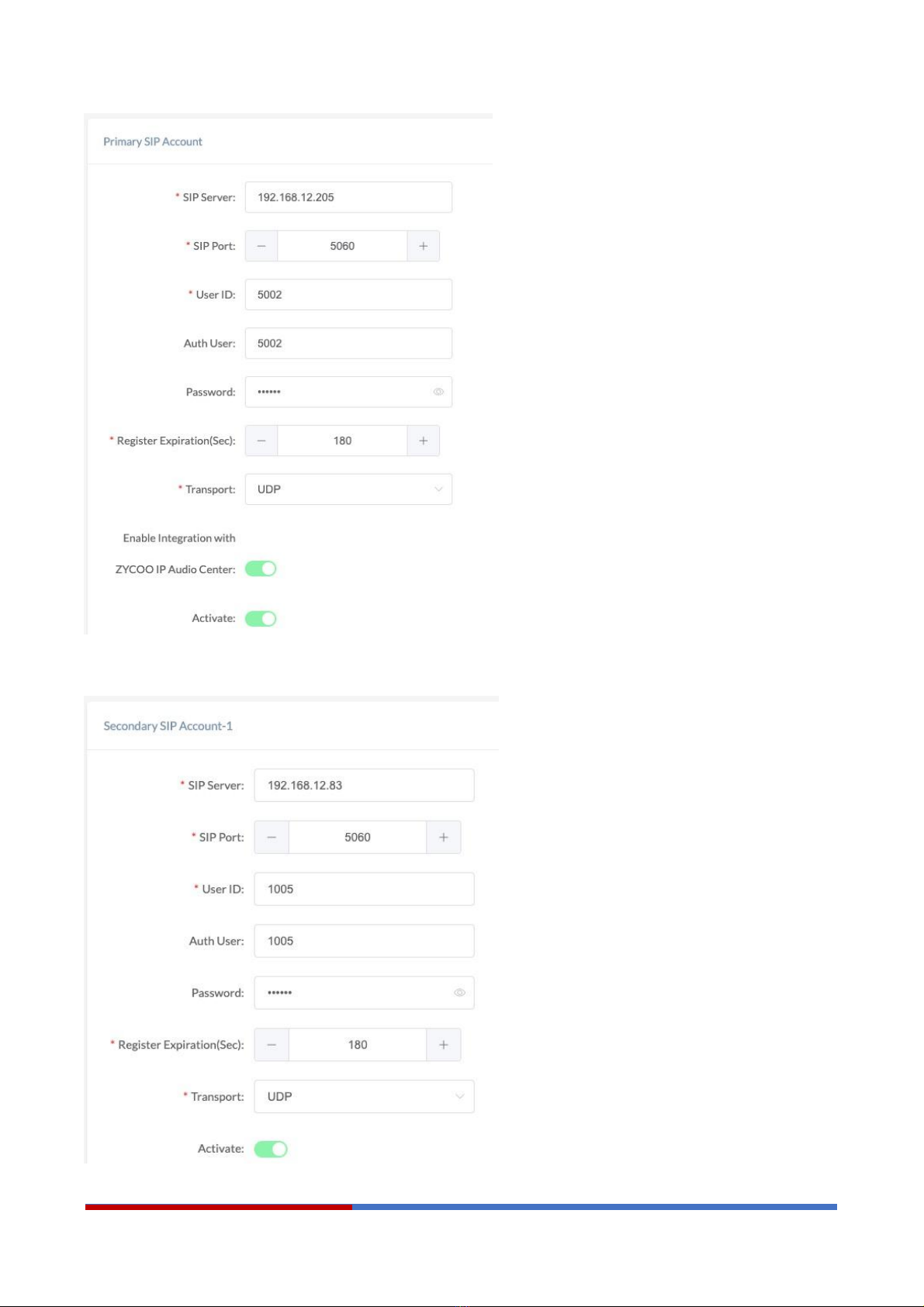

SIP Server: Enter the IP address or domain name of the SIP server.
SIP Port: Default SIP port is 5060. If the SIP server uses other port number as SIP port, please
modify in this setting.
User ID: The SIP account number provided by SIP server.
Auth User: Authorized SIP account’s username.
Password: Authorized SIP account’s password.
Register Expiration (sec): SIP register expiration time, the default expiration time is 180 seconds.
Transport: Set up the transport protocol, there are UDP, TCP, TLS options to choose.
Activate: Enable/Disable the SIP register feature.

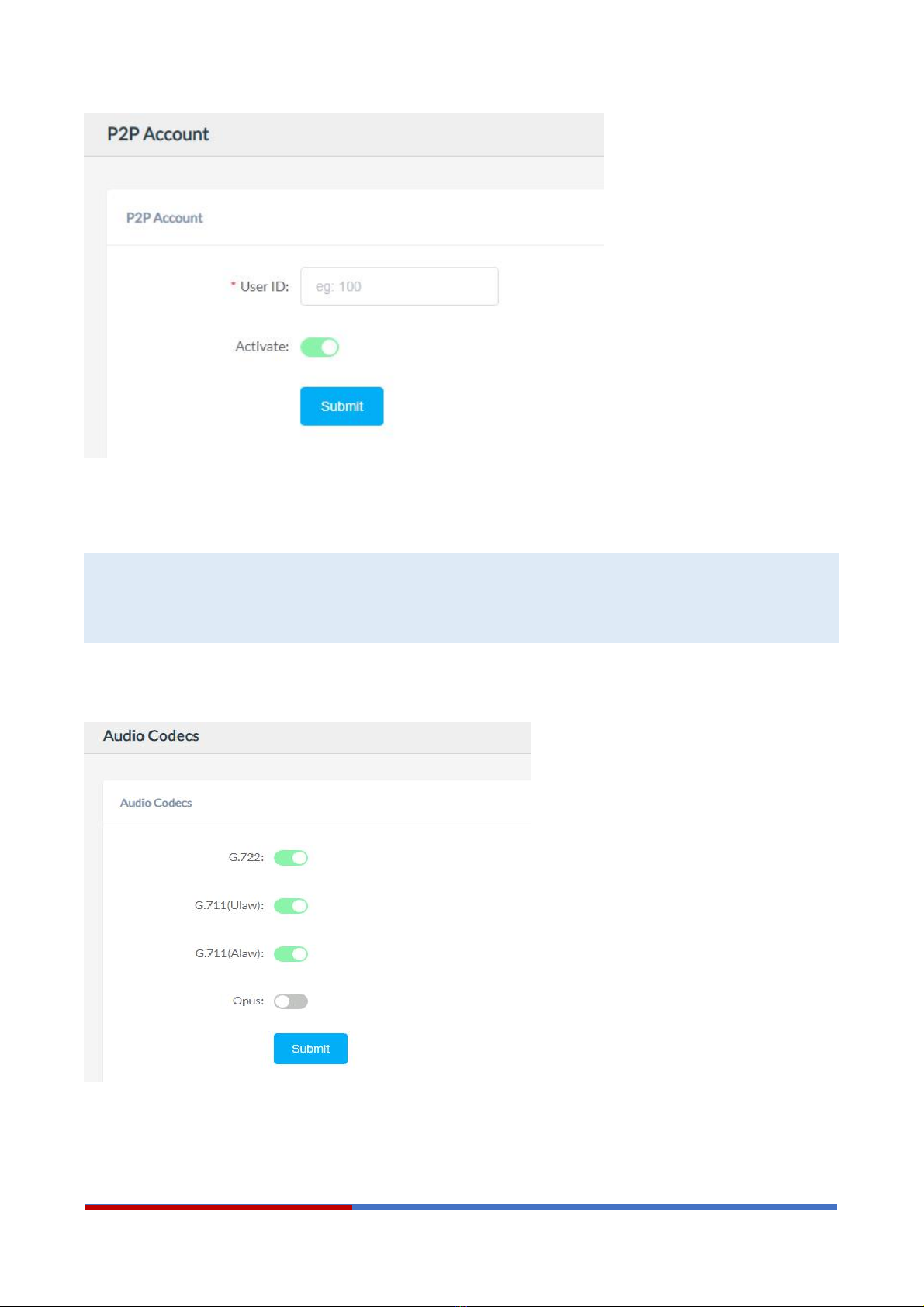

P2P Account
P2P stands for Peer to Peer. In a P2P network, the peers are connected to each other via the Internet, files can
share, or peers can call each other directly between systems on the network without the need of a central
server.
