ZyXEL Communications P-2302HWUDL-P1 Series User manual

P-2302HWUDL-P1
802.11g Wireless VoIP Station Gateway
with Built-in DECT Base Station
Quick Start Guide
Version 3.60
Edition 1
3/2007

P-2302HWUDL-P1 Quick Start Guide
2
Overview
The P-2302HWUDL-P1 model is a router with IEEE 802.11g wireless capability. It has a built in DECT GAP
base station for compatibility with DECT cordless phones, USB 2.0 ports for sharing files via USB compatible
storage devices and phone ports for making calls over the Internet (Voice over IP or VoIP). The P-
2302HWUDL-P1 can use regular phone services through regular (PSTN) phone lines and can also function as
a print server.
1 Requirements
Make sure you have the following things before you set up your P-2302HWUDL-P1.
• Internet access - account information provided by your ISP, such as user name, password, and so on.
• VoIP account - You need the account information provided by your VoIP service provider (the company that lets
you make phone calls over the Internet). This information might include your URI, number, and so on.
• Internet Explorer 6.0 or later or Netscape Navigator 7.0 or later, with JavaScript enabled.
Note: See the User’s Guide for all configuration details including file sharing and setting up a shared
printer.

P-2302HWUDL-P1 Quick Start Guide
3

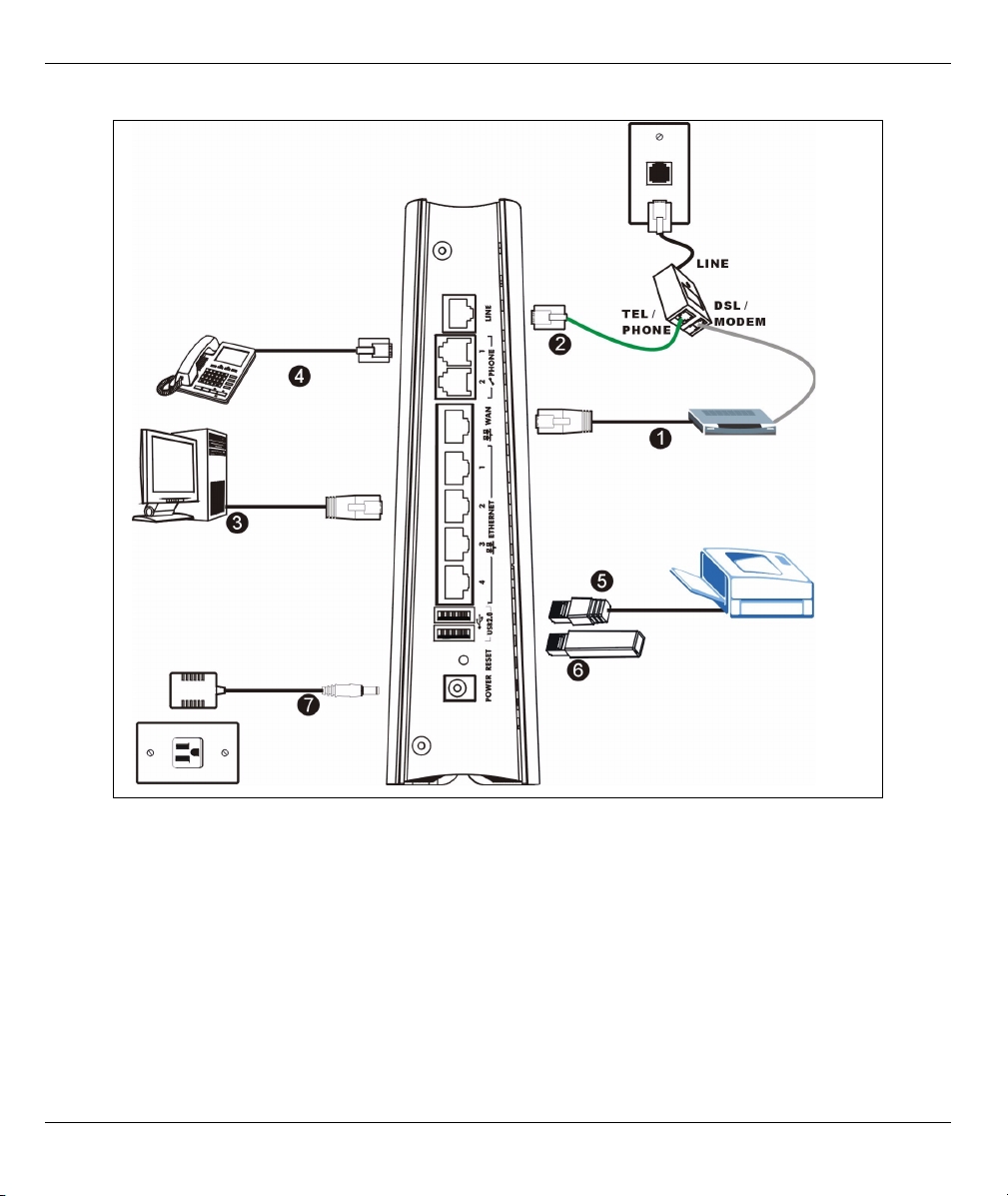

2 Hardware Connections - P-2302HWUDL-P1
1WAN: Use an Ethernet cable to connect the DSL modem to this port.
2LINE: Use the green PSTN cable to connect the TEL or PHONE jack on a splitter to this port. If no splitter is
provided connect the telephone jack to this port.
Note: When the ZyXEL Device does not have power, only the phone connected to the PHONE 1 port
can be used for making calls. Ensure you know which phone this is, so that in case of emergency
you can make outgoing calls.
3 ETHERNET 1-4: Use an Ethernet cable to connect a computer to this port for initial configuration and/or
Internet access.
4 PHONE 1-2: Use telephone cables (and any telephone adaptors provided with your P-2302HWUDL-P1) to
connect your telephones to these ports. If you only have one telephone, you should use port 1.

P-2302HWUDL-P1 Quick Start Guide
4
5USB2.0: Use a USB cable (not provided) to connect a USB (version 2.0 or lower) printer to this port.
6 USB 2.0: Connect a USB (version 2.0 or lower) memory stick for file sharing. The P-2302HWUDL-P1
automatically detects the USB device.
7Use the power adaptor provided with your P-2302HWUDL-P1 to connect an appropriate power source to
this socket.
Look at the lights on the side panel of the P-2302HWUDL-P1.
•ThePOWER light blinks during start-up and is green once the P-2302HWUDL-P1 is ready.
• Each ETHERNET light turns on if the corresponding ETHERNET port is properly connected.
The lights blink when the P-2302HWUDL-P1 is sending or receiving data through the corre-
sponding ETHERNET port.
•TheWAN light stays on if a physical connection with your DSL modem exists and blinks when
transmitting data. The INTERNET light stays on when Internet access is available.
•ThePHONE lights stay on when your SIP account is registered and they blink if the receiver is
off the hook.
•TheWLAN light turns on when the wireless LAN is ready. It blinks when the P-2302HWUDL-P1
is sending/receiving data through the wireless LAN.
•TheUSB light turns on when there is a USB device (printer or memory stick) connected to the
P-2302HWUDL-P1.
If PHONE 1 or PHONE 2 light is on, skip to Section 5.2 to see how to make calls through the
Internet.
If the INTERNET light comes on but the PHONE lights are off, go to Section 5and use the
VOIP SETUP wizard.
If the INTERNET light is off but the WAN light is on, go to Section 4and use the CONNECTION WIZARD to
configure your Internet access settings.
If the lights are different than described, go to Troubleshooting.
3 DECT Phone Registration
In order to use your DECT phone with the P-2302HWUDL-P1, the DECT phone must register with the P-
2302HWUDL-P1’s DECT base station. Take the following steps to register your DECT phone with the P-
2302HWUDL-P1.
1Press down the DECT base station button (A) on top of your P-2302HWUDL-P1 for 6 to 11 seconds. When
the LED light of the DECT base station button begins to blink , the P-2302HWUDL-P1 is in registration
mode. The P-2302HWUDL-P1 in registration mode for 25 to 30 seconds. Your DECT phone must be
registered within the time period.

P-2302HWUDL-P1 Quick Start Guide
5
Note: If you press the DECT base station button for 12 seconds or more, the DECT base station resets
and all previously registered DECT phones must be re-registered.
2Put your DECT phone in registration mode. Refer to your DECT phone documentation.
When the P-2302HWUDL-P1 is in registration mode, the LED of the DECT base station button (A) blinks and
the P-2302HWUDL-P1 starts to scan its surrounding area for DECT phones in registration mode.
Note: To ensure clear communication between the two devices, make sure your DECT phone is within
range of the P-2302HWUDL-P1 during the registration process. See the User’s Guide for details.
3When a P-2302HWUDL-P1 discovers a DECT phone in registration mode, it sends a request for a
Personal Identification Number (PIN). Your DECT phone receives the request and prompts you to enter the
PIN. Enter the PIN in the DECT phone by using the handset keypad. Entering a PIN ensures that only
authorized DECT phones connect to and use your P-2302HWUDL-P1 to make and receive calls.
Note: The default PIN of the P-2302HWUDL-P1 is 1234.
4Repeat steps 1 - 3 to register additional phones.
Note: You can register up to 6 DECT phones with the P-2302HWUDL-P1.
Once your DECT phones are registered with the P-2302HWUDL-P1 you can assign SIP accounts to make
and receive VoIP calls. You can also use DECT phones to make internal calls, see your DECT phone
documentation for more information. Internal calls are calls between DECT phones registered with the P-
2302HWUDL-P1. For the P-2302HWUDL-P1 you can also assign your DECT phones to receive calls from the
PSTN line (regular phone line).

P-2302HWUDL-P1 Quick Start Guide
6
4 Initial Configuration
1Open your browser and enter the P-2302HWUDL-
P1's IP address 192.168.1.1 (default) as the URL.
2Enter the admin password 1234 (default). Click
Login.
If your browser cannot find this screen, make sure
your browser is configured correctly. See
Troubleshooting in the User’s Guide for details.
3Follow the directions in this screen. 4Click Go to Wizard setup.

P-2302HWUDL-P1 Quick Start Guide
7

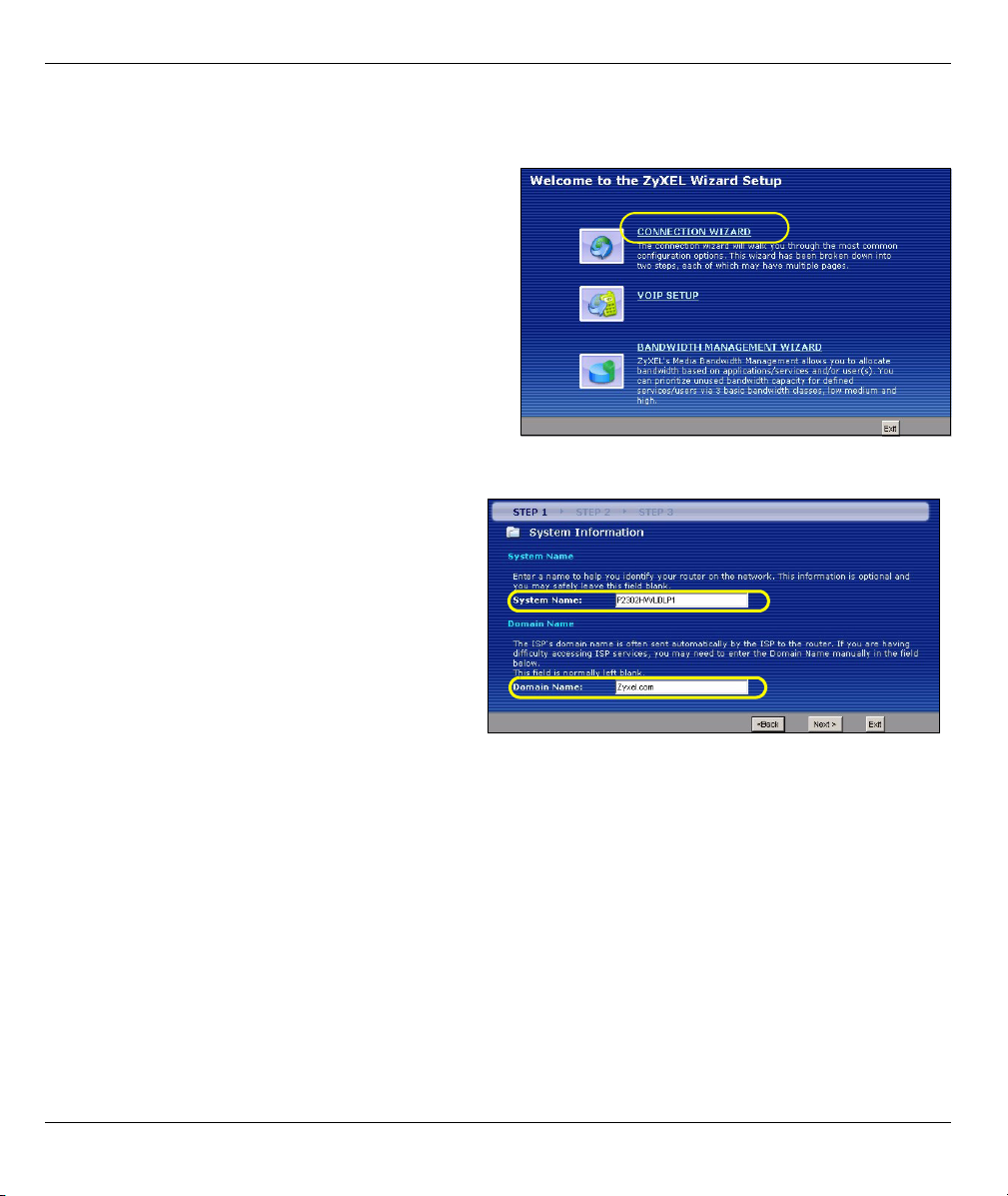

4.1 Connection Wizard
The connection wizard helps you set up your Internet
connection as well as your wireless settings. Click
CONNECTION WIZARD.
.
Note: Enter the Internet access information exactly
as given to you by your ISP in each wizard
screen and then click Next to continue or click
Back to return to the previous screen.
Current screen information will be lost if you
click Back.
STEP 1: System Information

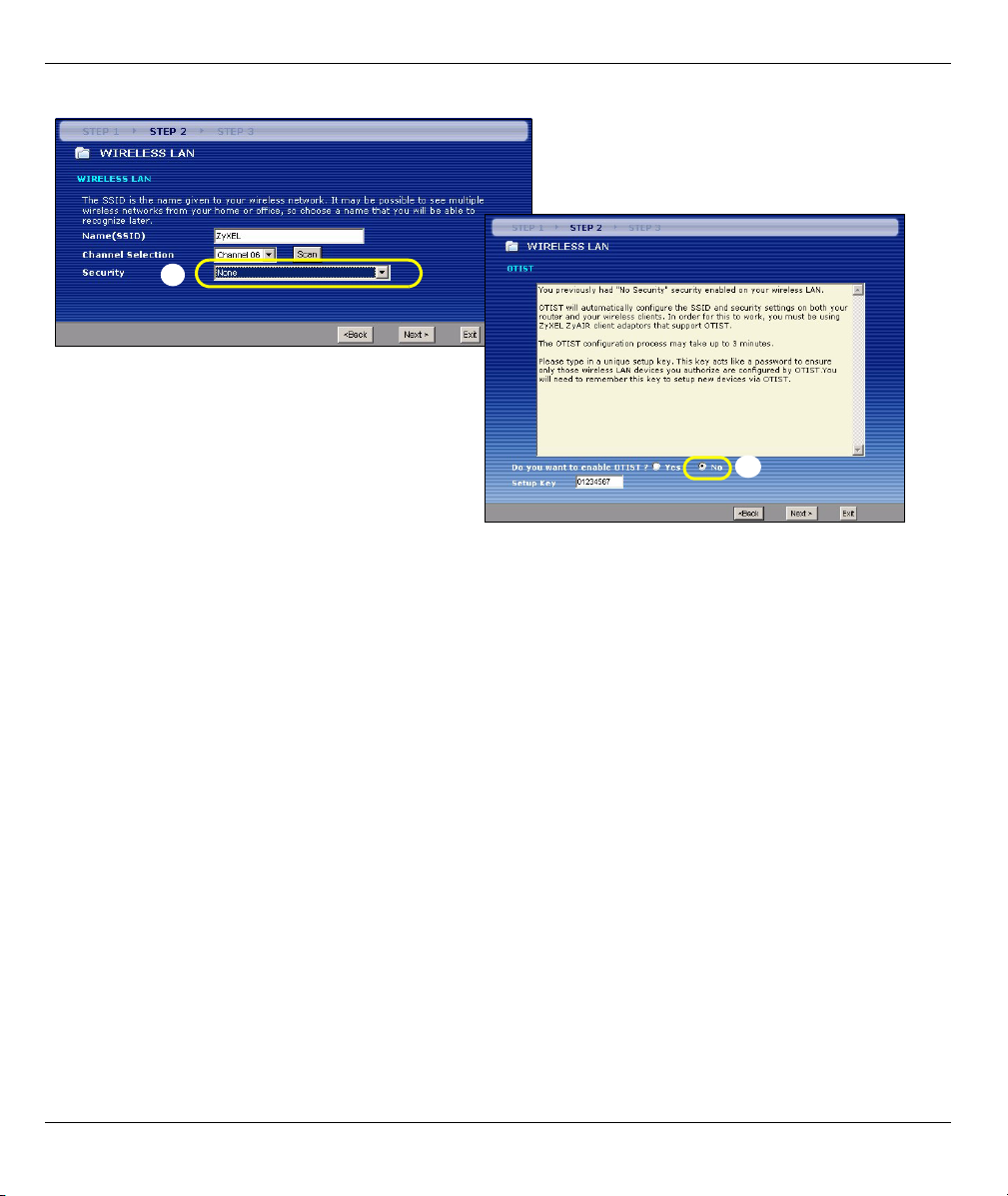

STEP 2: Wireless LAN
A Select None for your initial wireless security.
This screen is optional. You can just click Next.
•System Name is for identifying the P-
2302HWUDL-P1. You can enter your computer's
"Computer Name".
• If you leave the Domain Name blank, the domain
name obtained by DHCP from the ISP is used.

P-2302HWUDL-P1 Quick Start Guide
8
B Select No in the Do you want to enable OTIST ? radio button.
Note: These settings allow you to access the wireless network without setting up any security on your
wireless client. This means that any wireless device within range of your P-2302HWUDL-P1 can
access your wireless network.
If you know the security settings you want to set up you can also enter them in these screens. If
you want to set up OTIST, see the following section. Refer to your User’s Guide for more
information on setting up your wireless network.
OTIST
ZyXEL's One-Touch Intelligent Security Technology (OTIST) feature allows you to automatically configure the
SSID and WPA-PSK on all OTIST-equipped wireless clients within range of the P-2302HWUDL-P1.
Note: If you enable OTIST but select None in the Security field using the wireless wizard, the P-
2302HWUDL-P1 will create a WPA-PSK automatically.
If you enable OTIST and select Basic(WEP) in the Security field using the wireless wizard, the
P-2302HWUDL-P1 will replace the WEP key with a WPA-PSK.
Enable OTIST only if your wireless clients support WPA and OTIST.
You must enable OTIST on the P-2302HWUDL-P1 and all wireless clients within three minutes in any order.
To enable OTIST on wireless clients, click Start in the Adapter screen. The Setup Key is 01234567 by default.
If you have previously saved a setup key on the P-2302HWUDL-P1, use it instead of the default.
A
B

P-2302HWUDL-P1 Quick Start Guide
9
STEP 3: WAN
Select one connection type from the drop-down list box. Check with your ISP to make sure you use the correct
type:
1Ethernet
2 PPP over Ethernet
Note: If you were given Internet access settings, enter them in the following fields. Otherwise leave the
default settings and just click Next.

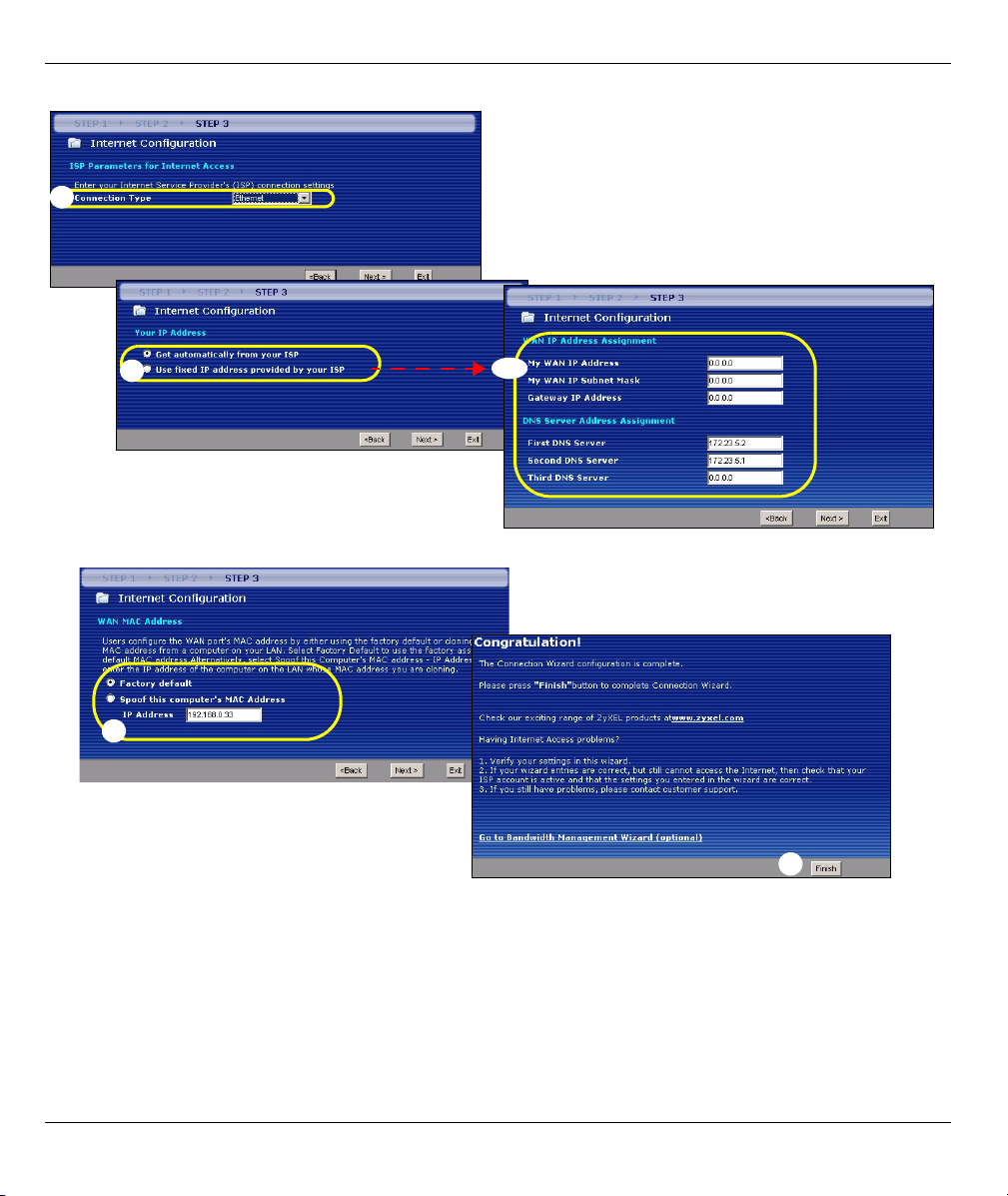

A Select Ethernet as your WAN connection type.
B Select Get automatically from your ISP if your ISP did not assign you a fixed IP address. Skip to C.
Or
Select Use fixed IP address provided by your ISP to give the P-2302HWUDL-P1 a fixed, unique IP address.
Go to B1.
B1 If you select Use fixed IP address provided by your ISP,enter a WAN IP address, WAN IP Subnet Mask
and the neighboring device’s IP address given by your ISP.
If you were given DNS server settings, enter them in the fields. Otherwise leave the default settings and
just click Next.
C Select Factory Default to use the factory assigned default MAC address and click Next. Then click Apply to
save your changes. The OTIST in Progress screen appears if you enable OTIST in the previous wizard
screen. Wait for the P-2302HWUDL-P1 to finish transferring OTIST settings.
D Click Finish to complete the wizard.
Ethernet Connection

P-2302HWUDL-P1 Quick Start Guide
10
A
B
C
B1
D

P-2302HWUDL-P1 Quick Start Guide
11
A Select PPP over Ethernet as your WAN connection type.
B Type a Service Name (Optional), User Name and Password.
C Select Get automatically from your ISP if your ISP did not assign you a fixed IP address. Skip to D.
Or
Select Use fixed IP address provided by your ISP to give the P-2302HWUDL-P1 a fixed, unique IP address.
Go to C1.
C1 If you select Use fixed IP address provided by your ISP,enter a WAN IP address, WAN IP Subnet Mask
and the neighboring device’s IP address given by your ISP.
If you were given DNS server settings, enter them in the fields. Otherwise leave the default settings and
just click Next.
D Select Factory Default to use the factory assigned default MAC address and click Next. Then click Apply to
save your changes. The OTIST in Progress screen appears if you enable OTIST in the previous wizard
screen. Wait for the P-2302HWUDL-P1 to finish transferring OTIST settings.
When a congratulation screen appears, click Finish to complete the wizard.
PPP over Ethernet Connection

P-2302HWUDL-P1 Quick Start Guide
12
5 Configure VoIP
Click VOIP SETUP.
Note: You should have the information provided by
your VoIP service provider.
Enter the information provided by your VoIP service
provider. Keep the default settings if your VoIP service
provider did not provide some information. If you have a
SIP account like [e-mail], the SIP
Number is 1234567, and the SIP Service Domain is VoIP-
provider.com. When you are done, the PHONE light
should be on. Close the wizard.
A
B
C
C1
D

P-2302HWUDL-P1 Quick Start Guide
13
5.1 Regular Phone Line Setup
When one of your VoIP accounts is registered, the P-2302HWUDL-P1 normally uses the Internet (not the
regular phone line) to make phone calls. Follow the directions in this section to make sure you can also use
the regular phone line while one of your VoIP accounts is registered.
Note: When the P-2302HWUDL-P1 does not have power, only the phone connected to the PHONE 1
port can be used for making calls. Ensure you know which phone this is, so that in case of
emergency you can make outgoing calls.
In the main screen, click VoIP > PSTN Line.
PSTN Line Pre-fix Number: Enter 1 - 7 numbers you
dial before you dial the phone number, if you want to
make a regular phone call while one of your SIP
accounts is registered. These numbers tell the P-
2302HWUDL-P1 that you want to make a regular
phone call.
Relay to PSTN Line: Enter phone numbers for
regular phone calls (that do not use the Internet) that
you always want to dial without the prefix number. For
example, enter emergency phone numbers here.
Click Apply.
5.2 Make Phone Calls
Follow these directions to make calls over the Internet.
• If you want to dial a SIP number that only uses numbers (for example, “12345”), dial the number on your
phone’s keypad. You can also set up a speed-dial entry, if you want. See the User’s Guide for instructions.
• If you want to dial a SIP number that uses letters or if you want to make a peer-to-peer call, set up a speed-dial
entry first. See the User’s Guide for instructions. Then, dial the speed-dial number to make the call.
• If you want to call regular telephone numbers, use your VoIP service provider’s dialing plan.
Follow these directions to make phone calls that do not use the Internet.
• If you set up the phone number in the Relay to PSTN section (Section 5.1), just dial the phone number.
• If the PHONE light is off, just dial the phone number.
• Otherwise, first dial the prefix you set in Section 5.1, and then dial the phone number.
Follow these directions to call the phone that is connected to the P-2302HWUDL-P1.
• Use your VoIP service provider’s dialing plan, or just dial the phone number.

P-2302HWUDL-P1 Quick Start Guide
14
5.3 VoIP Trunking Overview
VoIP trunking connects an IP network (like the Internet) and the Public Switched Telephone Network (PSTN).
PSTN includes the world’s circuit-switched telephone network which is composed of fixed and mobile
telephones. VoIP trunking allows you to create VoIP links which PSTN (Public Switched Telephone Network)
callers can use to:
• Make phone calls via the Internet - Make a PSTN call to the P-2302HWUDL-P1 and it forwards the call to any
SIP based VoIP phone. In the example below, we call the P-2302HWUDL-P1 (B) from a regular phone (A), the
P-2302HWUDL-P1 then forwards the call to a VoIP phone (C).
• Save on long distance calls - The P-2302HWUDL-P1 creates a VoIP link which can be used to connect to a
PSTN phone in another country, province, region and so on. Below is an example of a VoIP trunking call. A
calls the P-2302HWUDL-P1 (B), Bmakes a VoIP connection to another VoIP trunking device Cand Cforwards
the call to a PSTN phone D.
See the User’s Guide for information on how to configure VoIP trunking.
6 USB File Sharing
This section shows you how to enable USB file sharing. In order to start file sharing you need to:
• Connect your USB 2.0 file sharing device. See Section 2.
• Enable the file sharing feature.
• Create an account (user name and password) for sharing the files.
• Browse to your files using the IP address of the P-2302HWUDL-P1.

P-2302HWUDL-P1 Quick Start Guide
15

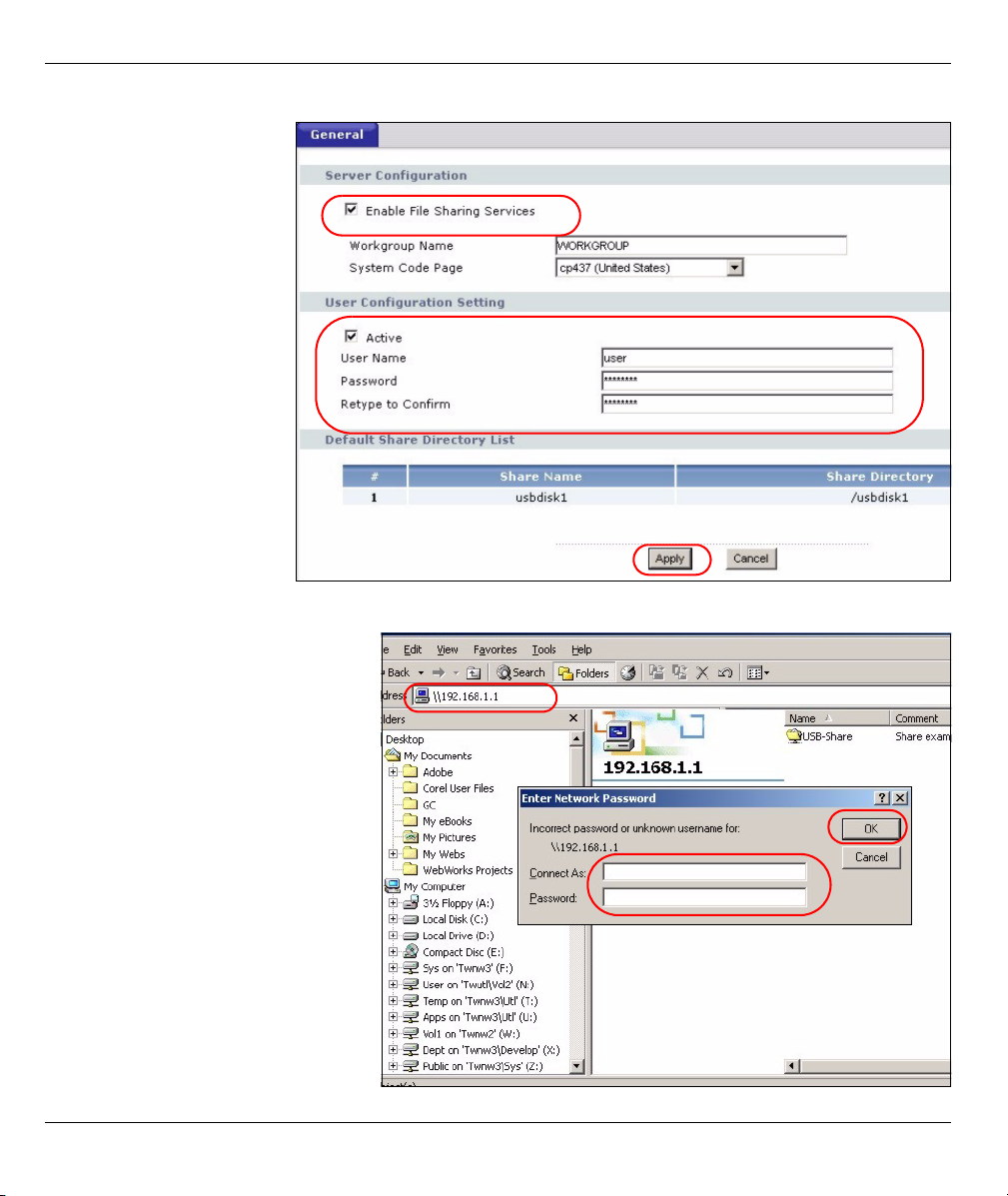

6.1 Configure USB File Sharing
1Click Management > File
Sharing.
2Check the box Enable File
Sharing Services.
3Select Active in the User
Configuration Setting
section and fill in the User
Name and Password
fields. Retype your
password and click Apply.
The P-2302HWUDL-P1
automatically recognizes the
USB device and makes it
available for sharing.
6.2 Browse to the USB File Share
1In Windows Explorer’s Address bar
type a double backslash “\\”
followed by the IP address of the P-
2302HWUDL-P1 (192.168.1.1 is
the default) and hit [ENTER].
2Enter the user name and password
when prompted and hit OK.
3The files on the USB file sharing
device connected to the P-
2302HWUDL-P1 are now part of
your file structure and you can
manage those files just like any
other files on your computer.
Note: Refer to the User’s Guide for
a complete description of this
feature.

P-2302HWUDL-P1 Quick Start Guide
16
Troubleshooting
If you cannot access the P-2302HWUDL-P1, follow these steps.
1Check the device’s lights. If they are different than what is described in Section 2, make sure the
connections are correct, and inspect your cables for damage. If the lights are still different, turn off the
device, wait a few seconds, and turn it on again.
2Make sure your computer is on the same subnet as the P-2302HWUDL-P1. The P-2302HWUDL-P1 is set
up by default to assign an IP address to your computer. If you have a static IP address on your computer
change this setting to obtain an IP address automatically. See the User’s Guide for more details.
3Make sure you typed the address correctly. If the address has changed you can press the RESET button
for ten seconds to restart the P-2302HWUDL-P1 and to restore factory defaults. The default IP address is
“192.168.1.1” and the default password is “1234”.
If you cannot access the Internet, follow these steps.
1Check the device’s lights. If they are different than what is described in Section 2, make sure the
connections are correct, and inspect your cables for damage. If the lights are still different, turn off the
device, wait a few seconds, and turn it on again.
2Follow the steps in section Section 4again. Make sure you enter the correct information. For example, if
your account has a user name and password, make sure you type it correctly. In addition, if you are not
sure which encapsulation your ISP uses, contact your ISP.
3If you are using a new Internet account, contact your ISP to make sure it is active.
4If you still have problems, see Troubleshooting in the User’s Guide.
If you can access the Internet, but you cannot make calls through the Internet, follow these steps.
1Check the PHONE lights. If neither of them is on, Make sure that your telephone is connected to the
corresponding PHONE port.
2Make sure the VoIP wizard screens are properly configured (see Section 5).
3You can also check the VoIP status in the Status screen. See the User’s Guide for more information about
this screen.
Viewing Your Product’s Certifications
1Go to www.zyxel.com.
2Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3Select the certification you wish to view from this page.
