ZyXEL Communications Prestige 660W/HW Series Installation instructions

Prestige 660W/HW Series
ADSL 2/2+ Gateway with 802.11g Wireless
Compact Guide
Version 3.40
May 2004

Prestige 660W/HW Series Compact Guide
2
Table of Contents
1 Introducing the Prestige..............................................................................................4
2 Hardware .....................................................................................................................5
2.1 Rear Panel Connections.........................................................................................5
2.2 The Front Panel LEDs ...........................................................................................6
3 Internet Access With Zero Configuration ...............................................................10
4 Setting Up Your Computer’s IP Address ................................................................11
4.1 Windows 95/98/Me...............................................................................................11
4.2 Windows 2000/NT/XP ..........................................................................................14
4.3 Checking/Updating Your Computer’s IP Address................................................15
4.4 Testing the Connection to the Prestige.................................................................15
5 Configuring Your Prestige........................................................................................17
5.1 Accessing Your Prestige Via Web Configurator ..................................................17
5.2 Common Screen Command Buttons .....................................................................18
5.3 Internet Access Using the Wizard ........................................................................19
5.4 Test Your Internet Connection .............................................................................24
6 Advanced Configuration...........................................................................................25
6.1 Wireless LAN Setup..............................................................................................25
6.2 Wireless LAN Security Setup................................................................................27
6.3 802.1x and WPA Overview...................................................................................29
6.4 Network Address Translation Overview...............................................................29

Prestige 660W/HW Series Compact Guide
3
6.5 Configuring SUA Server ......................................................................................30
6.6 Firewall Overview................................................................................................32
6.7 Enabling the Firewall ..........................................................................................33
6.8 Procedure for Configuring Firewall Rules ..........................................................33
6.9 Configuring Source and Destination Addresses...................................................37
7 Troubleshooting.........................................................................................................39

Prestige 660W/HW Series Compact Guide
4
1 Introducing the Prestige
The Prestige 660W/HW ADSL 2/2+ Gateway with 802.11g Wireless is the ideal all-in-
one device for small networks connecting to the Internet via ADSL. Key features of the
Prestige include NAT, 802.1x wireless LAN security, WPA (Wi-Fi Protected Access)
and Firewall. See your User’s Guide for more details on all Prestige features.
You should have an Internet account already set up and have been given most of the
following information.
INTERNET ACCOUNT INFORMATION
Your device’s WAN IP Address (if given): __________________
DNS Server IP Address (if given): Primary __________________,
Secondary _________________
Virtual Path Identifier (VPI): ____________
Virtual Channel Identifier (VCI): ____________
Multiplexing (VC-based or LLC-based): VC LLC
Encapsulation: (choose one below)
 RFC 1483
 ENET ENCAP Ethernet Encapsulation Gateway IP Address:
__________________
 PPPoA User Name: ____________ Password: ____________
 PPPoE Service Name: ____________
User Name: ____________ Password: ____________
Certifications
1. Go to www.zyxel.com
2. Select your product from the drop-down list box on the ZyXEL home page to go to
that product's page.
3. Select the certification you wish to view from this page.

Prestige 660W/HW Series Compact Guide
5
2 Hardware
2.1 Rear Panel Connections
Figure 1 P660HW Hardware Connections
Table 1 Prestige Rear Panel Description
LABEL DESCRIPTION
DSL Connect to a telephone jack using the included phone wire.
LAN 1 to LAN 4 Connect to a computer/external hub using an Ethernet cable.
POWER Connect to a power source using the power adaptor for your region
(see your User’s Guide).
After you’ve made the connections, connect the power adaptor to a power supply and
push in the power button to turn on the Prestige.
The PWR/SYS LED blinks while performing system testing and then turns steady on if
the testing is successful. A LAN LED turns on if a LAN port is properly connected.

Prestige 660W/HW Series Compact Guide
6
Table 1 Prestige Rear Panel Description
LABEL DESCRIPTION
RESET You only need to use this button if you’ve forgotten the Prestige’s
password. It returns the Prestige to the factory defaults (password is
1234, LAN IP address 192.168.1.1 etc.; see your User’s Guide for
details).
2.2 The Front Panel LEDs
Figure 2 P660HW Front Panel
Refer to the following table for more detailed LED descriptions.
Table 2 P660HW Front Panel LED Description
LED COLOR STATUS DESCRIPTION
On The Prestige is receiving power and
functioning properly.
Green
Blinking The Prestige is rebooting.
PWR/SYS
Red On Power to the Prestige is too low.

Prestige 660W/HW Series Compact Guide
7
Table 2 P660HW Front Panel LED Description
LED COLOR STATUS DESCRIPTION
Off The system is not ready or has
malfunctioned.
On The Prestige has a successful 10Mb Ethernet
connection.
Green
Blinking The Prestige is sending/receiving data.
On The Prestige has a successful 100Mb
Ethernet connection.
Amber
Blinking The Prestige is sending/receiving data.
LAN 1 to LAN 4
Off The LAN is not connected.
On The Prestige is ready, but is not
sending/receiving data through the wireless
LAN.
Blinking The Prestige is sending/receiving data
through the wireless LAN.
WLAN Green
Off The wireless LAN is not ready or has failed.
Fast
Blinking
The Prestige is sending/receiving non-PPP
data.
Slow
Blinking
The Prestige is initializing the DSL line.
Green
On The system is ready, but is not
sending/receiving non-PPP data.
On The connection to the PPPoE server is up.Amber
Blinking The Prestige is sending/receiving PPP data.
DSL/PPP
Off The DSL link is down.

Prestige 660W/HW Series Compact Guide
8
Figure 3 P660W Front Panel
Refer to the following table for more detailed LED descriptions.
Table 3 P660W Front Panel LED Description
LED COLOR STATUS DESCRIPTION
Green On The Prestige is receiving power.PWR
Off The Prestige is not receiving power.
On The Prestige is functioning properly.Green
Blinking The Prestige is rebooting.
Red On Power to the Prestige is too low.
SYS
Off The system is not ready or has malfunctioned.
On The Prestige is linked successfully to a DSLAM.Green
Blinking The Prestige is initializing the DSL line.
DSL
Off The DSL link is down.

Prestige 660W/HW Series Compact Guide
9
Table 3 P660W Front Panel LED Description
LED COLOR STATUS DESCRIPTION
Green Blinking The Prestige is sending/receiving non-PPP data.
On The Prestige has a PPP (PPPoA or PPPoE)
connection.
Amber
Blinking The Prestige is sending/receiving PPPoA or
PPPoE traffic.
PPP/ACT
Off The system is ready, but is not sending/receiving
data.
On The Prestige is ready, but is not sending/receiving
data through the wireless LAN.
Blinking The Prestige is sending/receiving data through the
wireless LAN.
WLAN Green
Off The wireless LAN is not ready or has failed.
On The Prestige has a successful 10Mb Ethernet
connection.
Green
Blinking The Prestige is sending/receiving data.
On The Prestige has a successful 100Mb Ethernet
connection.
Amber
Blinking The Prestige is sending/receiving data.
10M/100M
Off The LAN is not connected.

Prestige 660W/HW Series Compact Guide
10
3 Internet Access With Zero
Configuration
With the Prestige’s Zero Configuration, you can access the Internet easily.
Simply connect a computer to the Prestige and access the Internet without
changing the network settings (such as the IP address and subnet mask) of the
computer.
Step 1. Make the hardware connections and turn on the Prestige (refer to
the Rear Panel Connections section).
Step 2. Wait until the DSL/ACT LED turns steady on. Launch your web
browser and navigate to a web site (for example, www.zyxel.com).
The Prestige automatically detects and configures your Internet
connection. This may take about two minutes.

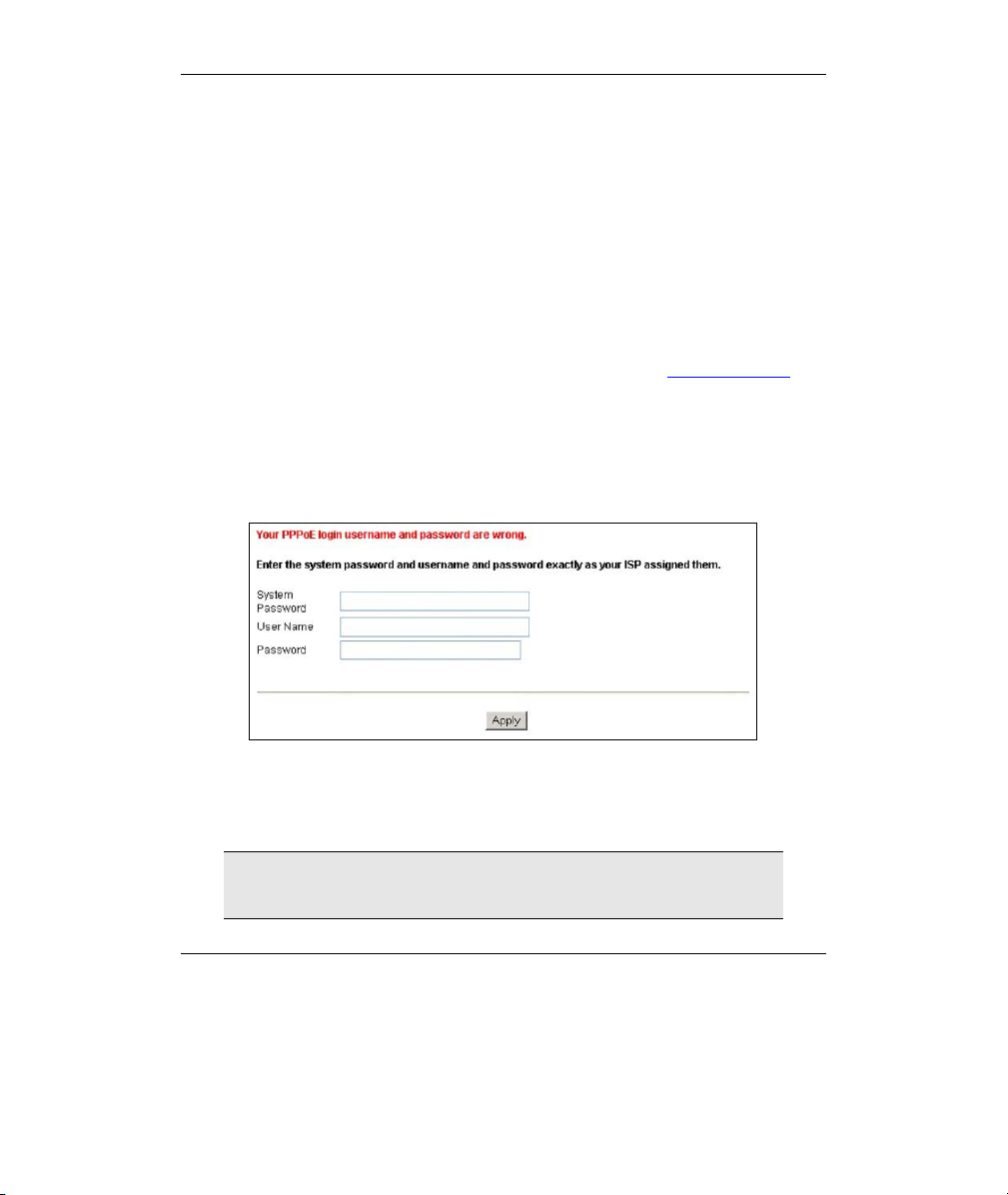

Step 3. If you have a PPPoE or PPPoA connection type, a screen displays
prompting you to enter your Internet account username and/or
password. Enter the username, password and/or service name
exactly as provided by your ISP. Click Apply.
Step 4. You should be able to access the Internet. Otherwise, follow the on-
screen instructions to solve the problem(s). Refer to the rest of this
guide or the User’s Guide to manually configure your Prestige for
Internet connection and other advanced settings.
If an Internet access parameter changes, either change it
manually or restart the device to have the Prestige automatically
reconfigure your Internet connection.

Prestige 660W/HW Series Compact Guide
11
4 Setting Up Your Computer’s IP
Address
Skip this section if your computer is already set up to accept a
dynamic IP address. This is the default for most new computers.
The Prestige is already set up to assign your computer an IP address. Use this section to
set up your computer to receive an IP address or assign it a static IP address in the
192.168.1.2 to 192.168.1.254 range with a subnet mask of 255.255.255.0. This is
necessary to ensure that your computer can communicate with your Prestige.
Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already
be installed on computers using Windows NT/2000/XP, Macintosh OS 7 and later
operating systems.
4.1 Windows 95/98/Me
1. Click Start, Settings, Control Panel and double-click the Network icon to
open the Network window.
2. The Network window Configuration tab displays a list of installed
components. You need a network adapter, the TCP/IP protocol and Client
for Microsoft Networks.

Prestige 660W/HW Series Compact Guide
12
3. In the Network window
Configuration tab, select your
network adapter's TCP/IP entry and
click Properties.
4. Click the IP Address tab.
-If your IP address is dynamic, select
Obtain an IP address automatically.
-If you have a static IP address, select
Specify an IP address and type your
information into the IP Address and
Subnet Mask fields.

Prestige 660W/HW Series Compact Guide
13

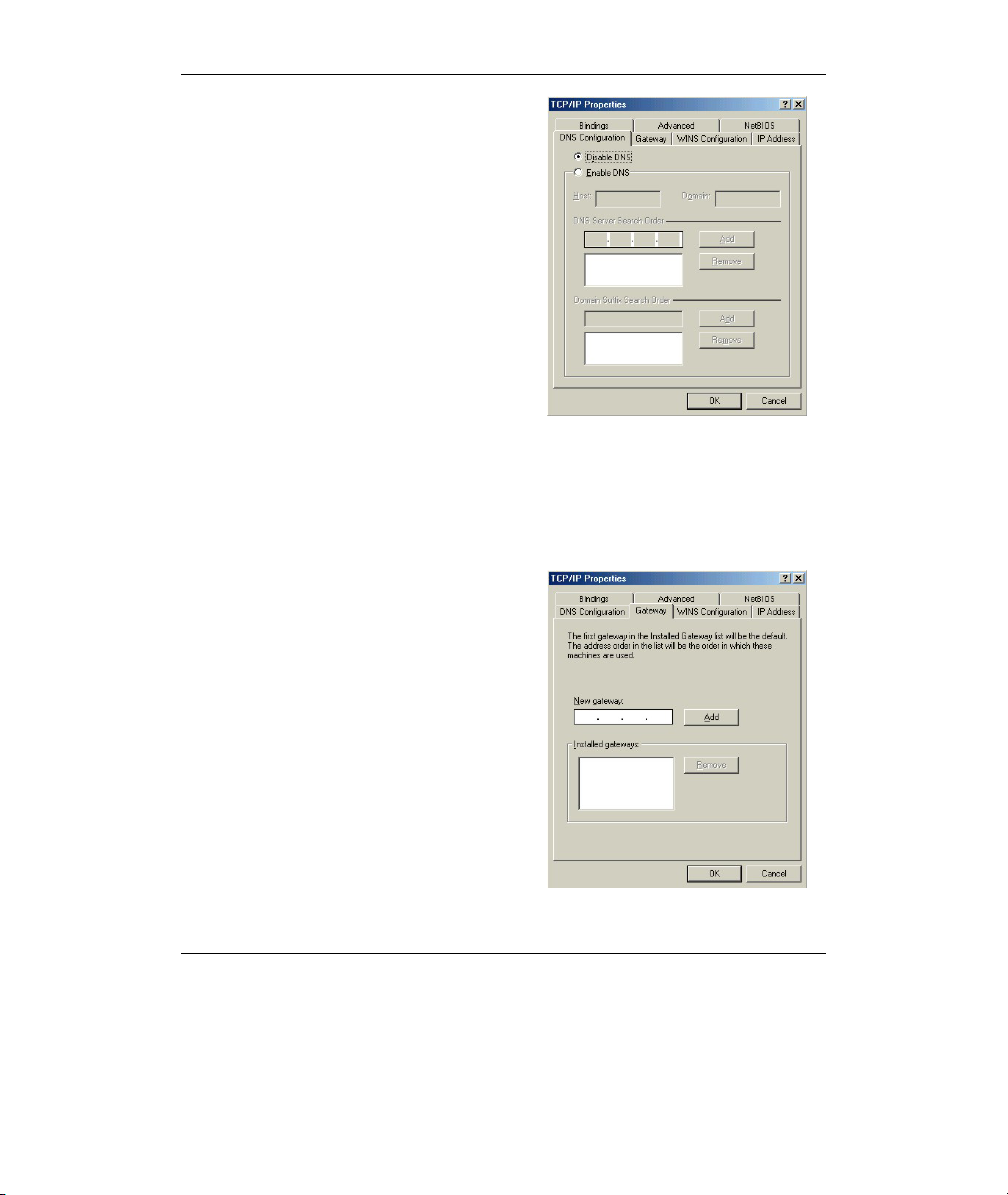

5. Click the DNS Configuration tab.
-If you do not know your DNS
information, select Disable DNS.
-If you know your DNS information, select
Enable DNS and type the information in
the fields below (you may not need to fill
them all in).
6. Click the Gateway tab.
-If you do not know your gateway’s IP
address, remove previously installed
gateways.
-If you have a gateway IP address, type it
in the New gateway field and click Add.
7. Click OK to save and close the TCP/IP Properties window.

Prestige 660W/HW Series Compact Guide
14
8. Click OK to close the Network window. Insert the Windows CD if prompted.
9. Turn on your Prestige and restart your computer when prompted.
Verifying Your Computer’s IP Address
1. Click Start and then Run.
2. In the Run window, type "winipcfg" and then click OK to open the IP
Configuration window.
3. Select your network adapter. You should see your computer's IP address, subnet
mask and default gateway.
4.2 Windows 2000/NT/XP
1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start,
Settings, Control Panel.
2. In Windows XP, click Network Connections.
In Windows 2000/NT, click Network and Dial-up Connections.
3. Right-click Local Area Connection and then click Properties.
4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click
Properties.
5. The Internet Protocol TCP/IP Properties
screen opens (the General tab in
Windows XP).
- To have your computer assigned a
dynamic IP address, click Obtain an IP
address automatically.
If you know your DNS sever IP
address(es), type them in the Preferred
DNS server and/or Alternate DNS
server fields.
-To configure a static IP address, click
Use the following IP Address and fill in
the IP address (choose one
from192.168.1.2 to 192.168.1.254),
Subnet mask (255.255.255.0), and
Default gateway (192.168.1.1) fields.

Prestige 660W/HW Series Compact Guide
15
Then enter your DNS server IP address(es) in the Preferred DNS server and/or
Alternate DNS server fields.
If you have more than two DNS servers, click Advanced, the DNS tab and then
configure them using Add.
6. Click Advanced. Remove any previously
installed gateways in the IP Settings tab
and click OK to go back to the Internet
Protocol TCP/IP Properties screen.
7. Click OK to close the Internet Protocol
(TCP/IP) Properties window.
8. Click OK to close the Local Area
Connection Properties window.
4.3 Checking/Updating Your Computer’s IP Address
1. In the computer, click Start, (All) Programs, Accessories and then Command
Prompt.
2. In the Command Prompt window, type "ipconfig" and then press ENTER to verify
that your computer’s IP address is in the correct range (192.168.1.2 to
192.168.1.254) with subnet mask 255.255.255.0. This is necessary in order to
communicate with the Prestige.
Refer to your User’s Guide for detailed IP address configuration for other Windows and
Macintosh computer operating systems.
4.4 Testing the Connection to the Prestige
1. Click Start, (All) Programs, Accessories and then Command Prompt.
2. In the Command Prompt window, type "ping” followed by a space and the IP
address of the Prestige (192.168.1.1 is the default).
3. Press ENTER and the following screen displays.

Prestige 660W/HW Series Compact Guide
16
Your computer can now communicate with the Prestige using the LAN port.
C:\>ping 192.168.1.1
Pinging 192.168.1.1 with 32 bytes of data:
Reply from 192.168.1.1: bytes=32 time=10ms TTL=254
Reply from 192.168.1.1: bytes=32 time<10ms TTL=254
Reply from 192.168.1.1: bytes=32 time<10ms TTL=254
Reply from 192.168.1.1: bytes=32 time<10ms TTL=254
Ping statistics for 192.168.1.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms
,
Maximum = 10ms
,
Avera
g
e = 2ms

Prestige 660W/HW Series Compact Guide
17
5 Configuring Your Prestige
This Compact Guide shows you how to use the web
configurator only. See your User’s Guide for background
information on all Prestige features and SMT (System
Management Terminal) configuration.
5.1 Accessing Your Prestige Via Web Configurator
Step 1. Launch your web browser. Enter “192.168.1.1” as the web site address.
Figure 4 Entering Prestige LAN IP Address in Internet Explorer
Step 2. An Enter Network Password window displays. Enter the user name
(“admin” is the default), password (“1234” is the default) and click OK.
Figure 5 Web Configurator: Password Screen
Step 3. You should now see the web configurator Site Map screen.
 Click Wizard Setup to begin a series of screens to configure your Prestige for
the first time.
 Click a link under Advanced Setup to configure advanced Prestige features.
Web site address.
Default user name.

Prestige 660W/HW Series Compact Guide
18
 Click a link under Maintenance to see Prestige performance statistics, upload
firmware and back up, restore or upload a configuration file.
 Click Logout in the navigation panel when you have finished a Prestige
management session.
Figure 6 Web Configurator: Site Map Screen
The Prestige automatically times out after five minutes of
inactivity. Simply log back into the Prestige if this happens to
you.
5.2 Common Screen Command Buttons
The following table shows common command buttons found on many web configurator
screens.
Back Click Back to return to the previous screen.
Apply Click Apply to save your changes back to the Prestige.
Reset/Cancel Click Reset or Cancel to begin configuring this screen afresh.
WIZARD
Navigation panel
LOGOUT

Prestige 660W/HW Series Compact Guide
19
5.3 Internet Access Using the Wizard
Use the Wizard Setup screens to configure your system for Internet access settings and
fill in the fields with the information in the Internet Account Information table. Your ISP
may have already configured some of the fields in the wizard screens for you.
Step 1. In the Site Map screen click Wizard Setup to display the first wizard
screen.
Figure 7 Wizard Screen 1
From the Mode drop-down list box, select
Routing (default) if your ISP allows
multiple computers to share an Internet
account. Otherwise select Bridge.
Select the encapsulation type your ISP
uses from the Encapsulation drop-down
list box. Choices vary depending on what
you select in the Mode field.
Select the multiplexing method used by
your ISP from the Multiplex drop-down
list box.
Enter the correct Virtual Path Identifier
(VPI) and Virtual Channel Identifier (VCI)
numbers supplied by your ISP in the VPI
and VCI fields. These fields may already
be configured.
Click Next.
Step 2. The second wizard screen varies depending on what mode and
encapsulation type you use. All screens shown are with routing mode.
Configure the fields and click Next to continue.

Prestige 660W/HW Series Compact Guide
20
Figure 8 Internet Connection with PPPoE
If your ISP provides the name of
your PPPoE service provider,
enter it in the Service Name
field.
Enter the user name and
password exactly as your ISP
assigned them.
Select Obtain an IP Address
Automatically if you have a
dynamic IP address; otherwise
select Static IP Address and
type your ISP assigned IP
address in the text box below.
Select Connect on Demand
when you don't want the
connection up all the time and
specify an idle time-out period (in
seconds) in the Max. Idle
Timeout field.
Select Nailed-Up Connection when you want your connection up all the time. The
Prestige will try to bring up the connection automatically if it is disconnected
From the Network Address Translation drop-down list box, select SUA Only, Full
Feature or None. Refer to the Network Address Translation section for more information.
Figure 9 Internet Connection with RFC 1483
Enter the IP address given by
your ISP in the IP Address field.
The IP Address
field is not
available for
bridge mode.
Refer to Figure 8 for description
of the Network Address
Translation field.
