Prestige 2302RL
VoIP Station Gateway
With Lifeline
Support Notes
Version 3.60
October. 2007

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
2
INDEX
Application Notes.........................................................................................................6
General Application Notes.....................................................................................6
Internet Connection........................................................................................6

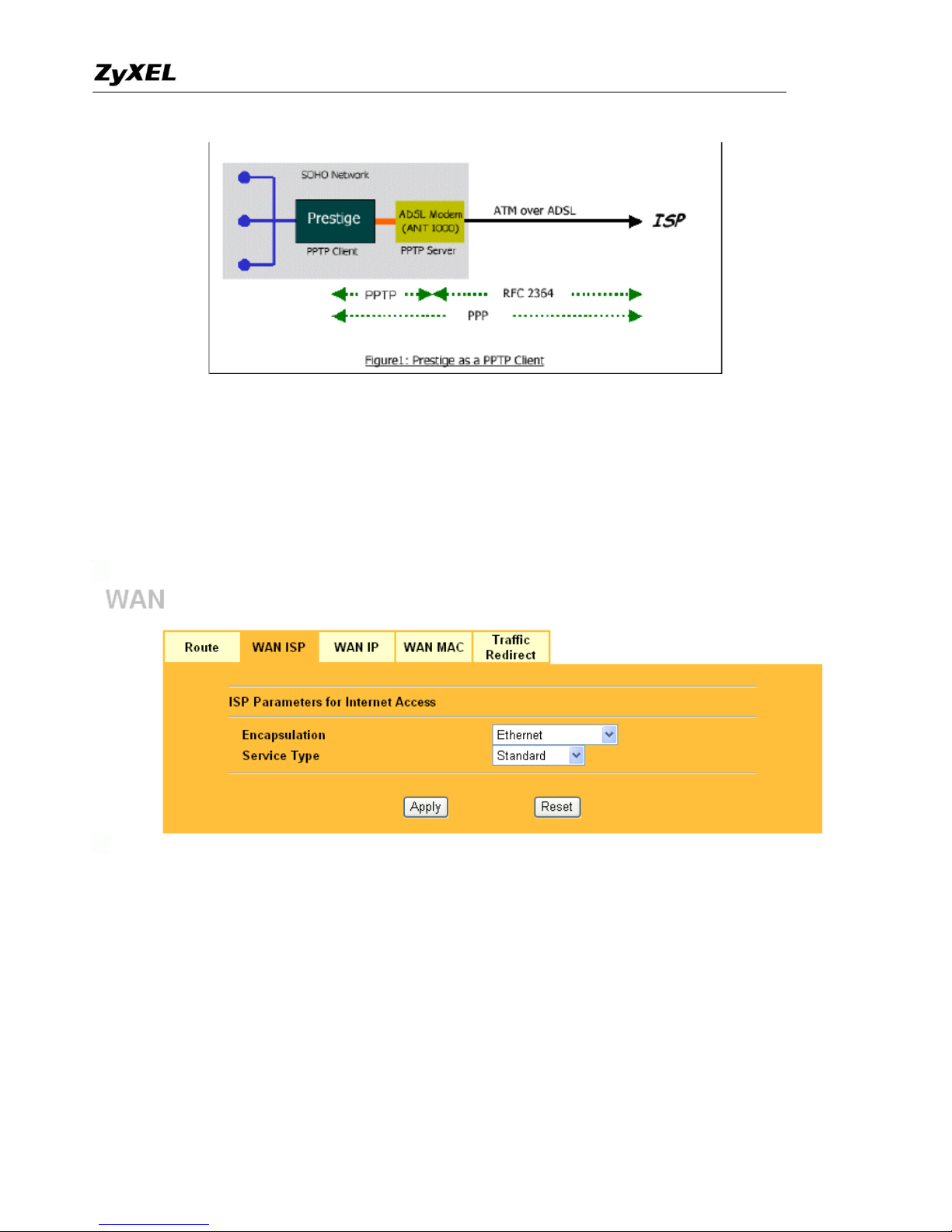

Using PPTP encapsulation on Prestige........................................................11
Setup the Prestige as a DHCP Relay............................................................12
Configure an Internal Server Behind the Prestige .......................................14
Configure a PPTP server Behind SUA ........................................................16
Using NAT / Multi-NAT..............................................................................20
About Filters & Filter Examples..................................................................42
Using Dynamic DNS (DDNS).....................................................................65
Network Management Using SNMP ...........................................................67
Using syslog.................................................................................................74
Using IPAlias ..............................................................................................77
Using Call Scheduling .................................................................................80
Using IP Multicast .......................................................................................84
Using Prestige traffic redirect ......................................................................86
Using Universal Plug n Play (UPnP)...........................................................89
VoIPApplication Notes........................................................................................95
SIP Account Setup.......................................................................................95
Advanced VOIP settings..............................................................................99
Quality of Service (QoS) ...........................................................................104
Phone port settings.....................................................................................106
Voice –Common Settings.........................................................................108
Call Hold setup ..........................................................................................109
Call Waiting setup......................................................................................109
Call Transfer setup.....................................................................................111
Three Way Conference setup.....................................................................114
Call Forwarding.........................................................................................116
Internal Call ...............................................................................................118
MWI...........................................................................................................118
Music on hold ............................................................................................119
Early Media................................................................................................120
Speed dial Phone book setup .....................................................................121
Peer-to-Peer Calls ......................................................................................124
Life Line.....................................................................................................125

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
3
FAQ ...........................................................................................................................126
ZyNOS FAQ ......................................................................................................126
What is ZyNOS?........................................................................................126
How to access the embedded web configurator?.......................................126
What is the default LAN IP address and password? And, how do I change
it?................................................................................................................126
How do I upload the firmware via the web configurator?.........................126
How do I upgrade/back up the firmware using an FTP client program
through the LAN?......................................................................................127
How do I upload or back up the configuration file (the ROM file) via the
web configurator? ......................................................................................127
How do I back up/restore configurations using an FTP client program
through the LAN?......................................................................................128
Why can't I telnet into Prestige from the WAN?.......................................128
What should I do if I forget the system password?....................................128
What is SUA? When should I use SUA?...................................................128
What is the difference between NAT and SUA?.......................................129
How many network users does SUA/NAT support?.................................129
What are Device and Protocol filters?.......................................................129
Why can't I configure device or protocol filters? ......................................129
Product FAQ ......................................................................................................130
What is the Prestige InternetAccess Sharing Router?...............................130
Will the Prestige work with my Internet connection?................................130
What do I need to use the Prestige?...........................................................130
What is PPPoE? .........................................................................................130
Does the Prestige support PPPoE?.............................................................131
How do I know I am using PPPoE?...........................................................131
Why does my provider use PPPoE?...........................................................131
Which InternetApplications can I use with the Prestige? .........................131
How can I configure the Prestige?.............................................................131
What network interface does the Prestige support?...................................131
What can I do with the Prestige? ...............................................................132
Does the Prestige support dynamic IP addressing? ...................................132
What is the difference between the internal IP and the real IP from my ISP?
....................................................................................................................132
How does e-mail work through the Prestige?............................................132
What is the difference between the 'Standard' and 'RoadRunner' service?132

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
4
Is it possible to access a server running behind SUA from the outside
Internet? If possible, how?.........................................................................133
What DHCP capability does the Prestige support?....................................133
How do I use the reset button? And which parameter will be reset by the
reset button?...............................................................................................133
What network interface does the new Prestige series support?.................133
Does the Prestige support TFTP? ..............................................................134
Does the Prestige support TFTP over WAN? ............................................134
How fast is the DSL connection?...............................................................134
My Prestige cannot obtain a WAN IP address from the ISP to connect to
the Internet, what should I do?...................................................................135
What is BOOTP/DHCP?............................................................................137
What is DDNS?..........................................................................................138
When do I need the DDNS service?..........................................................138
What DDNS servers does the Prestige support?........................................138
What is DDNS wildcard?...........................................................................138
Does the Prestige support DDNS wildcard?..............................................138
Can VPN tunnels still work on a Prestige using SUA?.............................139
How do I set up my Prestige to route IPsec packets over SUA?...............139
VoIP FAQ...........................................................................................................139
What is Voice over IP?..............................................................................139
How does Voice over IP work? .................................................................139
Why use VoIP? ..........................................................................................140
In addition, it would take a much longer time, more effort and money to
implement new features using circuit switching. Since the IP technology is
a standard and various applications are available, it is easier and more
cost-effective to integrate new services and applications using IP. ...........140
What is the relationship between codec and VoIP?...................................140
What advantage does Voice over IP provide?...........................................140
What is the difference between H.323 and SIP?........................................140
Can H.323 and SIP interoperate with each other?.....................................140
What is voice quality?................................................................................141
How are voice quality normally rated?......................................................141
What is codec?...........................................................................................141
What is the relationship between codec and VoIP?...................................141
What codec types does Prestige support?..................................................141
Which codec should I choose?...................................................................141

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
5
What do I need in order to use SIP? ..........................................................141
I am unable to register to a SIP server.......................................................142
I can register to the SIP server but cannot establish a call.........................142
I can make or receive a call but the voice traffic only goes one way, not
both way.....................................................................................................142
I have tried all the troubleshooting steps, but still cannot register to the SIP
server. What should I do next? ..................................................................143
What should I do if there may be a hardware problem with my Prestige?143
Trouble Shooting......................................................................................................143
Unable to Get WAN IP from ISP.......................................................................143
Using Embedded Packet Trace ..........................................................................147
Debugging PPPoE Connection..........................................................................161
CLI Command List..................................................................................................172

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
6
Application Notes
General Application Notes
Internet Connection
The following figure shows a typical Internet access application using the Prestige. Before accessing the
Internet in an office environment, you must configure the Prestige as outlined below.
Before you begin
Setting up Your Windows Computer
Setting up the Prestige router
Troubleshooting
Before you begin
The following lists the default settings on the Prestige.
1. IP address = 192.168.1.1, subnet mask = 255.255.255.0 (24 bits)
2. DHCP server enabled with IP pool starting from 192.168.1.33
3. Default SMT menu password = 1234
Setting up your Windows computer(s)
1. Ethernet connection
Your computer(s) must have an Ethernet card installed.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
7
If you have only one computer, connect the computer to the LAN port on the Prestige using a
crossover Ethernet cable (red).
If you have more than one computer, you must use a hub or switch to connect the computers to the
LAN port on the Prestige using a straight-though Ethernet cable.
2. TCP/IP Installation
You must first install TCP/IP software on each computer before you can use it for Internet access. If you have
already installed TCP/IP, go to the next section to configure it; otherwise, follow these steps to install the
software:
In the Control Panel/Network window, click Add button.
In the Select Network Component Type window, select Protocol and click Add.
In the Select Network Protocol window, select Microsoft and then select TCP/IP from the
Network Protocols field and click OK.
3. TCP/IP Configuration
Follow these steps to configure Windows TCP/IP:
In the Control Panel/Network window, select TCP/IP and click Properties.
In the TCP/IP Properties window, select obtain an IPaddress automatically.
Note: Do not assign arbitrary IP address and subnet mask to your computer(s). Otherwise, you will not be able
to access the Internet.
Click the WINS configuration tab and select Disable WINS Resolution.
Click the Gateway tab. Select any installed gateways and click the Remove button until there is
none listed.
Click the DNS Configuration tab and select Disable DNS.
Click OK to save and close the TCP/IP properties window
Click OK to close the Network window. You will be prompted to insert your Windows CD or disk.
When the drivers are updated, you will be asked if you want to restart the computer. Make sure
your Prestige is turned on before clicking Yes. Repeat the above steps for each Windows computer
on your network.
Setting up the Prestige router

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
8
If you have a Single User Account (SUA), follow the procedure to configure the Prestige. You can use a web
browser (such as IE) to access the embedded web server on the Prestige for device management. Before you can
log into the web management interface, make sure that there is no one logging into the Prestige through Telnet
or the console port.
1. Accessing the Prestige Web Management Interface
Open your web browser (such as IE) and enter the LAN IP address of the Prestige in the Address field. The
default LAN IP of the Prestige is 192.168.1.1. Note that you can either enter http://192.168.1.1 or
https://192.168.1.1 (for secure login).
2. First Login
A login screen displays. Enter the password and press Login. The default password is '1234' which is the same
as the one you use to log into the SMT.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
9
3. Use the WIZARD SETUP screens to configure Internet access settings on the Prestige.
The Internet access configuration screen varies depending on the Internet connection type you select. The
following figure shows an example screen for PPPoE connection type.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
10
PPPoE Encapsulation
Label
Description
Encapsulation
Choose PPP over Ethernet from the pull-down list box. PPPoE forms a
dial-up connection.
Service Name
Type the name of your service provider.
User Name
Type the user name given to you by your ISP.
Password
Type the password associated with the user name above.
Nailed-Up
Connection
Select Nailed-Up Connection if you do not want the connection to time
out.
Idle Timeout
Type the time in seconds that elapses before the router automatically
disconnects from the PPPoE server. The default time is 100 seconds.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
11
Back
Click Back to return to the previous screen.
Next
Click Next to continue.
Using PPTP encapsulation on Prestige
What is PPTP Client? 0
Microsoft's Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables the secure transfer of
data from a remote client to a private enterprise server by creating a VPN across TCP/IP network. PPTP
supports on-demand, multi-protocol, virtual private networking over public networks, such as the Internet.
This implementation of PPTP client is specifically for the French market where Alcatel's ANT (ADSL Network
Termination) is deployed. Most, if not all, broadband modems (ADSL and cable modem) are equipped with
Ethernet instead of RS-232 because RS-232 is too slow. It is therefore impossible to use them in the same way
as the traditional analog modem and ISDN TA. A mechanism is needed to transport the PPP frames from a PC
to the broadband modem over Ethernet. Before PPPoE was formalized, Alcatel came up with the idea of
building PPTP into their ANT for this purpose.
Instead of using the Internet to transport PPP frames anywhere in the world as originally envisioned, Alcatel's
solution uses PPTP only over the short haul between the PC and the modem over Ethernet. For the rest of the
connection, the PPP frames are transported with PPP over AAL5 (RFC 2364). The PPP connection, however, is
still between the PC and the ISP.
The various connections in this setup are depicted in the following diagram.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
12
The PPTP client feature means the PPTP connection is initialized by the Prestige, so this connection is
transparent to the PPTP clients on the network. This eliminates the settings of every clients and does not matter
whether the computers on the network are Windows, Macintosh or even UNIX, all that is required is a standard
TCP/IP protocol stack. In fact, users are unaware that they are on a VPN, since the Prestige does all the VPN
work.
Setup the Prestige as a DHCP Relay
What is DHCP Relay?

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
13
DHCP (Dynamic Host Configuration Protocol) allows a network device to obtain IP settings from a server. You
can configure the P-2602 as a DHCP server or DHCP relay.
When the P-2602 is configured as a DHCP server, it assigns IP address to clients on the LAN. When the P-2602
acts as a DHCP relay, it forwards client DHCP requests to the DHCP server and forwards the responds from the
DHCP server to the DHCP clients. The following figure shows an example.
Setup the Prestige as a DHCP Client
1. In SMT menu 3.2, select Relay in the DHCP field and enter the IP address of the DHCP server in the DHCP
Server Address field.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
14
Configure an Internal Server Behind the Prestige
Introduction
SUA makes your LAN appear as a single machine to the outside world. However, you can make a server (such
as a web server, FTP server or mail server) behind the ZyXEL device assessable/visible to the outside world. A

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
15
server behind the ZyXEL device cannot be set to be a DHCP client. That is, the server must use a fixed IP
address so outside users can access the server using the static IP address.
A service is identified by its standard port number. You can allow public access to servers for specified services
based on the port number. In addition, you can also set a default server behind SUA. Thus service requests that
do not match any of the servers are forwarded to the default server. If you do not set a default SUA server, then
the unknown service requests are simply discarded.
Configuration
To make a server visible to the outside world, specify the port number of the service and the inside address of
the server in 'Menu 15.2.1', Multiple Server Configuration. The outside users can access the local server using
the Prestige's WAN IP address which can be obtained from menu 24.1.
For example (Configuring an internal Web server for outside access) :

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
16
The following table lists some common service port numbers.
Service
Port Number
FTP
21
Telnet
23
SMTP
25
DNS (Domain Name Server)
53
www-http (Web)
80
Configure a PPTP server Behind SUA
Introduction
PPTP is a tunneling protocol defined by the PPTP forum that allows PPP packets to be encapsulated within
Internet Protocol (IP) packets and forwarded over any IP network, including the Internet itself.
In order to run the Windows 9x PPTP client, you must be able to establish an IP connection with a tunnel server
such as the Windows NT Server 4.0 Remote Access Server.
Windows Dial-Up Networking uses the Internet standard Point-to-Point (PPP) to provide a secure, optimized
multiple-protocol network connection over dial-up telephone lines. All data sent over this connection can be
encrypted and compressed, and multiple network level protocols (TCP/IP, NetBEUI and IPX) can be run
correctly. Windows NT Domain Login level security is preserved even across the Internet.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
17
Window98 PPTP Client / Internet / NT RAS Server Protocol Stack
PPTP appears as new modem type (Virtual Private Networking Adapter) that can be selected when setting up a
connection in the Dial-Up Networking folder. The VPN Adapter type does not appear elsewhere in the system.
Since PPTP encapsulates its data stream in the PPP protocol, VPN requires a second dial-up adapter. This
second dial-up adapter for VPN is added during the installation phase of the Upgrade in addition to the first
dial-up adapter that provides PPP support for the analog or ISDN modem.
The PPTP is already supported in Windows NT and Windows 98. For Windows 95, a software upgrade with
Dial-Up Networking 1.2 is required.
Configuration
This application note explains how to establish a PPTP connection to a remote private network on the Prestige
with SUA enabled. In ZyNOS, all PPTP packets are forwarded to the internal PPTP Server (Windows NT
server) behind SUA. . You must specify the PPTP port number in SMT menu 15 for the Prestige to forward
the packets to the intended Windows NT server using the private IP address.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
18
Example
The following example shows how to dial to an ISP via the Prestige and then establish a tunnel to a private
network. You need to configure the settings on a PPTP server (such as a Windows NT server), a PPTP client
(Windows 9x) and the Prestige to set up the PPTP application. The following summarizes the setting for the
corresponding PPTP device.
oPPTP server setup (Windows NT)
Create a new VPN service in Control Panel>Network
Create a new PPTP user account
Enable the RAS port
Select a network protocol (such as IPX, TCP/IP or NetBEUI) for the RSA port
Set the Prestige as the Internet gateway
oPPTP client setup (Windows n9x)
In Dial-up Networking, create a secure VPN connection through the Prestige (using
the WAN IP address) and enter the correct user name and password to log into the
Windows NT RAS server.
Set the Prestige that connects to the ISP as the Internet gateway.
oPrestige Setup
Before establishing a VPN connection from the PPTP client (Windows 9x) to the PPTP server
(Windows NT server), you must first connect the Prestige to the ISP for Internet access.
Enter the IP address and the port number(s) of the PPTP server to allow public access to the server
behind the Prestige. The following shows a configuration example.

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
19
After you have set the settings to allow public access to the PPTP server, test the connection from the
PPTP client to the PPTP server. You can use Ping to check that the PPTP client can reach the PPTP
server over the Internet connection. For example, enter ‚ping 203.66.113.2‛ if the WAN IP address
of the Prestige is 203.66.113.2.
Once the connection is up, you can establish a secure VPN connection from the PPTP client to the ISP.
The default gateway is then used to route the traffic between the PPTP client and the server.
However, before you can establish a secure VPN connection from the PPTP client to the PPTP server,
you need to know the WAN IP address of the Prestige with the SUA feature enabled. Depending on
your Internet account type and ISP, the Prestige WAN IP address is either fixed(static) or dynamic
(different each time). You need to enter the WAN IP address of the Prestige in the VPN dial-up
connection screen. You can check the WAN IP address of the Prestige in SMT menu 24.1 or using PNC

Prestige 2302RL Support Notes
All contents copyright (c) 2007 ZyXEL Communications Corporation.
20
Monitor. If the Prestige is using a fixed (static) IP address, you can always use this fixed IP address to
connect to the PPTP server.
The following figure shows an example VPN dial-up screen. The VPN Server field is 140.113.1.225
which is a dynamic IP address assigned to the Prestige by the ISP. Make sure you enter the WAN IP
address of the Prestige correctly; otherwise, the VPN connection will fail. After the VPN connection is
established, you can start using Internet applications (such as on-line games).
Using NAT / Multi-NAT
What is Multi-NAT?
NAT (Network Address Translation-NAT RFC 1631) is the translation of an Internet Protocol address used
within one network to a different IP address known within another network. One network is designated the
inside network and the other is the outside . Typically, a company maps its local inside network addresses to one
or more global outside IP addresses and "unmaps" the global IP addresses on incoming packets back into local
IP addresses. The IP addresses for the NAT can be either fixed or dynamically assigned by the ISP. In addition,
you can designate servers, e.g., a web server and a telnet server, on your local network and make them
accessible to the outside world. If you do not define any servers, NAT offers the additional benefit of firewall
protection. In such case, all incoming connections to your network will be filtered out by the Prestige, thus
preventing intruders from probing your network.
