DMA
ATA
Fiber ONU Gigabit ETH WAN
VDSL2/ADSL2+ WAN
802.11n Wireless
VDSL2 Combo
WAN Gateway
with HPNA3.1
NWD-271N
CO
Data
Video
802.11b/g/n
Phone
Network
Storage
USB HD
for Storage
Printer
IP STB
OLT
DSLAM
IPTV
Home/Office
Internet
Copper
CAT-5
USB
Coaxial
Fiber
/g/n
DSL WAN
HPNA
ETHERNET
ETHERNET
WAN
Power
Reset
USB
VSG1435
802.11n Wireless VDSL2
VSG1435
802.11n Wireless VDSL2 Combo
WAN Gateway with HPNA3.1
System Specifications
VDSL Compliance
s)454' VDSL2 (Profile: Up to 17a support with
100 Mbps/45 Mbps downstream/upstream rate)
s$UALLAtency
s).0values up to 16
s0hyR PHY Level Retransmission Technology
ADSL Compliance
s''DMT,''LIte),'!$3,,
'!$3,compliant, Annex A,L and M
s!$3,Physical connection ATM AAL5 (ATM Adaptation
Layer type 5)
s3UPPOrt multi-protocol over AAL5 (RFC2684/1483)
IEEE 802.11n Compliance
sFrequency: 2.4 GHz
s$ATArate: 300 Mbps
s"ACkward compatible to 802.11b/g
sBITS WEP data encryption
sWPA/WPA2 (Wi-Fi Protected Access) Security
sWPS (Wireless Protected Setup)
sWDS (Wireless Distribution System)
HPNA
s)454'(OME0.!
sCoaxial connector
USB
sFile sharing
sPrint server support
Router
s.AT (includes multi-to-multi NAT)/SUA
sDynamic DNS
s$(#0CLIENTSErver/relay with DHCP option 60
s00PoE, PPPoA
s2)0)2)0))
s)'-0V, v2, v3
s)'-0Proxy, Snooping
s5PnP
Firewall/Security
s3TAteful Packet Inspection (SPI)
sDenial of Service (DoS) Prevention
s-ULTIPLE VPN (IPSec, PPTP) pass-through
sPacket Filtering
s52,keyword blocking
sParental Control
QoS
s3UPPOrts flexible packet classification
s3UPPOrts Tag Processing (802.1p/802.1q, DSCP)
sPriority Queuing and Scheduling
Management
s%MBEDDEDweb configuration
s42, 42remote management
sTR-064 local management
sLogs and statistics
sCommand Line Interpreter (CLI ) via Telnet
Hardware Specifications
sWAN:
- One RJ-11 port for 6$3,!$3,over POTS
- One RJ-45 port for Gigabit Ethernet,
10/100/1000Base-T
sLAN:
- Four RJ-45 ports for Fast Ethernet,10/100Base-T
sWireless LAN: One external 2 dBi antenna and one
internal 2 dBi antenna
sHPNA interface: One coaxial F-connector for HPNA 3.1
sUSB: One type-A USB connector for USB 2.0 host
interface
sWLAN/WPS button: One push button for WLAN on-off
and WPS configuration
sReset: Recessed push button (reset & factory default)
sStatus LED indicators: POWER, ETHERNET, ETHERNET
WAN, USB, HPNA, DSL, INTERNET, WLAN/WPS
sPower input:12 V DC 1.5 A
Physical Specifications
sItem weight: 1.04 lb (471 g)
sItem dimensions:
1.57 (W) x 6.06 (D) x 8.27 (H) inches
(40 (W) x 154 (D) x 210 (H) mm)
sItem and package weight:LBG
sPackage dimensions:
2.6 (W) x 8.86 (D) x 10.63 (H) inches
(66 (W) x 225 (D) x 270 (H) mm)
Environmental Specifications
Operating Environment
sTemperature: 32°F ~ 104°F (0°C ~ 40°C)
sHumidity: 20% ~ 85% RH (non-condensing)
Storage Environment
sTemperature: -4°F ~ 140°F (-20°C ~ 60°C)
sHumidity:^2(NONcondensing)
Certification
EMC
sFCC Part 15 (Class B)
Safety
s5,
Rear Panel
Specifications

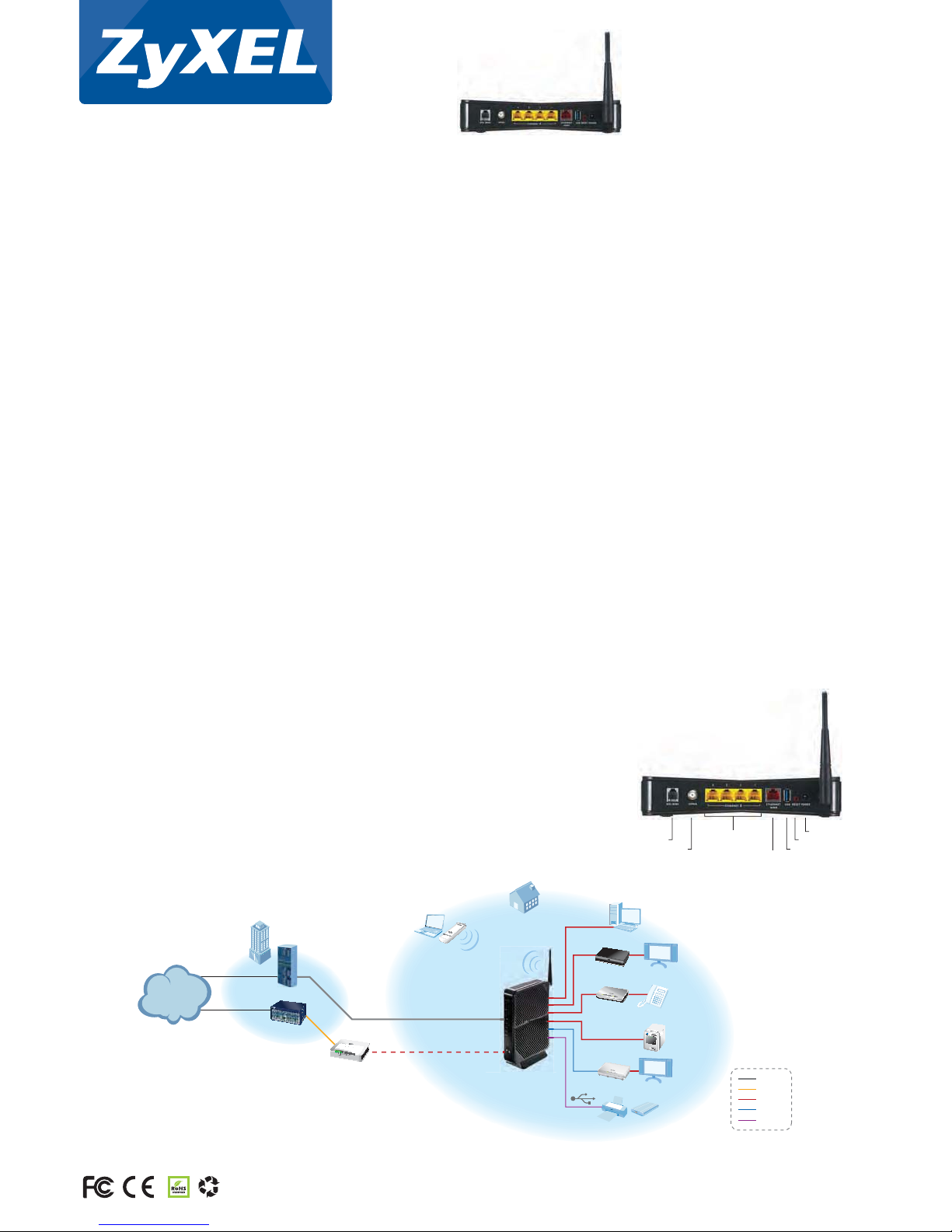

Application Diagram
Quality of Service (QoS)
With IP QoS features in the VSG1435, service providers can freely design QoS policies to ensure smooth delivery of mission-critical services including
IPTV and VoIP. This increases network efficiency, reduces customer churn, and improves satisfaction with enhanced services offered to high-speed
internet access customers.
TR-069 remote management
4HE63'WORKSWITH42STANDARDMANAGEMENTSPECIFICATIONSALLOWINGSERVICEPROVIDERSTOMANAGEANDCONFIGURETHEIRDEVICESREMOTELY
without an end-user’s manual intervention. This feature offers users a truly “Plug and Play” experience, reduces deployment complexity, and saves
service providers’ operational, support, and maintenance costs.
VSG1435
