ZyXEL Communications 2-Slot 10GBase-CX4 10Gigabit Module EM-412 User manual

Copyright © 2008. All rights reserved
EM-412
2-Slot 10GBase-CX4 10Gigabit Module
User’s Guide
Version 1.00
8/2008
Edition 1

EM-412 User’s Guide
2
Overview
The EM-412 is an uplink module with two slots for 10GBase-
CX4. It works up to a distance of 15 meters (49 feet) with the
advantage of having the lowest cost per port of all 10Gb
interconnects. It is designed for use with high-speed
switches, such as the XGS-4528F, XGS-4728F and the 10-
Gigabit Module (MI-7308) of MS-7206. After installing the EM-
412 in a switch, the switch can have 10 Gigabit connections
to a backbone switch or other network devices.
This guide helps you set up and use your EM-412.
This guide contains the following sections:
Section Page Description
Hardware
Installation
3How to install the EM-412 in a switch’s
expansion slot.
Cable
Connectivity
5How to attach a 10GBase-CX4 cable to the
EM-412.
Troubleshooting 7 Some suggestions to solve problems you
might encounter.
Specifications 8 Information about your EM-412’s
specifications.
Safety Warnings 8 Using the EM-412 safely.
Related
Documentation
9Certifications, warranty and customer
support information.

3
EM-412 User’s Guide
1 Hardware Installation
Follow these steps to install the EM-412 in a switch.
"Modules are NOT hot swappable!
1Turn off your switch and unplug all power supply cords
(including any backup power supply cords) from the
switch.
2Loosen the screws from the
cover plate and remove the
cover plate from an
expansion slot on the switch.
Do not discard the cover
plate. You can put the cover
plate back on if you remove
the new module.
"Before you continue, wear an anti-static wrist
strap or touch any grounded or metal objects to
discharge any bodily static electricity.
3Remove the EM-412 from its protective anti-static
packaging. Hold the EM-412 by its edge to avoid touching
the onboard circuit components.

EM-412 User’s Guide
4

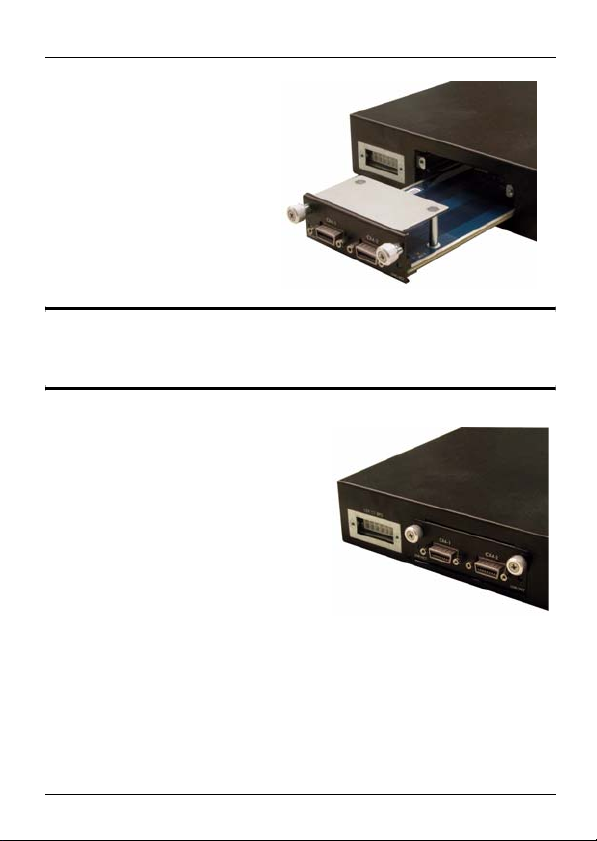

4Insert the EM-412
into an available
expansion slot on the
switch. Press it firmly
until the EM-412
snaps into place.
"Never force, bend or twist the EM-412s into the
expansion slots.
5Secure it to the switch with
the retaining screws.
6Turn on the switch. The switch automatically detects the
installed EM-412. Connect any necessary network cables
to the EM-412 and check the LEDs to verify that it is
functioning properly.

5
EM-412 User’s Guide
2 Cable Connectivity
"Use the correct 10GBase-CX4 cable with the correct
PIN assignment.
The following table lists the components on the main board.
Pin Number Signal Name Pin Number Signal Name
1RX+0 9TX-3
2RX-0 10 TX+3
3RX+1 11 TX-2
4RX-1 12 TX+2
5RX+2 13 TX-1
6RX-2 14 TX+1
7RX+3 15 TX-0
8RX-3 16 TX+0

EM-412 User’s Guide
6
The EM-412 uses a high-speed 10GBase-CX4 cable as
pictured below. The image on the left gives a full view of the
cable. On the right is a close up of the CX4 connector.
Use the following steps to attach the 10GBase-CX4 cable.
1Inject the cable firmly into the 10GBase-CX4 slot until it
clicks into place.
2Tighten the attached screws to avoid poor contact
between the cable and connector.
3The EM-412 automatically detects the cable. Check the
LEDs to verify that it is functioning properly.

7
EM-412 User’s Guide
3 LEDs
The following table describes the LEDs on the EM-412 panel.
4 Troubleshooting
VNone of the lights turn on after I install the EM-
412 and connect it to a network device.
• Make sure the EM-412 is properly installed in a switch.
• Make sure that you are using the correct 10GBase-CX4
cable with the correct PIN assignment.
• Make sure you choose the right length settings in your Ether-
net switch configuration.
• Make sure the power source is turned on.
• If the problem continues, contact your vendor.
LED Color Status Description
LNK/
ACT
Blue On The port is connected to an Ethernet
device.
Blinking The port is transmitting or receiving data.
Off The port is not connected to an Ethernet
device.

EM-412 User’s Guide
8
5 Specifications
Specifications are accurate at the time of writing.
6 Safety Warnings
• For your safety, be sure to read and follow all warning notices and instructions.
• To reduce the risk of fire, use only No. 26 AWG (American Wire Gauge) or
larger telecommunication line cord.
• Do NOT open the device or unit. Opening or removing covers can expose you
to dangerous high voltage points or other risks. ONLY qualified service per-
sonnel can service the device. Please contact your vendor for further informa-
tion.
• Use ONLY the dedicated power supply for your device. Connect the power
cord or power adaptor to the right supply voltage (110V AC in North America
or 230V AC in Europe).
• Do NOT use the device if the power supply is damaged as it might cause elec-
trocution.
• If the power supply is damaged, remove it from the power outlet.
• Do NOT attempt to repair the power supply. Contact your local vendor to order
a new power supply.
• Place connecting cables carefully so that no one will step on them or stumble
Feature Specification
Dimensions (mm) 80 (Wide) x 163 (Deep) x 28 (High)
Weight 152.4 g
Operating
Environment
Temperature: 0º C ~ 45º C
Humidity: 10% ~ 90% RH
Storage
Environment
Temperature: -10º C ~ 70º C
Humidity: 10% ~ 90% RH
Power Supply Use main board 3.3 V
10 Gigabit
Ethernet Interface
• Compliant with IEEE 802.3ak
Approvals FCC Part 15 of Class A & CE

9
EM-412 User’s Guide
over them. Do NOT allow anything to rest on the power cord and do NOT
locate the product where anyone can walk on the power cord.
• Do NOT install nor use your device during a thunderstorm. There may be a
remote risk of electric shock from lightning.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT use this product near water, for example, in a wet basement or near a
swimming pool.
• Make sure to connect the cables to the correct ports.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm
your device.
• Do NOT store things on the device.
• Connect ONLY suitable accessories to the device.
• Do not use the device outside, and make sure all the connections are indoors.
There may be a remote risk of electric shock from lightning.
7 Related Documentation
Please go to http://www.zyxel.com for product news, firmware, documentation,
and other support materials.
