ZyXEL Communications GS-1124B User manual

www.zyxel.com
USER’S GUIDE
GS-1124B
Unmanagement 24-port
Gigabit Ethernet Switch
Edition 1, 1/2009
Copyright 2009 ZyXEL Communications Corporation
C

2

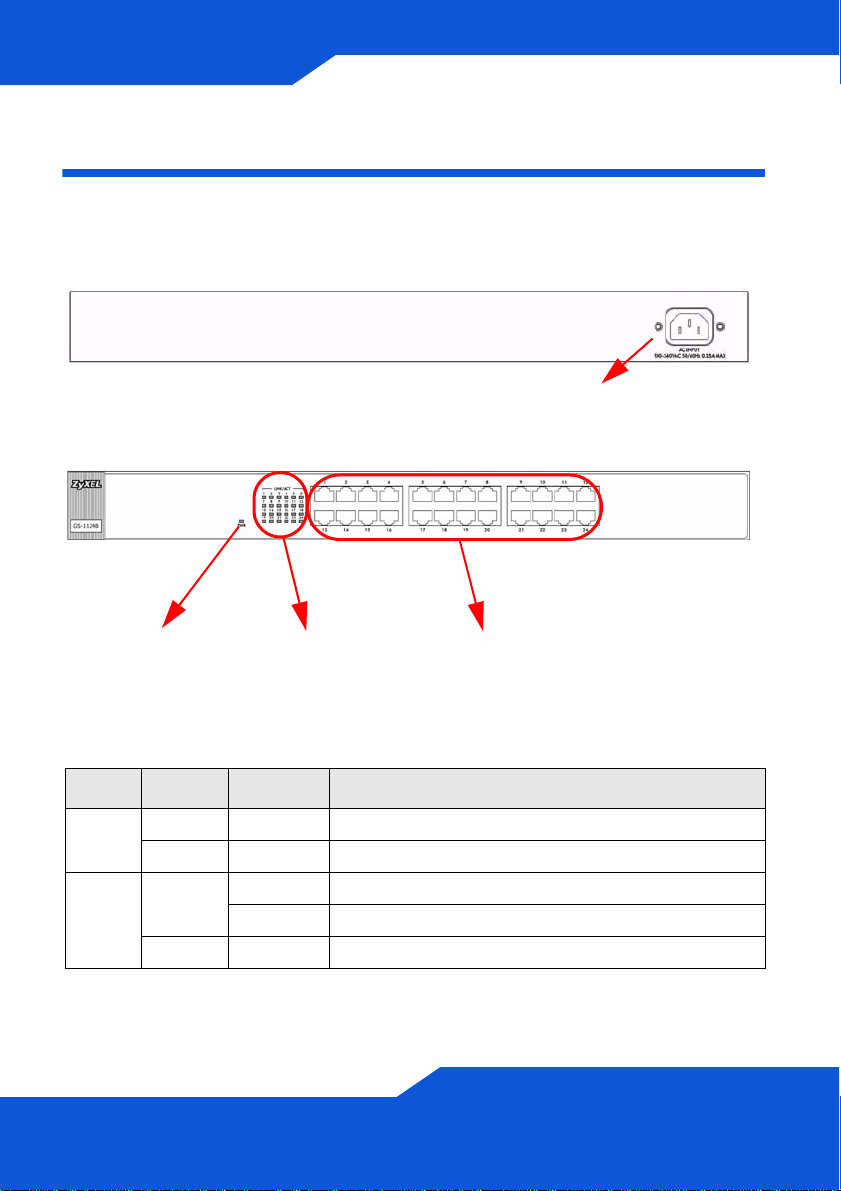

Front and Rear Panels
PWR LED Ethernet Port LEDs Ethernet Ports 1~24
Power (AC INPUT)
The LED definitions are described in the following table.
LED COLOR STATUS DESCRIPTION
PWR Green On The switch is on and receiving power.
Off The switch is not receiving power.
LINK/
ACT Green On The port is connected to an Ethernet network.
Blinking The port is receiving or transmitting data.
Off The port is not connected to an Ethernet network.

3
Introduction
The switch is a multi-port switch that can be used to build high-
performance switched workgroup networks. The switch is a store-and-
forward device that offers low latency for high-speed networking. The
switch is designed for workgroups, departments or backbone computing
environments for SME (small, medium enterprise) businesses.
Use the switch to bridge your network devices.
Overview
• Package Contents, on page 3
• Applications, on page 4
• Specifications, on page 6
• Safety Warnings, on page 7
• Legal Information, on page 8
• Customer Support, on page 10
Package Contents
Compare the contents of your package with the checklist below. If any
item is missing or damaged, please contact your local dealer.
• An Ethernet switch
• AC power cord
• Quick Start Guide
• Support Disc for support documents.

4
• Four self-adhesive rubber feet and screws
• Rack mount brackets
• Warranty card
Applications
This section provides two network topology examples in which the switch
is used.
Standalone Workgroup
In this application, the switch is an ideal solution for small networks
where rapid growth can be expected in the near future.
The switch can be used standalone for a group of heavy traffic users.
You can connect computers directly to the switch’s port or connect other
switches to the switch.
In this example, all computers can share high-speed applications on the
server. To expand the network, simply add more networking devices
such as switches, routers, computers, print servers etc.

5
Bridging
With its large address table and high performance, the switch is an ideal
solution for department networks to connect to the corporate backbone
or for connecting network segments.
The following figure depicts a typical segment bridge application of the
switch in an enterprise environment. The two networks (RD and Sales),
the standalone server and the computers can all communicate with each
other and share all network resources.

6
Specifications
Product specifications are accurate at the time of writing.
Feature Specification
Device Dimensions (mm) 441 (Wide) x 130 (Deep) x 44 (High)
19’’ rack mountable
Device Weight 1.737 kg
Interface 24 1000 Base-T RJ-45 Ethernet ports:
Auto-MDIX
10/100/1000Mbps auto-sensing
Compliant with IEEE 802.3/3u
Back pressure flow control for half duplex
Power Supply Input: 100 ~ 240 V AC 50/60 Hz
Operation Temperature 0º C ~ 40º C
Humidity 10 ~ 90% (non-condensing)
LED and Switch Power (green): Light on & off: Power on or off
1000Base-T Ethernet ports
1000M(green):
− Light off: port is not connected at 1000M
− Light on: port connects at 1000M
LNK/ACT: green LED
− Light off: port disconnected
− Light on: port connects at 10M or 100M or 1000M
− Blinking: activity
Packet forwarding rate 148800 PPS for 100BASE-TX
1488000 PPS for 1000BASE-T

7
Safety Warnings
For your safety, be sure to read and follow all warning notices
and instructions.
• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from
lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage
points or other risks. ONLY qualified service personnel should service or disassemble this device. Please con-
tact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device.
• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or
230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can
walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
• If the power adaptor or cord is damaged, remove it from the power outlet.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.
Layer 2 features Switching fabric: 48 Gbps
Memory buffer: 500 KB
Support frame size: 1522 bytes
MAC table: Up to 8000 MAC addresses
Jumbo frame size support: Up to 9 KB
Standard IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control and Back-pressure
IEEE 802.1p Class of Service
Safety EN 60950-1
EMC FCC Part15 (Class A)
CE EMC (Class A)
Feature Specification

8
• Do NOT remove the plug and plug into a wall outlet by itself; always attach the plug to the power supply first
before you insert it into the wall.
• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of elec-
tric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
This product is recyclable. Dispose of it properly.
Legal Information
Certifications
Federal Communications Commission (FCC) Interference Statement
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired opera-
tions.
FCC Warning
This device has been tested and found to comply with the limits for a Class A digital switch, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a commercial environment. This device generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this device in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
CE Mark Warning:
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning:
Notices
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

9
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or
workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon
proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials,
ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either
parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper
operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product
of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the
product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal
working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This
warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability
or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential
damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the
region in which you bought the device at http://www.zyxel.com/web/support_warranty_info.php.
Related Documentation
Please go to http://www.zyxel.com for product news, firmware, documentation, and other support materials.
Registration
Register your product online to receive e-mail notices of firmware upgrades and information at
www.zyxel.com.
User Guide Feedback
Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to
[email protected] or send regular mail to The Technical Writing Team, ZyXEL Communications
Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.
Copyright
Copyright © 2009 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a
retrieval system, translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written
permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any products, or software
described herein. Neither does it convey any license under its patent rights nor the patent rights of others.
ZyXEL further reserves the right to make changes in any products described herein without notice. This
publication is subject to change without notice.
Trademarks
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories.
Other trademarks mentioned in this publication are used for identification purposes only and may be
properties of their respective owners.

10
Customer Support
In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you
cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device.
Regional offices are listed below (see also http://www.zyxel.com/web/contact_us.php). Please have the
following information ready when you contact an office.
Required Information
• Product model and serial number.
• Warranty Information.
• Date that you received your device.
• Brief description of the problem and the steps you took to solve it.
"+" is the (prefix) number you dial to make an international telephone call.
Corporate Headquarters (Worldwide)
• Support E-mail: sup[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.com
• Regular Mail: ZyXEL Communications Corp., 6 Innovation Road II, Science Park, Hsinchu 300, Taiwan
China - ZyXEL Communications (Beijing) Corp.
• Support E-mail: [e-mail]
• Sales Email: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Address: 902, Unit B, Horizon Building, No.6, Zhichun Str, Haidian District, Beijing
• Web: http://www.zyxel.cn
China - ZyXEL Communications (Shanghai) Corp.
• Support E-mail: [e-mail]
• Sales Email: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Address: 1005F, ShengGao International Tower, No.137 XianXia Rd, Shanghai
• Web: http://www.zyxel.cn
Costa Rica
• Support E-mail: sop[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.co.cr
• Regular Mail: ZyXEL Costa Rica, Plaza Roble Escazu, Etapa El Patio, Tercer Piso, San Jose, Costa Rica
Czech Republic
• E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.cz
• Regular Mail: ZyXEL Communications, Czech s.r.o., Modranska 621, 143 01 Praha 4 - Modrany, Ceska
Republika
Denmark
• Support E-mail: sup[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]

11
• Web: www.zyxel.dk
• Regular Mail: ZyXEL Communications A/S, Columbusvej, 2860 Soeborg, Denmark
Finland
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.fi
• Regular Mail: ZyXEL Communications Oy, Malminkaari 10, 00700 Helsinki, Finland
France
• E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.fr
• Regular Mail: ZyXEL France, 1 rue des Vergers, Bat. 1 / C, 69760 Limonest, France
Germany
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.de
• Regular Mail: ZyXEL Deutschland GmbH., Adenauerstr. 20/A2 D-52146, Wuerselen, Germany
Hungary
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.hu
• Regular Mail: ZyXEL Hungary, 48, Zoldlomb Str., H-1025, Budapest, Hungary
India
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone] to [phone]
• Fax: [phone]
• Web: http://www.zyxel.in
• Regular Mail: India - ZyXEL Technology India Pvt Ltd., II-Floor, F2/9 Okhla Phase -1, New Delhi 110020, India
Japan
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.co.jp
• Regular Mail: ZyXEL Japan, 3F, Office T&U, 1-10-10 Higashi-Gotanda, Shinagawa-ku, Tokyo 141-0022,
Japan
Kazakhstan
• Support: http://zyxel.kz/support
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.kz
• Regular Mail: ZyXEL Kazakhstan, 43 Dostyk Ave., Office 414, Dostyk Business Centre, 050010 Almaty,
Republic of Kazakhstan
Malaysia
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]

12
• Telephone: [phone]
• Fax: [phone]
• Web: http://www.zyxel.com.my
• Regular Mail: ZyXEL Malaysia Sdn Bhd., 1-02 & 1-03, Jalan Kenari 17F, Bandar Puchong Jaya, 47100
Puchong, Selangor Darul Ehsan, Malaysia
North America
• Support E-mail: sup[email protected]
• Support Telephone: [phone]
• Sales E-mail: [email protected]
• Sales Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.com
• Regular Mail: ZyXEL Communications Inc., 1130 N. Miller St., Anaheim, CA 92806-2001, U.S.A.
Norway
• Support E-mail: sup[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.no
• Regular Mail: ZyXEL Communications A/S, Nils Hansens vei 13, 0667 Oslo, Norway
Poland
• E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.pl.zyxel.com
• Regular Mail: ZyXEL Communications, ul. Okrzei 1A, 03-715 Warszawa, Poland
Russia
• Support: http://zyxel.ru/support
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.ru
• Regular Mail: ZyXEL Russia, Ostrovityanova 37a Str., Moscow 117279, Russia
Singapore
• Support E-mail: sup[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: http://www.zyxel.com.sg
• Regular Mail: ZyXEL Singapore Pte Ltd., No. 2 International Business Park, The Strategy #03-28, Singapore
609930
Spain
• Support E-mail: sup[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.es
• Regular Mail: ZyXEL Communications, Arte, 21 5? planta, 28033 Madrid, Spain
Sweden
• Support E-mail: sup[email protected]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.zyxel.se
• Regular Mail: ZyXEL Communications A/S, Sjoporten 4, 41764 Goteborg, Sweden

13
Taiwan
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: http://www.zyxel.com.tw
• Address: Room B, 21F., No.333, Sec. 2, Dunhua S. Rd., Da-an District, Taipei
Thailand
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: http://www.zyxel.co.th
• Regular Mail: ZyXEL Thailand Co., Ltd., 1/1 Moo 2, Ratchaphruk Road, Bangrak-Noi, Muang, Nonthaburi
11000, Thailand.
Turkey
• Support E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: http:www.zyxel.com.tr
• Address: Kaptanpasa Mahallesi Piyalepasa Bulvari Ortadogu Plaza N:14/13 K:6 Okmeydani/Sisli Istanbul/
Turkey
Ukraine
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone]
• Fax: [phone]
• Web: www.ua.zyxel.com
• Regular Mail: ZyXEL Ukraine, 13, Pimonenko Str., Kiev 04050, Ukraine
United Kingdom
• Support E-mail: [e-mail]
• Sales E-mail: [email protected]
• Telephone: [phone] (UK only)
• Fax: [phone]
• Web: www.zyxel.co.uk
• Regular Mail: ZyXEL Communications UK Ltd., 11 The Courtyard, Eastern Road, Bracknell, Berkshire RG12
2XB, United Kingdom (UK)
How to View a Product’s Certification(s)
1Go to www.zyxel.com.
2Select your product from the drop-down list box on the ZyXEL home
page to go to that product's page.
3Select the certification you wish to view from this page.
