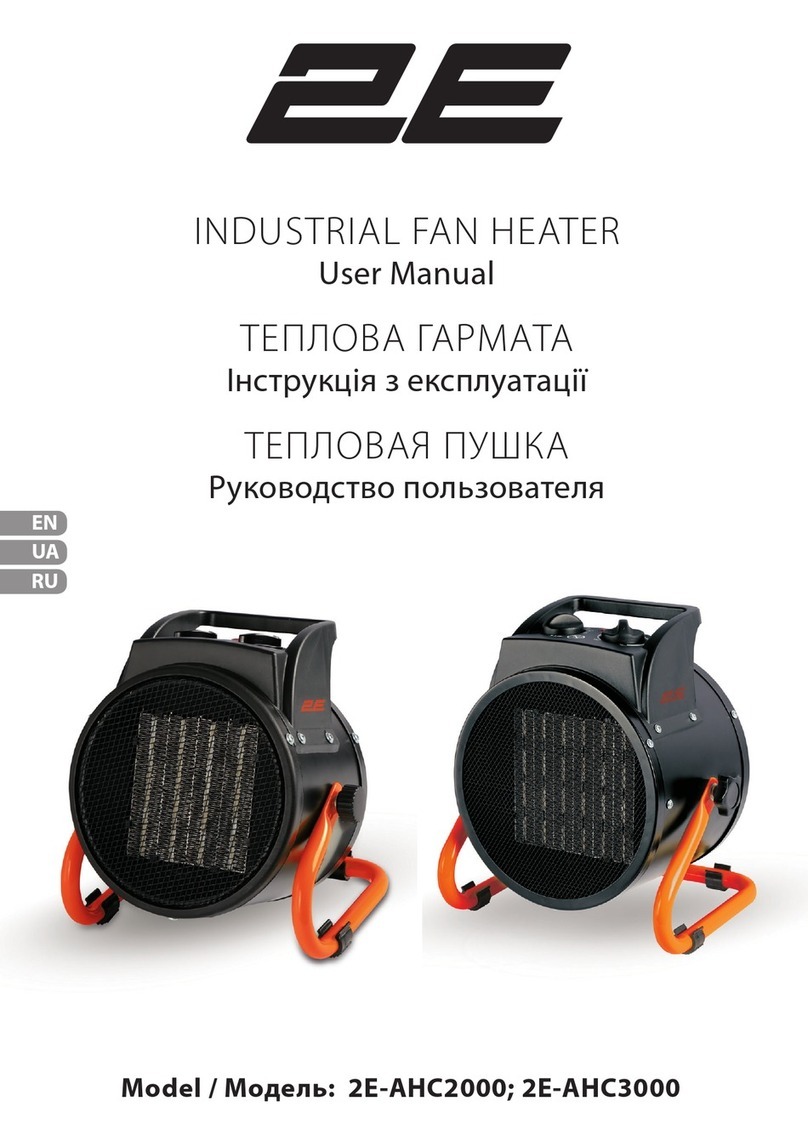

2E 2E-AHT2000 User manual

INDUSTRIAL FAN HEATER
User Manual
ТЕПЛОВА ГАРМАТА
Інструкція з експлуатації
ТЕПЛОВАЯ ПУШКА
Руководство пользователя
Model / Модель: 2E-AHT2000; 2E-AHT3000
EN
RU
UA

EN
2
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place
instructions in a safe place for future reference. Do not allow anyone who has not
read these instructions to assemble, light, adjust or operate the heater.
This product is only suitable for well insulated spaces or occasional use.
All indicators of the heating area are valid only under the condition of sucient
thermal insulation of the room where the heat gun will be used.
WARNING
1.1 This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Children should not play with the
device. Cleaning and maintenance by the consumer should
not be carried out by children without supervision.
1.2 WARNING: To prevent overheating, it is forbidden to
cover the heater!
1.3 Children under the age of 3 should be kept as far away
from the devices as possible if they are not constantly
monitored.
1.4 Children aged 3 to 8 years can only turn the appliance
on/o, provided that the appliance is placed/installed in
the normal operating position provided for it. In addition,
children should be provided with appropriate supervision
or instructions for the safe use of the appliance, and they are
aware of the risks of danger that may arise when using the
appliance. Children aged 3 to 8 years should not connect the
appliance to the power supply network (plug socket), adjust
and clean the appliance or perform maintenance work carried
out by the user.
1.5 CAUTION! Some parts of this product can be very hot and
cause burns. Particular attention should be paid to where
children and vulnerable people are.

EN
2 3
2. Special safety regulations
2.1 Check the integrity of the product before use.
2.2 When using electrical appliance basic precautions
should always be followed including below:
2.2.1 The fan heater is not suitable for use outdoors in
damp weather, in bathrooms or in other wet or damp
environments.
2.2.2 Please note that the fan heater can become very hot and
should, therefore, be placed at a safe distance from ammable
objects such as furniture, curtains and similar.
2.2.3 Do not cover the fan heater.
2.2.4 The fan heater must not be located immediately
below a socket outlet.
2.2.5 Do not connect the fan heater using an on/off timer
or other equipment which can automatically switch the
device on.
2.2.6 The fan heater must not be placed in rooms where
flammable liquids or gases are used or stored.
2.2.7 If an extension cord is used, it must be as short as possible
and always be fully extended.
2.2.8 You must not connect other appliances to the same mains
socket as the fan heater.
2.2.9 Do not use this fan heater in the immediate
surroundings of a bath, a shower or a swimming pool.
2.2.10 If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
2.2.11 Make sure heater is always under surveillance and
keep children and animals away from it.
2.2.12 Do not place the appliance on moving vehicles or
some where easy to be tipped over.
2.2.13 When you don’t use the appliance for a long
time, unplug the appliance. Don’t leave the heater for a
considerable amount of time when in use. Pull the plug

EN
4
straight out, never remove the plug by pulling on the cord.
2.2.14 Keep the heater far from curtain or places where the
air inlet can easily be blocked.
2.2.15 The power coupler is waterproof when not in use. In
order to prevent possible electric shock or leakage current
,never use the appliance with wet hand or operate the
appliance when there is water on the power cord.
2.2.16 Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities. Contact
you local government for information regarding the
collection systems available. If electrical appliance are
disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain,
damaging your health and well-being.
3. Introduction
3.1 It incorporates a thermostat and a self-resetting
thermal cut-out to control the heating elements. The
thermostat feels the air temperature and controls the
surrounding temperature. The fan motor is controlled by
thermostat and it stop working when the thermostat cuts
off the heating element for 2E-AHT2000 and 2E-AHT3000.
The self-resetting thermal cut-out will switch off the
heater to ensure the safety when overheating. There is
an additional thermostat to control the fan motor. If the
temperature inside heater is high, the thermostat will also
turn on the fan heater despite that the heater is turned o. For
example, after operation, when the heater is turn o, the fan
motor will still operate to cool down the temperature inside.
3.2 When using the heater for the first time, you may notice
a slight emission of smoke. This is quite normal and it stops
after a short time. The heating element is made of stainless
steel and was coated with protection oil by production. The
smoke is caused by the left oil when heated.

EN
4 5
5. Description of Control Panel
5.1 Left Knob: selector with heat setting
5.2 Right Knob: Thermostat dial
2
depending. It incorporates a thermostat and a self-resetting thermal cut-out to
control the heating elements. The thermostat feels the air temperature and
controls the surrounding temperature. The fan motor is controlled by
thermostat and it stops when the thermostat cuts off the heating element. The
self-resetting thermal cut-out will switch off the heater to ensure the safety
when overheating.
3. Technical specifications
Model
2E-AHC2000
2E-AHC3000
Voltage
220-240 V~
220-240 V~
required power
2000 W
3000 W
Frequency
50 Hz
50 Hz
current
8.3-9.1 A
12.5-13.6A
Setting
1000-2000 W
1500-3000 W
Self-resetting Thermostat
68° C
85° C
Heating area
20 m2
30 m2
Air output
197 m3/h
280 m3/h
Product meas (mm)
210x160x217
265x210x290
N.W.(KG)
1.55
2.85
3.1 Housing of steel plate and coated by heat-resistant powder.
3.2 Supplied complete with cord and plug.
4. Description of Control Panel
4.1 Left Knob: selector with heat setting
4.2 Right Knob: Thermostat dial
5. Special safety regulations
5.1 Before use, please check the marking on the power cord. Depending on
the power cord type this appliance may be used in different ambient
conditions:
2E-AHC2000
2E-AHC3000
2E-AHT2000 2E-AHT3000
4.1 Housing of steel plate and coated by heat-resistant powder.
4.2 Supplied with the instruction manual.
Model 2E-AHT2000 2E-AHT3000
Voltage 220-240 V~ 220-240 V~
required power 2000 W 3000 W
Frequency 50 Hz 50 Hz
current 8.3-9.1 A 12.5-13.6A
Setting 40-2000 W 40-1500-3000 W
Self-resetting Thermostat 45 °C 55 °C
Heating area 20 m230 m2
Air output 239 m3/h 286 m3/h
Product meas 230x220x290 mm 245x240x310 mm
N.W. 3.0 Kg 3.4 Kg
4. Technical specifications

EN
6
6. Using Instructions
6.1 Position the fan heater so that it stands upright on a firm surface and at a safe
distance from wet environments and flammable objects.
6.2 Connect the fan heater to the mains.
6.3 Set the thermostat knob to the MAX and let the heater operate with full power.
6.4 The fan heater will switch on when the heating selector is set to one of the
power settings.
6.5 Once the room reaches the required temperature, heating element will stop
working.Once the temperature decreased, the heating element will be working.
The fan heater now starts and stops automatically and thus keeps the room
temperature constant.
6.6 Before switch off the heater, please turn the thermostat to MIN position and
turn the switch to fan position, let the appliance cool down for two minutes then
turn off the heater and pull out the plug.
7. Cleaning and Maintenance
7.1 Before cleaning the appliance,disconnect it from the
socket and let it cool down. The enclosure is easily to get
dirty, wipe it often with soft sponge. For every dirty parts,
wipe with a sponge dipped in < 50 °C water and mild
detergent,then dry the heater enclosure with clean cloth. Be
careful not to let the water enter the appliance inner. Don’t
splash water onto the heater,never use solvent like gasoline
etc. to clean the heater,in order to protect the enclosure.
7.2 Clean the cord and plug,dry and pack it in a plastic bag.
7.3 When you store the heater, let it cool down rst, keep it
dry. Then cover it with a plastic bag, put in a packing box and
store it in a dry, ventilated place.

EN
6 7
8. Trouble shooting
You can solve many common problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before
calling the service center.
Problem Possible cause Treatment
The heater does not
operate,even when it is
plugged in and the switch,
thermostat are switched on .
The plug is loose, bad
connection
Pull out the plug, check the
connection of the plug and
socket. Then connect again.
No power in socket outlet Insert the plug in a proper
socket
The heating element glowing
The input voltage is too high
or too low
Use power supply according
to the rating on the label
The air inlet grill is blocked
Keep the heater far way from
articles like curtain, plastic
bag, paper and other things
which can cover the inlet or
can be easily cover on the air
inlet
The appliance didn’t heat up,
or only ventilator worked
The switch was not put at
heating setting
Turn the switch to heat
setting
The thermostat operated
Turn the thermostat and
listen if there is open/close
voice. If there is no click
and the thermostat is not
damaged, the heater will
automatic switch on when
the appliance cooled down
Manual reset cut-out
operated
Turn the heater o and
inspect the blockage of inlet
or outlet. Disconnect the
plug and wait at least 10
minutes for the protection
system to reset before
attempting to restart the
heater.
Abnormal noise The appliance is not stands
upright
Put the heater on a level
surface

EN
8
Model identifier(s): 2E-AHT2000
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output Pnom 2 kW Manual heat charge control with integrated thermostat [no]
Minimum
heat output
(indicative)
Pmin – kW
Manual heat charge control with
room and/or outdoor temperature
feedback
[no]
Maximum
continuous
heat output
Pmax 2 kW
Electronic heat charge control with
room and/or outdoor temperature
feedback
[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal
heat output elmax N/A kW Type of heat output/room temperature control (select one)
At minimum
heat output elmin N/A kW Single stage heat output and no room temperature control [no]
In standby
mode elSB N/A W Two or more manual stages, no room temperature control [no]
With mechanic thermostat room
temperature control [yes]
With electronic room temperature
control [no]
Electronic room temperature control
plus day timer [no]
Electronic room temperature control
plus week timer [no]
Other control options (multiple selections possible)
Room temperature control, with
presence detection [no]
Room temperature control, with
open window detection [no]
With distance control option [no]
With adaptive start control [no]
With working time limitation [no]
With black bulb sensor [no]
Remark:
For electric local space heaters, the measured seasonal space heating energy eciency ηs
cannot be worse than the declared value at the nominal heat output of the unit.

EN
8 9
Model identifier(s): 2E-AHT3000
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output Pnom 3 kW Manual heat charge control with integrated thermostat [no]
Minimum
heat output
(indicative)
Pmin 1.5 kW
Manual heat charge control with
room and/or outdoor temperature
feedback
[no]
Maximum
continuous
heat output
Pmax 3 kW
Electronic heat charge control with
room and/or outdoor temperature
feedback
[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal
heat output elmax N/A kW Type of heat output/room temperature control (select one)
At minimum
heat output elmin N/A kW Single stage heat output and no room temperature control [no]
In standby
mode elSB N/A W Two or more manual stages, no room temperature control [no]
With mechanic thermostat room
temperature control [yes]
With electronic room temperature
control [no]
Electronic room temperature control
plus day timer [no]
Electronic room temperature control
plus week timer [no]
Other control options (multiple selections possible)
Room temperature control, with
presence detection [no]
Room temperature control, with
open window detection [no]
With distance control option [no]
With adaptive start control [no]
With working time limitation [no]
With black bulb sensor [no]
Remark:
For electric local space heaters, the measured seasonal space heating energy eciency ηs
cannot be worse than the declared value at the nominal heat output of the unit.

10
EN
10
Disposal
Environmental Protection
Waste electrical production should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
