3M™SCP700 Series Mobile Stand
Assembly/Installation Guide
3M Mobile Interactive Solutions Division
Model 78-6969-9999-0
9532-999-013-03 78-6971-1445-8 Rev. C

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
2© 3M 2010. All Rights Reserved.
Contact 3M Mobile Interactive Solutions Division with any questions -
Phone: [phone]
www.mmm.com/meetings
Table of Contents
Important Notice ................................................................................................................. 3
Warranty; Limited Remedy; Limited Liability ................................................................... 3
Safety Information .............................................................................................................. 4
Parts List ............................................................................................................................. 6
Installation Tools................................................................................................................. 6
Preface................................................................................................................................. 7
Caster Wheel Installation.................................................................................................... 8
Gas Shock Installation ........................................................................................................ 8

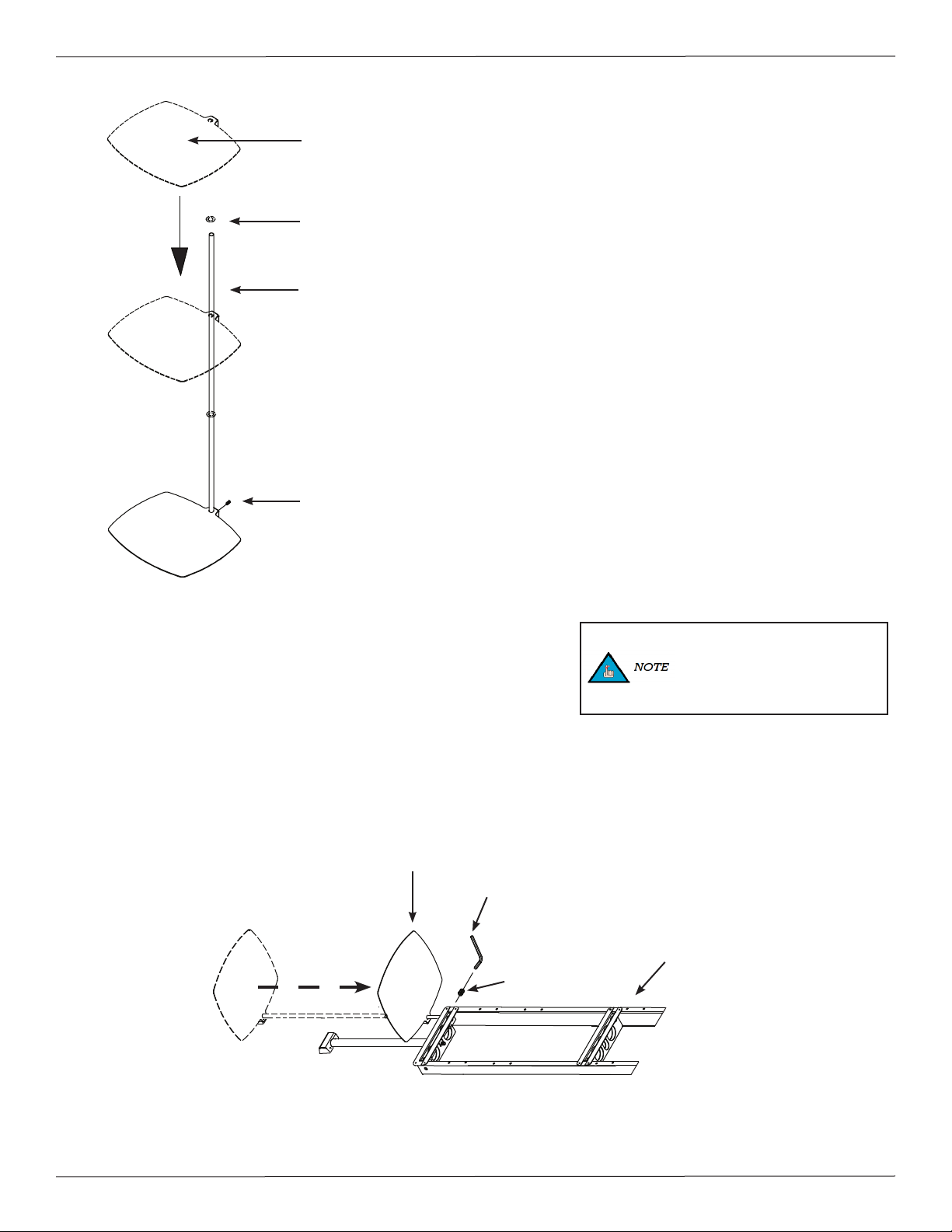

Shelf Assembly (Optional).................................................................................................. 9
Support Pole Installation................................................................................................... 10
Attaching the Back Support Assembly and Back Plate .................................................... 10
Upper and Lower Horizontal Support Arm Installation ................................................... 11
Install Mobile Cart Stabilizer ........................................................................................... 12
Attach Hanger to Projection Board................................................................................... 13
Projector Installation......................................................................................................... 14

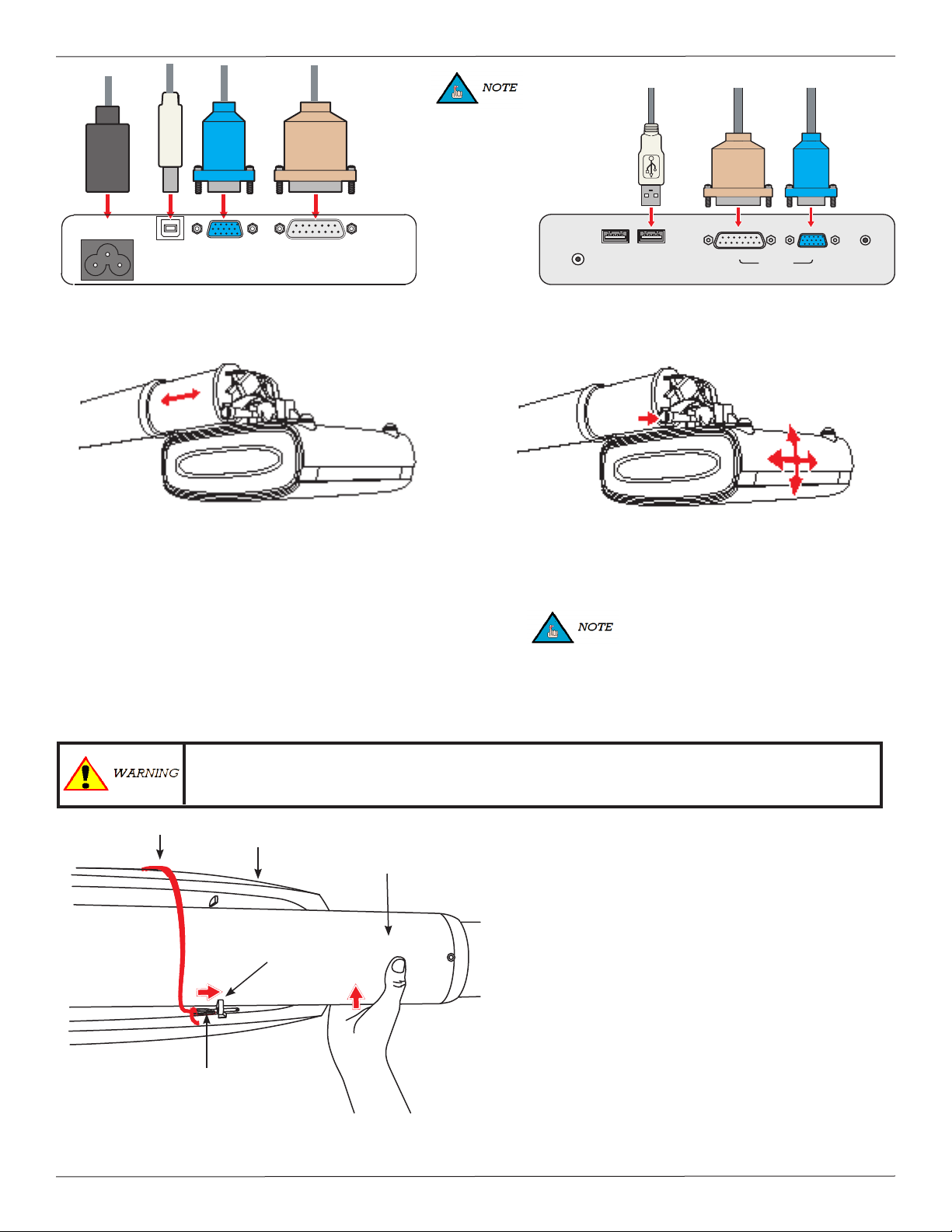

Route Control Cable ......................................................................................................... 15
Attaching to the Stand....................................................................................................... 15
Route Cables in Stand....................................................................................................... 16
Attach the Projector .......................................................................................................... 17
Assemble the Arm Extension............................................................................................ 18
Safety Pin Installation....................................................................................................... 19

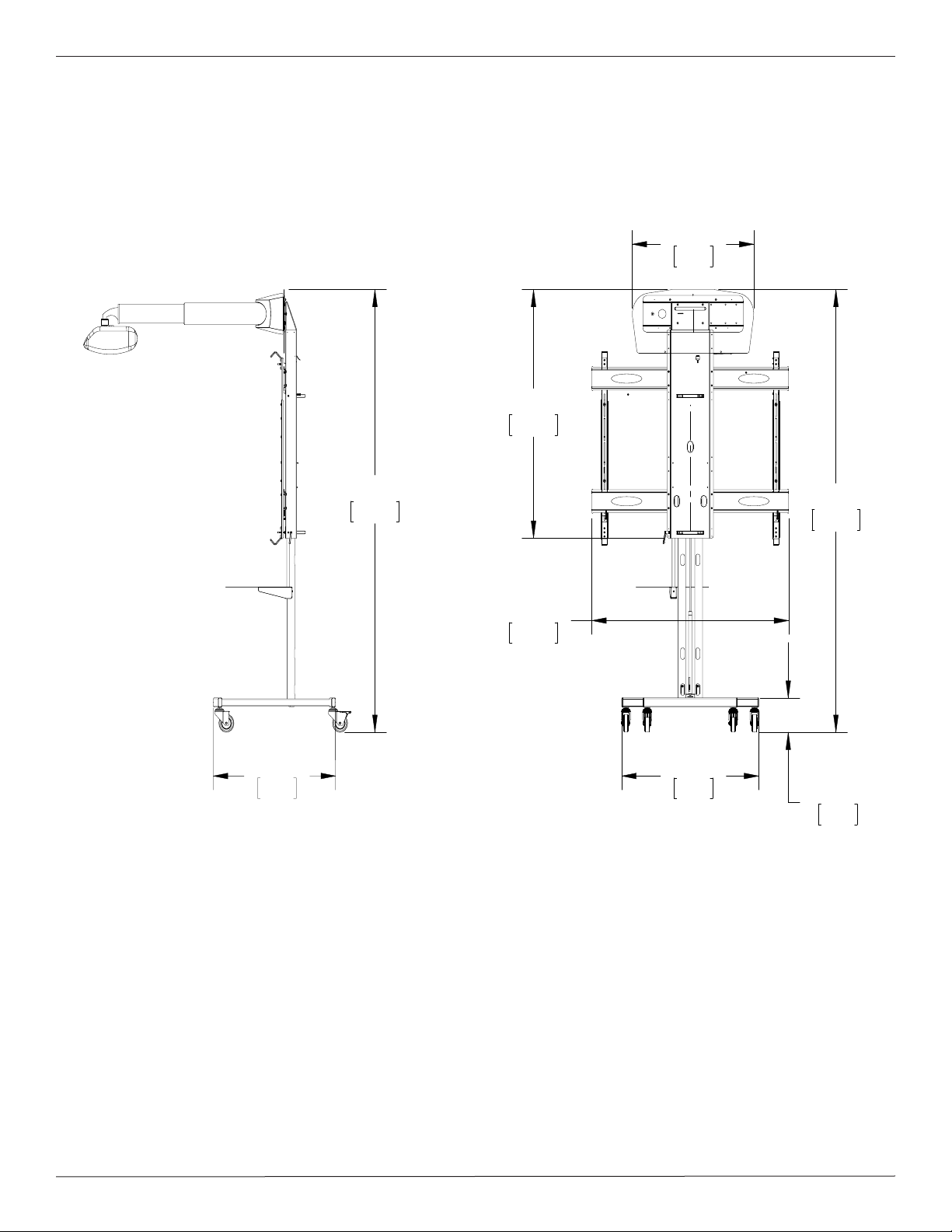

Technical Specication ..................................................................................................... 20
The 3M logo and 3M are trademarks of the 3M Company. Other trademarks used herein are the properties of their respective
owners.

© 3M 2010. All Rights Reserved. 3
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
Warranty; Limited Remedy; Limited Liability
The 3M SCP700 Series Mobile Stand (the “3M Product”) is warranted to be free from defects in material or manufacture for a
period of one (1) year from the date of purchase.
THE WARRANTIES STATED ABOVE ARE EXCLUSIVE AND ARE MADE IN PLACE OF ANY AND ALL WARRANTIES, EXPRESS
OR IMPLIED WARRANTIES OR CONDITIONS, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, OR ANY INDUSTRY PRACTICE OR CUSTOM OR TRADE USAGE.
In the event the 3M Product fails to conform to the above stated warranties within the applicable warranty period, your
exclusive remedy shall be, at 3M’s option, to replace or repair the 3M Product or to refund the purchase price of the 3M
Product. All replaced parts or products become property of 3M. If the product is repaired, 3M will repair the defective part(s)
with a new or used part(s). If the 3M Product is replaced, 3M will replace the 3M Product with the same or equivalent model
and with a new or refurbished 3M Product. In the case of an approved warranty claim, the replacement 3M Product will carry
only the remaining term of the original 3M Product’s warranty period as stated above. For warranty service, you must provide
proof of the date of the original purchase else the manufacturing code date will be used to establish the start date of the
warranty. The following are exclusions to the above listed warranty:
a. This warranty does not cover 3M Product that is modied or damaged through improper storage, misuse, abuse, accident,
vandalism, improper installation, neglect, improper shipping, damage caused by acts of war, disasters such as re, ood, and
lightning, improper electrical current, software problems, interaction with non-3M products, or service other than by a 3M Authorized
Service Provider, neglect or mishandling by any person. Normal wear and tear is not covered under warranty.
b. 3M Product is designed to operate in the typical indoor environment. This warranty does not cover 3M Product used outside of the
following circumstances:
• 16°C - 29°C (60°F - 85°F)
c. This warranty does not cover any additional costs including, but not limited to, those associated with removal, cleaning or
installation of the 3M Product and adjustments made to the 3M Product.
d. This warranty is not transferable.
e. 3M is not responsible for warranty service should the 3M label or logo or the rating label or serial number be removed unless
otherwise stated in writing for the purpose of private labeling for partnership requirements.
f. This warranty does not cover postage, insurance, or shipping costs incurred in presenting your 3M Product for warranty service.
Said costs are the customer’s responsibility. If a claimed defect cannot be identied or reproduced in service, the customer may be
held responsible for cost incurred. Should your warranty upgrade include a “change out” service and the claimed defect cannot be
identied or reproduced by the technician, the customer will be responsible for call out costs.
FAILURE TO FOLLOW THE INSTRUCTIONS CONTAINED IN THE APPROPRIATE 3M PRODUCT MANUAL OR FAILURE TO USE
THE 3M PRODUCT IN ACCORDANCE WITH 3M’S INTENDED USE STATEMENT, WILL VOID ALL WARRANTIES AND LIMITED
REMEDIES.
EXCEPT AS SPECIFICALLY STATED IN THE APPLICABLE 3M PRODUCT MANUAL, 3M SHALL NOT BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS,
REVENUE OR BUSINESS) RESULTING FROM, OR IN ANY WAY RELATED TO PERFORMANCE, USE OR INABILITY TO USE
ANY OF THE 3M PRODUCT. This limitation applies regardless of the legal theory upon which damages are sought.
For warranty support, please call or write your local 3M ofce or a 3M Authorized Service Provider to obtain RMA # (Return
Material Authorization Number) before returning the product. If you are inside the Continental United States of America,
please contact 3M Customer Service at 800-328-1371 or email [email protected].
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine
if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements
related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your
purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized ofcer of 3M.

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
4© 3M 2010. All Rights Reserved.
3M SCP700 Series Mobile Stand, Model 78-6969-9999-0
Please read, understand, and follow all safety information contained in this Assembly/Installation Guide. Retain these
instructions for future reference.
Intended Use:
This 3M™ SCP700 Series Mobile Stand is intended for mounting the following products only:
- This cart must be used with a “UL Listed” folding extension arm accessory 3M™ SCP Folding Wall Mount
- This cart must be used with a “UL Listed” projector from the 3M™ SCPxxx series projectors
Screen maximum size is 96 inches diagonal and maximum total weight on cart is 145 lbs. including board, wall mount,
projector, and shelf contents.
Use in any other application has not been evaluated by 3M and may lead to an unsafe condition. It is expected that all
users be fully trained in the safe operation of this stand. Use of replacement parts, or installation instructions other than
described in this manual has not been evaluated by 3M and may lead to an unsafe condition.
Explanation of Signal Word Consequences
Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
CAUTION: Read Accompanying Documentation.
Explanation of Safety-Related Symbols
Indicates a hazardous situation, which, if not avoided, may result in property damage
WARNING: No Step
WARNING: Before moving the stand.
- Collapse, fold and secure arm
- Lower and lock the stand into the lowest position.
- Use 2 people to move the stand
WARNING:
- Maximum weight capacity is 145 lbs. (including shelf)
- Maximum screen size is 96 inches diagaonal
CAUTION: Lifting Hazard.
Safety Information

© 3M 2010. All Rights Reserved. 5
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
NOTICE:
• To reduce the risks associated with impact:
- Mount only 3M approved products ( listed in the assembly instructions ) on the mobile stand.
- Do not pull down on the upper hanger, lower hanger or back plate support (compressing the gas strut) before
attaching the whiteboard to the stand.
- Always provide proper adult supervision when using the mobile stand around children.
- Do not climb on, hang on, or place any added weight on the mobile stand other than the 3M
approved projector mounts and applicable 3M approved projectors and white boards.
- Before moving the stand:
- Collapse, fold, and secure arm
- Lower and lock the stand into the lowest position.
- Use 2 people to move the stand
- Inspect the mobile stand and mounts periodically to ensure all fasteners remain tight and that no damage has
occurred. Replace all damaged parts found prior to further use.
- If gas shock fails, do not operate, call your servicing dealer.
- Do not use the mobile stand with a damaged caster or damaged caster lock
- Do not modify the mobile stand or mounts in any way and use only 3M approved replacement parts.
- Do not use an extension arm exceeding a maximum of 51 inches as measured from the mobile stand mountng
plate to the center of the ball on the wall mount.
- Do not exceed a maximum screen size of 96 inches.
- Do not exceed a maximum total weight on cart of 145 lbs. including board, wall mount, projector, and shelf
contents.
• Read, understand and follow all safety information contained in the Assembly/Installation Guide prior to use.
• To reduce the risks associated with pinch points:
- Use care when assembling the stand.
• To reduce the risks associated with lifting:
- Do not stand on the mobile stand to assemble components
- Always lock the rear casters.
- Use two experienced installers for installation of all mounts to the mobile stand per the Installation Guide due to
weight and to handling concerns.
• To reduce the risks associated with tripping:
- Position and secure the cords to prevent tripping.
- All power and signal cables must be disconnected from the wall prior to moving the cart.
• This cart is designed for indoor use only.

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
6© 3M 2010. All Rights Reserved.
Parts List
This cart is shipped with all proper installation hardware and components. Make
sure that none of these parts are missing and/or damaged before beginning
installation. If there are parts missing and/or damaged, please stop the installation
and contact 3M (800-328-1371).
Back Plate (Qty 1)
Horizontal Support
Arms (Qty 2) 72” Support Poles (Qty 2)
Base (Qty 1)
Shelf (Qty 1) - Optional
Gas Shock (Qty 1)
Gas Shock Bracket (Qty 1)
Caster Wheels (Qty 4)
M3 x 16mm Phillips
Screws (Qty 4)
M6 x 10mm Phillips Head Screws (Qty 8)
M6 x 20mm Phillips
Screws (Qty 2)
M8 x 20mm Phillips
Screws (Qty 2)
Shelf Pole (Qty 1)
[Optional]
Set Screws
(Qty 2) - Optional
Installation Tools
M5 Allen Wrench
(Qty 1)
5/32” Allen Wrench
#2 Phillips Head Screwdriver
(Not Supplied)
Caster Wrench
(Supplied)
Brass Washer
(Qty 1) - Optional
Set Screw
(Qty 1) - Optional
Optional - Shelf Assembly
(3M P/N-78-6969-9981-8)
Rubber Mallet
(Not Supplied)
Lanyard/Safety Pin (Qty 1)
Back Support (Qty 1)
Adjustable Brackets (Qty 2)
M8 x 12mm Phillips
Screws (Qty 4)
M5 x 35mm Phillips
Screws (Qty 2)
M5 x 12mm
Phillips Screw +
Washer (Qty 1)
3/8 in. Leveling Feet
(Qty 2)
M8 x16mm Hex Head
Screw (Qty 4)
M8 x 20mm Set
Screw (Qty 2)
Center Stabiizer Legs
(Qty 2)
M8 x 12mm Set
Screw (Qty 2)
(Supplied)
5/32 in. Allen Wrench
(Qty 1)

© 3M 2010. All Rights Reserved. 7
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
Back Plate
SCP712 and Folding Wall
Mount (not included)
Upper Horizontal
Support Arm
Lower Horizontal
Support Arm
Spring Load Handle
Gas Shock
Shelf (Optional)
Bracket Adjustment
Gas Shock Bracket
Locking Caster Wheel
(2)
Base
Non-Locking Caster
Wheel (2)
Clamp Bracket
We are delighted that you have chosen a product from 3M, the 3M SCP700 Series Mobile Stand. These installation
instructions will direct you in how to assemble and utilize your 3M SCP700 Series Mobile Stand.
Bracket Adjustment
FRONT
Preface
The following actions must be done
prior to moving the SCP700 Series
Mobile Stand:
The projector must be in the stowed
position and locked into place.
The back support assembly must
be lowered completely and locked into
place.
Unlock the rear locking caster wheels.
Center Stabilzer Legs (2)

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
8© 3M 2010. All Rights Reserved.
Step 1. Unpack the base of the cart. Place the
base on a at surface.
Caster Wheel Installation
The locking casters must always be installed on the rear of the base.
Step 2. Turn the base over and lie it on the
ground.
Step 3. At the corner of each leg is a threaded
mounting point for the caster wheels.
Step 4. Thread the caster into the threaded
mounting point and tighten with the
supplied wrench.
Step 5. Once the caster wheels have been
tightened, turn the base back over.
Step 6. Lock the two rear caster wheels for the
remainder of the installation.
Locking Casters
Non-Locking Casters
Base
Base
Rear of Base
Gas Shock Installation
Gas Shock Threaded Tip Mounting Point Shock Bracket
Prior to placing the components on a at surface, it is strongly recommended that a blanket, or packing
cloth, be placed on the surface to prevent the components from being scratched and/or marred during
the assembly.
Step 1. Remove the back plate support from the packaging and place it on a at surface.
Step 2. Remove the gas shock from the packaging.
Step 3. Thread the shock bracket onto the bottom of the gas shock.
Step 4. Rotate it clockwise until it is securely fastened to the gas shock.
Step 5. Place the threaded tip of the gas shock into the mounting point on the back plate support.
Step 6. Turn the gas shock clockwise to thread the tip into the mounting point. Rotate the gas shock until it is seated
rmly in the back plate support.

© 3M 2010. All Rights Reserved. 9
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
Step 1. Unpack the shelf items from the packaging.
Step 2. Slide one (1) brass washer down the length
of the shelf pole.
Step 3. Slide one (1) shelf down the length of the
pole.
Step 4. Once the shelf is resting at the end of the shelf
pole, insert one (1) set screw into the shelf and
tighten using the 5/32 in. Allen wrench.
Step 5. Lay the stand at on the ground.
Step 6. Slide the assembled unit into the back support
assembly (the mounting hole is located on the
underside of the support assembly).
Shelf Assembly (Optional)
Shelf
Brass Washer
Shelf Pole
Set Screw
Step 7. Once the shelf assembly has been inserted all the way into
the support assembly, secure shelf assembly using two (2)
set screws and then tighten with the 5/32 in. Allen wrench
(supplied).
Step 8. To adjust the height of the shelf, loosen the set screws,
raise or lower the shelf to the desired height, and then re-
tighten the set screws.
The mounting holes for the
set screws are located on
the left hand side of the
support assembly.
Support Assembly
Shelf
Set Screw
Allen Wrench (5/32 in.)

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
10 © 3M 2010. All Rights Reserved.
The following steps should be performed by two people.
Attaching the Back Support Assembly and Back Plate
Step 1. Lay the base on the ground with the support poles attached.
Step 2. Line up the support poles with the matching holes that are
located at the bottom of the back support assembly.
Step 3. Slide the back support assembly onto the support poles.
Step 4. Slide the unit forward until the gas shock bracket is resting
on the base between support poles.
Step 5. Use a rubber mallet to gently hammer the gas shock base
into place between the support poles (Figure A).
Step 6. Gently tilt the unit upright until it is resting on the base with all
four caster wheels touching the ground.
Step 7. Install the Back Plate. Use screws M6 x 20mm to secure
plate. The plate has 3 letter markings A, B, and C. Align
holes and install four screws. Key: A=Model SCP716,
B=Model SCP712, C=Model SCP715/717/740.
Step 1. Remove the two (2) M10 x 35mm set screws in the
base columns.
Step 2. Place the two (2) support poles onto the base
columns.
Step 3. The cable ports of the support poles must face the
back of the base, exposing the base columns and
set screw mounting points.
Step 4. Once the support poles are seated rmly, install
and tighten the two (2) M10 x 35mm set screws
found on the bottom rear of the base columns to
secure the support poles to the base.
Base
Support
Poles
M10 x 35mm Set
Screw
M5 Allen
Wrench
Support Pole Installation
Support Poles Back Plate
Gas Shock
Base
Figure A
Support Poles
Gas Shock Base
M10 x 35mm Set
Screw
AB
C
716 712
715/717/740

© 3M 2010. All Rights Reserved. 11
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
Upper and Lower Horizontal Support Arm Installation
Base
Support Poles
Back Plate
Upper Horizontal
Support Arm
M6 x 10 Screw
Step 1. Position Upper Hanger Arm against back
support assembly.
Step 2. Using 4 screws M6 x 10mm, align
mounting holes, insert screws, and
tighten screws using a Phillips head
screwdriver.
Step 3. Position Lower Hanger Arm against back
support assembly.
Step 4. Using 4 screws M6 x 10mm, align
mounting holes, insert screws and tighten
screws using a Phillips head screwdriver.
Mounting Points
Base
Support Poles
Back Plate
Lower Horizontal
Support Arm
Spring Load Handle
Spring Load Handle
During the assembly process,
do not overtighten screws which
could weaken or damage the
components.
Mounting Hardware
View from back side
I/O Module
mountng screw
holes (4)
Horizontal
Support Arm
mountng screw
holes (4)

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
12 © 3M 2010. All Rights Reserved.
Parts List
 Thread each leveling foot completely into the underside of the leg.
Stabilizer Legs
(Qty 2)
Allen Wrench
(Qty 2)
⅜Leveling Feet
(Qty 2)
M8 x 20mm Set Screws
(Qty 2)
M8 x 12mm Set Screws
(Qty 2)
5
32
M5
M8 x 16mm Hex Head Screw
(Qty 4)
Step 1
The mobile cart must be assembled prior to attaching the stabilizer legs.
Step 2
 Slide the two (2) stabilizer
legs together and align the
elongated holes.
Allow for a slight degree of
lateral (side-to-side) movement
around the support poles.
 Insert and ngertighten four
(4; two per side) M8 hex head
screws. Use an M5 Allen
wrench to thread in the M8 hex
head screw.
The two stabilizer legs should
be level with each other prior to
tightening.
 Tighten the M8 hex head
screws using the M5 Allen
wrench.
Do not overtighten the M8 hex
head screws. M8 x 12 Set Screw
(5
32Allen Wrench)
Step 3
M8 Hex Screw
(M5 Allen Wrench)
Level
 Slide the stabilizer legs down
until they are resting on the
base.
Make sure the stabilizer legs are
sitting at on the base before
inserting the set screws.
 Insert two (2) M8 x 12 set screws
into the front mounting points of
the stabilizer legs.
 Insert two (2) M8 x 20 set screws
into the rear mounting points of
the stabilizer legs.
The sets screws will go inside
the cable port on the back of the
support poles.
 Tighten the M8 set screws using
the 5
32Allen wrench.
 Adjust the feet levelers to ensure
the base is level.
M8 x 20 Set Screw
(5
32Allen Wrench)
Front Rear
Install Center Stabilizer Legs
Installation Instructions: 9533-021-E03-00
Visit 3M web site at http://www.mmm.com.com/meetings

© 3M 2010. All Rights Reserved. 13
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide

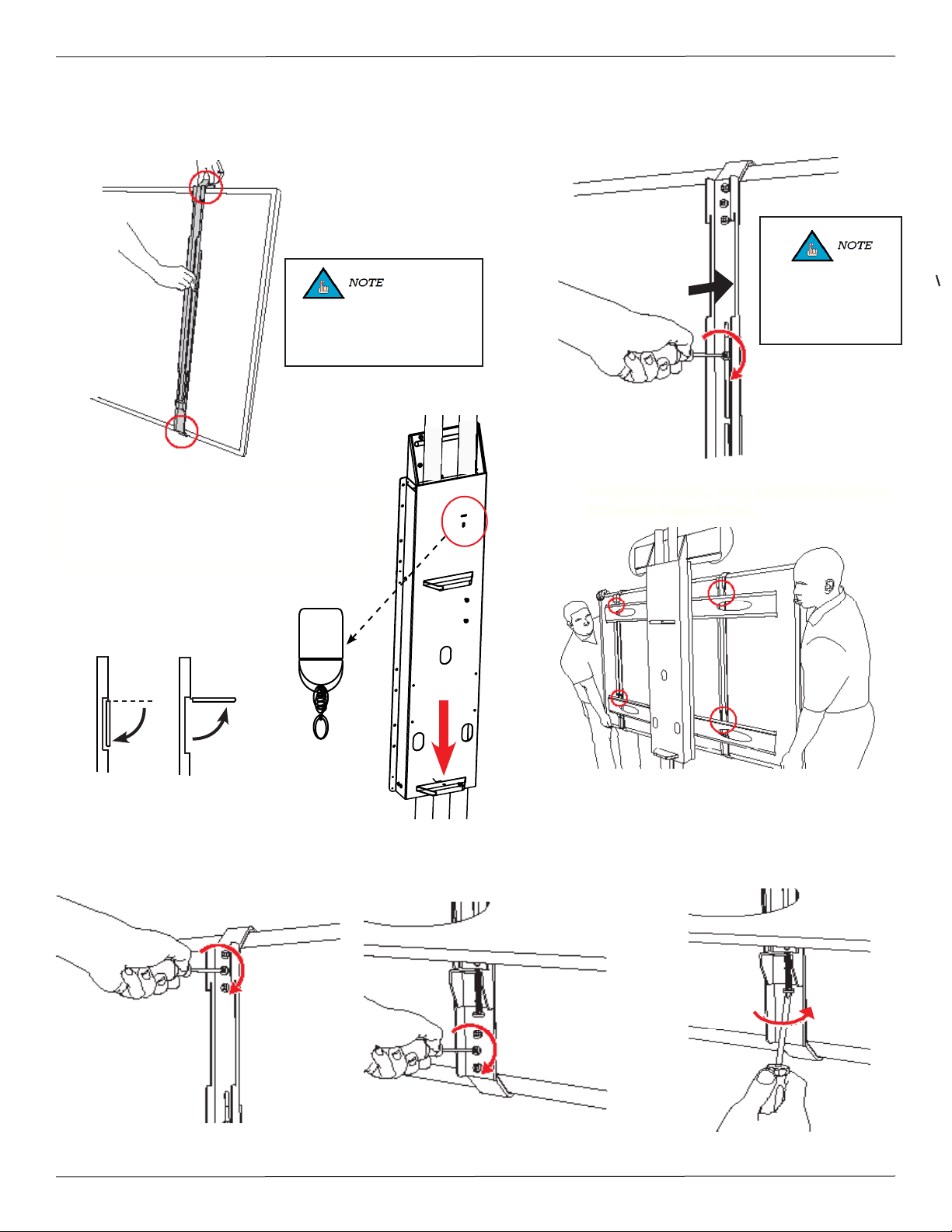

Attach Hanger to Projection Board
Step 1. Adjust hanger bracket to t projection board. Step 2. Tighten bracket lock screw.
Step 5. Tighten top left/right bracket
screws.
Step 7. Tighten bottom left/right
bracket lock screws.
Step 6. Tighten bottom left/right
bracket rub foot screws.
Step 3. Adjust stand to lowest position. Push
down on the lower back support and
the lock lever will automatically lock it
into place.
To t larger boards, you
may need to separate the
bracket.
Push bracket at
against the back
of the board, then
tighten screw.
Step 4. Using two people, hang projection board on
horizontal support arms.
Lock Lever
Unlocked Locked

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
14 © 3M 2010. All Rights Reserved.

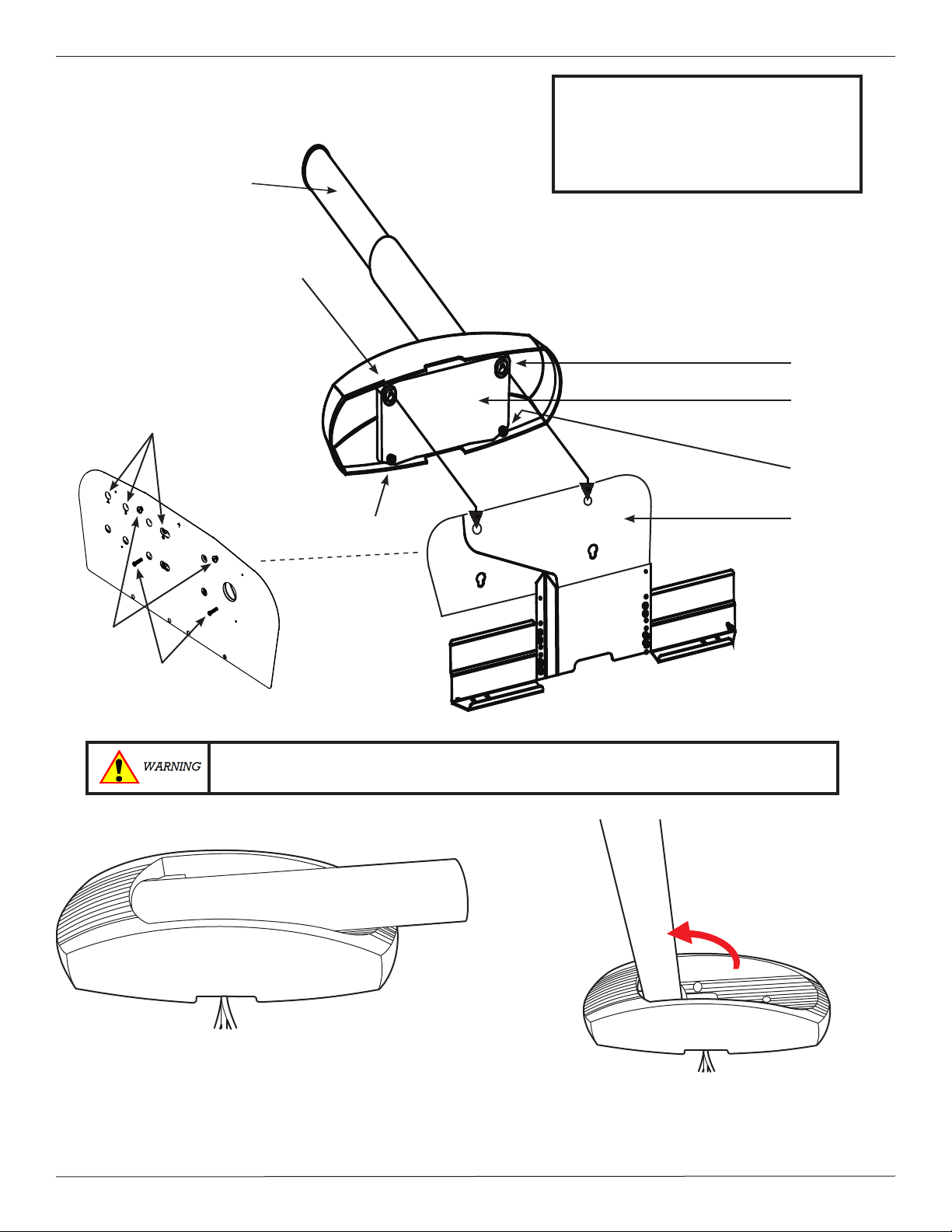

Projector Installation
Keyhole Slot
Leveling
Screw
Folding Wall
Mount Back
Plate
The rear caster wheels must be in the locked position before attaching the arm mount or
projector to the projector cart.
BackPlate
Step 1. Remove the Folding Wall Mount from the
packaging.
Step 2. Install screws M8 x 20mm into back plate
(Legend 5). Leave screws protruding about 3/8”
from back plate.
Step 3. Swing the arm up until it locks in place.
Legend
1 - Wall Mount Plate Keyhole Slot
2 - Projector Mounting Plate Leveling Screw
3 - Projector Back Plate Mounting Hole
4 - Folding Wall Mount hanging screw locations
5 - Mounting Screws M5 x 35mm (back plate)
Folding Wall Mount
1
2
3
4
5

© 3M 2010. All Rights Reserved. 15
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide

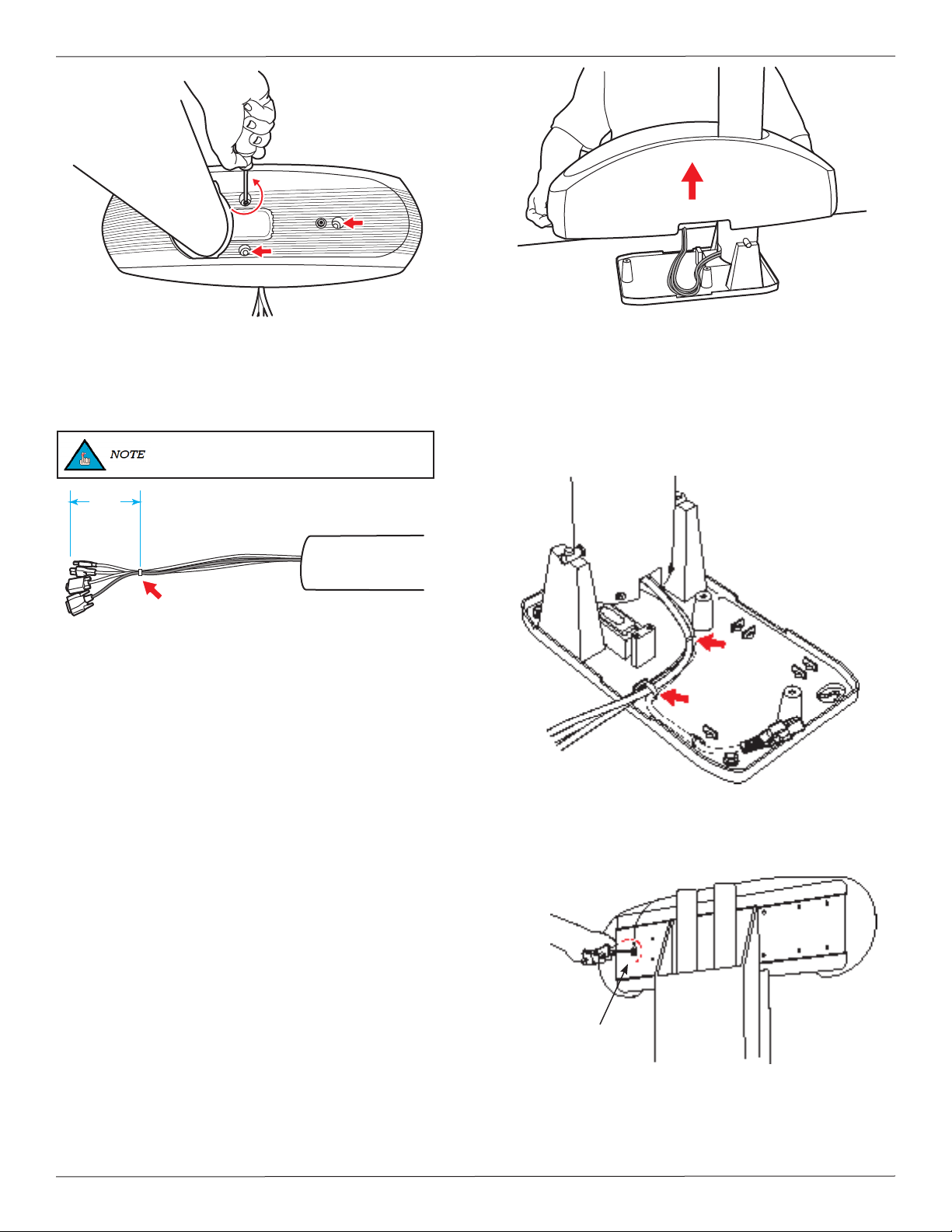

Step 4. Using a Phillips (+) screwdriver, remove
the three screws holding the cover to
the base.
Step 5. Lift the cover off the base and set aside.
Route Control Cable
Required with optional 3M I/O Module.
Step 1. Feed the control cable through the arm. Secure about
6 inches (150 mm) from the end of the existing cable
bundle using a cable tie.
Step 2. Route control cable alongside the bundled cables and
attach using cable ties.
Step 3. Hang the folding wall mount base on the mounting
screws.
Attaching to the Stand
6”
(150mm)
Lanyard
cable ties
Step 1. Lower the whiteboard stand to the lowest position
and lock in place.
Step 2. Adjust the two upper mounting screws so that they
protrude approximately 3/8 in.
Step 3. Adjust the two lower leveling screws on the
folding arm mount base so that they protrude
approximately 3/8 in.
Step 4. Hang the folding wall mount base on the mounting
screws.
Step 5. Install lanyard using one screw M5 x 12mm and
one washer.

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
16 © 3M 2010. All Rights Reserved.
Route Cables in Stand

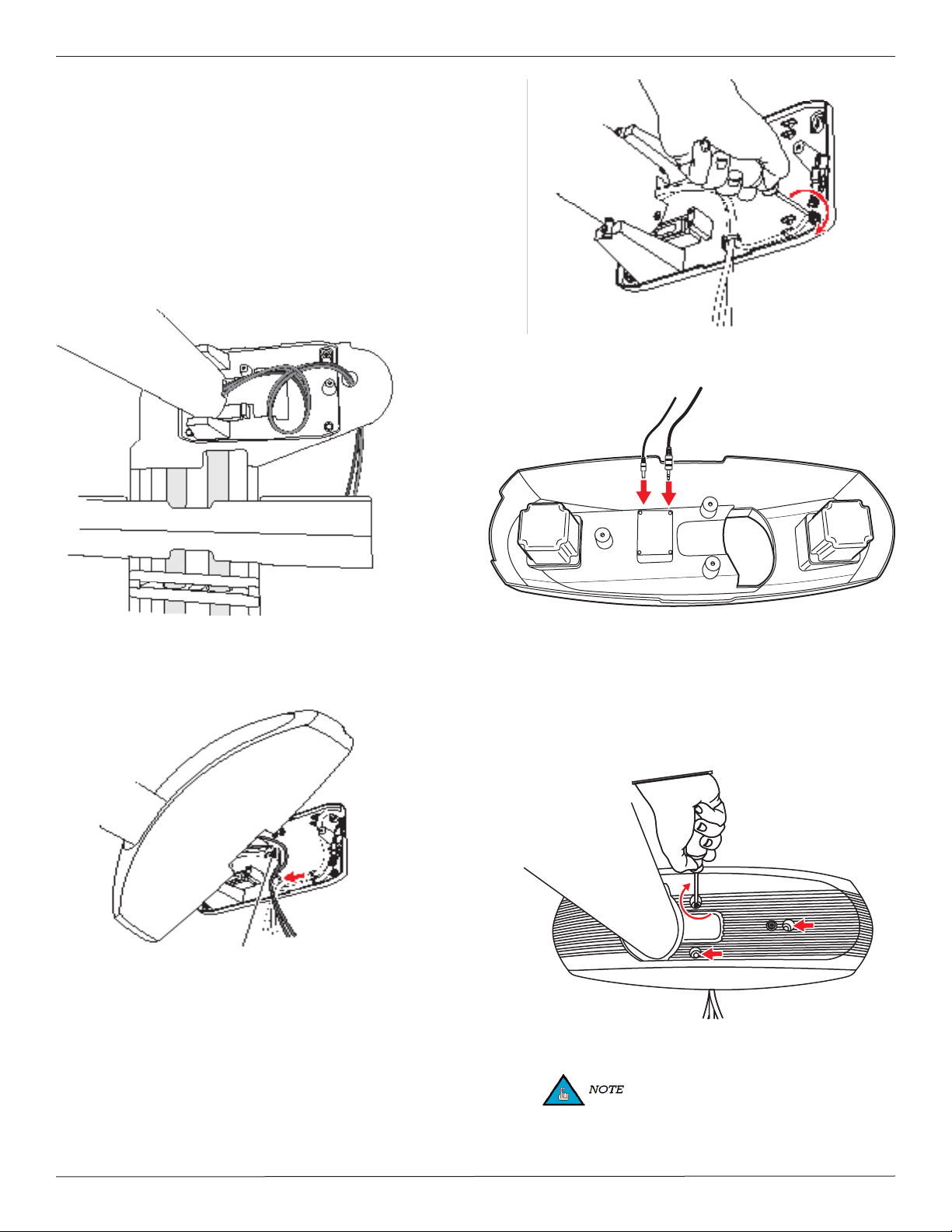

Step 1. Route cables through stand as shown. Step 2. Connect the power and audio cables to
the connections inside the cover.
Step 3. Slide the cover over the arm. Attach the power
and audio cables to the existing cable bundle
using a cable tie. Leave 10–12 inches (250–
300mm) slack cable.
Step 4. Attach the cover to the base.
To reduce the risk of hazardous
voltage: Do not stuff excess cables
under the wall mount cover.
Power Audio
Step 6. Install the long mounting screws M5 x 35mm
through the leveling screws and tighten securely.
Attaching to the Stand, continued
10-12 inches
(250-300mm)

© 3M 2010. All Rights Reserved. 17
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
Attach the Projector
Step 1. Place the projector top-down in the
packaging insert.
Step 2. Remove the three covers from the
mounting screw holes.
Step 3. Using two screws and the thumbscrew,
attach the mounting bracket to the end of
the arm extension as shown.
Step 4. Attach the projector to the mounting bracket
with three screws.

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
18 © 3M 2010. All Rights Reserved.

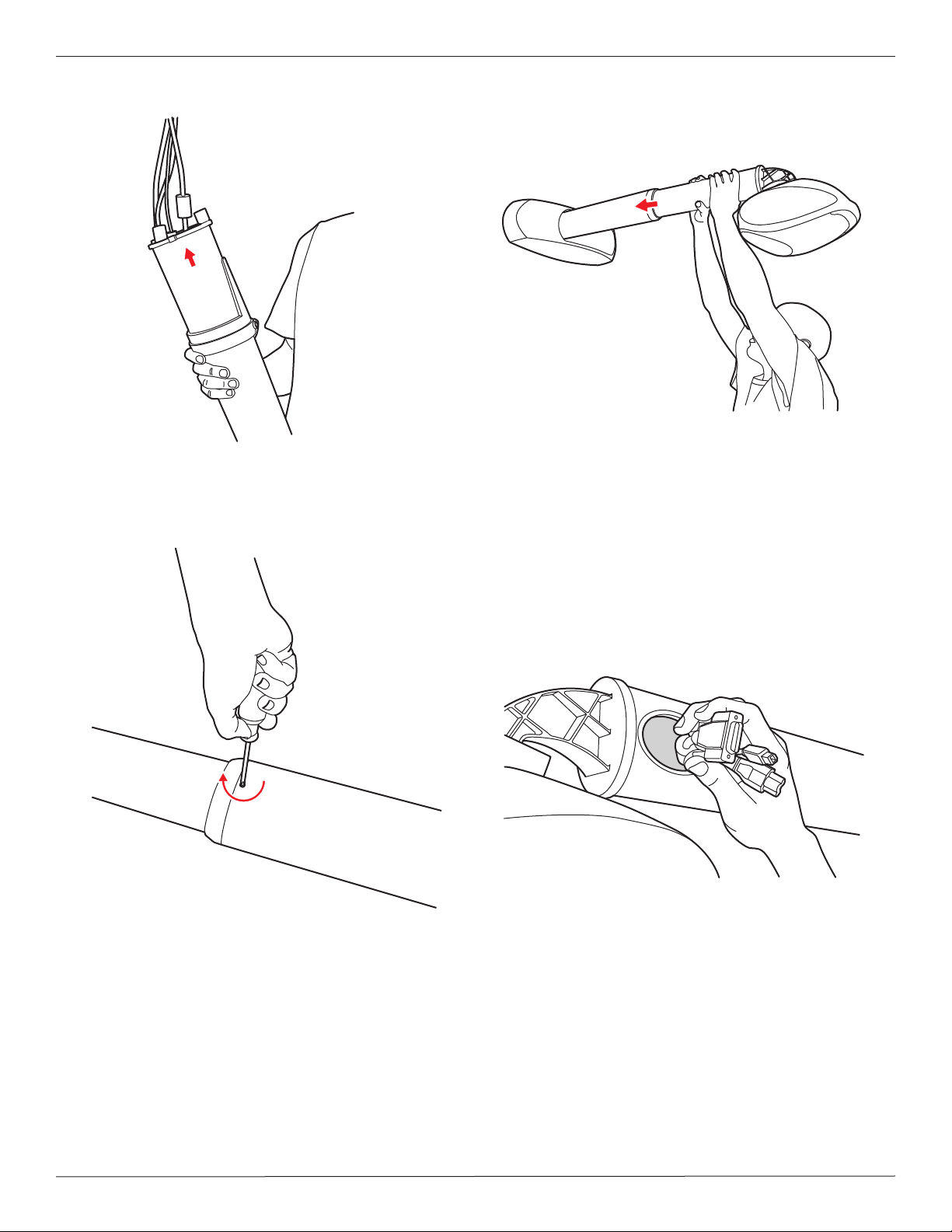

Assemble the Arm Extension
Step 1. Lift the assembly and feed the bundled cables
through the open end of the arm extension.
Step 2. Insert the arm extension into the arm as
shown.
Step 3. Install the 2 screws into the arm retainer. Step 4. Pull the cable bundle through the hole at
the end of the arm extension.

© 3M 2010. All Rights Reserved. 19
3M™ SCP700 Series Mobile Stand Assembly and Installation Guide
Prior to moving the SCP700 Series Mobile Stand, the projector arm must be in the stowed position
(fully retracted). If the arm is not in the stowed position, the projector arm will become unstable and
possibly hit the wall or the individuals(s) relocating the SCP700 Series Mobile Stand.
Step 5. Connect the cables to the projector
according to the Quick Start Guide.
Step 6. If using the optional accessory I/O module,
attach the cables as shown in the Quick
Start Guide.
Step 7. Power on unit and change image size by
adjusting the arm extension in or out.
Step 8. Adjust projector aim by loosening thumb
screw.
Audio
Power
USB USB Control Signal Audio
Out
A/C
Power
Service Computer/
Component Control
Safety Pin Installation
Step 1. Support the projector arm and push the
assembly into the stowed position.
Step 2. When the projector arm is in the full stowed
position, the safety tab will be in the “up”
position.
Step 3. Loop the lanyard and safety pin around the
mounting knob and drape over the projector
arm.
Step 4. Slide the safety pin all the way in through
the hole that is on the safety tab.
Step 5. When the safety pin is secured in the safety
tab, gently release the projector arm.
Repeat these steps, in reverse order, to release the
projector arm for use.
Lanyard Projector Base
Projector Arm
Safety Pin
Safety Tab
The optional I/O module
attaches to back of stand
using M3 x 16 mm screws.
See page 11.
To Projector
To make this adjustment, the
display board must be installed,
and the projector must be running
with the folding wall mount cover
removed.

Assembly and Installation Guide 3M™ SCP700 Series Mobile Stand
20 © 3M 2010. All Rights Reserved.
Technical Specication
All measurements are in inches [mm].
31.68
805
95.65
2429
95.64
2429
7.39
188
31.50
800
51.00
1295
53.73
1365
35.50
902
