3W Xtra Fun II 230 User manual

Xtra Fun II 230
Assembly manual
3W-Modellmotoren GmbH
Specifications:
Wingspan: 90.5in
Length: 92.5in
Weight: 17.6 - 18.7lb
Engine: 3W 55i
Radio: four Channel
Type: Aerobatic / 3D

Dear model airplane pilot,
we are pleased with your decision for our new
Xtra Fun II. The Xtra Fun II is a consistent
advancement of the predecessor model.
Together with Roland and Wolfgang Matt we
improved different details further: The horizontal
tail unit is now profiled and of plug-in-design.
Thereby the wirings of earlier versions are void.
At the same time we increased the stability of
the wings and the fuselage cell. Also the chassis
range was completely revised.
After we submitting the prototypes, detailed
tests had been done. We are happy presenting
you a model with outstanding flight
characteristics. By optimal weight - size
proportions you will find in the Xtra Fun II an
ideal and good-natured coach for aerobatics
and 3D Freestyle.
Please follow this building instruction carefully
and consider also our references of security and
the enterprise. Then you will be pleased by your
new Xtra Fun II.
Your 3W - Modellmotoren Team
Formed and plugable: New elevator of the Xtra Fun II
Xtra Fun II 230 Welcome
2

Kit content............................................................................................ 4
Combo version content......................................................................... 5
Required radio, engine ........................................................................ 6
Assembling
Teil 1: Landing gear................................................................................. 7
Teil 2: Insert hinges.............................................................................. 9
Teil 3: Tail unit ....................................................................................10
Teil 4: Wings........ ...............................................................................10
Teil 5: Engine installation ....................................................................11
Teil 6: Cowling and Canopy........ .........................................................12
Teil 7: Servo installation......... .............................................................13
Teil 8: Center of gravity.......................... .............................................13
Setup / Rates..........................:........................................................... 14
Maidenflight / Safety instructions......................................................... 15
Guarantee...........................................................................................16
Xtra Fun II 230 Index
ATTENTION:
This airplane model is a well-ingineered sports equipment and no toy in
the usual sense. Assembly, operation and maintenance require technical
understanding, care and attention of the safety rules. Neglect, carelessness
and a missing experience can entail damages to property and person.
Because the manufacturer can not supervise assembly, operation and
maintenance, we point expressly at these dangers. Look for the assistance
of experienced persons and model airplane model clubs and fly your
model only in proven model airfields to enjoy your hobby without restrictions.
3

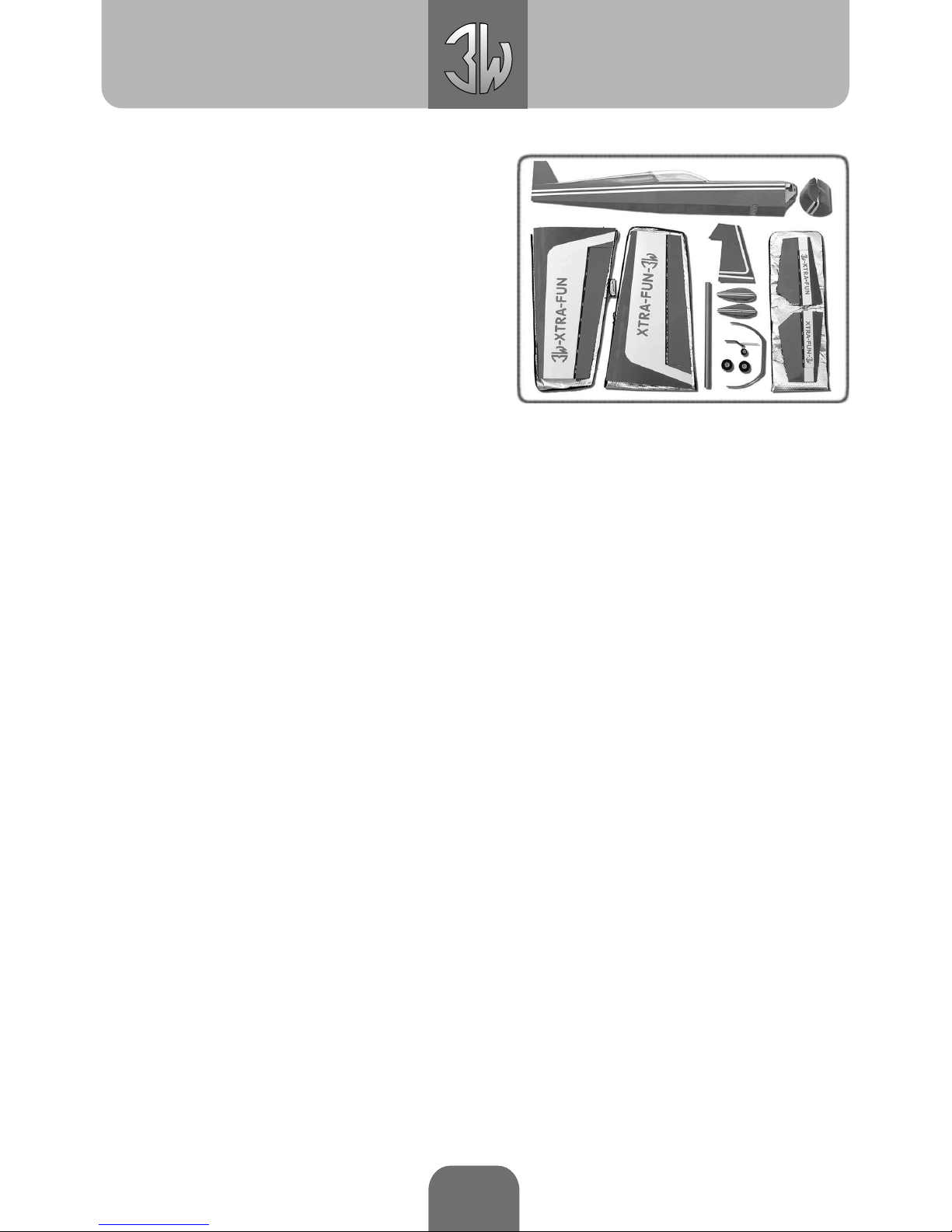

Parts list:
•Fuselage
•Rudder
• Elevator le / ri, tube, protection bag
• Wings le / ri, tube, protection bag
•Canopy
•Cowling
•Landing gear
•Wheel cover
•Tail wheel assembly
•Spinner incl. screw M5x60
Xtra Fun II 230 Kit contentt
4
Small parts:
Rudder
•1 x control horn
•2 x clevis 3mm
•2 x theaded couplers M3
•2 x push rods
•4x hinges
Elevator
•2x control horns
•2x theaded couplers
•4x screw steel M3x20 / 4 washer
•2 x push rods M3
•2x ball link M3 / 2 clevis
•4x O-Ring 3 x 3mm
Ailerons
•4 x control horn
•4 x theaded couplers
•4 x push rods M3
•4 x ball link M3
Canopy
•2x screw steel M3x 20
•2x washer / 2 O ring
Muffler mounting see picture next page
Cowling
•4x screw wood 3x12
Landing gear
•2x axle set
•2x wheels
•5x screw steel M5x25
•5x washer
Tail wheel assembly
•1x tail wheel
•2x screw steel M3 x 15
•2x washer
•1x ball link M2
•1x screw steel M2x20
Wings
•2x screw steel M5x20
•2x washer
•2x O-ring 4 x 4mm
Ignition
•2x T - nut M3
•2x screw steel M3x10

•Engine 3w 55i incl. ignition,
•Carburetor, Exhaust sealing and manual
•muffler - size L
•exhaust manifold - S shaped
•Teflontube 24,5mm
•2x hose clamp 24,5mm
•Tank 500ccm
•Propeller
Additionally to the standard design the Combo version contains :
Muffler mounting see picture
Ignition
•2 x T - nuts M3
•2 x screw steel M3 x 10
Engine installation
•3 x screw steel M5x25
•3 x washer Ø' 5,3mm
•1 x push rod M3
•2 x ball link M3
•100cm gasoline tube 3mm
Exhaust manifold - S formed
•2 x screw steel M5x20
•1 x exhaust sealing
Tank 500ccm
•3 x tank accessories
•1 x felt pendular
•15cm Vitonschlauch
•50 cm klett tape
Xtra Fun II 230 Content combo version
5

Glues
• PVA
• UHU endfest 300
• screw locking medium strong
Engine / Ignition
• Engine minimum 2.92 cu.in
• parts from Combo version
• ignition battery
• switch ignition
Additionally to the parts contained in the component system you need:
RC Components:
•Receiver / five channels
•4 x servo aileron 2 x 8 kg / metal gear
•2 x servo elevator 2 x 11kg / metal
gear
•1 x servo rudderr 1 x 18kg / metal gear
•1 x servo throttle 6kg
•1 x flight accumulator
•switch
Xtra Fun II 230 required parts
6

Landing gear
Fasten the main landing gear with enclosed
screw and washers to the fuselage.
Glue aluminum parts in the wheel shoe with UHU
PLUS. Check the position of the wheel pants
before.
Tail wheel assembly
All bolt connections must become secured with a screw locking medium strong.
The wheel fits exactly without tension rings
between the two aluminum parts.
Xtra Fun II 230 Landing gear
7

Attach the provided tension ring M3 and adjust the tail wheel in such a way that it can be moved freely
each position. Without too much play.
The screw M2 x 20 is pivoted into the ball. Afterwards you bore a hole from downside in the rudder and
stick the ball with PVA.
File a notch into the steel wire, in order to ensure
a safe seat of the screw for linking the tail wheel..
Xtra Fun II 230 Landing gear
8

With the two screws M4 x 18 and washers the gear is fastened to the fuselage.
Glue hinges
Sand hinges before glueing with rough sandpaper
on both sides.
Use PVA as adhesive.
Align hinges at a straight border before drying.
Xtra Fun II 230 Landing gear / Hinges
9

Tail Unit
Fasten the rudder horns in such a way that they
form an alignment with the servo lever.
Servo installation rudder and elevator right.
Wings
Clevis at wing interior Clevis at wing exterior
Bond the hinges as into part III. Focus on
absolute accurate alignment. Inaccuracies lead
to function losses up to the damage of the Servos.
NOTE: In order to receive the same distance of
the clevis from the hinge, these must be
connected unequally in-hung to interior and -
exterior wing.
Use gasoline hose to secure clevis.
Xtra Fun II 230 Tail Unit / Wings
10

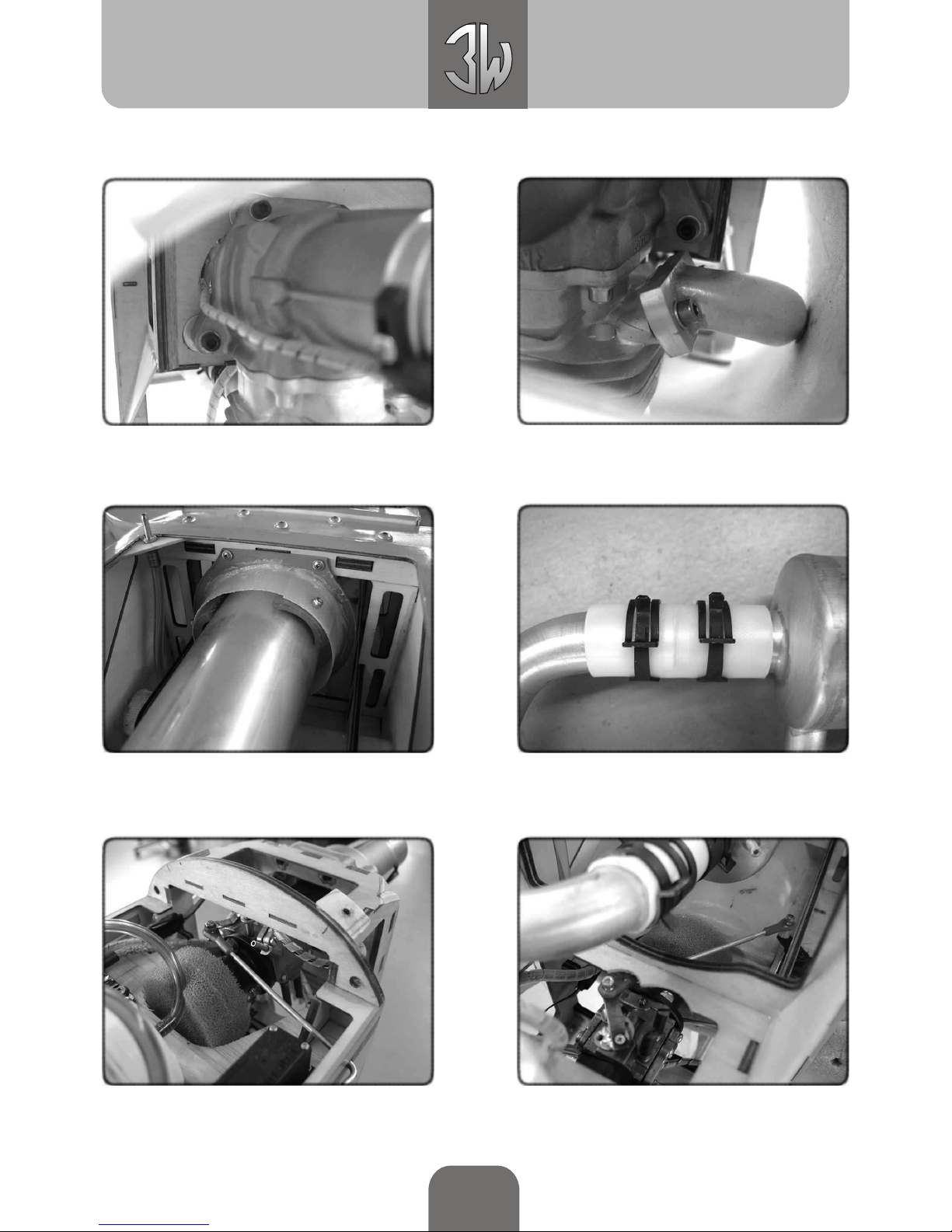

Afterwards the flexible muffler mounting is
installed.
Make connection between exhaust manifold and
wuffler with teflon pipe and the two spring clips.
Engine and Muffler
Screw engine with 4 screws M5 x 25 to the
Motordom. Use screw locking medium strong.
Use circlips for fixing exhaust manifold.
Install carburettors and choke linking as shown. Make sure that the choke can be locked in the opened
position correctly. Take care on operation smoothness of all linkings.
Xtra Fun II 230 Engine / Muffler
11

Cowling
Glue provided wood parts at the head frame. Fix the cowling accurately on the fuselage with adhesive
tape. Measure boreholes and bore with drill 2.5 mm.
Pay attention to sufficient distance between
cowling and exhaust manifold (if necessary cut
it out).
Cut cylinder opening into cowling.
The canopy is already finished by the factory.
Xtra Fun II 230 Cowling / canopy
12

RC system / center of gravityt
Before fixing the remaining RC and ignition parts, place the components in the fuselage for a test, in order
to get the correct CG.
ATTENTION: For placing the components take care on your engine and ignition manual
Protect receiver with foam rubber or similar
against vibration.
Protect all clevices from unintentional opening.
center of gravity shown
Attention:
Check CG after each
modification.
Xtra Fun II 230 RC system / CG
170mm / 6.7in
13

Programming RC
We recommend the use of a modern computer
system.
Here we recommend the following order of
programming to you:
Servo directions
• Elevator highly - pull / down - press
• Rudder right - left
• Aileron right: re high - le down
left: le high - re down
• Throttle idle - full throttle
Rates
Rates and Expow vary strongly after personal preferences. We recommend the
following set up for the first flight: :
Throttle
• adjust idle - full throttle
Aileron
• Aerobatics: 1.6 in Expo: 50 %
• 3D: maximal Expo: 40 %
Elevator
• Aerobatics: 1.2 in Expo: 60 %
• 3D: maximal Expo: 40 %
Rudder
• Aerobatics: 1.9 in Expo: 50 %
• 3D: maximal Expo: 40 %
EXPO rates (+) for Graupner / JR systems (-) for Robbe / Futaba systems
Xtra Fun II 230 Flight preperation
14

Check before maidenflight:
• Let an experienced model builder verify
assembly, attitudes and center of gravity..
• Fill the tank with fuel according to
manufacturers recommendation.
• Break in engine according to operating
instructions and adjust both needles.
• Load all ignition and receiver batterys with
appropriate battery charger according to
operating instruction and examine capacity.
Subsequently, load again. .
• Examine and secure all interwirings. Do not
put cables across sharp edges and protect
ducts accordingly.
• Examine all bolt connections / use screw
locking medium strong.
•Check and secure all clevis and balls for correct
hanging up.
•Check rudder directions and rates.
• Start the engine according to guidance/
consider safety references of the manufacturer..
• Make range test with pushed in antenna and
running engine. You find details in the operating
instructions of your RC system.
Fly with your Xtra Fun II / Security advise:
•Fly only in registered model airfields with flight
controllers.
• Wait for a calm day to fly first.
• Never fly in directions towards persons or
animals.
• Make yourselves familiar in large height with
the slow-speed flight and tearing off behavior
of your Xtra Fun II.
• Get accustomed slowly to large servo rates
and the associated extreme agility.
• Sensitive thottle management is obligatory
necessary: At high speeds sudden and large
rudder movements can durably damage your
model.
• For optimal 3D performance this model is
manufactured in lightweight construction way.
Use small rates for takeoff and landing. Land
carefully, in order not to damage the fuselage
structure.
So built together, examined and prepared, you
expect many, many xtra fun flying hours with
your Xtra Fun II.
Your 3W - Modellmotoren Team
Xtra Fun II 230 Flight preperation
15

Guarantee conditions
We grant a two year warranty on our flight models. This warranty is limited to construction
and/or production defects like e.g. incorrect material or glueings, because a monitoring
of accurate assembly, enterprise and maintenance of the model is not possible.
Xtra Fun II 230 Guarantee
3W-Modellmotoren GmbH
Hasswiesenstr. 22
63322 Rödermark Germany
phone: [phone]
fax: [phone]
web: www.3w-modellmotoren.com
