4 Moms Origami 4M-006-01 User manual

Contents
Afx seat ring to stroller frame at handle bar and power pod
by sliding pin through holes until it clicks. Buckle the seat
restraint strap around the Central Bar.
Turn the silver ring counterclockwise until it stops. Let go and
press the orange button. Make sure your silver activation ring
is unlocked.

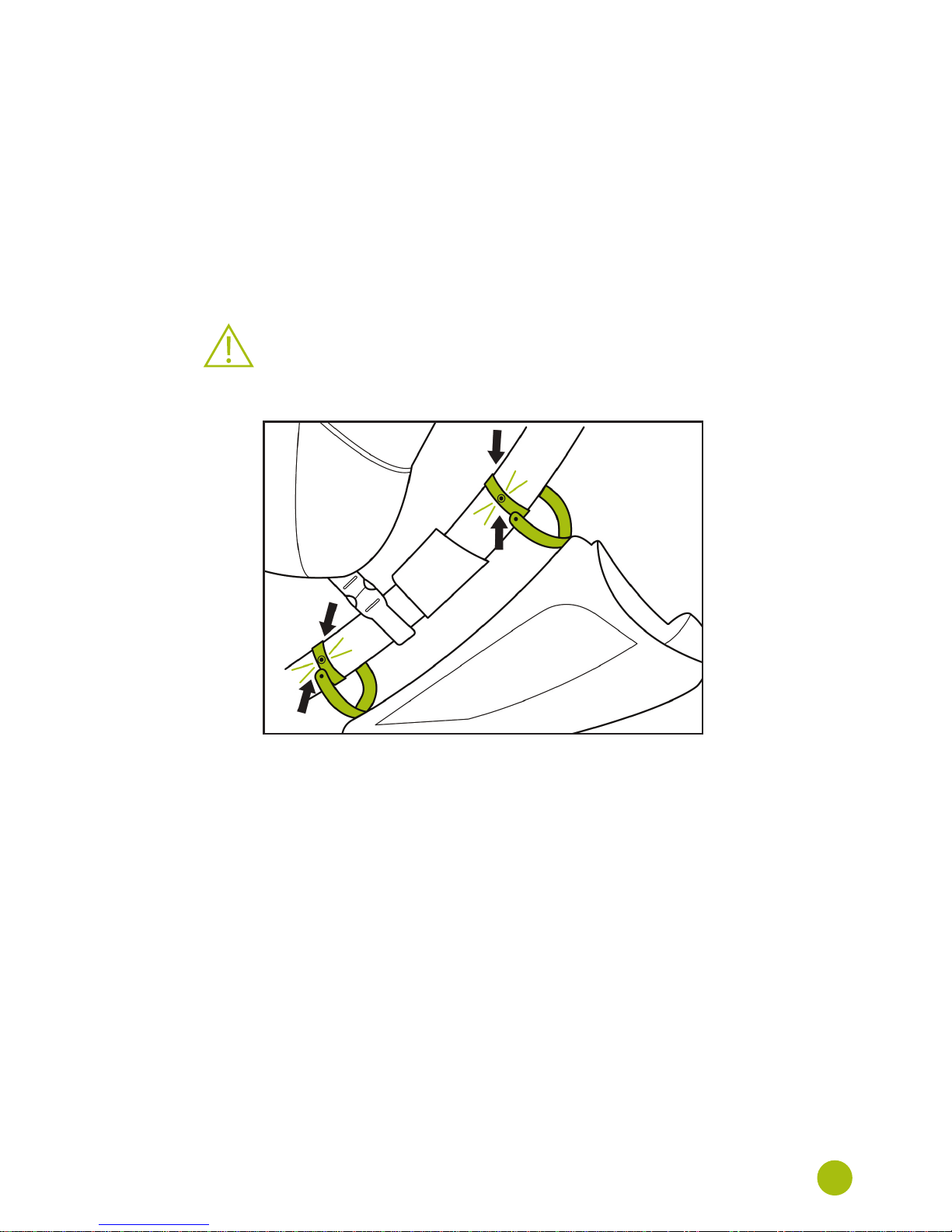

To attach the Storage Bag,
snap the bag's straps into
place on the Central Bar.
If needed, use outlet on
underside of power pod to
plug stroller into the wall. Only
use provided charging cable.
Congratulations on your new Origami™!
Here are some helpful hints to get you started.
POWER FOLD
INSTALL SEAT RING
STORAGE BAG CHARGE
12

English
Table of Contents
Chapter 1: Safety Information. . . . . . . . . . . . . . . . . . . 4
Chapter 2: Seat Ring Safety . . . . . . . . . . . . . . . . . . . . 7
Chapter 3: Battery Warning . . . . . . . . . . . . . . . . . . . . 8
Chapter 4: Parts Guide . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 5: Installing the Handlebars . . . . . . . . . . . .11
Chapter 6: Installing the Seat Ring . . . . . . . . . . . . . 12
Chapter 7: Using Your Origami . . . . . . . . . . . . . . . . . 14
Chapter 8: Securing Your Baby. . . . . . . . . . . . . . . . . .15
Chapter 9: The LCD . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Chapter 10: Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 11: Using the Brakes . . . . . . . . . . . . . . . . . . . .17
Chapter 12: Seat Recline and Storage Bag . . . . . . . .18
Chapter 13: Folding the Stroller Manually. . . . . . . . . . 20
Chapter 14: Charging the Battery Manually . . . . . . . 22
Chapter 15: Maintaining Your Origami . . . . . . . . . . . . 23
Chapter 16: Troubleshooting. . . . . . . . . . . . . . . . . . . . .24
Chapter 17: Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .26
Chapter 18: Registration. . . . . . . . . . . . . . . . . . . . . . . . 26
Chapter 19: Compliance. . . . . . . . . . . . . . . . . . . . . . . 27

4
Chapter 1: Important Safety Instructions
Please read these instructions carefully before
use and keep them for future reference. For your
child’s safety, please make sure anyone else using
the Origami Stroller reads and understands these
instructions before using it as well.
Immediately discontinue use of the stroller should it
become damaged or broken.
Using a stroller with your child presents inherent
safety risks. However, these risks can be minimized
with proper use. Please read this manual carefully
before using the stroller, as well as the manuals
for any Origami accessories you may be using,
and follow all safety instructions to avoid injury to
yourself or your child.
WARNING Use only 4moms® approved
accessories specically designed to work with the
model number of your base. Use of unapproved
accessories may cause injury or damage your
stroller.
ALWAYS use the Origami Seat Ring or
other 4moms® approved seating accessory. Read
all instructions included with 4moms® accessories
before use.
WARNING: NEVER leave your
child unattended. It may be dangerous to leave
your child unattended.
Before every use of the Origami, make sure the
stroller is fully open and securely latched.

5
English
Chapter 1: Important Safety Instructions
Always stay in control of the Origami’s movement.
Any wheeled vehicle can roll unpredictably, so
always stay within arm’s reach of the stroller. Keep
the stroller balanced: do not hang heavy objects
off the Handlebar, or allow children to play with
or hang off the Handlebar. Never allow a child to
push the Origami. Use the brake every time you
stop to prevent unexpected movement, especially
on inclines and when your child is getting into or
out of the stroller.
WARNING Any load attached to the
handle affects the stability of the stroller. Make sure
the Origami is stable and still when your child is
getting in or out. Always assist your child when he is
getting in or out, and hold on to the stroller to make
sure it doesn’t tip. Always use the brake when
stopped.
Be aware of the environment in which you are
using the Origami. Do not stroll over obstacles in
your path, and be especially careful on uneven,
slippery, or unstable terrain, as this may increase
the stroller’s likelihood of tipping. Make sure your
child’s arms and legs are inside the stroller before
moving, as obstructions striking the stroller could
cause injury.
Be careful when using the Origami on a steep
incline, as this increases the stroller’s likelihood of
tipping or rolling away from you. Never use the
Origami on stairs or escalators, or in any other
environment where you could suddenly lose control
of the stroller and cause injury to yourself or others.
the storage bag.

6
English
WARNING Use this stroller only for
walking. The Origami is not designed for jogging,
running, roller skating, or any motion other than an
adult’s walking pace. Do not let a child push the
Origami.
WARNING Ensure that the stroller
latches are engaged before use.
Always use your best judgment when using the
Origami. Do not use it in any situation in which
you suspect doing so could cause harm to your
child, yourself, or anyone around you. Stop using
the Origami immediately if you suspect any part
is damaged or not working correctly, or if the LCD
presents an “error” message, and contact 4moms
Customer Service for assistance.
AVOID STRANGULATION.
DO NOT place items with a string around
your child’s neck, suspend strings from this product,
or attach strings to toys.
TO AVOID BURNS, never put hot
liquids in the parent’s or child’s cup holders.
WARNING Do not store more than 10
pounds of material in the storage bag. The storage
bag is not a seating device. Never allow a child to
sit or lay in the storage bag. Do not store more than
1 pound in any of the 4 cupholders or more than 5
pounds in the seat back pockets. Excess weight
in any of these areas may create a hazardous,
unstable condition.
TO AVOID FINGER
ENTRAPMENT Use care when folding
and unfolding the stroller.
Chapter 1: Important Safety Instructions

7
English
English
Chapter 2: Seat Ring Safety Instructions
WARNING Avoid serious injury from
falling or sliding out. Always use restraints and
adjust belts to get a snug t around your child.
WARNING This seat unit is not
suitable for children under 6 months.
The Origami seat ring is designed for a single child.
Do not use for more than one child.
When using the seat ring,
NEVER PLACE child in the stroller
upside down or backwards. Child should
always be sitting up and facing forward.
WARNING Always use the crotch
strap in combination with the waist belt.
WARNING Before your rst use of
the Origami Stroller, make sure the Seat Ring
is properly attached to the Origami Base.
The seat ring should only be assembled by
an adult. Before each use, make sure the
seat lock pins are properly secured.
When using the seat ring, make sure your child is
securely fastened with the Safety Harness every time
you use the stroller. The seat ring is for children at
least 6 months old or able to sit up on their own. The
seat ring’s weight limit is 40 lbs (18 kgs). Do not use
the seat ring with a child who weighs over 40 lbs.
Chapter 2: Seat Ring Safety Instructions

8
Warnings
The Origami contains a Lithium Polymer battery
pack. Use only battery pack 4M-106-11-000101 or
a 4moms® approved equivalent. NEVER use
non-rechargeable batteries in the Origami.
Failure to follow instructions or use of non-approved
batteries could cause permanent damage to the
battery and its surroundings, and cause bodily harm.
Chapter 3: Battery Warnings
NEVER use anything EXCEPT a 4moms®
approved power supply to charge the
Origami Stroller.
NEVER trickle charge, or allow to discharge
below 2.5V per cell.
NEVER allow metal objects to contact battery
terminals.
NEVER allow the battery temperature to
exceed 140°F (60°C)
NEVER disassemble or modify pack wiring in
any way or puncture cells.
NEVER place on combustible materials or
leave unattended during charge.
ALWAYS keep battery pack out of reach of
children.
ALWAYS dispose of in accordance with local
laws.
Remove and replace battery pack when
product is stored for long periods of time or
when batteries are no longer functioning
properly.
•
•
•
•
•
•
•
•
•

9
English
Chapter 4: Parts Guide
Power
Pod
LCD
Central Bar
Seat Recline Strap
(see page #18)
Upper
Attachment
Hub
Handlebar
Storage Bag Loops
Manual Folding Latch
(see page # 21)
Charger
(see page #22)
Sunshade
Peek-A-Boo
Window
Power Button
Outer Ring
Brake

10
Chapter 4: Parts Guide (Seat Ring)
Safety Harness
Cup holders
Telescoping Frame
Upper Attachment Socket
Lower
Attachment
Hub
Seat
Release
Button
Pin
Storage Bag
Crotch Restraint

11
English

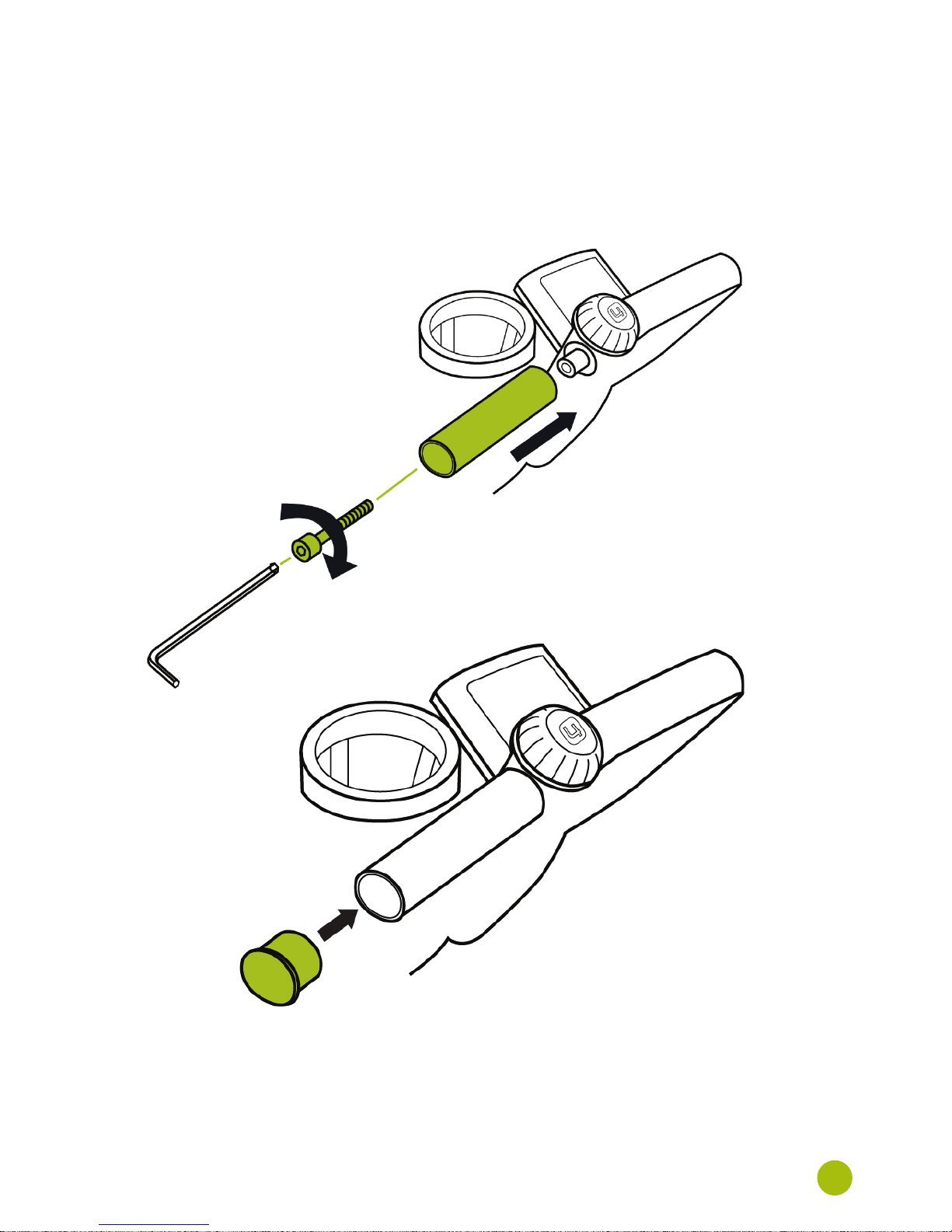

Chapter 5: Installing the handlebars
1
2

12
Adult Assembly Required
This section deals only with the installation of your
included seat ring. The included seat ring is not
suitable for children under 6 months of age. If
installing an alternate 4moms® approved seating
accessory, please see the instructions that came
with the accessory.

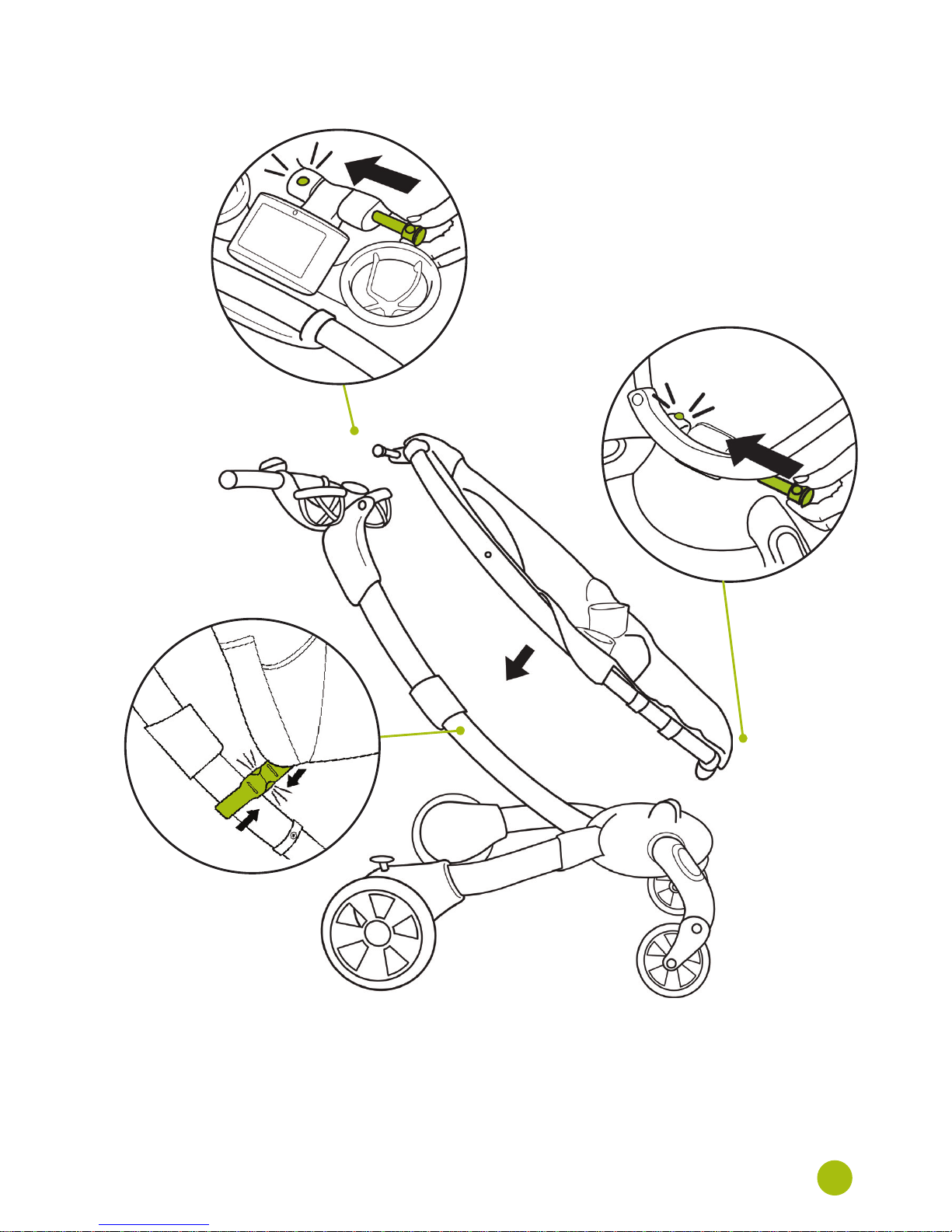

Step 1: Unfold the base as described on page 14.
Step 2: Take the seat ring by its upper and lower
ends and pull gently until the Telescoping Frame is
fully extended. Fit the Upper Attachment Socket
of the seat ring over the Upper Attachment Hub of
the base, and push to pin into place until it clicks.
Do the same on the lower end. Buckle the seat
restraint strap around the Central Bar (as shown on
page 13).
To detach the seat ring, depress the Release Button
on each of the seat’s Attachment Sockets, and pull
each pin out as far as it will go.
Note: The seat ring can also be attached to and
detached from the Origami base when both the
base and the seat ring are closed, but it’s harder to
do, so we recommend attaching and detaching
when both pieces are fully open.
Chapter 6: Installing the Seat Ring

13
English

14
Chapter 7: Using Your Origami
How to Power Fold and Unfold
To fold or unfold the Origami, turn the Outer Ring of
the Activation Dial counterclockwise until it won’t
go any further, then release it. The dial will light up
for 5 seconds. While this button is lit, press the Power
Button and the stroller will fold or unfold.
If you press the Power Button while the dial isn’t lit,
nothing will happen. The two-step process prevents
someone from folding the stroller unintentionally.
12
There is a lock switch located at the base of the
Activation Dial (shown below). Slide the switch up
to lock the dial and down to unlock it.

15
English
This section deals only with the installation of your
included seat ring. The included seat ring is not
suitable for children under 6 months of age. If
installing an alternate 4moms® approve seating
accessory, please see the instructions that came
with the accessory.
Place your child in the Origami. Position the crotch
restraint between your child’s legs.
Buckle both shoulder straps into the buckle on the
lower strap.
Check to be sure the Safety Harness is securely
fastened by pulling it away from your child. The
Safety Harness should remain attached.
To tighten the straps: Feed the anchored end of the
strap up through the buckle to form a loop. Pull the
free end of the restraint.
To loosen the straps: Feed the free end of the
restraint up through the buckle to form a loop.
Enlarge the loop by pulling on the end of the loop
toward the buckle. Pull the anchored end of the
restraint to shorten the free end of the belt.
Chapter 8: Securing Your Child in Seat Ring

16
trip
Chapter 9: The LCD
Central bar latches are engaged
and stroller is safe to use
Latches are not engaged;
stroller is not safe to use
Something is wrong; stroller is
not safe to use. Discontinue use
and contact Customer Service
Battery life indicator Gender Bow Temperature
SpeedTrip odometer Lifetime odometer Child indicator
error
The LCD is backlit at night. To dim the backlight, see Chapter 10.
The trip odometer resets to zero every time you close the
stroller, but the lifetime odometer remembers all distance
traveled. If on your rst trip, you travel .5 miles and then close
the stroller, both odometers will show 0 when you open the
stroller again. If you then travel another .5 miles, the lifetime
odometer will show 0001 miles.
Changing Gender Bow and Units
Turn and hold the Activation Dial until light turns off, then
release. Turn and release the dial to toggle between bow/
no bow, and press the button to select. Then use the dial to
toggle between standard/metric units, and press the button
to select.

17
English
Chapter 10: Lights
The Daytime Running Lights on the stroller’s legs will
come on when the stroller is opened, and will turn
off again after 3 minutes of no movement. After
10 seconds of movement, they will come back on.
They will turn off when the stroller is closed.
The Pathway Lights on the Power Pod are
triggered by a light sensor near the LCD. When
the environment around the stroller gets dark, the
Pathway Lights come on automatically, and turn
off automatically when the environment lightens.
To adjust the running lights and LCD backlight,
press the orange Power button to switch from full
brightness to low brightness to off.
To lock the brakes, push down on the Brake until
you hear a click. This will lock both wheels. To
unlock the brakes, push down on the Brake again.
It will click and unlock both wheels. (It’s like clicking
a ballpoint pen.)
WARNING: Always use brakes when parking the
stroller. Brakes should only be engaged when the
stroller is stopped. Never rely solely on the brakes
when stroller is on an incline.
Chapter 11: Using the Brakes

18
Chapter 12: Seat Recline and Storage Bag
To recline the Origami’s seat to its fullest extent,
loosen the Seat Recline Strap and push the seat
towards the Central Bar. To put the seat in a
position between fully reclined and fully upright,
leave the Seat Recline Strap buckled and adjust
the length of the strap.
To tighten the strap: Feed the anchored end of the
strap up through the buckle to form a loop. Pull the
free end of the restraint.
To loosen the strap: Feed the free end of the
restraint up through the buckle to form a loop. Pull
the anchored end of the restraint.
WARNING TO PREVENT A HAZARDOUS,
UNSTABLE CONDITION, never place purses,
shopping bags, parcels or unapproved accessory
items on the handle or sunshade.

19
English
Attaching Storage Bag
To attach the Storage Bag, snap the bag's straps
into place on the Central Bar (as shown below).
The Origami will fold with the Storage Bag
attached, even if the Storage Bag has items inside
it. We recommend you remove fragile or glass
items, or large, bulky items from the Bag before
folding the Stroller.
CAUTION: Do not store more than 10
pounds of material in the storage bag.

20
Chapter 13: Folding the Stroller Manually
4moms® strongly recommends opening and
closing the stroller using the power folding system.
However if the battery doesn’t have sufcient
power or you experience some other unforeseen
issue, the stroller can be opened and closed
manually. If you experience any issue other than
the battery not being sufciently charged, please
contact Customer Service as soon as possible.
Before opening or closing the stroller manually, you
must rst put it into Manual Mode.
Locate the Manual Override Switch on the top of
the Power Pod (Picture). Insert a large coin into the
slot and turn it 90 degrees clockwise. This will put
the stroller in manual mode and turn off electrical
power to the stroller.
