4Swiss BM202 x JJ User manual
SLOW JUICER
BM202 x JJ
USER’S MANUAL
2
JUST BECAUSE WE LOVE FRUITS
AND VEGGIES…
Making juice with our 4Swiss BM202 x JJ slow juicer is a real pleasure!
That is the most efcient slow juicer available on the market.
4Swiss BM202 x JJ slow juicer has got 8cm x 8cm wide inlet
accommodating whole ingredients. Out device can extract whole
apples, oranges, carrots etc. without cutting them rst. This makes
extrusion efcient, the use intuitive and cleaning fast and effortless.
Slow juicer 4Swiss BM202 x JJ has got Enzyme Protection System, which
means that it does not produce any heat or friction while pressing the
juice. This makes our extracted juice full of natural enzymes and nutrients.
The juice is good to consume for the next 48 hours.
4Swiss BM202 x JJ is perfect for healthy lifestyle lovers.
Give yourself
a healthy boost!
4
PRODUCT SPECIFICATION
Product: Slow Juicer
Model: BM202 x JJ
Voltage: 220 – 240 V
Frequency: 50 Hz
Power: 200 W
Speed: 46 rpm
Cable lenght: 1 m
Motor: single-phase induction motor
Fuse: 250 V 5 A
Maximum use: less than 30 minutes
Weight: 6,5 kg
Dimensions: width: 150 mm
length: 220 mm
height: 460 mm
6
DESCRIPTION
1. Inlet
2. Unlock sign
3. Drum lid installation markers
4. Drum lid installation markers
5. Pulp outlet
6. Switcher
7. Juicer outlet
8. Smart cap
2
5
3
46
7
8
1
7
PARTS
3
4
5
6
1
2
7
8
9
10
11
1. Inlet
2. Drum lid
3. Juicing screw
4. Strainer
5. Spinning brush
6. Juicing Bowl
7. Smart cap
8. Power unit
9. Pusher
10. Cleaning brush
11. Juice and pulp containers
8

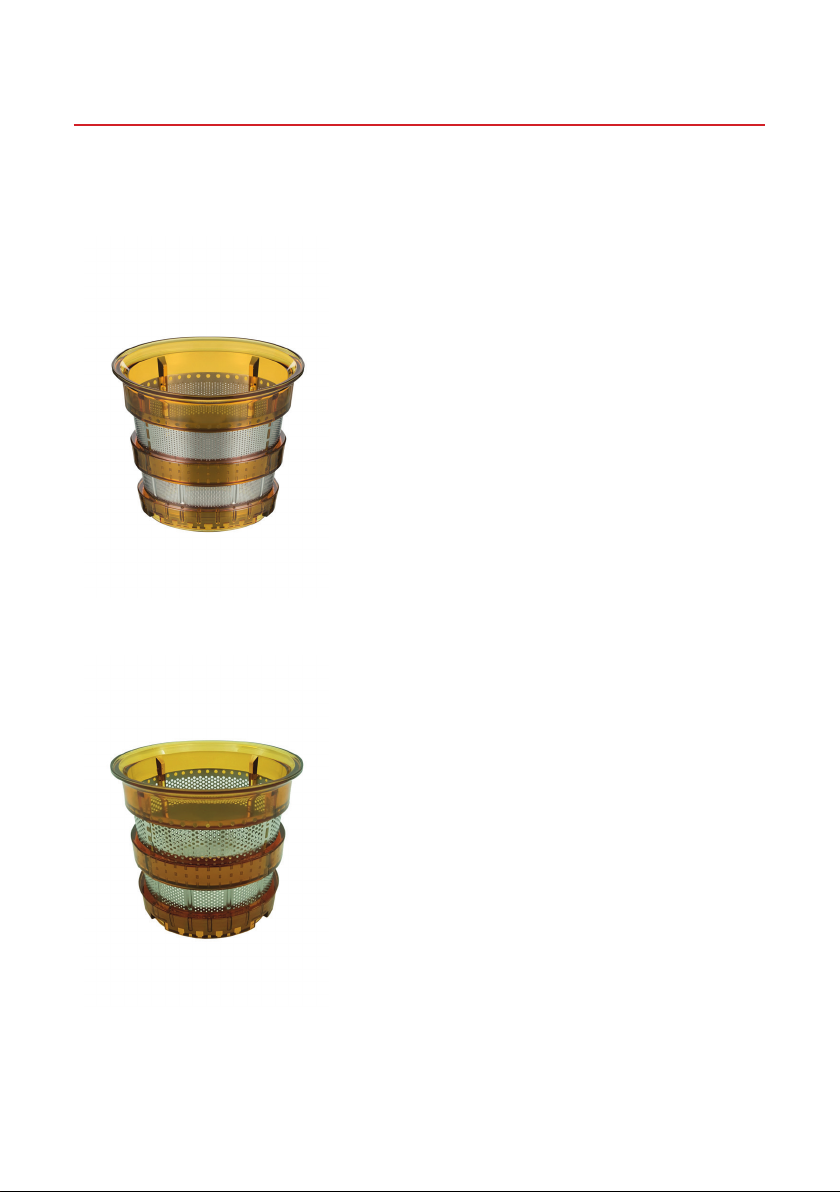

STRAINERS
The ne strainers are used for all types
of fruits and veggies.
It gives the effect of a clear, liquid juice.
The coarse strainers are used mainly for
soft fruits and veggies.
It gives the mousse effect.
9

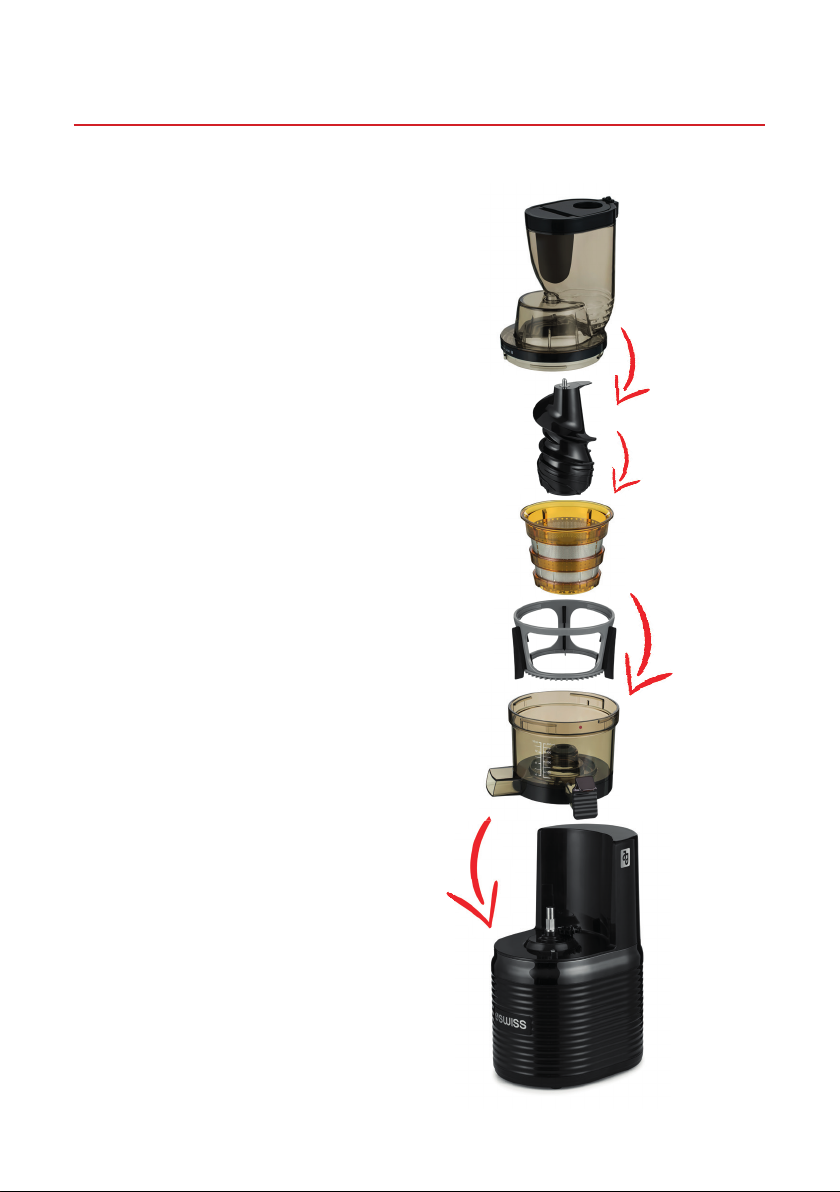

ASSEMBLY INTRUCTIONS
STEP 1
Place the juicing bowl on the
power unit.
STEP 2
Place the strainer. Then install whole
in the juicing bowl.
STEP 3
Push precisely juicing screw into the
strainer. If the juicing screw is not
pressed in correctly, it will not be
possible to cover the juicing bowl with
the drum lid and close the device.
STEP 4
Adjust the markers on the drum lid
and juicing bowl. Turn the drum lid
clockwise until the markers are in
one line.
STEP 4
STEP 3
STEP 2
STEP 1
10
INSTRUCTION MANUAL
1. The button ◄ starts the motor (juice extracting).
2. Pop fruits/vegetables into the inlet using pusher if necessary. Insert
the ingredients slowly, one by one. Start with soft fruits or veggies.
The clearest juice is extracted from cold fruits straight from the fridge.
3. Switching the button into ■ position, stops the motor.
If the juicing screw gets stuck or stops:
1. Press the button into ■ position that stops the device
2. Then press ► for 3-5 seconds.
3. When the juicing screw stops press ◄
IMPORTANT: After extracting, there may be some pulp residue in the
empty space at the bottom of the juicing screw – this is normal and
results from the structure of the pulp outlet.
Button
“forward”
Button
“reverse”
STOP
11
IMPORTANT INFORMATION
Small inlet
Large inlet
Drum lid block
LARGE AND SMALL INLET
4Swiss BM202 x JJ slow juicer has got a double safe inlet – one, where
you can insert large ingredients in while (e.g. apples, oranges, beetroots)
and the other smaller one in the lid, where you can insert smaller and
longer fruits/veggies (e.g. carrots, leafy ingredients, pomegranate seeds
etc.)
CAUTION! Before using the large inlet, you should unlock the cover.
PULP OUTLET
Before extracting press carefully the rubber seal into the hole in the pulp
outlet. If you have any troubles with placing the seal correctly, moisten it
gently with water.
After nishing work, while washing the device, remove the rubber seal
from the pulp outlet.
12
IMPORTANT SAFEGUARDS
Read carefully and follow the instructions
WARNING: Failure to follow the warnings may result
in serious injuries or even death.
• Always make sure that ON/OFF switch is used with dry hands. Wet
hands can cause electrical shock, re or injury.
• The power unit needs to be always dry.
• Twisting, squeezing or pressing the power cord is prohibited. Always
keep the power cord away from re and heat. Do not cut the power
cord or replace it by yourself.
• Do not operate the device with a damaged cord or plug.
• For safety reasons, make sure that earthing is done. Do not connect
an eathing cable to gas or water pipes, telephone line eathing etc.
• Keep the device and power cord away from children.
• Do not disassemble or repair the device by yourself.
• Do not put ngers, metal devices or other objects into the inlet while
it is in operation. These actions can result in personal injury, accident
or damage to the device.
• When using the device watch out for ties, necklaces, scarves etc.
So they do not get into the inlet.
• Do not disassemble parts of the device while it is in operation.
• Always make sure juicer cover is clamped securely in place before
motor is turned on.
• If the juicing screw has stopped, press the button ►hold
for 2-3 seconds and when the reverse gear has stopped completely,
press the button ◄ again. If the device is still not working, this means
failure. If the interruptions are repeated this may indicte damage to
the device.
• Only use the pusher supplied with the device to push ingredients
in the inlet.
• Do not put any hard objects into the juicer, including hard fruit seeds.
13
• Do not put into the device any fruits preserved in alcohol, honey,
sugar etc.
• Do not continuously operate the juicer for more than 30 minutes.
Overheating can cause damage to the device. If using the device for
longer period of time, stop it and leave it for a few minutes. After the
break, the device can be used again.
• If there is an odd sound, smell or smoke coming out of the device,
switch it off immediately.
• If a gas escape is detected from the gas installation, do not connect
the power cord. Air the room out thoroughly straightaway.
• Unplug the power cord from the socket when nished work.
• Do not clean the device at high temperatures (over 80°).
• Do not put parts in the dishwasher, microwave etc.
• The device weighs 6.5kg. Hold the device rmly with two hands
when moving it.
• Move the device by holding rmly the power unit with two hands.
• Do not move the device by holding the juicing bowl or the drum lid
because these parts are not stable and the device can fall down.
• Do not expose the device to fall or strong vibrations.
14
TROUBLESHOOTING
The motor has blocked / stopped or does not want to start
• Check if the power cord is properly connected
• Check if the juicing bowl and the drum lid are properly assembled.
• Check if the device is assembled according to the manual.
The juicing bowl is stuck and cannot be disassembled from the
power unit
• Check if there are some remaining ingredients in the juicing bowl.
• Check if there are no other objects in the juicing bowl.
• Press the button ► for 3-5 seconds. Repeat that action 2-3 times.
Then pull the juicing bowl up.
The juicer stopped while extracting
• Check if there are not too many ingredients in the juicing bowl.
• Check if the juicer was not used for longer than 30 minutes
continuously.
• If the juicer stops because it was working too long, turn it off for a few
minutes and back on.
• Do not put more fruits to the inlet of products that are already there
haven’t been extracted yet.
Scratches on the juicing screw
• Minor scratches appear from proper juice extraction. This is normal
feature of the device.
Juice leaking from the juicing bowl
• Check if the rubber seal is positioned correctly in the pulp outlet.
• Check if there are not too many ingredients in the juicing bowl.
• Insert the prepared ingredients separately, one piece at a time.
The juicing bowl shakes
• It is normal for the juicing screw and strained to vibrate and it comes
from the working motor.
16
WARRANTY CONDITIONS
1. The manufacturer provides warranty for all parts of the device starting from the sale date.
2. 4Swiss Polska sp. z o.o. provides the following warranty conditions for individual customers:
• 24 months of absolute warranty – in case of device failure, the manufacturer undertakes to
replace the defective part with a new one within 5 working days from the date of receiving the
defective device from the Customer.
• 60 months of standard warranty – in case of device failure, the manufacturer undertakes to
repair the device within 14 working days from the date of receiving the defective device from
the Customer.
• Lifelong warranty for the motor.
3. 4Swiss Polska sp. z o.o. provides the following warranty conditions for commercial customers:
• 24 months of standard warranty – in case of device failure, the manufacturer undertakes to
repair the device within 14 working days from the date of receiving the defective device from
the Customer.
4. In justied circumstances (e.g. the need to import some parts from abroad),
the manufacturer reserves the right to extend the repair time in accordance with Customers’
rights. The manufacturer undertakes to inform the Customer about that immediately.
5. In order to use the benets of the warranty, the Customer needs to provide
the manufacturer with a proof of purchase, i.e. the invoice or receipt and the original version
of Extended Warranty Certicate (for individual customers).
6. The warranty time will be extended by the period of time starting from complaint to the delivery
of the repaired device to the Customer.
7. The warranty does not cover damage resulting from:
• Fall of the device or being hit by other objects.
• Improper exploitation, not compliant with the manual
• Lack of proper care of the device, including systematic, thorough cleaning.
• Using inappropriate cleaning products(e.g. detergents, bleaches, scrubbing products)
unsuitable for elements made of plastics.
• Connecting the device to a power supply that does not comply with the voltage specied on
the type plate / in the manual.
• Sudden random events (re, ood etc.)
• Using the device for commercial purposes as long as the device is intended to be used exclusi-
vely in an individual household.
• Using the device for purposes other than those for which it was intended.
• Repairs and modications made by the used or other unauthorised person or services.
8. The warranty does not cover colour changes, tarnishes, discolorations etc. as well as scratches,
scrapes, micro cracks on the main body of the device and the accessories.
9. The Extended Warranty Certicate that is not lled in, is lled in incorrectly, illegible or with
corrections and notes made by unauthorised person is invalid.
17
10. The costs of unjustied complaint will be covered in full by the Customer.
11. This warranty is effective only on the territory of the Republic of Poland.
12. In matters not covered by these warranty conditions, the relevant provisions of the Civil Code
and the Act of 27 July 2002, on specic terms and conditions of consumer sale and amendments
to the Civil Code, shall apply.
The standard warranty (60 months for individual customers and 24 months for commercial customers)
is provided on a door-to-door basis. This means that 4Swiss Polska sp. z o.o. covers all the costs of
delivering the device from the Customer to the service and from the service back to the Customer
for the period specied above, starting from the date of purchase. In case of damages (covered by
the warranty) which require sending the whole device back to the service, it is collected from the
Customer at the expense of 4Swiss Polska sp. z o.o. After repair / replacement, the device is sent
back to the Customer also at the expense of 4Swiss Polska sp. z o.o. In case of damages (covered by
the warranty) during the standard warranty period that do not require sending the whole device, but
only the working parts – the costs of sending the parts to the service are returned to the customer
after accepting the complaint. The costs of sending back the parts to the customer shall be covered
by 4Swiss sp. z o.o.
The warranty shall be provided on the basis of a proof of purchase in the form of a VAT invoice for
each device and an Extended Warranty Certicate (apply to individual customers).
Complaints should be reported at the phone number: +48 22 123 87 00
or via e-mail: [email protected].
POST-WARRANTY SERVICE
1. The manufacturer ensures that the device purchased from him can be repaired even after the
warranty period.
2. The repair service in the post-warranty period is payable, and the cost of delivery to and from
the manufacturer service is covered by the customer.
3. The manufacturer sells a set of main spare parts and componentry, which can be used by the
customer to self-repair or replace elements that have been damaged or worn after the warranty
period.
4. The manufacturer does not guarantee the possibility of purchasing elements that are no longer
produced.
18
19
NOTES
4Swiss Polska Sp. z o.o.
Al. Armii Ludowej 6/164
00-571 Warsaw
phone: +48 123 87 00
e-mail: [email protected]
www.4swiss.pl
Table of contents
