S&P PCRL80 User manual

Model: PCRL80 PCRL80F
RECESSED FAN LIGHT
WARNING
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
CAUTION
CLEANING & MAINTENANCE
OPERATION
PLAN THE INSTALLATION
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with
the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises,
replace the motor with the exact service motor. The impeller should also be replaced.
1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must be horrizontal.
* DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off
power unit.
4. Please read specification label on product for further information and requirements.
Use a 2-function wall control to operate this fan. See “Connect Wiring” for details.
ROOF CAP*
(with built-in
damper)
ROUND
DUCT* WALL CAP*
(with built-in
damper)
*Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
FAN
HOUSING
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
Keep duct
runs short
a). Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b). Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent
power from being switching on accidentally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
c). Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction codes and standards.
d). Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code authorities.
e). When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
f). Ducted fans must always be vented to the outdoors.
g). Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit (ceiling installation only).
h). This unit must be grounded.
i). Not for Use in Kitchens.
j). Install Fan At Least 2.5 m (8.2 feet) Above The Floor.
k). To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces
within walls or ceilings or into attics, crawl spaces, or garages
l). WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control
Device.
m). The fan must not be installed in a ceiling thermally insulated to a value greater R40.

2

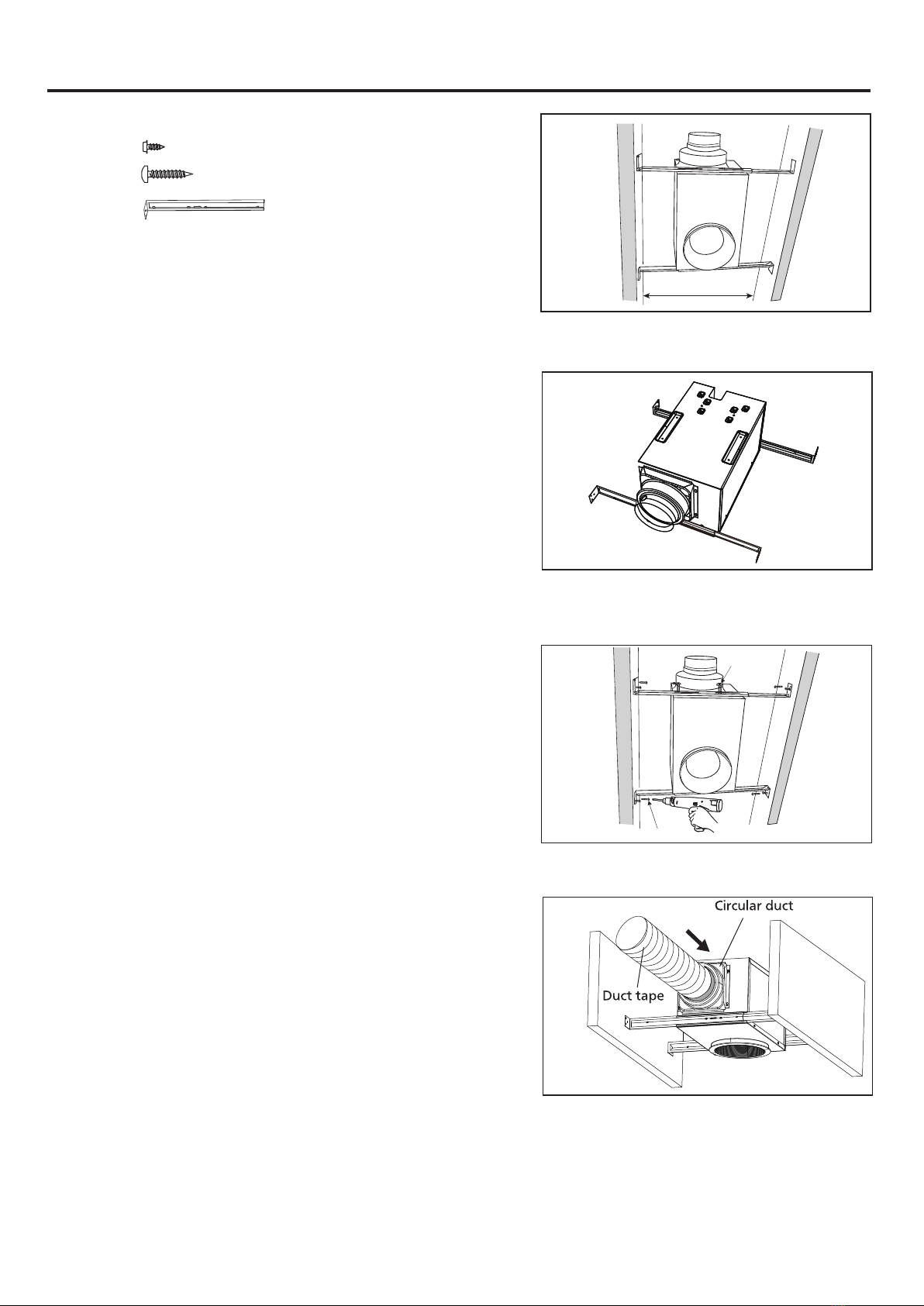

1. MOUNT WITH HANGER BARS
1a. Sliding hanger bars have been provided, which allow the housing to
be positioned accurately anywhere between the framing. The bars can
be used on all types of framing: I-joist, standard joist,
and truss construction. Slide hanger bars onto housing and adjust as
needed to fit between framing.
2. INSTALL ROUND DUCTWORK
Connect the round ductwork (not included) to the damper/duct
connector, and run the ductwork to a roof or wall cap (not included).
Using tape (not included), secure all the ductwork connections so
that they are air tight.
1. Before installation, you need to know:
ST4.2*1/2"
Screw A
Screw B
Hanger bar
(long)
ST4.2*1"
13 3/8"
ASSEMBLY INSTRUCTIONS
14 3/8 in.-23 1/2 in. (365-597)
Screw A
Screw B
1b. Extend the hanger bars to the width of the framing. Position the
fan with the hanger bar tabs aligned with the bottom edge of the framing,
holding the ventilator in place.
Secure hanger bars to framing using one screw on each end of hanger
bar. Attach set screws to lock bar hangers in place.
Insulated flexible duct is recommended for the quietest possible
installation. If rigid duct is used, a short (1-3 feet) section of insulated
flexible duct will ensure quiet operation.
The ducting from this fan to the outside of building has a strong
effect on the air flow, noise and energy use of the fan. Use the
shortest, straightest duct routing possible for best performance, and
avoid installing the fan with smaller ducts than recommended.
Insulation around the ducts can reduce energy loss and inhibit mold
growth. Fans installed with existing ducts may not achieve their
rated air flow.

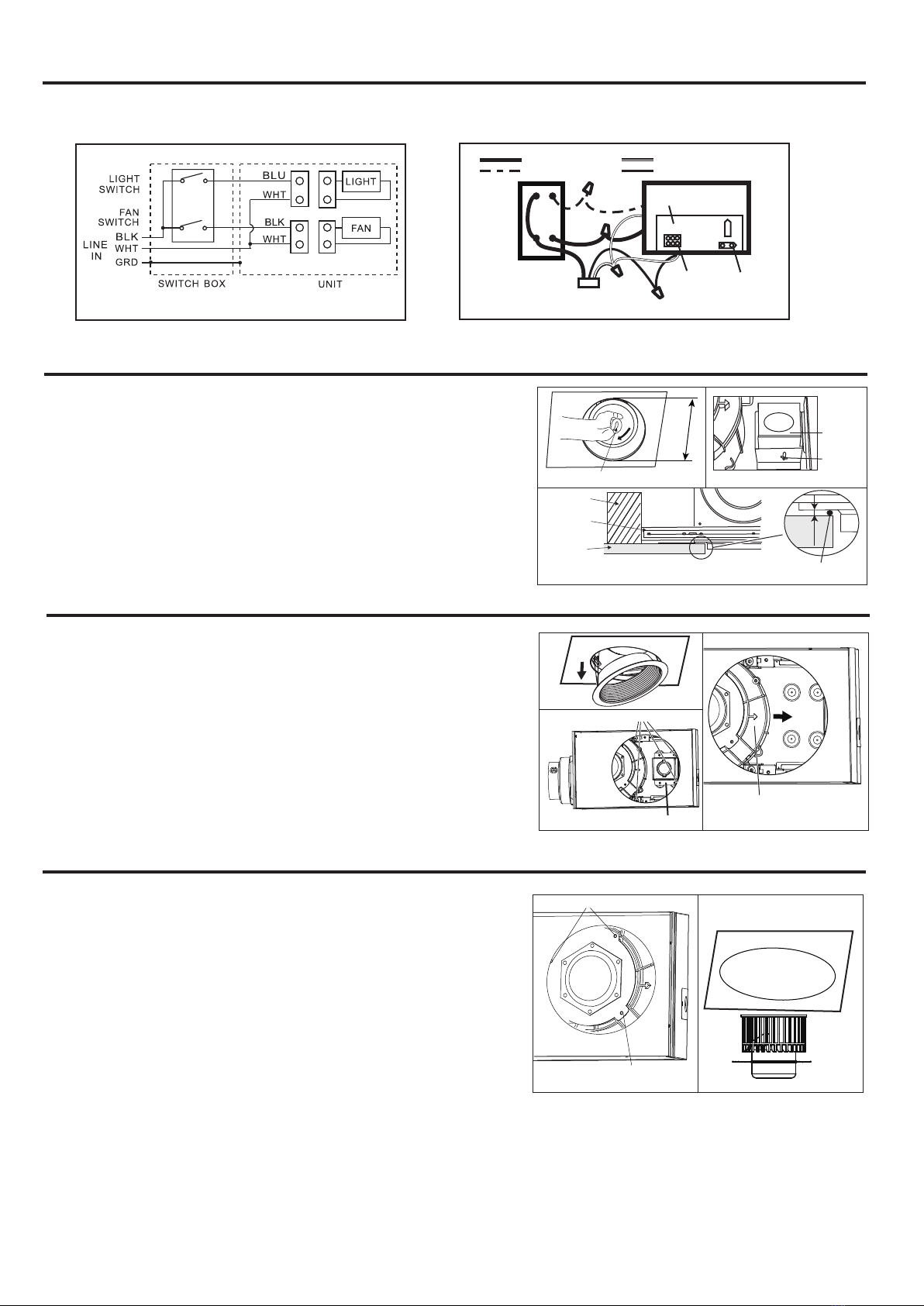

CONNECT ELECTRICAL WIRING
FINISH CEILING WORK
REPLACEMENT INSTALLATION
REPLACEMENT INSTALLATION
WIRE PANEL
3
Fluorescent lamp
UNIT
BLACK(BLK)
LIGHT
SWITCH BOX
FAN
POWER SUPPLY
120V AC
GROUND (GRD)
BLUE(BLU)
WHITE(WHT)
FAN
RECEPTACLE
LIGHT
RECEPTACLE
Hanger bar
Ceiling
Joist
After finishing the ceiling job, fill gap between flange and ceiling with caulk
or other sealant to prevent air leakage.
>1/8 in.
(3.2mm)
6 1/2 in.
(165mm)
1. Remove the trim ring orLight assemble by detaching the springs.
2. Remove the screws as shown in the right.
3. Remove the lamp base.
4. Pull the duct system, so that you can see the blower system.
Remove the screws
Lamp base
Blower system
Wing nut
Lamp base
5. Remove the screws as shown in the right.
6. Take the blower system out of the housing.
7. Replace the broken parts.
Remove the screws
Remove the screws
Run 120 Volts AC house wiring to the fan. Use only UL-approved connectors (not included) to attach the house wiring to the wiring
plate. Refer to the wiring diagram, and connect the wires as shown.
1. A round ceiling hole 6 1/2 inches (165mm) diameter should be cut.
Seal any gap between the hole in the drywall and the fan with sealant
2. Install the lamp.
Note: The lamp base can adjust up or down to regress the lamp into
the housing.

WARRANTY
REPLACEMENT INSTALLATION

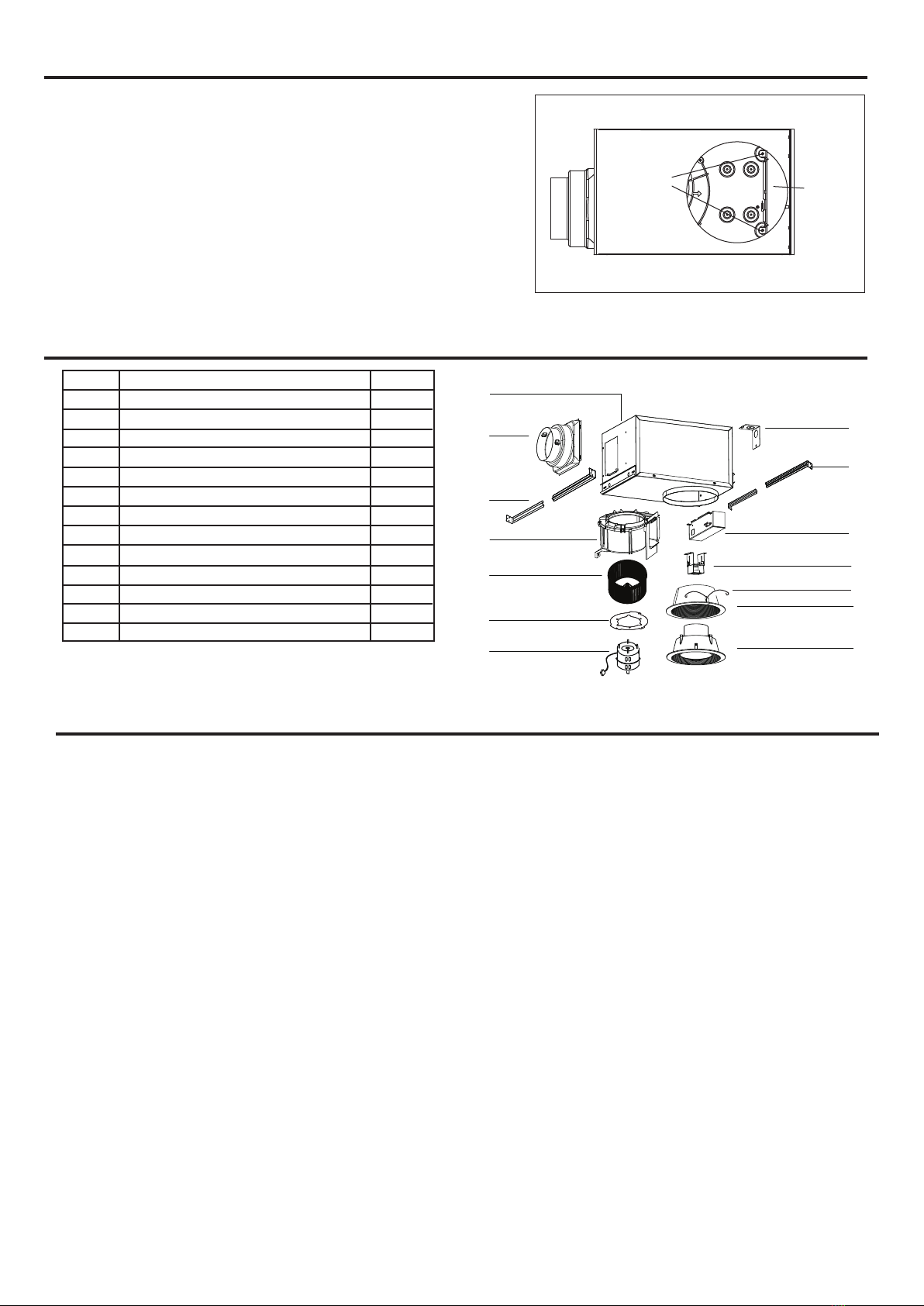

SERVICE PARTS
PART PART NAME Qty.
1
2
3
4
5
6
8
9Blower Wheel
Motor plate
Wiring plate
Wire Panel / Harness Assembly
Wire Panel
Remove
the screws
Trim Ring (For model PCRL80)
1a Light assemble (For model PCRL80F)
Grille Spring
Lamp base
Motor
Duct
1
1
2
1
4
1
1
1
1
1
7
Blower housing 1
10
11
12 Housing 1
4
Hanger Bars
3
2
1
1a
4
5
6
7
8
9
10
5
11
12
8. Replace the capacitance need to remove the wire panel, and then
replace the capacitance.
S&P USA Ventilation Systems, LLC. & S&P Canada Ventilation Products, Inc. warrants to the original end user of its
products that our exhaust fans will be free from defects in materials and workmanship for a period of Five (5) years from
the date of original purchase. 6 years warranty for motor and 5 years warranty for the remaining fan parts. THERE ARE
NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF SUITABILITY FOR A PARTICULAR PURPOSE.
During this five year period, S&P will, at its option, repair returned products or parts, or provide replacement products or
parts, without charge, for any product or part which is found to be defective under normal use.
This warranty does not cover normal maintenance and service or any parts that have been subject to misuse, negligence,
accident, improper maintenance or repair, faulty installation or installation contrary to recommended installation instructions.
S&P’s obligation to repair or replace, at S&P’s option, shall be the purchaser’s sole and exclusive remedy under this
warranty. No labor or materials are covered by this warranty. S&P shall not be liable for incidental damages arising out of
or in connection with product use or performance.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
To qualify for warranty service, you must notify S&P at the address or telephone number stated below, provide the model
number and part identification, and describe the nature of any defect in product or part. You may be required to ship a
defective part to S&P. There will be no charge for shipping repaired or replacement parts from S&P to you if your address
is in the United States or Canada. At the time of requesting warranty service, you must present evidence of the original
purchase date.
S&P Canada Ventilation Products, Inc.
5600 Ambler Drive Mississauga, ON L4W 2K9
P. 866-733-0233
F. 866-358-5346
www.solerpalaucanada.com
S&P USA Ventilation Systems,LLC.
6393 Powers Avenue Jacksonville, FL 32217
P. 904-731-4711
F. 904-731-8322
www.spvg-northamerica.com
