969.Coffee Globus Series User manual

Serie Globus

1. Introduction
The espresso makers described in this manual were specifically designed to fit in rooms with any type of décor and
were created for users who have special requirements as regards space.
They ensure an excellent coffee yield thanks to one of the most tested dispenser units, which permits excellent quality
from the first to the last coffee, thanks to its thermosyphonic circulation.
They are supplied in manual, semiautomatic and electronic versions and are guaranteed by quality components
produced by leading Italian companies in this industry. They are equipped with copper boilers in order to maintain the
tradition of great-tasting coffee!
Premessa
2. Warnings
This manual provides important information for the installation and trouble free maintenance of the machine.
Therefore It must be carefully stored for future reference and the instructions contained in it must be thoroughly read.
The machine must only be used for its intended purpose, i.e. for making coffee.
Any other use is incorrect and therefore dangerous.
After removing the machine from its package, make sure that it has not been damaged during transport and that all of
the parts have been included as stated on the order.
If in doubt, do not use it and immediately contact an after-sales service center or the sales outlet.
The pakagig ust ot e left ithi hildre’s reah sie it is a potetial soure of dager. Dispose of it aordig to
all applicable regulations in force.
Before connecting the machine, make sure that the mains voltage is the same as the one shown on the rating plate.
The machine must be installed, tested, and serviced in compliance with all applicable regulations in force by qualified
personnel who fulfill the legal requirements.
An incorrect installation could cause damage to property or injury to people or animals, for which the manufacturer
cannot be held responsible.
In the event of a breakdown and/or malfunctioning, turn the espresso maker off and do not tamper with it.
Contact specialized personnel, the manufacturer or authorized after-sales service centers only.

3. Description
1 Coffee switch
2 Height-adjustable foot
3 Level indicator
4 Water tap
5 Cup tray
6 Steam Knob
7 Steam Wand
8 Group
9 Filter holder
10 Touch button panel (only electronic version)
11 Pressure gauge
12 0/1 switch
13 Hot water switch
14 Manual filling
4. Technical Features
GLOBUS
GROUPS
1
2 compact
2
3
WIDTH
500
580
700
900
DEPTH
520
520
520
520
HEIGHT
500
500
500
500
WEIGHT KG
40
50
60
70
POWER SUPPLY VOLT
115/230
115/230
230
230
HEATING ELEMENT WATT
2000
3300
4500
6000
BOILER LT.
4
8
14
21

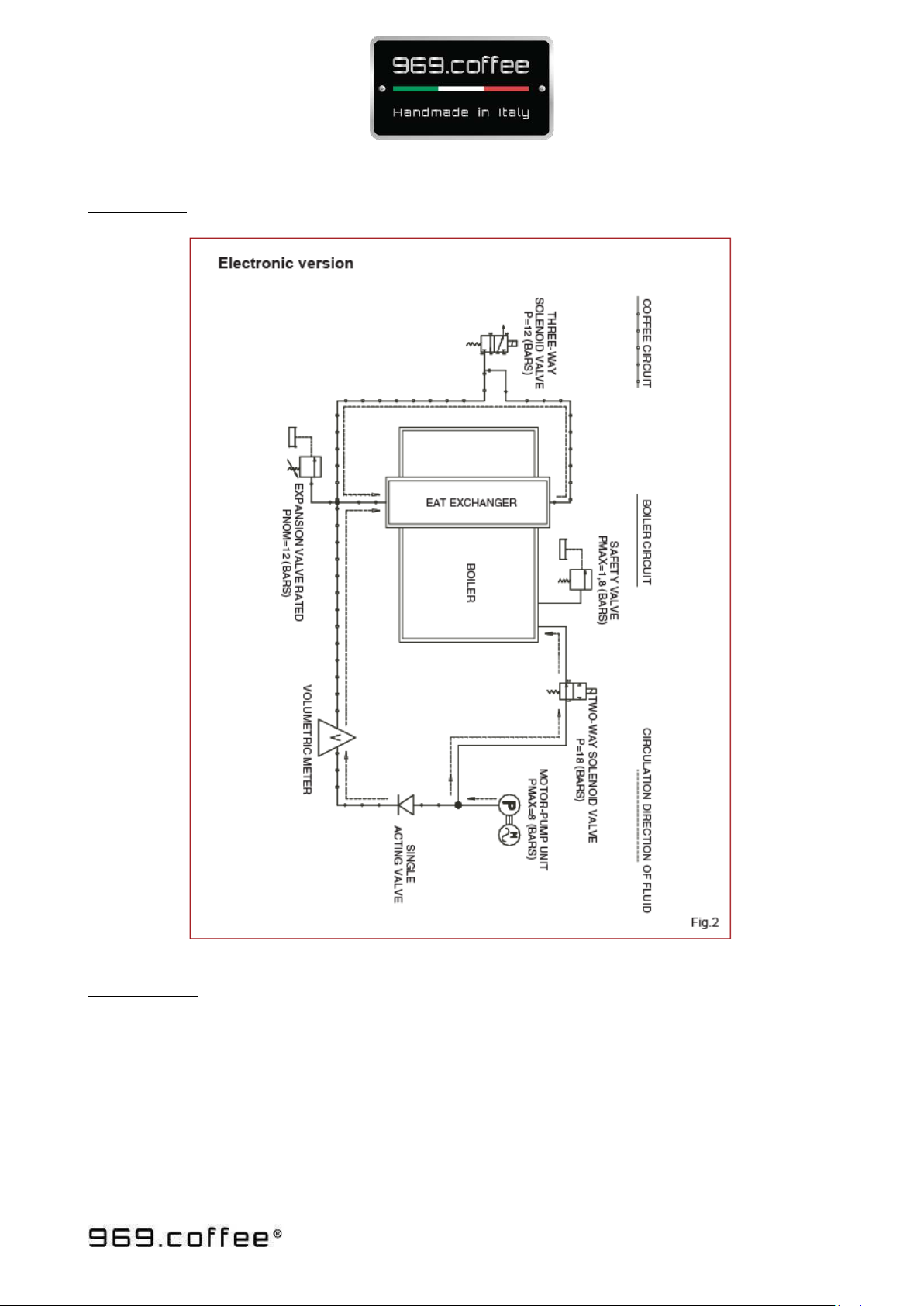

Hydraulic circuit
Electrical features
The pump is controlled by a relay with a 10-Amp contact, whereas the solenoid valve is controlled by a relay with an 8
amp contact.
The high/voltage connections of the volumetric meters and the level probe are made with 6.38mm faston connectors,
whereas the connections to the push button panels and the serial transmission are made with model II AMP
connectors.
All of the components are UL/VDE/CSA approved.
The control unit is built to standard CEI 61-150 (European Standard EN 60 335-1) on safety of household and similar
electrical appliances.
The operating room temperature range is between 0°C (32°F) and 70°C (158°F).La temperatura ambiente di
funzionamento è compresa tra 0°C e 70°C.

Installation
After removing the machine from its package and before the authorized technician arrives to install it:
•Place it in a safe and stable position in its chosen location, making sure that:
- the orktop is suitale for supportig the ahie’s eight ad is leeled aiu iliatio 3°. If
necessary, adjust the mobile part of the feet;
- there is necessary space to carry out all preliminary and future maintenance operations.
- Place the water drain and the electrical and hydraulic connections max 1 meter from the worktop
WARNING!
The machine is designed for indoor installation.
Therefore it should not be exposed to rain, strong sources of heat, and/or other atmospheric agents.
The machine should be connected to a grounded outlet.
Avoid the use of adapters, multiple sockets, and/or extension cords. If necessary, use only materials which comply with the
safety regulations in force.
If the power cord deteriorates, have it replaced by an authorized aftersales service center.
Be careful not to block the air vents.

Electrical connections
connect the cable supplied together with the espresso maker to the mains, after fitting a safety circuit breaker with
suitable protection fuses in between.
Hydraulic connections
Make sure the water pressure does not exceed 4 atm (44 psi).
If it does, install a pressure reducer which limits it to the same value or lower.
Connect the steel-coated high pressure pipe supplied with the machine to the hydraulic system or to the water softener
(if any) installed upstream.
Fitting a water softener is highly recommended in order to prolong the machine life and to prevent scale deposits.
Upon request, the machine ca be equipped with a water softener
Connect this steel pipe to the coffee maker water intake located under the lower basin on the right side.
After having completed the water intake connection, connect the rubber drainage tube (supplied with the machine)
from the small black plastic basin located under the trays to the drainage pipe positioned under the surface.
Make sure the tube is not clogged in order to prevent damage to the machine from overflowing water. For the same
reason, avoid curves that are too sharp and incline it enough to ensure the regular downflow of draining water.
Brewing with a blind filter, make sure the pressure indicated by the pressure gauge does not exceed 9 atm (132 psi). If it
does, adjust the pump (fitted on the back of the machine on the right).
Use
Before each use or if the coffee maker does not work, make sure that:
- the power cord is plugged in and mains power is available to the unit;
- the coffee switch must be in position 1 for the first use. The machine fills the boiler until the water level
reaches the probe (see level indicator, 3 Fig. 1), completely covering the heating element.
After filling, turn the coffee switch to position 2. The machine starts heating the water;
- the water supply pipe is connected to the hydraulic system and there are no leaks;
- the water drainage tube is set up according to the previous instructions;
- there is enough water in the boiler;
- the boiler is under pressure (0.8 to 1 bar/11.6 to 14.5 psi).
In case of doubt, have the machine checked by an authorized after-sales service center!
Before using the coffee maker for the first time or after a long idle period run the machine at least once using the blind
filter.
Steam dispensing (to prepare, for example, cappuccino)
Posizioare il reipiete sotto al tuo d’erogazione vapore in modo che la parte terminale sia completamente immersa
nella bevanda che si intende scaldare.
Agire sul rubinetto corrispondente in senso antiorario ed attendere alcuni secondi. Per cessare la fuoriuscita del vapore
ruotare il rubinetto in senso orario.
Warning!
The steam wands, which rotate thanks to a ball joint, are located at the sides of the brew groups.
They reach very high temperatures when steam is dispensed.

Hot water dispensing (to prepare hot drinks such as tea, chamomile, etc.)
Check the level indicator to make sure there is enough water in the boiler.
In case there is not, contact the after-sales service center.
Make sure the water is hot, checking that the boiler pressure gauge indicates a pressure of approximately 0.8 to 1 bar
Place the empty container under the hot water wand and press the button
Warning!
The steam wands, which rotate thanks to a ball joint, are located at the sides of the brew groups.
They reach very high temperatures when steam is dispensed.
Preparing coffee
Pour the desired amount of coffee into the filter basket and press it with the
specifically designed tamper.
Insert the filter holder into the groupd and turn it to the right-
Place one or two cups under the filter holder spout
In the lever version
Move the lever upwards and wait for the desired amount of coffee to be dispensed.
To stop dispensing coffee, return the lever to its original position.
In the manual version
Press the utto orrespodig to the group seleted o the frot of the ahie ad plae it i positio .
Wait for the desired aout of offee to e dispesed ad retur the sith to positio .
In the electronic version
Press the desired selection button (Fig. 13). The corresponding LED turns on.
The machine will automatically stop when the preset amount has been dispensed.
To interrupt the brewing process at any time, press the selection button again. Our machines have a 3-minute
dispensing time-out, after which the pump and group solenoid valve will stop.
In all the models (lever, manual, electronic)
When dispensing is finished, leave the filter holder in the group until the next brewing.
Before dispensing again, empty the grounds into the knock out drawer after having unhooked the filter holder from the
group.
Make sure the pressure gauge indicates a pressure of approximately 8.5 bars (123 psi) during dispensing. If not, adjust
the calibration screw on the pump.
Programming
In order to program the doses, use the push button panel on the right. The push button panel on the left will be
automatically set with the same doses.
- Keep the button pressed for at least 5 seconds.
- All of the LED lights turn on.
- Press the selection button to be programmed. The corresponding LED flashes
- The LED of the button remains on.
- The machine pump and group solenoid valve are enabled.
- When the desired amount has been dispensed, press the button again to stop dispensing.
- Repeat these operations to program the other doses.
- Thirty second after programming, the machine automatically saves the set doses
The electronic models are equipped with a control unit.

Periodic controls
On a regular basis, i.e. every 15/20 Kg of coffee, remember to clean the water softener system in order to remove any
calcium salts deposited inside (see the related manual)
Cleaning
To ensure both trouble-free operation of this machine and great-tasting coffee, the machine must be cleaned properly
We recommend repeating the operations below at least once a day and/or after long idle periods!
WARNING!
Turn off the machine and unplug it before carrying out any cleaning operations!
To clean the machine, do not use water jets or immerge it in water!
Do not use solvents, abrasive powders, or steel wool.
Outside
After having dispensed the last coffee, clean the filter baskets and filter holders (Fig. 14) with boiling water, detergent,
and the special brush.
Remove the grid and drip tray (Fig. 15) and use hot water and a sponge to eliminate any residue.
Also clean the external body with a sponge or soft cloth and liquid detergent.
Ducts
If the filter is clogged or deteriorated, contact the after-sales service center for its replacement.
The group shower heads and wands must also be cleaned by using a sponge and hot water.
Troubleshooting
If all the LEDS flash at the same time, the control unit is signaling a problem.
The most important cases include:
• pup ruig tie has exceeded 2 minutes while filling the boiler. This is usually due to:
- no water arriving;
- the level regulator malfunctioning
• Water does ot flo durig dispesig for ore tha 3 seods. This is usuall due to:
- no water in the hydraulic circuit
- clogged jet;
- faulty volumetric meter
- unsuitable grinding (too fine)
Turn off the machine. Do not attempt to repair
Filling the boiler
A probe located inside the boiler controls the water level.
Based on the water level, the pump will turn on and off but only after a certain delay in order to prevent continuous
operations due to the oscillation of water level.
Machine failure
Contact the technical assistance center.
Accessories
The machine is supplied with a filling tube and drainage tube with relative clamps, blind filter and brush for daily
cleaning, together with filter holders and filters.
Warranty
The warranty expired after 12 months from the purchasing date. It covers the mechanical parts and includes the spare
parts.
It shall be null and void if the machine is improperly used or unauthorized personnel have tampered with it.
