A.J.Antunes McDONALD'S MEC-600 User manual

MANUAL EGG COOKER/STEAMER
1
P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
MODEL MEC-600/1200
Manufacturing Numbers 9300540, 9300542, 9300544, 9300545, & 9300546
Place this manual in the Small Equipment/Miscellaneous
section of your Equipment Manual.
Manufactured exclusively for
McDONALD’S®
BY
A.J. ANTUNES & CO.
180 KEHOE BLVD.
CAROL STREAM, ILLINOIS 60188, U.S.A.
PHONE: [phone]
TOLL FREE: 1-877-392-7854
FAX: [phone]
www.ajantunes.com
A
S
D
L
I
S
T
E

O
I
N
N
I
T
A
T
TABLE OF CONTENTS
This manual is for the exclusive use of licensees and employees of McDonald’s Systems, Inc.. © McDonald’s Corporation All Rights Reserved

LIMITED WARRANTY
The Antunes Food Service Equipment Division of A.J. Antunes & Co. provides the following limited warranty to the original purchaser of all McDonald’s Equipment.
All components are warranted against defects in the material and workmanship for a period of two (2) years from date of original installation, not to exceed 30 months
from date of shipment from our factory.
If any part becomes Inoperable during the first two (2) years after the original installation date, Antunes Food Service will pay negotiated straight time labor costs to
an Authorized Service Agent to replace the part, plus travel expenses up to 50 miles/80 km, 1 hour each way (100 miles/160 km, 2 hours round trip).
Antunes Food Service reserves the right to make changes in design or add improvements on any products. The right is always reserved to modify Equipment
because of factors beyond our control and government regulation. Changes to Equipment do not constitute a warranty charge.
This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular pur-
pose, each of which is expressly disclaimed. The remedies described above are exclusive, and in no event shall A.J. Antunes & Co. or any of its Divisions be liable
for special consequential or incidental damages for the breach or delay in the performance of this warranty.
WARRANTY EXCLUSIONS
•The cost of Installation.
•Equipment that has been damaged due to shipment. Purchaser should
make damage claim directly upon carrier.
•Alteration, misuse, abuse.
•Improper storage or handling.
•Improper maintenance.
•Failure to follow proper Installation instructions, including electrical connec-
tion.
•Improper or unauthorized repairs.
•Scheduled Maintenance procedures as outlined in your MRC Card.
•Consumables such as Grill Covers (Release Sheets), gaskets, Conveyor Belt
Wraps, O-Rings, and light bulbs.
•Overtime or Holiday charges.
•Mileage over 50 miles/80 km (100 miles/160 km round-trip), or travel time
over two (2) hours.
•Freight, foreign, excise, municipal or other sales or use taxes.
•Consequential damages such as loss of profit, loss of time, the cost of repair-
ing or replacing other property which is damaged, or any other incidental
damage of any kind.
Owner Information .....................................................2
General......................................................................2
Warranty Information .................................................2
Service/Technical Assistance ....................................2
Important Safety Information ....................................3
Electrical Ratings.......................................................4
Specifications .............................................................4
Model Designation.....................................................4
Electrical Cord & Plug Configurations .......................4
Installation...................................................................5
Unpacking..................................................................5
Dimensions................................................................5
Equipment Setup.......................................................5
Maintenance..............................................................6/7
Daily Cleaning ...........................................................6
Checking Cycle Times (Monthly)...............................6
Checking Grill Platen Temperature............................7
Troubleshooting .......................................................8/9
Control Board LEDs ................................................8
Green LED Blink Codes ..........................................9

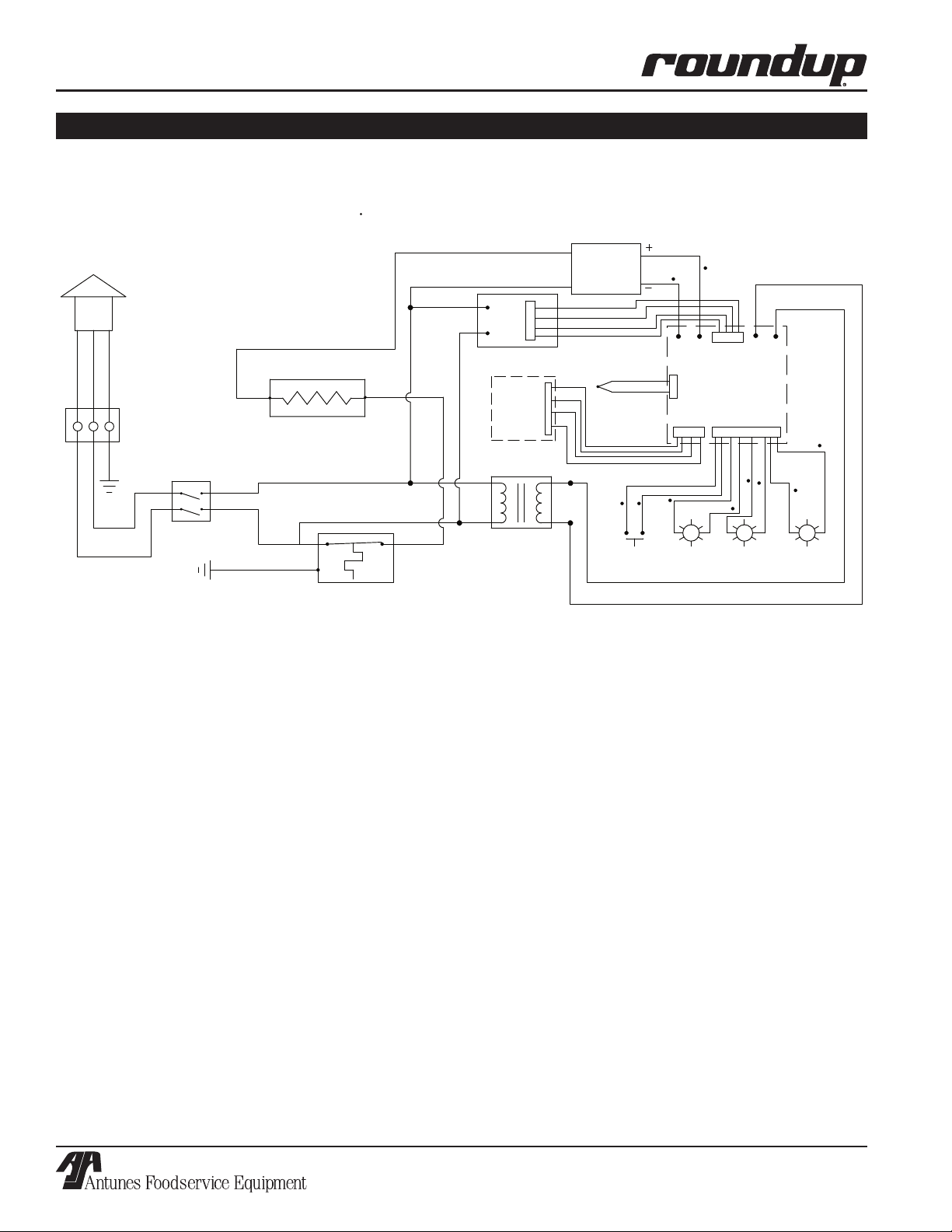

Wiring Diagram.........................................................10
Replacement Parts...............................................11/12
NOTES ...................................................................13/14
MEC-600 MEC-1200

T
I
S
L

E
D

MANUAL EGG COOKER/STEAMER
2P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
3
P/N 1010877 Rev. E 01/05
McDonald’s
Service/Technical Assistance
If you experience any problems with the installation or
operation of your unit, contact your local A.J. Antunes
Authorized Service Agency. They can be found in the
service agency directory packaged with the equipment.
Fill in the information below and have it handy when
calling your authorized service agency for assistance.
The serial number is on the specification plate located
on the side of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
Refer to the service agency directory and fill in the
closest Authorized Service Agency information below:
Authorized Service Agency
Name:
Phone No:
Address:
Use only genuine A.J. Antunes replacement parts in
this unit. Use of replacement parts other than those
supplied by the manufacturer will void the warranty.
Your Authorized Service Agency has been factory
trained and has a complete supply of parts for this unit.
You may contact the factory at 1-877-392-7854, (toll
free in the U.S.A.) or 630-784-1000 if you have
trouble locating your local authorized service agency or
need technical assistance.
General
This product cooks/steams a maximum of six or twelve
eggs (refrigerated) in approximately 150 seconds. Eggs
within Egg Rings, are cooked with a combination of
heat and steam. With the cover closed, water is poured
into a trough on the cover and drips onto a hot Platen
producing steam, cooking the eggs and heating the
Canadian Bacon for the “Egg McMuffin Sandwich.”
The unit is equipped with audio-visual signals for oper-
ation.
This manual provides the safety, installation and oper-
ating procedures. We recommend that all information
contained in this manual be read prior to installing and
operating the unit.
Your MEC-600/1200 is manufactured from the finest
materials available, assembled to Roundup’s strict
quality standards, and tested at the factory to ensure
dependable trouble-free operation.
Warranty Information
Please read the full text of the Limited Warranty
printed on the front cover of this manual.
If the unit arrives damaged, contact the carrier
immediately and file a damage claim with them.
Save all packing materials when filing a claim.
Freight damage claims are the responsibility of the
purchaser and not covered under warranty.
The warranty does not extend to:
•Damages caused in shipment or damage as
result of improper use.
•Installation of electrical service.
•Installation, calibration, or adjustment.
•Normal maintenance outlined in this manual.
•Consumable parts such as Egg Rings, gas-
kets, rubber feet, labels, O-rings, light bulbs,
etc.
•Malfunction resulting from improper service
or maintenance.
•Damage caused by improper installation,
abuse, or careless handling.
OWNER INFORMATION
• Damage from moisture getting into electrical
components.
•Damage from tampering with, removal of, or
changing any preset control or safety device.
•Damage caused by parts or components not
provided by A.J. Antunes & Co.
IMPORTANT! Keep these instructions for future reference. If the unit changes owner-
ship, be sure this manual accompanies the equipment.

MANUAL EGG COOKER/STEAMER
2P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
3
P/N 1010877 Rev. E 01/05
McDonald’s
Throughout this manual, you will find the following safety words and symbols that signify important safety issues with
regards to operating or maintaining the equipment.
WARNING
GENERAL WARNING. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment and/or
severe bodily injury or death.
WARNING
ELECTRICAL WARNING. Indicates infor-
mation relating to possible shock hazard.
Failure to observe may result in damage
to the equipment and/or severe bodily
injury or death.
CAUTION
GENERAL CAUTION. Indicates informa-
tion important to the proper operation of
the equipment. Failure to observe may
result in damage to the equipment.
WARNING
HOT SURFACE WARNING. Indicates
information important to the handling of
equipment and parts. Failure to observe
caution could result in personal injury.
IMPORTANT SAFETY INFORMATION
In addition to the warnings and cautions in this manual,
use the following guidelines for safe operation of the
unit.
•Read all instructions before using equipment.
•Install or locate the equipment only for its intend-
ed use as described in this manual.
•Do not use corrosive chemicals in this equipment.
•Do not operate this equipment if it has a dam-
aged cord or plug; if it is not working properly, or
if it has been damaged or dropped.
•This equipment should be serviced by qualified
personnel only. Contact the nearest Roundup
authorized service facility for adjustment or repair.
•Do not block or cover any openings on the unit.
•Do not immerse cord or plug in water.
•Keep cord away from heated surfaces.
•Do not allow cord to hang over edge of table or
counter.
The following warnings and cautions appear
throughout this manual and should be carefully
observed.
•Turn the unit off, disconnect the power source
and allow unit to cool down before performing
any service or maintenance on the unit.
•The procedures in this chapter may include
the use of chemical products. These chemi-
cal products will be highlighted with bold
face letters followed by the abbreviated HCS
(Hazard Communication Standard). See your
Hazard Communication Standard manual for
the appropriate Material Safety Data Sheets
(MSDS).
•The equipment should be grounded accord-
ing to local electrical codes to prevent the
possibility of electrical shock. This requires
a grounded receptacle with separate electri-
cal lines to be protected by fuse(s) or circuit
breaker(s) of the proper rating.
•All electrical service connections must be in
accordance with local and/or other applicable
electrical codes.

MANUAL EGG COOKER/STEAMER
4P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
5
P/N 1010877 Rev. E 01/05
McDonald’s

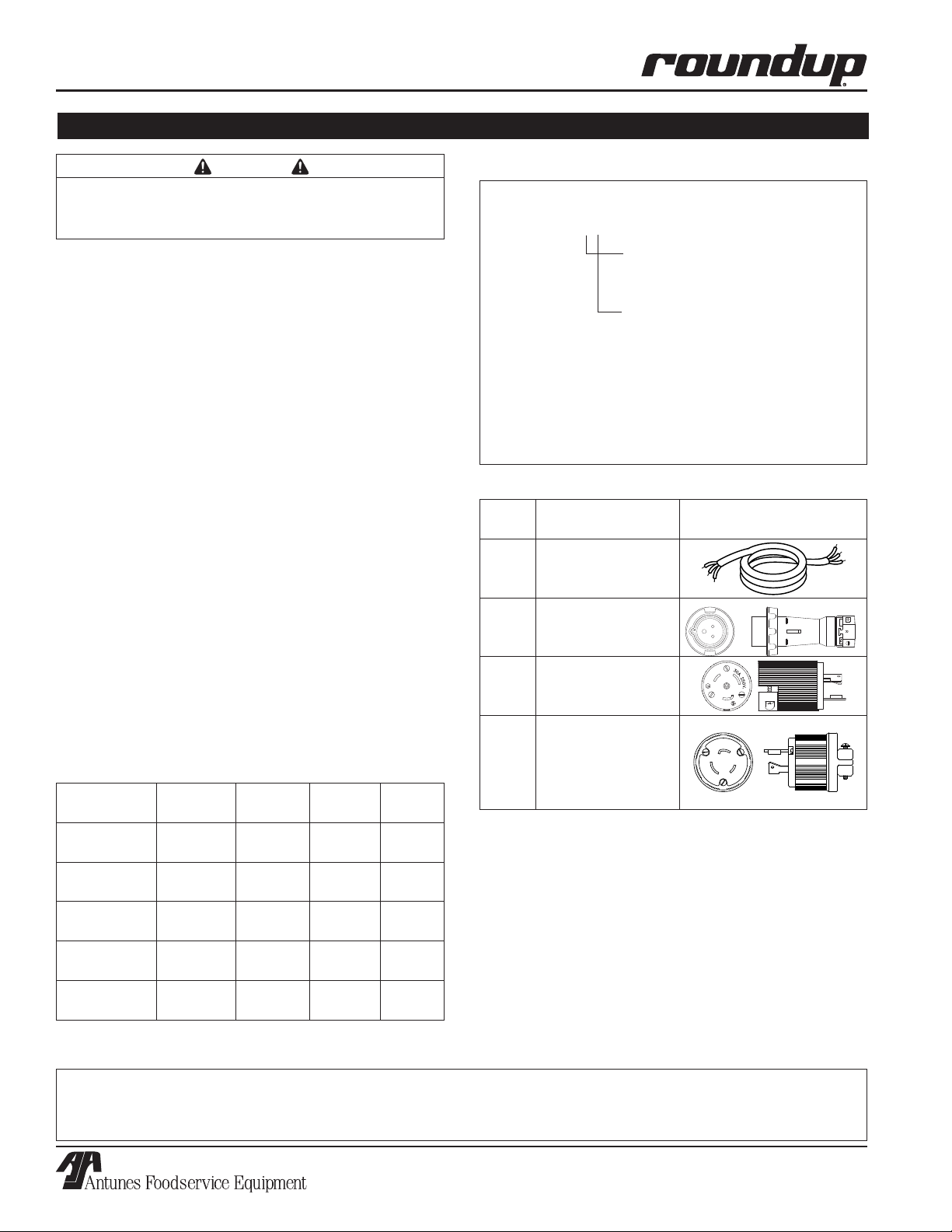

SPECIFICATIONS
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
• Do not clean this appliance with a water jet.
•Do not use a sanitizing solution or abrasive
materials. The use of these may cause dam-
age to the stainless steel finish.
•Chlorides or phosphates in cleansing agents
(e.g. bleach, sanitizers, degreasers or deter-
gents) could cause permanent damage to
stainless steel equipment. The damage is
usually in the form of discoloration, dulling
of metal surface finish, pits, voids, holes or
cracks. This damage is permanent and not
covered by warranty:
The following tips are recommended for main-
tenance of your stainless steel equipment,
- Always use soft, damp cloth for cleaning,
rinse with clear water and wipe dry. When
required, always rub in direction of metal
polish lines.
- Finger marks and smears should be
rubbed off using soap and water.
- Hard water spots should be sponged using
a vinegar solution.
IMPORTANT! A.J. Antunes & Co. reserves the right to change specifications and product design with-
out notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
Electrical Ratings
Model Designation
TYPE OF POWER CORD
C = COMMERCIAL
TYPE OF PLUG
D = #330P6W, 30 Amp., 250
VAC., Pin & Sleeve
S = L6-30P, 30 Amp., 250
VAC., Straight Twist Lock
U Straight Twist Lock
(L6-20P) 20 Amp, 250 VAC
(Mfg. No. 9300545 Only)
MEC-1200XX
Electrical Cord & Plug Configurations
* Used in Model Designation
Letter
Code*
Description Configuration
C Commercial Cord
(C)D #330P6W, 30
Amp., 250 VAC.,
Pin & Sleeve.
(C)S L6-30P, 30 Amp.,
250 VAC., Straight
Twist Lock.
(C)U Straight Twist Lock
L6-20P
20 Amp, 250 VAC
(Mfg. No. 9300545
Only)
Shipping Weight
• MEC-600: 48 lbs (21.7 kg)
• MEC-1200: 50 lbs (22.6 kg)
Model/Mfg.
Number
Volts Watts Amp Hertz
MEC-1200CS
9300540
208/220-
240
2400/
3150
11.5/13.1 50/60
MEC-1200CD
9300542
208/220-
240
2400/
3150
11.5/13.1 50/60
MEC-600CS
9300544
208/220-
240
2400/
3150
11.5/13.1 50/60
MEC-600CU
9300545
208/220-
240
2400/
3150
11.5/13.1 50/60
MEC-600CD
9300546
208/220-
240
2400/
3150
11.5/13.1 50/60
Net Weight
• MEC-600: 41 lbs (18.6 kg)
• MEC-1200: 43 lbs (19.5 kg)
R
R
3
0
A
.
2
5
0
V
.
MEC-600XX

MANUAL EGG COOKER/STEAMER
4P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
5
P/N 1010877 Rev. E 01/05
McDonald’s
WARNING
ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THE INSTRUCTIONS IN
THIS MANUAL COULD RESULT IN SERIOUS
INJURY OR DEATH.
•Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appli-
ance.
• The unit should be grounded according to
local electrical codes to prevent the possibil-
ity of electrical shock. It requires a grounded
receptacle with separate electrical lines, pro-
tected by fuses or circuit breaker of the proper
rating.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
Unpacking
1. Remove unit and all packing materials from ship-
ping carton.
NOTE: If any parts are missing or damaged, con-
tact Antunes Technical Service IMMEDIATELY at
1-877-392-7854 (Toll free in the U.S. and Canada) or
630-784-1000.)
2. Remove information packet.
3. Remove all packing materials and protective cov-
erings from the unit.
4. Wipe all surfaces of the unit with a hot damp
cloth.
NOTE: Do not use a dripping wet cloth. Wring it
out before use.
5. Clean the Egg Rings, Egg Rack, Top Cover, and
Service Pans in hot, soapy water. Rinse in clear
water and allow to air dry.
6. Reassemble all parts to unit.

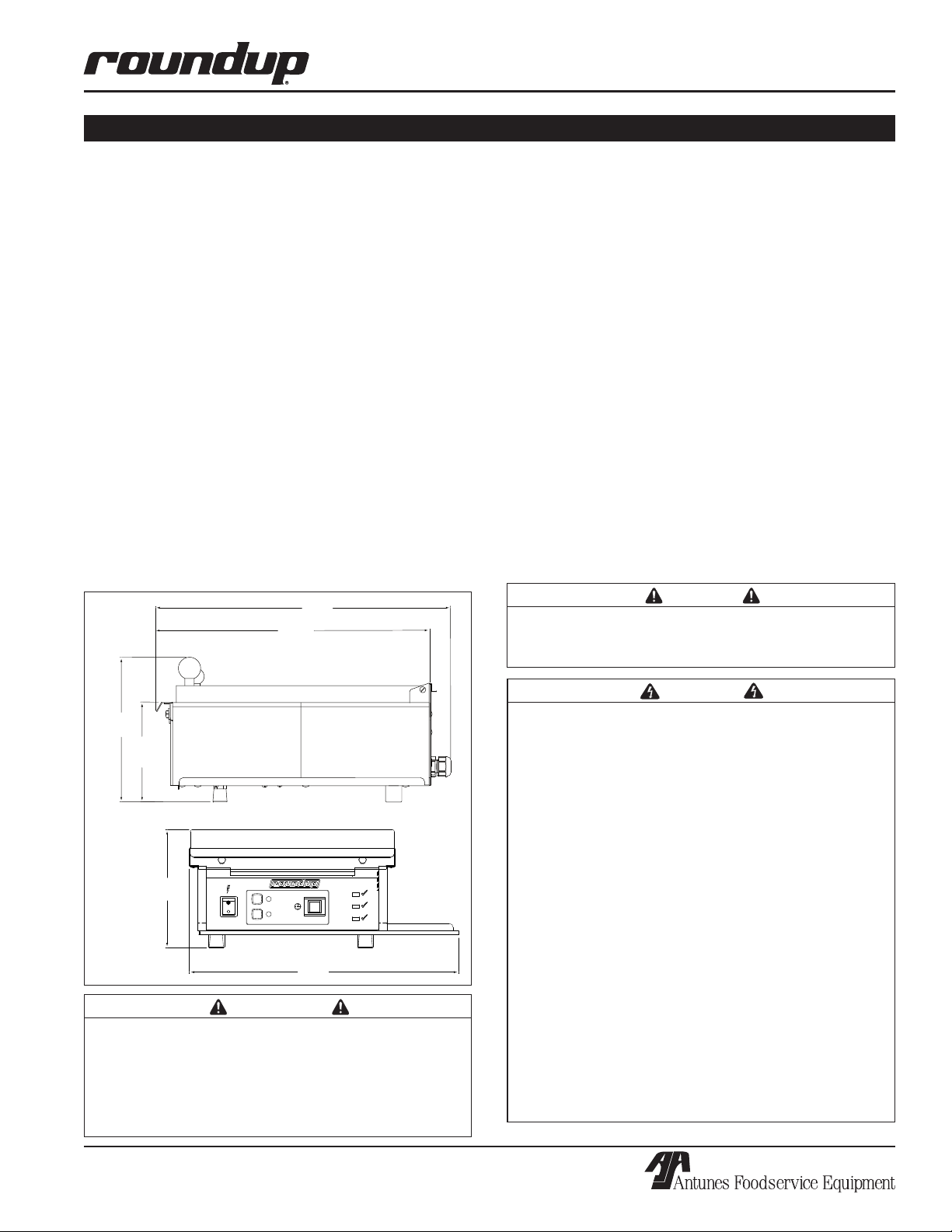

Dimensions
INSTALLATION
CAUTION
All electrical service connections must be in
accordance with local electrical codes and any
other applicable codes.
Equipment Setup
When placing the unit into service, pay attention to the
following guidelines:
• Make sure power to the unit is off and the unit is
at room temperature.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or
counter.
• Place the unit on a sturdy, level table or other
work surface. Turn off the Rocker Switch (power
On/Off) before proceeding.
•Ensure that the line voltage corresponds to
the stated voltage on the unit’s specification
label. If unsure, have an electrician confirm
correct line voltage before connecting unit.







1

 
 
 
 
 
 
 
 
 
 
 
 
IMPORTANT
When installing the unit, use a leveler to ensure
that the table/cart is level and that the unit is
level when placed. If necessary, adjust the two
front bottom legs of the unit to level it. Failure to
level the table and/or unit may result in unevenly
cooked product.

MANUAL EGG COOKER/STEAMER
6P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
9
P/N 1010877 Rev. E 01/05
McDonald’s
Checking Cycle Times (Monthly)
CAUTION: Grill surfaces will be hot. Care should
be taken when operating this piece of equipment.
NOTE: A stopwatch is required for this procedure.
1. Turn the Rocker Switch (power On/Off) to ON.
Allow the unit to preheat for 30 minutes.
2. Ensure that the #1 Time Selector Button (2’-00”)
is lit. If not, press and release the #1 button. This
button should now be lit.
3. With the stopwatch in hand, press and release the
Start/Stop cycle switch and start the stopwatch.
4. Record the time when the Bacon light begins
to flash (if the Bacon Timer is enabled). Then,
record the time when the Cooking light turns off.
MAINTENANCE
WARNING
Turn the unit off, disconnect the power source
and allow the unit to cool down before performing
any service or maintenance on the unit.
CAUTION
Chlorides or phosphates in cleansing agents
(e.g. bleach, sanitizers, degreasers or detergents)
could cause permanent damage to stainless steel
equipment. The damage is usually in the form of
discoloration, dulling of metal surface finish, pits,
voids, holes or cracks. This damage is permanent
and not covered by warranty. The following tips
are recommended for maintenance of your stain-
less steel equipment:
•Always use soft, damp cloth for cleaning, rinse
with clear water and wipe dry. When required,
always rub in direction of metal polish lines.
•Stains and spots should be sponged using a
vinegar solution.
• Finger marks and smears should be rubbed off
using soap and water.
• Hard water spots should be sponged using a
vinegar solution.
CAUTION
Do not use a sanitizing solution or abrasive mate-
rials. The use of these may cause damage to the
stainless steel finish.
CAUTION
If a chemical cleaner is used, be sure it is safe to
use on cast aluminum. Observe all precautions
and warnings on product label.
Daily Cleaning
1. Turn the Rocker Switch (Power On/Off) to OFF,
unplug the power cord, and allow the unit to cool
down.
2. Remove the Top Cover, Egg Rings, and Service
Pans.
3. Clean the Top Cover, Egg Rings, and Service
Pans in hot detergent water. Rinse in sanitized
water and allow to air dry.
4. If needed, apply McD® Grill Cleaner (HCS)
according to the instructions on the container.
Using the grill cloth, wipe the unit in a back to
front motion. Use a fresh grill cloth and rinse the
grill surface with water to remove all traces of the
grill cleaner.
5. Spray McD® All-Purpose Super Concentrate
(APSC) (HCS) onto a clean, dry towel and clean
the entire unit. Use a clean, dry towel to wipe the
unit dry.
6. Reinstall the Top Cover, Egg Rings, and Service
Pans. Plug the power cord into the appropriate
outlet.

MANUAL EGG COOKER/STEAMER
8P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
7
P/N 1010877 Rev. E 01/05
McDonald’s







1
�
Checking Grill Platen Temperature
NOTE: A pyrometer is required for this procedure.
1. Move the Top Cover and the Egg Rack by lifting
the whole assembly until clear of the base.
2. Turn the Rocker Switch (power On/Off) to the ON
position. Allow 30 minutes for the unit tempera-
ture to stabilize.
3. Using a pyrometer, measure the temperature at
the middle of the Platen surface (Figure 5). The
temperature should be 250° F (121° C) to 300° F
(149° C)
If temperature is within range, proceed to Step 4.
If temperature is above or below range, call your
Authorized Service Agency.
4. Turn the Rocker Switch (power On/Off) to the
OFF position.
5. Reinstall the Egg Rack and Top Cover.
Figure 4. Time Selector Switch
WARNING
This procedure exposes you to hot surfaces. Use
extreme care when performing procedure to avoid
personal injury.
MAINTENANCE (continued)
NOTE: The following factory pre-set cooking times.
Time Button 1: 2 minute cooking time.
Time Button 2: 2 minutes and 30 seconds cooking time.
Grill
Platen
Figure 5. MEC-600 Shown
5. Repeat this test with the Time Selector button set
at 2’-30”.
When set at 2’-00”, the Bacon light should flash
at 1 minute and 30 seconds (90 seconds), and
the Cooking light should turn off at 2 minutes (120
seconds).
When set at 2’-30”, the Bacon light should flash
at 2 minutes (120 seconds), and the Cooking light
should turn off at 2 minutes and 30 seconds (150
seconds).
All times are to be within +/- five (5) seconds.
6. Turn the Rocker Switch (Power On/Off) to OFF.

MANUAL EGG COOKER/STEAMER
8P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
11
P/N 1010877 Rev. E 01/05
McDonald’s
TROUBLESHOOTING
WARNING
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip-
ment should be performed by qualified service personnel. The unit should be unplugged when servicing.
Problem Possible Cause Corrective Action
Unit fails to operate and
control panel lights fail
to signal on.
No power/low power. Make sure Rocker Switch (power On/Off) is ON
and power cord is locked into place. Check main
circuit breakers.
Inoperable electrical outlet. Plug into different outlet of same amperage rat-
ing.
Inoperable rocker (power On/Off)
switch.
Contact your maintenance person or an
Authorized Service Agency.
Inoperable power cord.
Loose Connections.
Unit fails to heat. Loose connections. Contact your maintenance person or an
Authorized Service Agency.
Inoperable Platen.
Low voltage.
Inoperable hi-limit thermostat.
Inoperable thermocouple.
Inoperable solid state relay.
Eggs do not cook prop-
erly.
Using refrigerated eggs and time
selector switch set for 2’ 00”.
Set time selector switch to 2’ 30” when using
refrigerated eggs.
Time selector switch is set for 2’ 30”
(eggs overcooked).
Set time selector switch to 2’ 00” when using
room temperature eggs.
Incorrect amount of water added to
trough in cover.
Fill trough in cover with water before starting time
cycle.
Platen temperature too low or high. Check Platen temperature according to the main-
tenance section of this manual.
Loose connections. Contact your Authorized Service Agency.
Unit/table is not level. Level the table and unit as necessary.
Eggs sticking to Platen. Dirty Platen. Clean Platen.
Insufficient butter being used. See the Operating Instructions section.
Eggs sticking to Egg
Rings.
Insufficient butter being used. See the Operating Instructions section.
Dirty Egg Rings. Do not use an abrasive scrubbing pad to clean
Egg Rings.
Inoperable Egg Ring. Replace Egg Ring.
Not signaling on “Bacon”
or “Ready”.
Inoperable indicator light or audio
signal.
Contact your maintenance person or an
Authorized Service Agency.
Inoperable control board.
Loose connection.
Bacon Timer is disabled. Enable Bacon Timer according to the Operating
section of this manual.
If the troubleshooting steps listed do not solve your problem, contact an A.J. Antunes Authorized Service
Agency for further assistance.

MANUAL EGG COOKER/STEAMER
10 P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
9
P/N 1010877 Rev. E 01/05
McDonald’s
TROUBLESHOOTING (continued)
Control Board LEDs
The Control Board has three on board LEDs (Figure 6)
to determine the status of the unit and to assist in
troubleshooting.
Green (Diagnostic): This LED should be off in nor-
mal operation. However, if any of the 5 potential faults
are detected by the Control Board, this LED will blink
repeatedly either 1 through 5 times with a 2 second
pause in between. See the Green LED Blink Codes
section below.
Yellow (Audio): When lit, this LED indicates that the
Control Board is supplying approximately 10-15 VDC to
the audio signal. The audio signal should sound when
this LED is lit.
Red (Heat): When lit, this LED indicates that the
Control Board is calling for heat by supplying VDC to
the Solid State relay terminals 3(+) and 4(-). When off,
this means that the grill platen is up to operating tem-
perature and satisfied.
Green LED Blink Codes
Number of
Blinks
Cause(s) Unit’s State and Resolution
The Green LED
blinks on and off
1 time, pauses for
2 seconds, and
repeats
Control Board’s EEPROM memory is
corrupted.
In this state, the unit turns off the control signal to the Solid
State Relay and disables all front buttons and front lights.
The unit will not heat up. This continues until the defaults are
reloaded into the memory. To reload the defaults, turn the unit
off, press and hold the Time 2 button, turn the unit back on,
and then release the button.
The Green LED
blinks on and off
2 times, pauses
for 2 seconds, and
repeats.
The ambient temperature within the con-
trol compartment has exceeded 155º F
(68º C). Verify that the unit has proper
air ventilation all around it and that it is
not near a significant heat source.
In this state, the unit turns off the control signal to the Solid
State relay and disables all front buttons and front lights. The
unit will not heat up. This continues until the ambient tempera-
ture within the electrical compartment drops below 140 F (60
C) and the unit is turn off and turned on again.
The Green LED
blinks on and off
3 times, pauses
for 2 seconds, and
repeats.
Open or disconnected Thermocouple. In this state, the unit turns off the control signal to the Solid
State Relay and disables all front buttons and front lights. The
unit will not heat up. This continues until the Thermocouple is
reconnected or replaced and the unit is turned off and turned
on again.
The Green LED
blinks on and off
4 times, pauses
for 2 seconds, and
repeats.
Supply voltage to the unit is below 160
VAC or above 265 VAC.
In this state, the unit turns off the control signal to the Solid
State Relay and disables all front buttons and front lights. The
unit will not heat up. This continues until the supply voltage is
within the proper limits and the unit is turned off and turned on
again.
The Green LED
blinks on and off
5 times, pauses
for 2 seconds, and
repeats.
The 50/60 Hz signal has been lost due
to a loose, disconnected, or an open
wire harness/wiring on the AC Isolator
Board, or from the AC Isolator board to
the Control Board.
In this state, the unit turns off the control signal to the Solid
State Relay and disables all front buttons and front lights. The
unit will not heat up. This continues until the 50/60 Hz signal is
reapplied and the unit is turned off and turned on again.
NOTE: During heat mode, this Red LED is very dim,
so it may be difficult to verify if the Control Board
is or is not calling for heat. It is recommended
that you observe the small round green LED on the
Solid State Relay (Figure 7) for mode and diagnos-
tic purposes. When the green LED on the Solid
State Relay is on, it means that the Control Board is
calling for heat. When off, it means that the Control
Board is NOT calling for heat.






 



Figure 6. Control Board
LEDs
Figure 7. Solid State
Relay



.






 

 
   
Solid State
Relay
LED

MANUAL EGG COOKER/STEAMER
10 P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
13
P/N 1010877 Rev. E 01/05
McDonald’s
WIRING DIAGRAM

 







 


 



 



       
  
  
   






 



 





 






 
 















 

MANUAL EGG COOKER/STEAMER
12 P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
11
P/N 1010877 Rev. E 01/05
McDonald’s
REPLACEMENT PARTS




















  


 









  
























MANUAL EGG COOKER/STEAMER
12P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
15
P/N 1010877 Rev. E 01/05
McDonald’s
1 0021327 Nose Piece Weldment 1
2 210K230 Bumper, Recess Leg 1” 1
(Set of 4 including 4 screws)
3 7000379 Grill Platen 1
4 040P138* Lock-nut, Conduit - 1/2” NPT 1
5 0400315 Strain Relief - Cord Connector 1
7 0010192 Service Pan 2
11 0502900 Bracket , Sensor 1
12 7000363 Cover, Rack, & Ring Assembly 1
(Incl. all shown)
12a 7000261 Cover, Rack, & Ring Assembly 1
(Incl. all shown)
13 7000451 Cover, 12 Egg 1
(Includes 28, 48, 65)
13a 7000453 Cover, 6 Egg 1
Includes 28, 48, & 65
14 7000452 Rack, 12 Egg Ring 1
(Includes 27 & 45)
14a 7000454 Rack, 6 Egg Ring (Incl. 27 & 45) 1
15 0021324 Panel, Base 1
16 0021325 Housing, Main 1
18 0504075 Cover, Insulation 2
19 0021326 Rear Panel Weldment 1
21 0504078 Bracket, Hi-Limit 1
24 0700479 Power Cord, 1
#L6-30P Twist Lock
0700671 Power Cord, #330P6W, 1
30 Amp Pin & Sleeve
0700552 Power Cord Assy. 1
(Mfg. # 9300545 only)
25 1001100 Label, Control 1
26 210K122 Adj. Leg Kit (4 Pack) 1
27 2100137 Knob Ball 1
28 2100138 Knob-Ball 1
29 210K108 Rubber Tip Kit (4 Pack) 1
31 2130111 Egg Ring (single) 12/6
213K101 Egg Ring (Pack of 6) 1/2
33 300P102* Nut, Speed #8-32 “U” 1
37 306P113* Screw, Mach. 2
#6-32 x 5/8” Sltrshd
38 306P123* Screw, Mach. 4
#6-32 x 7/8” Sltrshd 2
39 306P130* Nut, Hex KEPS #6-32 6
40 308P102* Washer, Int. Tooth #8 1
41 308P104* Scr, Mach 1
#8-32 x 3/8” Sltrshd
42 308P143* Nut, Hex KEPS #8-32 1
43 308P157* Screw, Tap #8-32 x 3/8” 1
44 310P102* Washer, Int Tooth-lock #10 2
45 310P109* Scr, Mach 1
#10-32 x 3/8” Sltrshd
46 310P136* Scr, Mach. 1
#10-32 x 1 and 1/4” Slpanhd
47 310P149* Scr, Mach. 1
#10-32 x 7/8” Slpanhd 1
48 325P103* Scr, HXCAP 1/4-20 x 3/4” 1
49 325P104* Washer, Flat 1/4” S/S 1
50 325P109* Scr, Hxcap 1/4-20 x 3/4” 1
51 4010137 Switch, Rocker (25A-250V) 1
52 4010187 Transformer, Stepdown 1
(240V/12)
53 4010190 Switch, Momentary 1
54 4010193 PC-Board, Switch-Two Button 1
55 7000272 Thermostat, Hi-Limit 1
57 7000370 Solid State Relay 1
58 7000136 Terminal Block, 3-Pole 1
59 4060362 LED, Snap-in (Green - Ready) 1
60 4060363 LED, Snap-in (Yellow - Cooking) 1
61 4060385 LED, Snap-in (Blue - Bacon) 1
62 7000390 Control Board 1
63 7000391 A/C Line Isolator Board 1
64 0400337 Insulation 1
65 2120111 Spacer 1
66 4050214 Thermocouple 1
67 2180111 Plastic Dispensing Bottle 1
(not shown)
68 213K115 Spatula, Scraper and Brush Kit 1
(not shown)
69 0011251 Heat Sink Assembly 1
70 0700670 Wire Set, Main (not shown) 1
71 0700655 Wire Harness/PCB-LEDs 1
(not shown)
72 0700656 Wire Harness/PCB-Isoloator BD 1
(not shown)
73 0700657 Wire Harness/PCB-2 Button Bd 1
(not shown)
* Available only packages of 10.
Item Part Description Qty.
No.
Item Part Description Qty.
No.
REPLACEMENT PARTS (continued)

MANUAL EGG COOKER/STEAMER
14 P/N 1010877 Rev. E 01/05
McDonald’s
MANUAL EGG COOKER/STEAMER
13
P/N 1010877 Rev. E 01/05
McDonald’s
NOTES

MANUAL EGG COOKER/STEAMER
14P/N 1010877 Rev. E 01/05
McDonald’s
NOTES
