A-Neuvideo ANI-0108HC User manual

AUDIO / VIDEO MANUFACTURER
ANI-0108HC
HDMI 8 Ports Splitter Amplifier by CAT5 x1
V2.0
INSTRUCTION MANUAL
A-NeuVideo.com
Frisco, Texas 75034
[phone]

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualier service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

TABLE OF CONTENTS
ANEUVIDEO
1
CONTENTS
INTRODUCTION ...........................................................................1
PACKAGE CONTENTS ................................................................ 1
FEATURES ................................................................................... 2
SPECIFICATIONS ........................................................................ 2
PANEL DESCRIPTIONS .............................................................. 3

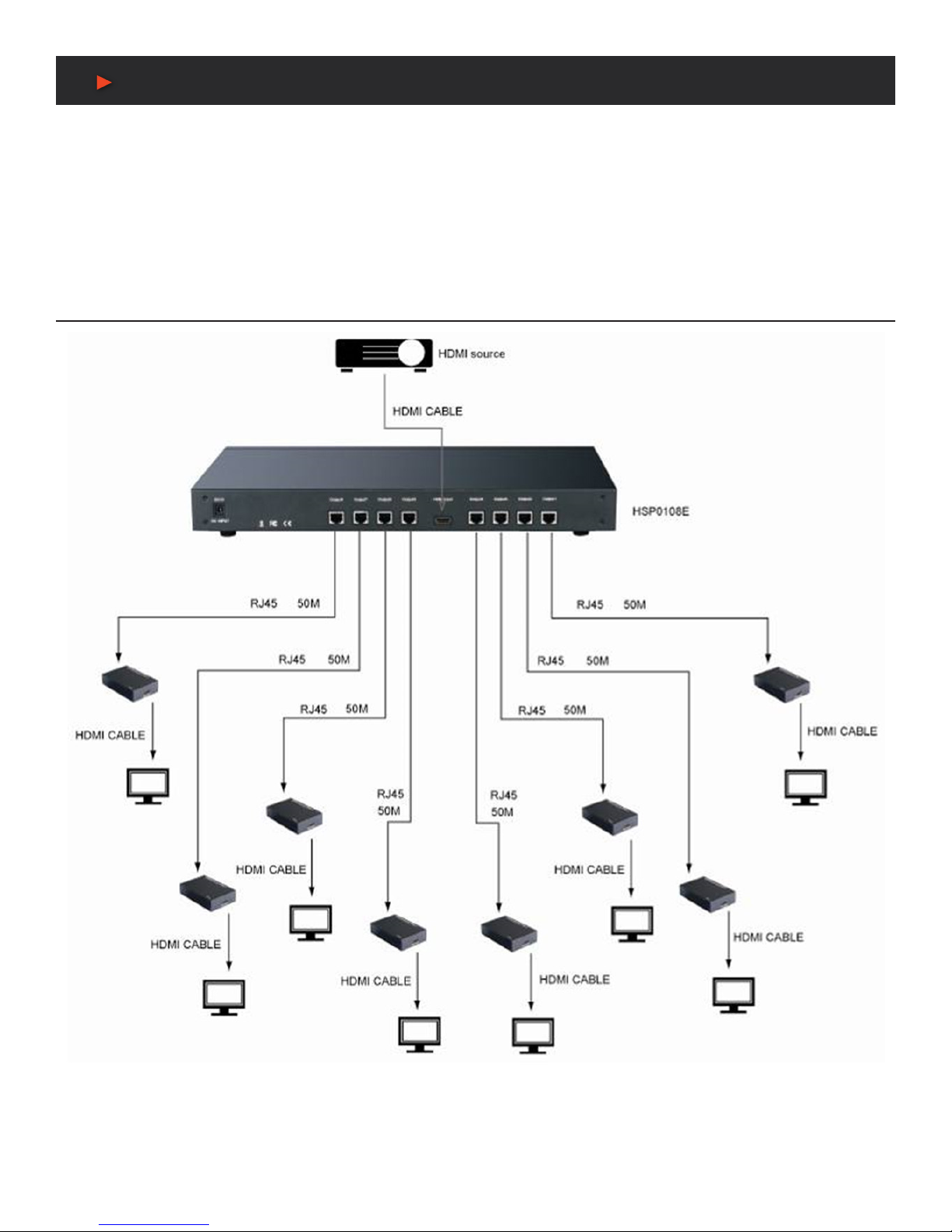

CONNECTION & OPERATION ...................................................... 4
Dear Customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this
manual for future reference.
INTRODUCTION
This HDMI Splitter is an HDMI splitter with (8) RJ-45 outputs. It
distributes the input of the HDMI signal into the (8) identical outputs
simultaneously. (8) HDMI Extender Receivers by CAT5 x1 receive
the distributed signal from the splitter and transmit to displays
individually.
Each receiver works with the splitter as a full functional module.
Only buy the most inexpensive UTP cable with cross stand inside
the full functional module extend to the HDTV display up to 165
feet for 1080p.
This HDMI Splitter offers solutions for HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference
room presentation, school and corporate training environments.
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
• HDMI (8) Ports Splitter Amplier
• Users Manual
• (8) Receivers
• (8) 5V DC@ 2A Power Supply
• (1) 5V DC@ 4A Power Supply
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update or
to keep current the information contained in this document.
We reserve the right to make improvements to this document and/
or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise — without the express written permission and consent.
© Copyright 2015. All Rights Reserved.
Version 2.0 MAY 2015
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

2
FEATURES & SPECIFICATIONS
FEATURES
This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will nd:
• Easy to Use: Install in seconds.
• One pair as a full functional module.
• One piece of CAT5e/6 cable can substitute HDMI cable to achieve long distance transmission.
• Follows the standard of IEEE-568B.
• Transmission distance can be up to 165 feet for 1080p using UTP cable with cross stand inside.
• Supports HDMI1.2a.
• Supports highest video resolution 1080p.
• Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
• Supports 8bit per channel (24bit all channel) deep color.
• Supports uncompressed audio such as LPCM.
SPECIFICATIONS
• Signal Inputs/Output:
• Input DDC Signal: 5 volts p-p (TTL)
• Maximum Single Link Range: 1920 x 1080p
• Output Video: HDMI 1.2a
• Operating Frequency:
• Video Amplier Bandwidth: 1.65Gpbs/165MHz
• Vertical Frequency Range: 50/60Hz
• Resolution (HDTV):
• Interlaced (50&60Hz): 480i, 576i, 1080i
• Progressive (50&60Hz): 480p, 576p, 720p, 1080p
• Cable Distance (24awg CAT5e/6):
• 1080p: ~100 ft / 30m
• 1080i: ~230 ft / 70m
• 720p: ~330 ft / 100m
• SizeofHDMI4PortsSplitterAmplier(LxWxH): 17 x 8 x 1.7 in
• WeightofHDMI4PortsSplitterAmplier(Net): 4.9 lb
• SizeofReceiver(LxWxH): 4 x 2.5 x 1 in
• WeightofReceiver(Net): .85 lb
• LimitedWarranty:3 Year Parts and Labor
• Operating Temperature: 32°F to +158°F
• Operating Humidity:10% to 85 % RH (no condensation)
• Storage Temperature: 14°F to +175°F
• Storage Humidity: 5% to 90 % RH (no condensation)
• Power Supply for HDMI 4 Ports Splitter: 5V DC@ 4A,15W
• Power Supply for Receiver: 5V DC@ 2A, 5W
• Regulatory Approvals:
• Converter Unit: FCC, CE, UL
• Power Supply: UL, CE, FCC
• Accessories Adapter:
• AC Power Adapter: US standard
• User Manual: English Version
As product improvements are continuous, specications are subject to change without notice.
ANEUVIDEO

3

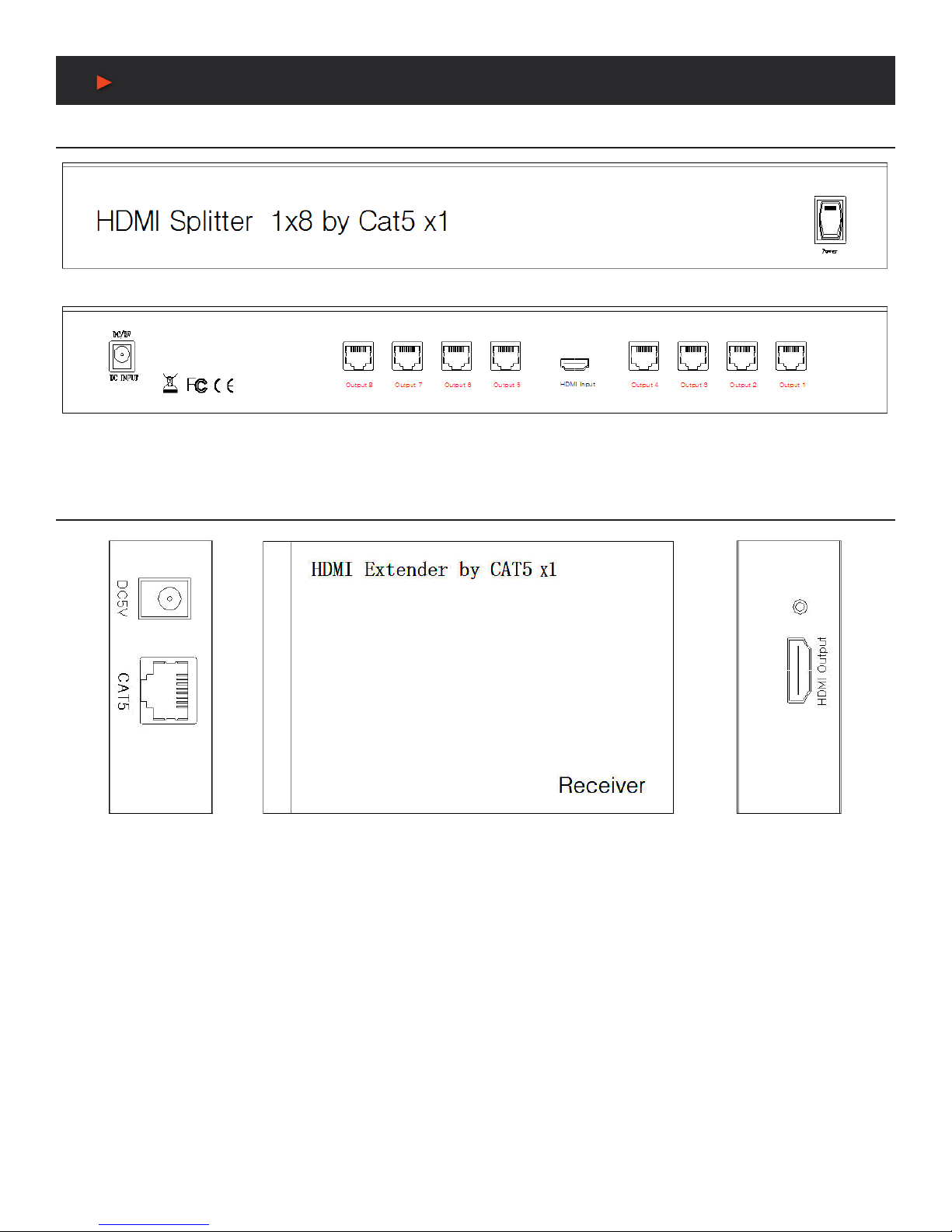

PANEL DESCRIPTIONS
HDMI 8 PORT SPLITTER AMPLIFIER BY CAT5 x1
RECEIVER
ANEUVIDEO
