A-Neuvideo ANI-705WPT User manual

AUDIO / VIDEO MANUFACTURER
ANI-705WPT
HDMI over Single CAT5e/6/7 Wall-plate Transmitter
INSTRUCTION MANUAL
A-NeuVideo.com
Frisco, Texas 75036

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.

TABLE OF CONTENTS
ANEUVIDEO
1
CONTENTS
INTRODUCTION & CONTENTS ...................................................1
FEATURES ....................................................................................2
SPECIFICATIONS ........................................................................ 2
HARDWARE DESCRIPTION ........................................................3
IR PIN ASSIGNMENT .................................................................. 4
CONNECTION DIAGRAM .......................................................... 5
Dear Customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this
manual for future reference.
INTRODUCTION
The ANI-705WPT is a CAT5e/6/7 over HDMI Wall-Plate Transmitter
that can receive uncompressed audio/video over a single run of
CAT5e/6/7 cable up to ~328 ft/100M. It has the added benet of
control through the built-in RS-232 pass-through and 2-way IR
control and a LAN serving connection. This product has a 3 year
warranty.
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
• ANI-705WPT HDMI over Single CAT5e/6/7 Transmitter
• IR Blaster
• IR Extender
• 24V/1.25A DC Power Adaptor
• Users Guide
APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
SYSTEM REQUIREMENTS
HDMI source device such as a DVD/Blu-ray player and an HDMI
equipped display (TV or monitor).
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update or
to keep current the information contained in this document.
We reserve the right to make improvements to this document and/
or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise — without the express written permission and consent.
© Copyright 2017. All Rights Reserved.
Version 1.0 MAY 2017
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

2
FEATURES & SPECIFICATIONS
FEATURES
• HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
• Supports HDCP repeater and CEC bypass functions
• Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 328ft/100M
• HDBaseT™ 5Play convergence: uncompressed high-denition Video and Audio, LAN serving and IR/RS-232 Control pass-through
• Supports uncompressed video up to 4K2K resolution (3840x2160@30Hz or 4096x2160@24Hz)
• Supports pass-through of high-denition audio formats LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• US 2Gang wall-plate design and easy installation
NOTE:
1. This system was tested with CAT6/23AWG and CAT5e/24AWG cables, results may vary with cables of a different specication.
2. For playback of 4K2K HDMI source signals, a 4K2K capable display and High Speed HDMI cables are required.
SPECIFICATIONS
• Video Bandwidth: 340MHz/10.2Gbps
• Input Ports: (1) HDMI, (1) LAN, (1) IR Extender, (1) RS-232
• Output Ports: (1) CAT5e/6/7, (1) IR Blaster
• CAT5e/6/7 Cable Distance: Up to 328 ft/100M
• HDMI Resolution: Up to 4K2K (3840x2160@30Hz / 4096x2160@24Hz)
• IR Frequency: 30~50KHz
• ESD Protection: Human body model:
• ±8kV (air-gap discharge)
• ±4kV (contact discharge)
• Dimensions (WxDxH): 4.7 x 4.3 x 1.6 in (119.5x110x40mm) *Including jacks
• Weight: 13 oz/353g
• Chassis Material: Metal
• Silkscreen Color: White
• Operating Temperature: 32˚F ~ 104˚F (0˚C~40˚C)
• Storage Temperature: -4˚F ~ 140˚F (-20˚C~60˚C)
• Relative Humidity: 20~90% RH (no condensation)
• Power Supply: 24V/1.25A DC (US/EU standards, CE/FCC/UL certied)
• Power Consumption (W): 15W
As product improvements are continuous, specications are subject to change without notice.
CAT5e/6/7 Cable Specification
CABLE TYPE RANGE PIXEL CLOCK RATE VIDEO DATA RATE SUPPORTED VIDEO
CAT5e/6/7 328 ft/100M <225MHz <5.3Gbps (HD Video) Up to 1080p, 60Hz, 36bits, 3D (data rates
lower than 5.3Gbps or below 225MHz
TMDS clock)
230 ft/70M >225MHz > 5.3Gbps (Ultra HD Video) 4K2K, 30Hz video formats
ANEUVIDEO

3
HARDWARE DESCRIPTION

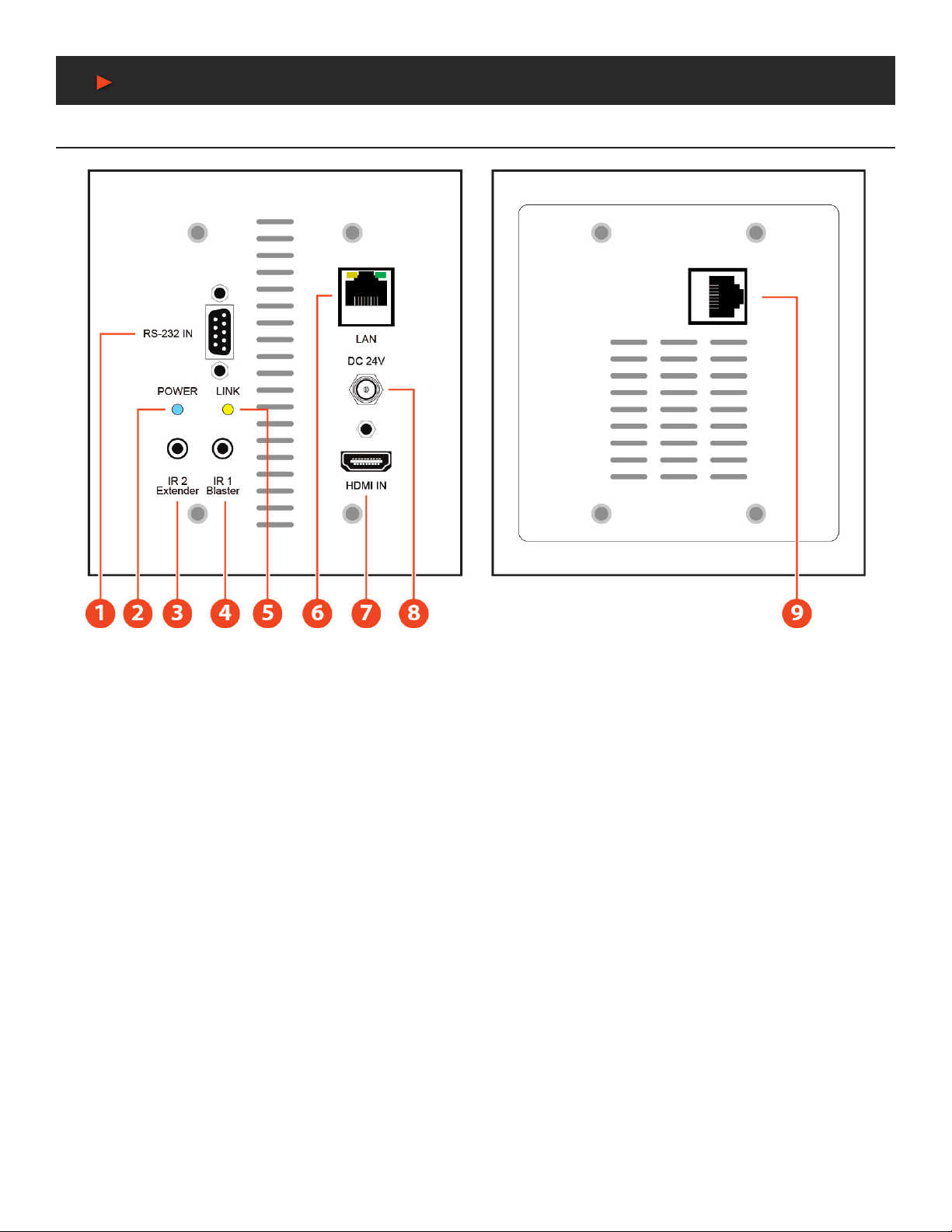

Front & BACK Panels
qRS-232 IN: Connects to a PC/laptop or RS-232 control system with D-sub 9-pin male cable for the transmission of RS-232 commands.
wPOWER LED: This LED will illuminate when the transmitter is connected to a power supply.
eIR 2 EXTENDER: Connects an IR Extender cable for IR signal reception. Signals received will be transmitted from any IR blaster
connected to the receiver unit. Ensure that the remote being used is within the direct line-of-sight of the IR Extender.
rIR 1 BLASTER: Connect an IR Blaster cable for IR signal transmission. IR signals received by an IR extender connected to the
receiver unit will be transmitted by this blaster. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.
tLINK LED: This LED will illuminate when both the source connected to the transmitter and the display connected to the receiver are
connected.
yLAN: Connects to an active network for LAN serving and Telnet/Web GUI control. When the transmitter or any compatible LAN
equipped receivers are connected to a network, this allows the network access (including internet access if available) to be shared
between the transmitter and connected receiver. Connect any Ethernet equipped device e.g. a Smart TV or games console to the LAN
port of a receiver for that device to share the network/internet access.
uHDMI IN: Connects to an HDMI source device such as a DVD or Bluray player.
iDC 24V: Connects the 24 V DC power supply to the transmitter and plug the adaptor into an AC outlet.
oCAT5e/6/7 OUT: Connects to the receiver unit with a single CAT5e/6/7 cable for transmission of all data signals.
ANEUVIDEO

4
OPERATION CONTROLS & FUNCTIONS

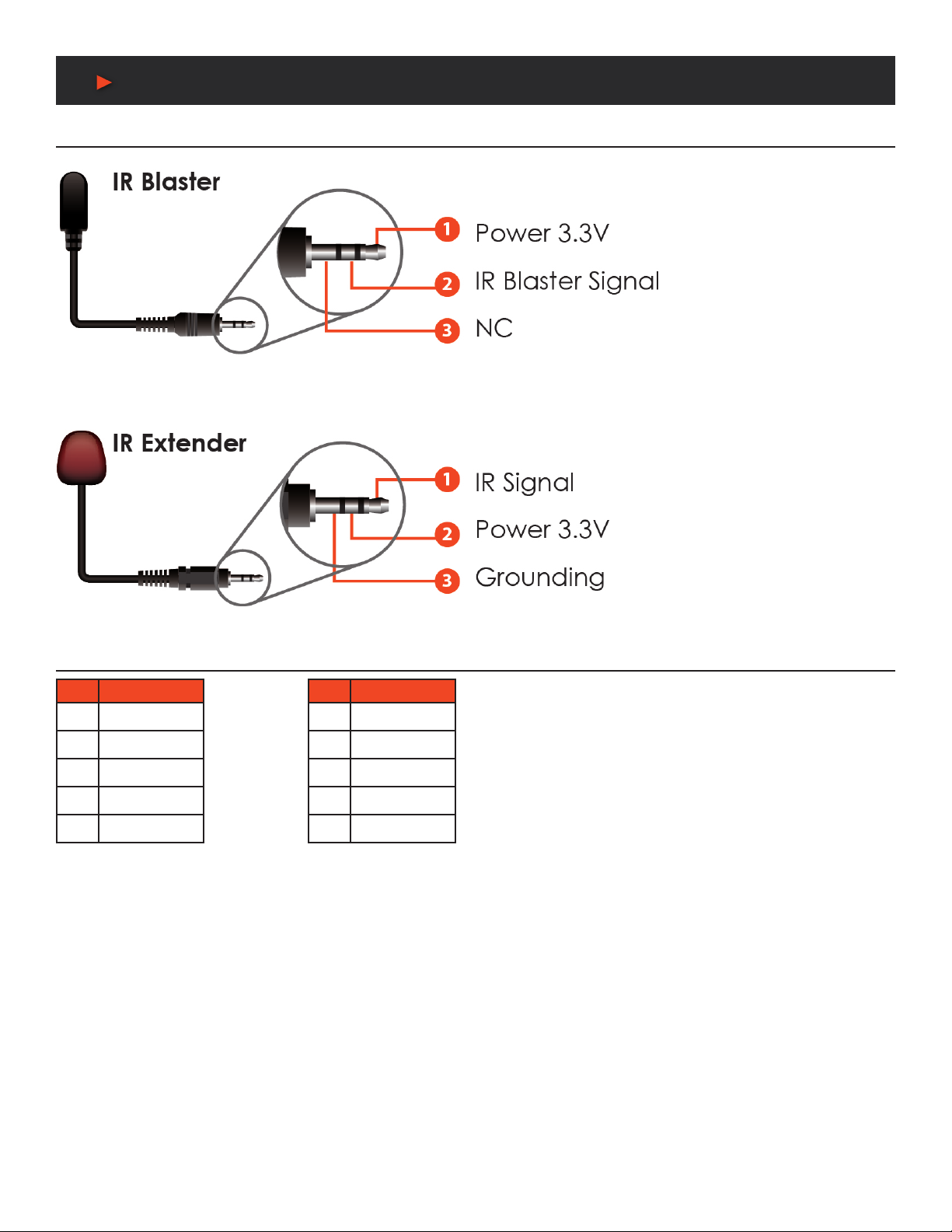

IR Pin Assignment
D-Sub 9-Pin Definitions
PIN DEFINITIONS PIN DEFINITIONS
1 N/C 6 N/C
2 TxD/RxD 7 N/C
3 RxD/TxD 8 N/C
4 N/C 9 N/C
5 GND
ANEUVIDEO

5
CONNECTION DIAGRAM
CONNECTION DIAGRAM
ANEUVIDEO

END OF DOCUMENT
6
TERMS & CONDITIONS OF USE
PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED
BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your
agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at
the return address set forth on the Product’s packing label at your expense. A-NeuVideo, Inc. may modify these Terms and Conditions at anytime, without notice
to you.
RESTRICTIONS ON USE OF THE PRODUCT
It is your responsibility to read and understand the installation and operation instructions, both verbal and in writing, provided to you with respect to the Product.
You are authorized to use the Product solely in connection with such instructions. Any use of the Product not in accordance with such instructions shall void any
warranty pertaining to the Product. Any and all damages that may occur in the use of the Product that is not strictly in accordance with such instructions shall be
borne by you and you agree to indemnify and hold harmless A-NeuVideo, Inc. from and against any such damage.
The Product is protected by certain intellectual property rights owned by or licensed to A-NeuVideo. Any intellectual property rights pertaining to the Product are
licensed to you by A-NeuVideo, Inc. and/or its afliates, including any manufacturers or distributors of the Product (collectively, “A-NeuVideo”) for your personal use
only, provided that you do not change or delete any proprietary notices that may be provided with respect to the Product.
The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only.
A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual
property rights therein. All trademarks and logos are owned by A-NeuVideo or its licensors and providers of the Product, and you may not copy or use them in any
manner without the prior written consent of A-NeuVideo, which consent may be withheld at the sole discretion of A-NeuVideo.
The functionality and usability of the Product is controlled by A-NeuVideo, Inc. from its ofces within the State of Texas, United States of America. A-NeuVideo
makes no representation that materials pertaining to the Product are appropriate or available for use in other locations other than the shipping address you provided
with respect thereto. You are advised that the Product may be subject to U.S. export controls.
Disclaimers and Limitation of Liability
A-NeuVideo may change or modify the Product at any time, from time to time.
THE PRODUCT IS PROVIDED “AS IS” AND WITHOUT WARRANTIES OF ANY KIND EITHER EXPRESS OR IMPLIED. A-NEUVIDEO DOES NOT WARRANT OR
MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE PRODUCT’S CORRECTNESS, ACCURACY, RELIABILITY,
OR OTHERWISE.
A-NeuVideo has no duty or policy to update any information or statements pertaining to the Product and, therefore, such information or statements should not be
relied upon as being current as of the date you use the Product. Moreover, any portion of the materials pertaining to the Product may include technical inaccuracies
or typographical errors. Changes may be made from time to time without notice with respect to the Product.
TO THE FULLEST EXTENT PERMISSIBLE PURSUANT TO APPLICABLE LAW, A-NEUVIDEO DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.
A-NEUVIDEO DOES NOT WARRANT THE ACCURACY, COMPLETENESS OR USEFULNESS OF ANY INFORMATION WITH RESPECT TO THE PRODUCT.
A-NEUVIDEO DOES NOT WARRANT THAT THE FUNCTIONS PERTAINING TO THE PRODUCT WILL BE ERROR-FREE, THAT DEFECTS WITH RESPECT TO
THE PRODUCT WILL BE CORRECTED, OR THAT THE MATERIALS PERTAINING THERETO ARE FREE OF DEFECTS OR OTHER HARMFUL COMPONENTS.
A-NEUVIDEO WILL USE ITS REASONABLE EFFORTS TO CORRECT ANY DEFECTS IN THE PRODUCT UPON TIMELY WRITTEN NOTICE FROM YOU NOT
TO EXCEED 10 BUSINESS DAYS AFTER RECEIPT BY YOU OF THE PRODUCT, BUT YOU (AND NOT A-NEUVIDEO) ASSUME THE ENTIRE COST OF ALL
NECESSARY SERVICING, REPAIR AND CORRECTION THAT WAS CAUSED BY YOU UNLESS OTHERWISE AGREED TO IN A SEPARATE WRITING BY
A-NEUVIDEO.
UNDER NO CIRCUMSTANCES, INCLUDING, BUT NOT LIMITED TO, NEGLIGENCE, SHALL A-NEUVIDEO BE LIABLE FORANY SPECIAL OR CONSEQUENTIAL
DAMAGES THAT RESULT FROM THE USE OF, OR THE INABILITY TO USE THE PRODUCT IN ACCORDANCE WITH ITS SPECIFICATIONS, EVEN IF
A-NEUVIDEO OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL A-NEUVIDEO’S TOTAL
LIABILITY TO YOU FROM ALL DAMAGES, LOSSES, AND CAUSES OF ACTION (WHETHER IN CONTRACT, OR OTHERWISE) EXCEED THE AMOUNT YOU
PAID TO A-NEUVIDEO, IF ANY, FOR THE PRODUCT.
ANEUVIDEO
