A.O. Smith FREZYA 200S User manual

Innovation has a name.
FREZYA 200S
Water Dispenser With RO User Manual
Ters Osmoz Arıtmalı Su Sebili Kullanma Kılavuzu

ENG 1
Dear customer,
Thank you for purchasing a "A.O. Smith" branded water dispenser with RO!
You are now the owner of water treatment equipment produced by the world’s leading
manufacturer of water treatment systems. This equipment produces pure water that can
be consumed directly, providing you with a cleaner and healthier source of drinking water.
Please read this user manual carefully before you install and operate your
"A.O. Smith branded" water dispenser. To achieve maximum efciency this user manual
provides detailed instructions regarding the installation of your water dispenser as well as
information related to the proper operation and maintenance of your water dispenser
with RO.
The installation should only be handled by professionals authorized by A.O. Smith
Su Teknolojileri A.Ş.
Spare parts used for maintenance and replacement lter should be approved
by A.O. Smith Su Teknolojileri A.Ş. before they are installed.
Any degradation of performance caused by the use of spare parts or lters that have not
been approved by A.O. Smith Su Teknolojileri A.Ş. will not be covered by our warranty.
If you experience any difculties during installation or operation, please contact your local
distributor to have them carry out repairs or maintenance on your equipment.

ENG 2
CONTENTS
İÇİNDEKİLER

ENG
SAFETY CONSIDERATIONS 4
PRODUCT DESCRIPTION 9
Brief Introduction 9
Description of Components 9
Product Components 10
Technical Specications 11
Product Features 12
Functions of R.O. System Components 12
Water Filtration Process 13
Functions of ECO System 13
INSTALLATION AND OPERATION METHODS 14
Installation 14
Operation Methods 14
Warnings for Operation 15
MAINTENANCE AND REPAIR 16
Filter Replacement 16
Filter Replacement Method 16
Cautions for Filter Replacement 17
Cleaning of Hot and Cold Tanks 17
Cleaning Cycle 18
AFTER-SALES SERVICE 18
TROUBLESHOOTING GUIDE 19
TR
   22
ÜRÜN TANITIMI 27
Kısa Tanıtım 27
Su Sebilinin Ayrıntılı Proli 27
Su Sebilinin Parçaları 28
Teknik Bilgiler 29
Genel Ürün Özellikleri 30
R.O. Sistem Bileşenlerinin İşlevleri 30
Su Filtrasyon Sistemi 31
ECO Sistem Özelliği 31
  32
Kurulum 32
Ürünü Çalıştırma 32
Kullanım Uyarıları 33
   34
Filtre Değişimi 34
Filtre Değişim Yöntemi 34
Filtre Değişimi Uyarıları 35
Sıcak ve Soğuk Tankların Temizliği 35
Parçaların Temizliği 36
   36
   37
   38
     39 - 41
   40
   42

ENG 4
Safety Considerations
(Be sure to read and remember these safety considerations)
Make note of the following safety precautions In order to avoid property damage and harm to you and others.
•
and your environment.
This product must be plugged into
AC 230V or AC 220 - 240V outlet.
It could cause re or electric shock.
Before use, wipe dust or other foreign
substance off on the plug.
It could cause re by electric shock.
Do not use when the plug is damaged or
swinging.
It could cause re or electric shock & leakage.
When the plug is damaged, contact customer
service center or your purchasing place.
Before replacing lter, unplug
the power cord.
It could cause electric shock.
연속
Warnings
Please read carefully and take into consideration the following notications. Otherwise, it may cause permanent damage to your equipment or cause
serious property damage.

ENG 5
Do not try to bend, tie or pull
the power cord.
It could cause re by electric shock.
Do not install the unit at a moist place like
bathhouse, shower room or outdoor.
It can cause re or electric shock.
Do not let the inlet hose be twisted
or bended.
It could cause water and electric leakage.
The outlet should be rated for more than
10A. Use a separate outlet for the unit.
Do not overload the outlet with too many
plugs. It can cause re.
Do not disassemble or modify the plug.
It could cause re by electric shock.
Do not plug in or unplug the power cord with
wet hands.
It could cause re by electric shock.
연속

ENG 6
Avoid heat and direct sunlight.
It could cause deformation of the exterior.
Do not attemp to repair, disassemble,
or transform.
It could cause re or electric shock.
Do not apply force to the unit.
It could cause malfunction, damage or electric
shock.
Place the unit on a level and hard oor.
It could cause malfunction.
Connect the unit only to the cold water pipe.
It is harmful for lters to connect to hot
water.
Maintain a sufcient distance from the wall.
At least 21 cm is recommended.
It could cause malfunction.
21 cm
21 cm

ENG 7
Do not insert sharp wire or screwdriver
into the unit.
It could cause malfunction or electric shock.
When water supply is cut off, unplug the
power cord.
It could cause malfunction.
Do not put heavy stuff on the unit.
It could cause damage to the unit.
Be careful not to get burned by the hot water.
It could cause scald.
Do not tilt the unit more than 45° while
moving it.
It could cause malfunction.
Do not move the unit while it is being
operated.
It could cause malfunction.
연속

ENG 8

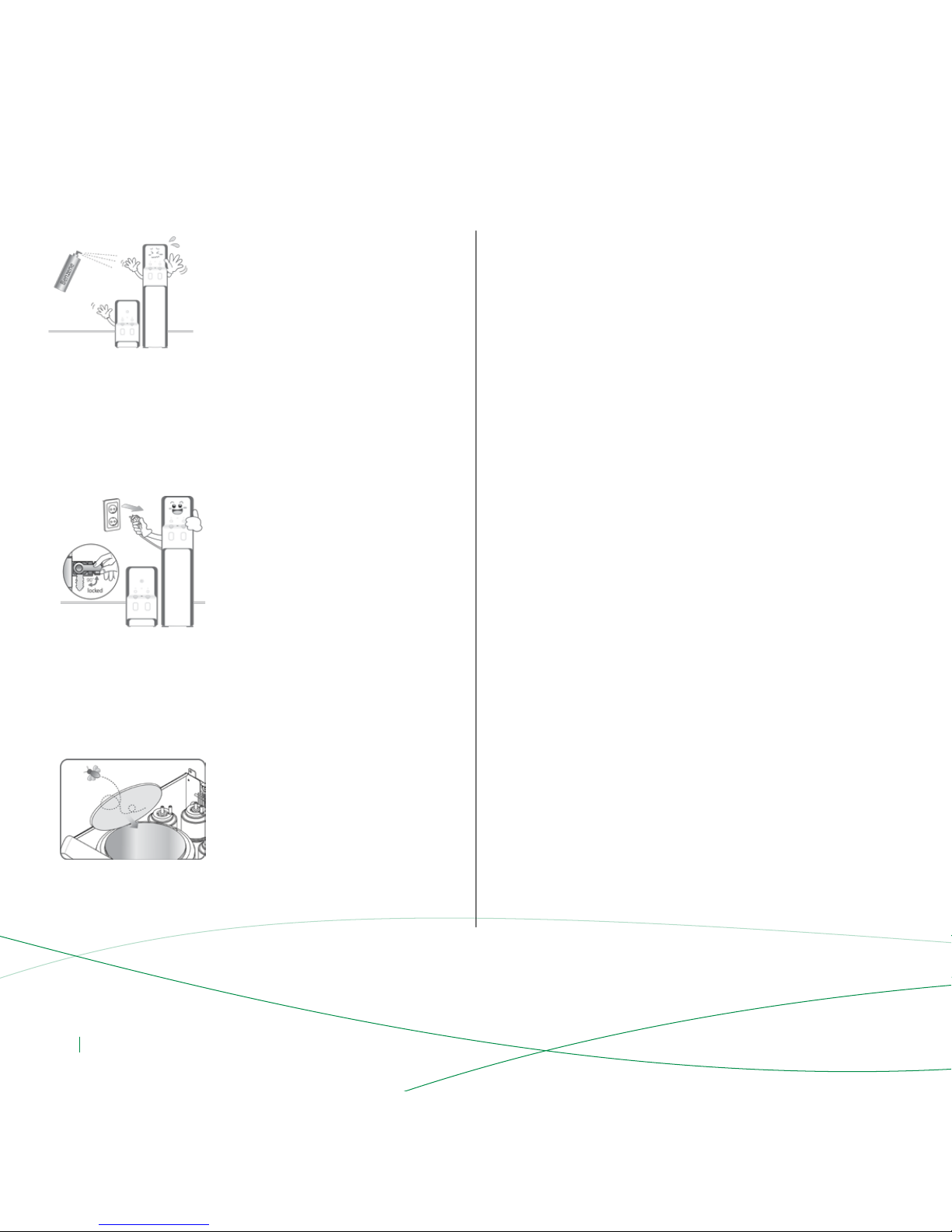

Close main water supply valve and unplug
the power cord when not using the unit for
a long time. Before use it again, drain more
than 10 liters of water in water tank.
It could cause re or water leakage.
Before use, entirely close the cold tank cover
in the unit.
Insects or foreign substances may get inside
of the product.
Never use Benzene or gasoline to clean
the unit.
It could cause discolor, peeling and damage
of the unit.
When you discard the unit or lter, follow the proper process
of disposal.
It could cause environmental pollution.
• When installing the unit, use our genuine parts.
It could cause water leakage or damage to the unit.
• When replacing lter, use our genuine one.
It could affect water quality.
• Do not install the unit at the place where may cause freezing trouble.

ENG 9
Brief Introduction
This equipment utilizes the current, most advanced international
RO technology. RO technology relies on the articial reversing of
the naturally occurring osmosis phenomena. The RO membranes have
pores with a diameter of 0.0001 micron (0.1 nm), so they can effectively
remove bacteria, viruses, heavy metals, pesticide residue, and other harmful
substances from the water. Produced water is fresh, pure and suitable
for direct use.

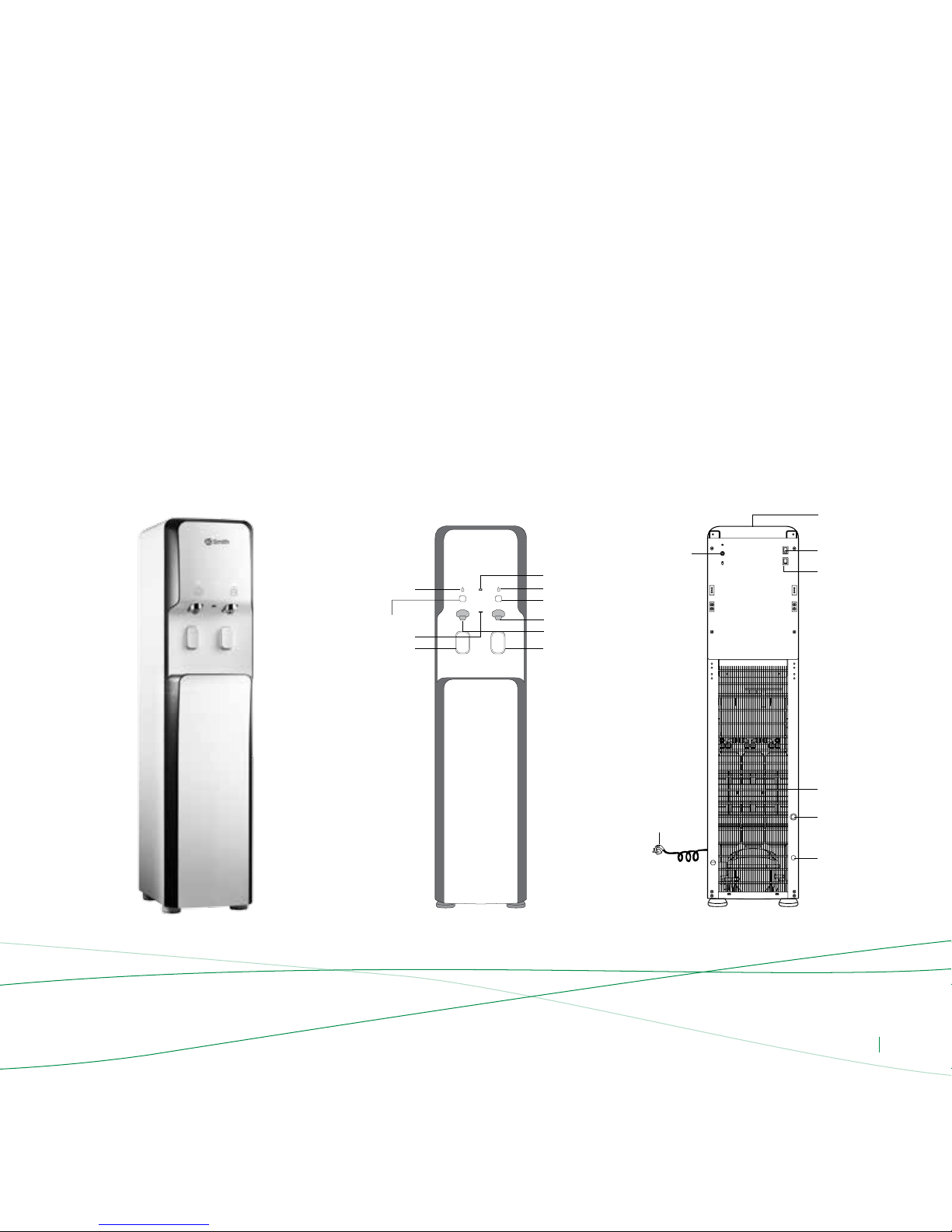

Description of Components
Product Description
Diagram 1Frezya 200S
Top cover
Cold water controller
Eco lamp
Hot water lamp Cold water lamp
Continuous cold water dispensing
button
Hot water safety button Cold water tap (Hidden tap)
Hot water tap (Hidden tap)
Cold water leverHot water lever
Eco sensor
Power cord
Hot water switch
Cold water switch
Condenser
Water supply port
Drain water outlet (RO)

ENG 10

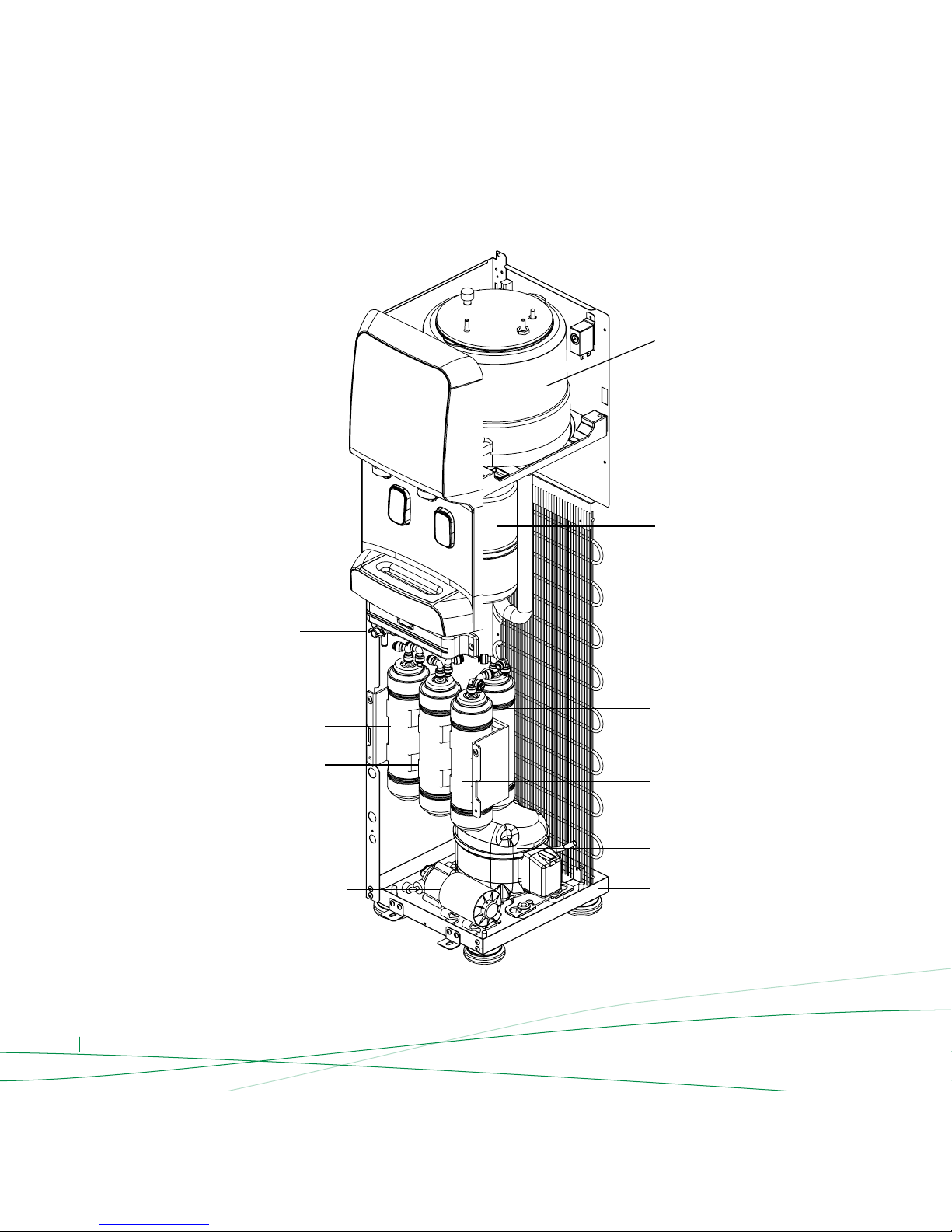

Product Components
Diagram 2
Cold water tank
Hot water tank
RO Membrane lter
Compressor
Sediment lter
Hot water drain valve
Pre-Carbon lter
Post carbon lter
Adjustable foot
Booster Pump

ENG 11
Note: the parameters above may change due to product improvements, but the product name plate shall remain the same. TDS refers to inuent total dissolved solids.
Note:
0.1 MPa = 1.02 Kg/cm2 = 14.5Psi
1 Psi = 0.07 Kg/cm2
1 Gallon = 3.785 Liters
75 GPD = 75 Gallons/Day = 284 Liters/Day = 197 Milliliters/Minute
Technical Specications
Model No.
Control Type
Water Treatment System
Condensor
R.O. Filtration
Cooling
Power Supply
Heater
Recommended Water Consumption
Cold Water Temperature
Cold Water Temperature Control
Permitted Water Temperature
Hot Water Temperature Control
Usable Feed Water
Motor Power Consumption
Product Dimensions (W * D * H)
Refrigerant
Net Weight
Heater Power Consumption
Product Usage Environment
Display Type
Compressor
Hot Water Capacity
Hot Water Temperature
Cold Water Capacity
Permitted Water Pressure
Electronic touch control
Hidden display
1/11 HP Sealed Type
Reverse osmosis
Wire type
1 Sediment Filter (non-woven based)
1 Pre-Carbon Filter (activated carbon)
1 R.O. Membrane Filter
1 Post-Carbon Filter
Forced cooling type
230V AC / 50 Hz
Sheath heater
10 L / a day (4 People based)
About 4ºC ~ 12ºC
Thermostat
5 ~ 35ºC
About 1.8 L
About 70ºC ~ 90ºC
About 3 L
147 ~ 294 kPa (21 ~ 43 PSI)
Bi-metal
Tap water
400 W
Indoor (House / Office)
FREZYA 200S
90 W (0.6 A)
260 × 360 × 1100 mm
R-134a CFC
22 kg

ENG 12
Product Features
• Power saving at night by ECO (illuminance sensor) function
The ECO sensor automatically stops water heating & chilling and save
electric charge, when it notices that illuminance around the unit darkens
at night.
• Continuous water dispensing function
By this function, you can conveniently receive a large amount of water
at once.
• RO membrane lter system
Our 4 steps of water lteration system provides fresh&clean water.
• Electronic touch button
You can set all the functions(pasteurization, hot water safety, continuous
cold water dispensing function) by electronic touch button.
• Separable hidden water tap
Easily separable water taps help keep hot & cold water taps always
clean.
• Safety in using hot water
Anti-Superheating function of heater (by manual reset type of bi-metal)
&automatic temperature control function(by automatic reset type of
bi-metal) keep you safe from hot water.
• Water level control function
Automatic water level control function ensures durablity of the lters
&unit.
• Fresh water supply
4~12 of cold water and 70~90 of hot water are available at any time.
• Power saving function
When using only one sort of water temperature between hot & cold,
you can turn the other temperature switch off and save electric charge.
Functions of R.O. System Components
The standard conguration of this hot&cold water dispenser with R.O
system is as follows:
• The rst stage is a >0.5 µm Sediment Filter:
The pores on the aperture within polypropylene sediment lter allows
to lter rust, sand, other larger particles and solid impurities suspended
in the water effectively.
• The second stage is a Pre-Carbon lter:
Granular activated carbon lter effectively absorbs chlorine, mould,
disinfection by-products, odors, discolorations and other materials
suspended in the water.
• The third stage is the >0.001 µm RO membrane:
80 GPD membrane effectively removes bacteria, viruses, heavy metals,
pesticide residue, and other harmful substances contained in your water
supply .
• The fourth stage is a Post-Carbon lter:
This granular activated carbon lter regulates the taste of water
and keeps the water fresh .

ENG 13
Functions of ECO System
ECO function helps save power consumption by sensing illuminance
around the unit. When the illuminance aroud the unit darkens at night,
the product automatically stops water heating & chilling and adjusts
the bringtness of display.
• When the illuminance around the unit brightens again, the sensor
automatically stops ECO function and the product works normally.
• About 20 mins for hot water and 60 mins for cold water are required
to turn the hot&cold water temperature back to normal.
• While the ECO function is being operated, ECO lamp ickers
and the other lamps darken.
Because Fitting/ Tubing/ Float valve / Etc. are consumable parts, when replacing lters,
replace them too. (2 years of replacement cycle)
(If not replacing them, property damage by water leakage may occur)
Water Filtration Process
Elbow
Tube Hose
Restrictor
Air Filter
Sensor Level
Ball Top
Cold Water
Hot Water
Hot Water Tank
Outlet
Post-Carbon Filter
ECO Sensor
(Illuminance Sensor)
R.O. Filter
Booster Pump
Solenoid
Valve
Pre-Carbon
Filter
Sediment Filter
Inlet Water
Valve
Inlet Water
Cold Water Tank
Diagram 3
Diagram 4

ENG 14

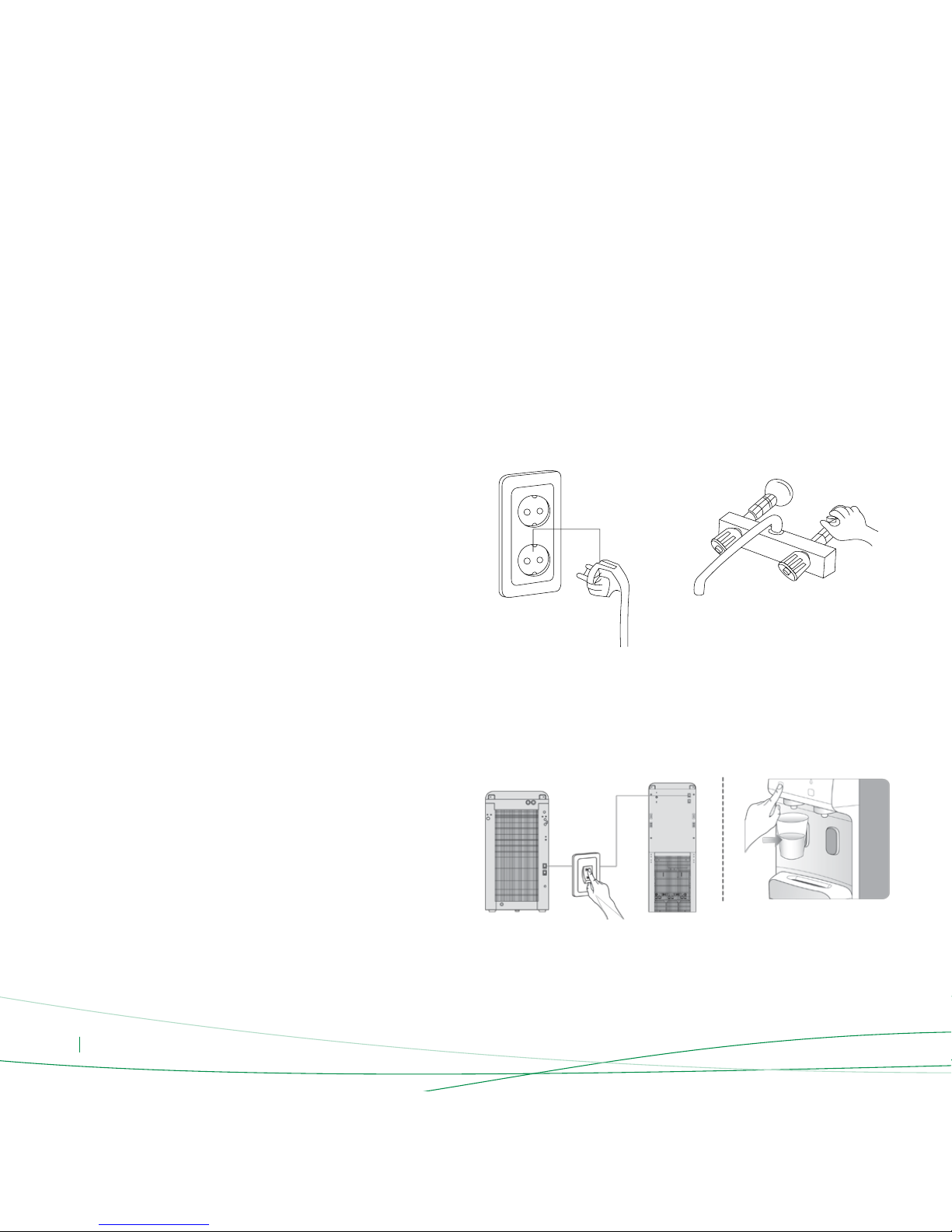

Installation
Plug the power cord (Diagram 5)
• Before plugging, please check if the voltage rate is matched.
• Before plugging, turn off the hot water switch.
Open the water supply valve (Diagram 6)
• If water supply valve is closed, the water purier doesn't work.
Note: Except in cases of going outside for a long time, leave the valve open.)
Operation Methods
When power is supplied to the product
• The unit is turned on with 'beep' sound.
• After the unit is turned on, you can take normally ltered water.
Using Hot Water Function
• Turn on the hot water switch at the back of the unit.
• Then the hot water lamp is turned on and hot water function works.
• After hot water function starts to work, it takes 30 mins
to get sufciently heated water.
• When the product is turned on, it takes 3mins to ll hot water tank
with water and operate heater.
• How to get hot water
- After touch the hot water safety button, push the hot water lever
within 3 sec. (Or after push the hot water lever, touch the button
wihtin 3 sec.) Then hot water comes out.
- While hot water is coming out, get your hands off from the lever
or touch the hot water safety button to stop hot water dispensing.
Warning: When you want cold water only, turn the hot water switch off
and save electric charge.
Operating ECO function (Illuminance sensor):
1. Touch the hot water safety button for more than 5 sec.
2. Then, the ECO lamp will be turned on and the function will be
operated.
Precautions for operating ECO function:
• Because the ECO function is operated by sensing illuminance around
the unit, do not install at dark or shady place.
• ECO function may be operated at all time and water heating & chilling
may not work.
Installation and Operation
Methods
Diagram 5 Diagram 6
Diagram 7

ENG 15

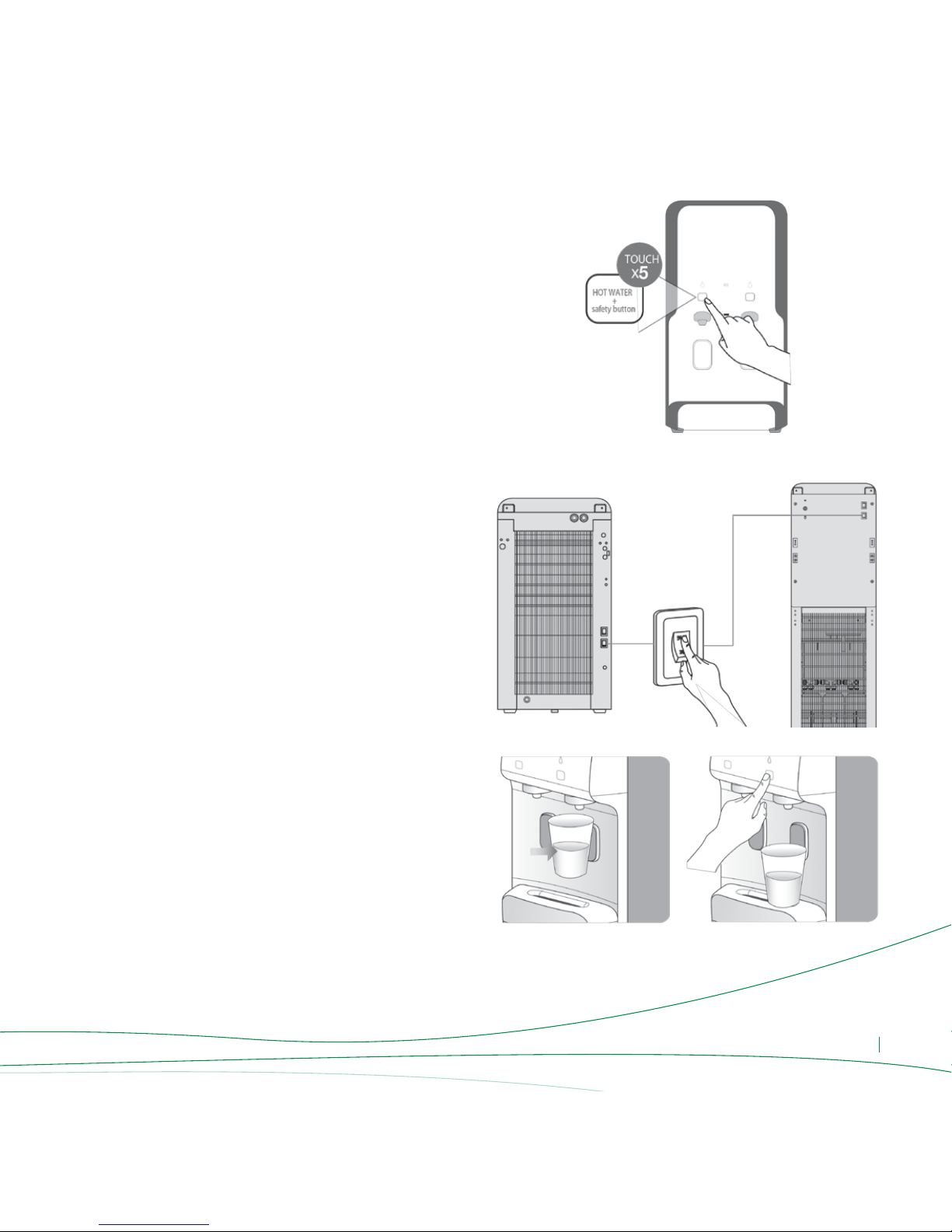

Locking Hot Water Function
This function is for protecting children from burning themselves by careless
hot water dispensing.
• How to lock
- Touch the hot water safety button 5 times to lock the hot water
dispensing.
- After the lock is set, if you try to touch the hot water safety button
to get hot water, the button doesn't work with “beep-beep” sound.
- If you push the hot water lever, the hot water lamp will be off
to show the hot water dispensing function is locked.
• How to unlock
- If you touch the hot water safety button 5 times again, the lock is
unlocked and the hot water function works again.
Using Cold Water Function
• If you turn cold water switch on, cold water function is operated.
• After the cold water function is operated, it takes 1 hour to get
sufciently chilled water.
• How to get cold water
- If you push the cold water lever, you can take cold water.
- While cold water is coming out, if you get your hands off from
the cold water lever, it stops.
Operating Continuous Cold Water Dispensing
• If you touch the continuous cold water button for more than 3 sec,
cold water continuously comes out for 60 sec.
• Touch the button again to stop the continuous cold water dispensing.
Warnings for Operation
• After intallation of the product, drain rst 20 liters of water.
• If you don't use the product for a prolonged period, drain 1~2 liters of
water before use again.
• Before turn hot water switch on, make sure that water comes out from
hot water tap. It may cause malfunction.
Diagram 8
Diagram 9

ENG 16

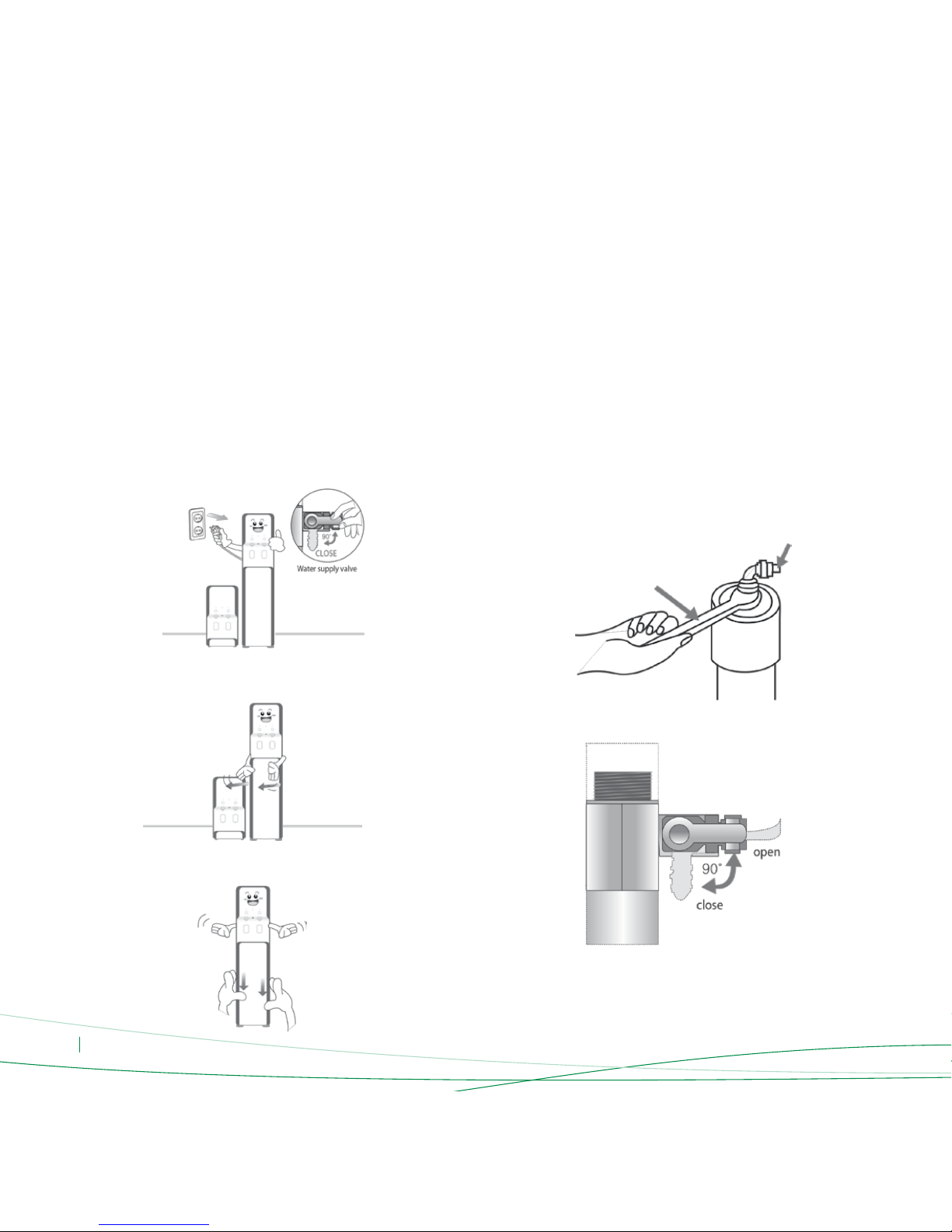

Filter Replacement Method
• Before replacing lters, pull the power cord out and close the water
supply valve.
• Remove drip tray.
• Push down the lower cover and pull it to the front and separate it.
• After replacing lters, reassemble parts in reverse order.
- After replacing lters, check if there is water leakage at connecting
parts.
- Refer to Water ltration process(p.10,11) and keep the lteration order.
• Open the water supply valve and plug the power cord.
Filter Replacement
• Before replacing lters, pull the power cord out and close the water
supply valve.
• When using the unit for the rst time or replacing lter, do water ushing
process to each lter for more than 10 mins, until white, black or bubble
water doesn't come out from the lter. (Water Flushing : a process
of cleaning inside of the lter)
• After replacing carbon lter, black carbon dust may remain
on the bottom of the unit. (The dust is spilled from carbon lter which
makes water taste ne and harmless.)
Maintenance and Repair
Fitting
Fitting Seperator
Water Supply
Valve

ENG 17
Cautions for Filter Replacement
• According to the lter replacement cycle, replace lters regularly.
• If the lter is not regularly replaced, it could degrade the water quality.
• The lter replacement cycle may vary depending on feed water quality
and consumption.
• When replacing lter, use our original lters for this product. If not,
A.O.Smith can not guarantee lter efciency and water quality.
• When replacing lters, be sure to ask service man to do ushing process
to new lters for more than 10 mins. (If not, it could degrade water
quality).
• Even if your water consumption is not much, following regular lter
replacement cycle is recommended.
• Above lter replacement cycles are based on normal feed water
condition and 1500 liters of water purifying efciency.
(The cycle doesn't mean quality guarantee period.)
• The period is based on 10l use in a day for house use (4 people based).
• A.O.Smith can not take responsibility for any damage caused
by replacing lters by a third party.

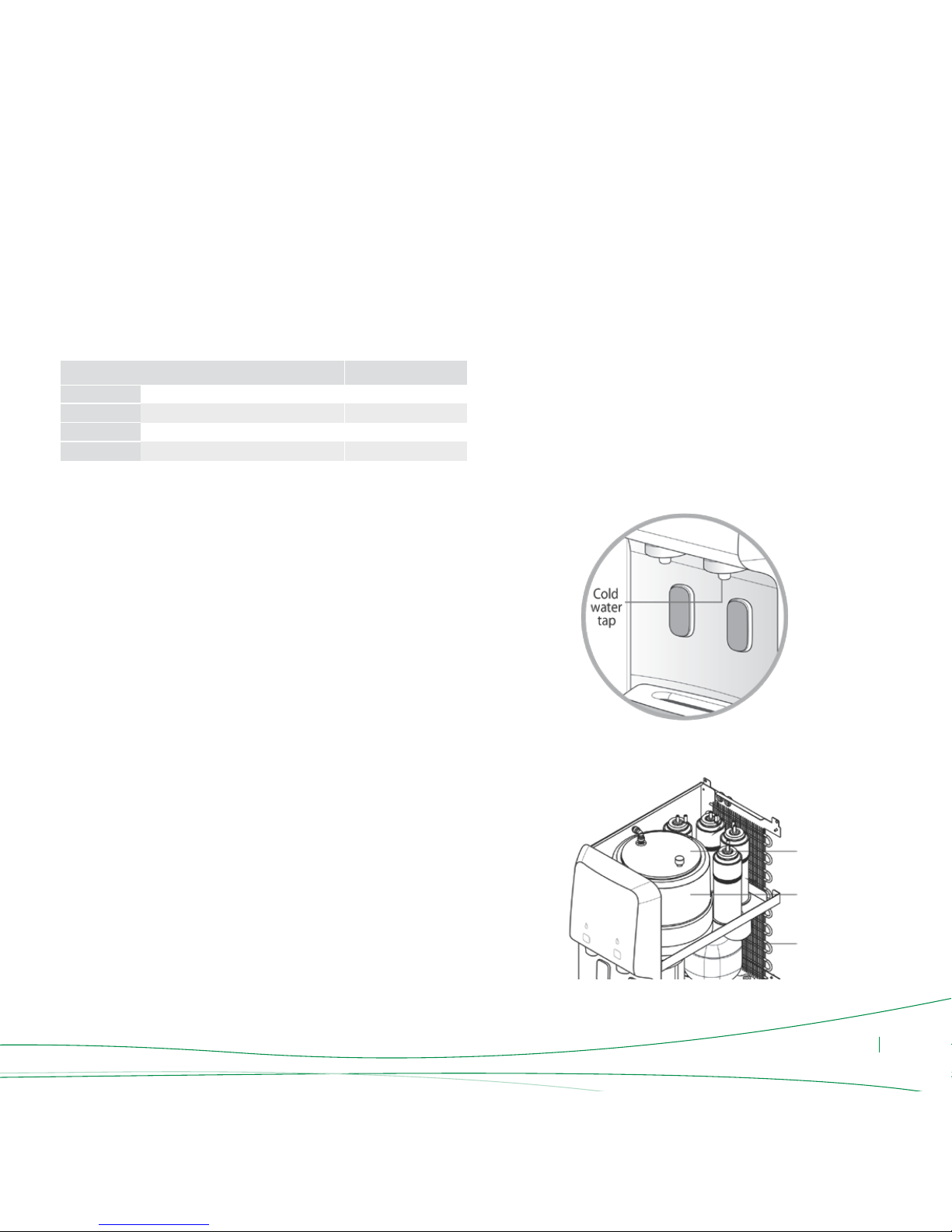

Cleaning of Hot and Cold Tanks
Warning: Do not try to clean inside of the product by yourself. It could cause
electric shock.Contact A.O. Smith After Sales Service for cleaning inside
the product.
• Close water supply valve and pull the power cord out.
• Drain all the water in the cold tank through cold water tap.
• Stand type : Separate front lower panel from the product
and completely drain by opening drain valve.
Table top type: Separate small cover of side panel and completely drain
by opening drain valve.
(Be careful not to get burned by the hot water, when opening the drain
valve.)
• Loosen left and right screws at the back of the unit and separate top
cover. Then, separate cold tank cover in the unit.
(When separating tank cover, be careful not to damage rubber packing
of it. The cold tank is made of stainless steel, so be careful not to hurt
your hands)
• Clean inside of the cold tank pouring water into it. Then, close water
drain valve and reassemble cold tank cover.
• Open the water supply valve and check water leakage when cold tank is
fully lled with water. Then, reassemble the top cover.
• Keep checking operation and water leakage state for a day.
(If there is problem, contact customer service center.)
REPLACEMENT CYCLE
4 Months
8 Months
24 Months
12 Months
FILTER
Sediment Filter
Pre-Carbon Filter
R.O. Membrane
Post-Carbon Filter
Step 1
Step 2
Step 3
Step 4
Cold Water
Tank Cover
Cold Water Tank
Hot Water Tank
Diagram 10
Diagram 11

ENG 18
After-Sales Service
• If your water purifier exhibits abnormal behavior, please turn off
the water source immediately, cut off the power source and contact
your local vendor.
Notes
• Our company reserves the right to change product design, configuration,
and specifications without prior notice.
• Our company assumes no liability for problems that may occur as a result
of technical or editorial errors, omissions or printing problems contained
herein.
Cleaning Cycle
CLEANING
Exterior
Drip tray
Water tap
Fitting / Tubing
CYCLE
Once a week
Frequently
Once a day
More than once
within 2 years
METHOD
Clean the exterior with water-soked, soft cloth.
(Never use Benzene, gasoline or thinner to clean the unit.)
Frequently clean the drip tray with a neutral detergent.
Loosen hidden taps counterclockwise and separate it. Then, clean
the hole of the taps with sterilized swap and wipe the taps with water
soaked cloth. After cleaning, tighten the taps again.
When replacing lter, check if Fitting and Tubing are ne. If necessary, we serve them for free.
