A.O. Smith HSE-SBS-015 User manual

Part No.:
Revised on:
Revision: All the logo with ® has been changed.
In front page Service Logo add.
In page 16 Guaranteed Service add.
In page 18 Kolkata address & Service
detail add.
Size: 210mm (H) x 148mm (W)
Part No.: 323238-000_R0
Approved on: 30-05-2012
Fit it &
Forget it
Why people prefer an A. O. Smith water heater...
* Conditions Apply User Guide
Water Heater
HSE-SBS-015 / HSE-SBS-025
®
Blue Diamond glass lined
tank. Maximum protection
against hard water and
corrosion.
Get the best quality that
ensures you have a water
heater that works in
Indian water conditions.
Guaranteed* A. O. Smith
Service within 24 hours.
Call: 1.800.103.2468
Made in India’s most
modern and advanced
water heater factory.
ADVANCED
TECHNOLOGY
SUPERIOR QUALITY EXPERT SERVICE
BEE 5 star rating. One of
the most energy efficient
water heater you can buy.
ENERGY SAVING
Wired remote control,
temperature settings,
power ON/OFF, energy
meter.
MORE FEATURES &
USER CONTROLS
MADE BETTER

Congratulations!
And welcome to the A. O. Smith family.
We would like to thank you for the trust you have shown in choosing an A. O. Smith water
heater. You can be sure it will live up to your expectations. Thousands of delighted users all over
the world trust A. O. Smith water heaters for their families. This user guide will introduce you
to your water heater. Follow the instructions carefully and look forward to enjoying long years
of trouble-free service.
A. O. Smith is a company known for its innovative technologies and energy-efficient solutions.
®
Ours are the only water heaters with the Blue Diamond Glass lining for the inner container of
the water heater. This cutting edge technology prevents sediment and scaling, fights corrosion
and extends the life of your water heater. We also offer you an exciting range of colour options
for the front panel of your water heater. Choose the one that matches your bathroom décor
best.
Our customer-centric approach manifests itself in many other ways too. If you need any
information or assistance with your water heater, just call us from any phone, anywhere in the
country to our Toll Free Customer Care No. 1.800.103.2468.
Or
Factory Address:
A. O. Smith India Water Heating Private Limited
Plot No. 300, Phase-2, KIADB Industrial Area, Harohalli, Kanakapura Taluk,
Ramanagara District - 562 112, Karnataka, India.
About A. O. Smith
A. O. Smith India Water Heating Private Limited was established in 2006. Since then, the
A. O. Smith team has conducted numerous focus group studies and spent endless research
hours determining what India wanted in a water heater. Backed by 75 years of proven
technological advances, A. O. Smith India has created a stylish design with features demanded
by the Indian consumer.
The A. O. Smith plant with manufacturing facilities spread over 76,000 sq.ft. is located on
20 acres, just outside Bengaluru, in the KIADB Industrial Area, Harohalli. The India operations
th
is the 16 A. O. Smith manufacturing facility worldwide. A. O. Smith's India plant has extensive
engineering and technical resources and has the latest technologies incorporated. A. O. Smith
is the first manufacturer to invest in and produce glass lined water heaters in India.
Today, A. O. Smith Corporation is one of the largest water heater manufacturers in the world
and is a global leader in innovative technology and energy efficient solutions.

Contents
Specifications ......................................................................................... 1
Key Features ........................................................................................... 2
Installation.............................................................................................. 3
Directions for use ................................................................................... 6
®
A. O. Smith ColourMatch System ........................................................ 8

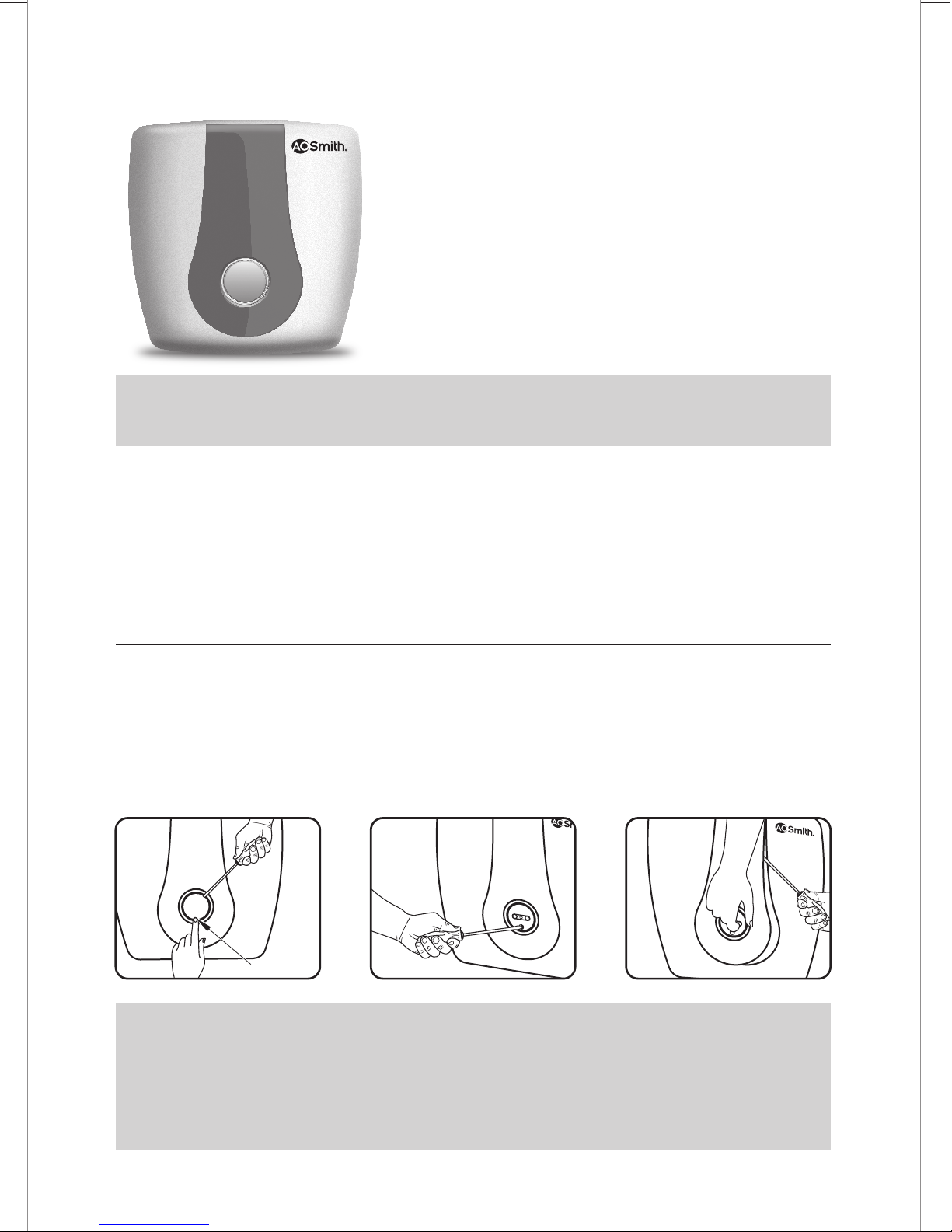

Changing the Decorative Front Panel ................................................... 8
Troubleshooting ..................................................................................... 9
Circuit Diagram .....................................................................................10
Warranty ............................................................................................... 11
Jurisdiction ........................................................................................... 12
Warranty Card ...................................................................................... 13
Service and Maintenance..................................................................... 14
What's in the box?
Electric Water Heater
with Wired Remote
Mounting
Accessories
Discharge Tube
User Guide
2kW kWh
HEATING SET
C
ENERGY
METER
Fit it &
F
orget it
Why people prefer an A. O. Smith water heater...
* Conditions Apply User Guide
Water Heater
HSE-SBS-015 / HSE-SBS-025
®
Blue Diamond glass lined
tank. Maximum protection
against hard water and
corrosion.
Get the best quality that
ensures you have a water
heater that works in
Indian water conditions.
Guaranteed* A. O. Smith
Service within 12 hours.
Call: 1.800.103.2468
Made in India’s most
modern and advanced
water heater factory.
ADVANCED
TECHNOLOGY
SUPERIOR QUALITY EXPERT SERVICE
BEE 5 star rating. One of
the most energy efficient
water heater you can buy.
ENERGY SAVING
Wired remote control,
temperature settings,
power ON/OFF
, energy
meter.
MORE FEATURES &
USER CONTROLS
MADE BETTER

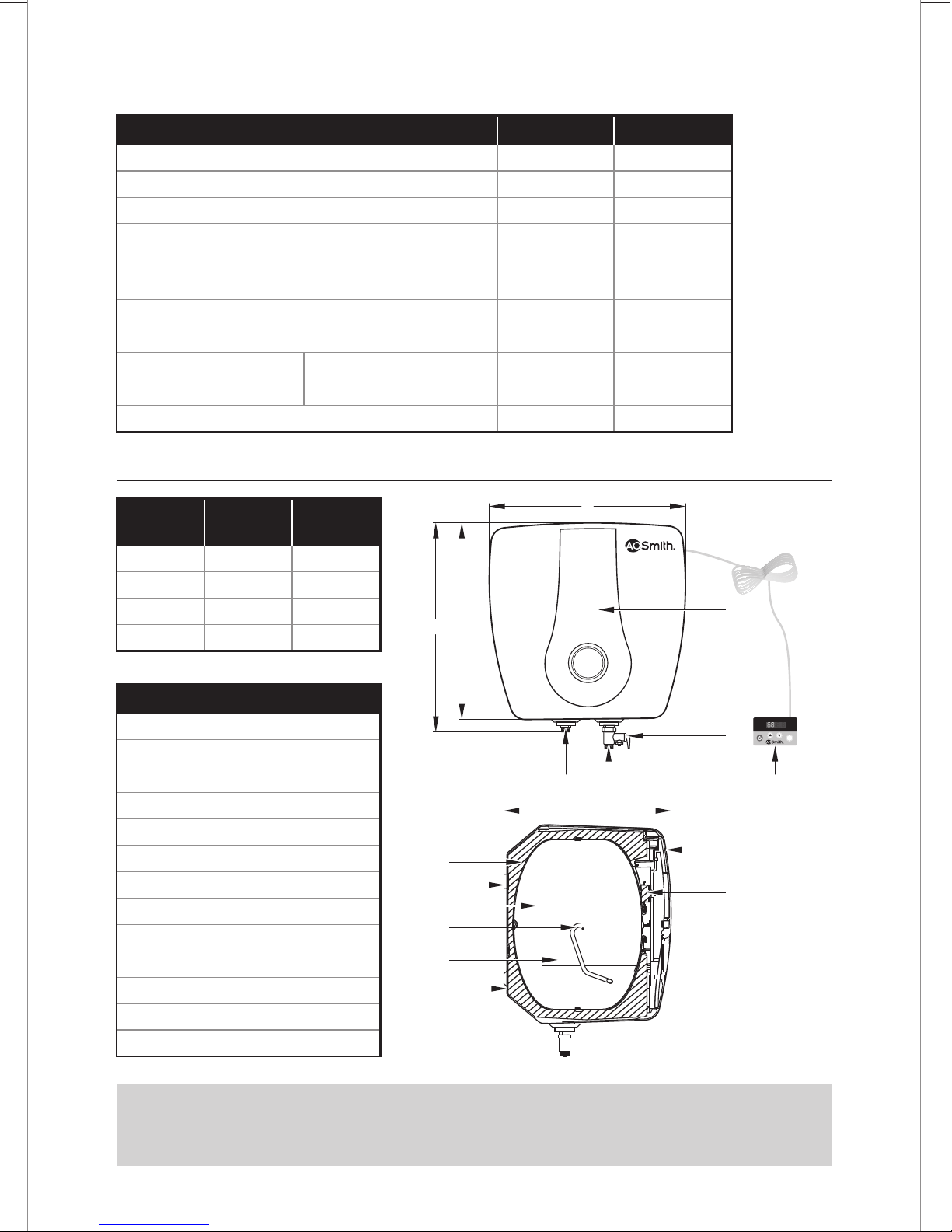

Specifications
Model HSE-SBS-015 HSE-SBS-025
Volume [L] 15 25
Power [W] 2000 2000
Voltage/Frequency [V/Hz] ~230/50 ~230/50
Actual Stdg. Loss [kWh/24h/45°C diff.] 0.560 0.690
o
Max. Stdg. Loss [kWh/24h/45 C diff.]
[as per IS 2082:1993 amended in 2002] 1.138 1.386
Reheating Time for 35°C rise [in min] 18 29
Temperature range [°C] 25-75 25-75
2
Rated water pressure N/cm 80 80
Water head (metres) 80 80
Inlet/Outlet connections [Inch] ½ ½
Dimensions
1
Caution: *Safety valve has been factory fit with the water heater and set at 0.8 MPa
(8 Bar) rated pressure.
Warning: Do not tamper or detach the safety valve from the water heater.
1 Outlet
2 Inlet
3 Safety Valve*
4 Wired Remote
5 Decorative Front Panel
6 Front Jacket
7 Back Jacket
8 Anode
9 Heating Element
10 Tank
11 Installation Bracket
12 PU Insulation
13 Thermal Cutout
Part Descriptors
Model HSE-SBS HSE-SBS
-015 -025
A [mm] 373 444
B1 [mm] 373 444
B2 [mm] 405 483
C [mm] 337 371
12
11
10
9
8
7
13
6
C
2kW
CkWh
HEA TING SET
ON/OFF
ENERGY
METER
2 4
1
3
5
A
B2 B1

2
Key Features
®
Blue Diamond Glass Lining
Anode Rod
Safety Valve
Glass Coated Heating Element
Displays the temperature and the total energy consumed by the water heater.
Temperature can be precisely set between 25°C to 75°C. It is easy to operate the
water heater with wired remote controller even if it is placed in an enclosed area
by connecting with an approximately 8 feet wire.
Wired Remote Controller
Thermal Cutout
Note: A. O. Smith reserves the right to amend or modify the specifications and features at
any time, as and when required without any prior notification.
2kW
CkWh
HE ATING SET
ON/OFF
ENERGY
METER
®
Blue Diamond technology increases the life of the inner tank. The lining is
stronger and more corrosion resistant than any other in the industry.
The safety valve is designed to automatically relieve and discharge water in case
the pressure overshoots the preset limits.
If the water temperature exceeds the highest preset level, the breaker rapidly
cuts off the live line and the neutral line simultaneously to assure safety.
The tank has an anode rod which has stainless steel core that is designed to
protect the tank from corrosive elements. The anode rod uses a special cathodic
action to fight these elements and thus prolong the life of the water heater.
Scale and sediment build-up on the surface of the element can lead to
premature failure. A. O. Smith Glass Coating helps to prevent scale formation
and extends the life of the heating element.

Installation
Mounting

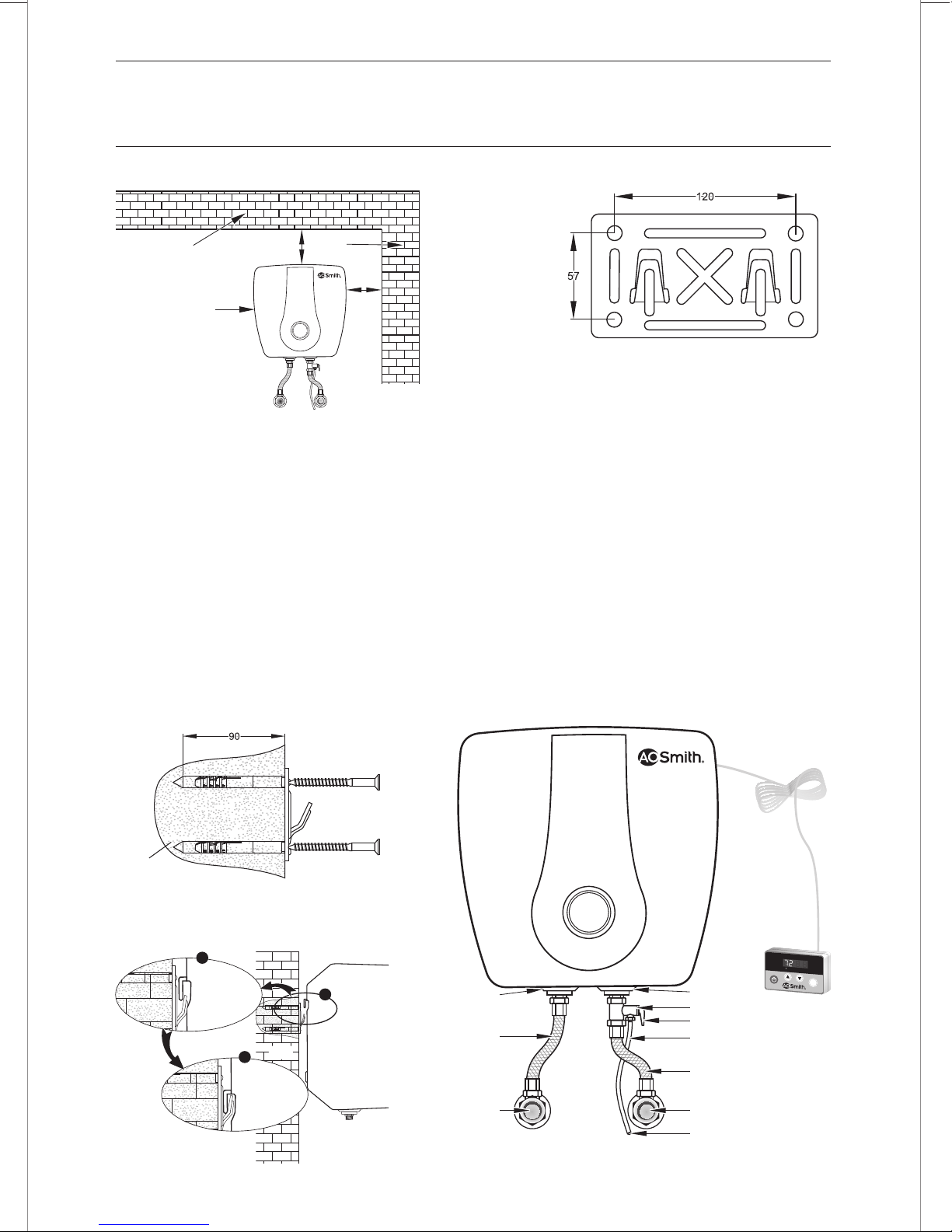

Fig. 1 Position for installation Fig. 2 Wall mounting bracket
3
1. Make sure that the wall can withstand at least twice the weight of the water heater when
completely filled with water.
2. Before locating the position for installation of the water heater, make sure that there is
sufficient clearance between the ceiling and the side wall. (Fig. 1)
3. Use a drill bit with diameter of 10mm to drill 4 holes at least 90mm deep in the wall (Fig.
3). The four holes should be aligned horizontally and vertically. The horizontal distance
between the 2 holes should be 120mm and the vertical distance should be 57mm. (Fig. 2)
4. Insert the expansion anchors into the holes. Place the wall mounting bracket over the
expansion anchors and tighten the screws on the bracket. (Fig. 3)
5. Place the water heater on wall mounting bracket (Fig. 4) using hanger hooks. Tug
downwards on the heater to ensure that the water heater is fixed steadily.
Wall
Fig. 3 Installation of wall mounting
bracket
Fig. 4 Inserting the water heater
into mounting bracket
Wall Water
Heater
Water
Heater
Wall
Water
Heater
Wall
1
2
3
*Flexible Hoses to be procured by the customer, not part of standard product.
Fig. 5 Installation diagram
Water heater
Ceiling Wall
2kW kWh
HEATING SET
C
ENERGY
METER
Hot Water Tap
Cold Water Tap
Discharge Tube
*Flexible Hose
*Flexible Hose
Lever
To Drain
Safety Valve
Blue Cap
Red Cap

1. Open a hot water faucet nearby to permit the air to escape.
2. Open the cold water inlet valve fully, filling the heater and the piping.
3. Close the hot water faucet when water flows.
4. Check all the connections to see if there is any leakage. In case of a leakage, drain the
heater completely, repair the leaking joint and then refill the heater.
Electrical Connections
The power cord and plug are connected with this water heater. Find a separate socket for
power plug and make sure the socket is in firm contact with the plug. Ensure that reliable
earthing has been done.
4
Caution:
• Connect the water heater using independent sockets, do not use adapters. Use
multimeter to check whether the live line and neutral line are not reverse, to ensure
complete safety.
• Before installing the water heater, confirm that the power of water heater matches
electric meter capacity and supply wire.
• The water heater should be earthed reliably. It is prohibited to connect the earth wire
to neutral wire or tap water pipe.
Attention:
• Make sure a suitable sealing tape is used for all connections to prevent leakage.
• Discharge tube should be installed downwards without any loops, folds or knots.
Ensure that the free end of the Discharge tube is placed over a suitable drain and away
from the users.
• Discharge tube is provided to release the discharge from the water heater(through the
safety valve) in case excessive pressure is developed. The contents of the discharge
from the Safety valve may be hot and may cause burns to the users and damage
nearby objects if not properly routed to a drain.
• It is recommended to operate the discharge lever in the safety valve on a regular basis
to ensure that there are no blockages and also to remove any lime deposits that would
have been formed inside the water heater.
• Ensure that the water heater is in power OFF condition when the Discharge lever is
being operated. Ensure that the water is filled completely in the water heater before
switching it ON.
Water Filling
Plumbing
1. Make necessary plumbing with reference to the installation diagram. (Fig. 5)
2. A. O. Smith recommends nylon/SS braided hoses having a minimum pressure rating of
8 Bar and hoses should be compatible for hot water applications.
3. Connect the cold water pipe to the inlet [Blue Cap].
4. Connect the hot water pipe to the outlet [Red Cap].
5. Attach the discharge tube to safety valve as shown in installation diagram. (Fig. 5 & 6)

For draining water from the water heater, following steps
needs to be followed:
1. Switch off the electric supply to the water heater.
2. Open the hot water taps until the water is not hot any
more.
3. Close cold water supply.
4. Drain the water by moving the lever of safety valve in the
direction of the arrow as indicated in the diagram. (Fig. 6)
Draining
Fig. 6 Safety valve
5
Caution:
• Once the mounting, plumbing, discharge tube, power connection and water filling
is completed, then only the power supply should be given.
• During repair or periodic maintenance, if necessary, the power cord or Internal
electrical wiring should be replaced by A. O. Smith Authorised service personnel only.
• It is not permitted for the power supply plug and cord to be replaced or altered by
unauthorised people or by the users themselves. This will make the warranty null and
void and may cause the water heater operation hazardous.
Discharge Tube
Safety Valve
Port
Installation of wired remote controller
Fig. 7 Installation of Bracket for
wired remote controller
Fig. 8 Bracket for
wired remote controller
24mm
Wall
For convenience of operation, please install the wired remote controller on the wall near the
water heater. The length of the wire for wired remote controller is approximately 8 feet.
1. The wired remote controller must be installed at a place where it does not get in direct
contact with water.
2. Drill two holes on the wall by using an electric impact drill with 5mm bit.
3. The holes must be aligned vertically (Fig. 7). Space between two holes should be 24mm (Fig. 8).
4. Fix the bracket on the wall by expansion tubes and screws attached.
Caution:
• Before using the water heater, make sure that it should be completely filled with water.
• Please turn off the power supply to the water heater prior to draining the water heater.
Warning: This water heater should not be operated with insufficient amount of water.
Failure to do so may result in damage to the water heater & injuries to the users. This
will also make the warranty null & void.

Directions for use
Caution: Before using the water heater, make sure the inner tank is completely filled with
water and the power plug has been connected properly.
It is recommended that the wired remote control box should be installed on the
remote bracket (Fig. 8). Ensure that the wired remote control box does not get in
direct contact with water. Do not use wet hands while operating the remote.
Warning: The wired remote controller works with the power of water heater (No separate
power connection or battery required). Do not open the wired remote controller.
Fig. 9 Wired remote controller
2kW
CkWh
HE ATING SET
Fig. 10
2kW
CkWh
HE ATING SET
Fig. 11
6
1. Initial power
When the water heater power supply plug is connected, it is in
initial power on state, i.e. the heater is ready for heating the
water. The wired remote controller will perform the diagnosis
function and all indicators will glow and goes off as shown in
Fig. 10.
2. Power ON/OFF
To start heating the water, press ON/OFF key “ ” on wired
remote controller. While heating, the display shows actual
temperature of water inside the tank and the indicator glows
as shown in Fig. 11.
3. Temperature setting
Temperature can also be set by pressing ““(Increase),
““(Decrease) keys once, the last 2 digits of display shows
change in value. Wait for few seconds without pressing any
keys, the value flashing in the display will be changed as set
temperature and stored in memory. It will return to its normal
mode and the heating of the water is based on the new set
2kW kWh
HEATING SET
C
ENERGY
METER
Energy Meter
Decrease
LED Indicators
LED Indicators
ON / OFF
Increase
Display LED

7
temperature. While setting, the temperature indicators glow as
shown in Fig. 12.
Note:
• Default set temperature (factory setting) is 70°C.
4. Energy meter
The “ENERGY METER” key is used to display the energy
consumed by water heater for 5 seconds in kWh. The new
value will be added to the consumed value and displays the
total consumed value. The energy meter value displayed is
cumulative. The display indicators glow as shown in Fig. 13.
Note:
• Energy Meter values are indicative only.
• Refer 6. Reset function to reset the Energy Meter.
5. Modes
There are two types of modes depending on the actual water
temperature inside the inner tank of the water heater:
a. Heating mode
When the actual temperature of the water is less than the
set temperature, it enters into Heating mode. The indicator
glows as shown in Fig. 14.
b. Standby mode
After the water heater reaches set temperature, it will enter
into the Standby mode due the cut-off power and the
indicators will glow as shown in Fig. 15.
When the temperature of the water drops by 5°C from the set
temperature due to usage of water, it again cycles the modes.
6. Reset function
By pressing “ENERGY METER” and ”” keys continuously for
5 seconds, the changed set temperature and the energy meter
value will be restored to factory settings (set temperature value
is made 70°C and energy meter value resets to 0 kWh) and
water heater goes into initial power state. While resetting in
the display, all screen indicators will glow up for a while and
goes off as shown in Fig. 10.
2kW
CkWh
HE ATING SET
Fig. 15
2kW
CkWh
HE ATING SET
Fig. 13
2kW
CkWh
HE ATING SET
Fig. 14
2kW
CkWh
HE ATING SET
Fig. 12

8
®
A. O. Smith ColourMatch System
®
A. O. Smith ColourMatch System allows you to match your water heater to the colour of
your bathroom.
Please visit www.aosmithindia.com and choose your Decorative Front Panel colour options.
Call A. O. Smith Customer Care Centre [1.800.103.2468] to order the Decorative Front Panel.
Please follow the instructions as shown in Fig. 16
Press to release
Changing the Decorative Front Panel
Press and remove the cap Unscrew Remove the Decorative
Front Panel to change
Fig. 16 Removing decorative front panel
Attention: The product of your choice comes with either white or ivory as a front panel of
the same colour. You have the option of changing this panel to match your
bathroom décor.
Warning:
• Please ensure to switch off the power supply while changing the Decorative Front
Panel and pull out the power plug from the socket.
• An insulation layer is provided below the front panel which should not be replaced.
• While changing the front panel ensure that, none of the internal components are
damaged or removed.

Troubleshooting
Note: Call Customer Care Centre on 1.800.103.2468
9
Problem Possible Cause(s) Solution
• No display on Heater is not plugged in Plug in the heater
wired remote
Thermal cutout trips Call Customer Care Centre
• No hot water No power supply in power Check the power socket
socket on the wall
Control circuit or internal Call Customer Care Centre
wiring error
• Water temperature Electronics circuit damaged Call Customer Care Centre
is too high
• Display, no hot water Heating element(s) Call Customer Care Centre
breakdown or internal
wiring error
• Piping connection Connection not sealed Re-connect piping, using tape
leaks thread sealant.
Refer plumbing instructions on
page 4
• Water leakage Leakage in tank or Shut off power immediately and
from product other parts Call Customer Care Centre
• Wired remote display Leakage of electricity Call Customer Care Centre
error code “E0”
• Wired remote display Temperature sensor circuit Call Customer Care Centre
error code “E1” short or open
• Wired remote display Extra high temperature Call Customer Care Centre
error code “E3”
• Wired remote display Malfunction of leakage Call Customer Care Centre
error code “E4” circuit
• Wired remote display Low voltage protection Use after voltage returns to
error code “E5” (>100 V & <275 V) normal

Circuit Diagram
Black Black Blue
Thermal Cutout
Power
Board Element
Green/Yellow
Red Red
Red
Wired
Remote
10

Warranty
Product warranty
Warranty
on tank
7
Extended
Warranty*
4
11
Your A. O. Smith water heater is warranted against defects
arising from faulty design, workmanship and materials for a
period of 24 months from the date of the invoice, subject to
the following conditions:
1. The customer will notify the Company promptly about
defects noticed and give the Company or its Authorised
service provider adequate opportunity to inspect, test
and remedy them, for which the customer will deposit
the goods, if necessary, with the Company's
Office/Authorised service provider along with the
original invoice.
2. Special warranty from the date of purchase is subject to
the following conditions:
• Tank - 7 Years
• Glass Coated Heating Element - 2 + 2 Years*
• Rest of the parts - 2 Years
3. Inspection and Test Report of the Company's
Office/Authorised service provider will be treated as
final and binding under the warranty for determining
the defects, repairs/alterations required or carried out,
or certifying working of the goods thereafter.
4. The Company or its Authorised service provider will be
entitled to retain any defective part replaced under the
warranty.
5. The Company's liability under the warranty will be limited only to defects which occur
under conditions of proper installation, normal operation and under proper use. It
excludes defects occurring because of abuse, faulty care or maintenance and
repairs/alterations to product or the parts by unauthorised person.
6. Components subject to wear, such as anode, are not covered under this warranty.
7. The customer will have no claim under this warranty in respect of any personal injury,
damage or property or consequential damages, or for utilisation of the goods not in
accordance with the user guide.
* Register your product with the
A. O. Smith Customer Care
Centre [1.800.103.2468] within
two months of purchase and you
will get an extended warranty on
the element [from 2 years to 4
years]. You can also get an
additional changeable Decorative
Front Panel in a colour of your
choice, without cost.

General Terms of Warranty
1. The “goods” shall mean the goods described in the purchase agreement.
2. “The customer” shall mean the original purchaser under the purchase agreement.
3. “The Company” shall mean A. O. Smith India Water Heating Pvt. Ltd.
4. The “Purchase Agreement” shall mean the General Terms and Conditions of Sale agreed
upon by the customer and the Company as printed on the Invoice.
5. “Invoice” shall mean the Invoice issued for the Unit by the Company or Authorised Dealer
to the customer describing the goods and indicating, inter alia, the total purchase price
thereof, the name of the customer and the place where the goods are to be installed.
6. “User Guide” shall mean the instructions for installation leaflet published by the Company
and delivered to the customer.
Note: Follow any one for registration of the Extended Warranty
• Call our dedicated Customer Care Centre 1.800.103.2468.
• Fill up the details in our website link
(http://www.aosmithindia.com/warranty-form.aspx) to register.
• Fill up the details in the Warranty Card and mail the same to A. O. Smith India Water
Heating Pvt. Ltd., factory address.
Post Warranty
1. The customer may be offered a yearly Service Contract at the prevailing Company rates
and terms.
2. In case the customer does not wish to enter the Service Contract, he has the option of
calling our Authorised service provider and having his A. O. Smith Water Heater unit
serviced on actual basis i.e. by paying the Labour Cost and Spares needed to attend to that
Service or Complaint Call at the prevailing Company rates. Such service will be rendered by
the Company in towns or places where the Company has its Authorised service providers.
3. In case of product repair after warranty by Authorised service provider, all expenses of
transporting the goods to and from the Authorised service provider shall be borne by the
customer directly.
4. If, during such service, it is necessary for the Company or Authorised service provider to
replace or repair defective components or parts, the customer shall be required to pay for
the same as per the Company's prevailing price list.
Guaranteed Service
1. Different models has different service delivery levels.
2. Service level mentioned for particular models are applicable for Metros & A Class Cities e.g.
Delhi & NCR, Bangalore, Hyderabad, Mumbai, Kolkata, Pune, Goa, Cochin, Chennai,
Chandigarh & Ahmedabad.
3. Service level deliverables are valid up to city municipal limit only.
4. Service level may differ in case of public holidays & unavoidable conditions due to natural
climate, any political & regional regulations.
Jurisdiction
The courts of competent jurisdiction at Bengaluru, Karnataka shall have exclusive jurisdiction
over all matters arising out of any disputes in relation to the product.
12

Warranty Card (Company Copy)
(To be sent back to the Company) Unit Serial Number:
Dealer’s Stamp and Signature
Invoice Number: Dated:
Customer's Name and Address:
Model: Capacity:
Warranty Card
Warranty Card (Customer Copy)
(To be retained by the Customer) Unit Serial Number:
Dealer’s Stamp and Signature
Invoice Number: Dated:
Customer's Name and Address:
Model: Capacity:
Warranty Card
13

Service and Maintenance
For Service needs:
Please contact our A. O. Smith
Toll Free Number : 1.800.103.2468
SMS us : +91770.292.8887
Email us : [e-mail]
For grievances please contact : [e-mail]
Registered Office
A. O. Smith India Water Heating Private Limited
Plot No. 300, Phase-2, KIADB Industrial Area, Harohalli, Kanakapura Taluk,
Ramanagara District - 562 112, Karnataka, India.
 Toll Free No.: 1.800.103.2468  Website: www.aosmithindia.com
14
Regional Office
Delhi:
105 & 106, Plot No. 19, Sagar Plaza, Laxmi Nagar District Centre,
Vikas Marg, Laxmi Nagar, New Delhi - 110 092.
Kolkata:
224 A, Office No. 811, 8th Floor, Krishna Building, AJC Bose Road,
Kolkata - 700 017.
Mumbai:
Sanjar Enclave, No. 509, CTS No. 428, S.V. Road,
Opp. Milap Cinema, Kandivali (West), Mumbai - 400 067.
Pune:
401 & 402, Citi Mall, Ganeshkhind Road, Near Pune University,
Pune - 411 007.

Manufactured by A. O. Smith India Water Heating Private Limited
Plot No. 300, Phase - 2, KIADB Industrial Area, Harohalli, Kanakapura Taluk, Ramanagara District - 562 112, Karnataka, India.
Toll Free: 1.800.103.2468  Website: www.aosmithindia.com
Part No.: 323238-000_R1 Dt:
