OPERATING MAINTENANCE MANUAL
AR767 H.P. Power - Jet Cleaner
Warning: This manual must be read before
installation or use of the unit.
Winter storage or long time
storage. Drain all water out of the
pump. Flush the pressure washer
with a 50% antifreeze solution,
and relieve the pressure. Flush the
pressure washer before you use it
again to remove the antifreeze.
Important
Notice:

Key
a - Water outlet (OUTLET)
b - Water inlet with filter (INLET)
c - High pressure rotating nozzle kit (optional accessory)
d - Adjustable spray nozzle
e - Maintenance handbook
g - Lance
h - Gun with safety catch
i - High-pressure hose
m - Nozzle cleaning tool
n - Motor switch
q - Pressure gauge
r - Pressure regulator knob
u - Detergent tank plug
v - Detergent control knob
PRESSURE WASHER LIMITED WARRANTY CARD
Mr. Mrs. Ms. Miss
Address: (Number and Street) Apt. #:
City: State: Zip/Postal code:
-
Telephone: Date of Purchase: Purchase Price:
- -
(excluding tax)
$.00
Month Day Year
Model Number: Serial Number:
Located on product package/box
Store Name:
First Name: Initial: Last Name:
All fields must be filled out for warranty.
Warranty void from Manufacture if this card is not returned.
PRESSURE WASHER LIMITED WARRANTY
This product is under warranty to the original retail consumer against defects in
material and workmanship for a period of 1 (one) year on machine, 90 days on
gun and hose assembly, from the date of retail purchase and is not transferable.
Warranty covers replacement parts. This limited one year warranty applies
only to products used in consumer applications and does not apply to rental
or commercial applications.
WARRANTY RETURNS
Items returned for warranty consideration must have a Returned
Merchandise Authorization (RMA) number. All unauthorized returns
will be refused and shipped back to sender. Call 866-235-5112 Monday
through Friday 8:00 a.m. - 5:00 p.m (Central Standard Time). Or E-Mail to: info@
arnorthamerica.com 24 hours a day.
A.R. North America, Inc.
140 - 81st Avenue NE • Fridley, MN 55432
Attn: Pressure Washer Warranty Department

Notes 1. INTRODUCTION
The high pressure power-jet cleaner you have purchased is a
technologically advanced product designed by one of the leading European
manufactures of high-pressure pumps. To obtain the best performance
from your unit, read this booklet carefully and follow the instructions each
time you use the cleaner. We congratulate you on your choice and wish you
successful operation.
* Read and understand these instructions before operating the cleaner. Pay
particular attention to the safety symbols through out this manual. Failure
to comply with these instructions may result in personal injury or property
damage. DO NOT allow children to operate or play on or around this
equipment.
* Plug the cleaner into a properly grounded 3-prong outlet. Improper
grounding can result in electrical shock.
2. SAFETY RULES
2.1 Safety “MUST NOTS”
2.1.1 DO NOT use the cleaner with flammable or toxic liquids,
or any products, which are not compatible with the correct
operation of the cleaner. EXPLOSION OR POISONNING
HAZARD.
2.1.2 DO NOT direct the water jet towards people or animals.
INJURY HAZARD.
2.1.3 DO NOT direct the water jet towards the unit itself,
electrical parts or towards other electrical equipment.
ELECTRICAL SHOCK HAZARD.
2.1.4 DO NOT use the cleaner outdoors if raining. SHORT CIRCUIT
HAZARD.
2.1.5 DO NOT allow children or incompetent persons to use the
cleaner. INJURY HAZARD.
2.1.6 DO NOT touch the plug and/or socket with wet hands.
ELECTRIC SHOCK HAZARD.
2.1.7 DO NOT use the cleaner if the electrical cable is damaged.
ELECTRIC SHOCK AND SHORT CIRCUIT HAZARD.
2.1.8 DO NOT use the cleaner if the high-pressure hose or spray
gun assembly is damaged. EXPLOSION HAZARD.
2.1.9 DO NOT jam or lock the spray gun trigger in the operating
position. ACCIDENT HAZARD.
2.1.10 Check that the data plates are affixed to the cleaner, if not,
contact your dealer. Cleaners without plates must NOT be
used, as they are unidentifiable and potentially dangerous.
ACCIDENT HAZARD.

2.1.11 DO NOT tamper with or alter the calibration of the safety
valve. EXPLOSION HAZARD.
2.1.12 DO NOT alter the original diameter of the spray head
nozzle. OVER PRESSURIZATION MAY OCCURE.
2.1.13 DO NOT leave the cleaner unattended. ACCIDENT HAZARD.
2.1.14 DO NOT move the cleaner by pulling on the electrical cable.
SHORT CIRCUIT HAZARD.
2.2 Safety “MUSTS”
2.2.1 All electrical circuits MUST BE PROTECTED against the water
jet. SHORT CIRCUIT HAZARD.
2.2.2 The cleaner MUST ONLY BE CONNECTED to a ground fault
system. ELECTRIC SHOCK HAZARD.
• Use of a safety residual current circuit-breaker (R.C.C.B.) will
provide additional protection for the operator. (30 mA)
2.2.3 The high pressure may cause materials to bounce off
surfaces at speeds; therefore protective clothing and safety
goggles MUST BE WORN. INJURY HAZARD.
2.2.4 Before working on the cleaner, REMOVE the electrical plug.
ACCIDENTAL START UP HAZARD.
2.2.5 Before pressing the trigger, GRIP the gun firmly to
counteract the recoil. INJURY HAZARD.
2.2.6 COMPLY WITH the requirements of the local water supply
company. According to DIN 1988, power-jet cleaners may
only be connected to the mains drinking water supply with
a backflow preventer valve with drain facility is installed in
the supply hose. CONTAMINATION HAZARD.
2.2.7 A qualified technician MUST carry out maintenance and/or
repair of the electrical components. ACCIDENT HAZARD.
2.2.8 DISCHARGE residual pressure before disconnecting the
cleaner hose. Turn the water supply off and squeeze the
spray gun trigger. INJURY HAZARD.
2.2.9 Before each use. CHECK that all the screws are fully
tightened and that there are no broken or worn parts.
2.2.10 Only USE detergents, which will not corrode the coating
materials of the high- pressure hose/electrical cable and unit
components. EXPLOSION AND ELECTRIC SHOCK HAZARD.
2.2.11 ENSURE that all people or animals keep a minimum distance
of 16 yd. (15m) away. INJURY HAZARD.
Notes

Nozzle worn. Replace nozzle.
Water filter clogged. Clean filter
Water supply pressure low. Turn on the water supply tap fully.
Air being sucked into the system.
Check that hose fittings are tight.
Air in pump. Switch off the cleaner and operate the gun until
a steady flow of water is obtained. The switch
cleaner back on.
Adjustable nozzle Pull the spray adjuster back (+).
incorrectly positioned.
Water suction from external tank. Connect cleaner to the mains water supply.
Water temperature too high. Lower temperature.
Nozzle clogged. Disconnect power supply, discharge pressure and
clean with tool provided.
Worn seals. Have seals replaced by an authorized service center.
No electrical power. (§) Check that the plug is firmly in the socket and that
main power is present.
Supply voltage below required Check the voltage of the main supply line.
minimum.
Voltage loss due to use of extension
Consult instructions regarding extension cords.
cord of inadequate cross-section or
excessive length.
High pressure cleaner in disuse for Contact nearest service center.
long time.
Problems with TSS device. Contact nearest service center.
High pressure system or pump Contact nearest service center.
hydraulic circuit not watertight.
------------------- Contact nearest service center.
(§) If the motor stops and fails to restart, wait 2 - 3 minutes before restarting. THERMAL CUTOUT TRIPPED. If this fault
occurs more than once, contact your service center.
More troubleshooting information on our website at www.arnorthamerica.com.
The pump does not operate at the prescribed pressure.
Sudden changes in pump pressure.
The motor buzzes but fails to start.
Motor does not start.
Water leakage.
Excess noise.
Oil leaks.
TSS MODELS ONLY: Motor starts even though the trigger is released.
TSS MODELS ONLY: No water when lever is operated
(when supply hose is connected).
Power cord damage.
PROBLEMS
AND
REMEDIES
PROBLEM
CAUSES
REMEDIES
9
9
9
99
9
9
9
99
99
9
9
9
9
9
9
9
9
9
9
Table A
Voltage Volts Extension cable Extension cable
up to 25 m up to 50m
Motor
220 – 230240 Section3x1.5mm2 Section3x2.5mm2
100 – 115120 Section3x2.5mm2 Section3x4mm2
Always use two hands when operating a pressure washer. This will assure
complete control of the equipment.
Always test the GFCI plug prior to using the cleaner.
Never test the pressure of the cleaner against any part of the body.
Use the trigger lock whenever the spray gun is not being used for cleaning.
Always seek emergency medical care immediately if any fluid penetrates the
skin. A cut may be deeper and more serious than it appears.
3. GENERAL RULES
3.1.1 The USE and MAINTENANCE manual constitutes an essential
part of the cleaner equipment and should be kept in a
safe place for future reference. If you sell the cleaner, the
manual should be handed on to the new owner.
3.1.2 Before starting the cleaner, make sure that it is receiving
water correctly. Operating the cleaner without water could
damage the seals.
3.1.3 Do not disconnect the plug by pulling on the electrical cable.
3.1.4 If you are too far from the object you wish to clean, do not
move the cleaner nearer by pulling on the high pressure
hose; use the handle provided.
3.1.5 Protect the cleaner from freezing during the winter. Store in
a warm area.
3.1.6 Do not obstruct the ventilation grilles during operation.
3.1.7 The cross-section of any extension cord used must be
proportional to their length, i.e., the longer the extension
cord, the greater the cross-section; cables with a protection
level of “IPX5” must be used. See table A.
3.1.8 Position the cleaner AS NEAR AS POSSIBLE to the water
supply.
3.1.9 The packaging is easily recyclable, and must be disposed of
in compliance with the regulations in force in the country of
installation.

3.1.10 Use the cleaner only with accessories and replacement
parts authorized by the manufacturer. The use of original
accessories and replacement parts will ensure safe, trouble-
free operation.
3.1.11 The cleaner must be used standing on a secure, stable
surface, positioned as shown.
3.2 Intended Use
3.2.1 The cleaner is intended only for the cleaning of vehicles,
machines, boats, buildings, etc., by the removal of stubborn
dirt using clean water and chemical detergents.
For domestic use only (single-phase motors only). Not for
professional use (for three-phase or industrial motors only),
and only for opration at temperatures above 32° F.
Compliant with EN 60335-2-79/A1 standard.
3.2.2 When using chemical detergents, only use biodegradable
types. We recommend HOBBY – FOAM detergent (#3206).
3.2.3 Only clean vehicle engines in areas in which suitable oil
traps are installed.
3.3 Safety Valve
3.3.1 The safety valve also functions as a pressure-limiting valve.
When the gun trigger is released, the safety valve opens and
the water recirculates through the pump inlet. Never try to
adjust this valve.
4. INSTALLATION/ASSEMBLY
4.1 Fit the lance into the gun by rotating and pushing until the
two parts are completely locked.
4.2 Connect the gun to the high-pressure hose.
.
AR767 - Motor
Pos. Code Description Qty.
1 1271950 Cable retainer 1
2 1260300 Fab 1
3 1260970 Seal ring 1
4 1260810 Screw TCTC M4x10 1
5 2360420 Capacitor 80uF 1
6 1265080 Gasket 1
7 1272030 Switch 1
8 1261560 Screw 3.9x16 4
10 1260341 Switch box 1
11 1260400 Gasket 1
12 1269100 Earth clamp 1
13 1466890 Cable 1
14 1269090 Cable retainer 1
15 1260950 Bearing 1
16 1260961 Motor shield 1
17 44075 Electric motor 1
18 1340280 Clamp 1
19 480621 Screw TE M5x25 4
20 1261570 Screw 3.9x9.5 4
21 1271660 Fan housing 1
8
6
10
11
15
1
14
16
2
3
4
12
13
7
5
18
21
20
19
17

AR767 - Unloader
4
2
3
5
5
6
7
12
19
20
18
16
10
9
8
13
8
17
1
14
24
42
46
47
48
49
50
41
21
23
22
22
25
26
27
28
39
38
51
34
35
36
37
44
45
15
Pos. Code Description Qty.
1 2500210 Knob extension 1
2 392840 Grub screw M6x16 1
3 1980300 Nut M6 1
4 2500400 Knob insert 1
5 1980220 Spring plate 2
6 1271070 Spring 1
7 1080041 Upper piston 1
8 1080070 Pin 2
9 1080401 Back-up ring 1
10 1080250 O-Ring Ø7.66x1.78 1
12 1980210 Piston guide 1
13 740290 O-Ring Ø14x1.78 1
14 800560 O-Ring Ø8.73x1.78 1
15 880830 O-Ring Ø15.54x2.62 1
16 1271170 Back-up ring 1
17 1080190 O-Ring Ø2.90x1.78 2
18 1271160 Lower piston 1
19 1980200 Valve seat 1
20 1470210 O-Ring Ø9x1 1
21 1540270 Screw 3/8” G - Brass 1
22 390080 O-Ring Ø11.91x2.62 2
23 1540510 Valve housing 1
24 1140450 O-Ring Ø20.24x2.62 1
25 1460430 O-Ring Ø4x2.5 1
26 1540170 Jet 1
27 1080091 Ball spring 1
28 394280 O-Ring Ø12.42x1.78 1
34 1560490 Hose tail 1
35 480480 O-Ring Ø4.48x1.78 1
36 1250280 Stainless steel ball 1
37 1560520 Spring 1
38 1540570 Fitting 3/8” G Ø2 1
39 1540300 Nut 1
41 1540280 By-pass housing 3/8” G 1
Pos. Code Description Qty.
42 1540630 O-Ring Ø23.47x2.62 1
44 880270 O-Ring Ø17.17x1.78 1
45 1540260 Screw
1/2” G 1
46 480440 O-Ring
Ø17.13x2.62 1
47 1560600 Suction fitting 1
48 1461470 Attachment for tap & gasket 3/4” G(F) 1
49 40126 Suction fitting GHT 1
50 1340260 Water suction filter 1
51 1343160 Fitting 1/8” G 1
Repair Kits
O-Rings
Kit 2812
9(1)
10(1)
13(1)
14(1)
22(2)
24(1)
25(1)
28(1)
35(1)
42(1)
44(1)
15(1)
16(1)
17(2)
20(1)
4.3 Connect the high-pressure hose to the water (OUTLET) on
the cleaner.
4.4 Connect the water supply hose.
(not supplied) to the water (INLET)
of the cleaner. The supply hose
must have an internal diameter of
at least 13 mm (1/2 in.) and must
be reinforced. The water supply
must be at least equal to the cleaner
delivery capacity.
The intake water temperature must NOT exceed 60° C
(122°F). The water supply pressure must NOT exceed 10
BAR (145 PSI).
4.4.1 CAUTION! The cleaner must only be used with clean water;
use of unfiltered water or corrosive chemicals will damage
the cleaner.
4.5 Turn the motor switch to the “0” position.
4.6 Check that the electrical supply voltage and frequency
(Volts/Hz) correspond those specified on the cleaner data
plate. If the power supply is corect, you may now plug in
the cleaner.
The cleaner must only be connected to power sockets with
regulation earth connection. A differential safety breaker
(30mA) will increase the safety of operators.
CAUTION! The machine may cause electrical disturbances
when starting.
4.6.1 If the motor stops and fails to restart, wait 2 to 3 minutes
before restarting. THERMAL CUTOUT TRIPPED AND MUST
COOL BEFORE RESTARTING.
5. USE
5.1 Turn on the water supply tap FULLY.
5.2 Release the safety catch, then press
the trigger for a few seconds to
allow air to escape and to discharge
residual pressure in the pipes.
re
hose
to
the
w
ater
(
OU
U
U
U
U
U
U
U
U
U
U
U
U
h

5.3 Keeing the trigger pressed, push the switch
to start the motor.
Turn the pressure control knob to the desired
setting. (For models with this feature).
5.3.1 When re-starting the motor, always keep the spray gun
trigger compressed.
5.4 Using Detergent
5.4.2 CAUTION! liquid detergent must be sprayed at low
pressure. See 5.5 “Proper use of stnadard accessories”.
5.4.2 Fill the detergent tank to the level
indicated through the inlet.
5.4.3 Select LOW PRESSURE (see instructions);
the detergent will be sucked up and mixed
with the water, with the suction rate
regulated by the knob provided.
5.4.4 Now distribute the detergent drawn in and
mixed with water.
5.5 Correct Use of standard accessories.
5.5.1 The cleaner is equipped with the adjustable nozzle, which
provides some important functions:
5.5.2 LOW PRESSURE operation (for suction and spraying of
detergent).
5.5.3. HIGH PRESSURE operation (for high pressure washing and
rinsing).
5.5.4 Jet adjustment from pencis to fan. (For models with this
feature).
5.6 Correct Use of the Rotary Nozzle (Where fitted)
5.6.1 For increased washing power, use the rotary nozzle kit as
follows:
5.6.2 Turn off the high pressure cleaner.

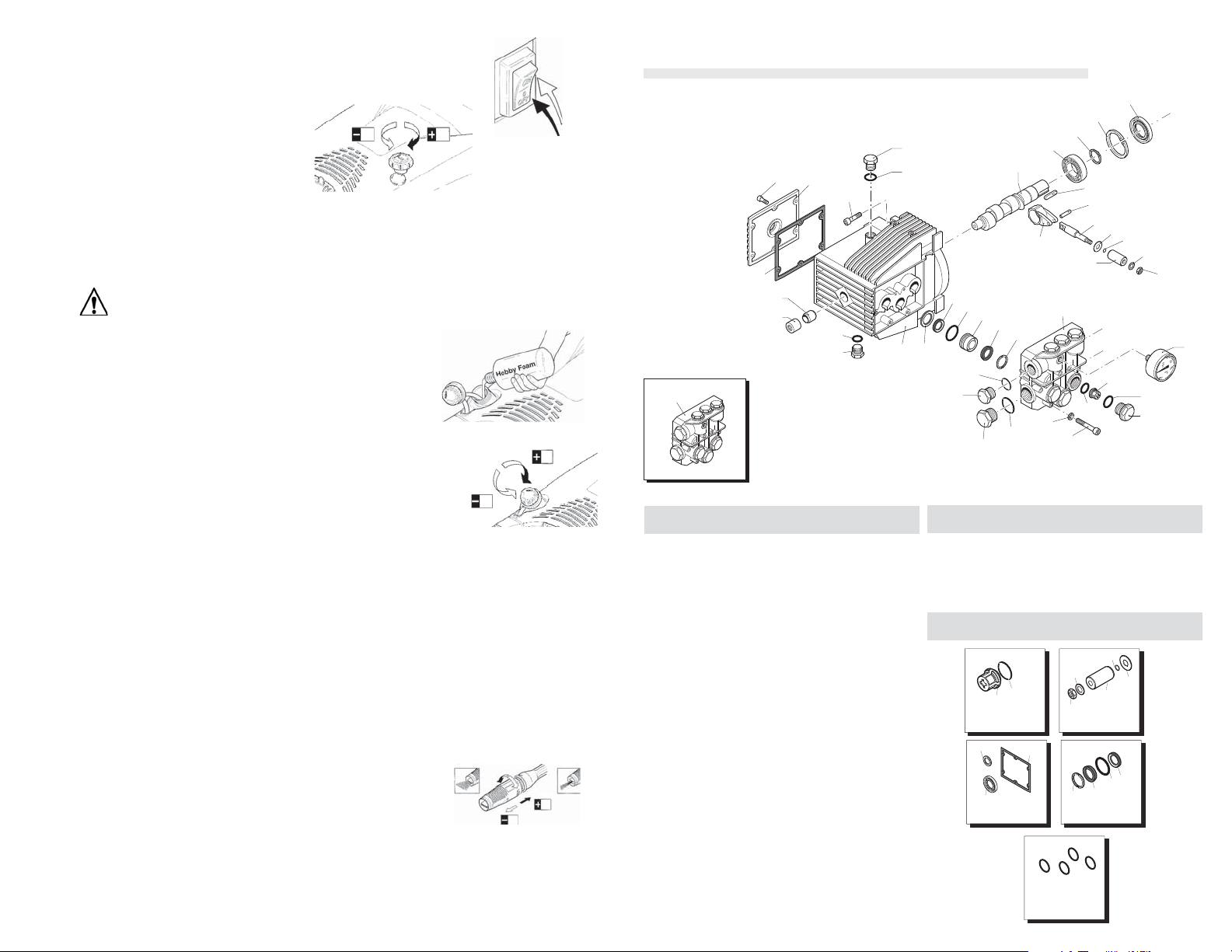

AR767 - Pump
12
3
7
8
46
47
48
49
29
50
51
43
93
22
21
23
26
24
25
27
28
42
41
21
22
31
32
36
35
44
45
33
9
10
11
5
64
90
88
89
22
21
91
Pos. Code Description Qty.
1 1260760 Screw TCEI M5x20 6
2 1269101 Rear cover 1
3 1260040 Gasket 1
5 1260780 Screw TCEI M5x25 4
7 1260190 Crankshaft 1
8 180400 Bearing 1
9 1260770 Circlip Øe25 1
10 1260790 Circlip Øi52 1
11 1260750 Seal ring 1
21 740290 O-Ring Ø14x1.78 3
22 1980740 Plug 3/8” G - Brass 3
23 1260460 Seal ring 3
24 1260420 O-Ring Ø26.70x1.78 3
25 1260440 C1 gasket 3
26 1260151 Piston guide Ø15 3
27 1271650 Gasket Ø15 3
28 1260141 Gasket support ring 3
29 1260121 Piston Ø15 3
31 820361 Plug 1/2” G - Brass 1
32 180101 O-Ring Ø17.5x2 1
33 1260021 Pump head 1
35 880830 O-Ring Ø15.54x2.62 6
36 1269050 Complete valve 6
41 960160 O-Ring Ø17.86x2.62 6
42 1260162 Valve plug 6
43 680570 Screw TCEI M6x60 6
44 1380520 Key 1
45 1260060 Aluminum con rod 3
46 1260080 Piston pin 3
47 1260070 Guiding piston 3
48 1260091 Spacer disc 3
49 480480 O-Ring Ø4.48x1.78 3
50 1260100 Piston washer 3
51 1260110 Stainless steel nut M8 3
Pos. Code Description Qty.
64 3226 Pressure gauge Ø40mm 1
88 1264010 Bearing 1
89 1264000 Internal ring 1
90 1260011 Pump housing 1
91 1269278 Pump head assembly 1
93 1381550 Washer Øi6.4 6
Repair Kits
Valves
Kit 1864
35(6)
36(6)
Pistons
Kit 2628
51(3)
48(3)
49(3)
50(3)
29(3)
O-Rings
Kit 2040
21(3)
24(3)
32(1)
35(6)
41(6)
49(3)
Oil Seals
Kit 1865
3
Water Seals
Kit 1866
23(3)
11
25(3)
28(3)
24(3)
27(3)

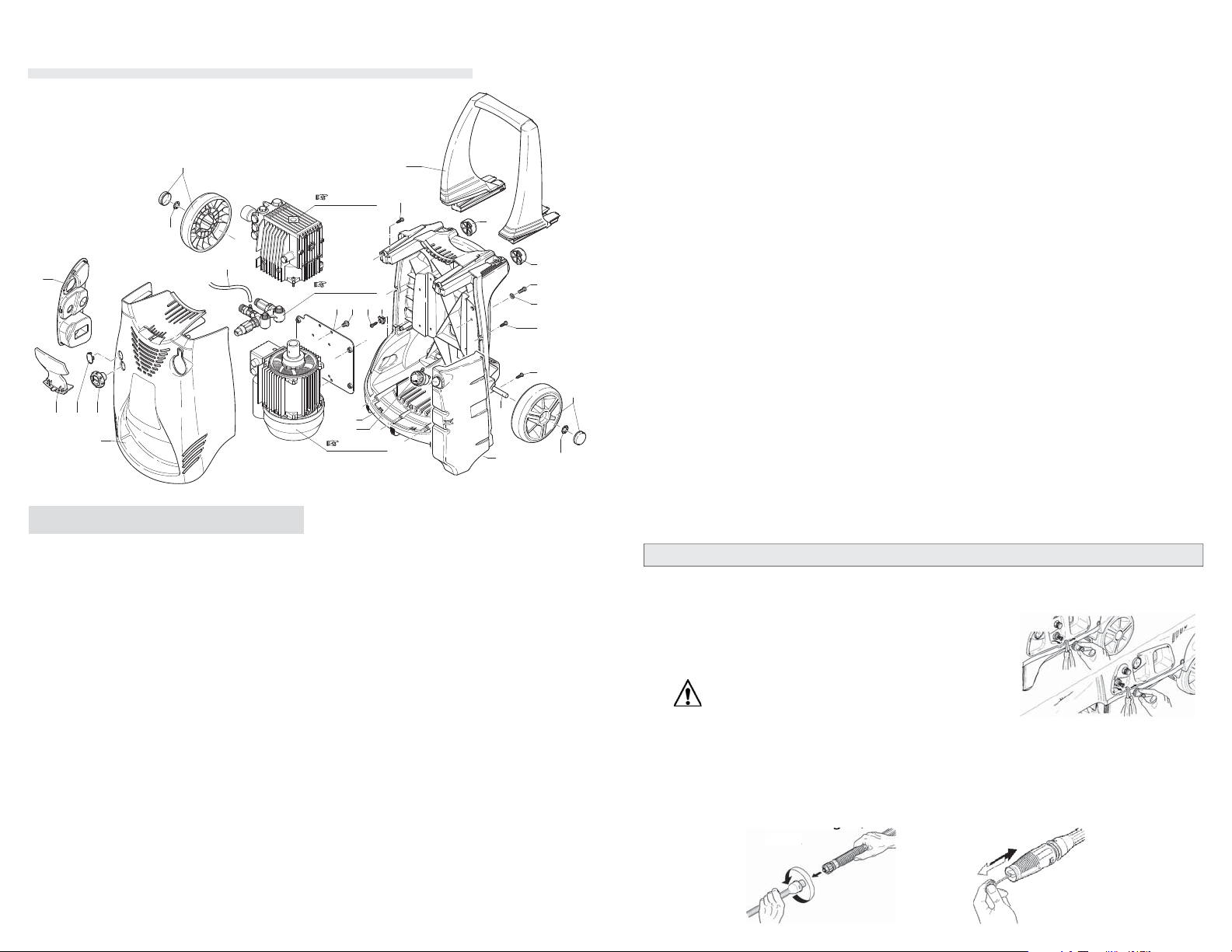

AR767 - Body
7
6
11 12
13
14
15
15
7
18
19 6
16
17
13
13
9 10
1
324
5
8
See Pump
See Unloader
See Motor
20
21
Pos. Code Description Qty.
1 2500040 Blue casing 1
2 2500340 Closing plug 1
3 2500310 Knob 1
4 2500050 Hook 1
5 2500240 Cover 1
6 1680880 Washer 2
7 2500320 Driven gear Ø175 2
8 2500330 Detergent hose 1
9 2500100 Fixing plate 1
10 1260470 Screw TE M8x10 4
11 2100300 Screw 5x16 1
12 2600100 Gland 1
13 2100300 Screw 5x16 7
14 2500020 Handle 1
15 2500130 Rubber feet 2
16 880280 Screw TCEI M6x18 4
17 2180300 Washer Øi6.2 4
18 2500120 Wheels axle 1
19 2509001 Detergent tank assembly 1
20 2500010 Body 1
21 42113 Complete detergent plug 1
5.6.3 Unscrew the adjustable head and fit the rotary nozzle onto
the lance.
5.6.4 Turn the high pressure cleaner back on.
5.7 Recommended Cleaning Procedure
5.7.1 Dissolve dirt by applying detergent with the fan jet to the
dry surface.
On vertical surfaces, work from the bottom upwards. Leave
the detergent to act for 1 to 2 minutes, but do not allow to
dry out. Apply the high preesure jet, keeping the nozzle
at least 10 in. from the surface, working from the bottom
upwards. Avoid allowing the rinsing water to run on the
unwashed surfaces.
5.8 Storage
5.8.1 Switch off the cleaner.
5.8.2 Turn off the water supply tap.
5.8.3 After use, the detergent residues should be removed from
the tank.
5.8.4 Discharge residual pressure by pressing the trigger until no
more water comes out of the adjustable nozzle.
5.8.5 Engage the gun safety catch.
5.8.6 Remove the plug from the socket.
5.8.7 Operate the cleaner with non-corrosive/non-toxic antifreeze
before storing for the winter.
6 MAINTENANCE
6.1 CAUTION! Before working on the cleaner, disconnect
the plug from the power supply
socket.
6.2 To ensure good performance,
check and clean the suction and
detergent filters after every 50
hours of operation.
6.3 Lont periods of disuse may lead to
the formation of lime scale deposits. Working through the
hole on the rear, or a 6 Allen key (6) for models with this
feature.
6.4 Clean the nozzle with the tool provided. Remove the lance
from the gun, remove any dirt from the nozzle hole and
rinse.
g,
rinse.

1
2
3
Table of contents
