A2Z Ozone A7K User manual

A7K
OperatingManual
*Register your product at a2zozone.com/pages/warranty
Produced for and Distributed by:
A2Z Ozone, Inc
1844 Cargo Court.
Louisville, KY 40299 USA
1+502-499-4977
EPA Est.: 95432-KY-1
Active Ingredient: Ozone.
Warning: Do Not Inhale Ozone.
Keep Out of Reach of Children.
Produced by:
Bluegrass Water Technology Shenzhen Co.,
Ltd.
Shenzhen, Guangdong
EPA Est.: 95432-CHN-1
Made in China Version 1.2.2

1
Table of Contents
Important Safety Information ............................................................... 2
Technical Specifications ....................................................................... 3
A7K Features ......................................................................................... 4
Timer Functions ..................................................................................... 7
Operating Instructions .......................................................................... 8
Maintenance ........................................................................................10
Troubleshooting .................................................................................. 13
Warranty .............................................................................................. 14
For questions, please call 1+ [phone] OR email [email protected]
IMPORTANT:
When operating an ozone generator, please remember to remove people, pets,
and plants from the area. Be sure to leave the area immediately and only return
once the ozone has dissipated. Under most conditions, the treated area should
be safe to return to in 2-4 hours after the unit stops producing ozone. Ozone has
a half life of 30 minutes. Treated spaces or buildings should be well-ventilated
prior to re-entry. Do not use around ammable substances or solvents.
This unit is designed to remove pet odor, smoke odor, cooking odor and skunk odor. Do not use this unit
for odor caused by ammable items or solvents.

2
Important Safety Information
READ AND FOLLOW ALL INSTRUCTIONS - Save for Future Reference
• Store the A7K in a cool, dry area.
• Do not take the ozone generator apart as mechanical failure may occur. Return the unit
directly to the manufacturer for repair.
• Do not breathe in ozone directly.
• Because of the high concentration of ozone produced, do not use the unit in an occupied
room where people, plants or pets are present.
• Prolonged exposure to ozone may cause lung damage.
• The A7K is designed to shock treat rooms with strong odors.
• DO NOT enter the unoccupied room until 2-4 hours after the machine has turned off. Make
sure the room is properly ventilated (for example: opening windows) after the appropriate
amount of time.
• Ozone half-life is 30 minutes. This means that after the cycle has completed in 30 minutes,
half of the ozone would have dissipated. In another 30 minutes, another half of the ozone
would have dissipated.
• Breathing in ozone may cause shortness of breath, lung irritation, headaches and lead to
long term respiratory issues.
• DO NOT open the casing. There is a risk of electric shock.
• Be sure to remove any gasoline or other flammable chemicals from the treatment area as
they are an extreme fire hazard.
• DO NOT use this unit to remove odor that comes from flammable fluids or solvents. This
is an extreme health hazard.
Please note: In the state of California, ozone generators are for
industrial use only. Use only in unoccupied spaces.
Health hazard: Emits ozone

Technical Specications
Specications
Model A7K
Voltage 110 V
50/60 Hz
Power and Fan Settings 95W, 98W, 100W
Ozone Output 3500 to 7000 mg/hour
Timer 30 minutes, 1 hour, 2 hours or 4
hours
Air Flow Rate 50, 100, 150 CFM
Dimensions 10 x 5 x 11 inches
306 x 134 x 268 millimeters
Weight 13 lbs/6 Kg
Runtime
• One time
• Repeat time setting
• Run once every 12 hours
• Run once every 24 hours
Items Included:
• A7K ozone generator
• A7K ozone generator operation manual
• Remote control*
• Power cord
• Spare control board fuse (2 AMP)
• Spare rocker switch fuse (3 AMP)
*Remote control batteries (2 - AAA) not included due to shipping safety regulations.
3

1Power Button Used to turn the unit on and off. The power switch on the back
of the unit can also be used.
2LED Power
Indicator Indicates if unit’s power is ON or OFF
3Repeat Cycle
Button Used to turn the repeat cycle function on or off
4Repeat Timer
Indicator
When lit, this indicates the repeat cycle function is activated for 1
hour
512 Hours Indicates the 12-hour repeat timer function is on
624 Hours Indicates the 24-hour repeat timer function is on
7O3Plate
Selection Button Used to activate one ozone plate or both ozone plates
8Plate 1 Indicates an ozone plate is activated. Produces 3500 mg/hour
9Plate 2 Indicates an ozone plate is activated. Produces 3500 mg/hour
10 Fan Speed
Button Used to change the fan speed of the unit: high, medium or low
11 Low Fan Indicates the unit’s fan is on the lowest setting
12 Medium Fan Indicates the unit’s fan is on the medium setting
13 High Fan Indicates the unit ‘s fan is on the highest setting. This setting is
recommended when the unit is being used for larger areas.
14 Remote Signal
Receiver Remote signal receiver receives signal from A7K remote
15 Timer Button Used to set the unit timer function
16 30 Minutes Indicates the unit’s 30-minute timer is set
17 1 Hour Indicates the unit’s 1-hour is set
18 2 Hours Indicates the unit’s 2-hour timer is set
19 4 Hours Indicates the unit’s 4-hour timer is set
4
A7K Features

5
1
2
3
15
14
4
18
6
17
7
9
12
8
16
13
10
5
19 11

6
3
5
2
4
1

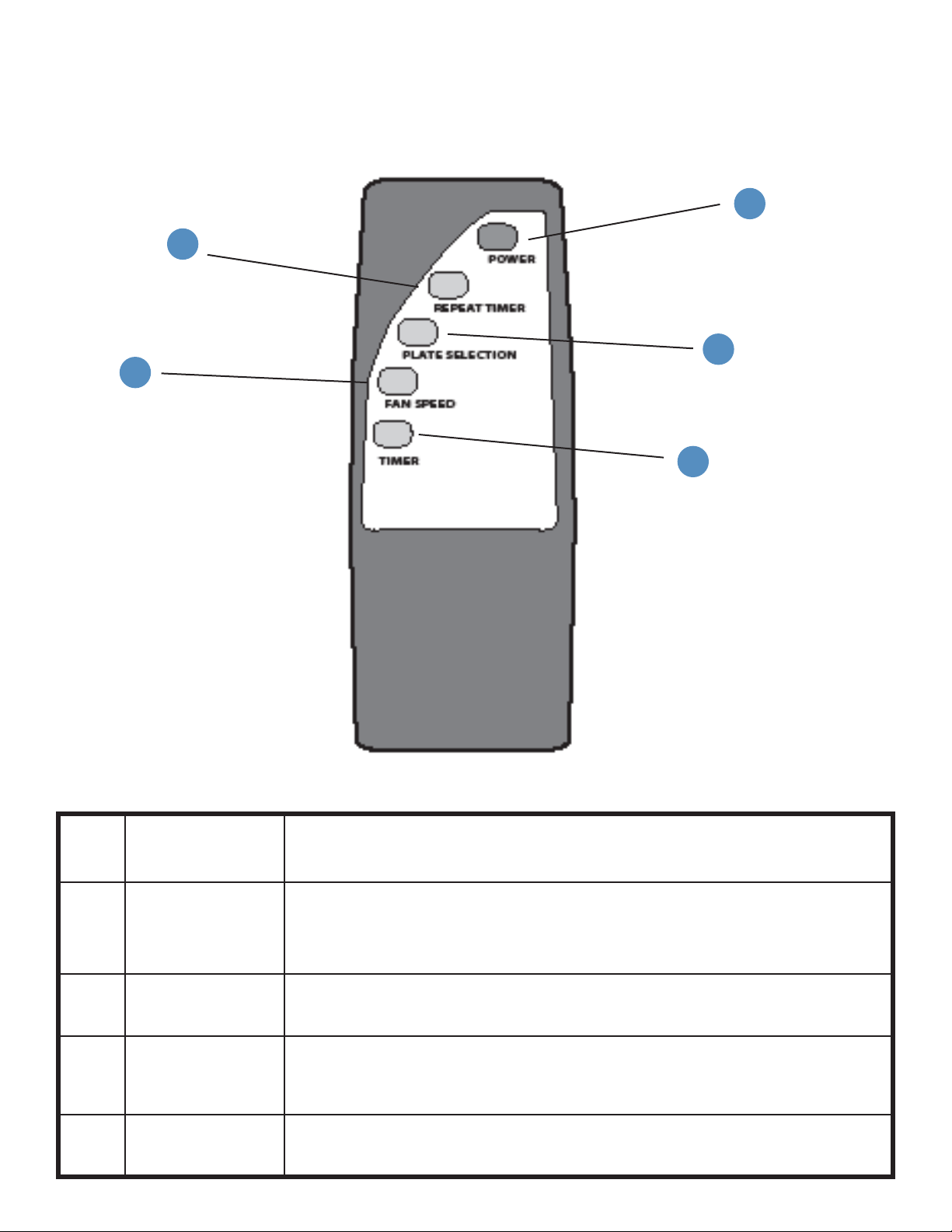

1Power Button Used to power the unit on or off
2Repeat Timer Enables one time, repeat time, 12 hour, or 24 hour repeat cycle
3Plate
Selection Used to select how many plates are activated on the A7K
4Fan Speed Controls fan speed: low, medium, high
5Timer Sets timer function: 30 minutes, 1 hour, 2 hours or 4 hours
(A7K remote)
Note: Keep remote signal receiver area (item 14 on previous page) clear.

These pre-programmed A7K timer functions can be controlled by using the buttons on the
face of the unit or by the provided remote control for easy access:
• 30 minutes
• 1 hour
• 2 hours
• 4 hours
Repeat Timer
Set Time, 12, & 24 Hour Cycles
• If there is no LED light on the timer, the unit will run once and will stop once timer is over.
• If the timer LED light is on beside the repeat cycle indicator, the selected timer function
will repeat after timer is set. This can be 30 min, 1h, 2h, or 4h. (Example: if set on 30 min,
unit will run for 30 min, rest for 30 min, and repeat)
• The timer cycle will repeat until the machine is turned off.*
• If the 12 Hours LED light is on beside the repeat cycle indicator, the selected timer function
will repeat in 12 hours.
• The 12-hour cycle will repeat until the machine is turned off.*
• If the 24 Hours LED light is on beside the repeat cycle, the selected timer function will
repeat in 24 hours.
• The 24-hour cycle will repeat until the machine is turned off.*
*The unit will turn the ozone plates off, but the fan will continue to run 30 minutes to circulate the air after
each cycle.
Timer Functions
7

Operating Instructions
• Plug the A7K power cord into the back of the unit and the wall socket.
• Turn the rock-switch power button on, which is located on the back of the unit by the power
cord.
• Push the power button on the front of the unit.
NOTE: The remote control or the button on the face of the unit may be used. The A7K should
come on with the fan speed and plate selection set on the low setting with the LED lights
illuminated.
• Push repeat cycle option on or off. See below for “Operating timer with repeat cycle”.
• When the repeat cycle LED light is off, the unit will run one time and stop.
• Select O3plate selection options:
• Push button one time for Plate 1
• Push again for Plate 2
• Push again for both plates
• Push again for no plates
NOTE: One O3plate = 3500 mg/hour output, both O3plates = 7000 mg/hour output. Both
plates are needed for smoke odor.
• Choose fan speed:
• L for Low
• M for Medium
• H for High
• Select the timer option: 30 minutes, 1 hour, 2 hours or 4 hours
• After the unit produces ozone for the selected amount of time (30 minutes, 1 hour, 2
hours or 4 hours), the fan will continue running for an extra 30 minutes to circulate the air.
Operating timer with repeat cycle:
• When repeat cycle LED light is on, the cycle will repeat per the settings on the timer (30
minutes, 1 hour, 2 hours or 4 hours).
• The fan will continue running for another 30 minutes with the ozone plates off after the
cycle ends to help cool the unit down and to spread ozone throughout the area.
• If the timer LED light is on beside the repeat cycle indicator, the selected timer function
will repeat according to timer settings.
• The unit will produce ozone for the selected amount of time (30 mins, 1 h, 2 h or 4 h).
8

9
• The A7K fan will then run for an extra 30 minutes with the ozone plates off to cool the unit
and spread ozone throughout the area.
• If the 12 Hours LED light beside the repeat cycle indicator is on, the cycle will repeat in 12
hours.
• The unit will produce ozone for the selected amount of time (30 minutes, 1 hour, 2 hours
or 4 hours).
• The A7K fan will then run for an additional 30 minutes with the ozone plates off to cool the
unit and spread ozone throughout the area.
• The 12-hour cycle will repeat until the machine is turned off.
• If the 24 Hours LED light beside the repeat cycle indicator is on, the cycle will repeat in 24
hours.
• The A7K fan will then run for another 30 minutes with the ozone plates off to cool the unit
and spread ozone throughout the area.
• The 24-hour cycle will repeat until the machine is turned off.
CAUTION: Be sure to allow the unit’s fan to run 30 minutes at the end of the ozone cycles to
cool the unit properly. If the unit is not properly cooled, damaged plates will result.
NOTE: When the unit is powered off, the machine will default to the last settings used when
powered on again.
For Best Results
• Before beginning ozone treatment, make sure the room is sealed completely, including
vents.
• Place the unit in the center of the room to ensure ozone is dispersed evenly.
• As room size increases, fan speed and treatment time should also increase.
• For more severe odors, both plates should be activated.
• Once the cycle is completed, allow time for ozone to dissipate before reentering the room.
• Ozone has a half-life of 30 minutes, meaning ozone will dissipate after this amount of time
has passed.
• For example, if running a 4-hour cycle, returning 6 to 8 hours later will ensure most of
the ozone has reverted back to oxygen.
• Do not ozonate a freshly painted room as it can have an adverse reaction with chemicals
in the paint.
• Ozone plates should be replaced after 2 years or 2000 hours of use. In particularly dusty
or polluted conditions, change as needed.

Rocker Switch Fuse Change
• Unplug the unit from the outlet. Then unplug the power cord from the unit.
• The fuse is between the back rocker switch and the power cord connector.
• Use a small, at screwdriver to remove fuse holder.
• Remove and then check the fuse. The unit originally comes with a spare fuse. It is
located in the spare fuse holder.
• Simply press the new fuse into place.
Board Fuse Change- This is a fuse on the control board
behind the front cover
• Make sure the unit is off and unplugged.
• Remove screws from the front of the unit.
• The fuse is located on the control board.
• Remove the fuse.
• It may be necessary to pull slightly.
• Place the new fuse where the old one was.
• Press down until you hear it click into place.
Note: There is another fuse located next to the power cord on the back. This is the rocker
switch fuse mentioned previously.
Keep in mind, there are differences between the old A7K control board and new A7K control
board. Take note of which unit you own before completing maintenance work.
Maintenance
10

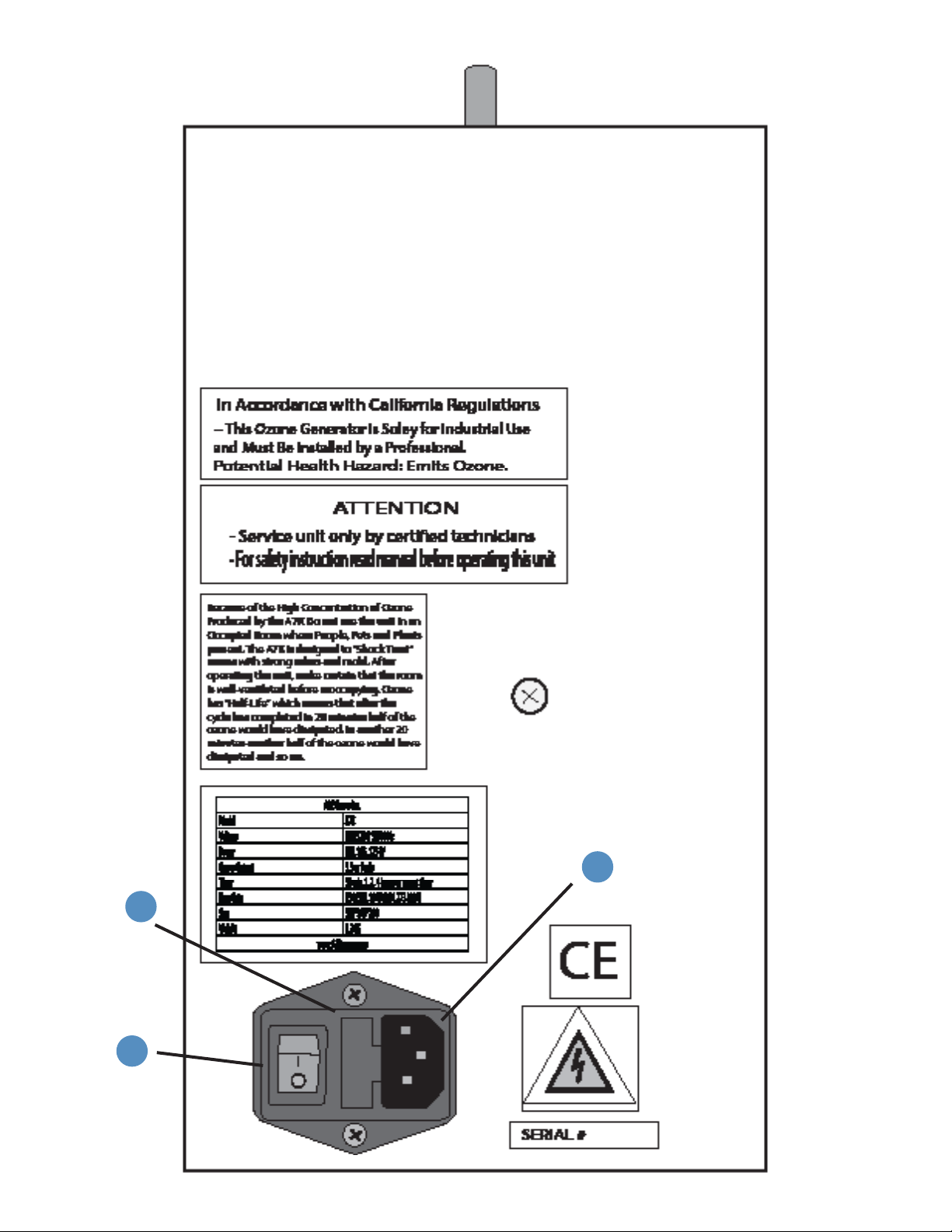

1Main Power
Switch If not turned on there will be no power for the unit.
2Power Input Where you will plug in your power cord to the unit.
3Main Fuse
Holder
Normally the fuse that blows. Additionally, there is a spot for a
spare fuse.

11
1
2
3

12
Cleaning Plates
IMPORTANT: Ensure the unit and plates are fully cooled before maintenance.
• Make sure the unit is off and unplugged.
• Remove screws from the side of the unit and air vent.
• Unit will have 6 screws.
• Place the screws in a safe location so they aren’t lost during the maintenance process.
• Remove the outside cover.
• Use a razor blade to scrape oxidized materials from the plates.
• We recommend using a at, straight razor blade for best results.
• Be sure to not hit where the plates are soldered together.
• If the solder is fractured, the plate will need to be replaced.
• Scrape across the grid lines on the plate.
• Be sure to scrape the plate evenly.
• Clean oxidized materials from the razor blade as needed.
• Repeat this process unit the metallic nish of the plate returns.
• Use a paper towel or blow across the plates to remove oxidized material that could be left
behind.
• Replace the outside cover to the unit.
• Place screws back into the unit.
• Connect the power cord to test that the unit is still working properly.
• There should be a purple glow coming off the ozone plate.
• Cleaning the plate will limit spotting and should emit a steady purple glow.
Cleaning the A7K plates regularly will extend the life of the ozone plates.

Troubleshooting
13
Problem Possible Cause What To Do
No Power
Main Fuse
Check the main fuse next to the power
in port. If that is intact check the fuse
located on the main control board. This is
located behind the front panel.
Defective Control
If your unit has some power you will see
an indicator light flash when the power
button is pressed. The other option is
that the fuses are both ok and power is
present but not distributing it through the
system.
Only Back Power Is
On Bad Transformer
Back power is on, but there is no power
on the control board. Check the 12 VAC
transformer located behind the bottom
right-hand corner on the front cover.
No Ozone
Old or Damaged Plates
Look in the side of the unit with the
vents. There should be a purple glow all
over the ozone plate. If there isn’t any
glow or it is very “spotty” then you will
need to replace them.
Order C-3500 Ceramic Ozone Plates Set
to repair this issue.
Unit in Repeat Mode
When you select a repeat timer, the
unit will run its full timer function and
then the fan will continue to run until
the power is turned off. However, the
ozone plates will turn off until the next
ozonation cycle after the repeat timer.
No Plates Selected Hit O3Plate Selection Button until the
desired amount of plates are selected.

14
Warranty
A2Z Ozone Systems Inc. - ONE YEAR LIMITED WARRANTY
e limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and
sold by A2Z Ozone Systems or its authorized dealers. is limited warranty is given only to the rst retail
purchaser of such products and is not transferable to any subsequent owners or purchasers of such prod-
ucts. A2Z Ozone warrants that it or its authorized dealers will repair or replace, at its option, any part of
such products proven to be defective in materials or workmanship within ONE (1) year from the date of
retail purchase of such products. (All parts) ANY REPAIR OR REPLACEMENT WILL BE WARRANT-
ED ONLY FOR THE BALANCE OF THE ORIGINAL WARRANTY PERIOD. NOTE: USE ONLY A2Z
Ozone AUTHORIZED REPLACEMENT PARTS. USE OF ANY OTHER PART(S) WILL AUTOMATI-
CALLY VOID THIS WARRANTY. THIS LIMITED WARRANTY DOES NOT INCLUDE ANY OF THE
FOLLOWING:
(a) Any labor charges for troubleshooting, removal, or installation of such parts;
(b) any repair or replacement of such parts necessitated by faulty installation, improper maintenance,
improper operation, misuse, abuse, negligence, accident, re, repair material, and/or unauthorized acces-
sories;
(c) Any such products installed without regard to required local codes and accepted trade practices;
(d) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS
FOR PARTICULAR PURPOSE, AND SUCH WARRANTIES ARE HEREBY DISCLAIMED: AND
(e) A2Z Ozone SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR LOSS OF USE OF
SUCH PRODUCTS, LOST PROFITS, DIRECT DAMAGES, INDIRECT DAMAGES, CONSEQUEN-
TIAL DAMAGES AND/OR INCIDENTAL DAMAGES.
TO OBTAIN WARRANTY SERVICE
Contact A2Z Ozone, 1844 Cargo Court Louisville, KY 40299, USA
Customer Service Number: [phone].
When ling a claim, you must provide:
1) Your name, mailing address and telephone number
2) e selling dealer’s name
3) Proof of date of purchase
4) e date of failure
5) A description of the failure.
Aer this information is provided, A2Z Ozone will release a RETURN GOODS AUTHORIZATION
(RAN) NUMBER. Aer receiving the RAN number the part in question must be returned to A2Z Ozone,
freight prepaid, with the RAN number clearly marked on the outside of the package. All preauthorized
defective parts must be returned to A2Z Ozone within thirty (30) days. Under no circumstances may any
product be returned to A2Z Ozone without prior authorization. You must call or write prior to returning
product or your returned goods shipment will be refused. Upon receipt of preauthorized returned goods,
A2Z Ozone will repair or replace, at its option, the defective product(s) and return them (shipping is pre-
paid for units under warranty for USA customers only). Buyer’s acceptance of the product and use thereof
constitutes acceptance of these terms.

15
A2Z Ozone WARRANTY REGISTRATION CARD
This information can be also send by EMAIL to us. Please provide ALL pertinent information and send
within twenty (20) days to: ser[email protected]
Otherwise, please ll out completely and return to A2Z Ozone by post within twenty (20) days of
purchase.
Customer Info:
Name__________________________________________________________
Address________________________________________________________
City__________________________________State_________Zip__________
Phone (____ ) ________________
Dealer Info:
Dealer Name______________________________
Dealer Address_______________________________________________________
City_________________________________State_________Zip__________
Phone ( ) ________________
Purchase/Product Info:
Purchased Date: _______________________Date Installed____________________
Product Purchased: A7K OZONE GENERATOR
Comments / Questions:
DO NOT FORGET TO CUT OUT, PLACE IN ENVELOPE AND MAIL TO THE FOLLOWING ADDRESS FOR
INSTANT WARRANTY COVERAGE!
A2Z Ozone Systems Inc.
ATTN: Warranty Dept.
1844 Cargo Court
Louisville, KY 40299, USA
