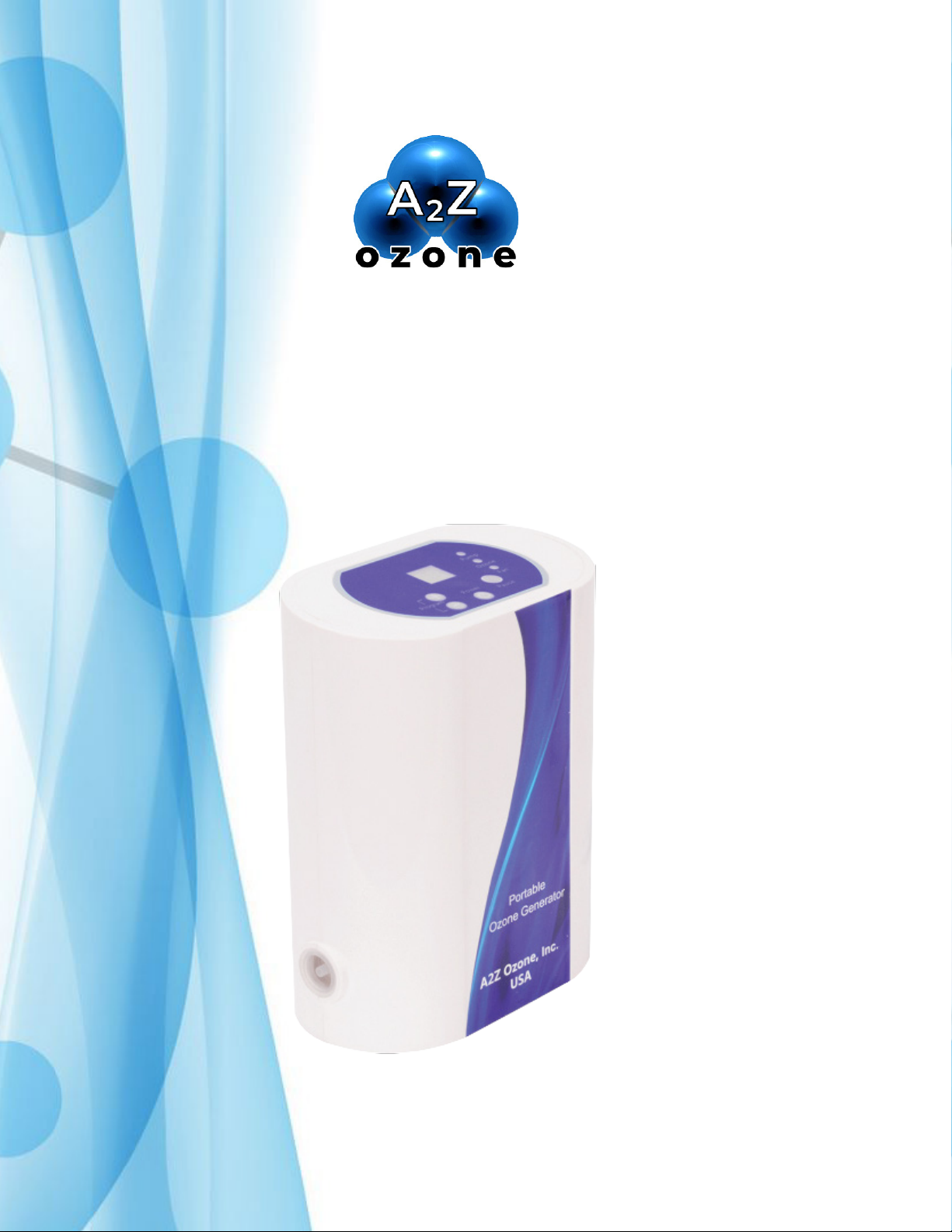

A2Z Ozone Aqua-8 User manual

Aqua-8 (110V) Portable Ozone
Generator
Operating Manual
*Register your product at a2zozone.com/pages/warranty
Produced for and Distributed by:
A2Z Ozone, Inc
1844 Cargo Court.
Louisville, KY 40299 USA
1+502-499-4977
EPA Est.: 95432-KY-1
Active Ingredient: Ozone.
Warning: Do Not Inhale Ozone.
Keep Out of Reach of Children.
Produced by:
Bluegrass Water Technology Shenzhen Co.,
Ltd.
Shenzhen, Guangdong 518110
Made in China
EPA Est.: 95432-CHN-1
Version 1.2.2

1
Table of Contents
Important Safety Information .................................................................................... 2
Technical Specifications .............................................................................................. 3
Aqua-8 Features ........................................................................................................... 5
Timer Functions ........................................................................................ .................. 6
Operating Instructions ................................................................................................ 7
Maintenance ................................................................................................................. 9
Warranty ..................................................................................................................... 10
For questions, please call 1+ [phone] OR email [email protected]
WARNING: Do Not Inhale Ozone. Ozone Can Damage Lungs if Inhaled. Remove
Immediately to Fresh Air if exposed. Keep Out of Reach of Children. Hazards to
Humans and Domestic Animals--Do Not Expose Children, People, Pets, Plants or
Valuables to Ozone. Ozone Health lnformation--lf exposed to ozone, get to fresh
air immediately. Seek doctor's advice if exposed to ozone.
HIGH VOLTAGE! Perform service on ozone generator by certied technicians
only! For your safety, do not store or use gasoline, chemicals or other ammable
liquids or vapors near this or any other appliance. NOTE: Use Only As Directed.
Follow All Instructions Provided in the Manual. Buyer will assume all responsibility
for installation, running and use not in accordance with direction.

2
Important Safety Information
READ AND FOLLOW ALL INSTRUCTIONS
• Follow all instructions in the operating manual or warranty may be voided. Water
damage or continuous run of the ozone generator is not covered by the terms of the warranty.
• This unit is not made for continuous operation.
• Do not run the unit without a 15-30 minute pause between run times.
• Place the ozone generator higher than the application level to avoid damage and electrical
shock.
• Place stone diffusers no more than 4 inches deep in low viscous liquid and 2 inches deep in
high viscous liquid.
• Be sure to turn the unit OFF after each use. NOTE: Depending on the program setting, the unit
will run on a repeat timer.
• Do not cover the oxygen air inlet on the side of the unit.
• Do not cover the ozone outlet on the side of the unit.
• Store the Aqua-8 in a cool, dry area when not in use.
• Do not take the ozone generator apart because mechanical failure may result.
• Return the unit directly to the manufacturer if malfunction occurs.
• Do not breathe in ozone directly.
• Do not block fan and exhaust window in the back.
• Connect ozone tube to ozone outlet in the left side of unit.
• The use of ozone test strips or dissolved ozone monitor is recommended.
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
CAUTION
In case of accidental leakage, install the ozone
generator in a well-ventilated area.
In accordance with California Regulations, this ozone generator is solely for industrial
use and must be installed by a professional. Potential health hazard: emits ozone.

3
Technical Specications
Aqua-8 Specications
Power Input 110 VAC, 50/60 Hz (10W)
Ozone Output 800 mg/hour O2in*
Weight 0.865 kg or 1.7 lbs
Dimensions 190 W x 75 D x 270 H (millimeters)
8 W x 3 D x 11 H (inches)
Special Features:
• Corona Discharge Technology
• Internal memory that maintains the previous setting if the device is turned o
during mid-treatment
• Lightweight and Portable
• Wall Mountable
Items Included:
• Aqua-8 Portable Ozone Generator
• Aqua-8 Portable Ozone Generator manual
• Two sets of long tubes for ozonation (each 36 inches long)
• Coarse gray diffuser stone (x2)
• Spare fuse
* Ozone output concentration is 150 mg/hr if unit uses dry air to generate ozone

4
9
1
710
2
3
4
5
6
8

Aqua-8 Features
1Plus (+) Button Use to select desired function setting from the Timer Function table.
2LED Screen
Displays function setting selected and operation time remaining after
the Aqua-8 begins producing ozone. The ozone production will start
10 seconds after the selection is made on the LED.
3Pump Light A blue light indicates when the unit pump is running.
A red light indicates pump is not working.
4Ozone Light
Indicates when the unit is running. When it is in operation, the
light will remain a solid blue. A red light indicates no ozone is being
produced.
5Fan Light A blue light indicates when the unit fan is running.
A red light indicates the fan is not working.
6Pause Button
Use to pause the unit when it is in operation. The LED screen will
hold the previously selected function and the time remaining until
the Pause Button is pressed again.
7Power Button Use to turn the unit on and off.
8Minus (-) Button Use to select desired function setting from the Timer Function table.
9Ozone Outlet
Where the tubing is attached to the unit. One end of the ozone supply
tubing is attached to the ozone outlet on the Aqua-8 unit, while the
other end is attached to a diffuser stone.
10 Oxygen Inlet
DO NOT CONNECT OZONE TUBE TO OXYGEN INLET.
Optional hookup port for an external oxygen source. This can be
used to produce a more pure ozone. The oxygen regulator should be
set at a 1 LPM and 2.5 PSI maximum.
5

Timer Functions
6
Function # Description
1Run 30 seconds and turns off, one time run only
2Run 1 minute and turns off, one time run only
3Run 2 minutes and turns off, one time run only
4Run 5 minutes and turns off, one time run only
5Run 10 minutes and turns off, one time run only
6Run 20 minutes and turns off, one time run only
7Run 30 seconds every hour, repeats cycle every hour
8Operates for 1 minute every hour, repeats cycle every hour
9Operates for 2 minutes every hour, repeats cycle every hour
10 Operates for 5 minutes every hour, repeats cycle every hour
11 Operates for 10 minutes every hour, repeats cycle every hour
12 Operates for 20 minutes every hour, repeats cycle every hour
13 Operates for 30 seconds every 4 hours, repeats cycle every 4 hours
14 Operates for 1 minute every 4 hours, repeats cycle every 4 hours
15 Operates for 2 minutes every 4 hours, repeats cycle every 4 hours
16 Operates for 5 minutes every 4 hours, repeats cycle every 4 hours
17 Operates for 10 minutes every 4 hours, repeats cycle every 4 hours
18 Operates for 20 minutes every 4 hours, repeats cycle every 4 hours
Settings 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Runtime
(minutes) 0.5 1 2 5 10 20 0.5 1 2 5 10 20 0.5 1 2 5 10 20
Repeat
(hours) O O O O O 1 1 1 1 1 1 4 4 4 4 4 4
Note: LED Screen will show the function and ON/OFF time. If you chose a function that repeats,
there will be a dot between the end of the function number and timer number. is dot means
that the unit will repeat the cycle.

Operating Instructions
7
• Plug the unit into the correct electrical outlet (110 VAC).
• Attach one end of the tubing (36 inches long) into the ozone outlet on the side of the Aqua-8
and attach a stone diffuser onto the other end of the tube or venturi application.
• Extend the tubing so that the application process and the Aqua-8 Portable Ozone Generator
are as far apart as possible.
• Push in the power button located on top of the unit to the ON position.
• The LED will indicate 01 (blinking) or the previous setting number.
• Press the plus (+) button to select the desired function setting (see timer functions table, page
6) for the desired application time.
• The minus (-) button will step down the setting numbers sequentially.
• Operating times will vary.
• The Aqua-8 will start 10 seconds after you select the setting on the LED.
• Once the generator starts producing ozone, the LED changes to display the time remaining for
the setting you have chosen.
• Remember, settings 1 through 6 are one time run settings.
• Settings 7 through 12 continuously repeat the cycle every hour.
• Settings 13 through 18 continuously repeat the cycle every 4 hours.
• To pause a setting, simply press the pause button.
• The LED will hold the previously selected function and the time remaining until the pause
button is pressed again.
• Press plus (+) or minus (-) to select another function at any time.
• After the function is complete, ozone production will stop, but the air compressor will run for
5 seconds and then will automatically shut off.
• Please allow the air compressor to shut off and then unplug or cut power to the unit.
• This operation allows the ozone to purge out and will prolong the unit’s operating life span.
• The unit is now powered down and ready for storage or transport.
NOTE: This unit is not made for continuous operation. Do not intentionally run the unit without
a 15 minute pause between the runtimes.

8
Using Oxygen Air:
The ‘Oxygen In’ port on the side of unit can be hooked up to an oxygen tank or oxygen generator
of your choosing. Keep in mind, to hook up an oxygen tank or oxygen generator you will need a
regulator that will reach 1 LPM at 2 PSI
To connect an oxygen tank to Aqua-8 follow these steps:
• First, you will connect one end of tubing to your oxygen tank (or concentrator) and then attach
the other onto the right side of the Aqua-8.
• You will then need to set your regulator to a maximum of 1 LPM or 2 PSI.
• Once the regulator is set you can turn on the oxygen flow and let it run for 10 seconds.
• After the 10 seconds is up, turn on your Aqua-8 to appropriate timer function.
• Once the timer function has completed, you will need to let the oxygen run for another 5
seconds to clear the remaining ozone from the ozone tube.
• After 5 seconds, you can turn off the oxygen flow.
Note: If attaching an oxygen tank/generator, the input should not exceed 2 PSI and 1 LPM. If this
amount is exceeded, the unit will be damaged.

Maintenance
9
Fuse Change
• Use a 2A Amp fuse.
• Make sure the unit is o and unplugged.
• Remove screws from the back of the unit.
• e fuse is located under a small, black plastic piece on the green ozone board & DC board.
• Apply some pressure to open the fuse holder.
• Remove the fuse.
• It may be necessary to pull slightly.
• Place the new fuse where the old one was.
• Press down until you hear it click into place.
• Close the compartment where the fuse is stored.
• When you hear it click, you will know it is secured.
• Close the back of the unit and put the screws back in place.
• e fuse has now been successfully changed.
Note: If the top (green) board LED is not on, this board fuse is bad. If the top (green) board LED
is on, but it does not produce ozone, the ozone board fuse is bad. If these errors occur, the ozone
LED on the panel will be red.

10
Warranty
A2Z Ozone Systems Inc. - ONE YEAR LIMITED WARRANTY
e limited warranty set forth below applies to products manufactured by A2Z Ozone Systems Inc. - and
sold by A2Z Ozone Systems or its authorized dealers. is limited warranty is given only to the rst retail
purchaser of such products and is not transferable to any subsequent owners or purchasers of such prod-
ucts. A2Z Ozone warrants that it or its authorized dealers will repair or replace, at its option, any part of
such products proven to be defective in materials or workmanship within ONE (1) year from the date of
retail purchase of such products. (All parts) ANY REPAIR OR REPLACEMENT WILL BE WARRANT-
ED ONLY FOR THE BALANCE OF THE ORIGINAL WARRANTY PERIOD. NOTE: USE ONLY A2Z
Ozone AUTHORIZED REPLACEMENT PARTS. USE OF ANY OTHER PART(S) WILL AUTOMATI-
CALLY VOID THIS WARRANTY. THIS LIMITED WARRANTY DOES NOT INCLUDE ANY OF THE
FOLLOWING:
(a) Any labor charges for troubleshooting, removal, or installation of such parts;
(b) any repair or replacement of such parts necessitated by faulty installation, improper maintenance,
improper operation, misuse, abuse, negligence, accident, re, repair material, and/or unauthorized acces-
sories;
(c) Any such products installed without regard to required local codes and accepted trade practices;
(d) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS
FOR PARTICULAR PURPOSE, AND SUCH WARRANTIES ARE HEREBY DISCLAIMED: AND
(e) A2Z Ozone SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR LOSS OF USE OF
SUCH PRODUCTS, LOST PROFITS, DIRECT DAMAGES, INDIRECT DAMAGES, CONSEQUEN-
TIAL DAMAGES AND/OR INCIDENTAL DAMAGES.
TO OBTAIN WARRANTY SERVICE
Contact A2Z Ozone, 1844 Cargo Court Louisville, KY 40299, USA
Customer Service Number: [phone].
When ling a claim, you must provide:
1) Your name, mailing address and telephone number
2) e selling dealer’s name
3) Proof of date of purchase
4) e date of failure
5) A description of the failure.
Aer this information is provided, A2Z Ozone will release a RETURN GOODS AUTHORIZATION
(RAN) NUMBER. Aer receiving the RAN number the part in question must be returned to A2Z Ozone,
freight prepaid, with the RAN number clearly marked on the outside of the package. All preauthorized
defective parts must be returned to A2Z Ozone within thirty (30) days. Under no circumstances may any
product be returned to A2Z Ozone without prior authorization. You must call or write prior to returning
product or your returned goods shipment will be refused. Upon receipt of preauthorized returned goods,
A2Z Ozone will repair or replace, at its option, the defective product(s) and return them freight (prepaid
for products under warranty). Buyer’s acceptance of the product and use thereof constitutes acceptance
of these terms.

11
A2Z Ozone WARRANTY REGISTRATION CARD
is information can be also send by EMAIL to us. Please provide ALL pertinent information and send within
twenty (20) days to: [e-mail]
Otherwise, please ll out completely and return to A2Z Ozone by post within twenty (20) days of purchase.
Customer Info:
Name__________________________________________________________
Address________________________________________________________
City__________________________________State_________Zip__________
Phone (____ ) ________________
Dealer Info:
Dealer Name______________________________
Dealer Address_______________________________________________________
City_________________________________State_________Zip__________
Phone ( ) ________________
Purchase/Product Info:
Purchased Date: _______________________Date Installed____________________
Product Purchased: ____________________________________________________
Comments / Questions:
DO NOT FORGET TO CUT OUT, PLACE IN ENVELOPE AND MAIL TO THE FOLLOWING ADDRESS
FOR INSTANT WARRANTY COVERAGE!
A2Z Ozone Systems Inc.
ATTN: Warranty Dept.
1844 Cargo Court
Louisville, KY 40299, USA
