AAdynTech Punch Series Light User manual

1
Punch Series Light
User Manual (IP20 Protection)
!
!

2
Table!of!Contents!
!
!"#$%"&'$(&!")*+,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&-&
./01&*2&3+45(6"6,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&&-&
7+8049*+)&3+21%(41*$+2,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,-&
:';<$5&="#*+*1*$+2,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&-&
:0#"1'&>$1"2,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&-&
3+1%$6(41*$+,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&?&
@%$6(41&="24%*81*$+,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&?&
A"01(%"2,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&?&
B(*49&:10%1,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&C&
D"0%&!(59/"06&3;0)",,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,E&
FGH&@$I"%,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,J&
H$+1%$5&:"5"41*$+,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,&K&
L8"%01*$+,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,K&
73M&L8"%01*$+,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,K&
A(+41*$+05&D"N(*%";"+12,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,O&
P"4/+*405&:8"4*#*401*$+2,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,QC&
R*;*1"6&.0%%0+1',,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,QK&
S"+"%05&H0%"T&M0*+1"+0+4"&U&H$+1041&72,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,QO&

3
Before!You!Begin!
&&
!What!is!Included!
•User’s Manual
•One (1) Punch Plus light
•AC Power Input cable with plug
oUSA voltage (120Vac), three-prong plug standard
o1- 120/240V Adapter
•Diffuser lens, three (3), 15o, 30oand 55o, 1 scrim bag and 1 doughnut frame
•One (1) Yoke Pin with attaching hardware
•External User Interface Module UIM ( Sold Separately)
!Unpacking!Instructions!
Immediately upon receipt of this light, carefully inspect the shipping packaging for any obvious signs of
damage from mishandling or exposure to the elements. If any is noted, please provide this information
to the shipper immediately so that the proper claims can be processed. Place packaging in upright
position (with labeling and markings in readable orientation) and open the top end of the carton. Verify
that all material shown above in the “What is included” section is present and in good condition.
Remove the light and associated material from the carton and place the light on a stable surface or
mounting configuration.
!Symbol!Definitions!
! !
! !
Safety!Notes! !
The Punch Series light fixtures are for professional use only. Please Read Entire User Manual Before
Using Equipment.
•This light is intended for indoor use only. The light is ETL & CE listed with IP20 protection.
•Only qualified and certified personnel should perform installation, not for household use.
•Punch Series light should always be installed/mounted in a stable and secure location or mounting.
Note: This symbol indicates important information that should be
carefully considered and followed.
Note: This symbol indicates important safety information and
warnings. Special attention should be paid to reading,
understanding and heeding these warnings. Failure to
observe these warnings could result in damage to the fixture,
third-party equipment or harm to the user.
Note: This symbol indicates important information concerning the
operation or functions of this light.

4
•Make sure that light is only used in dry location. Do not use light in or around falling water, wet
locations or moisture.
•Always allow adequate ventilation of the light. Never cover or in any way obstruct the louvered
openings in the light.
•If light is suspended either from above or below using yoke, make sure that a safety cable (not
supplied) is attached to the light and properly secured. The strength of the cable/chain should be
sized suitably to hold 6 times the weight the secured light. Note: Weight of fixture is 50 lbs.
•When mounting the light, make sure that only hardware rated for the weight and size of the fixture is
used.
•Never look directly into the light source while the fixture is turned on. Light source is very bright and
could cause damage to eyes.
•Do not probe or touch any interior features of the fixture. This includes the LED sources inside the
barrel of the light. Doing so may cause damage to the fixture and/or may present a shock or burn
hazard.
•Always make sure that the light fixture is connected to the proper power source with proper voltage
and current ratings. Also, make sure that adequate over current protection is provided for the circuit
as well.
!
Introduction!
Product!Description!
The Punch series light is a professional grade, LED based, fixture which provides exceptional light
output and control. The light is capable of standalone, tethered remote, wired DMX, or wireless DMX
control and offers a full array of brightness settings as well as Strobe and Lightning functions.
!Features!
•Light Off Control
•CIM/UIM Control
•DMX control (Compatible with Slow and Fast speeds)
oUp to 500 selectable DMX addresses
oDaisy-chain operation of up to 32 lights in one string
oControls Brightness, Fade, Strobe and Lightning modes
Note: This light contains no user serviceable parts. Do not open
the light housing or attempt any repair or modification of the
light. Failure to observe this warning could result in damage
to the light, injury and/or voiding the limited warranty.
Warning! Inserting objects or fingers inside louvered openings
could result in a shock hazard/injury and damage to the
light.

5
!
!
Setup!
!Quick!Start!
Remove the AAdyn light from its protective shipping packaging and place it in a safe and secure location for
setup or use.
Prior to proceeding further, make sure that light is resting on a stable surface or is
properly attached to a mounting location using the supplied yoke and yoke pin
mounting system.
Make note of the location of the inputs and outputs along with the light controls
found on the light’s rear bulkhead.

6
The 6’0” AC power cable for the Punch series light is located in a plastic bag under the diffuser kit.
•Uncoil the black AC power cord from the holder and plug the blue female end into the AC Input
receptacle on the lower right portion of the housing.

7
•
•Plug the male end of the AC power cord into an appropriate AC power source.
•Turn on light by pressing the green power switch located in the upper right hand portion of the rear
bulkhead, as shown above.
•Upon power up, the light will turn on immediately to its full brightness unless a specific “Power On”
Setting which has been previously programmed into the light. This “Power On” Setting will be
covered later in these instructions.
•The Internal UIM (User Interface Module)is mounted on the bulkhead. The External UIM port is
located on the bottom of the bulkhead.
•The display on the UIM will display the following Splash Screen message upon power up.
•Using the Left/Right Arrow button, a desired brightness level can be selected. Other functions are
also available and can be viewed using the UIM by pressing the Up/Down arrow to the desired menu
function as detailed below in section 1.0, then pressing the (√)once a function has been selected.
All of these functions are covered later in these instructions.
•The (X) button on the UIM is a non-latching douse switch which, when pressed, will momentarily
extinguish the light. Releasing the switch will allow the light to return to operation at its previous
setting.
!

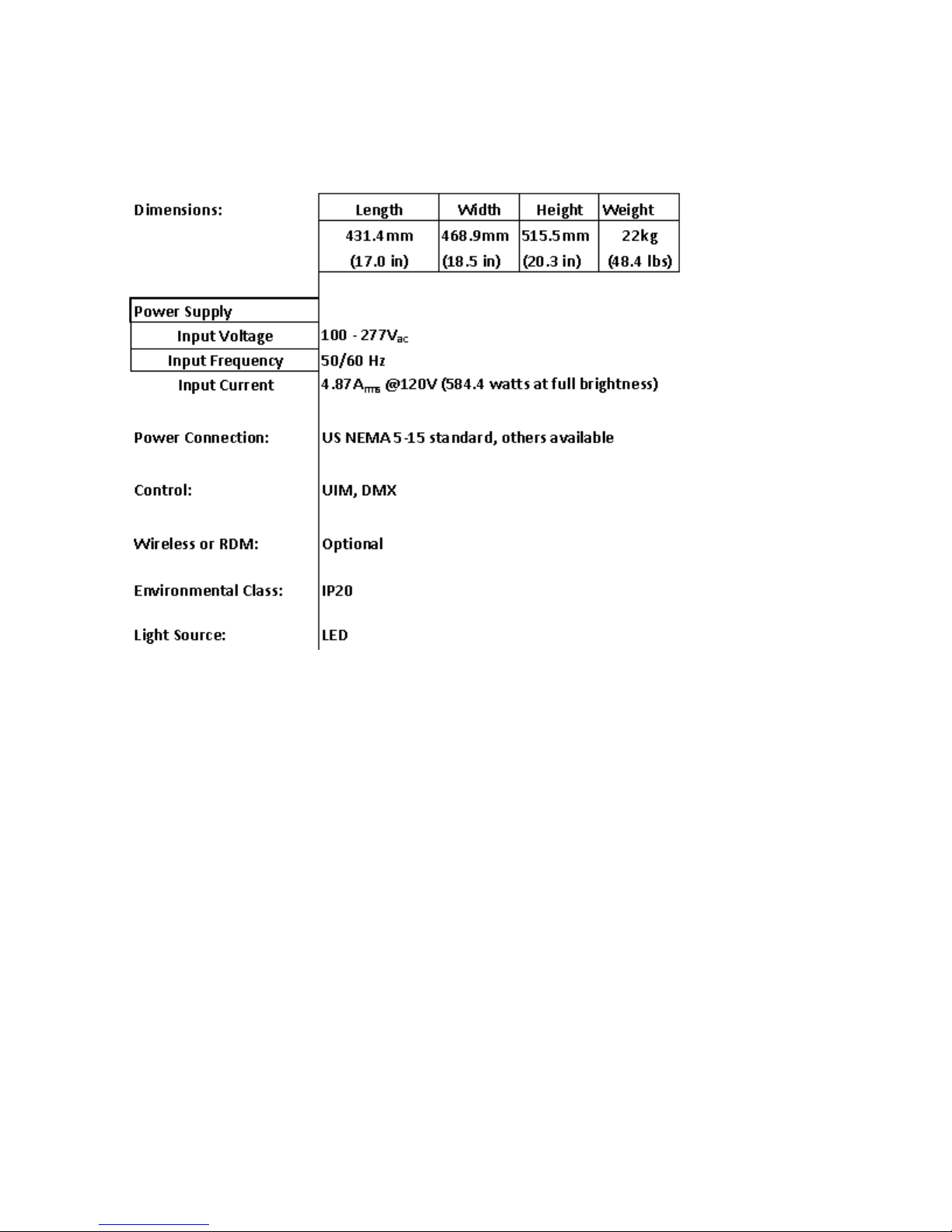

!AC!Power!
Punch series lights operate on standard single phase AC power.
•Input voltage range: 100 –277Vac
•Input frequency range: 50/60 Hz
Warning! Lights operate on grounded 110Vac, 50/60Hz or 240Vac, 50/60Hz
AC Input. AC Supply Source must be sized properly and have
approved protection circuitry for safe operation. Take care to
observe all proper precautions when connecting power.
Warning! Lights are intended for indoor operation and use only. Use in safe
and dry location only
F06'+&P"4/+$5$)'&
D";$1"&3+1"%#04"&

8
!Control!Selection!
The light can be controlled via three means of interface as shown below:
OFF
CIM/UIM
DMX (wired or wireless)
!CIM/UIM!Operation!
Warning! Standard power cord supplied with Punch light is intended to
connect with standard, single-phase 110-120 Vac, 60 Hz USA circuit. Other
power cords for connection to other countries’ single phase circuits are
available as options. No other special adjustments or changes are required for
operation at international voltages.
Warning! Never connect Punch series lights to anything other than a single-
phase circuit. Connection to three-phase power can/will cause serious damage
and/or bodily injury.

9
1. Functional Requirements
The AAdyn Punch light is controlled by software (embedded firmware). In general the software shall control the
light and accept user inputs from multiple device types. Via the user inputs the light may be controlled and
various parameters may be saved in non-volatile memory.
The software shall monitor input from the following:
•CIM –an AAdyn proprietary Control Interface Module
•UIM –an AAdyn proprietary User Interface Module.
•DMX –a unidirectional digital network based on the DMX512 standard.
•Cancel (X) –which also referred to as the douse button, is a button that shuts off the light while it is
pressed.
The following sections provide all of the functional requirements for the AAdyn Punch Light Series.
1.1. Proprietary Control/User Interface Module Requirements
Note: Operation of the integral Control Interface Module (CIM) is identical to that of the User Interface
Module (UIM)

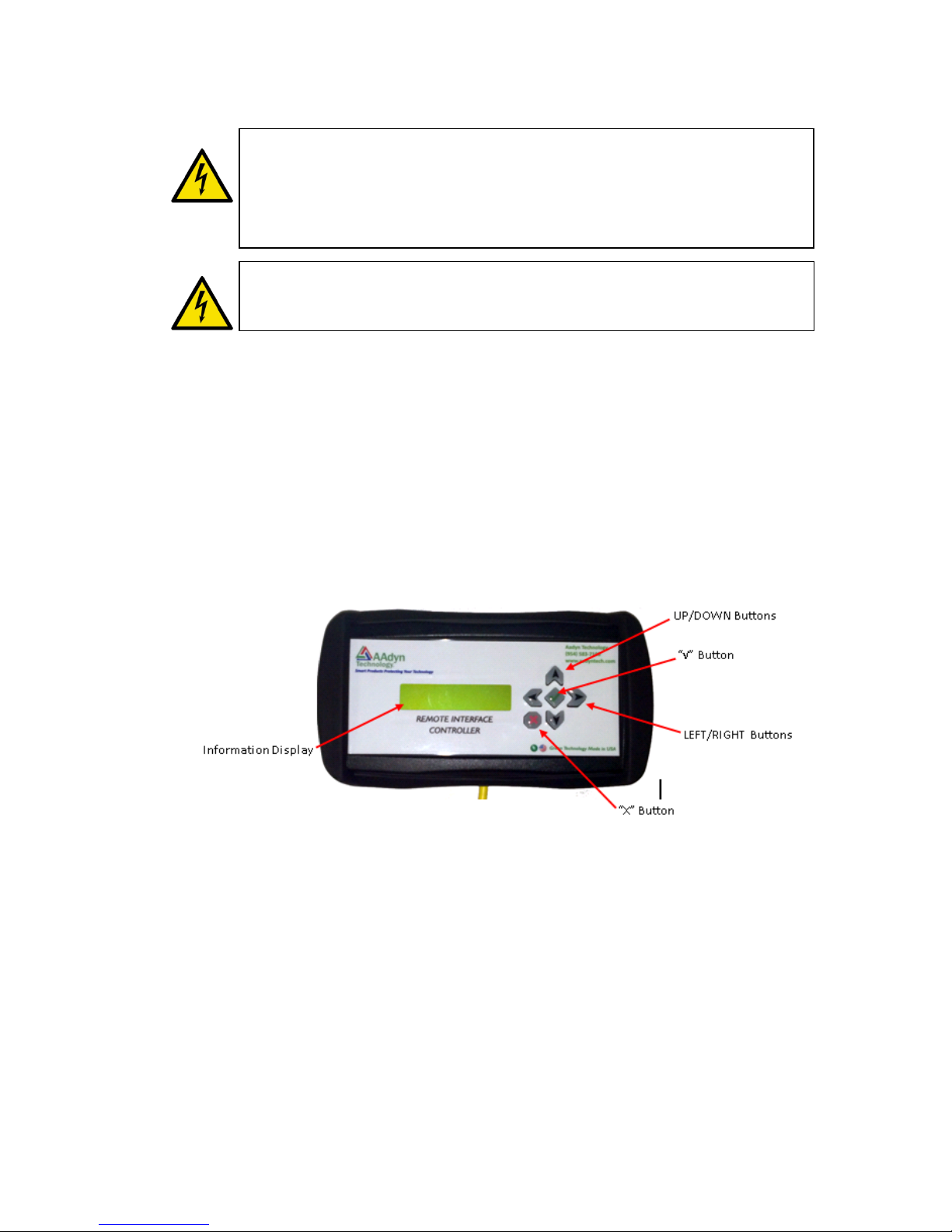

•The CIM/UIM Remote Interface Controller has a backlit LCD display that the software shall control
and six user input keys. The keys shall provide the following functionality:
•UP/DOWN keys –select the parameter to be controlled.
•LEFT/RIGHT keys –adjust the value of the selected parameter.
•CHECKMARK (Enter) key –some parameters are only put into effect after the enter key is
pressed. It also causes savable values to be stored.
•Red ‘X’ (UIM remote douse) –shall cause the light to be extinguished while it is pressed.
•The software shall display a menu of parameters on the UIM controller. The parameters listed below
shall be displayed in the order shown from top to bottom when the down key is pressed and shall
default to LIGHT CONTROL. When the up key is pressed the order will proceed from LIGHT
CONTROL to the bottom of the list, then upwards.
•LIGHT CONTROL
•UIM BRIGHTNESS
•UIM FADE
•UIM EFFECT SELECT
•UIM EFFECT FREQUENCY
•DMX BASE ADDRESS
•DMX CHANNEL MODE
•WIRELESS SHOW ID
•MODEL NAME / SW VERSION / SN# / LIGHT UNIQUE ID / RADIO SW
RECALIBRATION HOURS / RESET FACTORY DEFAULT
•POWER ON SETTING
•SAVE CUSTOM
•RECALL SETTING
•Under each parameter, the software shall present settings pertaining to the parameter for the user to
select. The settings shall be:
•POWER ON SETTING

10
•The software shall present individually sixteen startup profiles to the user: PRESET1,
PRESET2, PRESET3, CUSTOM1 through CUSTOM12, and OFF changing the choice
each time the right or left arrow button is pressed.
•When a profile is selected by the user, the software shall save this choice to non-volatile
memory.
•When power is applied to light the software shall determine which stored parameters will
be recalled and put into effect. If a startup profile has be previously set it will be used to
set the parameters.
•If the POWER ON SETTING is set to OFF the software will restore the parameters that
were automatically saved the last time the light was in operation. The parameter recalled
are:
•LIGHT CONTROL
•UIM BRIGHTNESS
•UIM FADE
•UIM EFFECT SELECTION
•UIM EFFECT FREQUENCY
•DMX BASE ADDRESS
•DMX CHANNEL MODE
•LIGHT CONTROL
•This parameter shall support four values: “UIM”, “Wired DMX”, “Wireless DMX” and
“OFF”.
•Selecting “UIM” shall allow the UIM button pad to control all functions of the light.
Selecting “DMX” shall allow the DMX controller to control all functions of the light.
Selecting “OFF” shall turn off the light The light shall turn on and the prior brightness
level shall be restored when “UIM” is selected again.
•The factory default for LIGHT CONTROL is UIM (CIM/UIM control).
•Note: In this mode, control is through either and/or both the integral CIM or
optional UIM.
•UIM BRIGHTNESS parameter:
•Values from 0 to 100 percent that can be incremented or decremented in steps of 0.3,
0.7 and 1.0 on slow scroll. Medium and medium fast shall scroll by one and fast shall
scroll by five.
•Each setting value shall represent a brightness level where 0 percent is off and 100
percent is the maximum brightness of the light.
•The change from one brightness value setting to another positive value shall be as
smooth as possible. The built in smoothing delay shall be 250ms. If the DMX controlled
brightness level is changed from a positive value to 0, the software shall turn the light off
within one half second unless UIM FADE is non-zero.
•The factory default for the UIM BRIGHTNESS parameter shall be 100%.
•DMX BASE ADDRESS
•This parameter shall range between 1 and 508 for 5 CHANNELS mode.
•This parameter shall range between 1 and 511 for 2 CHANNELS mode.
•This parameter shall range between 1 and 512 for 1 CHANNEL mode.
•It shall represent the DMX address on the network that is used to address the light.
•This parameter shall be meaningful only if the light control is set to “DMX”.
•The factory default for DMX BASE ADDRESS is 1.
•DMX CHANNEL MODE
•There shall be three modes of operation when the light is under DMX control. These
modes are called: 1 CHANNEL, 2 CHANNELS, and 5 CHANNELS mode. Each mode is
described in section 3.3 below.
•The factory default for the DMX CHANNEL MODE shall be 5 CHANNELS mode.
