Aaeon AIS-Q454 User manual

Advanced System
Controller AIS-Q454
AIS-Q454
Advanced System Controller
2 3.5” Hard Disk Drive Bay
2 Gigabit Ethernet/ 2 COM/
6 USB2.0
HD Audio Codec
AIS-Q454 Manual 1st Ed.
May 2010

Advanced System AIS-Q454
Controller
i
Copyright Notice
This document is copyrighted, 2010. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Advanced System AIS-Q454
Controller
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
•Award is a trademark of Award Software International, Inc.
•CompactFlash™is a trademark of the Compact Flash
Association.
•Microsoft Windows®is a registered trademark of Microsoft
Corp.
•Intel®, Core™ 2 Duo, Core™2 Quad are trademarks of Intel
Corporation.
•PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

Advanced System AIS-Q454
Controller
iii
Packing List
Before you begin operating your PC, please make sure that the
following materials are enclosed:
z4 S221005030 HDD Screws
z8 S225006010 Wallmount Bracket Screws
z2 M04Q452020 Wallmount Brackets
z4 1990666615 Rubber Feet
z1 AIS-Q454
z1 CD-ROM for manual (in PDF format) and drivers
If any of these items should be missing or damaged, please contact
your distributor or sales representative immediately.

Advanced System AIS-Q454
Controller
iv
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from anyAC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a firm surface during installation. Dropping
it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, only qualified
service personnel should open the equipment.
14. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.

Advanced System AIS-Q454
Controller
v
d. The equipment does not work well, or you cannot get it
to work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
WHERE THE STORAGE TEMPERATURE IS BELOW -20°C
(-4°F) OR ABOVE 65°C (149°F). IT MAY DAMAGE THE
EQUIPMENT.
FCC
This device complies with Part 15 FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received including
interference that may cause undesired
operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions and your local government’s recycling or
disposal directives.

Advanced System AIS-Q454
Controller
vi
Below Table for China RoHS Requirements
产品中有毒有害物质或元素名称及含量
AAEON Boxer/ Industrial System
有毒有害物质或元素
部件名称 铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件 ×○○○○○
外部信号
连接器及线材 ×○○○○○
外壳 ×○○○○○
中央处理器
与内存 ×○○○○○
硬盘 ×○○○○○
电源 ×○○○○○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、电源为选购品。

Advanced System AIS-Q454
Controller
vii
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Hardware Installation
2.1 Location of Connectors ............................................. 2-2
2.2 Mechanical Drawing ................................................2-4
2.3 List of Jumpers ........................................................2-6
2.4 List of Connectors ....................................................2-7
2.5 Setting Jumpers .......................................................2-8
2.6 Clear CMOS (JP1) ....................................................2-9
2.7 ME_TP1 ...................................................................2-9
2.8 Front Panel Connector (FP1) ..................................2-9
2.9 Front Panel Connector (FP2)....................................2-9
2.10 USB Connector (USB1) .........................................2-9
2.11 CD-IN (J1) .............................................................2-10
2.12 RS232 Serial Port Connector (COM2)....................2-10
2.13 Digital I/O (CN2) ....................................................2-10
2.14 Power Connector (CN8) ........................................2-11
2.15 List of Connectors of PER-R04X.............................2-12
2.16 Power Connector of PER-R04X (CN3) .................2-12
2.17 FAN Connector of PER-R04X (FAN1) ..................2-12

Advanced System AIS-Q454
Controller
viii
2.18 Installing the Hard Disk Drive..................................2-13
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming ........................................................A-2
A.2 ITE8718 Watchdog Timer Initial Program ............A-5
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments.……………………….B-4

Advanced System
Controller AIS-Q454
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Advanced System
Controller AIS-Q454
1.1 Introduction
AIS-Q454 adopts the Intel®CoreTM 2 Duo/ Quad LGA 775
Processors. The chipset is equipped with Intel®Q45 + ICH10DO.
Moreover, the system memory features two 240-pin DDRIII
800/1066 SDRAM up to 4GB. It deploys two PCI-Express LAN
ports that consist of 10/100/1000Base-TX Ethernet RJ-45 ports.
AIS-Q454 condensed appearance features desktop and wallmount
form factor that fits nicely into a space-limited environment.
This AIS-Q454 equipped with two 3.5” Hard Disk Drive with SATA
II interface and one optional CompactFlashTM Type II socket.
Moreover, the flexible expansion interfaces feature one
PCI-Express﹝x16﹞, one PCI-Express﹝x4﹞, and two PCI slots.
In addition, this model supports two COM ports and six USB2.0
(four ports at I/O interfaces and two ports on the front panel).
Furthermore, the Realtek ALC888 supports HD audio codec and
the AIS-Q454 can support dual displays with VGA and DVI via
Intel®Q45.
With the increasing demands of high performance in audio and
video, AAEON released the specific Advanced System Controller
to fulfill the needs of the applications, such as Factory Automation,
Building Automation, and etc.
Chapter 1 General Information 1- 2

Advanced System
Controller AIS-Q454
1.2 Features
zIntel®CoreTM 2 Duo/ Quad LGA775 Processors
zDDRIII 800/1066 Memory x 2, Up To 4GB
zIntel®Integrated Graphics Engine 4500 Supports Dual Views
With VGA & GVI
zDual Intel®PCI-Express Gigabit Ethernet
z3.5” SATA II Hard Disk Drive x 2 and Slim Type Combo x 1
(Optional)
zUSB2.0 x 6, COM x 2
zMultiple Extended Bus Up To Four Slots
Chapter 1 General Information 1- 3

Advanced System
Controller AIS-Q454
1.3 Specifications
System
Form Factor Compact size for Desktop/Wallmount
Main Board IMBI-Q45
Processor Intel®CoreTM 2 Duo/ Quad LGA775 CPU,
FSB 800/1066/ 1333 MHz, TDP 95W;
Intel®ECG item: Q9400, E8400, E7400,
E6500, E6400, E5300, E4300, E3400,
E2160
System Memory
Dual-channel with 240-pin DDRIII
800/1066 SDRAM x 2, Max. 4GB
Chipset Intel®Q45 + ICH10DO
Ethernet
Dual Intel®PCI-Express
10/100/1000Base-TX, RJ-45 x 2; LAN1:
Intel®82567LM, LAN 2: Intel®82574L
BIOS Award BIOS SPI ROM – 16Mb
I/O Chip ITE IT8718F I/O Controller
Storage One bay for 3.5’’ Hard Disk Drive x 2
(SATA II interface)
Optical ROM Optional Slim Type ROM x 1 (with
DVD/DVD-RW)
Solid Storage Disk CompactFlash™ Type II socket x 1
(optional)
Audio HD Audio Codec with Realtek ALC888
LED Two indicators for Power and HDD on the
front panel
Chapter 1 General Information 1- 4

Advanced System
Controller AIS-Q454
Expansion PCI-Express﹝x16﹞x 1, PCI-Express
﹝x4﹞x 1, PCI x 2
Watchdog Timer Reset: 1 sec.~255 min. and 1 sec. or 1
min./step
H/W Status Monitor Monitoring system temperature, voltage,
and cooling fan status
Power Supply Flex ATX 275W input 90~264V AC
Dimension (WxHxD) 14.17” x 3.94” x 11.81” (360mm x 100mm
x 300mm)
External I/O
Serial Port RS-232 x 2
KB & Mouse Keyboard x 1 & Mouse x 1
Universal Serial Bus USB2.0 x 6 (4 at I/O and 2 on the front
panel)
Audio Audio jack x 3 (Mic-in, Line-in, Line-out)
Ethernet RJ-45 x 2
Display VGA x 1, DVI-D x 1
Power Switch ATX power switch x 1
Environment
Operating
Temperature
32oF~104oF (0oC ~40oC)
Storage
Temperature -4oF~140oF (-20oC ~60oC)
Chapter 1 General Information 1- 5

Advanced System
Controller AIS-Q454
Operating Humidity 10~80%
Storage Humidity 10~80%, non-condensing
Vibration 0.5G/ 5~500Hz/ operating
Shock
15G peak acceleration (11 m sec.
duration), operating
EMI CE & FCC Class A
Chapter 1 General Information 1- 6

Advanced System
Controller AIS-Q454
Chapter2HardwareInstallation2-1
Hardware
Installation
Chapter
2

Advanced System
Controller AIS-Q454
2.1 Location of Connectors
Main Board
Chapter 2 Hardware Installation 2-2

Advanced System
Controller AIS-Q454
AIS-Q454
Chapter 2 Hardware Installation 2-3

Advanced System
Controller AIS-Q454

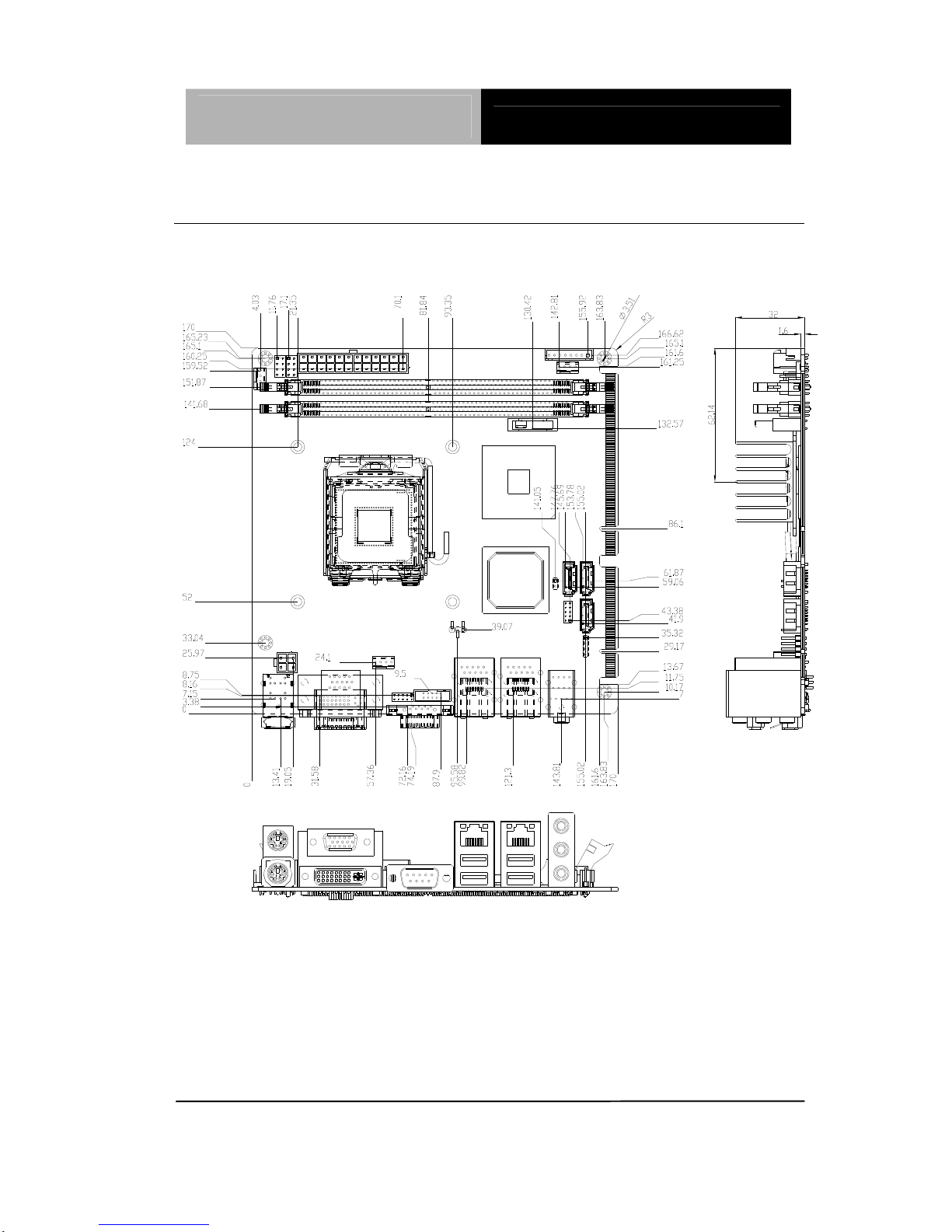

2.2 Mechanical Drawing
Main Board
Chapter 2 Hardware Installation 2-4

Advanced System
Controller AIS-Q454
AIS-Q454
Chapter 2 Hardware Installation 2-5
