Aaeon TKS-G50-QM77 User manual

Embedded Box TKS-G50-QM77
TKS-G50-QM77
Intel®3rd Generation
CoreTM i7/ i5/ i3/ Celeron®Processor
10/100/1000Base-TX Ethernet
2 USB3.0, 2 USB 2.0, 4 COM
8-bit Digital I/O
2 SATA 3.0Gb/s
1 CFast, 1 Mini Card, LPC
TKS-G50-QM77 Manual 1st Ed.
October 2012

Embedded Box TKS-G50-QM77
Copyright Notice
This document is copyrighted, 2012. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
i

Embedded Box TKS-G50-QM77
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
AMI is a trademark of American Megatrends Inc.
CFast™is a trademark of the Compact Flash Association.
Intel®and Coreare trademarks of Intel®Corporation.
Microsoft Windows®is a registered trademark of Microsoft
Corp.
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
SoundBlaster is a trademark of Creative Labs, Inc.
Please be notified that all other products’ name or trademarks
not be mentioned above are properties of their respective
owners.
ii

Embedded Box TKS-G50-QM77
Packing List
Before you begin installing your card, please make sure that
the following materials have been shipped:
1 DVD-ROM for Manual (in PDF Format) and
Drivers
1 TKS-G50-QM77
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.
iii

Embedded Box TKS-G50-QM77
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions ..................................................2-2
2.2 Mechanical Drawing of TKS-G50-QM77 .................2-3
2.3 A Quick Tour of the TKS-G50-QM77 ......................2-4
2.4 Hard Disk Installation ................................................ 2-7
2.5 Accessory Installation..............................................2-11
2.6 Wallmount Kit Installation........................................2-17
2.7 List of Jumpers ......................................................2-18
2.8 List of Connectors ...................................................2-19
2.9 Setting Jumpers ......................................................2-21
2.10 Front Panel Connector (JP9) ................................2-22
2.11 Clear CMOS (JP11) ..............................................2-22
2.12 COM Port #2 RS-232/422/485 Selection (CN11) .2-23
2.13 Digital I/O Connector (CN12)................................2-25
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 AMI BIOS Setup........................................................3-3
iv

Embedded Box TKS-G50-QM77
v
Chapter 4 Driver Installation
4.1 Installation……………………………………………..4-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE8728F Watchdog Timer Initial Program...........A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-4
B.3 IRQ Mapping Chart................................................B-5
B.4 DMA Channel Assignments.……………………….B-5
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2
Appendix D AHCI Setting
D.1 Setting AHCI......................................................... D-2
Appendix E Digital I/O Ports
E.1 Electrical Specifications for I/O Ports.....................E-2
E.2 DIO Programming..................................................E-3
E.3 Digital I/O Register.................................................E-4
E.4 Digital I/O Sample Program...................................E-5

Embedded Box TKS-G50-QM77
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Embedded Box TKS-G50-QM77
Chapter 1 General Information 1- 2
1.1 Introduction
The newest EmBox series TKS-G50-QM77 has been introduced by
AAEON and it utilizes Intel®3rd Generation Coreprocessor. In
this era of information explosion, the advertising of consumer
products will not be confined to the family television, but will also be
spread to high-traffic public areas, like department stores, the bus,
transportation station, the supermarket etc. The advertising
marketing industry will resort to every conceivable means to
transmit product information to consumers. System integrators will
need a multifunction device to satisfy commercial needs for such
public advertising.
The TKS-G50-QM77 is designed for indoor environments due to
the following reasons; first, the TKS-G50-QM77 offers high
performance system that while operating in ambient temperatures
ranging from 0° to 50°C. The TKS-G50-QM77 is a standalone high
performance controller designed for long-life operation and with
high reliability. It can replace traditional methods and become the
mainstream controller for the multimedia entertainment market.

Embedded Box TKS-G50-QM77
Chapter 1 General Information 1- 3
1.2 Features
Intel®CoreTM i7/i5/i3/Celeron®Processor
Intel®QM77/HM76
204-pin DDR3 1600 MHz SODIMM x 1, Up to 8 GB
Gigabit Ethernet x 2
VGA Output x 1
Line-Out, Mic-In
SATA 6.0Gb/s x 2 (Optional RAID), CFast™ x 1
USB3.0 x 2, USB2.0 x 2, COM x 4, 8-Bit Digital I/O, Mini PCIe
x 1
Mini Card x 1
+12V Only Operation
Supports iAMT with Intel®QM77 and Corei7/ i5 Processors
Only

Embedded Box TKS-G50-QM77
Chapter 1 General Information 1- 4
1.3 Specifications
CPU Onboard Intel®Core™
i7/i5/i3/Celeron®processor
Chipset Intel®QM77/HM76 PCH
System Memory 204-pin DDR3 1333/1600 MHz
SODIMM x 1, Max. 8 GB
Display
Interface VGA D-SUB 15 x 1
SSD CFast™ x 1 Storage
Device HDD 2.5" Hard Disk Drive Bayx1
LAN Intel®82579LM & Realtek RTL
8111E, 10/100/1000 Base-TX
Ethernet
Network
Wireless 802.11b/g/n WiFi (Optional)
USB Host USB Type A x 2
Serial Port COM x 1
Front I/O
Audio Line-out, Mic-in
USB Host USB3.0 Type A x 2
LAN RJ-45 x 2
Serial Port COM x 3
DIO 8-bit (Programmable) x 1
Rear I/O
KB/MS Through USB port
Expansion Mini Card Mini Card x 1 (Internal)
Indicator Front Power LED x 1, HDD LED x 1
Power Requirement +12V DC Input, ATX type
System Cooling Easy Fan function support

Embedded Box TKS-G50-QM77
Chapter 1 General Information 1- 5
1. Fix Mode: Full Speed
2. Auto Mode: Full Speed (CPU
temperature ≧55oC) and Low
Speed (CPU temperature < 55oC)
Mounting Wallmount (optional)
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Anti-Vibration 1 g rms/ 5 ~ 500Hz/ random operation
Anti-Shock 20 G peak acceleration (11 msec.
duration)
Certification EMC CE/FCC Class A
Dimension 7.80" x 7.09" x 1.77" (198mm x
180mm x 45mm)
Gross Weight 3.92 lb (1.78 kg) (Heavy duty steel )
OS Support Windows®XP Pro, Windows®7, Linux
Fedora

Embedded Box TKS-G50-QM77
Chapter2QuickInstallationGuide2-1
Quick
Installation
Chapter
2
Guide

Embedded Box TKS-G50-QM77
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Embedded Box TKS-G50-QM77
Chapter2QuickInstallationGuide2-3
2.2 Mechanical Drawing of TKS-G50-QM77

Embedded Box TKS-G50-QM77
2.3 A Quick Tour of the TKS-G50-QM77
Before you start to set up the TKS-G50-QM77, take a moment to
become familiar with the locations and purposes of the controls, drives,
connections and ports, which are illustrated in the figures (Figure 2.1 to
Figure 2.4) below.
Figure 2.1 Front View of the TKS-G50-QM77
Chapter 2 Quick Installation Guide 2-4
Antenna holes for WiFi
or GPS (optional)
Power and
HDD
indicator
LED
USB x 2 MIC-in and Line-out
COM4
Reserved COM5
and COM6

Embedded Box TKS-G50-QM77
Chapter2QuickInstallationGuide2-5
Figure 2.2 Rear View of the TKS-G50-QM77
Figure 2.3 Top View of the TKS-G50-QM77
DC-in
+12V DC
(lockable)
Power
Switch
8-bit Digital I/O with
VCC and ground Pin
VGA
USB x 2 LAN1 and LAN 2
(Gigabit Ethernet) COM1,
COM2 and
COM3
Wallmount
Brackets
(optional)
CPU Fan

Embedded Box TKS-G50-QM77
Chapter 2 Quick Installation Guide 2-6

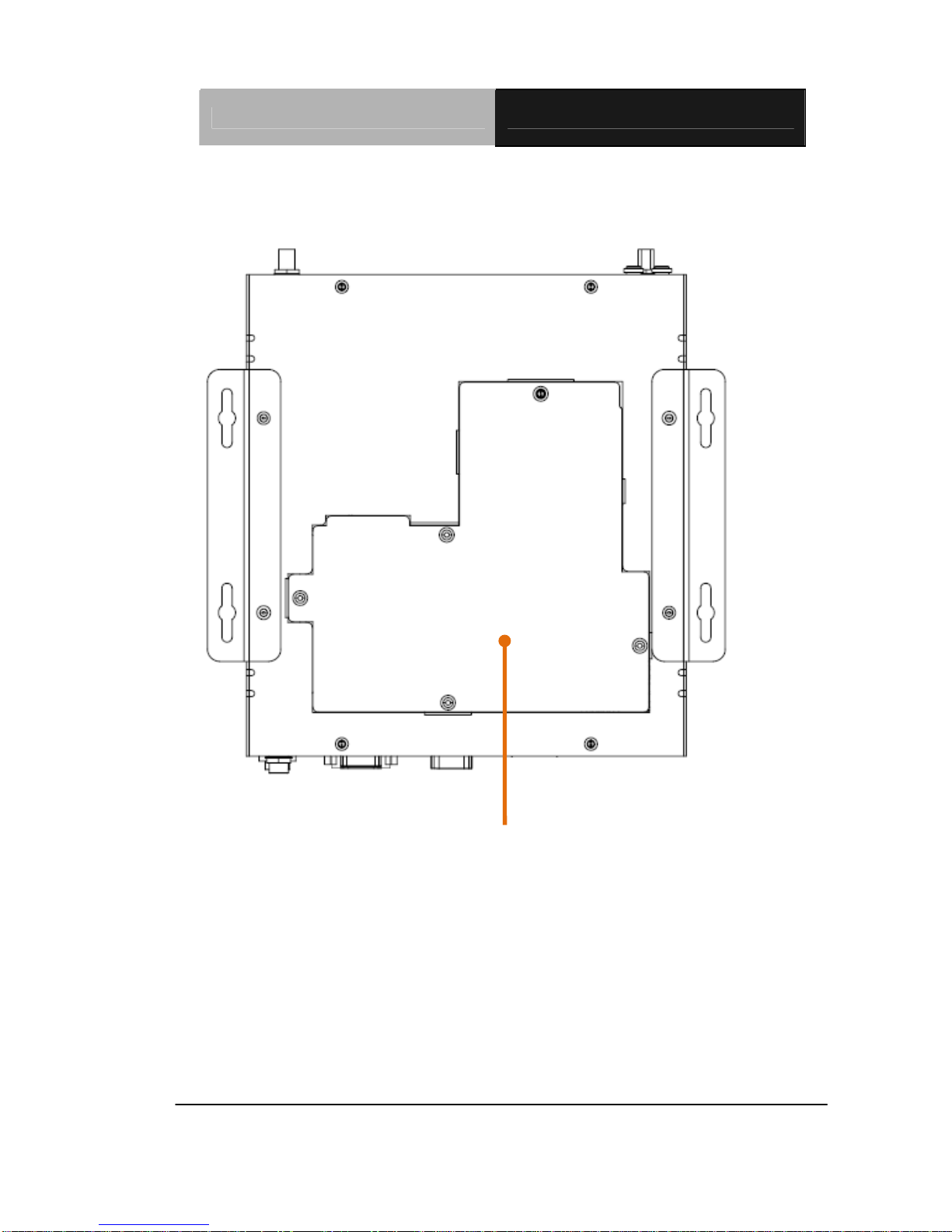

Figure 2.4 Bottom View of the TKS-G50-QM77
I/O cover for
RAM, CFast and
optional Mini
Card

Embedded Box TKS-G50-QM77
Chapter2QuickInstallationGuide2-7
2.4 Hard Disk Installation
Step 1: Unfasten the screws on the top of cover

Embedded Box TKS-G50-QM77
Chapter 2 Quick Installation Guide 2-8

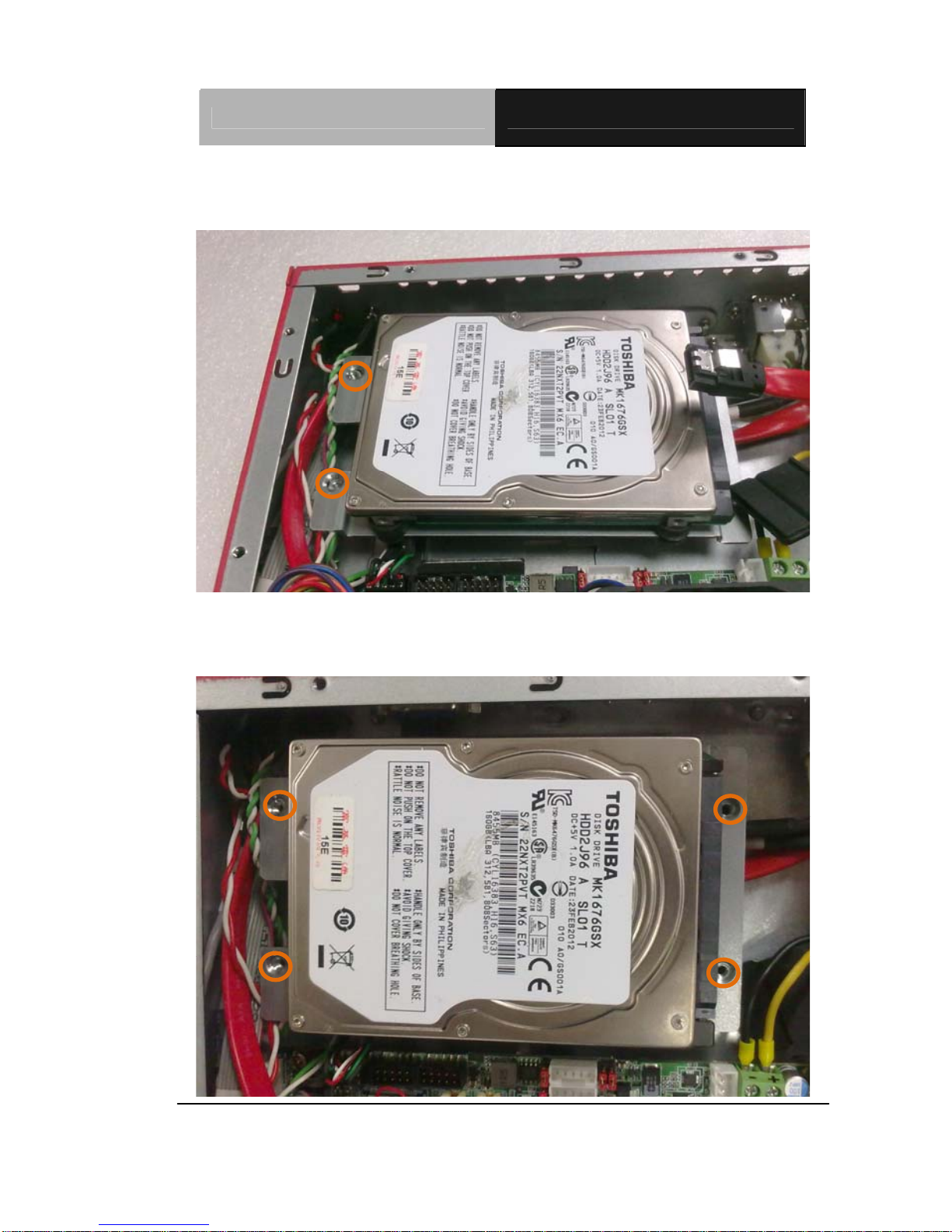

Step 2: Fasten the four HDD screws and black damper, and then you can
put the HDD on the opposite side for screwing

Embedded Box TKS-G50-QM77
Chapter2QuickInstallationGuide2-9
Step 3: Putting the HDD with the HDD bracket in by 45 degree height and make
sure the bracket holes are matched with the chassis stand.
Step 4: Fasten the four screws of the HDD bracket and connect the HDD and
power cables to the motherboard (GENE-GM77).
