Aaeon FWS-2250 User manual

Network Appliance
FWS-225 0
FWS-2250
Desktop
Network Appliance Platform
CompactFlash™Socket
4 LAN Ports
2 USB2.0, 1 COM for Console
FWS-2250 Manual 1st Ed.
July 15, 2014

Network Appliance
FWS - 2250
i
Copyright Notice
This document is copyrighted, 2014. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Network Appliance
FWS - 2250
ii
Acknowledgments
All other products’name or trademarks are properties of their
respective owners.
Intel®and Atom™are trademarks of Intel®Corporation.
AMI is a trademark of American Megatrends Inc.
CompactFlash™is a trademark of the Compact Flash
Association.
Microsoft Windows®is a registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their
respective owners.

Network Appliance
FWS - 2250
iii
Caution
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du
fabricant et les directives gouvernementales de recyclage.

Network Appliance
FWS - 2250
iv
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
FWS-2250
DVD-ROM for manual (in PDF format) and drivers
Rubber Foots
40W Power Adapter
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Network Appliance
FWS - 2250
v
Contents
Chapter 1 General Information
1.1 Introduction..........................................................1-2
1.2 Features ..............................................................1-3
1.3 Specifications ......................................................1-4
1.4 General System Information ...............................1-7
Chapter 2 Quick Installation Guide
2.1 Safety Precautions..............................................2-2
2.2 Location of Connectors of Main Board................2-3
2.3 Mechanical Drawing of Main Board ....................2-5
2.4 List of Jumpers....................................................2-7
2.5 List of Connectors ...............................................2-7
2.6 Setting Jumpers ..................................................2-9
2.7 Auto PWRBTN Selection (JP1)...........................2-10
2.8 HDD POWER (CN1, CN4)..................................2-10
2.9 CMOS Setting Selection (CN2)...........................2-10
2.10 RTCTEST Setting Selection (CN3)...................2-10
2.11 CF Power Selection (CN6)................................2-10
2.12 VGA Connector (CN28) ....................................2-11
2.13 PS2 Header (CN29)..........................................2-11
2.14 CPU FAN (CPU FAN) .......................................2-11
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization .............................3-2

Network Appliance
FWS - 2250
vi
3.2 AMI BIOS Setup..................................................3-3
Chapter 4 Driver Installation
4.1 Installation ...........................................................4-3
Appendix A Programming the Watchdog Timer
A.1 Watchdog Timer Initial Program .....................A-2
Appendix B I/O Information
B.1 I/O Address Map.............................................B-2
B.2 Memory Address Map.....................................B-3
B.3 IRQ Mapping Chart.........................................B-4
Appendix C Standard Firewall Platform Setting
C.1 Standard Firewall Platform Setting.................C-2
C.2 Status LED Sample Code...............................C-3
C.3 LAN Bypass Mode Sample Code...................C-6
C.4 Console Redirection .....................................C-10

Network Appliance
FWS-2250
Chapter 1 General Information 1- 1
General
Information
Chapter
1

Network Appliance
FWS-2250
Chapter 1 General Information 1- 2
1.1 Introduction
FWS-2250 adopts the Intel®Dual Core Atom™E3815 1.46 GHz
SoC. The system memory features two 204-pin single channel
DDR3L 1066MHz SODIMM slots up to 8GB.It deploys four
Gigabit Ethernet LAN ports with optional one pair LAN bypass
function. FWS-2250 condensed appearance features desktop
form factor that fits nicely into a space-limited environment.
This compact FWS-2250 is equipped with CF socket. In
addition, it offers flexible expansion with network products and
features one optional Mini-Card socket, two USB2.0 ports and
one RJ-45 console port. The console port deploys console
re-direction that increases the network security via remote control.
All of these designs provide for a more user-friendly solution.

Network Appliance
FWS-2250
Chapter 1 General Information 1- 3
1.2 Features
Desktop platform 4 LAN ports Network Appliance
Onboard Intel®Atom™ E3815 1.46 GHz/ E3825 1.33 GHz
SoC
Two 204-pin Single Channel DDR3L 1066MHz SODIMM, Up
to 8GB
10/100/1000Base-TX Ethernet Port x 4 With Optional One
Pair LAN Bypass Function
CF Socket
RJ-45 Console x 1, USB2.0 x 2
DC 12V Power Input Requirement
Mini-Card Socket x 1 (Optional)

Network Appliance
FWS-2250
Chapter 1 General Information 1- 4
1.3 Specifications
System
Form Factor
Desktop 4 LAN ports Network Appliance
Processor
Onboard Intel®Atom™E3815 1.46 GHz/
E3825 1.33 GHz SoC
System Memory
204-pin single channel DDR3L
1066MHz SODIMM slot x 2, up to 8GB
Ethernet
Intel®I211 controller, Gigabit Ethernet x 4
(optional 1 pair LAN bypass function)
BIOS
AMI BIOS
Serial ATA
Onboard SATA2 port x 1 (Optional)
Expansion Interface
Mini Card socket x 1 (Optional)
Watchdog Timer
System reset: 1~255 steps by software
programming
RTC
Internal RTC
Storage
CompactFlash™socket x 1
System Fan
－
Front I/O Panel
Power LED x 1, Status LED x 1, HDD
Active LED x 1, LAN LED x 8
Rear I/O Panel
USB2.0 port x 2, RJ-45 x 4, RJ-45 console
x 1, 12V DC power input x 1, Software
Reset Switch x 1
Color
White
Power Supply
12V DC power in connector/ 40W power

Network Appliance
FWS-2250
Chapter 1 General Information 1- 5
adapter x 1, 4-pin DC power out connector
for HDD (optional)
Dimension
6.3”(W) x 1.37”(H) x 4.13”(D) (160mm x
35mm x 105mm)
Display
Chipset
Intel®Atom™E3815 1.46 GHz/ E3825
1.33 GHz SoC
Graphic Engine
Gen 7 with 4 Eus
Resolution
2560x1600
Output Interface
VGA internal box header
I/O
Serial Port
RJ-45 console x 1
Keyboard & Mouse
Reserved pin header
USB
USB2.0 Type A on I/O side x 2
Environment
Operating
Temperature
32oF~104oF (0oC ~40oC)
Storage
Temperature
-4oF~104oF (-20oC ~60oC)
Operating Humidity
10%~80% relative humidity,
non-condensing
Storage Humidity
10%~80% @ 40oC, non-condensing
Vibration
0.5g rms/5~500Hz/ operation

Network Appliance
FWS-2250
Chapter 1 General Information 1- 6
1.5g rms/5~500Hz/ non-operation
Shock
10G peak acceleration (11m sec.
duration), operation
20G peak acceleration (11m sec.
duration), non operation

Network Appliance
FWS-2250
Chapter 1 General Information 1- 7
1.4 General System Information

Network Appliance
F W S - 2 2 5 0
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Guide
Chapter
2

Network Appliance
F W S - 2 2 5 0
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
The installation is intended for technically qualified personnel who
have experience installing and configuring system boards.
The equipment can be installed in a restricted access location (RAL)
only.
A restricted access location is a site location for equipment where
the following criteria apply:
01. Access can only be gained by service persons or by users who
have been trained on the restrictions and the precautions for this
specific site.
02. Access is by means of at least one of the following, special tool,
lock and key, or other means of security, and is controlled by the
authority responsible for the location.
Safety Precautions:
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Network Appliance
F W S - 2 2 5 0
Chapter 2 Quick Installation Guide 2-3

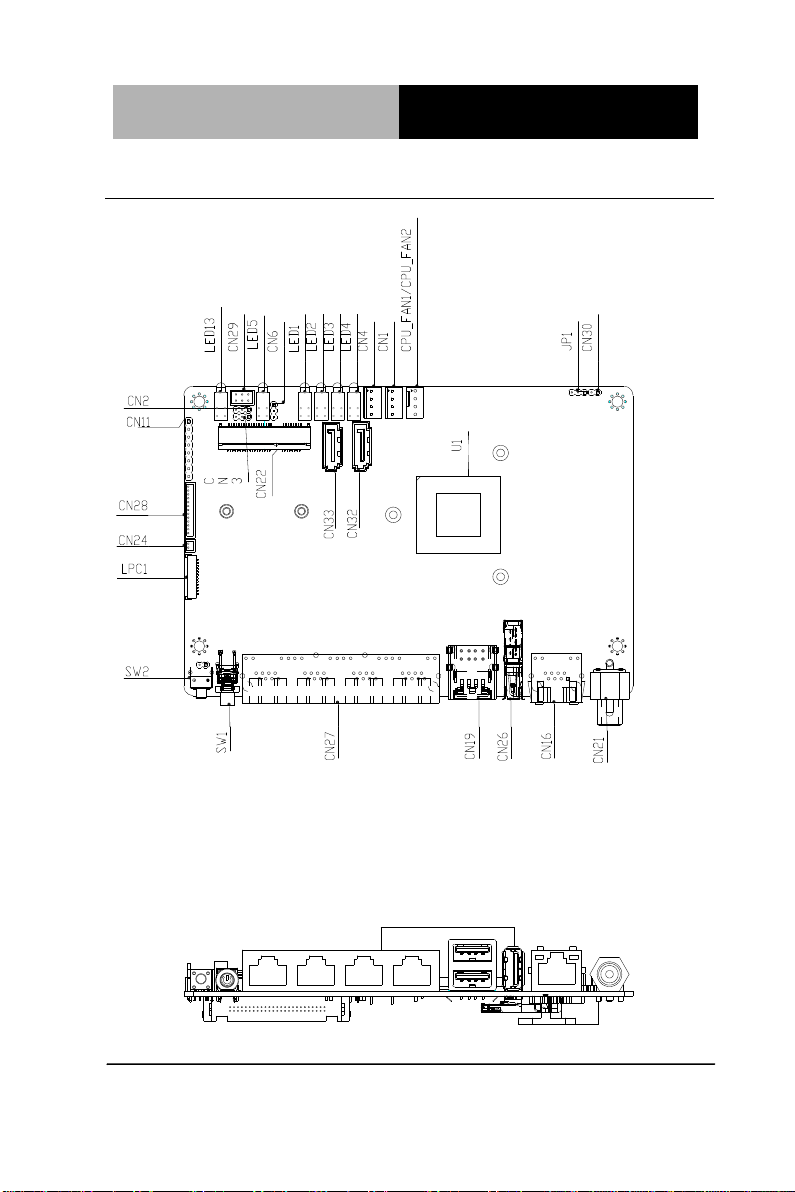

2.2 Location of Connectors of Main Board

Network Appliance
F W S - 2 2 5 0
Chapter 2 Quick Installation Guide 2-4
LEDs on Front Panel of FWS-2250
Connectors on Rear Panel of FWS-2250

Network Appliance
F W S - 2 2 5 0
Chapter 2 Quick Installation Guide 2-5

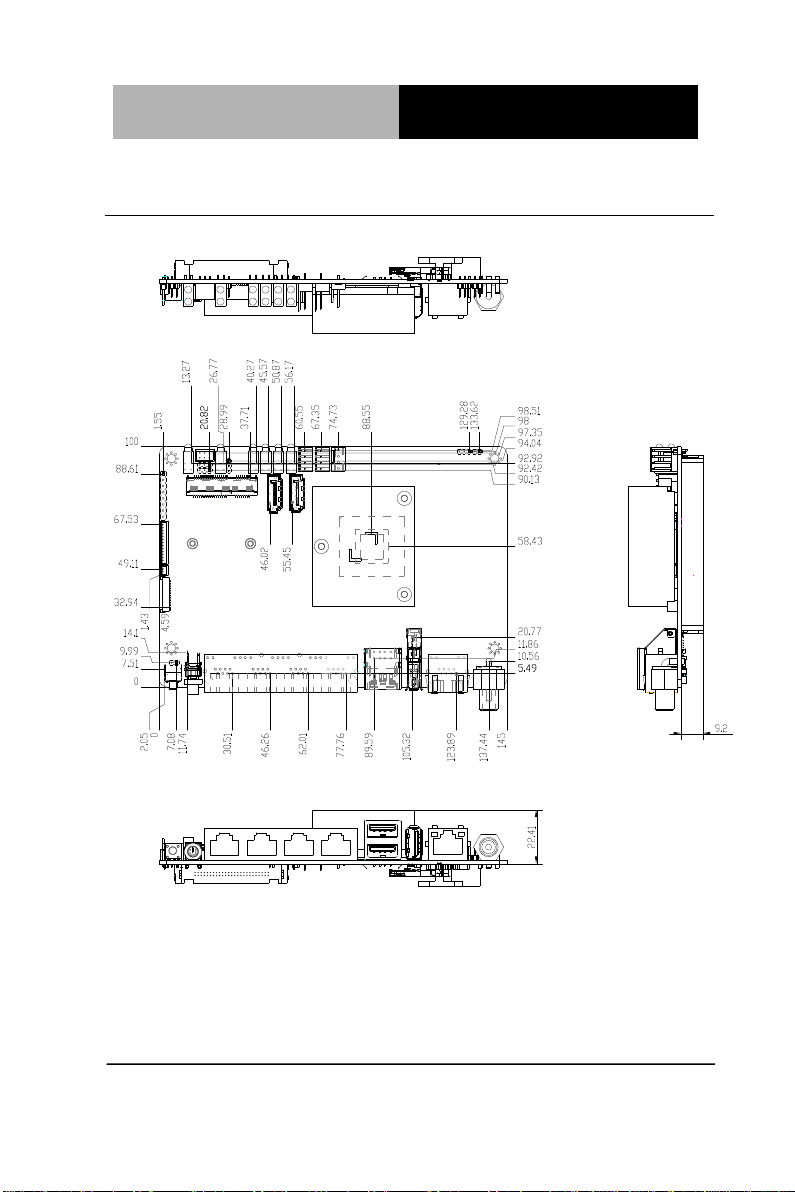

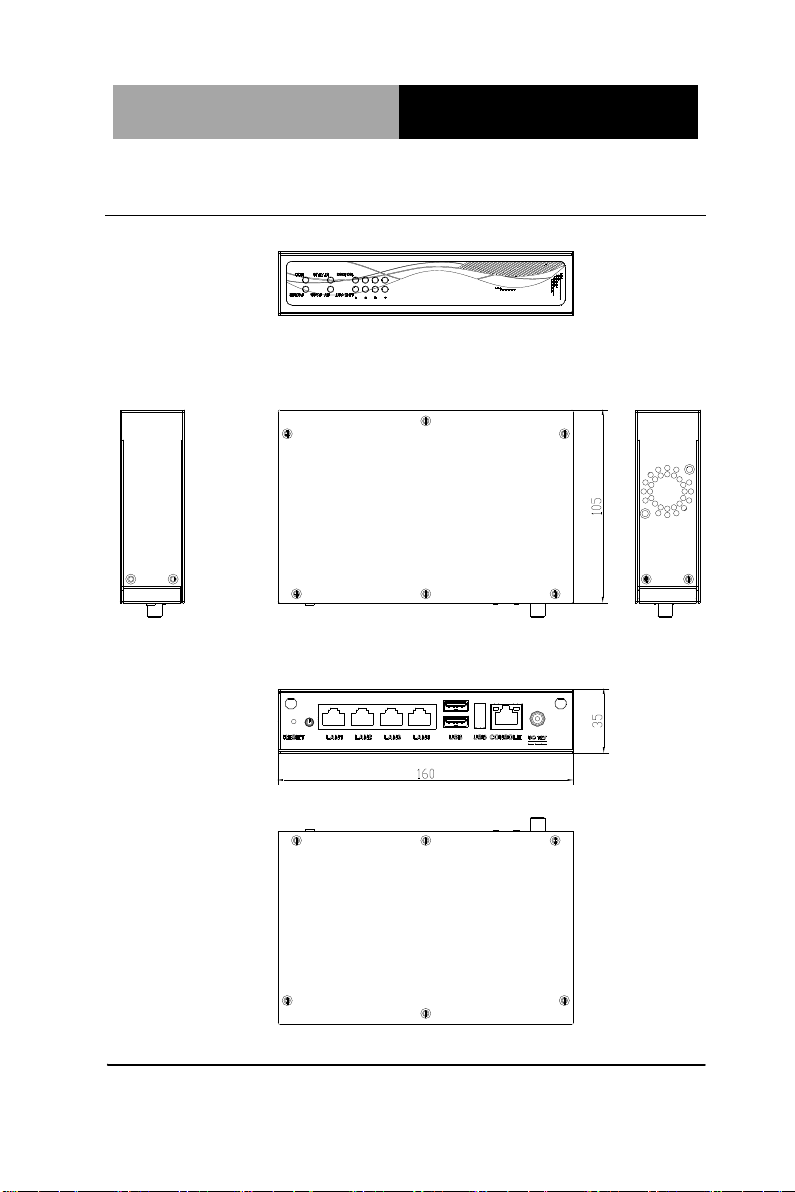

2.3 Mechanical Drawing of Main Board

Network Appliance
F W S - 2 2 5 0
Chapter 2 Quick Installation Guide 2-6
