A&A Manufacturing
Installation Instructions
& User Guide

(Blank Page)

© Copyright 2020 A&A Manufacturing. All rights reserved. Page 3
Rev. 20200108
The QuikDekClor is an in-ground chlorine tablet feeder, designed as for use on an
independent return line, separate from the in-floor valve. Using the QuikDekClor in a
manner outside of it intended purpose may void the warranty.
NOTE:
ABS to PVC transitional glue must used between the QuikDekClor body and PVC schedule
40 pipe.
IMPORTANT
The installer must read this manual completely before attempting installation. Consult
A&A Manufacturing with any question regarding this product. This guide must be left with
the pool owner or operator.

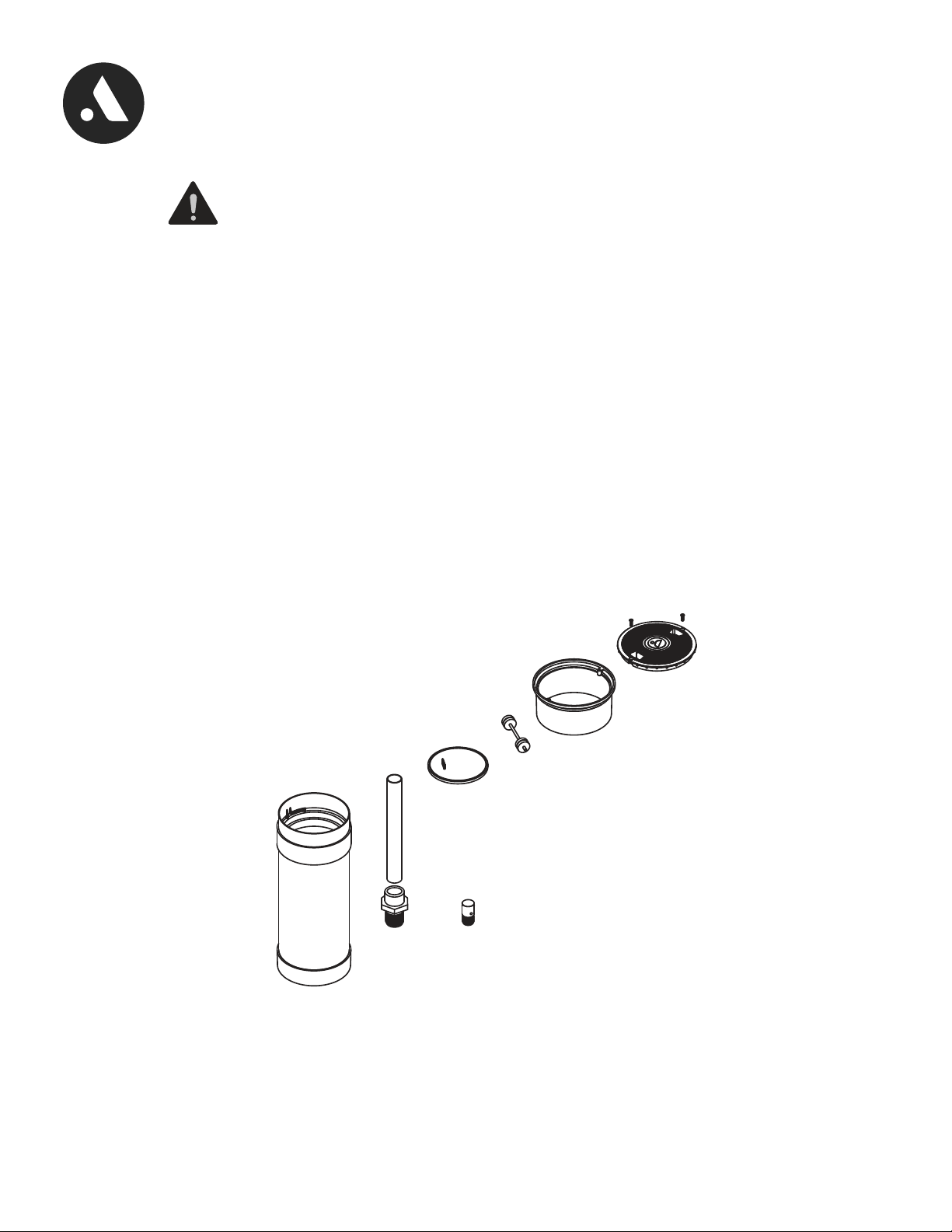

Prior to Installation
a. #2 Phillips SS screws (qty 2)
b. Lid
c. Deck ring
d. Lock
e. Seal
f. 1” PVC stand-pipe
g. Canister
h. Diverter
Included a
Figure 1
c
b
f
d
e
WARNING
The QuikDekClor must be installed by a licensed or certified
plumber or a qualified pool professional adhering to all
applicable local codes and ordinances.
g
h

© Copyright 2020 A&A Manufacturing. All rights reserved.Page 4
Rev. 20200108
Locating the QuikDekClor

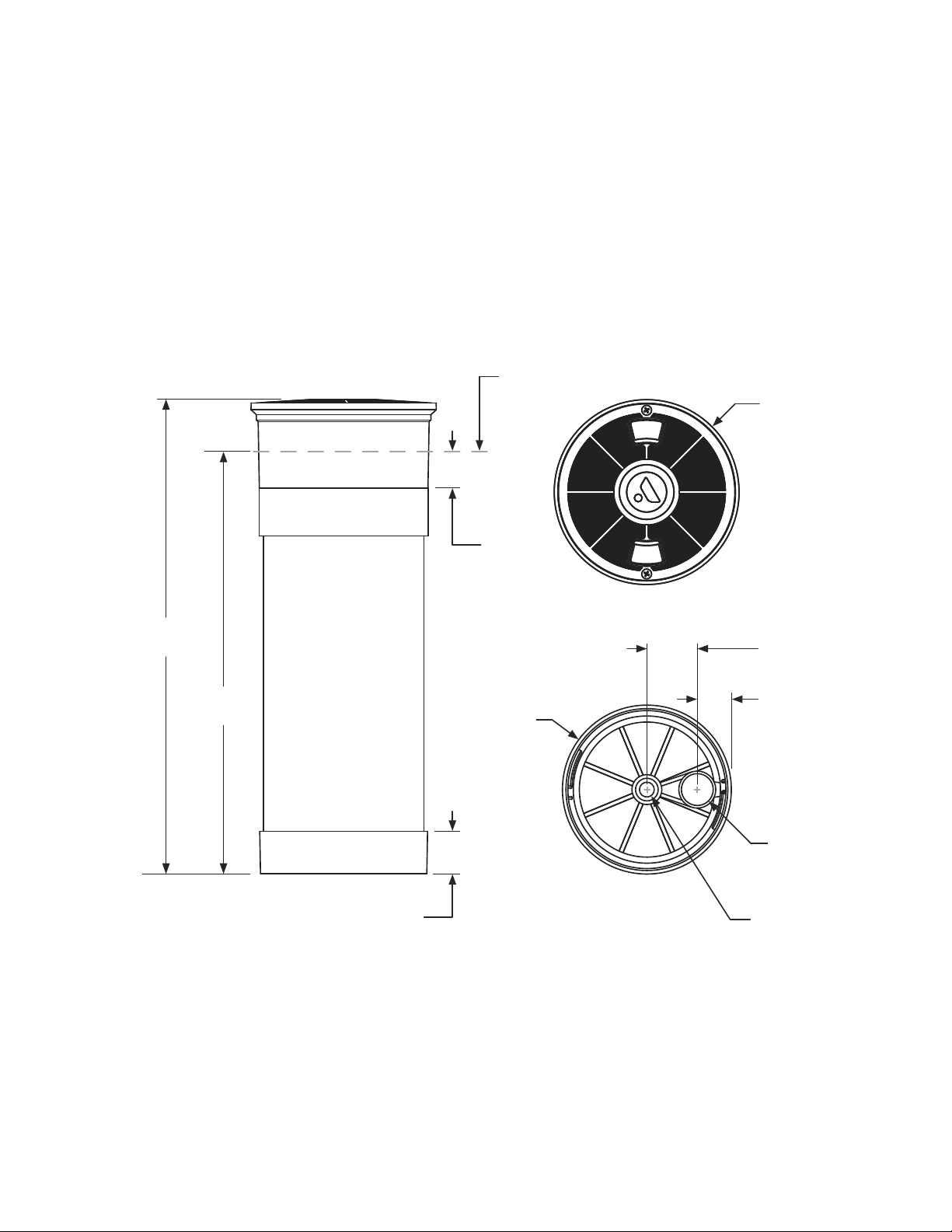

Position the QuikDekClor using the following image (Figure 2).
Figure 2
0.75”
Socket
17.39”
(442mm)
19.39”
(493mm)
Ø 6.96”
(177mm)
Ø 8.25”
(210mm)
Top of
Canister
1.50”
(38mm)
1.74”
(44mm)
2.08”
(53mm)
1.40”
(36mm)
1.00”
Socket
IMPORTANT
DO NOT install over steps or benches.

© Copyright 2020 A&A Manufacturing. All rights reserved. Page 5
Rev. 20200108

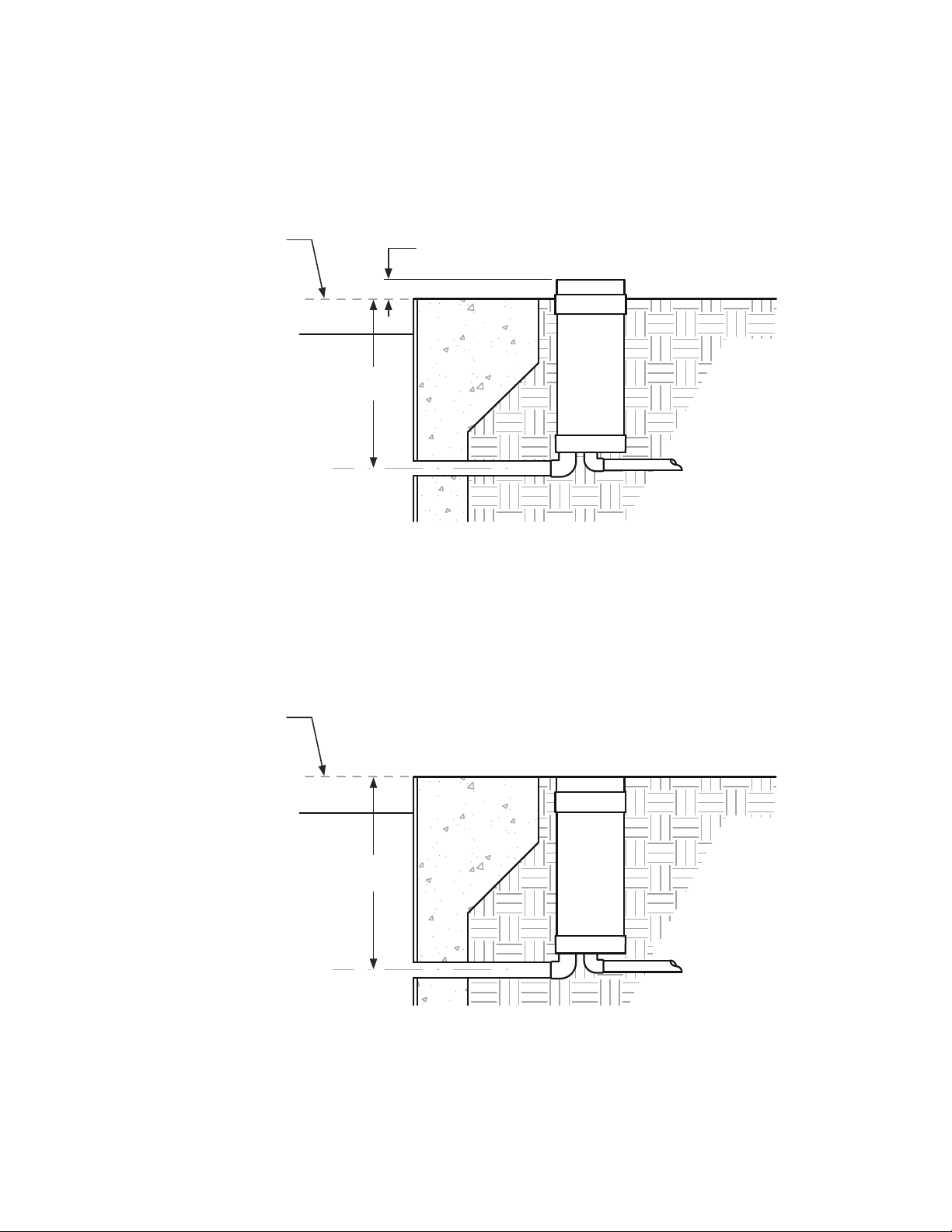

1. To ensure a proper height for poured concrete decks, the top of the QuikDekClor canister
should be set 2” above the top of the bond beam and as close to the form as possible. This
setting will position with the 1” balance line approximately 15” below the top of the form
(Figure 3).
Figure 4
Water Line
17.00”
(432mm)
Top of
Bond Beam
Figure 3
Water Line
15.00”
(381mm)
Top of
Bond Beam 2.00”
(51mm)
2. When using travertine or other thin deck material, make sure the top of the QuikDekClor
canister is flush with the top of the bond beam and as close to the form as possible. This
setting will position with the 1” balance line approximately 17” below the top of the form
(Figure 4).
3. Once the desired height for the deck type listed above is identified, the glued connection can
be made. The lid and deck-ring can be adjusted and set by the deck personnel.

© Copyright 2020 A&A Manufacturing. All rights reserved.Page 6
Rev. 20200108

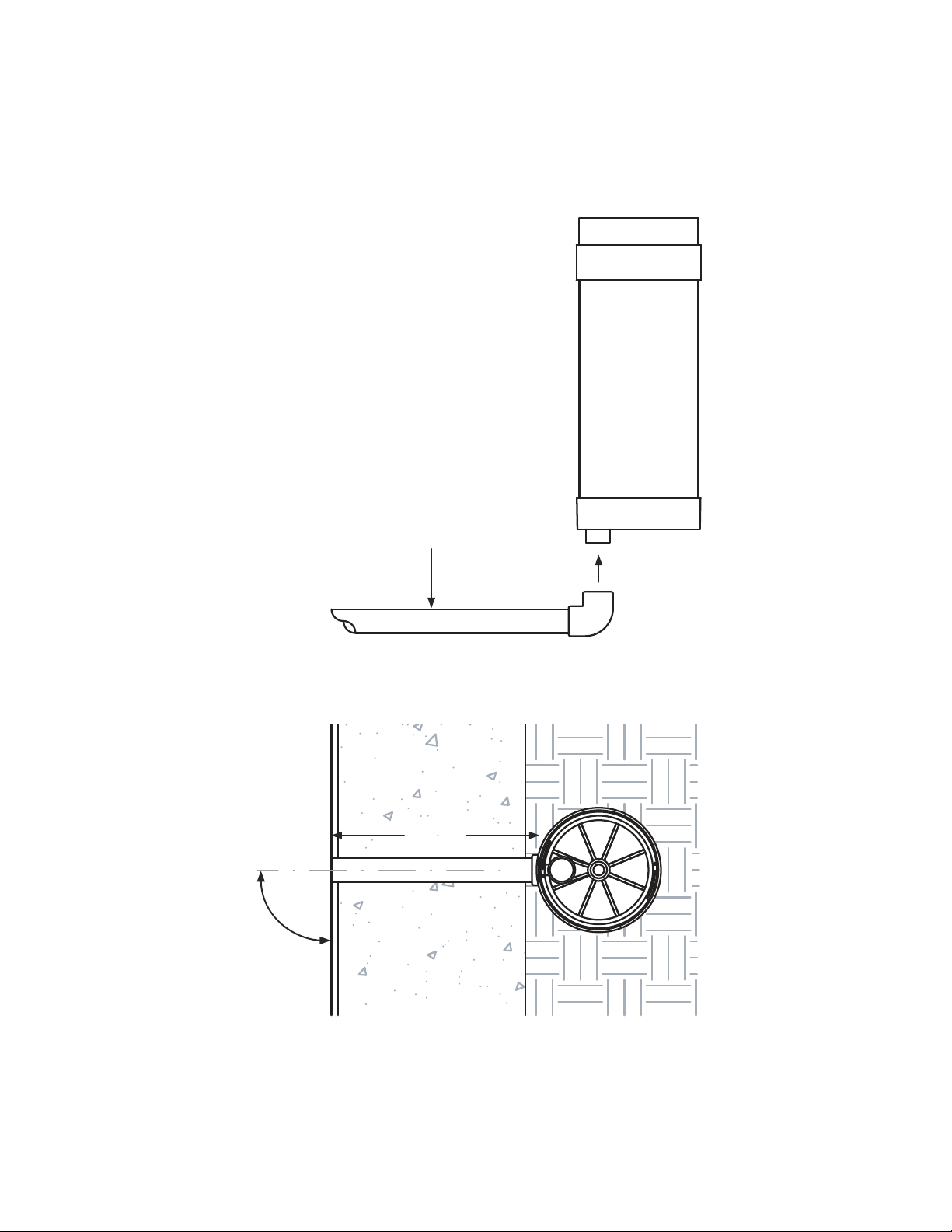

Plumbing the Balance Line
1. Using 1” PVC the balance line can be
installed by gluing a 2 inch long piece of
pipe into the bottom of the canister and
once that joint has set, dry-fit a 90° elbow
(Figure 5a).
2. From the 90° elbow, glue an 18 inch length
of pipe and cap the end. Configure the
balance line so that it extends into the pool
at a 90° angle to the finished pool wall.
Now glue the dry-fit 90° elbow in place
(Figure 5b).
Dry-fit
18” pipe
Length
90°
Figure 5
b
a
18.00”
(457mm)

© Copyright 2020 A&A Manufacturing. All rights reserved. Page 7
Rev. 20200108

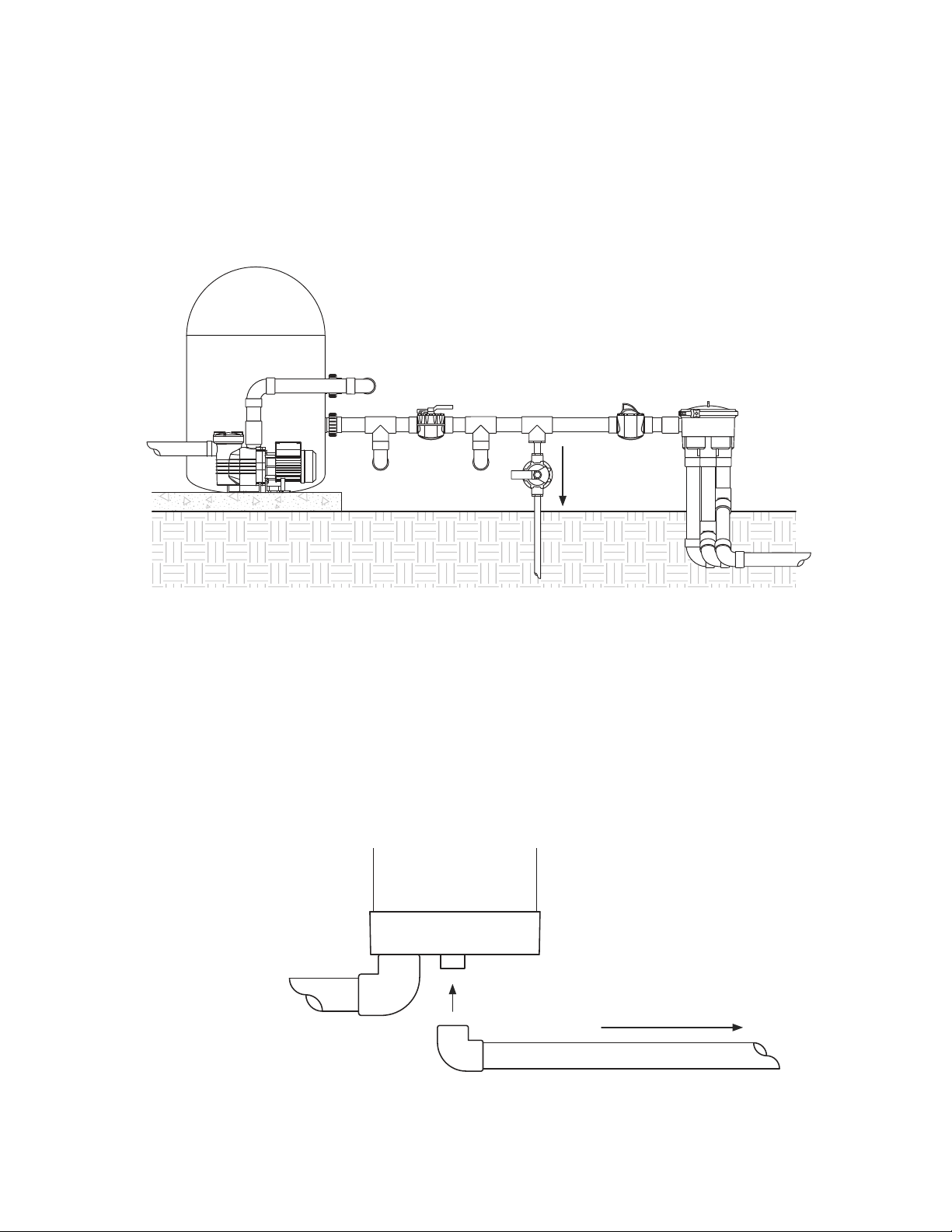

1. After the filter on the circulation return line, plumb a the main-line that will provide the supply
water to feed line for the QuikDekClor. Use a gate-valve just below the Tee in the header
(Figure 6). This valve will regulate the amount of water flow through the QuikDekClor and
ultimately regulate the amount of chlorine that enters the pool.
Plumbing the Feed Line
2. Using 0.75” PVC the feed line can be installed by gluing a 1.5 inch long piece of pipe into the
center socket on the bottom of the canister and once that joint has set, dry-fit a 90° elbow.
3. From the 90° elbow, glue an 18 inch length of pipe and cap the end. Configure the feed line so
that pipe lines up with the main-line coming from the 0.75” gate-valve. Now glue the dry-fit
90° elbow in place (Figure 7).
Figure 6
Water
Feed Line
Figure 7
Dry-fit Connect to
Water Feed Line

© Copyright 2020 A&A Manufacturing. All rights reserved.Page 8
Rev. 20200108

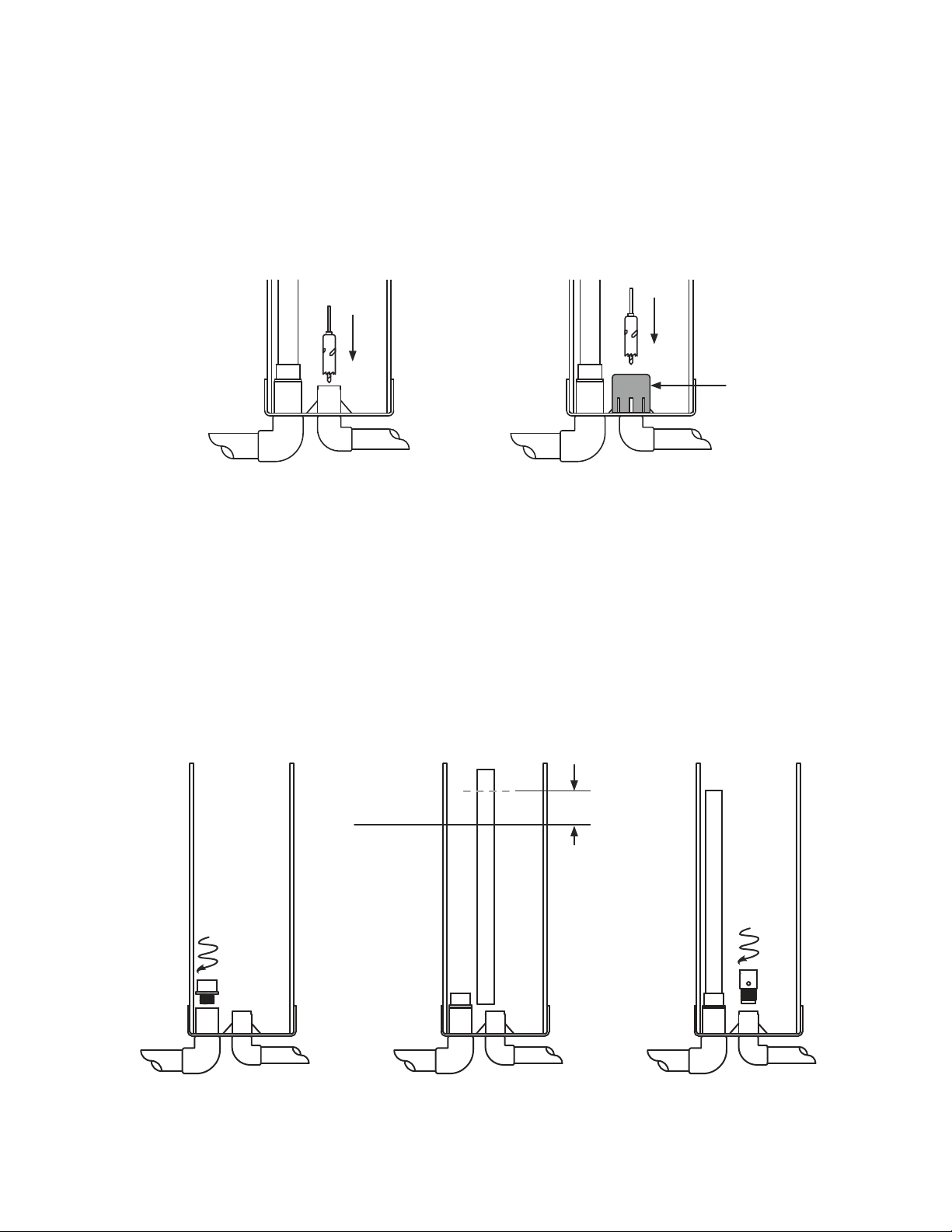

2. A membrane has purposefully been molded over the top of the 0.75” inlet port. This must
remain intact to allow for pressure testing the feed line. Prior to the start-up, this membrane
must be drilled out with a minimum of a 3/8” drill bit. Care should be taken not to drill too
deep and damage the plumbing that has been glued into the bottom of the canister. (A drilling
tool is available for purchase that will automatically center the drill bit and provide a depth
stop for perfectly drilled holes.)
2. Install the 1” threaded male adaptor (Figure 7a) and fill the canister with water to gravity test
the tank and glue joints.
3. At start-up, the 1” PVC stand-pipe, inside the QuikDekClor canister, should be cut so that it
extends approximately one inch above the pool’s water level. Once trimmed to the appropriate
length, push the stand-pipe into the supplied female adapter at the bottom of the canister
(Figure 7b).
4. Now the diverter can be installed into the 0.75” inlet port, in the bottom center of the canister
(Figure 7c).
Figure 6
Figure 7
Water Line
1.00”
(25mm)
a b c
Drilling
Tool

© Copyright 2020 A&A Manufacturing. All rights reserved. Page 9
Rev. 20200108
Limited Warranty
To original purchasers of this equipment, A&A Manufacturing will
warrant the QuikDekClor from defects in materials and workmanship
for a period of one year from the date of purchase.
The limited warranty excludes damage from freezing, negligence,
improper installation, improper use or care or any Acts of God. Parts
that fail or become defective during the warranty period shall be
repaired or replaced, at A&A Manufacturing’s option, within 90 days
of the receipt of defective product, barring unforeseen delays, without
charge. Proof of purchase is required for warranty service. In the
event proof of purchase is not available, the manufacturing date of
the product will be the sole determination of the purchase date. To
obtain warranty service, please contact the place of purchase. A&A
Manufacturing shall not be responsible for cartage, removal, repair or
installation labor or any other such costs incurred in obtaining warranty
replacements or repair.
The A&A Manufacturing warranty does not apply to components
manufactured by others. For such products, the warranty established
by the respective manufacturer will apply. The express limited
warranty above constitutes the entire warranty of A&A Manufacturing
with respect to its pool products and is in lieu of all other warranties
expressed or implied, including warranties of merchantability or fitness
for a particular purpose. In no event shall A&A Manufacturing be
responsible for any consequential, special or incidental damages of any
nature.
Please retain for your records.
