ABB NOCH0070-6 Series User manual

ABB drives
Hardware manual
du/dt filters
AOCH0260-70
AOCH0400-70
NOCH0016-6x
NOCH0030-6x
NOCH0070-6x
NOCH0120-6x
NOCH0260-60
NOCH0400-60
NOCH0760-60

3AFE58933368 REV G
EN
EFFECTIVE: 2009-09-15
©2009 ABB Oy. All Rights Reserved.

Table of contents
3
Table of contents
Table of contents
About this manual
What this chapter contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Target audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation principle
What this chapter contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operation principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Graphs illustrating the effect of the du/dt filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting the du/dt filter
What this chapter contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Filter selection procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Applicability checks of the pre-selected filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maximum current and heat dissipation capacity of the filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation
What this chapter contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
General notes and restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mechanical installation and tightening torques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

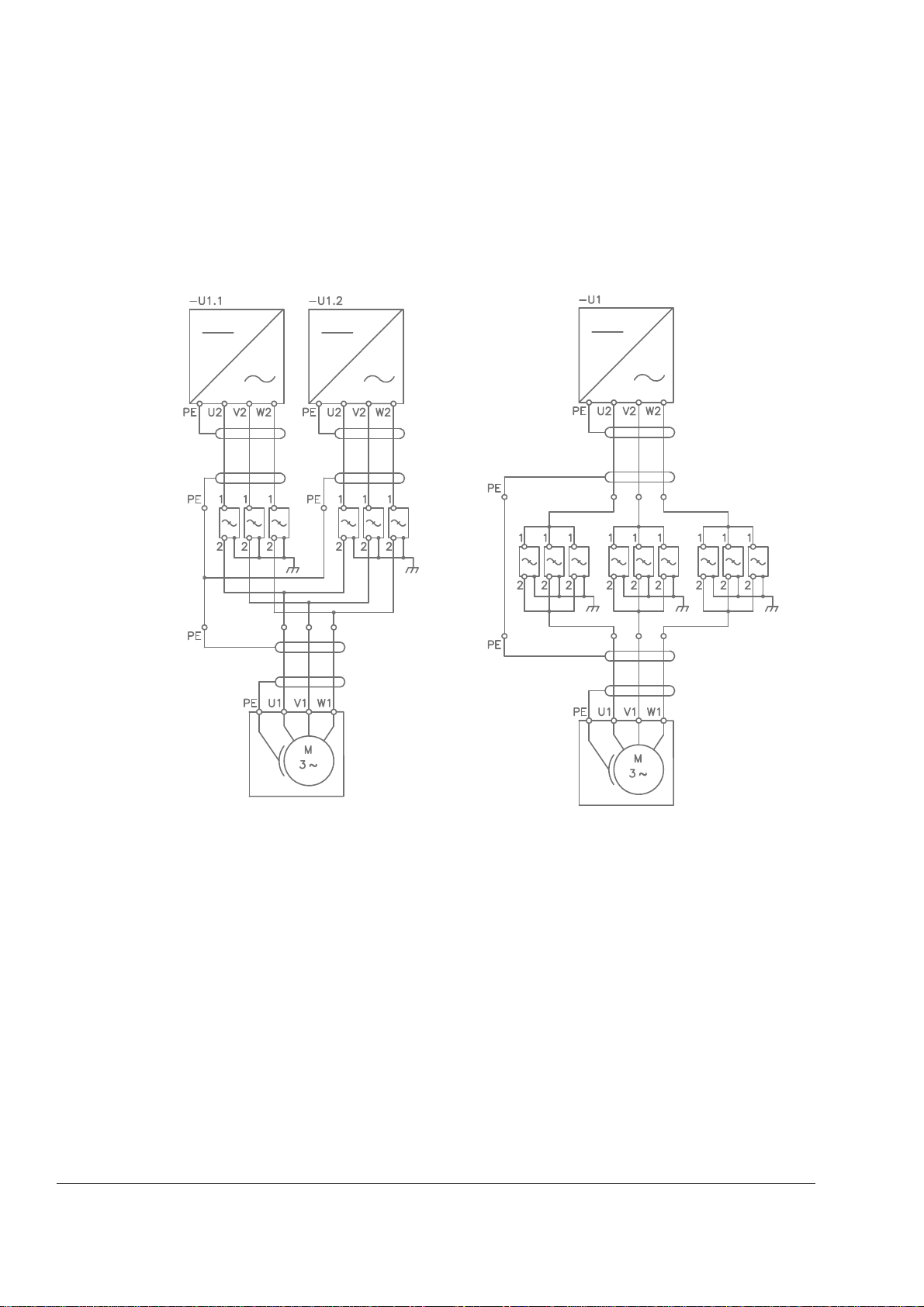

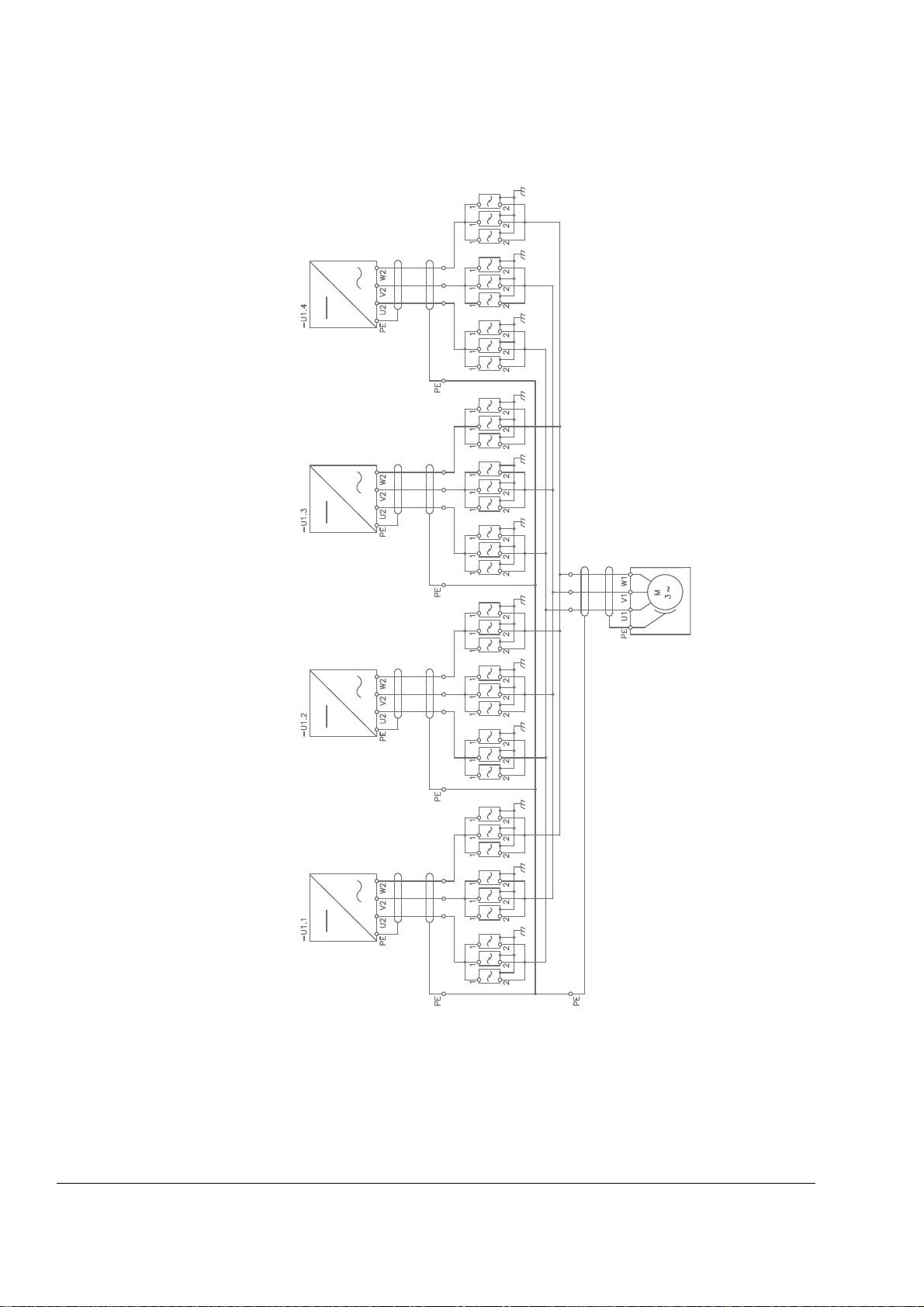

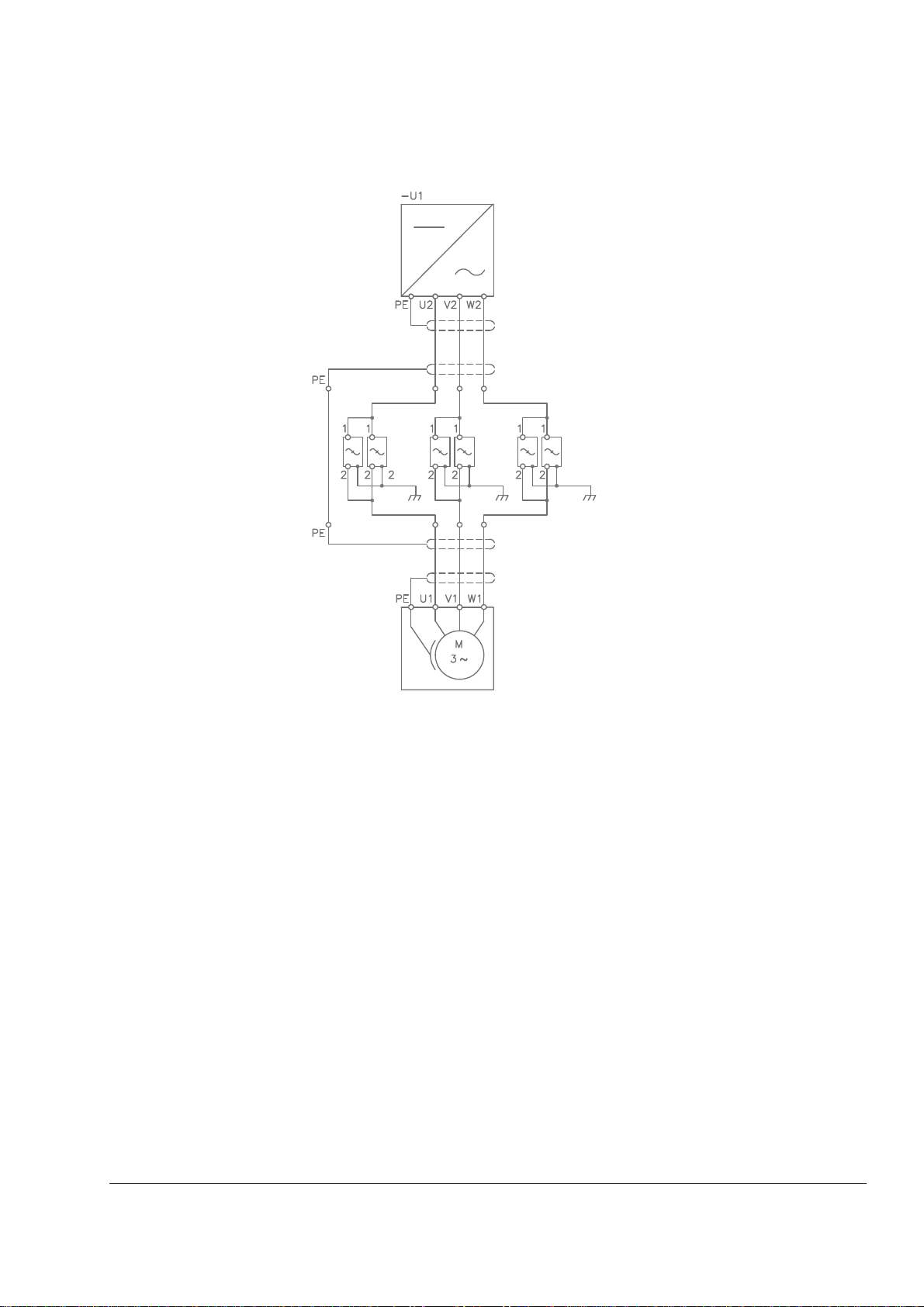

Power connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Detail photos of the NOCH0120-6 connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Technical data
Ambient conditions, operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Ambient conditions, storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Ambient conditions, transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table of contents
4
Internal circuit diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Dimension drawings
Further information
Product and service inquiries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Product training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Providing feedback on ABB Drives manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Document library on the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

About this manual
5
About this manual
What this chapter contains
The chapter describes the target audience and safety in short.
Target audience
The manual is intended for people who select, plan the installation, install,
commission and use the du/dt filter. Read the manual before working on the filter.
The reader is expected to know the fundamentals of electricity, wiring, electrical
components and electrical schematic symbols.
The manual is written for readers worldwide. Both SI and imperial units are shown.
Safety
Only qualified specialists are allowed to install, commission and maintain the du/dt
filter.
The complete safety instructions for the drive are given in the drive hardware
manual. Read and follow the complete safety instructions before working on the
drive.
The following instructions are intended for all who install and service the du/dt filter.
Ignoring the following instructions can cause physical injury or death, or damage to
the equipment.
WARNING!
•The filter is heavy. Lift the filter by the lifting holes only.
•Ground the filter properly:
- Fasten the filter with the four fastening screws to a metallic installation base.
- Ensure that there is a proper galvanic connection in between the base and
the PE busbar of the cabinet.
•Beware of hot surfaces. The surface temperature of the du/dt filter can exceed
150 °C (302 °F) during operation. Let the filter cool off for two hours before
servicing it.
•Ensure sufficient cooling. See chapter Installation.

About this manual
6

Operation principle
7
Operation principle
What this chapter contains
The chapter describes the operation of the du/dt filter and the intended use.
Operation principle
The drive employs modern IGBT inverter technology. Regardless of frequency, the
drive output comprises pulses of approximately the drive DC bus voltage with a very
short rise time. The pulse voltage can almost double at the motor terminals,
depending on the attenuation and reflection properties of the motor cable and the
terminals. This can cause additional stress on the motor and motor cable insulation.
Modern variable speed drives with their fast rising voltage pulses and high switching
frequencies can generate current pulses that flow through the motor bearings, which
can gradually erode the bearing races and rolling elements.
The common mode filters mainly reduce bearing currents. The du/dt filters also
protect the motor insulation system.
To avoid damage to motor bearings and insulation system:
• Select and install the cables according to the instructions given in the hardware
manual.
• Check if the installation needs to be equipped with additional protection
equipment, such as insulated N-end bearings in the motor, or the drive output
filters. The requirements are specified in the drive Hardware manual. See chapter
Planning the electrical installation, section Selecting the motor, and chapter du/dt
filter.

Operation principle
8

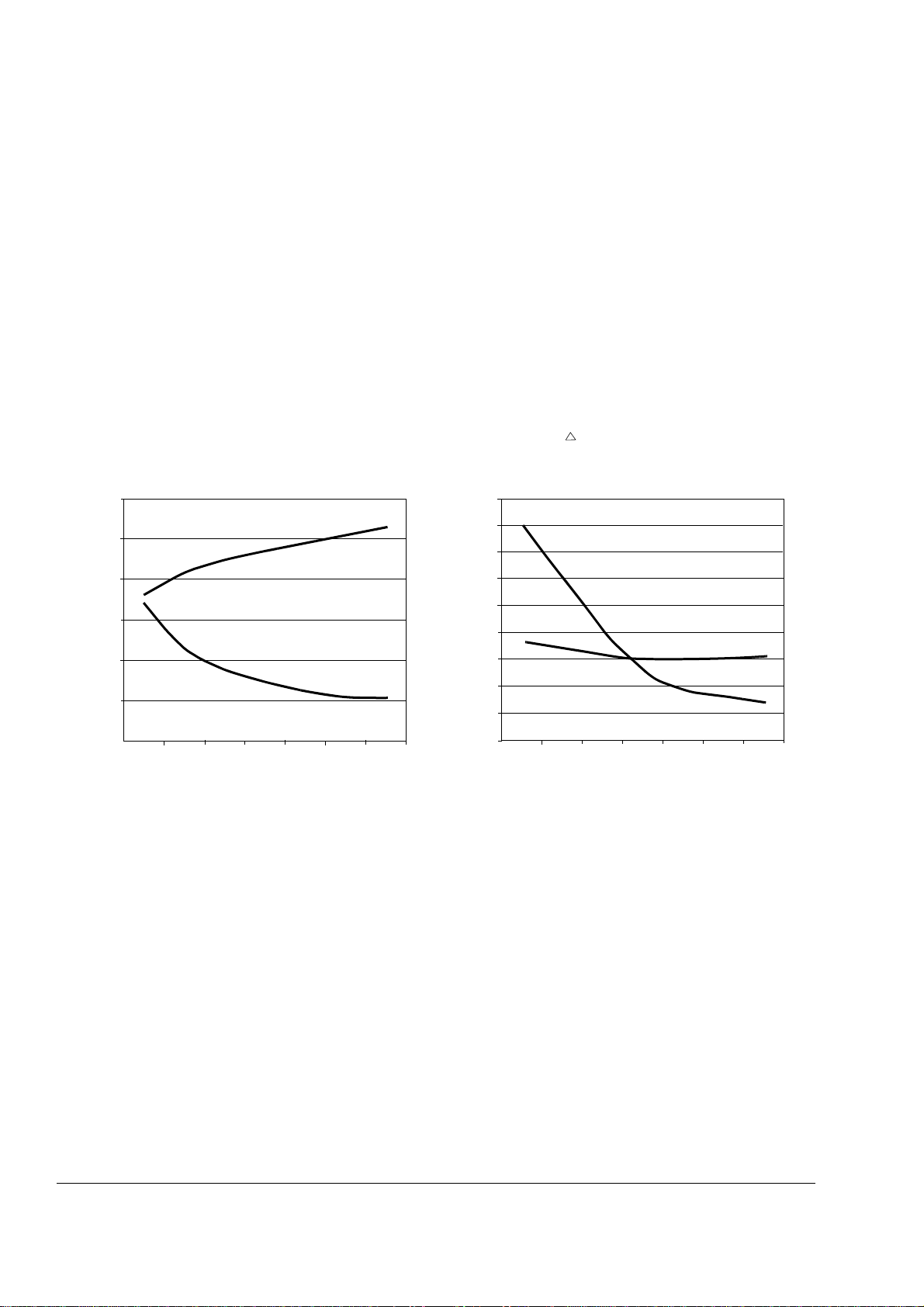

Graphs illustrating the effect of the du/dt filter
The graphs show the peak line-to-line voltage (ÛLL
) and voltage change (du/dt) at
the motor terminals as a function of the motor cable length.
ÛLL and du/dt are scaled
to the nominal line-to-line voltage
(UN ). To calculate the actual peak voltage value in
volts and du/dt value in volts per microsecond, multiply the values of the graph by
the supply voltage
(UN ).
The values in the first graph are measured with an ABB du/dt filter while the second
graph without any output filtering. The values in the second graph are only
representative. The actual unfiltered du/dt values depend on the drive type, and are
usually in the range of 1 to 5 kV/microsecond.
In case of drives with an IGBT supply unit or resistor braking, the ÛLL and du/dt
values are approximately 20% higher.
The voltage rise time can be calculated as follows: t = 0.8 · ÛLL/(du/dt).
ÛLL/UN
Without du/dt Filter
Cable length (m)
du/dt
UN
-------------(1/μs)
1.0
2.0
5.0
4.0
3.0
1.5
2.5
3.5
4.5
100 200 300
100 200 300
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Cable length (m)
With du/dt Filter
du/dt
UN
-------------(1/μs)
ÛLL/UN
5.5

Selecting the du/dt filter
9
Selecting the du/dt filter
What this chapter contains
The chapter instructs in selecting a du/dt filter for your drive.
Filter selection procedure
1) For the ACS800 drives, the data can be found either from the appropriate Technical catalog or
Hardware manual. The PDF files are available at www.abb.com/drives.
Applicability checks of the pre-selected filter
Long or several parallel motor cables, or special cable types may cause excessive
temperature rise in the filter. Therefore, check that the pre-selected filter fulfils these
general requirements valid for every installation:
• The motor cable length does not exceed the maximum allowed length. The
maximum length is given in the Hardware manual of the drive. For some filter
types the length is still restricted independent on the drive type. Check the
maximum values in section General notes and restrictions starting from page 11.
• The energy loss in the du/dt filter does not exceed the maximum heat dissipation
capacity of the filter (Emax) given in subsection Maximum current and heat
dissipation capacity of the filter below. The energy loss is calculated as follows:
E= ½ · C · (Udc)2where
• The current through the filter does not exceed the maximum value given in
subsection Maximum current and heat dissipation capacity of the filter below.
Step What to do More information
1. Check whether a du/dt filter
is needed in the installation. The requirements are specified in the drive Hardware manual. See chapter Planning the electrical installation,
section Selecting the motor, and chapter du/dt filter.1)
2. Pre-select a filter according
to the drive type. Filter selection tables are in the drive Hardware manual.1) The pre-selected filter is suitable for most applications.
3. Check that the pre-selected
filter is suitable for your
application.
Section Applicability checks of the pre-selected filter below.
If the checks are passed, use the pre-selected filter. If any of
the conditions is not met, choose a bigger filter, use two
filters in series or change the motor cabling.
E energy loss in the du/dt filter
C total capacitance of the motor cable(s), i.e. the product of the capacitance/length value
given in the cable catalogue and the length of the motor cable. In case of parallel motor
cables, the total capacitance is the sum of the individual cable capacitance.
Udc average intermediate circuit DC voltage of the drive = approximately 1.35 · UN
UNsupply voltage.
=
=
=
=

Selecting the du/dt filter
10
Maximum current and heat dissipation capacity of the filter
The maximum current (Ith) and heat dissipation capacity (Emax) of the filter are given
in the table below.
400 V 500 V 690 V
Du/dt filter type Ith / Arms Ith / Arms Ith / Arms Emax / mJ Ploss / W
NOCH0016-60/2 19 19 15 24 110
NOCH0016-65 19 19 15 8 58
NOCH0030-60/2 41 41 28 28 167
NOCH0030-65 41 41 28 9 95
NOCH0070-60/2 112 112 65 35 210
NOCH0070-65 112 112 65 12 150
NOCH0120-60 178 164 113 94 240*
NOCH0120-62 166 157 113 47 210*
NOCH0120-65 166 157 113 15 180*
NOCH0260-60 375 345 230 134 441*
NOCH0400-60 521 495 351 252 750*
AOCH0260-70 1) 261 258 177 94 309*
AOCH0400-70 1) 445 440 280 176 525*
AOCH0260-70 2) 375 345 230 134 441*
AOCH0400-70 2) 521 495 351 252 750*
1) Filters mounted on top of each other
2) Filters mounted side by side
* Value is for a kit, which includes three filters.

Installation
11
Installation
What this chapter contains
This chapter contains general note and restrictions to be considered in the
installation, and shows the connections diagrams.
General notes and restrictions
WARNING! Do not attempt any work on a powered drive. After switching off the
mains, always allow the intermediate circuit capacitors 5 minutes to discharge before
working on the frequency converter, the motor or the motor cable. Check (with a
voltage indicating instrument) that the drive is in fact discharged before beginning
work.
• Encase the non-enclosed (IP00) filters to meet the safety requirements (for
cabinet installation solely).
• Beware of hot surfaces. The surface of the IP22/IP54 filter housing can reach a
temperature up to 40 °C higher than the ambient temperature.
• Use shielded cable between enclosures.
• Mount the filter on a mounting structure that is of non-flammable material and
strong enough to carry the weight of the filter.
• Ground the filter to the protective earth (PE) terminal of the cabinet. No separate
grounding conductor is needed if there is proper galvanic connection through the
filter fixing screws and the mounting plate.
•Maximum allowed drive output frequency: 120 Hz
•Maximum allowed average switching frequency:
3 kHz (converter units with supply voltage < 500 V) or
2 kHz (converter units with supply voltage > 500 V)
Change the switching frequency with a drive parameter. If there is no such
parameter in the drive sw, apply the settings to be used with long motor cables.
For example, for the ACS850 drive, set parameter 40.01 Motor noise to value
Default.
•Maximum cable length between the drive output and the filter: 3 m
•Maximum motor cable length for AOCH0xxx-70 filters: 300 m (cumulative for
several parallel-connected motors)

Installation
12
•Maximum motor cable length for NOCH0xxx-6x filters (cumulative for several
parallel-connected motors):
• The filters cool by natural convection. The air space above the filter is hot (up to
70 °C (158 °F) depending on the installation and operating conditions). Take this
into account in the cabinet design.

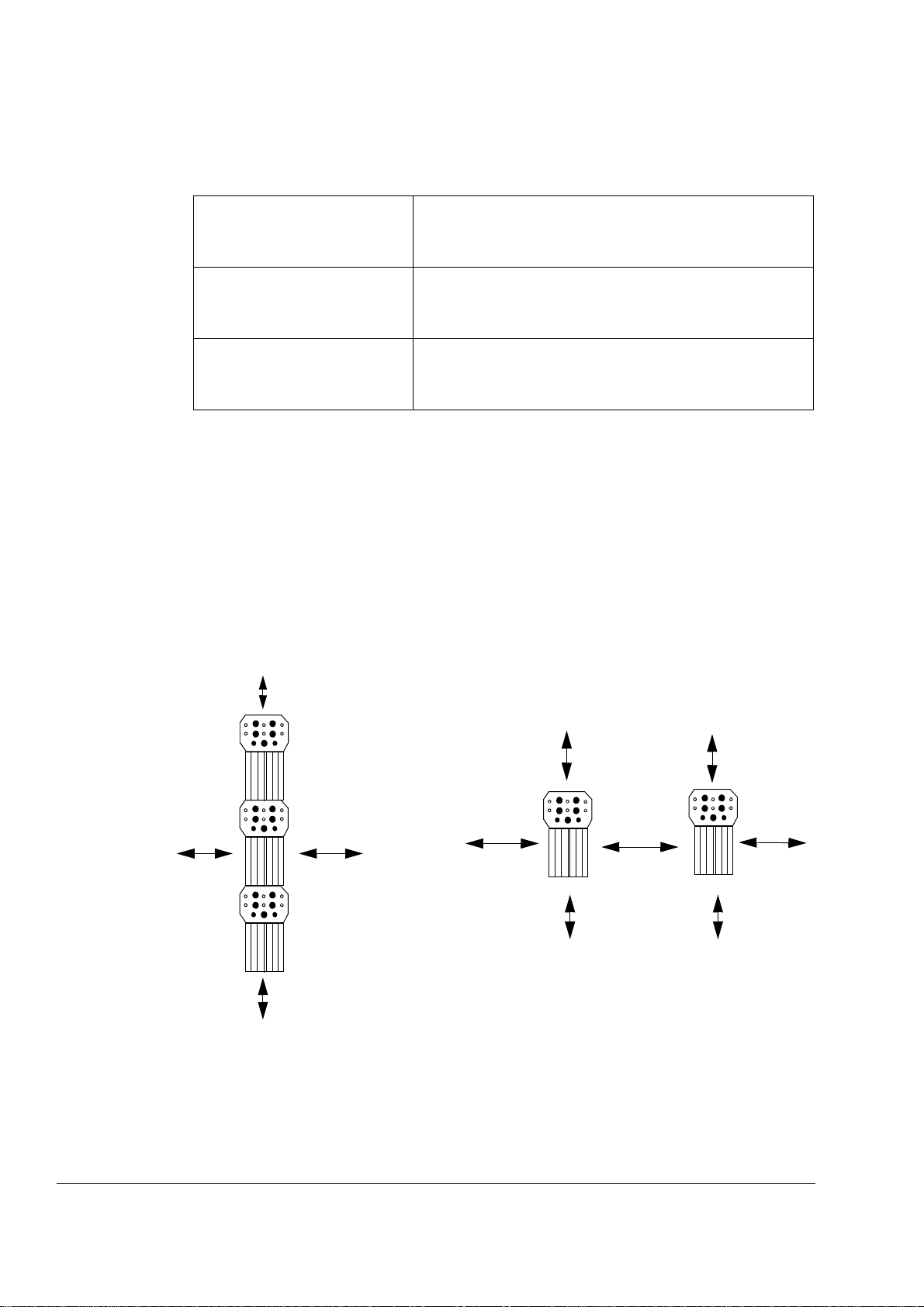

• The following free space requirements apply for the AOCH0xxx-70 filters:
150 mm free space on each free side. Exception: 500 mm above the filter if
installed below the drive. Exception: 50 mm between the single phase filters
which are connected to the same drive.
If filters are mounted on top of each other with single drive types 0320-5,
0610-5 and 0610-7, the filters need a minimum of 700 m3/h of forced cooling.
Maximum of three filters can be mounted on top of each other.
NOCH0016-60/62
NOCH0030-60/62
NOCH0070-60/62
NOCH0120-62
150 m
(can be increased to 300 m by
connecting two filters in series)
NOCH0016-65
NOCH0030-65
NOCH0070-65
NOCH0120-65
50 m
(can be increased to 100 m by
connecting two filters in series)
NOCH0120-60
NOCH0260-60
NOCH0400-60
NOCH0760-60
300 m
150 / 500 mm
150 mm
150 mm
150 mm
150 / 50 mm
150 mm
150 mm
150 / 500 mm
150 mm
AOCH filters side by side
AOCH filters on top of each other

Installation
13
•NOCH0xxx-6x filters cool by natural convection, thus the following free space
requirements apply:
Enclosed (IP22 and IP54) filter units:
300 mm on each free side. Exception: 500 mm above the filter if installed below
the drive.
Non-enclosed (IP00) filter units:
300 mm on each free side. Exception: 50 mm between single phase filters
connected to the same drive. Exception: 500 mm above the filter if installed
below the drive.
• Busbar and enclosure clearance distances from the input and output terminals
and coil surfaces must be at least 15 mm (0.59 in.). Pay attention to the local
regulations. Note: Due to high temperature of the coil surfaces during operation,
route the motor cables at least 50 mm (1.97 in.) away from the coil surfaces and
secure them appropriately.
Mechanical installation and tightening torques
1. Lift the filter by the lifting holes to the installation position.
2. Fasten the filter with four screws at the fastening points in the mounting legs.
See chapter Dimension drawings for the dimensions.
Tightening torque
The following table applies to grade 8.8 screws with or without joint compound.
Screw Torque
[Nm] [lbf ft]
M5 3.5 2.6
M6 9 6.6
M8 20 14.8
M10 40 29.5
M12 70 51.6
M16 180 132.8

Installation
14
Power connection diagrams
NOCH0260-60
NOCH0400-60
NOCH0760-60
NOCH0400-60

Installation
15
NOCH0016-6x
NOCH0030-6x
NOCH0070-6x
NOCH0120-6x
NOCH0260-60
NOCH0400-60
NOCH0760-60
AOCH0260-70
AOCH0400-70

Installation
16
NOCH0760-60

Installation
17
NOCH0400-60

Installation
18
NOCH0400-60

Installation
19
AOCH0400-70
AOCH0260-70

Installation
20
Detail photos of the NOCH0120-6 connection
Isolate the ends
ofthecablelugs
with insulating
tape or shrink
tubing.
PE
NOCH0120-6x: Cable lug installation
[16to70mm
2(6 to 2/0 AWG) cables]
NOCH0120-6x: Cable terminal installation
[95to185mm
2(3/0 to 350 AWG) cables]
a. Connect the cable to the terminal.
b. Connect the terminal to the drive.
WARNING! If the wire size is less
than 95 mm2 (3/0 AWG), a cable lug
must be used. A cable of wire size
less than 95 mm2 (3/0 AWG)
connected to this terminal will
loosen and may damage the drive.
PE
b
a
