Technical Note 093
Replacing an ETM with the keypad
Easy retrofit or add to any system
ETMs (elapsed time meters) areimportant for VFDs, especially in the W&WW industry. They are used to view equipment
run times, which is beneficial for scheduling maintenance. The traditionalsolution isto install aseparate ETM on the
VFD control panel. While functional, adding a separate ETM to theVFD control panel today adds unnecessary costs
since the 580-drive series has an ETM built into the control panel (keypad). The VFD’s built in ETM is readily available
and non-resettable on the control panel’s “home view” and does not require diving deep into the VFD parameters. The
ETM is flexible and shows hours, days of running, or how long the VFD has been powered. This document is applicable
for ACH580, ACQ580, and ACS580 drives and will show how to setup the ETM on the keypad’s home screen.
Accessing and setting up the ETM on the keypad (control panel) home screen
The ETM functionality is accessed on the control panel by selecting the following:
Options > Edit Home view > Select Screen Location to insert ETM > Edit > Parameter > Other > 05 Diagnostics
> 05.03 Hours run (hours)
Refer to the control panel screen shots below for step-by-step instructions to access the different ETM parameters.
Note: the example below is froman ACQ580 drive, the steps areidentical for the ACH580 and ACS580 drives. This run-
time counter is non-resettable.
Steps for setting up 05.03 Hours run (hours)

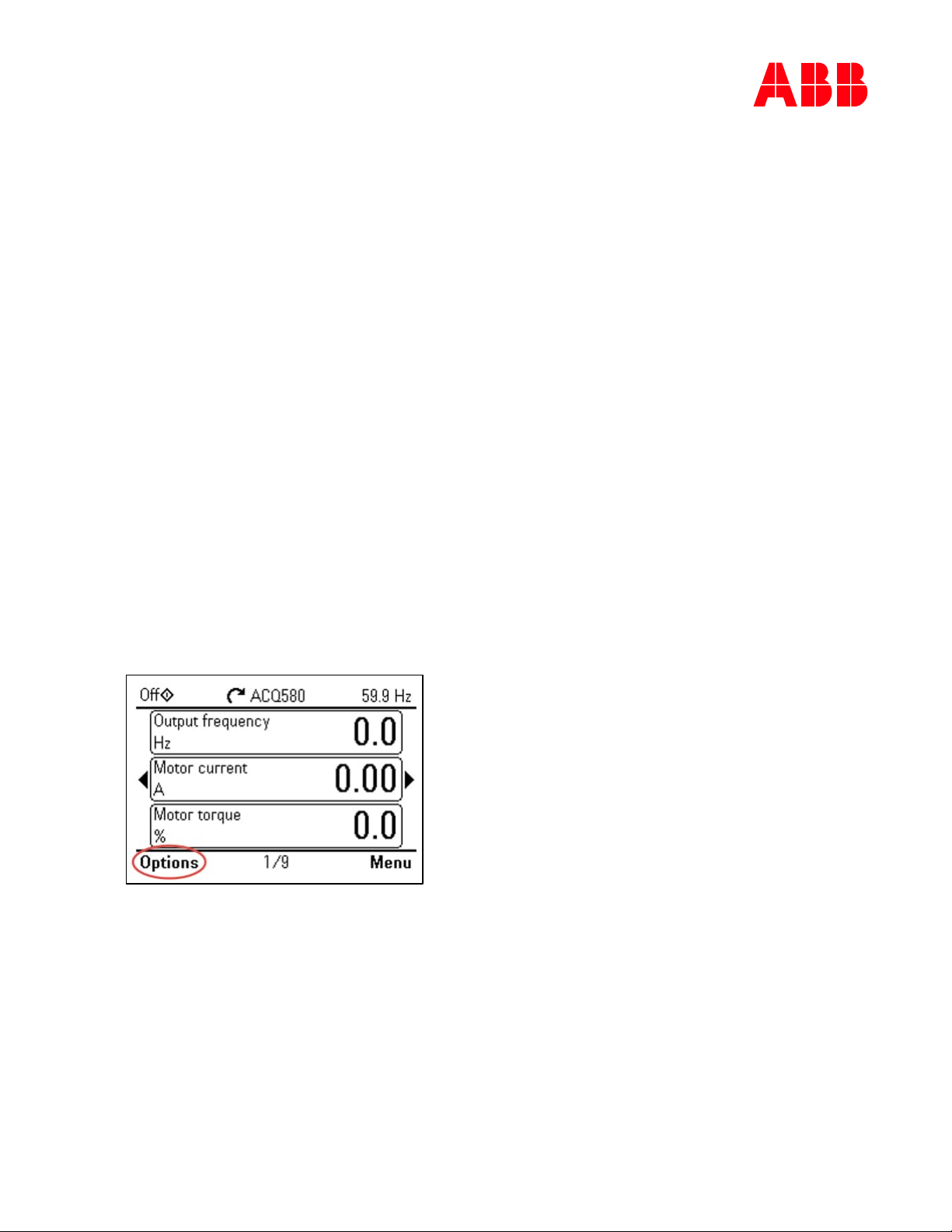

Figure 1
1. Open Options
From the Home view, press the left softkey to open Options.
See Figure 1.

LVD-EOTKN093U-EN REV A
Effective:2022-06-17 2
Figure 2
2. Navigate to Edit Home view
Press the down arrow key to navigate to Edit Home view and press the
right softkey to select Edit Home view. See Figure 2.
Figure 3
3. Select panel home screen to display ETM
Press the left or right arrow keys to select the panel home screen where
the ETM is to be displayed and then press the Add using the right
softkey. See Figure 3.
Note: up to three parameters can be displayed per panel home screen.
See Figure 1.
Figure 4
4. Select Parameter
Press Edit using the right softkey. See Figure 4.
Figure 5
5. Navigate to Other
Press the down arrow key to navigate to Other and press the right
softkey. See Figure 5.

LVD-EOTKN093U-EN REV A
Effective:2022-06-17 3
Figure 6
6. Navigate to Parameter 05 Diagnostics
Press the down arrow key to navigate to 05 Diagnostic and press the
right softkey to Select this parameter. See Figure 6.
Figure 7
7. Navigate to Parameter 05.03 Hours run
Press the down arrow key to navigate to 05.03 Hours run and press the
right softkey to Select this parameter. See Figure 7.
Figure 8
8. Select Done
Press Done using the left softkey. See Figure 8. The Hours run is now
shown in the Parameter line.
Figure 9
9. Navigate to the Run-time counterhome screen
Press either the left or right keys to navigate to the Hours run counter
home screen. See Figure9.
The Hour run counter displays the number of hours the VFD has
powered the motor.
Note: the run counters can also be displayed in the number of days the VFD has powered the motor by selecting 05.02
Run-time counter (days) in step 7 above.

LVD-EOTKN093U-EN REV A
Effective:2022-06-17 4
Steps for setting up 05.01 Powered or On-time counter
Figure 1
0
10. Navigate to Parameter 05.01 On-time counter
Follow steps 1 through 6 from above. Press the down arrow key to
navigate to 05.01 Hours run and press the right softkey to Select this
parameter. See Figure 10.
Figure 1
1
11. Select Done
Press Done using the left softkey. The On-time counter is now shown in
the Parameter line. See Figure 11.
Figure 12
12. Navigate to the On-time counterhome screen
Press either the left or right keys to navigate to the On-time counter
home screen. See Figure 12.
The On-time counter displays the number of days the VFD has powered.
Advantages of using the built-in ETM
Adding a separate ETM to a panel adds unnecessary costs to the panel including wiring and a relay (see Figure 13). An
advantage of using the VFD keypad for the ETM, is that the run time information can be communicated through a
SCADAsystem as opposed to using a separate ETM which cannot communicate without providing additional ancillary
equipment. Also, the ETM screen can easily be added on the keypad VFD panel which did not have a separate ETM built
into the panel.
Figure 13
In summary, the 580 drives series keypad can be used to replace a separately mounted ETM on the VFD panel. The

LVD-EOTKN093U-EN REV A
Effective:2022-06-17 5
keypad counters can quickly besetup to show three different counters which include the motor run timein days, the
motor run time in hours, and how long the VFD has been powered for in days. This information can be beneficial for
scheduling maintenance. While functional, adding a separate ETM to theVFD control panel adds unnecessary costs
since the 580-drive series has it built into the keypad.
