Busch-Wächter®
Pos: 2 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Tite lblätter/Waec hter/Titelblatt - 6812 U-101 -- ABB @ 23\mod_133309705 0322_15.docx @ 207226 @ @ 1
Relay insert
6812U
-101-500
=== Ende der Liste für Textmarke Co ver ===

Busch-Wächter
®
| 1473-1-7864
— 2 —
Pos: 4 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Inhal tsverzeichnis ( -->Für alle Dokument e <--)/Inhaltsverzeichn is @ 19\mod_132064904438 6_15.docx @ 109653 @ @1
1Safety....................................................................................................................................................................... 3
2Environment............................................................................................................................................................. 3
2.1 Disposal .................................................................................................................................................. 3
3Technical data.......................................................................................................................................................... 4
4Function ................................................................................................................................................................... 5
4.1 Applications............................................................................................................................................. 5
4.2 Possible combinations ............................................................................................................................ 5
5Connection............................................................................................................................................................... 6
6Mounting / Installation .............................................................................................................................................. 7
6.1 Requirements for the electrician ............................................................................................................. 7
6.2 Mounting ................................................................................................................................................. 8
6.2.1 Mounting height/applications................................................................................................................... 8
7Operation ................................................................................................................................................................. 9
7.1 Auxiliary post operation........................................................................................................................... 9
=== Ende der Liste für Textmarke TOC ===

Busch-Wächter
®
Safety
| 1473-1-7864
— 3 —
Pos: 6 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Über schriften (--> Für alle Dokumen te< --)/1. Ebene/S - T/Sicher heit @ 18\mod_13026127917 90_15.docx @ 103357 @ 1 @ 1
1 Safety
Pos: 7 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokumente < --)/Warnhinweise/Sic herheit - 230 V @ 18\mod_130260681 6750_15.docx @ 103308 @ @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 230 V.
– Work on the 230V supply system may only be performed by authorised electricians!
– Disconnect the mains power supply prior to installation and/or disassembly!
Pos: 8 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Hinw eis/Waechter/ HinweisD okumentation 6812 U-101 @ 23\mod_133309 7915147_15.doc x@ 207270 @ @ 1
0
Information regarding documentation
These operating instructions describe both the standard (Art. No. 6810-21x-101 ...) and the comfort
sensors (Art. No. 6800-xxx-104(M) ...) as "flush-mounted sensors." Please pay attention to the
correct type assignment in the description.
The type designation of your device can be found on the back side of the respective device.
Pos: 9 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Fr eischalten/Waechter /Freischalten - Hinweis G lühlampenwechsel @ 19\mod_ 1309767425499_15.doc x@ 107 609 @ @ 1
Information regarding activation
Activation of the power circuit when the incandescent lamp is changed is possible only by
deactivating an upstream main switch or the automatic circuit breaker.
Pos: 10 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/U - Z/ Umwel t @ 18\mod_130261 4158967_15.docx @ 103383 @ 1 @ 1
2 Environment
Pos: 11 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Umwelt (--> Für alle Dokumente <--) /Hi nwe is e/ Hin wei s - Umwelt - Hinweis Ele ktrogeräte @ 18\mod_1302763 973434_15.doc x@ 103500 @ @ 1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
Pos: 12 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/A - F/Entsorgung @ 20\mo d_1325760636580_15.doc x @ 136573 @ 2 @ 1
2.1 Disposal
Pos: 13 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Umwelt (--> Für alle Dokumente <--) /Hi nwe is e/ Hin wei s - Umwelt - Entsorgung E lektrogeräte @ 20\mod_1325760 695972_15.docx @ 136583 @ @ 1
All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the
packaging material and electric devices and their components via the authorized collecting depots and disposal
companies.
The products meet the legal requirements, in particular the laws governing electronic and electrical devices and
the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)
Pos: 14 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx@ 521 49 @ @ 1

Busch-Wächter
®
Technical data
| 1473-1-7864
— 4 —
Pos: 15 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/S - T/Technische Date n @ 11\mod_1279185386320_ 15.docx @ 83019 @ 1 @ 1
3 Technical data
Pos: 16 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Technische Daten/Waec hter/Technische Daten - 6812 U-101 @ 19\mod_ 1309528690646_15.doc x @ 107563 @ @ 1
Nominal voltage:
230 V ~ ± 10%, 50 Hz
Switching capacity:
700 W / VA (3 A, cos ϕ= 0.5)
Power consumption:
< 1 W
Overload protection, short-circuit
protection:
By upstream automatic circuit breakers
Ambient temperature range:
0 – + 55°C
Pos: 17 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ @ 1

Busch-Wächter
®
Function
| 1473-1-7864
— 5 —
Pos: 18 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1.Ebene/A - F/Funkti on @ 18\mod_1308560693057_1 5.docx @ 106869 @ 1 @ 1
4 Function
Pos: 19 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/A - F/Einsatzgebi ete @ 19\mod_1308663979828 _15.docx @ 107243 @ 2 @ 1

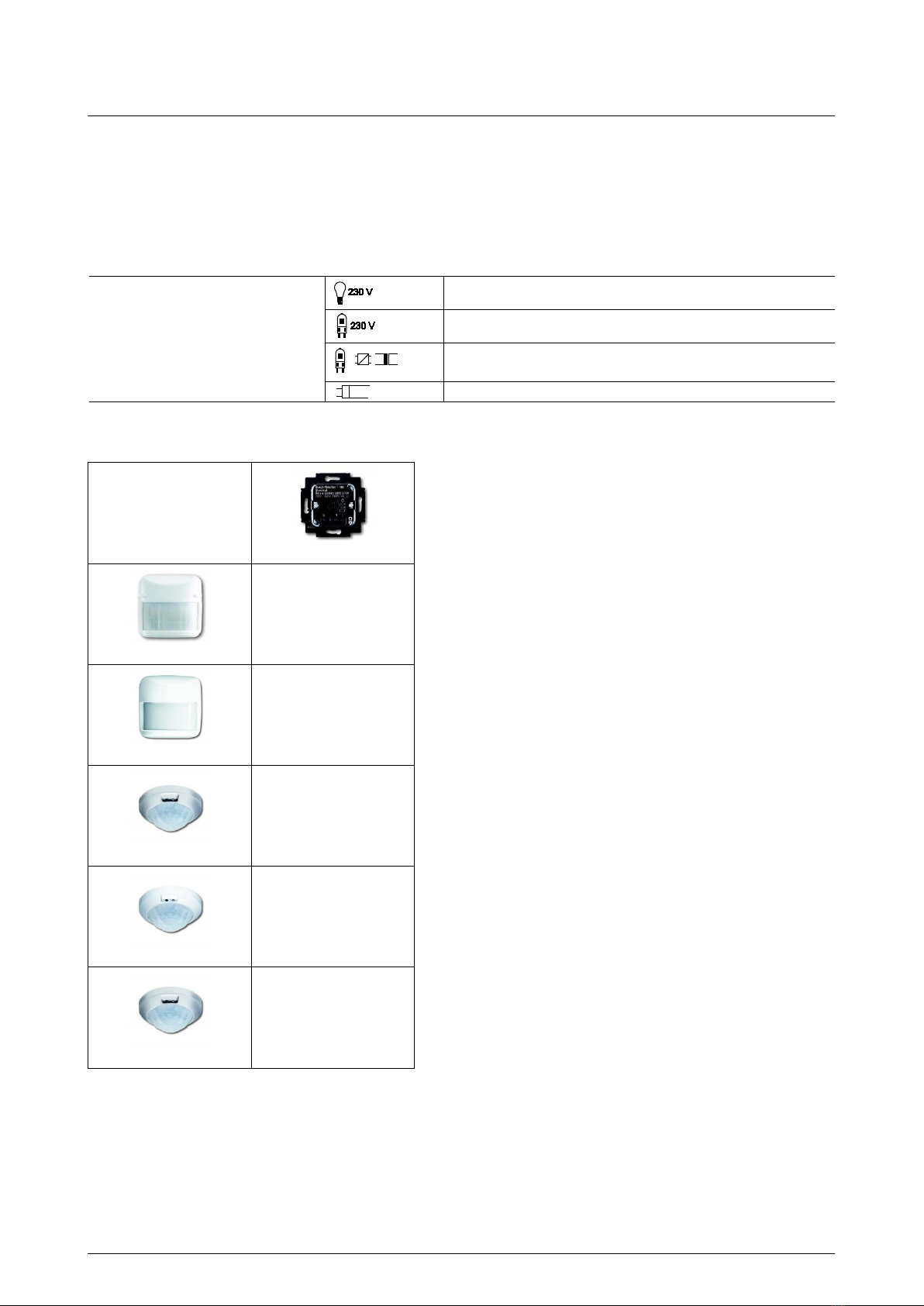

4.1 Applications
Pos: 20 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Las tarten Einleitung/W aechter/Lastarten Ei nleitung - 6812 U-101 @ 20\mod_1326182 558525_15.doc x @ 136873 @ @1
The device is a switch for any loads up to 700 W/VA.
Pos: 21 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Las tarten (--> Für alle Dokumente <--) /Lastarten 01 @ 20\mod_132626915453 5_15.docx @ 136895 @ @1
Load types: 230 V incandescent lamps
230 V halogen lamps
Low-volt halogen lamps with conventional transformers or electronic
transformers
Fluorescent lamps
Pos: 22 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/G - L/ Kombinationsmöglic hkeiten @ 19\mod_1320312769 153_15.docx @ 109520 @ 2 @ 1
4.2 Possible combinations
Pos: 23 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Ko mbinationsmöglic hkeiten/Waechter/Kombin ationsmöglichkei ten - 6812 U-101 @ 23\mod_1333099338753_15. docx @ 207345 @ @1
6812 U ...
6800-xxx-104 ...
X
6810-21x-101 ...
X
6813-(183)-101 ...
X
6813/11-24 ...
X
6813/11-183 ...
X
A combination with active auxiliary posts 6805U ... is not possible.
Pos: 24 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 521 49 @ @ 1

Busch-Wächter
®
Connection
| 1473-1-7864
— 6 —
Pos: 25 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/A - F/Anschluss @ 19\mod_ 1309248278435_15.doc x@ 107 413 @ 1 @ 1
5 Connection
Pos: 26 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Ansc hluss/Waechter/ Anschluss - 6812 U-101 @ 19\mod_1309521799500 _15.docx @ 107551 @ @1
6812U-101 …
Fig. 1: Relay insert 6812U-101 … in connection with an NC contact button
1
Pushbutton/NC contact
6812U-101 …
6812U-101 …
Fig. 2: Parallel connection of relay insert 6812U-101 …
Pos: 27 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> F üralle Dok umente <--)/++++++++++++Seitenumbruch++++++++++++ @ 9\mod_1268898668093_ 0.docx @ 52149 @ @1

Busch-Wächter
®
Mounting / Installation
| 1473-1-7864
— 7 —
Pos: 28 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokument e <--)/1. Ebene/M - O/Montag e / Installation @ 18\mod_13026139 66111_15.docx @ 103373 @ 1 @ 1
6 Mounting / Installation
Pos: 29 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokument e <--)/Warnhinweise/Sic herheit - Niederspannun gs-und 230 V-Lei tungen @ 18\mod_130261782149 1_15.docx @ 103465 @ @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 230 V.
– Low-voltage and 230 V cables must not be installed together in a flush-mounted socket!
In case of a short-circuit there is the danger of a 230 V load on the low-voltage line.
Pos: 30 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokument e <--)/Warnhinweise/Sic herheit - Fachkenntnisse @ 18\m od_1302774384017_15.d ocx @ 103564 @ 2 @ 4
6.1 Requirements for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering knowledge and experience.
•Incorrect installation endangers your life and that of the user of the electrical system.
•Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation are as follows:
•Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect from power;
2. Secure against being re-connected;
3. Ensure there is no voltage;
4. Connect to earth;
5. Cover or barricade adjacent live parts.
•Use suitable personal protective clothing.
•Use only suitable tools and measuring devices.
•Check the type supply network (TN system, IT system, TT system) to secure the following
power supply conditions (classic connection to ground, protective earthing, necessary
additional measures, etc.).
Pos: 31 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ @ 1

Busch-Wächter
®
Operation
| 1473-1-7864
— 8 —
Pos: 32 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/M - O/Montag e @ 18\mod_1302615960458_15. docx@ 10342 4 @ 2 @ 1
6.2 Mounting
Pos: 33 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/alle Geräte/Mo ntage - UP-Dosen - DIN 49073-1 oder geeigne tes Aufputzgehaeuse - Ohne Doc variable @ 20\mod_1325766034 453_15.doc x @ 136593 @ @1
The device may only be installed in suitable flush-mounted sockets (DIN 49073-1) or a suitable surface-mounted
housing.
Pos: 34 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/Waechter/Monta ge - 6812 U-101 @ 19\mod_130976 7988690_15.doc x@ 107625 @ 3 @ 1
6.2.1 Mounting height/applications
To guarantee an optimum function of the flush-mounted sensors, observe the following table.
Flush
-mounted sensor type Mounting height, application B uilt-in position of the
connecting screws
6813
-xxx-10 …
6813/11-xxx …
2.0 – 8.0 m (ceiling mounting) —
6810-21X-101 …
0.8 – 1.2 m (stairwell)
Top
6800
-xxx-104(M) …
0.8 – 1.2 m (stairwell)
Bottom
2.0 – 2.5 m (room monitoring)
Bottom
Fig. 3: Mounting height of stairwell
6810-21X-101 …
6800-xxx-104(M) …
Fig. 4: Mounting height of room monitoring
6800-xxx-104(M) …
In combination with the presence detector 6813 …, only ceiling mounting makes sense. If possible, the presence
detector 6813 … should be installed directly above the workplace.

Busch-Wächter
®
Operation
| 1473-1-7864
— 9 —
Pos: 35 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/A - F/Bedienung @ 11\mod_1279 185541649_15.doc x@ 83043 @ 1 @ 1
7 Operation
Pos: 36 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/M - O/Nebens tellenbetrieb @ 18\mod_1 308568178899_15.doc x@ 1070 29 @ 2@ 1
7.1 Auxiliary post operation
Pos: 37 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Nebenstellenbetreib/ Waechter/Nebenstelle nbetrieb - 6812 U-101 @ 19\mod_1309770 298687_15.docx @ 107649 @ @ 1
In connection with flush-mounted sensors, auxiliary post operation via activation by NC contact button in the
power supply is possible (press for at least one second).
Auxiliary post option via NC contact button (see Fig. 1) in connection with flush-mounted sensors
6810-21x-101 …:
After the NC contact button is actuated, the light is switched on. This response is independent of the respective
light conditions at the mounting position.
In connection with plush-mounted sensors 6800-xxx-10x(M) … and Busch-Watchdog Presence 6813-xxx …:
The function executed on the NC contact button switches on the devices for the time set on the flush-mounted
sensor (at least one minute for time settings less than one minute). This response is independent of the
respective light conditions at the mounting position.
Note
Here, only the short-time pulses forms an exception ( ).
