ABSCO SHEDS 2308WBCK User manual

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 1 21/09/2022
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
AU: 1800 029 701
N Z: 0800 466 444
[email protected]
www.abscosheds.com.au
773 mm
2275 mm
852 mm
• Store up to three 240L garbage bins.
• Maximum internal height 1.11 m

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 2 21/09/2022
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.

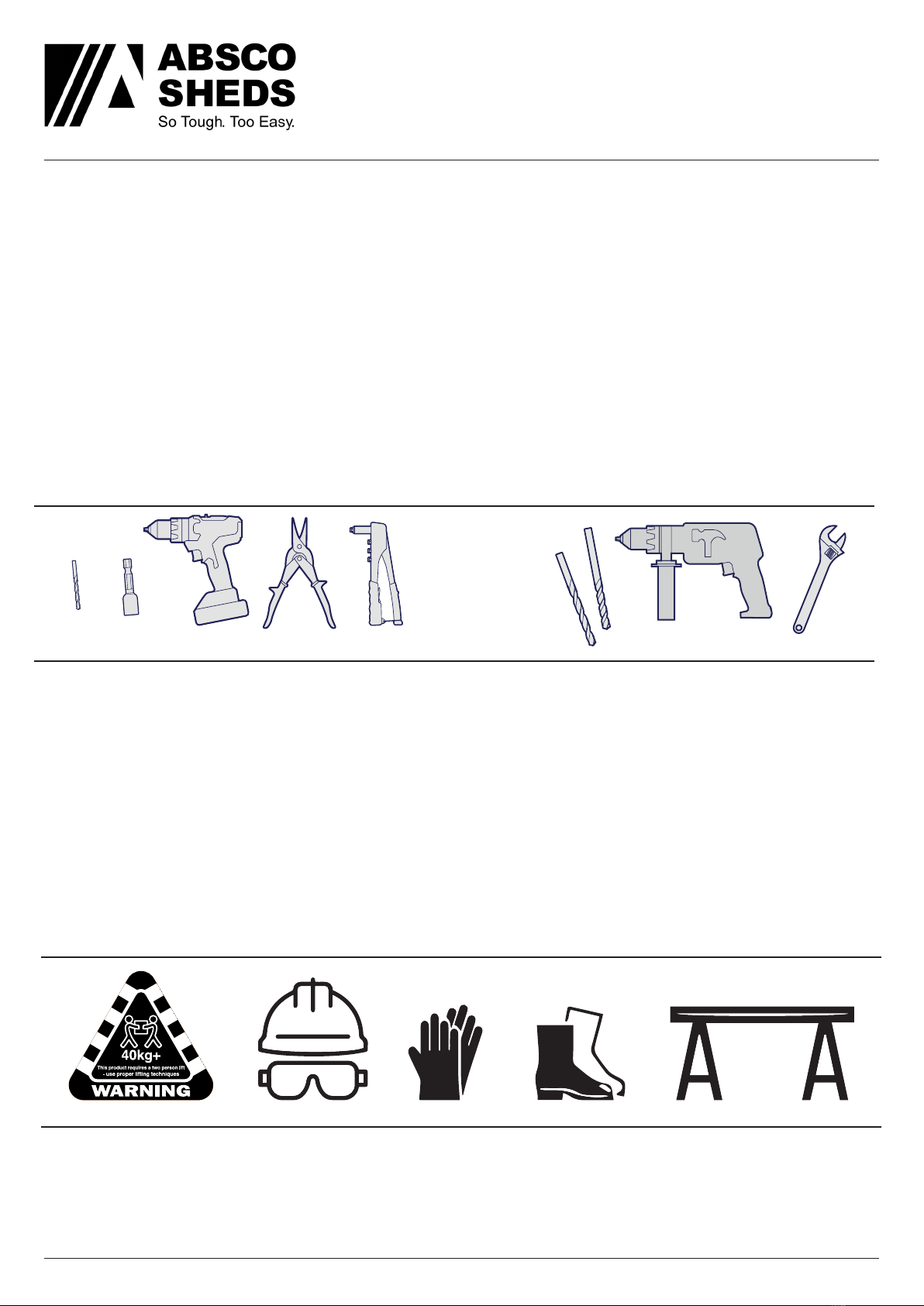

TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
• Do not sit, stand or walk on the roof of your shed.
RECOMMENDED
5/16” Hex driver bit
Hammer drill Shifter
10mm metal drill bit
10mm masonry drill bit
Pop riveterTinsnipsCordless drill
4mm drill bit

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 3 21/09/2022

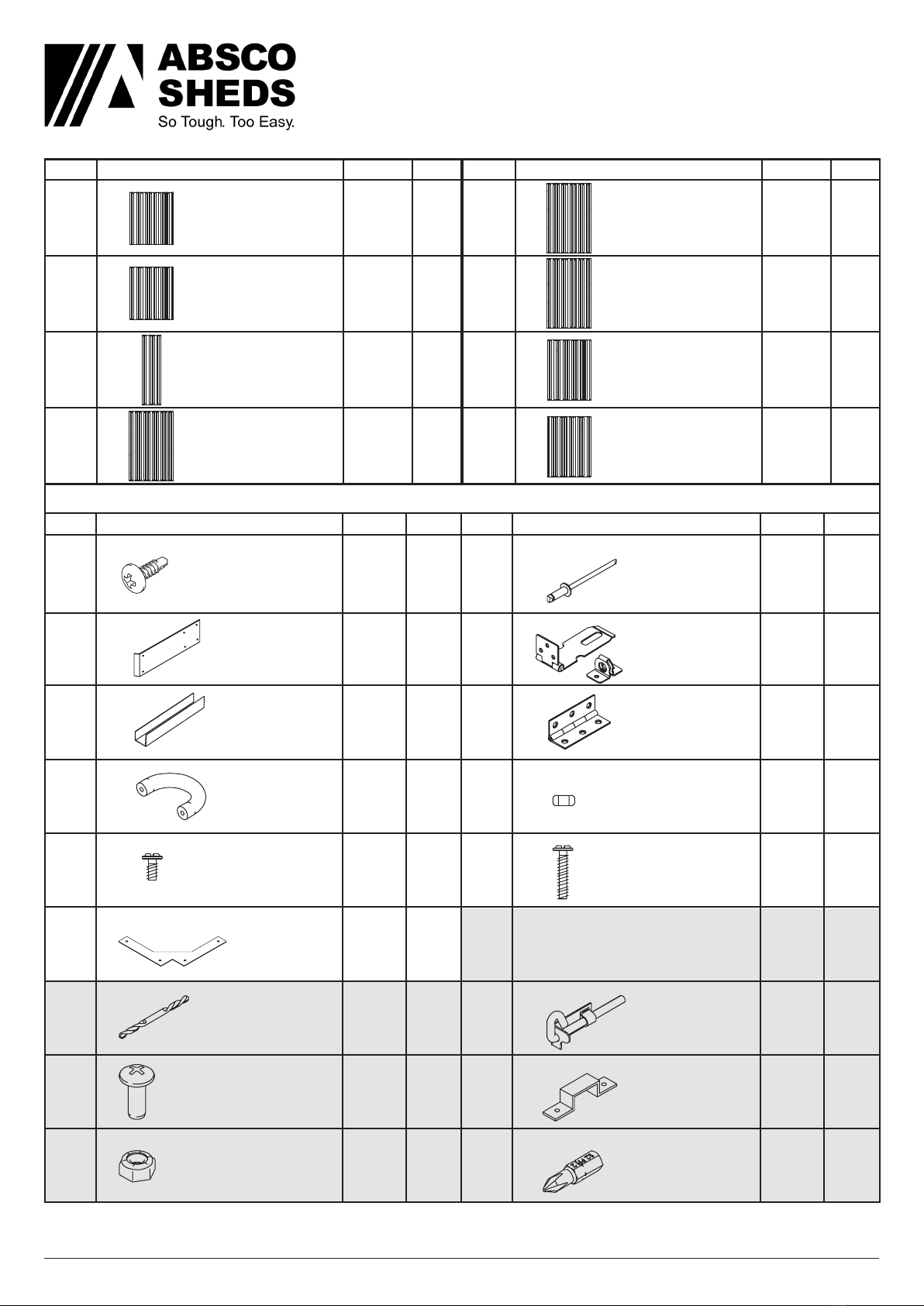

FITTINGS PACK
QTY DESCRIPTION PART # CHK QTY DESCRIPTION PART # CHK
220
8G x 12mm SELF
DRILLING PAN
HD SCREW
FAST
096 1
SBS43E POP
RIVET
FAST009 x 50
PACK
12
2DOOR
PLATE 12A 1 LATCH & STAPLE
FAST
052
6CHANNEL
JOINER CSJ 7
64 mm
BUTT HINGE
6 HOLE
FAST
012A
2C HANDLE
32 mm
FAST
048 2M4 HEX NUT
NYLOCK
FAST
064
4M4 X 10 mm
PAN HD SCREW
FAST
060 2M4 X 25 mm
PAN HD SCREW
FAST
047
2L-PLATE BKT
262 1DOUBLE DOOR
FITTINGS PACK
PSTK
DBL
13 mm
DRILL BIT DRILL 3 PADBOLT FAST
006
83/16” ROUND HD
BOLTS
FAST
002 2PADBOLT
HASP
FAST
007
83/16”
NYLOCK NUTS
FAST
003 1PHILLIPS HD
DRIVER BIT
FAST
038
QTY DESCRIPTION PART # CHK
2STEEL SHEET
852 x 773 mm B91
1STEEL SHEET
852 x 773 mm C67
2STEEL SHEET
1130 x 329 mm D64
2STEEL SHEET
1130 x 773 mm Y81
QTY DESCRIPTION PART # CHK
1STEEL SHEET
1130 x 773 mm Q32
2STEEL SHEET
1130 x 773 mm Q33
1STEEL SHEET
1070 x 773 mm
DOOR
L
1STEEL SHEET
1070 x 773 mm
DOOR
R

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 4 21/09/2022

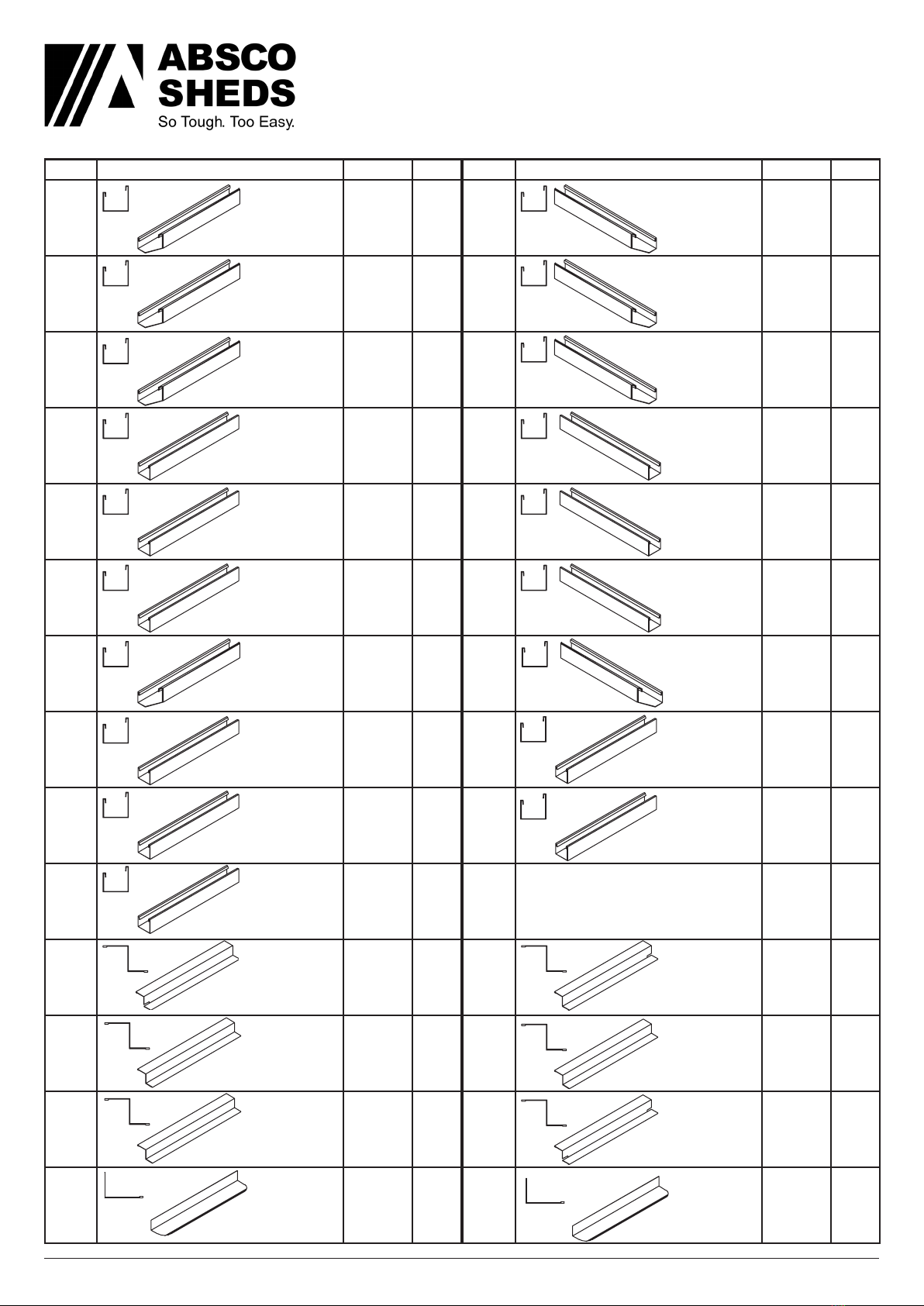

QTY DESCRIPTION PART # CHK
2CHANNEL
1132 mm C64L
1CHANNEL
1132 mm C20L
1CHANNEL
1132 mm L67L
1CHANNEL
1137 mm D77L
1CHANNEL
1137 mm V74L
1CHANNEL
392 mm 79AL
1CHANNEL
632 mm 61PL
4CHANNEL
773 mm 61G
4CHANNEL
773 mm 58C
2CHANNEL
1070 mm 58Y
1JAMB
1176 mm 90AL
1JAMB
1120 mm 91A
3JAMB
1060 mm 91J
2LIP
1130 mm B85
QTY DESCRIPTION PART # CHK
2CHANNEL
1132 mm C64R
1CHANNEL
1132 mm C20R
1CHANNEL
1132 mm L67R
1CHANNEL
1137 mm D77R
1CHANNEL
1137 mm V74R
1CHANNEL
1176 mm 79AR
CHANNEL
632 mm 61PR
1CHANNEL
1070 mm 58T
1CHANNEL
1070 mm 58W
1JAMB
392 mm 90AR
1JAMB
1090 mm 91S
2JAMB
1130 mm 91K
2LIP
852 mm R14

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 5 21/09/2022

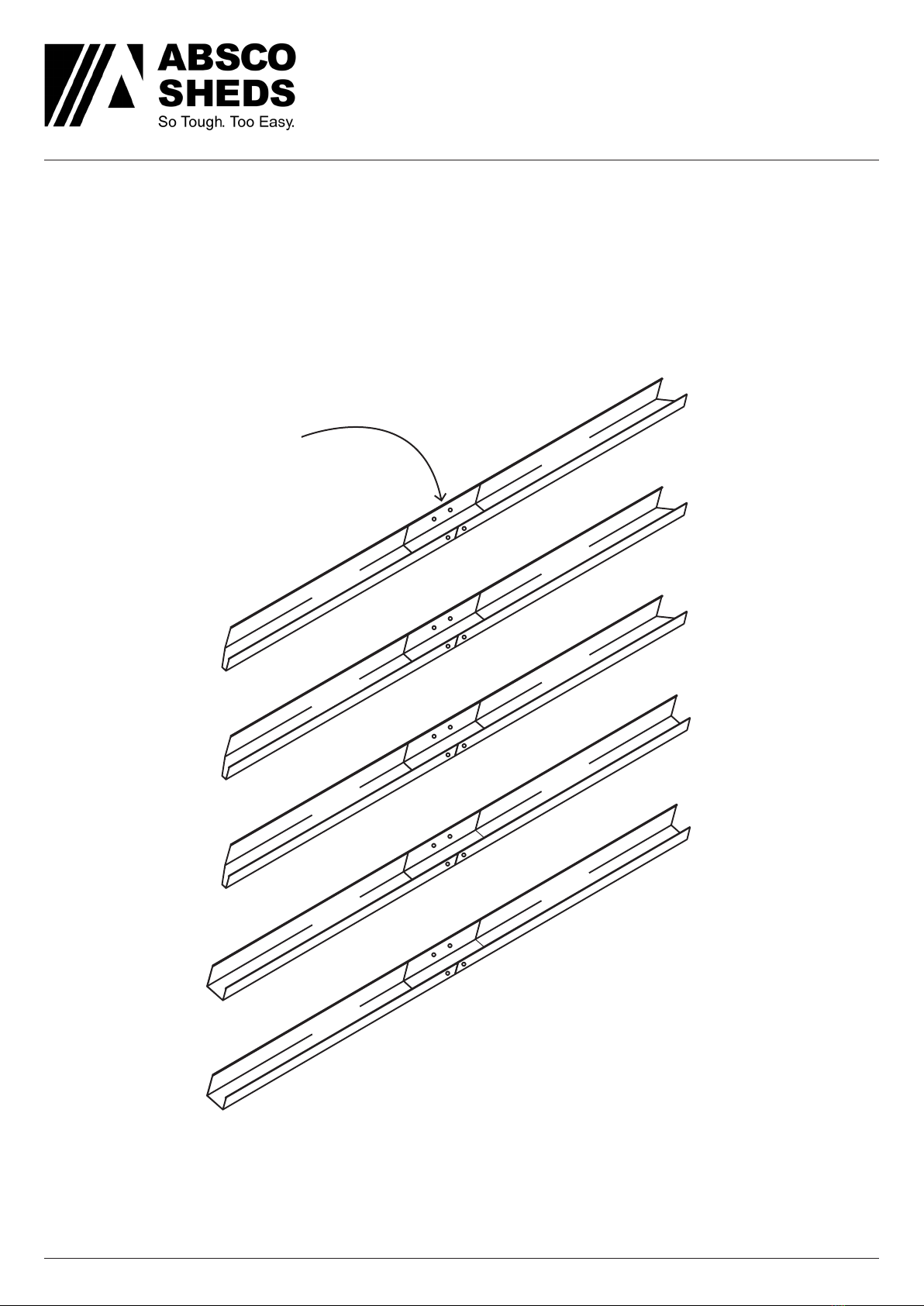

Join together 12x channel sections using 6x channel joiners (CSJ)
See the next page for a photo guide on how to splice channels.
PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
2 x C64R
2 x C64L
1 x C20R
1 x C20L
1 x L67R
1 x L67L
1 x D77R
1 x D77L
1 x V74R
1 x V74L
= 2 x C64
= 1 x C20
= 1 x L67
= 1 x D77
= 1 x V74
C64R
C20R
L67R
D77R
V74R
C64L
C20L
L67L
D77L
V74L
Channel
Joiner
“CSJ”

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 6 21/09/2022
Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel. Drilling of screws
on the joined channels is being
done after sheets are locked on
the spliced channels.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 7 21/09/2022
SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 8 21/09/2022

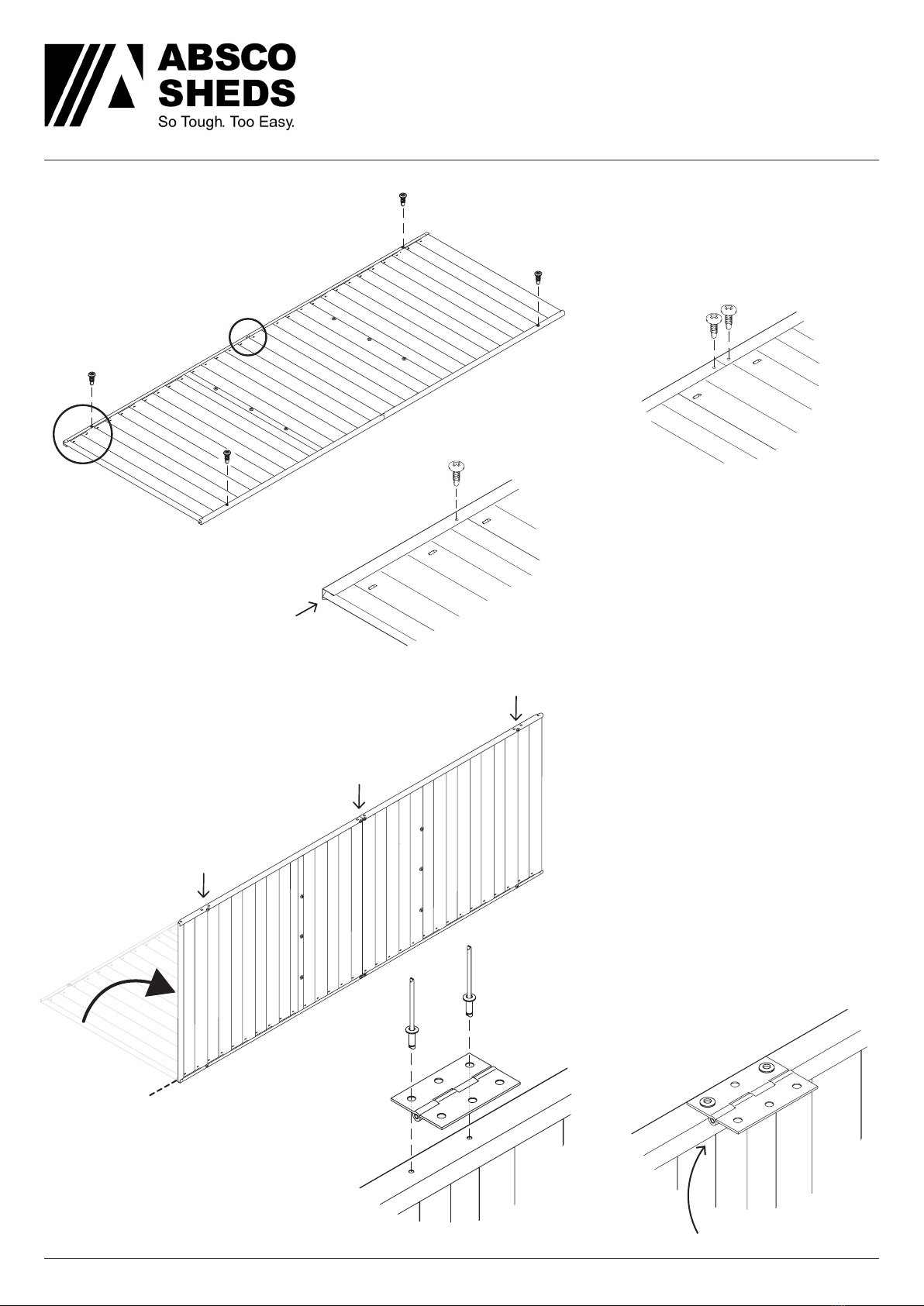

REAR PANEL ASSEMBLY

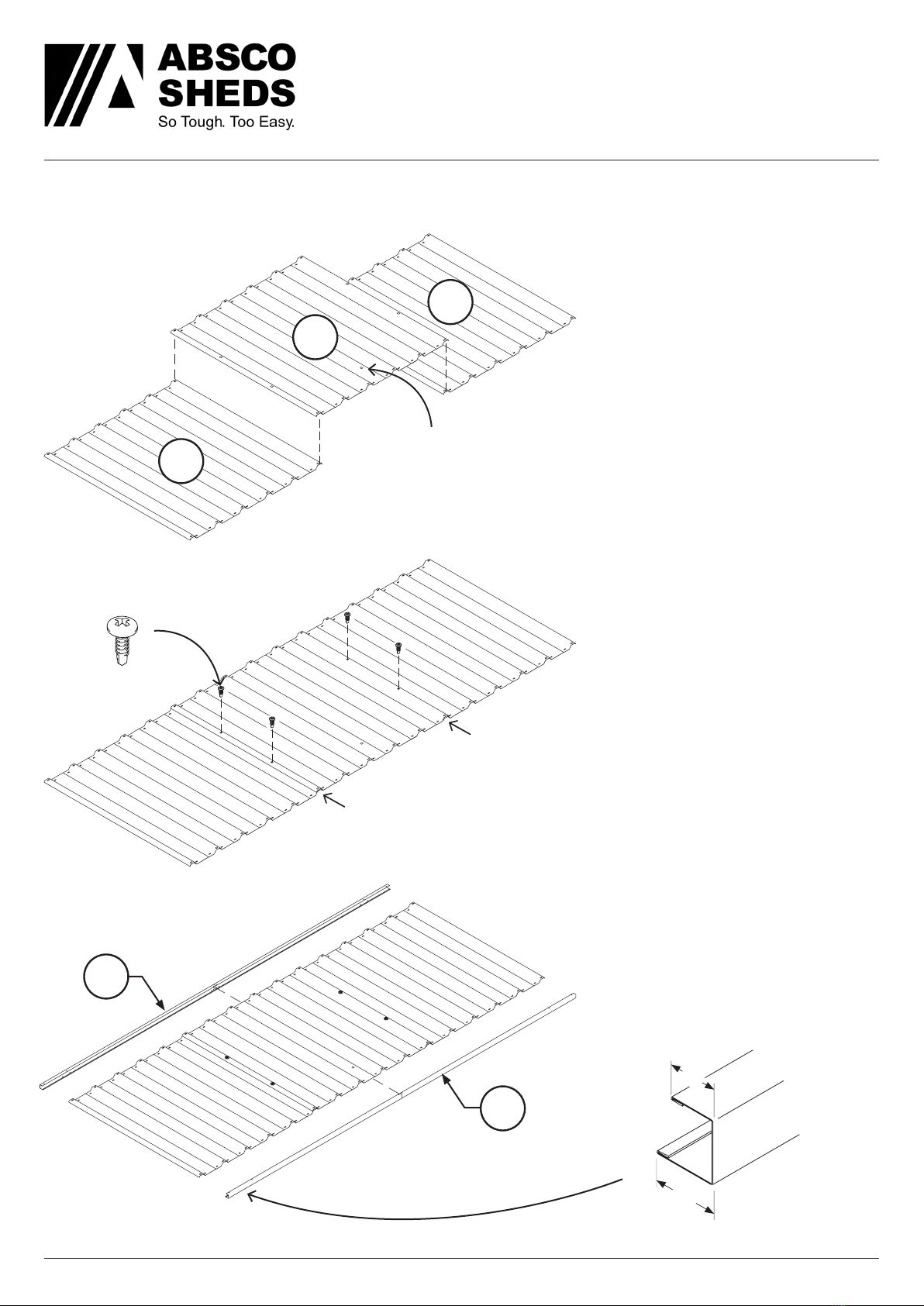

1. Layout and overlap sheets by
one rib as shown.
Sheet Q32 must be on top.
2. Make sure the ends of the
sheets are flush at overlap before
continuing.
Use the holes in the top sheet
as a template and fasten to
the sheet beneath with six self
drilling screws FAST096.
3. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
Q32
Q33
Q33
FAST096
Check ends are flush first
C20
L67
15

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 9 21/09/2022
FAST009
FAST012A
Sheet &
channel are
flush
4. Now both channels are
attached, fasten their L&R pieces
to the CSJ with a self drilling
screw FAST096 in each top hole -
four screws total.
REAR PANEL ASSEMBLY
CONTINUED

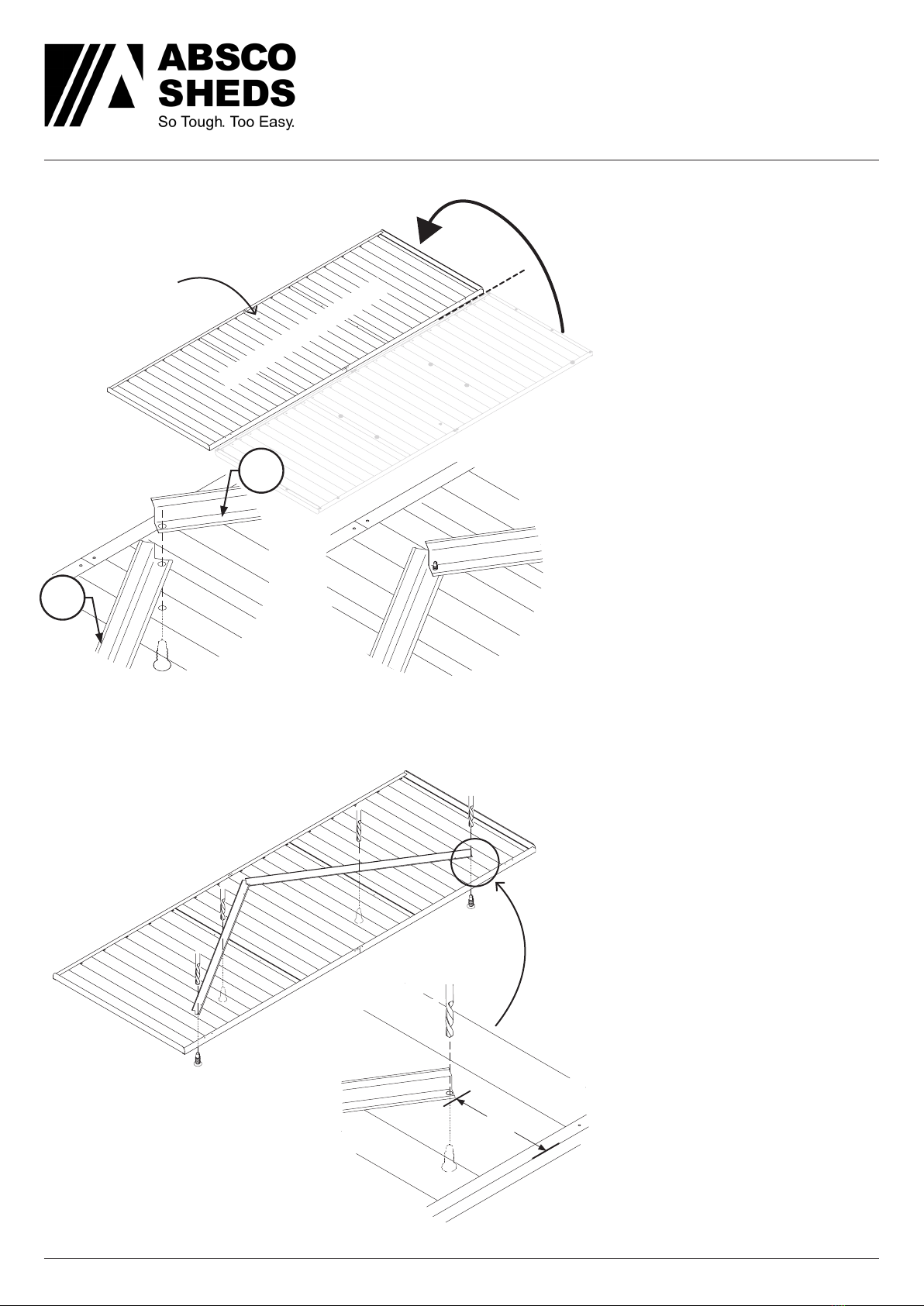

5. Align the side of the sheeting
with the end of the channels and
fasten with a self drilling screw
FAST096 through the hole in the
channel.
Do this at all corners - four
screws total.
6. Stand up the panel.
Align the hinge FAST012A with
the holes in to the top of the
channel.
Make sure the bump of the hinge
is down and to the outside of the
panel.
Use a pop riveter and two
FAST009 rivets per hinge.
Fit all three hinges with six pop
rivets total.
4
5
Stand the panel up so holes
for hinges are to the top
‘bump’ of hinge
- This completes the rear panel -

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 10 21/09/2022

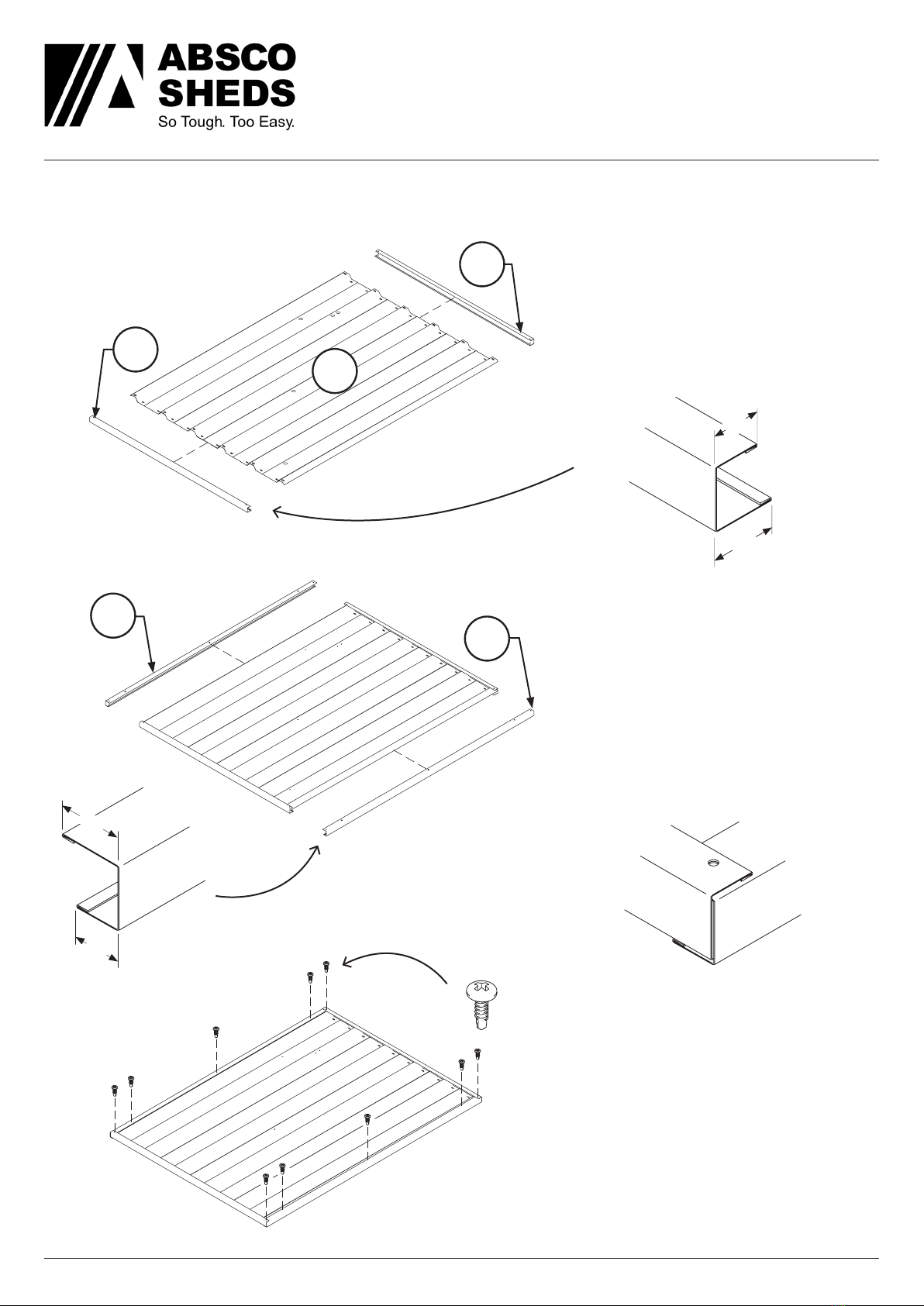

SIDE PANEL ASSEMBLY

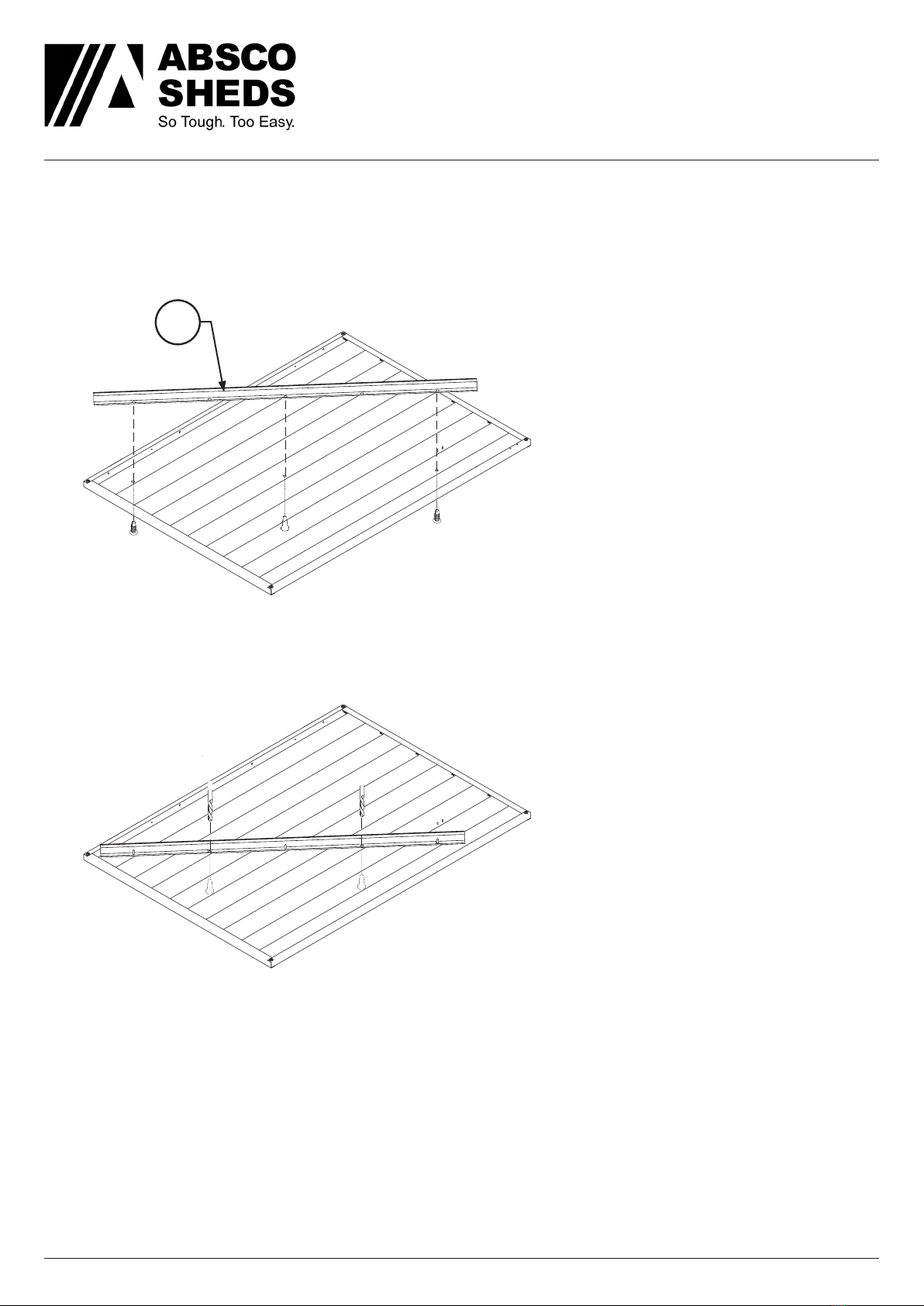

1. Orientate the Y81 sheet as
shown.
2. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
20
15
Y81
Edge holes this side
61G
61G
B85
FAST096
3. Take a B85 lip and place on
top of the sheet and inside both
channels. Make sure the face
with two holes is to the top.
Next, using these holes and the
end holes in the channels as a
template fasten into the sheet
beneath with four self drilling
screws FAST096.
- This completes a side panel - Repeat to make the 2nd panel -
2 required

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 11 21/09/2022

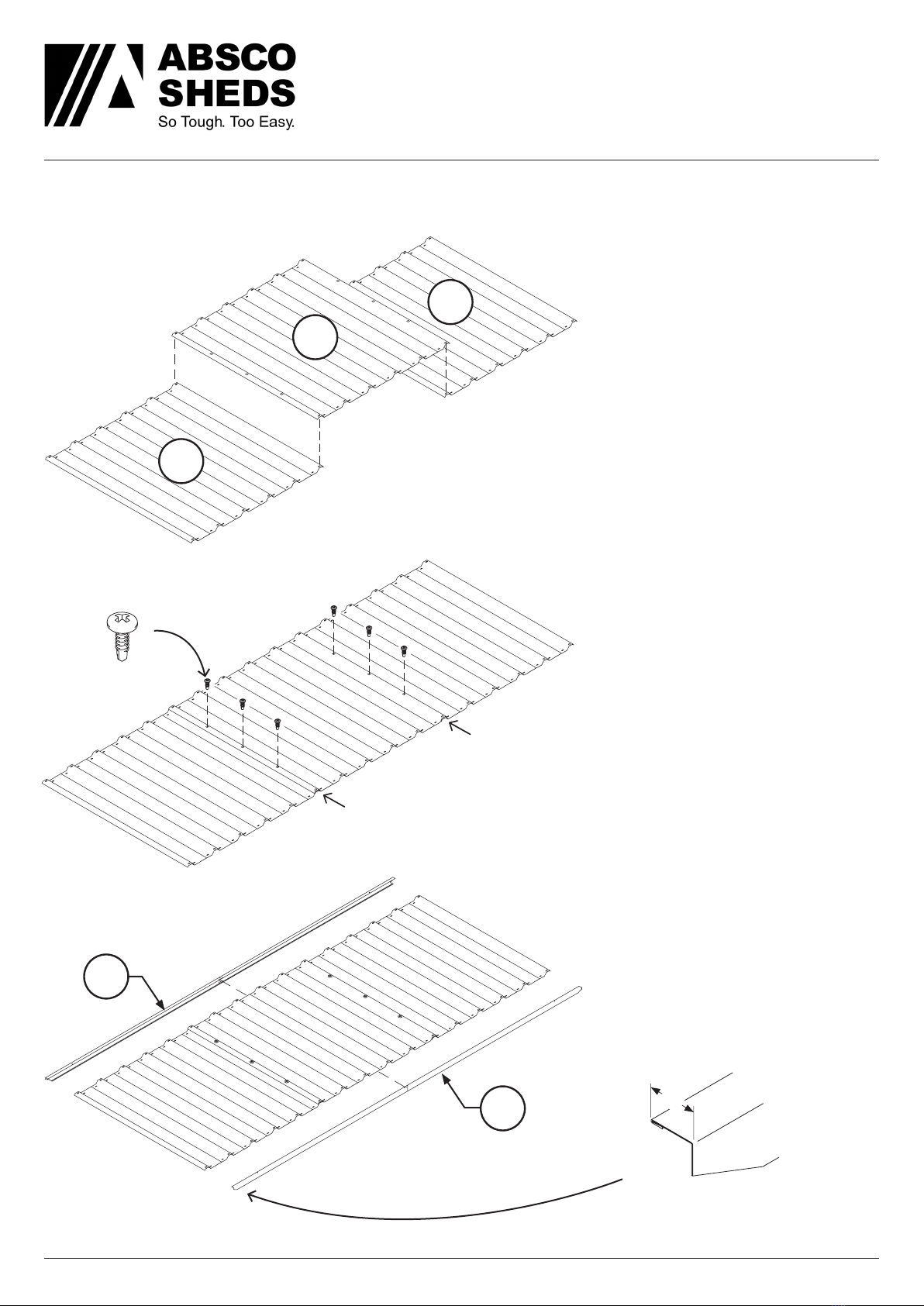

LID PANEL ASSEMBLY
1. Layout and overlap sheets by
one rib as shown.
Sheet C67 must be on top, and
orientated so the middle hole is
to the front.
2. Make sure the ends of the
sheets are flush at overlap before
continuing.
Use the holes in the top sheet
as a template and fasten to the
sheet beneath with four self
drilling screws FAST096.
3. Attach the front and rear
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
top of the sheeting
C67
B91
B91
FAST096
This hole to front
Check ends are flush first
V74
D77
20
15

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 12 21/09/2022
Sheet &
channel are
flush
4. Now both channels are
attached, fasten their L&R pieces
to the CSJ with a pop rivet
FAST009 in each top hole.
Drill out holes with supplied drill
bit first.
6. Take both R14 lips and place
on top of the sheet and inside
both channels. Make sure the
face with holes is to the top.
Next, using these holes and the
end holes in the channels as a
template fasten into the sheet
beneath with four self drilling
screws FAST096 - 8 screws total
LID PANEL ASSEMBLY
CONTINUED
4
5
5. Align the side of the sheeting
with the end of the channels and
fasten with a self drilling screw
FAST096 through the hole in the
channel.
Do this at all corners - four
screws total.
R14
R14

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 13 21/09/2022
160
LID PANEL ASSEMBLY
CONTINUED
Flip the panel over, Check you
have the panel orientated as
shown for the next step.
7. Attaching the lid braces is
next. Take two 91J jambs and
orientate them as shown.
Align the end holes with the
middle sheet hole and fasten up
from beneath the panel with one
self drilling screw FAST096.
8. Now the braces have a screw
holding them, we’ll secure the
other end.
A. Position the ends of each 91J
inset 160 mm as pictured below.
B. Use the hole in the 91J as
a template & drill through the
sheeting, in the middle of the
pans, with the supplied 3 mm
drill bit DRILL.
C. Fasten from underneath with
one self drilling screw FAST096.
Repeat B and C for the
remaining two positions shown.
4 screws total.
This middle
sheet hole
will be used
in next step.
Underside of lid panel
91J
91J
7
DRILL
- This completes the lid panel -

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 14 21/09/2022
20
15

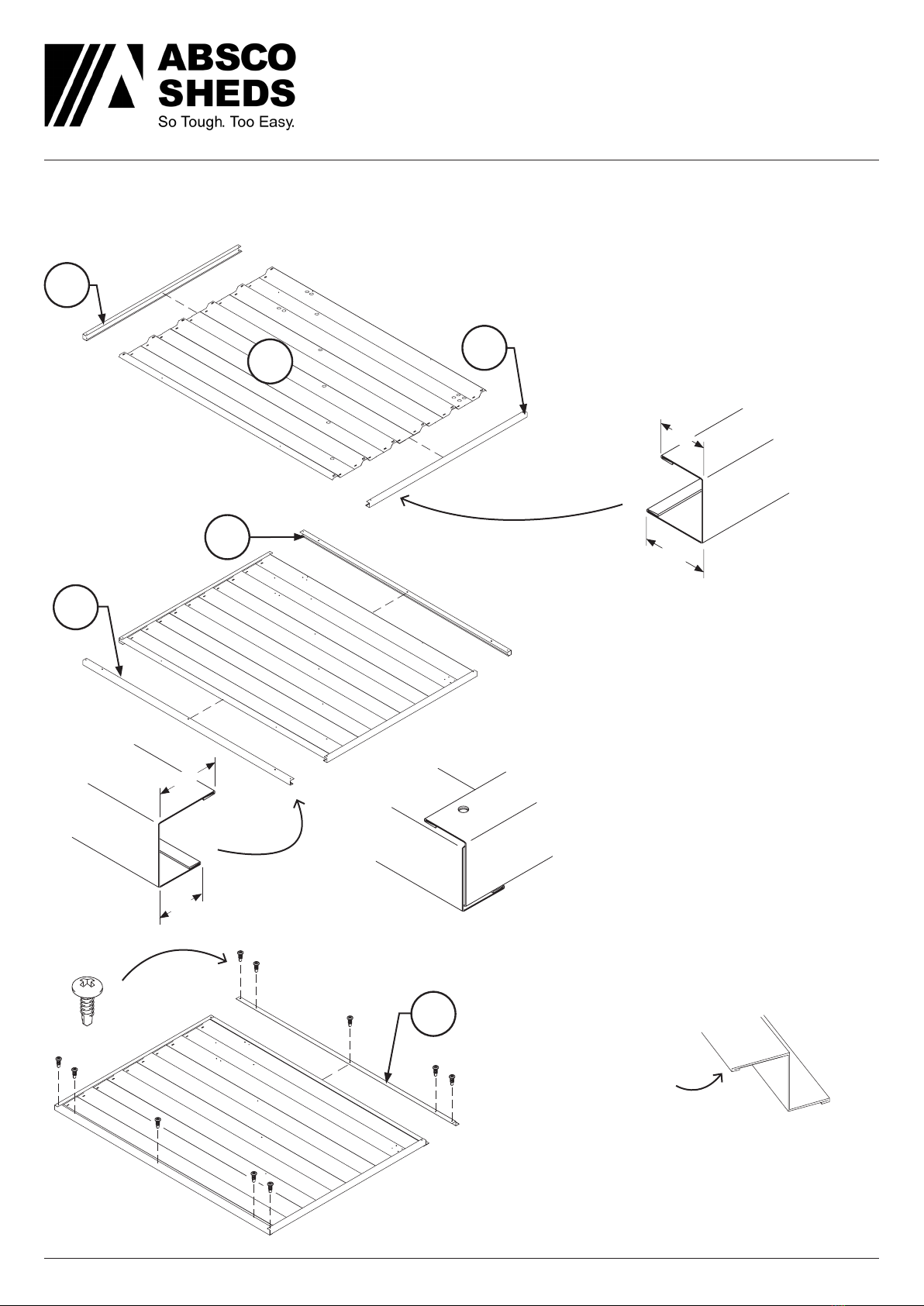

LEFT DOOR PANEL ASSEMBLY 1. Orientate the DOORL sheet
as shown.
Sheet holes are
exaggerated for
illustrative purposes
2. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
3. Attach the left and right
channels.
Make sure you have the longer,
20 mm side of the channel to the
outside.
Insert the 20 mm side of the
channel in the top and bottom
channels, on top of the sheet
and let the bottom side go
under.
4. Take the 91J jamb and insert
in the top and bottom channels,
on top of the 58T channel.
Next, using the top holes as
templates fasten into the sheet
beneath with six self drilling
screws FAST096 per side - 10
screws total
20
15
58C
58C
58Y
91J
58T
FAST096
Insert this edge
DOOR
L

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 15 21/09/2022
LEFT DOOR PANEL ASSEMBLY
CONTINUED

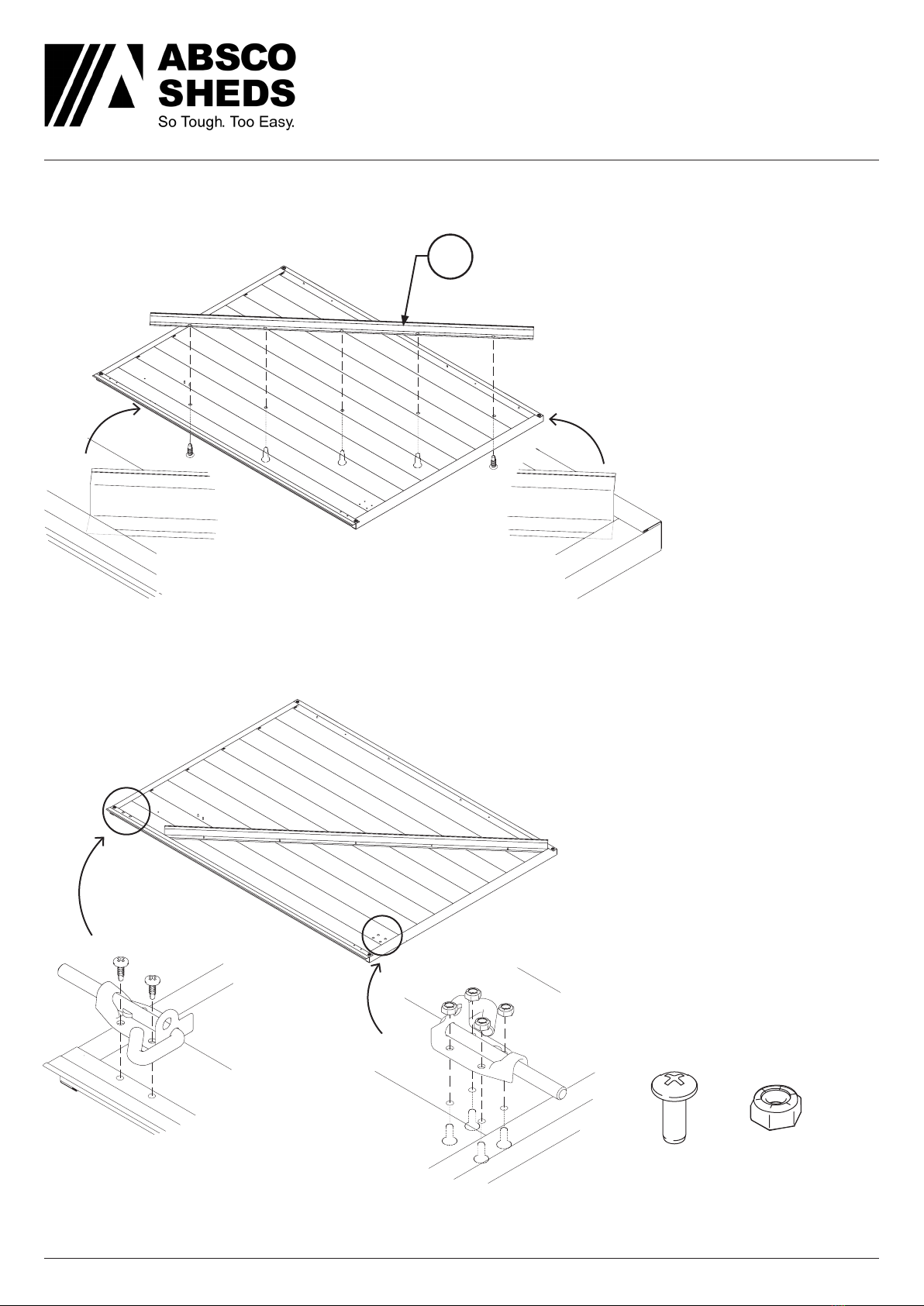

5. Attach the 12A door plate
to the sheet with six self drilling
screws FAST096.
6. Let’s attach the hinges.
Use the supplied 3 mm drill bit
DRILL and go through these
existing channel holes into the
sheet behind.
Align the hinge FAST012A with
these holes.
Use a pop riveter and three
FAST009 rivets per hinge.
‘bump’ of hinge to
outside.
Inside of
door panel
7. Turn the panel over as shown.
Fasten all corners with pop rivets
FAST009.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 16 21/09/2022
8. Now we’ll fit the door brace
91A to the inside of the door.
Align the holes in the brace with
holes in the door.
Make sure to tuck both ends of
the brace into the channels that
frame the door.
Fasten from beneath with five
self drilling screws FAST096.
9. Attaching the padbolts.
The top padbolt is fixed with
two self drilling screws to the
channel.
The bottom padbolt is fastened
with four bolts FAST002 and
nylock nuts FAST003 through the
holes in the DOORL sheet.
Make sure you poke the bolt in
from the outside and keep the
nut to the inside.
LEFT DOOR PANEL ASSEMBLY
CONTINUED
91A
Under side
channel Under bottom
channel in corner
FAST002 FAST003
- This completes the left door panel -

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 17 21/09/2022
RIGHT DOOR PANEL ASSEMBLY 1. Orientate the DOORR sheet
as shown.
2. Attach the top and bottom
channels using the SNAP-TiTE
method.
Make sure you have the shorter,
15 mm side of the channel to the
outside of the sheeting
3. Attach the left and right
channels.
Make sure you have the longer,
20 mm side of the channel to the
outside.
Insert the 20 mm side of the
channel in the top and bottom
channels, on top of the sheet
and let the bottom side go
under.
4. Next, using the channel
holes as templates fasten into
the sheet beneath with six self
drilling screws FAST096 per side
- 10 screws total
20
15
FAST096
58C
58C
DOOR
R
20
15
58Y
58W
Sheet holes are
exaggerated for
illustrative purposes

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 18 21/09/2022
RIGHT DOOR PANEL ASSEMBLY
CONTINUED
5. First attach the 12A door
plate through the pair of holes
in the sheet with two self drilling
screws FAST096 at the location
shown.
Next align the padbolt with
the four remaining holes in the
door plate and fasten into the
sheeting underneath with four
more self drilling screws.
6. Let’s attach the hinges.
Use the supplied 3 mm drill bit
DRILL and go through these
existing channel holes into the
sheet behind.
Align the hinge FAST012A with
these holes.
Use a pop riveter and three
FAST009 rivets per hinge.
‘bump’ of
hinge to
outside.
Inside of
door panel
Do these
two first
7. Turn the panel over as shown.
Fasten the corners with pop
rivets FAST009.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 19 21/09/2022
8. Now we’ll fit the door brace
91S to the inside of the door.
Align the holes in the brace with
the three holes in the door.
Fasten from beneath with three
self drilling screws FAST096.
RIGHT DOOR PANEL ASSEMBLY
CONTINUED
91S
- This completes the right door panel -
9. Finally use the last two holes
in the 91S as a template & drill
through the sheeting with the
supplied 3 mm drill bit DRILL.
Fasten from underneath with two
self drilling screw FAST096.

Absco Industries Assembly Instruction Manual
ABSCO BIN COVER
MODEL: 2308WBCK
2.27m W x 0.85m D x 1.15m H
Model: 2308WBCK 1.1 20 21/09/2022
FRONT PANEL ASSEMBLY
1. Take a narrow D64 sheet and
carefully orientate it as shown
with the raw edge to the left.
A 91K jamb will cover this edge,
with the face with six holes on
top of the sheet.
2. Align the ends of the jamb
and sheet and use the holes
in the jamb as a template and
fasten it to the sheeting beneath
with four self drilling screws.
Don’t put a screw in the end
holes yet.
3. Repeat steps 1 and 2 to make
another.
91K
D64
Raw edge - handle carefully
Check ends
are flush first
4. Place these two sheets with
the jambs facing one another as
pictured.
Align the holes in the parts and
attach the channels using the
SNAP-TiTE method.
The longer 20 mm side of the
channel goes into the slot in the
end of the jamb.
Fasten with a self drilling screw
FAST096 at each end of both
jambs - four total.
Align these holes
C64
C64
